Model Whirlpool KESH307GAL1 – Common Parts & Diagrams

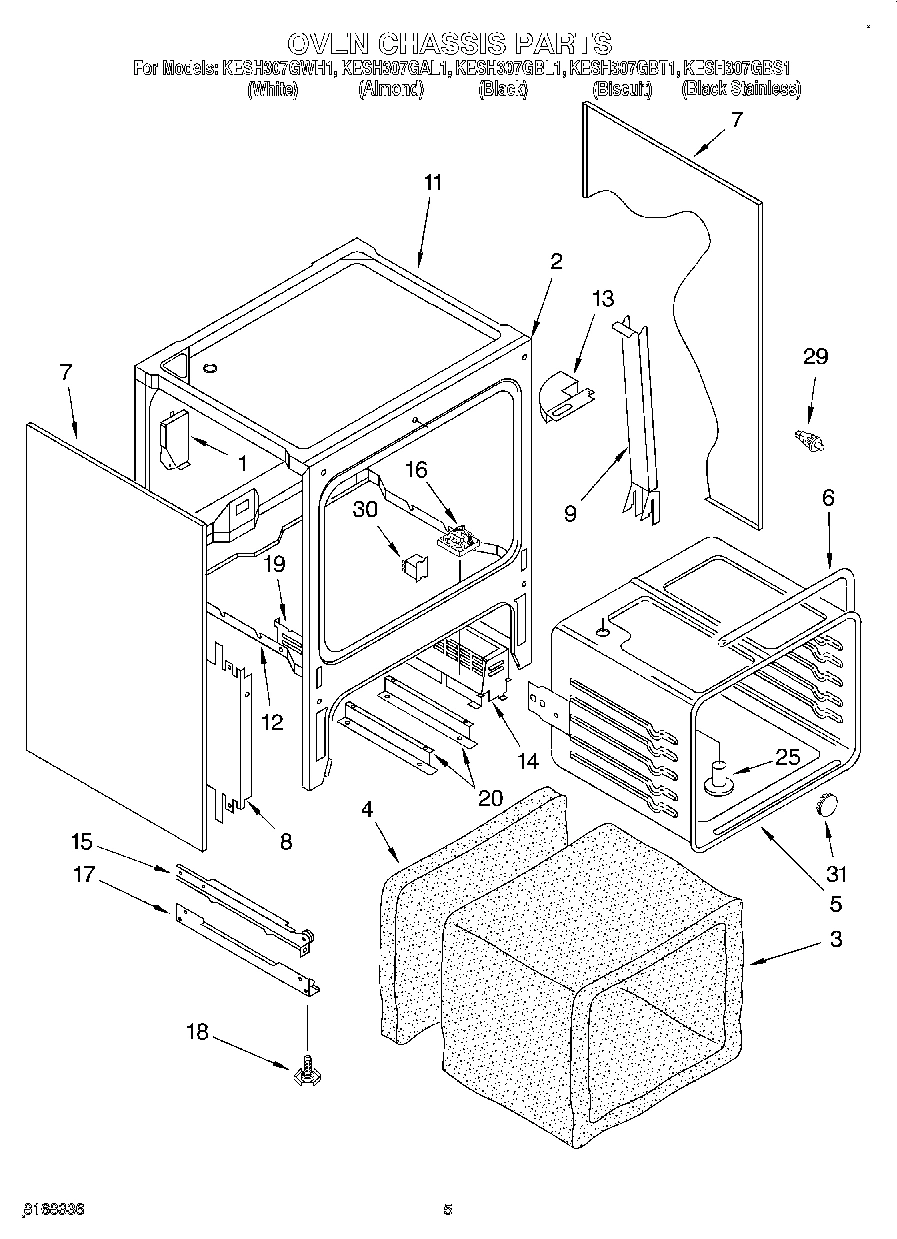

04 - OVEN CHASSIS

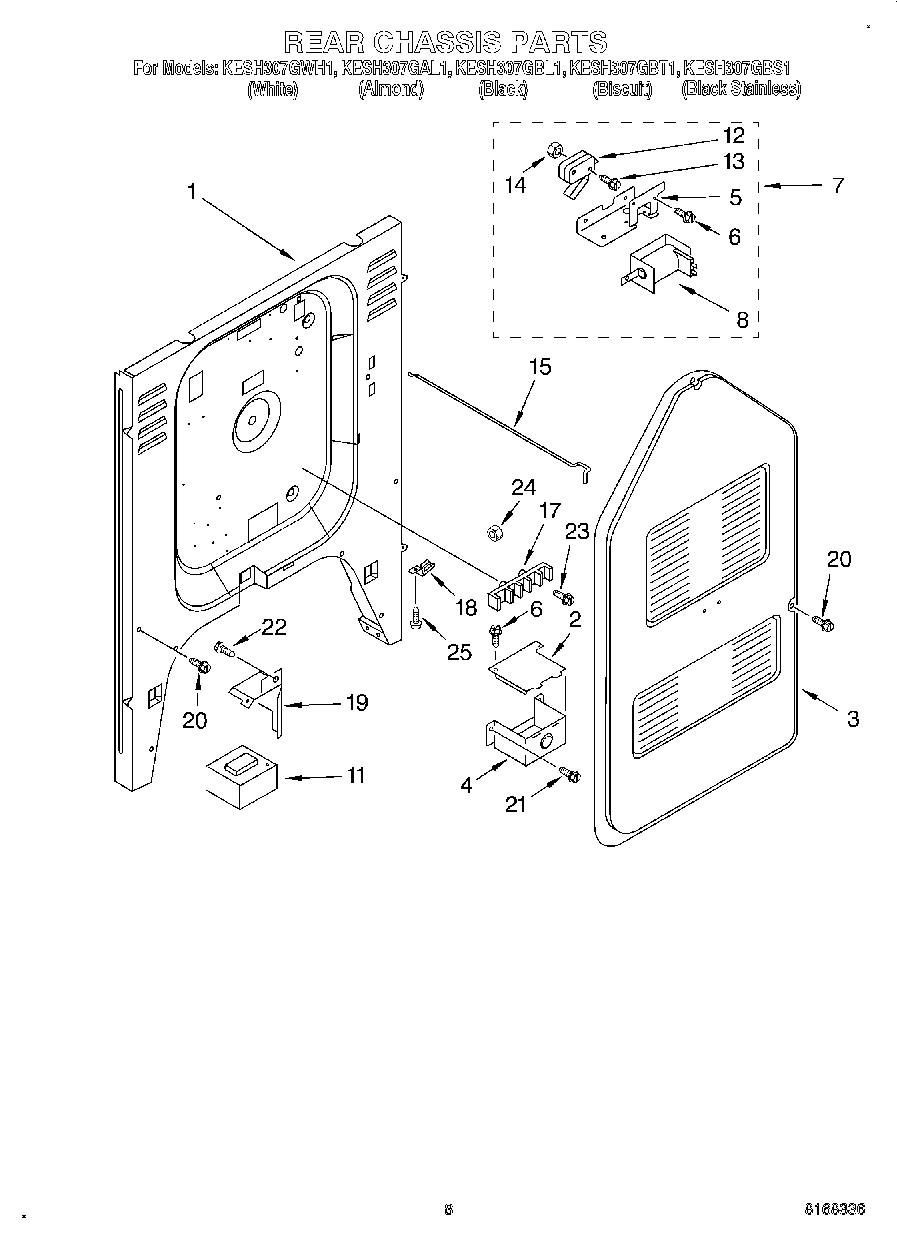

06 - REAR CHASSIS, LIT/OPTIONAL

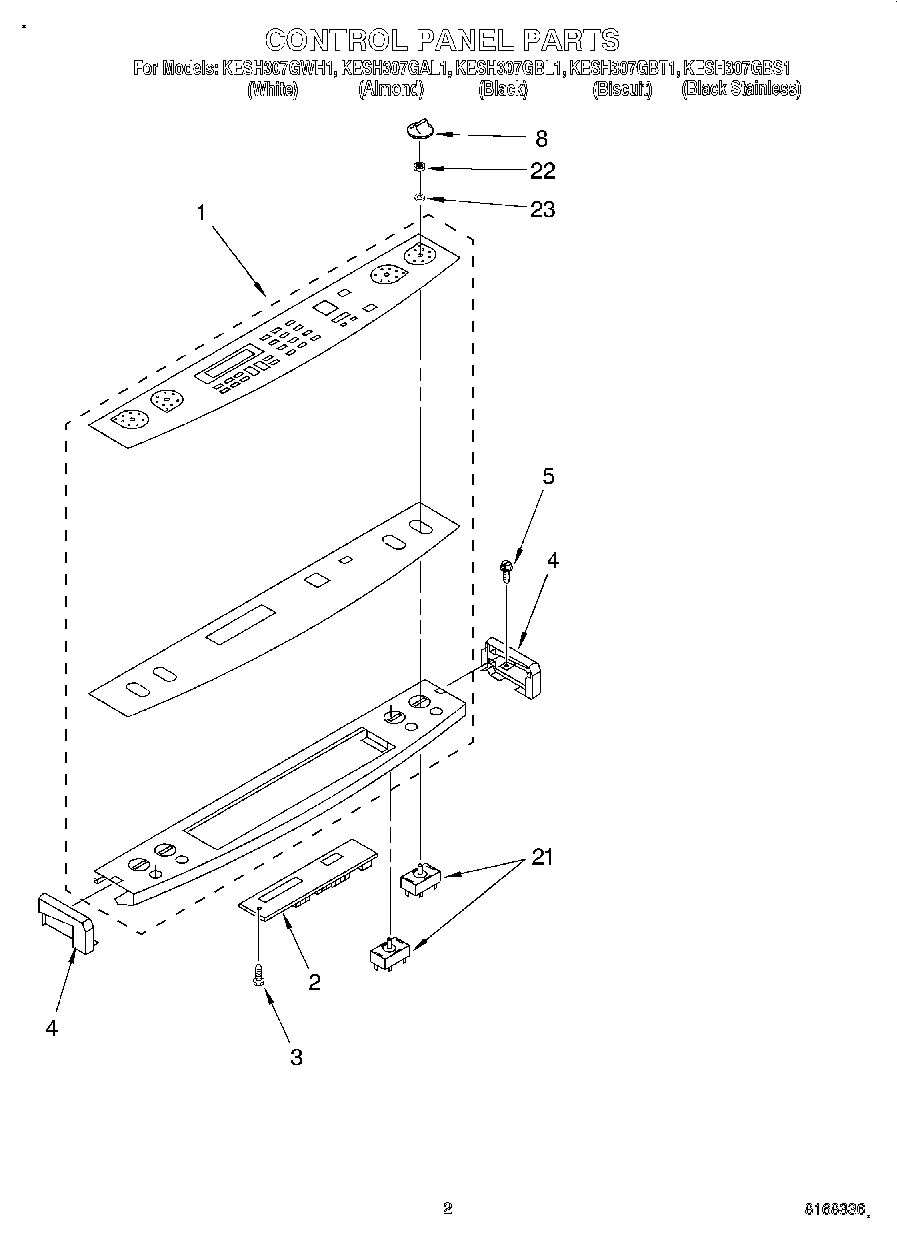

02 - CONTROL PANEL

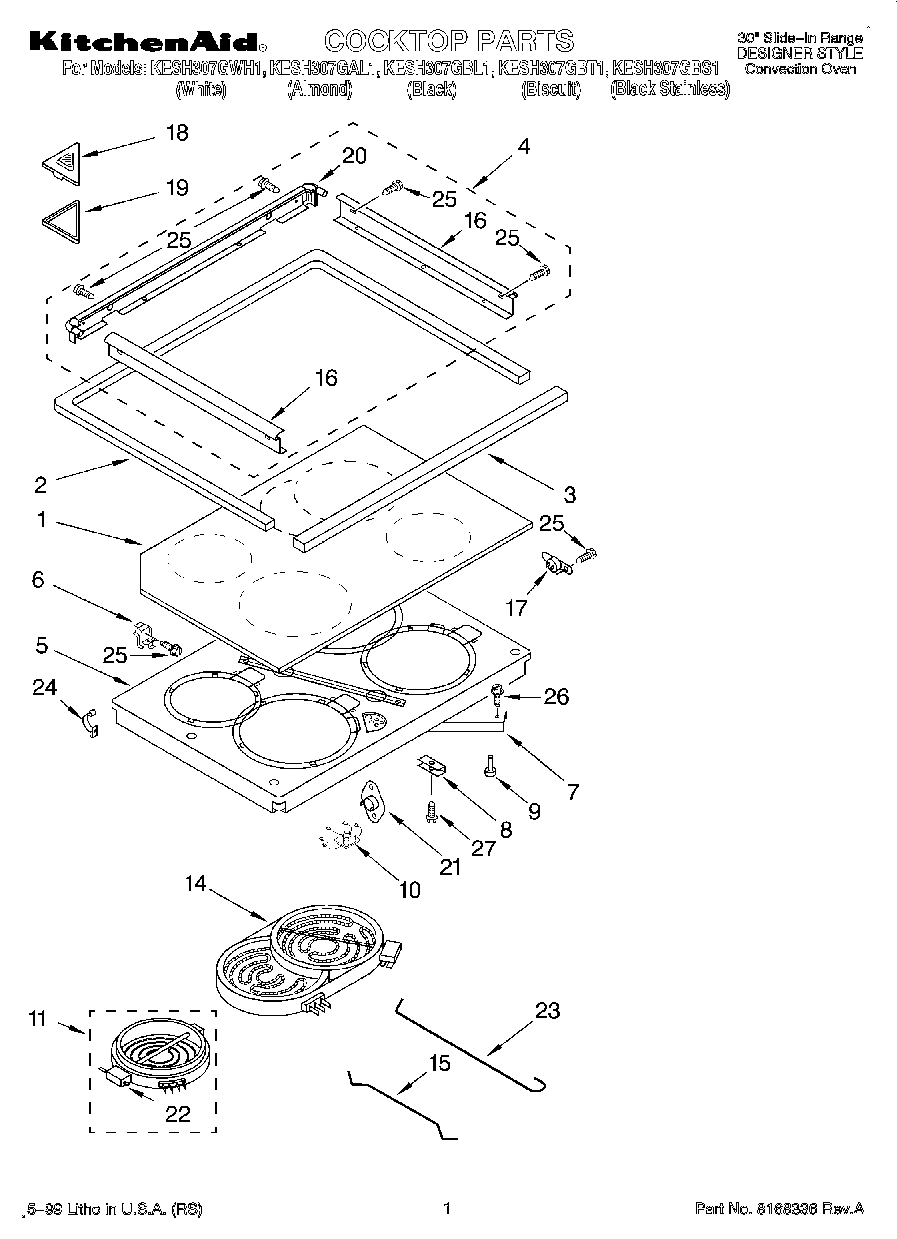

01 - COOKTOP

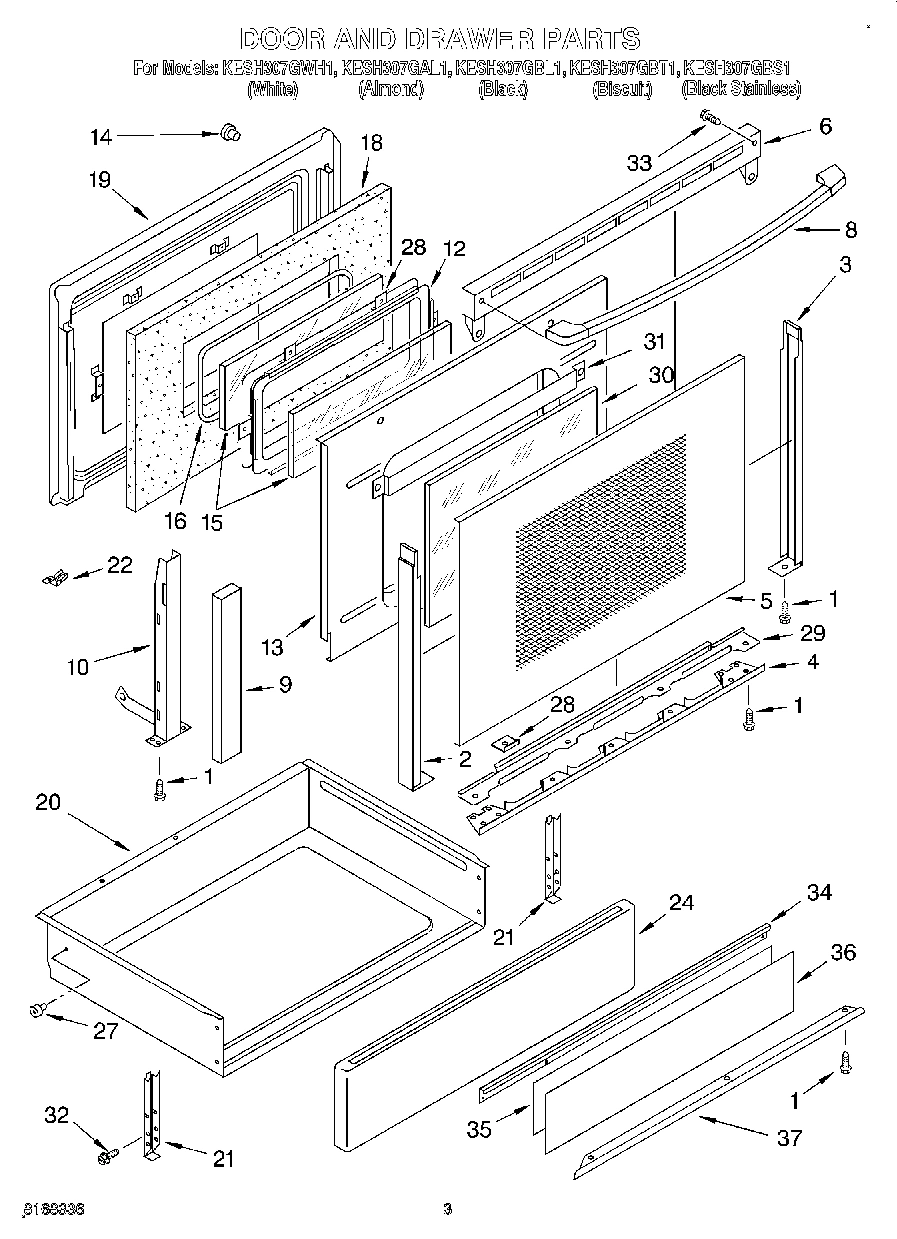

03 - DOOR AND DRAWER

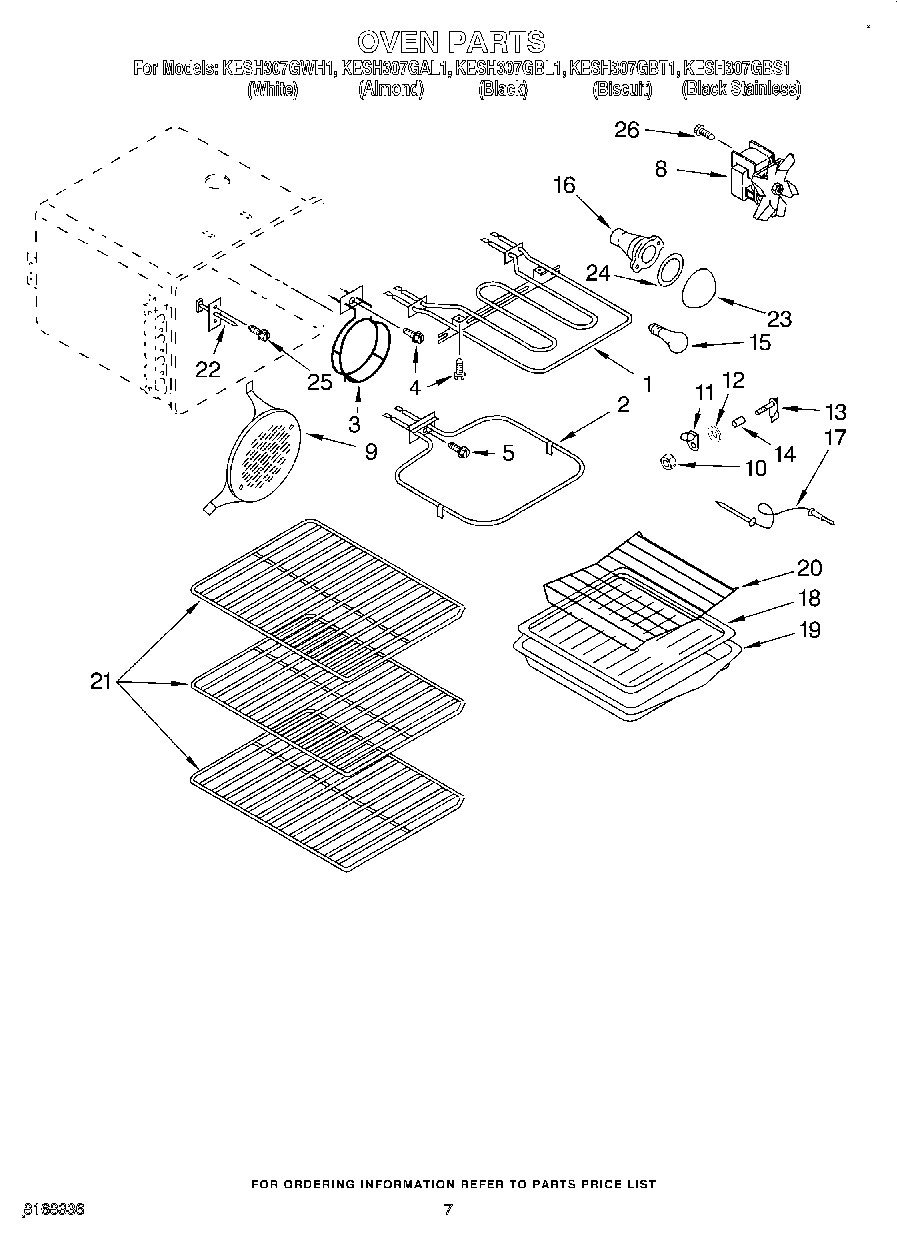

05 - OVEN
Common parts from model Whirlpool KESH307GAL1
WPL 9781656 WPL 9781656 Contact Us For Availability
WPL 9781769 WPL 9781769 Contact Us For Availability
WPL LIT9752686 WPL LIT9752686 Contact Us For Availability
WPL LIT9752775 WPL LIT9752775 Contact Us For Availability
WPL LIT9753027 WPL LIT9753027 Contact Us For Availability
WPL LIT9753028 WPL LIT9753028 Contact Us For Availability
WPL LIT9753309 WPL LIT9753309 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (White) WPL 9751898 Contact Us For Availability
1
Console, Glass (Black) WPL 9751900 Contact Us For Availability
1
Console, Glass (Almond) WPL 9751903 Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9751903CC Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751755 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751756 Contact Us For Availability
1
Cooktop, Ceran (Black) WPL 9751757 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
2
Timer, Electronic WPL 3191106 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9750631PC Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Screw, (2) WPL 9780271 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9750632PC Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability
4
End Cap (Left Hand) (Biscuit) WPL 9751039FC Contact Us For Availability
4
(End Cap Left Hand) (Almond) WPL 9751039FT Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (Biscuit) WPL 9751040FC Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9751040FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 9781832PT Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Support, Element WPL 9781548 Contact Us For Availability
5
Glass, Door (Black Stainless) WPL 9753378 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Knobs, Control (8) (Almond) WPL 9750372FT Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Baffle, Convection WPL 9752670GM Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Block, Balance WPL 9753413 Contact Us For Availability
11
Element, Surface (2500W - LF) WPL 8053605 Contact Us For Availability
11
Element, Surface (1800W - RF) WPL 9753476 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
13
Screw WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Dual Element, RR WPL 9753477 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Trim, Side Frame (Black) WPL 9781828PB Contact Us For Availability
16
Trim, Side Frame (Biscuit) WPL 9781828PC Contact Us For Availability
16
Trim, Side Frame (Almond) WPL 9781828PT Contact Us For Availability
16
Trim, Side Frame (White) WPL 9781828PW Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
20
Screw WPL 423247 Contact Us For Availability
20
Trim, Rear Frame (Incls. End Caps) (Black) WPL 9781831PB Contact Us For Availability
20
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
20
Trim, Rear (Includes End Caps) (Almond) WPL 9781831PT Contact Us For Availability
20
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
20
Drawer & Roller (Black Stainless Model) WPL 9750257 Contact Us For Availability
20
Drawer & Roller (White, Almond, Black, & Bisc WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Limiter, Temp (1800W - RF) WPL 3169345 Contact Us For Availability
22
Limiter, Temp (2500W - LF) WPL 8053620 Contact Us For Availability
22
Limiter, Temp (Dual Element - RR) WPL 8054014 Contact Us For Availability
22
Retainer, Glass WPL 9750676 Contact Us For Availability
23
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
23
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Fr WPL 9750168PW Contact Us For Availability
24
WPL 9750569PB WPL 9750569PB Contact Us For Availability
25
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
25
WPL 9751745 WPL 9751745 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
25
Grease WPL 261582 Contact Us For Availability
25
Coffee WPL 261886 Contact Us For Availability
25
New Avocado WPL 261888 Contact Us For Availability
25
Harvest Gold WPL 261890 Contact Us For Availability
25
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
25
WPL 72108 WPL 72108 Contact Us For Availability
25
WPL 799832 WPL 799832 Contact Us For Availability
25
WPL 9750221 WPL 9750221 Contact Us For Availability
25
WPL 9750222 WPL 9750222 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
25
Screw WPL 9781509 Contact Us For Availability
26
Screw, 10 x 1/2`` WPL 9780272 Contact Us For Availability
27
Screw WPL 9751871 Contact Us For Availability
28
WPL 9781502 WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
WPL 9781771 WPL 9781771 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
WPL 9781592 WPL 9781592 Contact Us For Availability
31
WPL 9750693 WPL 9750693 Contact Us For Availability
34
WPL 9750614PB WPL 9750614PB Contact Us For Availability
35
WPL 9753329 WPL 9753329 Contact Us For Availability
36
WPL 9753293 WPL 9753293 Contact Us For Availability
37
WPL 9750613PB WPL 9750613PB Contact Us For Availability
× ![]()
