Model Whirlpool KESC307HWH8 COOKTOP – Common Parts & Diagrams
02 - CONTROL PANEL
01 - COOKTOP, LITERATURE

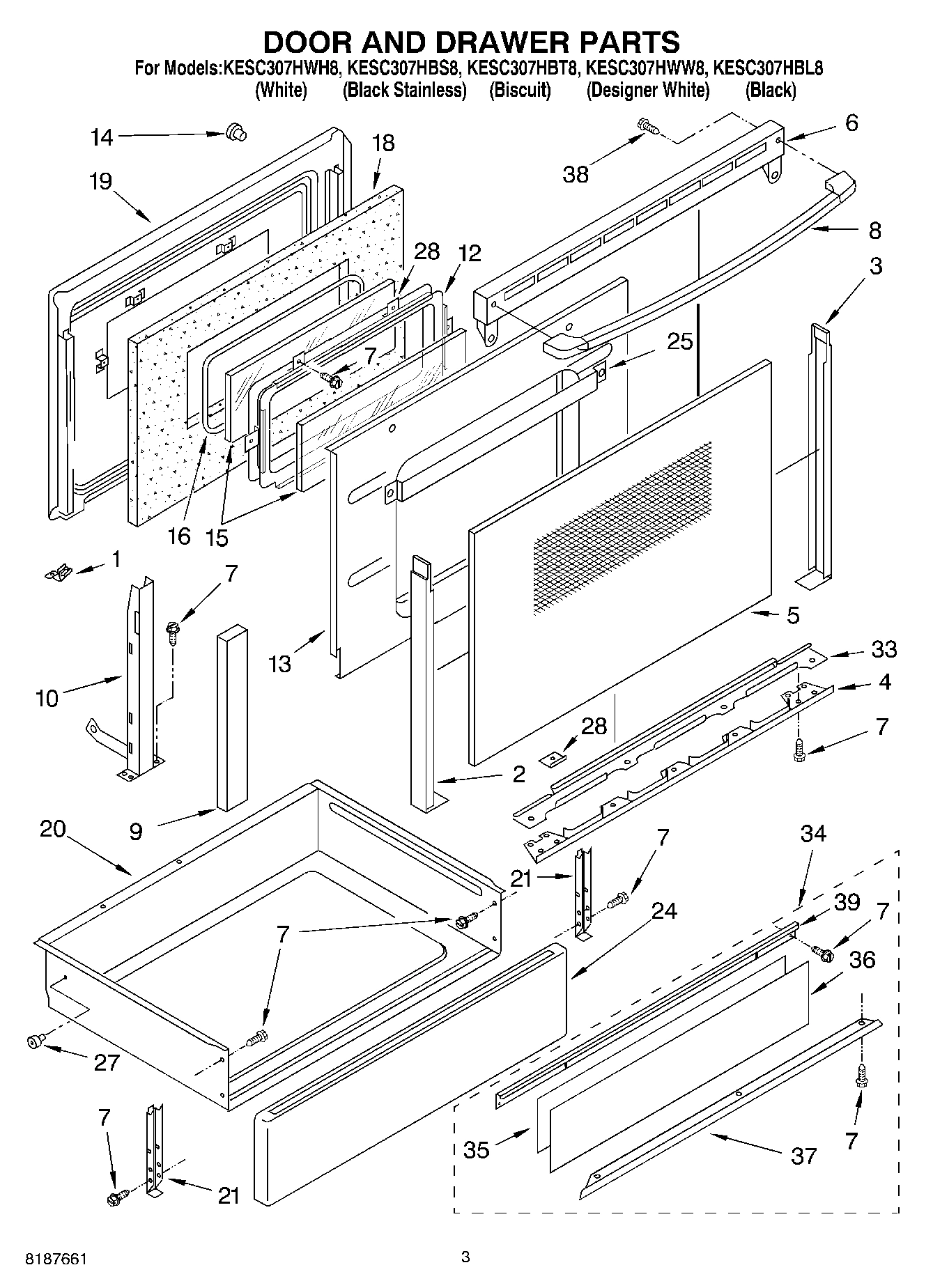

03 - DOOR AND DRAWER

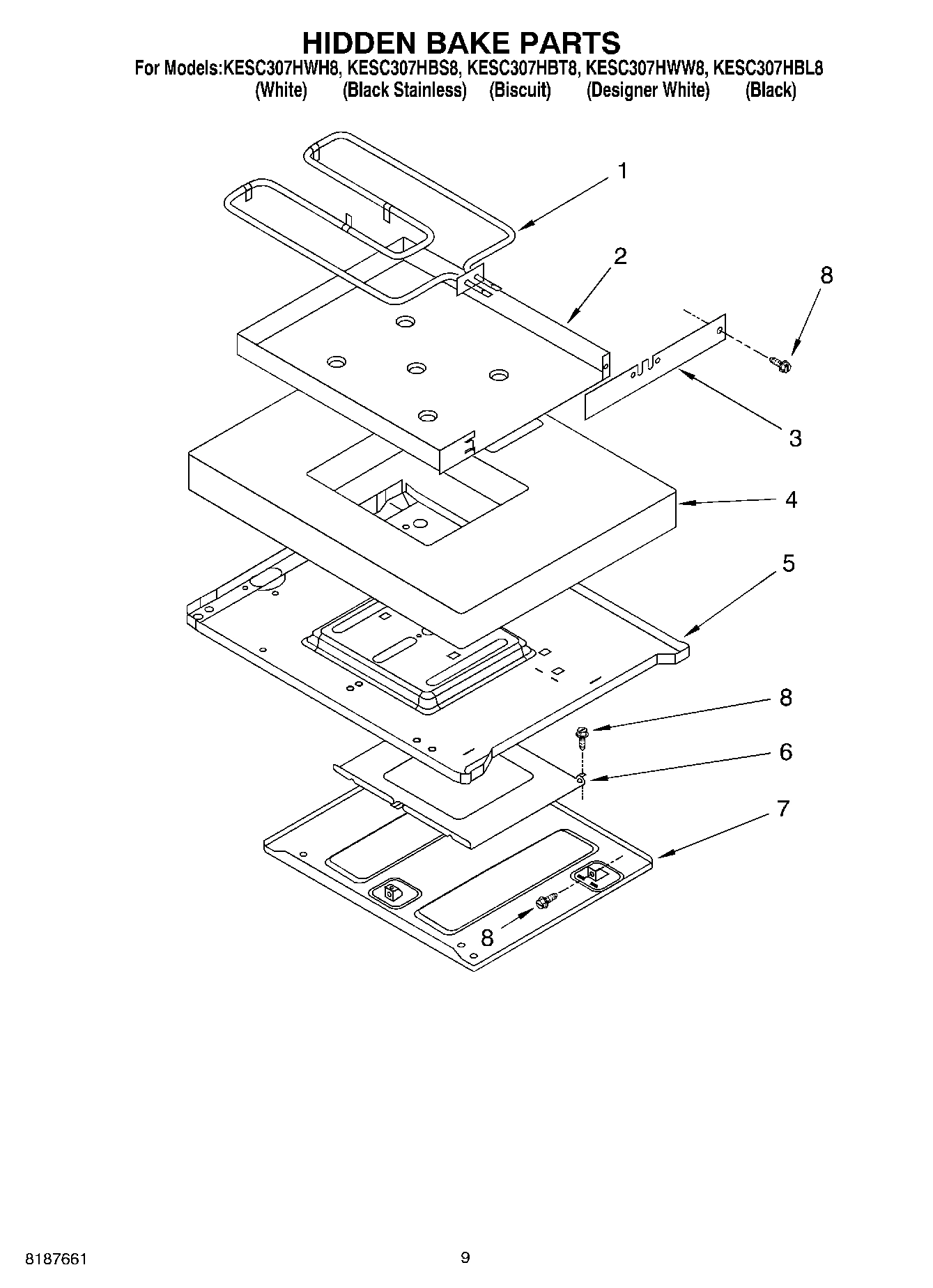

07 - HIDDEN BAKE

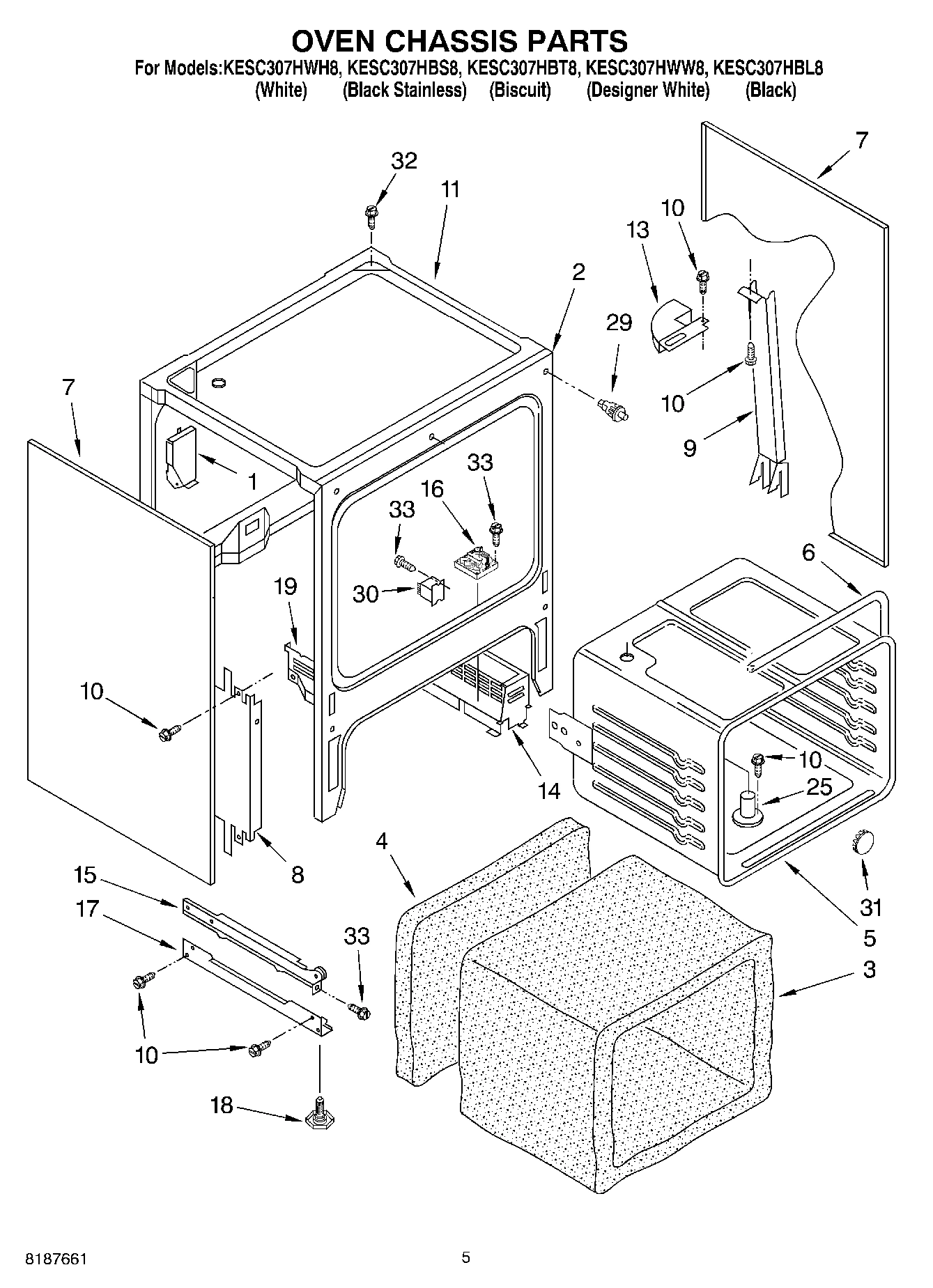

04 - OVEN CHASSIS
05 - OVEN

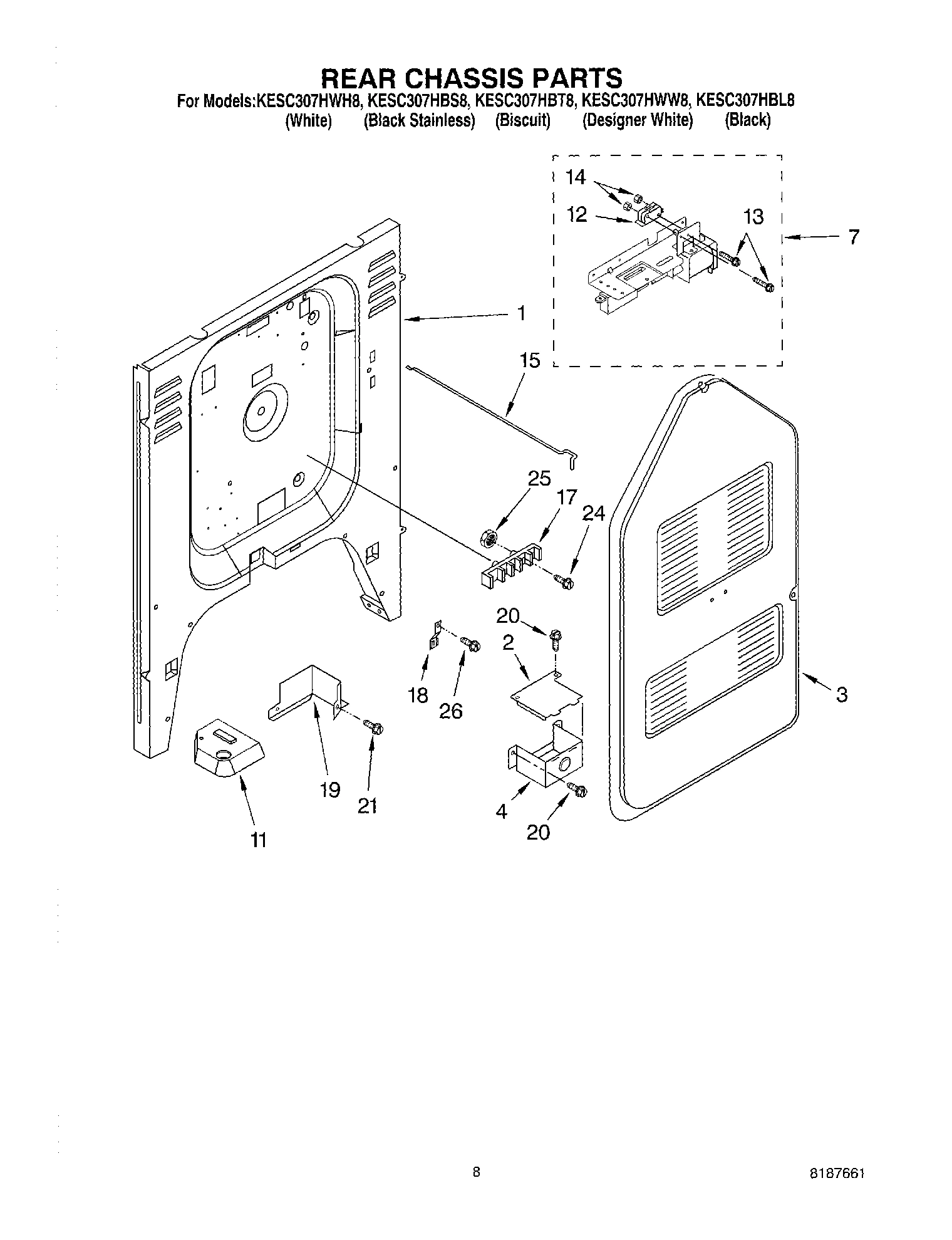

06 - REAR CHASSIS
Common parts from model Whirlpool KESC307HWH8 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (Black) WPL 9782419CB Contact Us For Availability
1
Support, Door WPL 9750676 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Cover, Pan WPL 9782049 Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Retainer, Insulation WPL 9752735 Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
7
Gasket, Door Vent WPL 9781659 Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly WPL 9755001 Contact Us For Availability
8
Glass Cleaner WPL W10355051 No Longer Available
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
WPL 9781656 WPL 9781656 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Anti-Tip Kit WPL 9751745 Contact Us For Availability
8
WPL 9781769 WPL 9781769 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Grommet, Harness WPL 9751868 Contact Us For Availability
8
Harness, Wire (Dual Oven Light) WPL 9753374 Contact Us For Availability
8
Harness, Wire (Hidden Bake WPL 9754371 Contact Us For Availability
8
WPL 9755012 WPL 9755012 Contact Us For Availability
8
WPL 9755024 WPL 9755024 Contact Us For Availability
8
WPL 9755025 WPL 9755025 Contact Us For Availability
8
WPL 9755193 WPL 9755193 Contact Us For Availability
8
WPL 9781767 WPL 9781767 Contact Us For Availability
8
WPL 9782111 WPL 9782111 Contact Us For Availability
8
WPL 9782183 WPL 9782183 Contact Us For Availability
8
WPL 9782443 WPL 9782443 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Screw (2) WPL 9781509 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Board, Power WPL 9782437 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Block, Balance WPL 9782330 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
Switch, Interloc WPL 9754291 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Ground Strap WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver WPL 9782005 Contact Us For Availability
19
Back, Vent WPL 9751798 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Nut, Mounting WPL 422617 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Relay WPL 9755194 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
33
Screw, 8-18 x 1/2 WPL 9751808 Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (Stainless) WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Bot WPL 9750613PB Contact Us For Availability
39
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
× ![]()
