Model Whirlpool KESC300HWH6 COOKTOP – Common Parts & Diagrams
01 - COOKTOP, LITERATURE
03 - DOOR & DRAWER
06 - REAR CHASSIS

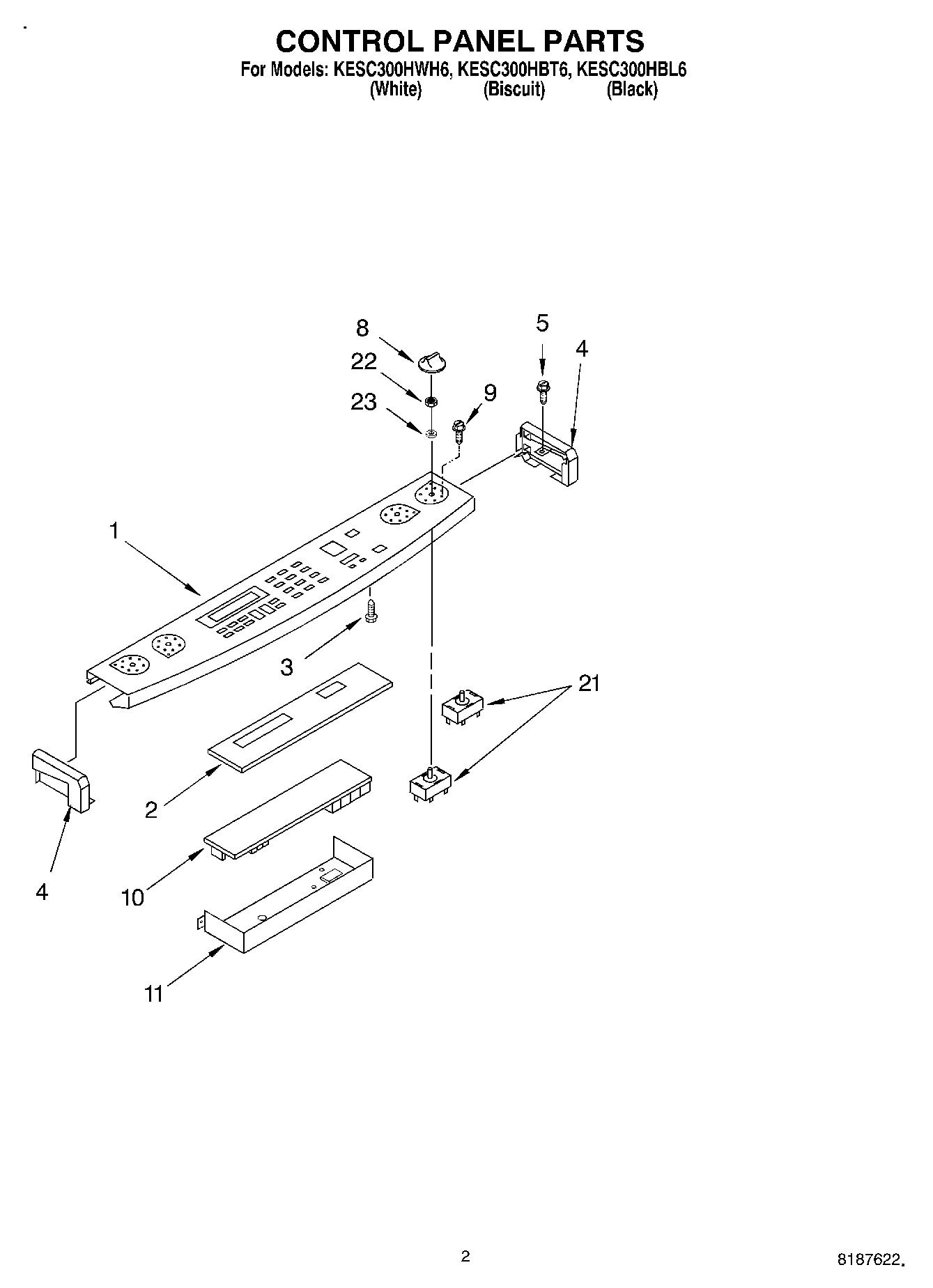

02 - CONTROL PANEL

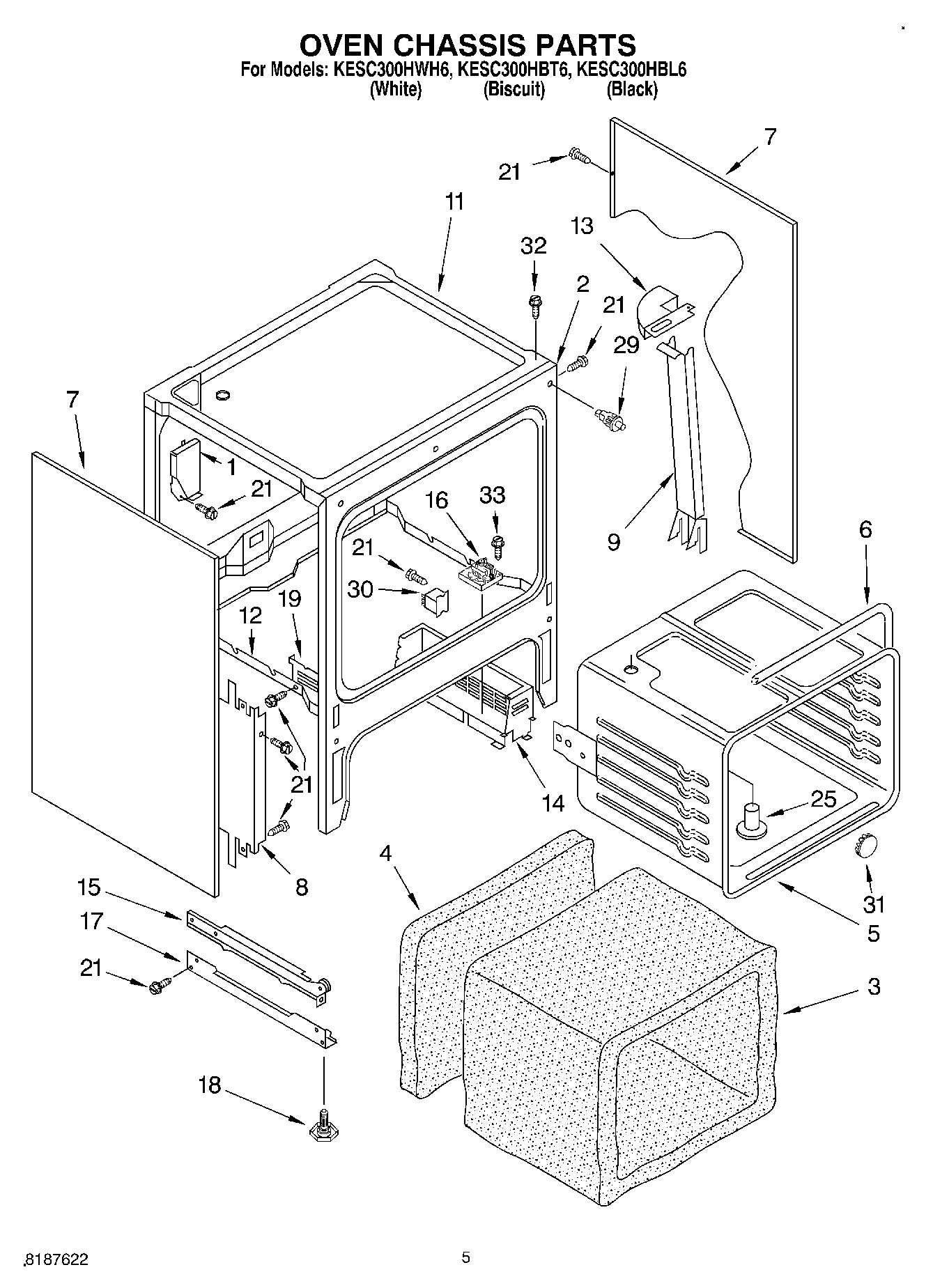

04 - OVEN CHASSIS

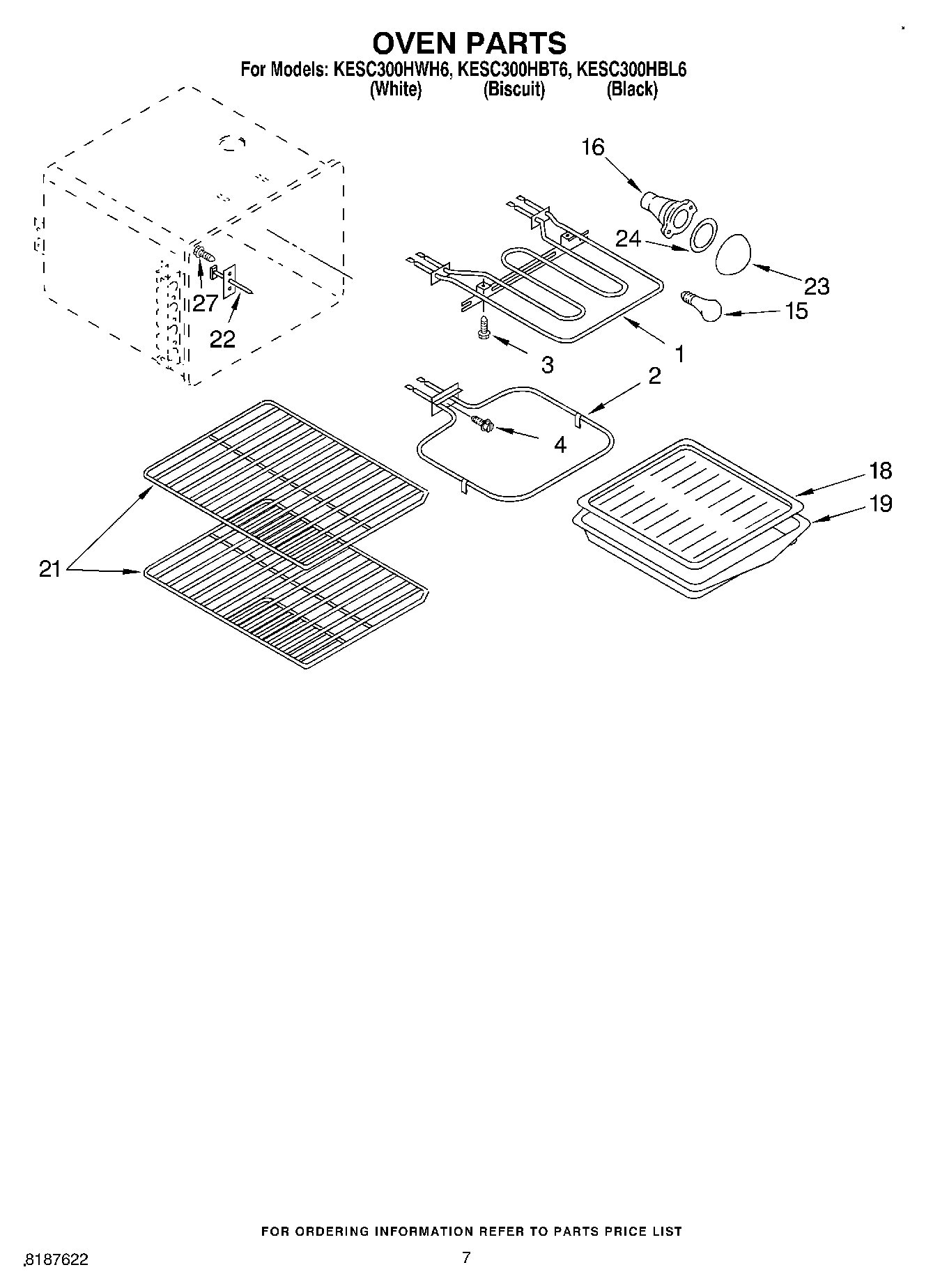

05 - OVEN
Common parts from model Whirlpool KESC300HWH6 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Rear, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (Assembly) (Black) WPL 9754343CB Contact Us For Availability
1
Console, Glass (Assembly) (Biscuit) WPL 9754343CC Contact Us For Availability
1
Console, Glass (Assembly) (White) WPL 9754343CW Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
2
Microcptr WPL 9754374 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability
4
End Cap (Left Hand) (Biscuit) WPL 9751039FC Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (Biscuit) WPL 9751040FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
7
Gasket, Door Vent Vent Side WPL 9781659 Contact Us For Availability
7
Oven Lock Assembly WPL 9755001 Contact Us For Availability
7
Oven, Side (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side (White) WPL 9781907PW Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Screw (2) No.10 Type B 1`` WPL 9751871 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
10
Microcptr WPL 9754385 Contact Us For Availability
11
Block, Balance WPL 9782330 Contact Us For Availability
11
Shield, Control Panel WPL 9755021 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9754291 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Vent, Back WPL 9751798 Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2500W - RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
22
WPL W10355051 No Longer Available
22
Sensor WPL 9782081 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
Nut, Mounting WPL 422617 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE WPL 799344 Contact Us For Availability
22
WPL 9751745 WPL 9751745 Contact Us For Availability
22
WPL 9781769 WPL 9781769 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 9751868 WPL 9751868 Contact Us For Availability
22
WPL 9755015 WPL 9755015 Contact Us For Availability
22
WPL 9755193 WPL 9755193 Contact Us For Availability
22
WPL 9781655 WPL 9781655 Contact Us For Availability
22
WPL 9781767 WPL 9781767 Contact Us For Availability
22
WPL 9782111 WPL 9782111 Contact Us For Availability
22
WPL 9782183 WPL 9782183 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Relay, Dbl. WPL 9755194 Contact Us For Availability
30
Channel, Heat WPL 9750693 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
× ![]()
