Model Whirlpool KESC300BBL8 COOKTOP – Common Parts & Diagrams

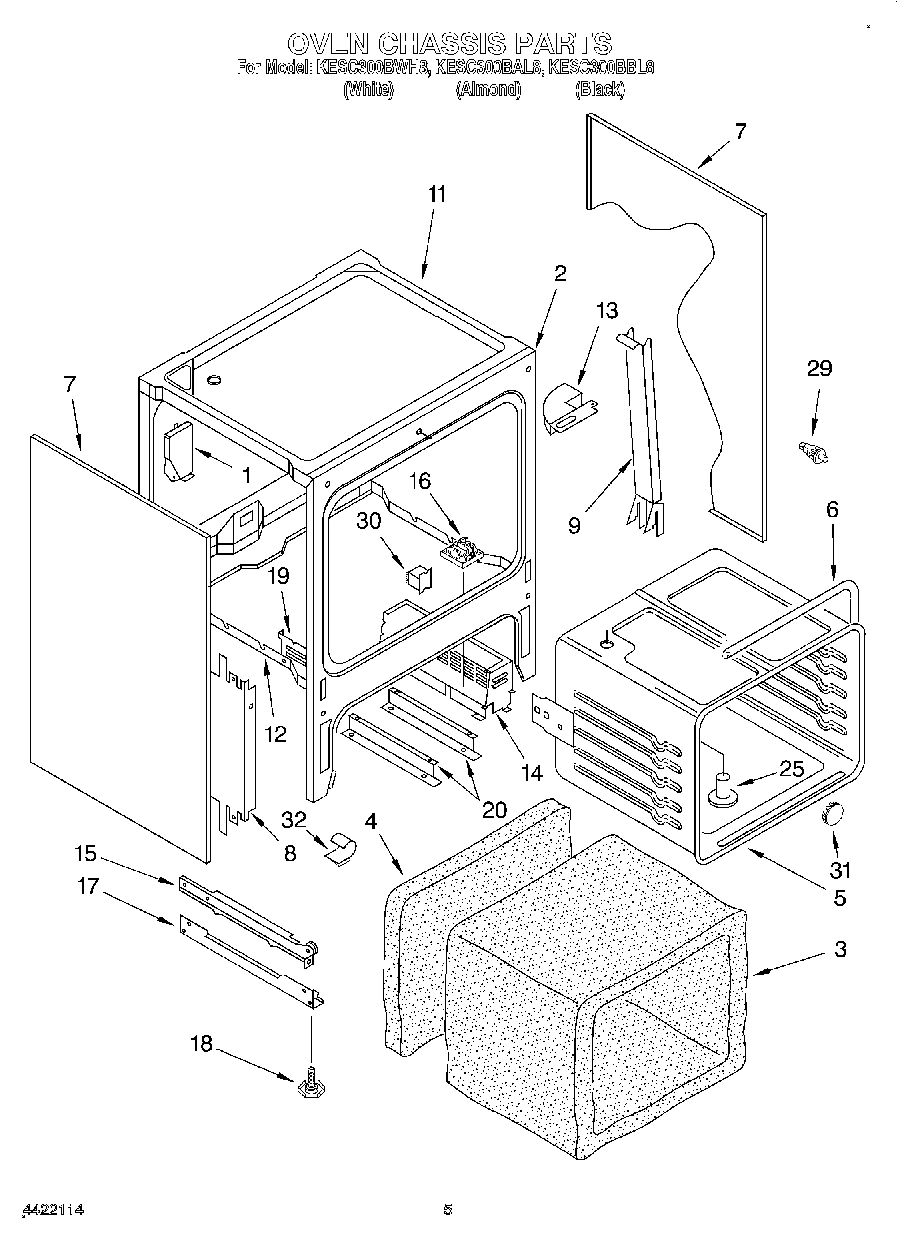

04 - OVEN CHASSIS

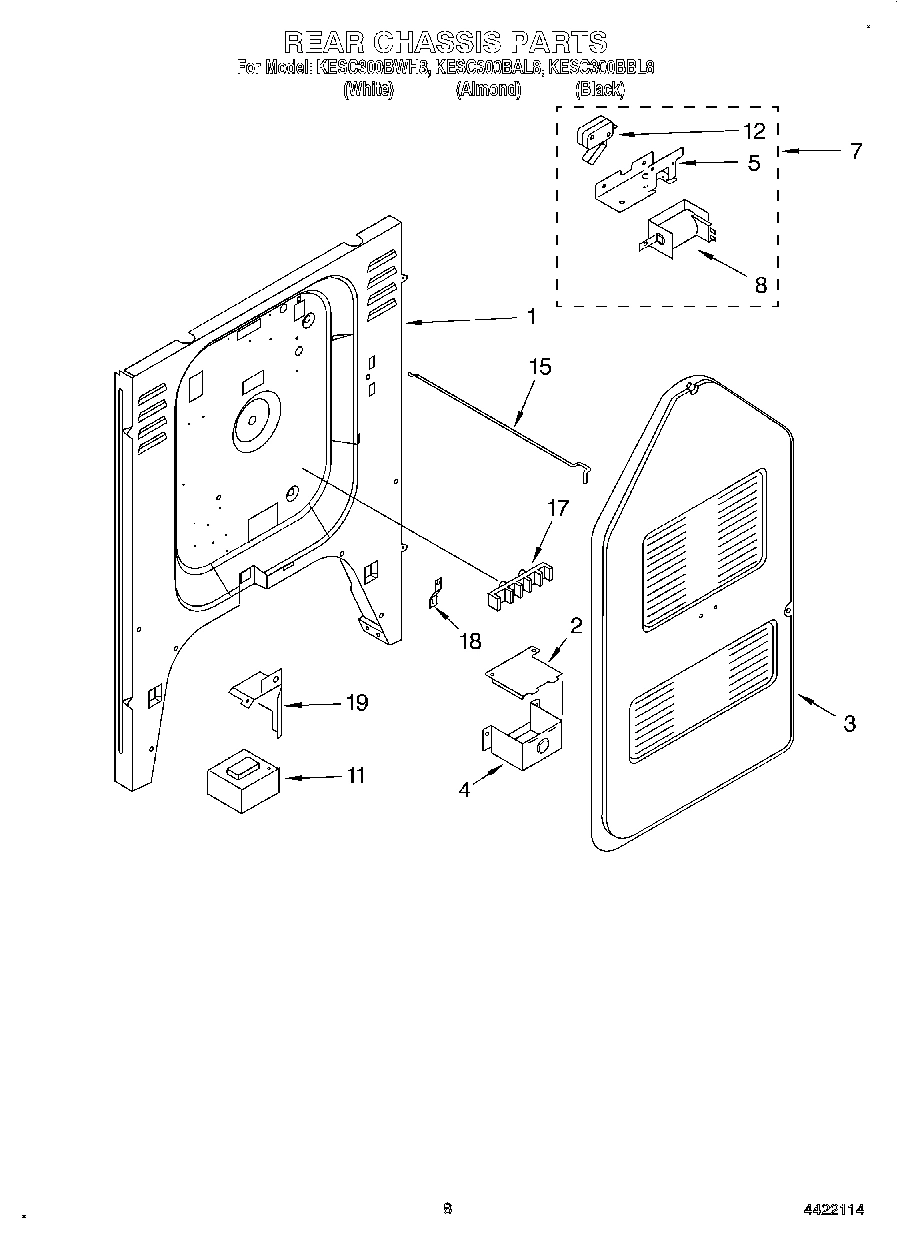

06 - REAR CHASSIS, LIT/OPTIONAL

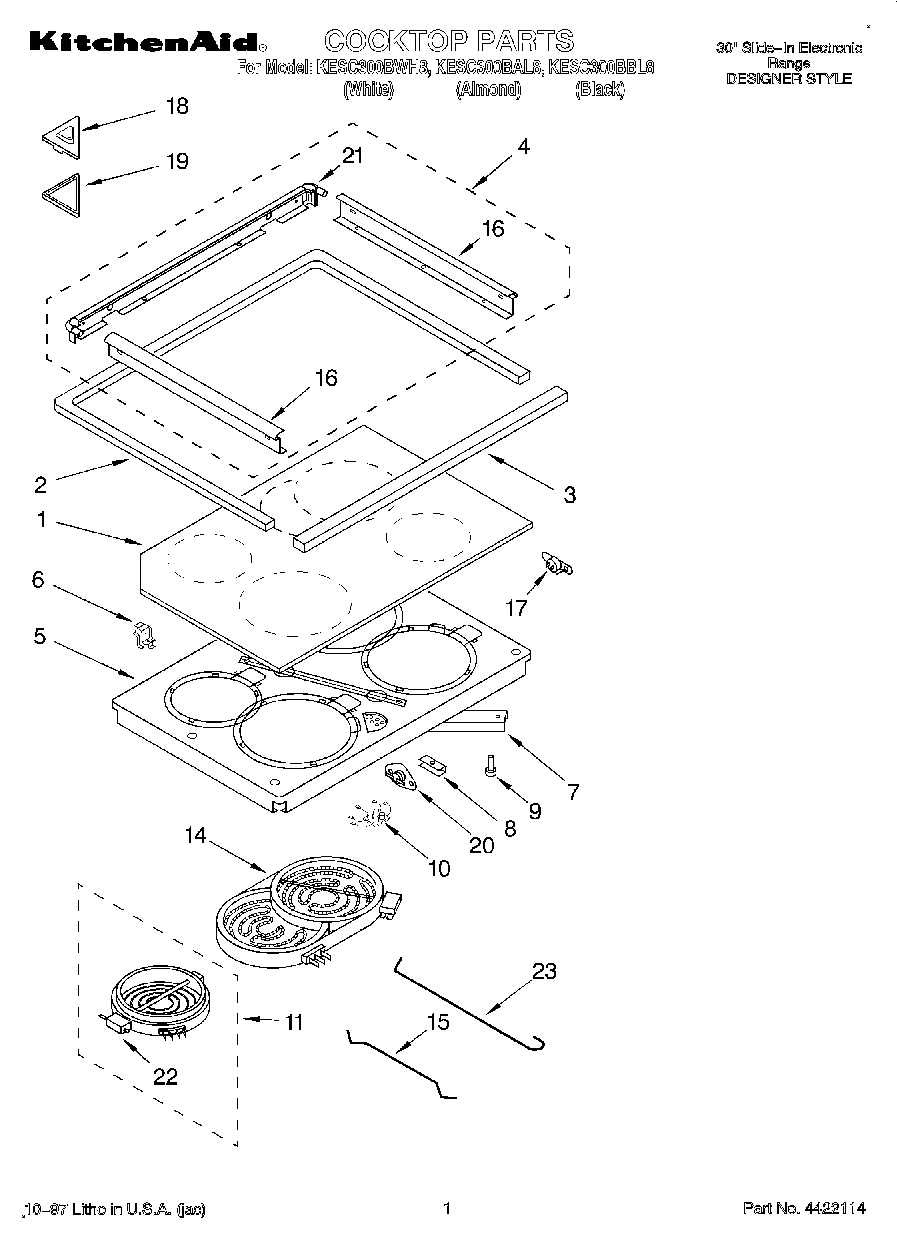

01 - COOKTOP

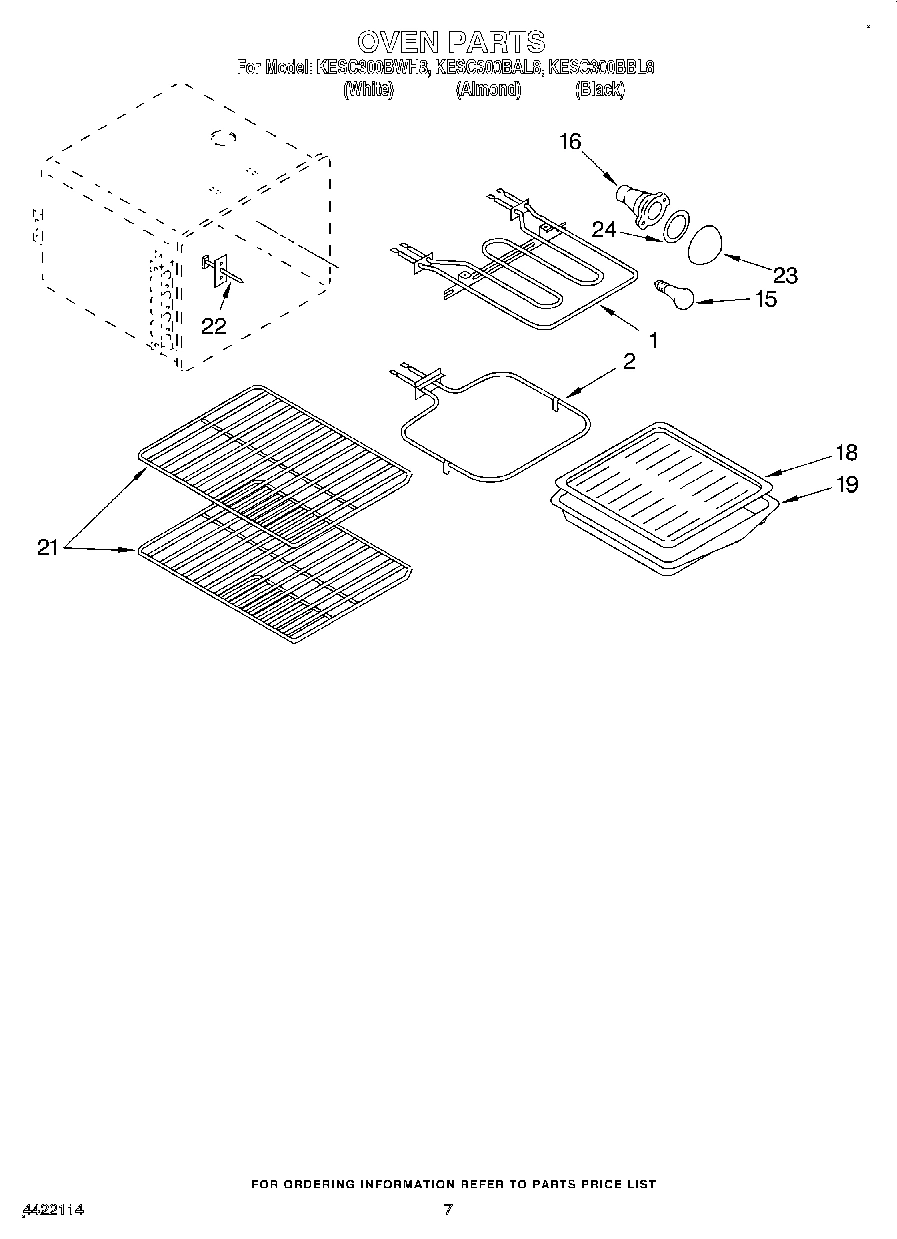

05 - OVEN

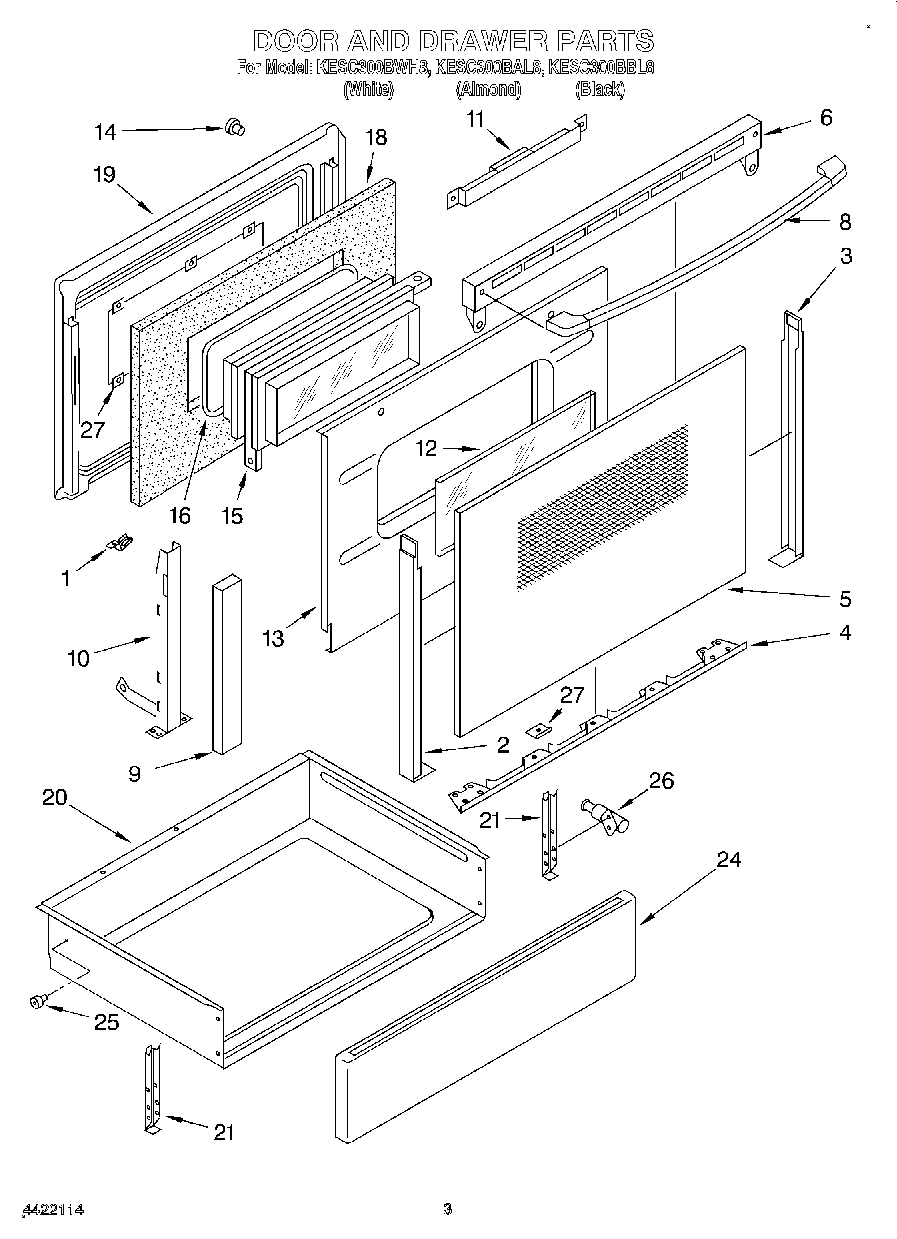

03 - DOOR AND DRAWER

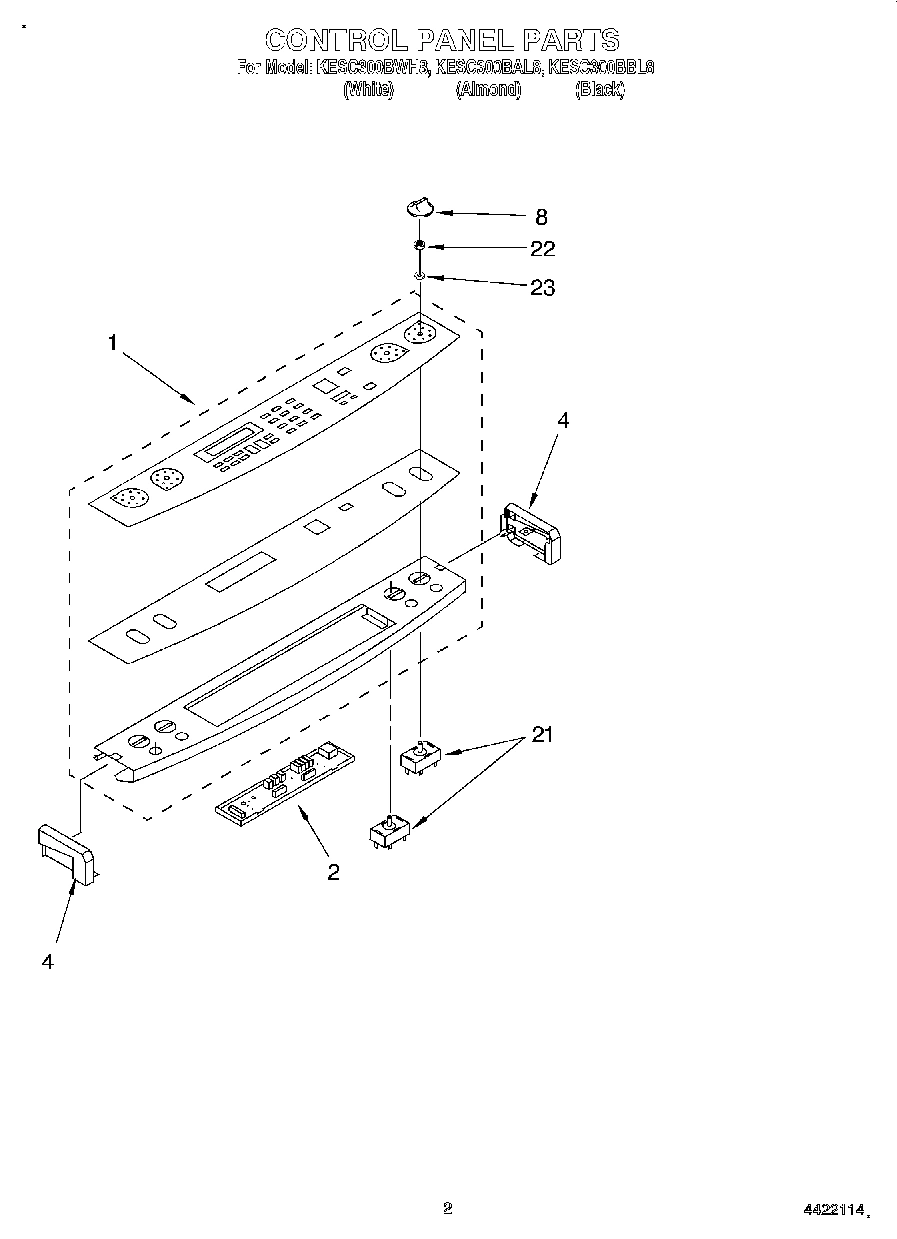

02 - CONTROL PANEL
Common parts from model Whirlpool KESC300BBL8 COOKTOP
WPL 9752380 WPL 9752380 Contact Us For Availability
WPL 9752954 WPL 9752954 Contact Us For Availability
WPL 9781486 WPL 9781486 Contact Us For Availability
WPL 9781655 WPL 9781655 Contact Us For Availability
WPL LIT9752043 WPL LIT9752043 Contact Us For Availability
WPL LIT9752686 WPL LIT9752686 Contact Us For Availability
WPL LIT9752775 WPL LIT9752775 Contact Us For Availability
WPL LIT9752956 WPL LIT9752956 Contact Us For Availability
WPL LIT9753027 WPL LIT9753027 Contact Us For Availability
WPL LIT9753028 WPL LIT9753028 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Rear, Chassis WPL 9751051 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751752 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751753 Contact Us For Availability
1
Cooktop, Ceran (Black) WPL 9751754 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Console, Glass (Assembly) (White) WPL 9751896 Contact Us For Availability
1
Console, Glass (Assembly) (Black) WPL 9751899 Contact Us For Availability
1
Console, Glass (Assembly) (Almond) WPL 9751901 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Timer, Electronic WPL 3191107 Contact Us For Availability
2
Screw, (2) WPL 9780852 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 423247 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
Box, Terminal WPL 9752344 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9751476PB Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 9751476PT Contact Us For Availability
4
Frame, Cooktop (White) WPL 9751476PW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability
4
(End Cap Left Hand) (Almond) WPL 9751039FT Contact Us For Availability
4
(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9751040FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Support, Element WPL 9781548 Contact Us For Availability
5
Glass, Door (Black) WPL 9781243 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer (2) WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9751242GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9751242GT Contact Us For Availability
6
Vent, Door (White) WPL 9751242GW Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Screw (2) 10-32 x 5/16 WPL 422222 Contact Us For Availability
8
Washer WPL 424238 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Knobs, Control (4) (Screw (2) No.10 Type B 1` WPL 9751871 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Knobs, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Block, Balance WPL 312804 Contact Us For Availability
11
Element, Surface (1400W - LR) WPL 3189894 Contact Us For Availability
11
Element, Surface (1700W - RF) WPL 3189895 Contact Us For Availability
11
Element, Surface (2400W - LF) WPL 3189897 Contact Us For Availability
11
Seal, Door WPL 9781490 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
14
Dual Element, RR WPL 9752233 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
16
Trim, Side (Black) WPL 9751440PB Contact Us For Availability
16
Trim, Side (Almond) WPL 9751440PT Contact Us For Availability
16
Trim, Side (White) WPL 9751440PW Contact Us For Availability
16
Seal, Glass WPL 9751135 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
18
Clip WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
19
WPL W10355051 No Longer Available
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
WPL 9751745 WPL 9751745 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
Coffee WPL 261886 Contact Us For Availability
19
New Avocado WPL 261888 Contact Us For Availability
19
Harvest Gold WPL 261890 Contact Us For Availability
19
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
19
Toast WPL 285365 Contact Us For Availability
19
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
19
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
19
Platinum (Uncut) WPL 285368 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 72112 WPL 72112 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 9750221 WPL 9750221 Contact Us For Availability
19
WPL 9750222 WPL 9750222 Contact Us For Availability
19
WPL 9751798 WPL 9751798 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Trim, Back (Includes End Caps) (Black) WPL 9752045PB Contact Us For Availability
21
Trim, Back (Includes End Caps) (Almond) WPL 9752045PT Contact Us For Availability
21
Trim, Back (Includes End Caps) (White) WPL 9752045PW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Limiter, Temp (1700W - RF) WPL 3190250 Contact Us For Availability
22
Limiter, Temp. (2400 W - LF) WPL 3190251 Contact Us For Availability
22
Limiter, Temp. (1400 W - LR) WPL 3190253 Contact Us For Availability
22
Screw WPL 9781509 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
23
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
23
Seal, Switch (4) WPL 9781455 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw WPL 9780806 Contact Us For Availability
27
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
30
Relay, Dbl. WPL 9751948 Contact Us For Availability
× ![]()
