Model Whirlpool KES6503SX0 SMALL APPLIANCE, COFFEE MAKER, ESPRESSO MACHINE – Common Parts & Diagrams

Common parts from model Whirlpool KES6503SX0 SMALL APPLIANCE, COFFEE MAKER, ESPRESSO MACHINE

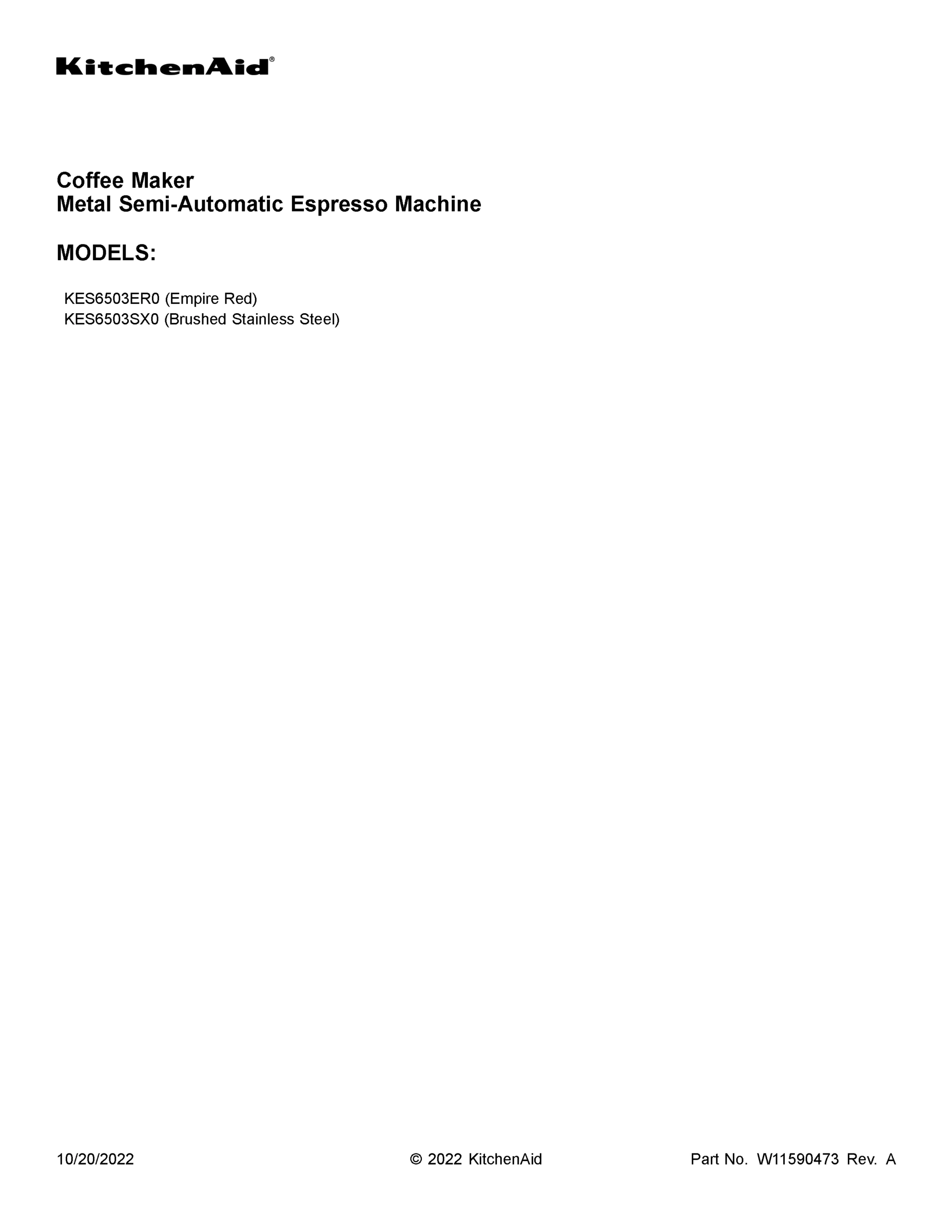

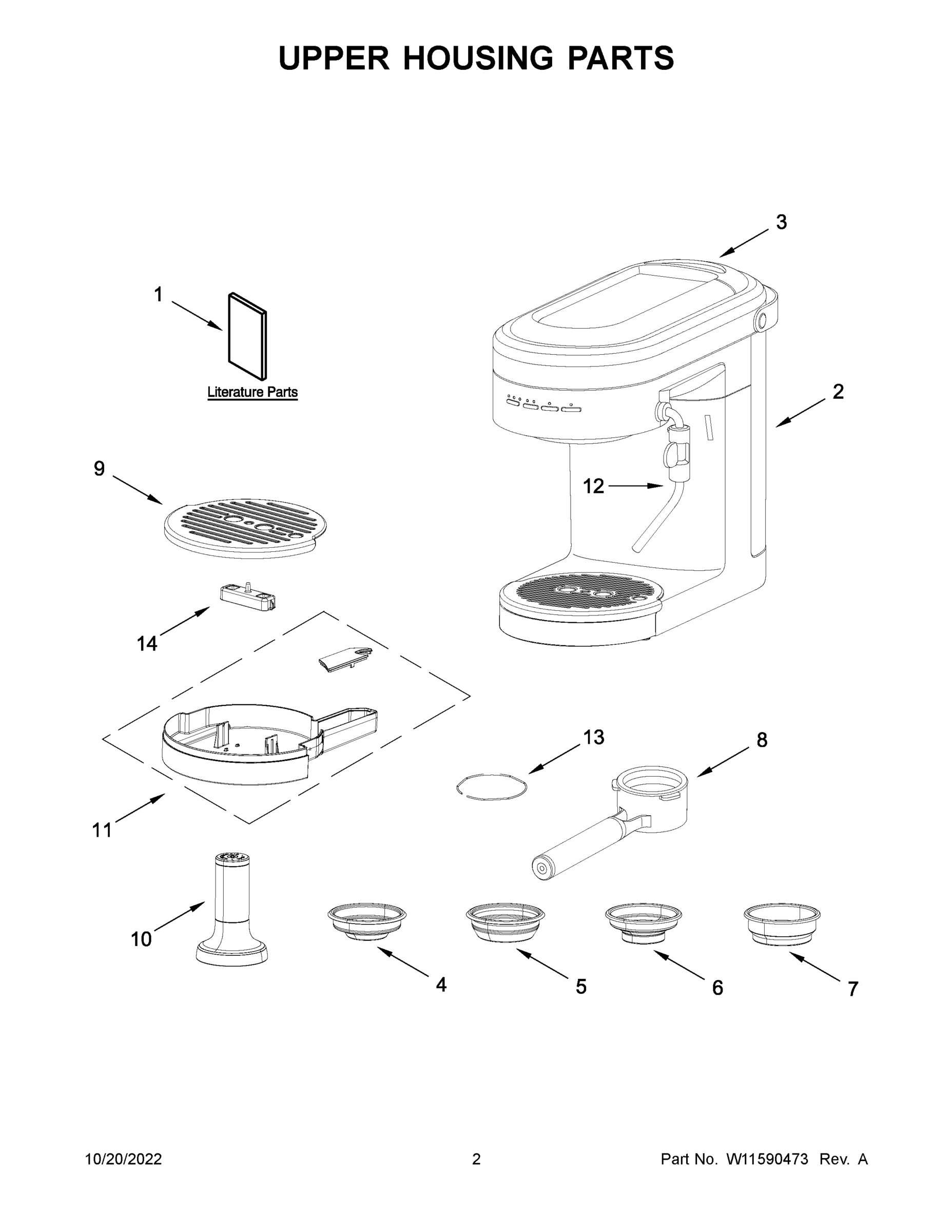

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

USE & CARE GUIDE WPL W11312156 Contact Us For Availability

View on Model

2

W11584751 Whirlpool Tank Assembly Backorder WPL W11584751 View Details $20.33

View on Model

3

LID, WATER TANK (METAL) WPL W11584753 Contact Us For Availability

View on Model

4

W11584754 Whirlpool Basket Backorder WPL W11584754 View Details $17.70

View on Model

5

W11584755 Whirlpool Basket Assembly Backorder WPL W11584755 View Details $17.70

View on Model

6

W11584756 Whirlpool Basket Backorder WPL W11584756 View Details $17.70

View on Model

7

W11584757 Whirlpool Basket Backorder WPL W11584757 View Details $17.70

View on Model

8

PORTAFILTER WPL W11584758 Contact Us For Availability

View on Model

9

GRATE WPL W11584760 Contact Us For Availability

View on Model

10

TAMPER WPL W11584761 Contact Us For Availability

View on Model

11

TRAY, DRIP (EMPIRE RED) WPL W11584770 Contact Us For Availability

View on Model

11A

TRAY, DRIP (BRUSHED STAINLESS STEEL) WPL W11584765 Contact Us For Availability

View on Model

12

W11584773 Whirlpool Steam Assembly Backorder WPL W11584773 View Details $20.33

View on Model

13

SPRING, PORTAFILTER WPL W11584759 Contact Us For Availability

View on Model

14

FLOAT WPL W11584772 Contact Us For Availability

View on Model

15

COFFEE SCOOP WPL W11712009 Contact Us For Availability

View on Model

16

MILK PITCHER WPL W11712006 Contact Us For Availability

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

View on Model

NI

PRIMING PUMP WPL W11712004 Contact Us For Availability
