Model Whirlpool KES0503AC0 SMALL APPLIANCE, COFFEE MAKER – Common Parts & Diagrams

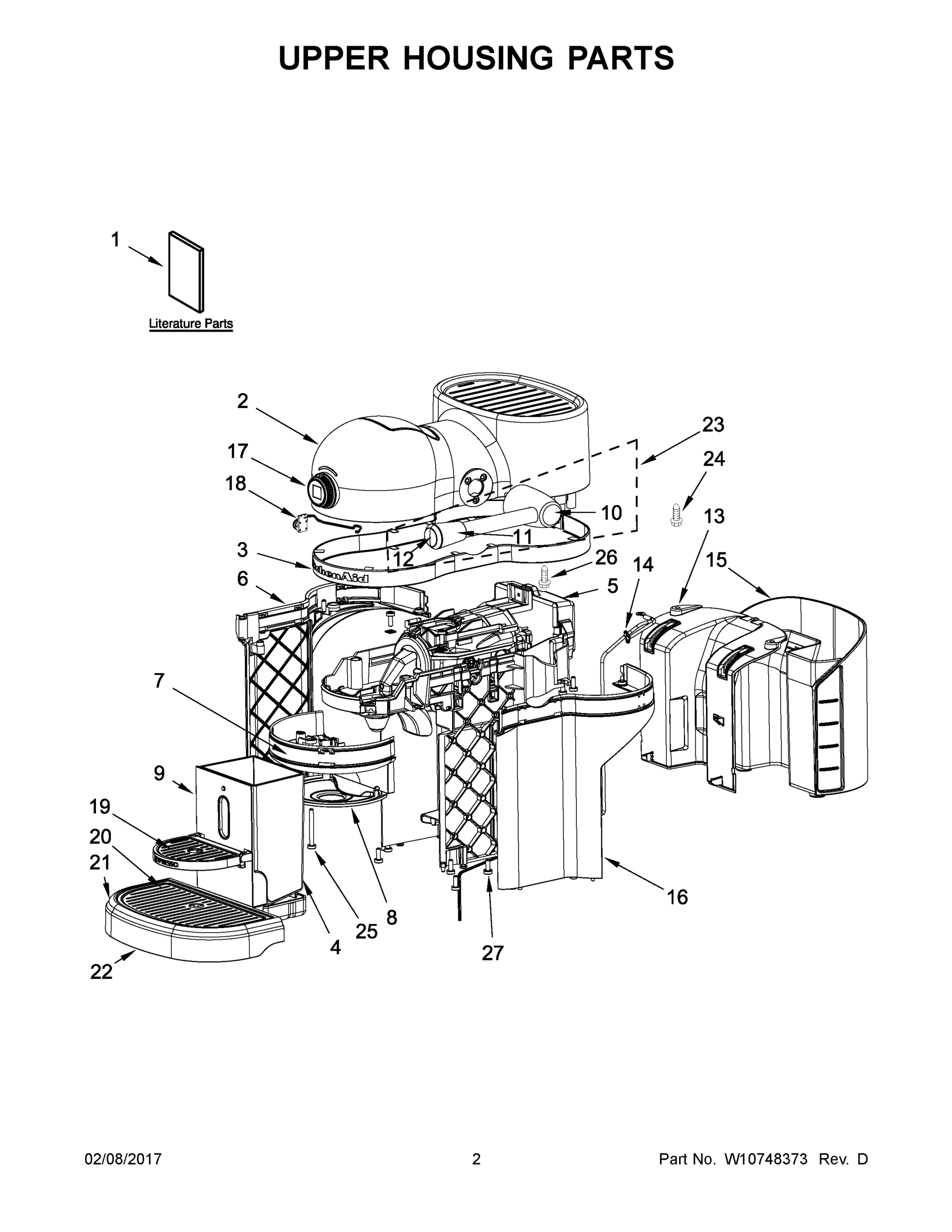

02 - UPPER HOUSING PARTS

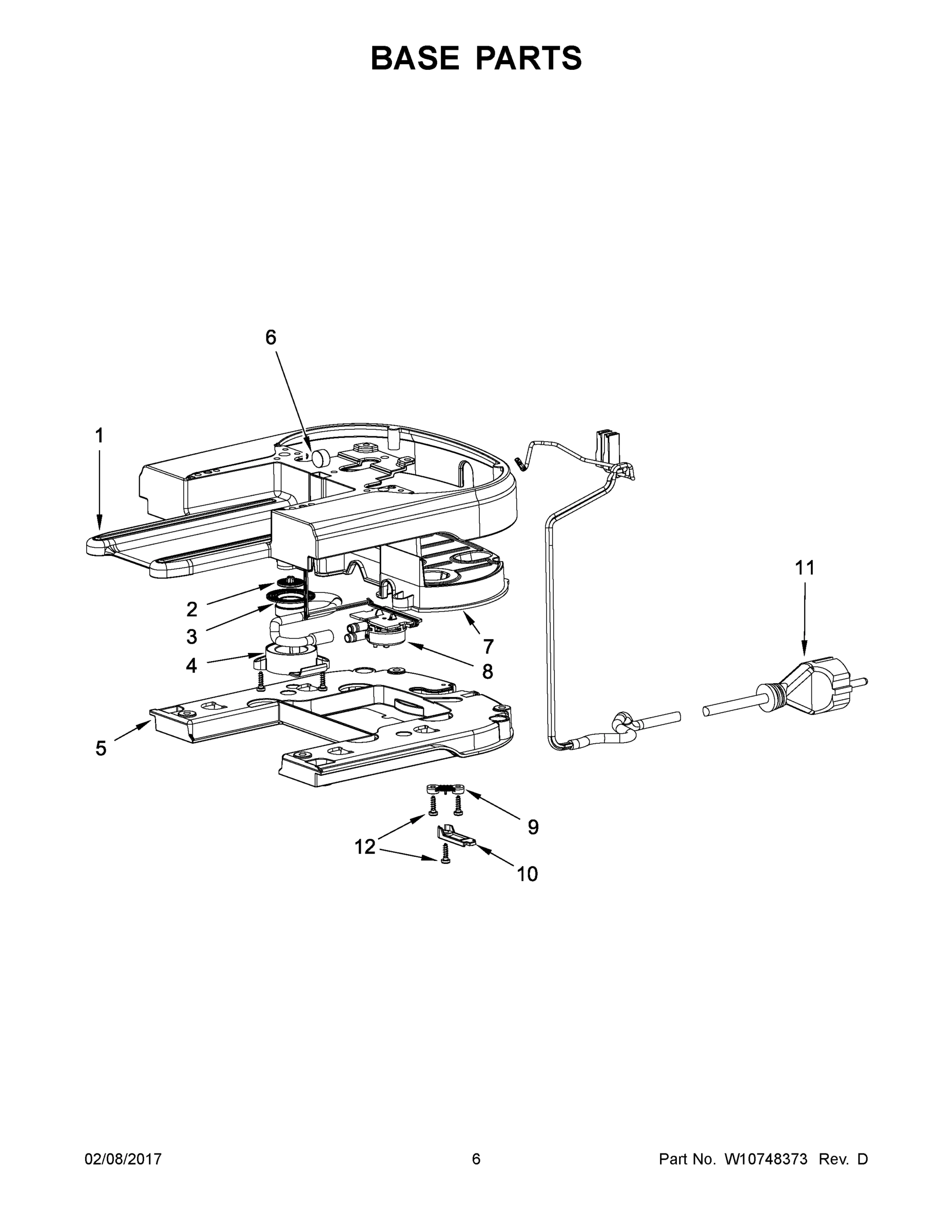

04 - BASE PARTS
01 - COVER SHEET
03 - BREWING UNIT PARTS
Common parts from model Whirlpool KES0503AC0 SMALL APPLIANCE, COFFEE MAKER
1
USE & CARE GUIDE (UNITED STATES) WPL W10660371 Contact Us For Availability
1
BASE (ALMOND CREME) WPL W10725191 Contact Us For Availability
1
HOUSING, BREWING UNIT WPL W10724740 Contact Us For Availability
1A
USE & CARE GUIDE (EUROPE/UNITED KINGDOM/SWITZ WPL W10670165 Contact Us For Availability
1A
BASE (CANDY APPLE) WPL W10725184 Contact Us For Availability
1B
USE & CARE GUIDE (AUSTRALIA) WPL W10768769 Contact Us For Availability
1B
BASE (EMPIRE RED) WPL W10725186 Contact Us For Availability
1C
BASE (FROSTED PEARL) WPL W10725193 Contact Us For Availability
1D
BASE (MEDALLION SILVER) WPL W10725196 Contact Us For Availability
1E
BASE (ONYX BLACK) WPL W10725189 Contact Us For Availability
1F
BASE (SUGAR PEARL) WPL W10758016 Contact Us For Availability
1G
BASE (SLATE) WPL W10758017 Contact Us For Availability
2
TOP HOUSING (ALMOND CREME) WPL W10725053 Contact Us For Availability
2
FILTER WPL W10725205 Contact Us For Availability
2
COVER, STEAM WPL W10749018 Contact Us For Availability
2A
TOP HOUSING (CANDY APPLE) WPL W10724754 Contact Us For Availability
2B
TOP HOUSING (EMPIRE RED) WPL W10725050 Contact Us For Availability
2C
TOP HOUSING (FROSTED PEARL) WPL W10725055 Contact Us For Availability
2D
TOP HOUSING (MEDALLION SILVER) WPL W10724759 Contact Us For Availability
2E
TOP HOUSING (ONYX BLACK) WPL W10724758 Contact Us For Availability
2F
TOP HOUSING (SUGAR PEARL) WPL W10758003 Contact Us For Availability
2G
TOP HOUSING (SLATE) WPL W10758004 Contact Us For Availability
3
TRIM BAND (UNITED STATES/AUSTRALIA) WPL W10725153 Contact Us For Availability
3
LEVER, GEAR (RIGHT) WPL W10724742 Contact Us For Availability
3A
TRIM BAND (EUROPE/UNITED KINGDOM/SWITZERLAND) WPL W10725151 Contact Us For Availability
4
HOLDER, LP VALVE WPL W10725208 Contact Us For Availability
4
CAGE, CAPSULE WPL W10724746 Contact Us For Availability
4A
CAGE, CAPSULE (SWITZERLAND) WPL W11024070 Contact Us For Availability
5
CHASSIS, CABINET WPL W10725106 Contact Us For Availability
5
BASE, BOTTOM (WITH RUBBER BASE) WPL W10725210 Contact Us For Availability
6
SIDE PANEL (LEFT) (ALMOND CREME) WPL W10725165 Contact Us For Availability
6
MAGNET, MU WPL W10725183 Contact Us For Availability
6
O-RING WPL W10749025 Contact Us For Availability
6A
SIDE PANEL (LEFT) (CANDY APPLE) WPL W10725161 Contact Us For Availability
6B
SIDE PANEL (LEFT) (EMPIRE RED) WPL W10725162 Contact Us For Availability
6C
SIDE PANEL (LEFT) (FROSTED PEARL) WPL W10725167 Contact Us For Availability
6D
SIDE PANEL (LEFT) (MEDALLION SILVER) WPL W10725168 Contact Us For Availability
6E
SIDE PANEL (LEFT) (ONYX BLACK) WPL W10725164 Contact Us For Availability
6F
SIDE PANEL (LEFT) (SUGAR PEARL) WPL W10758010 Contact Us For Availability
6G
SIDE PANEL (LEFT) (SLATE) WPL W10758012 Contact Us For Availability
7
HEAD RING (ALMOND CREME) WPL W10725223 Contact Us For Availability
7
SUPPORT, BASE TANK WPL W10725198 Contact Us For Availability
7
SLEEVE, TB (MOTOR) WPL W10749021 Contact Us For Availability
7A
HEAD RING (CANDY APPLE) WPL W10725217 Contact Us For Availability
7B
HEAD RING (EMPIRE RED) WPL W10725219 Contact Us For Availability
7C
HEAD RING (FROSTED PEARL) WPL W10725225 Contact Us For Availability
7D
HEAD RING (MEDALLION SILVER) WPL W10725227 Contact Us For Availability
7E
HEAD RING (ONYX BLACK) WPL W10725221 Contact Us For Availability
7F
HEAD RING (SUGAR PEARL) WPL W10758018 Contact Us For Availability
7G
HEAD RING (SLATE) WPL W10758019 Contact Us For Availability
8
SPOUT, COFFEE WPL W10725214 Contact Us For Availability
8
METER, FLOW ASSEMBLY WPL W10725105 Contact Us For Availability
8
TB MOTOR ASSEMBLY (UNITED STATES) WPL W10724745 Contact Us For Availability
8A
TB MOTOR ASSEMBLY (EUROPE/UNITED KINGDOM/AUST WPL W10724744 Contact Us For Availability
9
FRONT COVER (ALMOND CREME) WPL W10725141 Contact Us For Availability
9
CLIP, CABLE (110V) WPL W10725204 Contact Us For Availability
9A
FRONT COVER (CANDY APPLE) WPL W10725135 Contact Us For Availability
9A
CLIP, CABLE (220V) WPL W10725200 Contact Us For Availability
9B
FRONT COVER (EMPIRE RED) WPL W10725138 Contact Us For Availability
9C
FRONT COVER (FROSTED PEARL) WPL W10725139 Contact Us For Availability
9D
FRONT COVER (ME WPL W10725136 Contact Us For Availability
9E
WPL W10725137 WPL W10725137 Contact Us For Availability
9F
WPL W10758008 WPL W10758008 Contact Us For Availability
9G
WPL W10758009 WPL W10758009 Contact Us For Availability
10
WPL W10749017 WPL W10749017 Contact Us For Availability
10
CABLE, LOCKING WPL W10725212 Contact Us For Availability
10
CONTROL, ELECTRONIC (UNITED STATES) WPL W10724749 Contact Us For Availability
11
WPL W10749016 WPL W10749016 Contact Us For Availability
11
CORD, POWER (UNITED STATES) WPL W10725157 Contact Us For Availability
11
VALVE, HIGH PRESSURE ASSEMBLY WPL W10725147 Contact Us For Availability
11A
CORD, POWER (UNITED KINGDOM) WPL W10725159 Contact Us For Availability
11B
CORD, POWER (EUROPE) WPL W10725155 Contact Us For Availability
11C
CORD, POWER (AUSTRALIA) WPL W10782538 Contact Us For Availability
11D
CORD, POWER (SWITZERLAND) WPL W11024071 Contact Us For Availability
12
WPL W10749015 WPL W10749015 Contact Us For Availability
12
PUMP, ISOLATION WPL W10725149 Contact Us For Availability
13
WPL W10725215 WPL W10725215 Contact Us For Availability
13
PUMP ASSEMBLY (UNITED STATES) WPL W10725104 Contact Us For Availability
13A
PUMP ASSEMBLY (EUROPE/UNITED KINGDOM/AUSTRALI WPL W10725103 Contact Us For Availability
14
WPL W10725229 WPL W10725229 Contact Us For Availability
14
PUMP, LOW PRESSURE TUBE WPL W10751723 Contact Us For Availability
15
WPL W10725107 WPL W10725107 Contact Us For Availability
15
SCREW WPL W10757792 Contact Us For Availability
16
WPL W10725176 WPL W10725176 Contact Us For Availability
16
SCREW WPL W10757795 Contact Us For Availability
16A
WPL W10725171 WPL W10725171 Contact Us For Availability
16B
WPL W10725173 WPL W10725173 Contact Us For Availability
16C
WPL W10725179 WPL W10725179 Contact Us For Availability
16D
WPL W10725181 WPL W10725181 Contact Us For Availability
16E
WPL W10725175 WPL W10725175 Contact Us For Availability
16F
WPL W10758014 WPL W10758014 Contact Us For Availability
16G
WPL W10758015 WPL W10758015 Contact Us For Availability
17
WPL W10749013 WPL W10749013 Contact Us For Availability
17
O-RING WPL W11093560 Contact Us For Availability
18
WPL W10725056 WPL W10725056 Contact Us For Availability
19
WPL W10725123 WPL W10725123 Contact Us For Availability
21
WPL W10725134 WPL W10725134 Contact Us For Availability
21A
WPL W10725124 WPL W10725124 Contact Us For Availability
21B
WPL W10725127 WPL W10725127 Contact Us For Availability
21C
WPL W10725128 WPL W10725128 Contact Us For Availability
21D
WPL W10725125 WPL W10725125 Contact Us For Availability
21E
WPL W10725126 WPL W10725126 Contact Us For Availability
21F
WPL W10758005 WPL W10758005 Contact Us For Availability
21G
WPL W10758006 WPL W10758006 Contact Us For Availability
22
WPL W10725121 WPL W10725121 Contact Us For Availability
23
WPL W10748409 WPL W10748409 Contact Us For Availability
24
WPL W10757797 WPL W10757797 Contact Us For Availability
25
WPL W10757807 WPL W10757807 Contact Us For Availability
27
WPL W10757809 WPL W10757809 Contact Us For Availability
× ![]()
