Model Whirlpool KERS507EAL2 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE CONVEC – Common Parts & Diagrams
04 - OVEN CHASSIS
06 - REAR CHASSIS, LIT/OPTIONAL

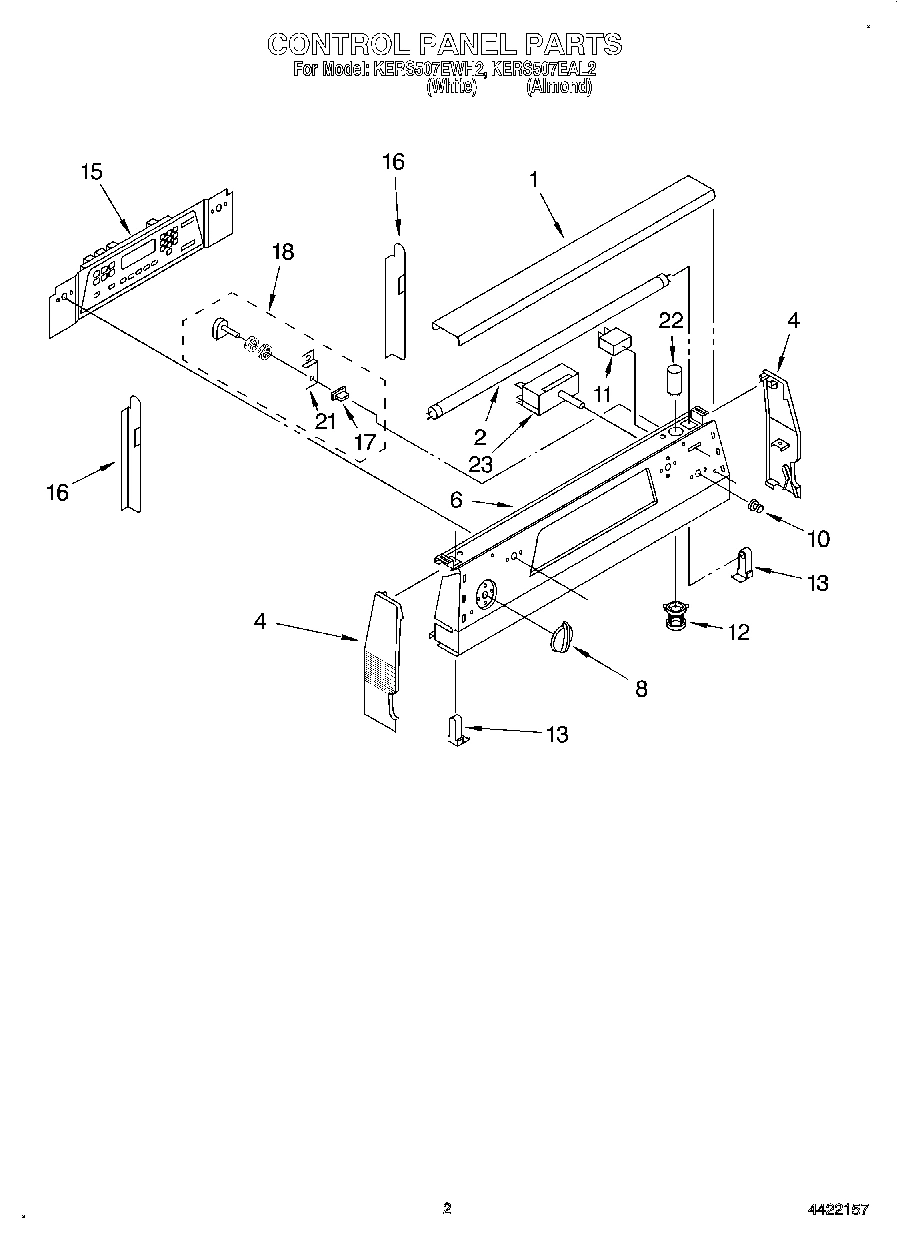

02 - CONTROL PANEL

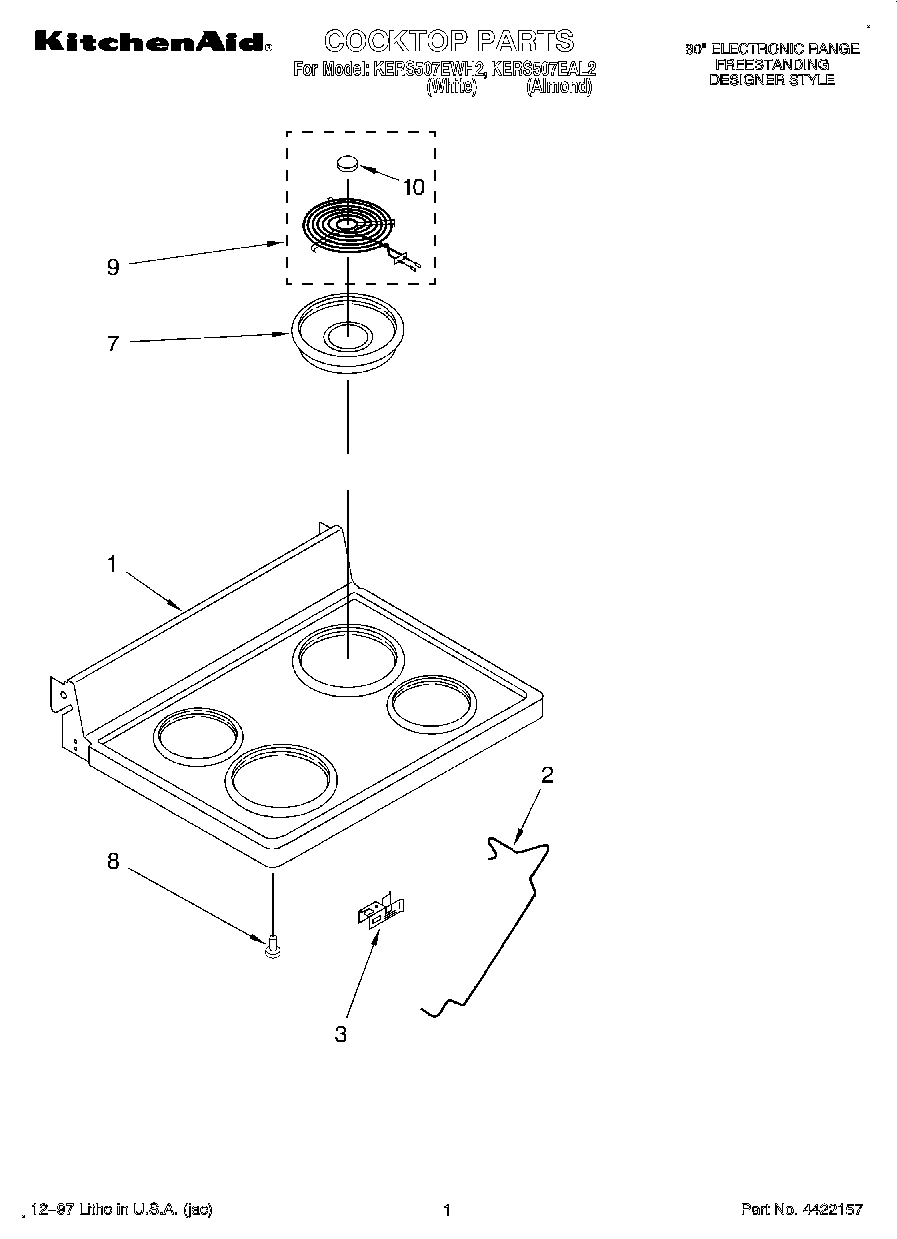

01 - COOKTOP

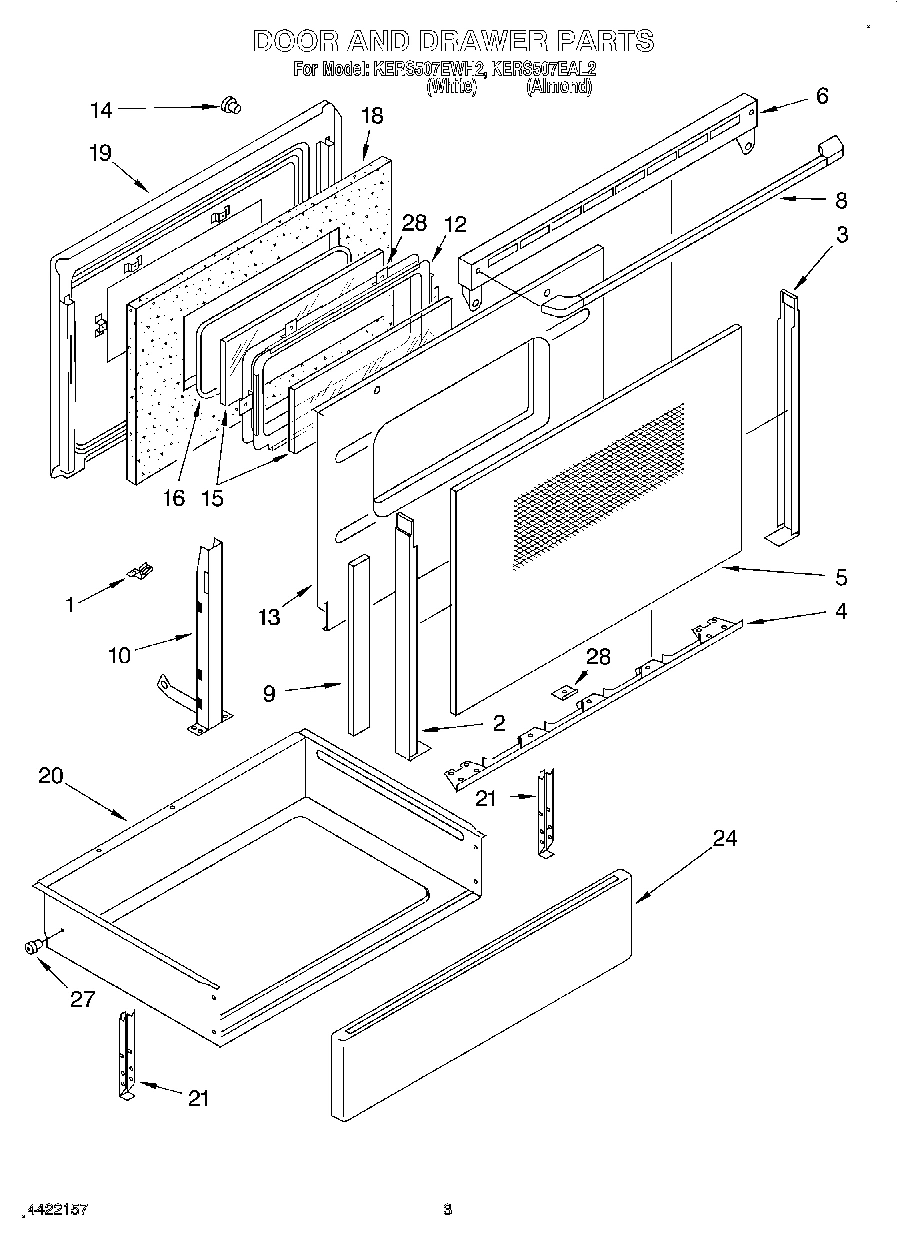

03 - DOOR AND DRAWER
05 - OVEN
Common parts from model Whirlpool KERS507EAL2 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE CONVEC
WPL 9750376 WPL 9750376 Contact Us For Availability
WPL 9751003 WPL 9751003 Contact Us For Availability
WPL 9751014 WPL 9751014 Contact Us For Availability
WPL 9751139 WPL 9751139 Contact Us For Availability
WPL 9752343 WPL 9752343 Contact Us For Availability
WPL 9752365 WPL 9752365 Contact Us For Availability
WPL 9752368 WPL 9752368 Contact Us For Availability
WPL 9752377 WPL 9752377 Contact Us For Availability
WPL 9781214 WPL 9781214 Contact Us For Availability
WPL 9781298 WPL 9781298 Contact Us For Availability
WPL 9781299 WPL 9781299 Contact Us For Availability
WPL 9781303 WPL 9781303 Contact Us For Availability
WPL 9781541 WPL 9781541 Contact Us For Availability
WPL LIT3183987 WPL LIT3183987 Contact Us For Availability
WPL LIT4449066 WPL LIT4449066 Contact Us For Availability
WPL LIT9752381 WPL LIT9752381 Contact Us For Availability
WPL LIT9752387 WPL LIT9752387 Contact Us For Availability
WPL LIT9752776 WPL LIT9752776 Contact Us For Availability
WPL LIT9780689 WPL LIT9780689 Contact Us For Availability
WPL LIT9780934 WPL LIT9780934 Contact Us For Availability
WPL LIT9780945 WPL LIT9780945 Contact Us For Availability
WPL LIT9781538 WPL LIT9781538 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (White) WPL 9751795 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9752336 Contact Us For Availability
1
Cooktop, Coil (Almond) WPL 9750160GT Contact Us For Availability
1
Cooktop, Coil (White) WPL 9750160GW Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Cooktop Rod WPL 9751538 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Screw, (4) WPL 423247 Contact Us For Availability
3
Panel, Rear WPL 9750150 Contact Us For Availability
3
Receptacle Clip WPL 9781324 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9750366FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9750367FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
6
Panel, Control (Almond) WPL 9752317PT Contact Us For Availability
6
Panel, Control (White) WPL 9752317PW Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Vent, Door (Almond) WPL 9751242GT Contact Us For Availability
6
Vent, Door (White) WPL 9751242GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Screw (3) 10 x 1/2 WPL 9780272 Contact Us For Availability
8
Screw (2) 10-32 x 5/16 WPL 422222 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
8
Knobs, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Element, Surface (Coil, 6`` RF (Accu-Simmer)) WPL 9781327 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Baffle, Convection WPL 9752670GM Contact Us For Availability
9
Screw (2) WPL 9781509 Contact Us For Availability
10
Medallion, (3) WPL 4211952 Contact Us For Availability
10
Medallion ((Accu-Simmer)) WPL 4211986 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Starter, Holder WPL 9750866 Contact Us For Availability
12
Frame, Window WPL 9781601 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
13
Receptacle, Lamp WPL 9750273 Contact Us For Availability
13
Shield Door WPL 9781588 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9752277CT Contact Us For Availability
15
Oven Control Assembly (White) WPL 9752277CW Contact Us For Availability
16
Washer WPL 424238 Contact Us For Availability
16
Ballast, Lamp WPL 3191044 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Seal, Window WPL 9781591 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
17
Button, Light (Almond) WPL 9751008FL Contact Us For Availability
17
Button, Light (White) WPL 9751008FW Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 9751745 WPL 9751745 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 313660 WPL 313660 Contact Us For Availability
18
WPL 3169573 WPL 3169573 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Switch, Light WPL 9751110 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
21
Bracket, Switch WPL 9750721 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Starter, Light WPL 9781118 Contact Us For Availability
22
Screw, (1) WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Insulation, Control WPL 9752639 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
28
Door Switch WPL 9781581 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
× ![]()
