Model Whirlpool KERS208XSS2 30`` FREE STANDING ELECTRIC RANGE – Common Parts & Diagrams

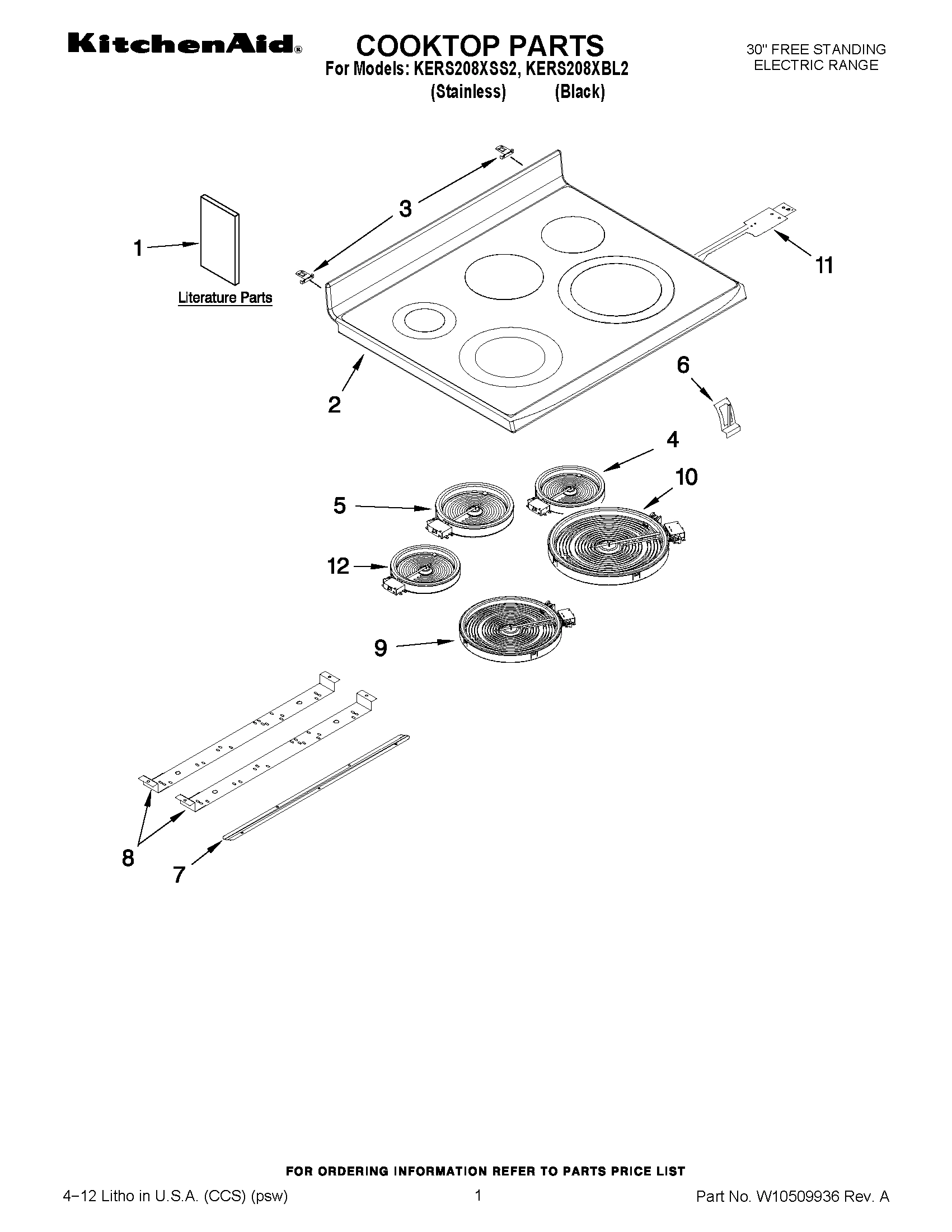

01 - COOKTOP PARTS

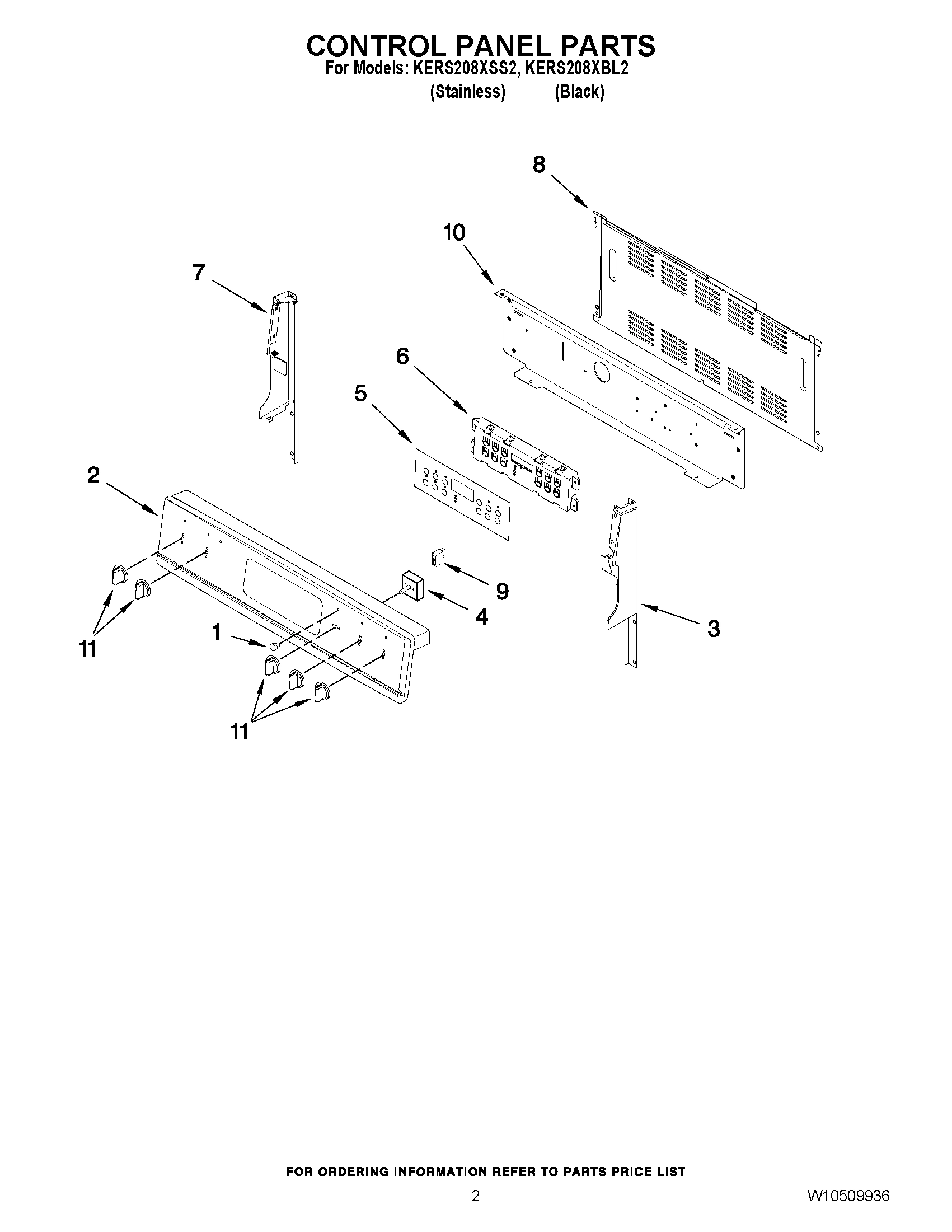

02 - CONTROL PANEL PARTS
04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
03 - CHASSIS PARTS
05 - DRAWER PARTS
Common parts from model Whirlpool KERS208XSS2 30`` FREE STANDING ELECTRIC RANGE
1
TRIM, DOOR TOP WPL W10348026 Contact Us For Availability
1
PANEL, SIDE (BLACK-RH) WPL W10346237 Contact Us For Availability
1
PANEL, SIDE (BLACK-LH) WPL W10346238 Contact Us For Availability
1
DRAWER, UTILITY WPL W10354973 Contact Us For Availability
2
GLASS, INNER WPL W10350569 Contact Us For Availability
2
LINER, DRAWER FRONT FRAME WPL W10350476 Contact Us For Availability
3
HINGE, DOOR WPL W10392681 Contact Us For Availability
3
SIDE SHIELD WPL W10347457 Contact Us For Availability
3
PANEL, DRAWER (BLACK) WPL W10350477 Contact Us For Availability
3
PANEL, DRAWER (STAINLESS) WPL W10350604 Contact Us For Availability
4
SWITCH, INFINTE (RADIAN DUAL RF/LF) WPL W10495257 Contact Us For Availability
4
SWITCH, INFINTE (WARMER) WPL W10349884 Contact Us For Availability
4
RETAINER, DOOR INSULATION WPL W10350551 Contact Us For Availability
4
HANDLE, DRAWER (BLACK) WPL W10347826 Contact Us For Availability
4
HANDLE, DRAWER (STAINLESS) WPL W10350605 Contact Us For Availability
4
DOOR LATCH WPL W10346955 Contact Us For Availability
5
ELEMENT, WARM WPL W10350493 Contact Us For Availability
5
OVERLAY, CONTROL WPL W10352253 Contact Us For Availability
5
BRACKET, GLASS SPACER WPL W10350617 Contact Us For Availability
5
COVER, INNER REAR WPL W10350105 Contact Us For Availability
5
GLIDE, DRAWER (LH) WPL W10347664 Contact Us For Availability
5
GLIDE, DRAWER (RH) WPL W10347665 Contact Us For Availability
6
CONTROL WPL W10352251 Contact Us For Availability
6
GLASS, AIRWASH (BLACK) WPL W10350579 Contact Us For Availability
6
GLASS, AIRWASH (STAINLESS) WPL W10350606 Contact Us For Availability
6
MAIN BACK WPL W10350451 Contact Us For Availability
6
ELEMENT-BAKE WARMING DRAWER WPL W10354990 Contact Us For Availability
7
FRAME, GLASS INNER WPL W10350584 Contact Us For Availability
7
TUBE, VENT UPPER OVEN WPL W10350438 Contact Us For Availability
7
BRACKET, ELEMENT WPL W10355009 Contact Us For Availability
8
COVER, REAR WIRE WPL W10315160 Contact Us For Availability
8
TUBE, VENT WITH CATALYST WPL W10350337 Contact Us For Availability
8
SHIELD-TERMINAL WARMING DRAWER WPL W10355011 Contact Us For Availability
9
LIGHT/LAMP, INDICATOR, 125V WPL W10349885 Contact Us For Availability
9
BRACKET, GLASS DOOR (SS ONLY) WPL W10350616 Contact Us For Availability
9
BRACKET, CORD WPL W10350461 Contact Us For Availability
9
THERMO DISC WPL W10355012 Contact Us For Availability
10
SHIELD, HEAT WPL W10350103 Contact Us For Availability
10
LINING, DOOR WPL W10350572 Contact Us For Availability
10
SHIELD, WIRE VENT TUBE WPL W10350117 Contact Us For Availability
10
RACK, WARMING DRAWER WPL W10355017 Contact Us For Availability
11
KNOB (BLACK) WPL W10350095 Contact Us For Availability
11
BRACKET, GLASS WPL W10350589 Contact Us For Availability
11
PANEL, ACCESS WPL W10350126 Contact Us For Availability
11
CLIP, HOLD DOWN WPL W10355014 Contact Us For Availability
12
ELEMENT, LR WPL W10354974 Contact Us For Availability
12
INSULATION, DOOR WPL W10350552 Contact Us For Availability
12
GROUND STRAP WPL W10350442 Contact Us For Availability
12
BASE, WARMING DRAWER WPL W10355039 Contact Us For Availability
13
TERMINAL-BLOCK KIT WPL W10350439 Contact Us For Availability
13
SEAL, DOOR WPL W10350574 Contact Us For Availability
14
CLIP, DOOR GLASS WPL W10350585 Contact Us For Availability
15
GLASS, DOOR WITH BADGE WPL W10357228 Contact Us For Availability
15
COVER, FAN WPL W10347448 Contact Us For Availability
16
TRIM, DOOR WPL W10350549 Contact Us For Availability
16
BRACKET, MOTOR WPL W10347442 Contact Us For Availability
17
SPACER, DOOR HANDLE(SS ONLY) WPL W10350610 Contact Us For Availability
18
GLASS, OVEN DOOR BLACK WITH FOIL (SS ONLY) WPL W10357230 Contact Us For Availability
18
NUT, FAN BLADE WPL W10347453 Contact Us For Availability
19
SCREW WPL W10347322 Contact Us For Availability
19
CLIP-OVEN BODY WPL W10346958 Contact Us For Availability
20
PANEL, DOOR-OUTER W/BADGE(SS ONLY) WPL W10357232 Contact Us For Availability
20
LEG, LEVELING (REAR PLASTIC) WPL W10346263 Contact Us For Availability
20
LEG, LEVELING (FRONT METAL) WPL W10346264 Contact Us For Availability
22
SCREW, DOOR (STAINLESS) WPL W10370041 Contact Us For Availability
22
SCREW, DOOR (BLACK) WPL W10347857 Contact Us For Availability
22
SHIELD, HEAT OVEN LOWER WPL W10355048 Contact Us For Availability
23
WASHER, DOOR WPL W10370042 Contact Us For Availability
23
SHIELD, HEAT WOOL LOWER WPL W10355055 Contact Us For Availability
24
SCREW, DOOR PANEL WPL W10370043 Contact Us For Availability
24
INSULATION, OVEN BOTTOM WPL W10350135 Contact Us For Availability
25
INSULATION, LOWER SHIELD WPL W10350133 Contact Us For Availability
26
TRAY, BAKE ELEMENT WPL W10350109 Contact Us For Availability
27
BRACKET, SUPPORT BAKE ELEMENT WPL W10350112 Contact Us For Availability
28
BAKE ELEMENT, 3000 W WPL W10350448 Contact Us For Availability
29
BRACKET, SUPPORT OVEN BOTTOM WPL W10350111 Contact Us For Availability
30
OVEN BOTTOM WPL W10350107 Contact Us For Availability
31
OVEN RACK WPL W10346265 Contact Us For Availability
32
OVEN SENSOR WPL W10347247 Contact Us For Availability
33
SUPPORT, BROIL ELEMENT WPL W10350450 Contact Us For Availability
34
BROIL ELEMENT WPL W10350447 Contact Us For Availability
35
BRACKET, HINGE OVEN DOOR WPL W10347318 Contact Us For Availability
36
SOCKET, LIGHT WPL W10346268 Contact Us For Availability
38
LENS-LIGHT WPL W10346874 Contact Us For Availability
39
RETAINER, OVEN LIGHT LENS WPL W10346877 Contact Us For Availability
40
SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability
41
SWITCH, OVEN LIGHT WPL W10346267 Contact Us For Availability
42
INSULATION (OVEN WRAPPER) WPL W10350131 Contact Us For Availability
42
INSULATION (OVEN BACK) WPL W10350132 Contact Us For Availability
43
ROD, AUTO LATCH WPL W10350462 Contact Us For Availability
44
SHIELD-SIDE WPL W10355047 Contact Us For Availability
45
SHIELD, REAR WPL W10355050 Contact Us For Availability
46
GLIDE-OUTER WPL W10355274 Contact Us For Availability
47
BRACKET-PANEL WPL W10357267 Contact Us For Availability
48
HALF RACK WPL W10355045 Contact Us For Availability
49
HALF RACK-INSERT WPL W10355043 Contact Us For Availability
50
INSULATION, BAKE ELEMENT WPL W10355234 Contact Us For Availability
51
ELEMENT, CONVECT 350W WPL W10354972 Contact Us For Availability
NI
Cleaner, Glass WPL W10355051 No Longer Available
× ![]()
