Model Whirlpool KERI500YWH1 – Common Parts & Diagrams
04 - OVEN CHASSIS
02 - CONTROL PANEL

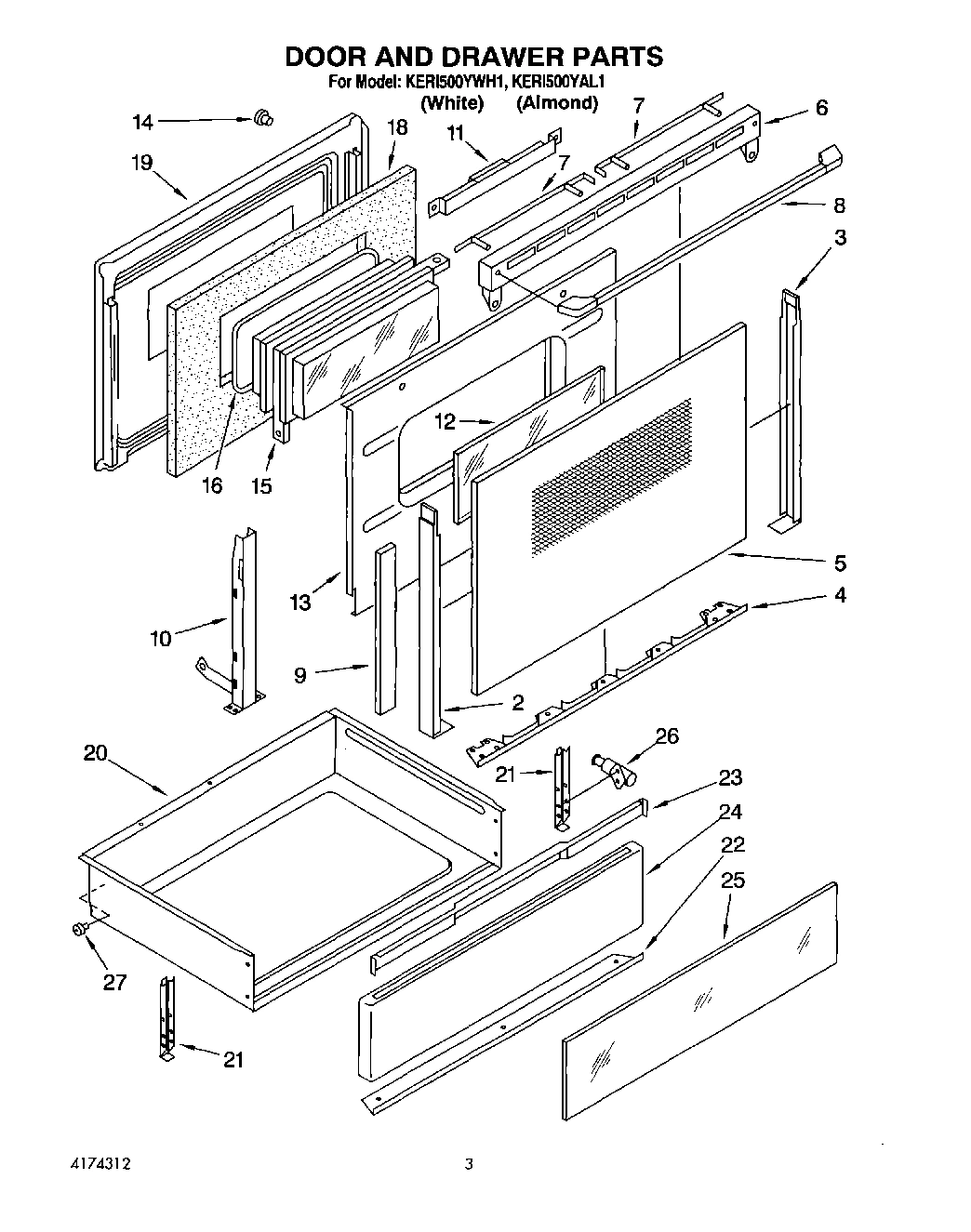

03 - DOOR AND DRAWER

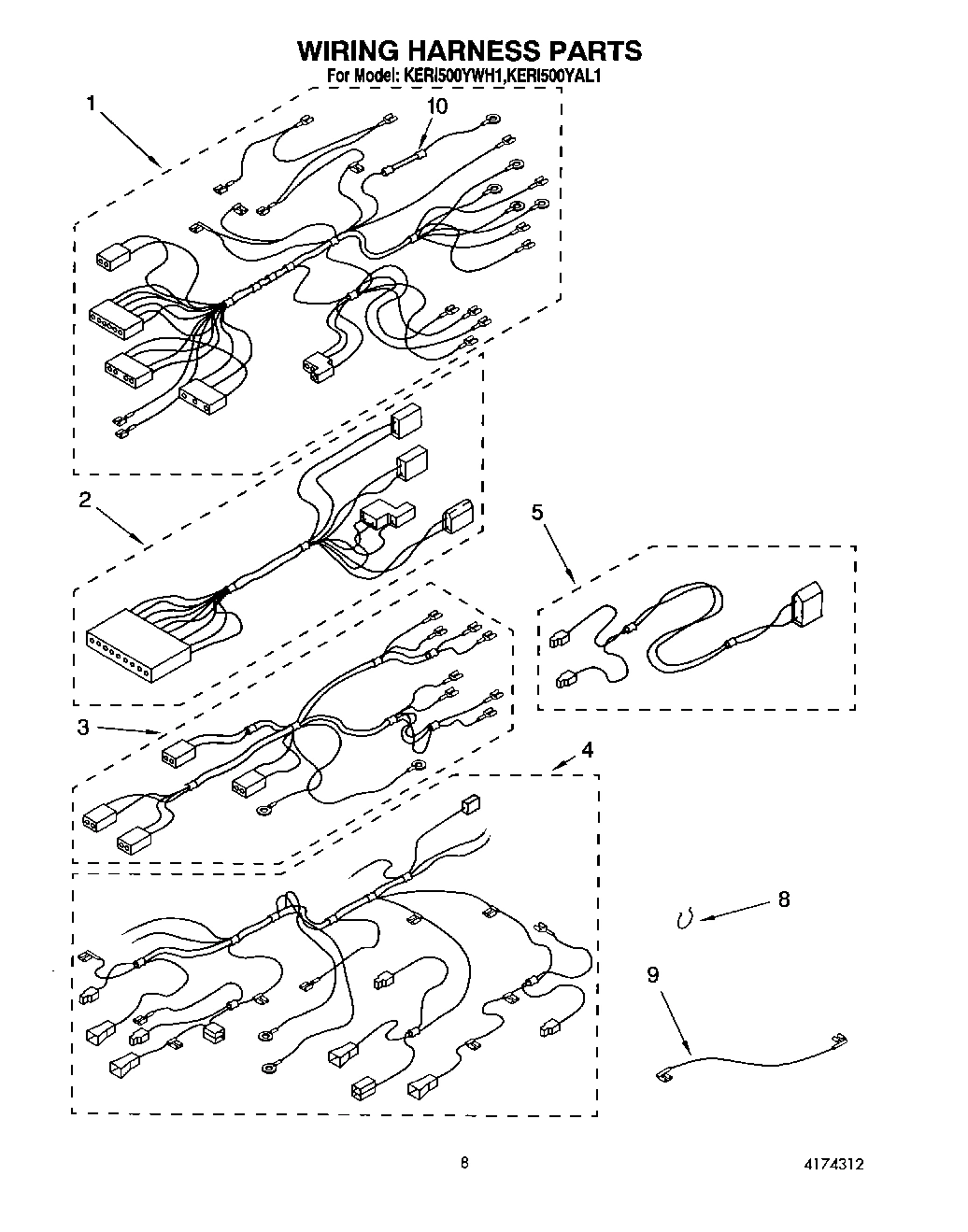

06 - WIRING HARNESS

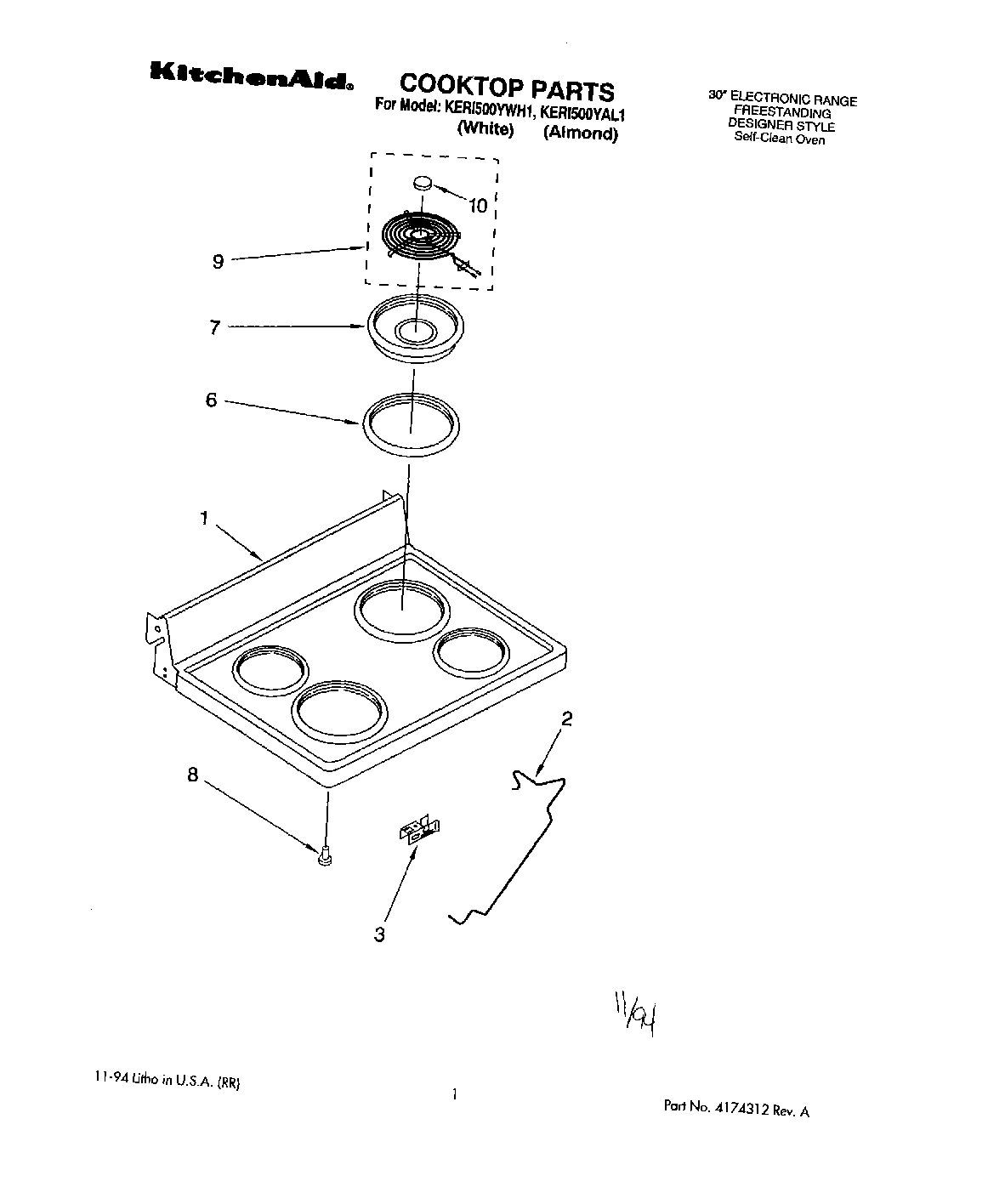

01 - COOKTOP, LITERATURE

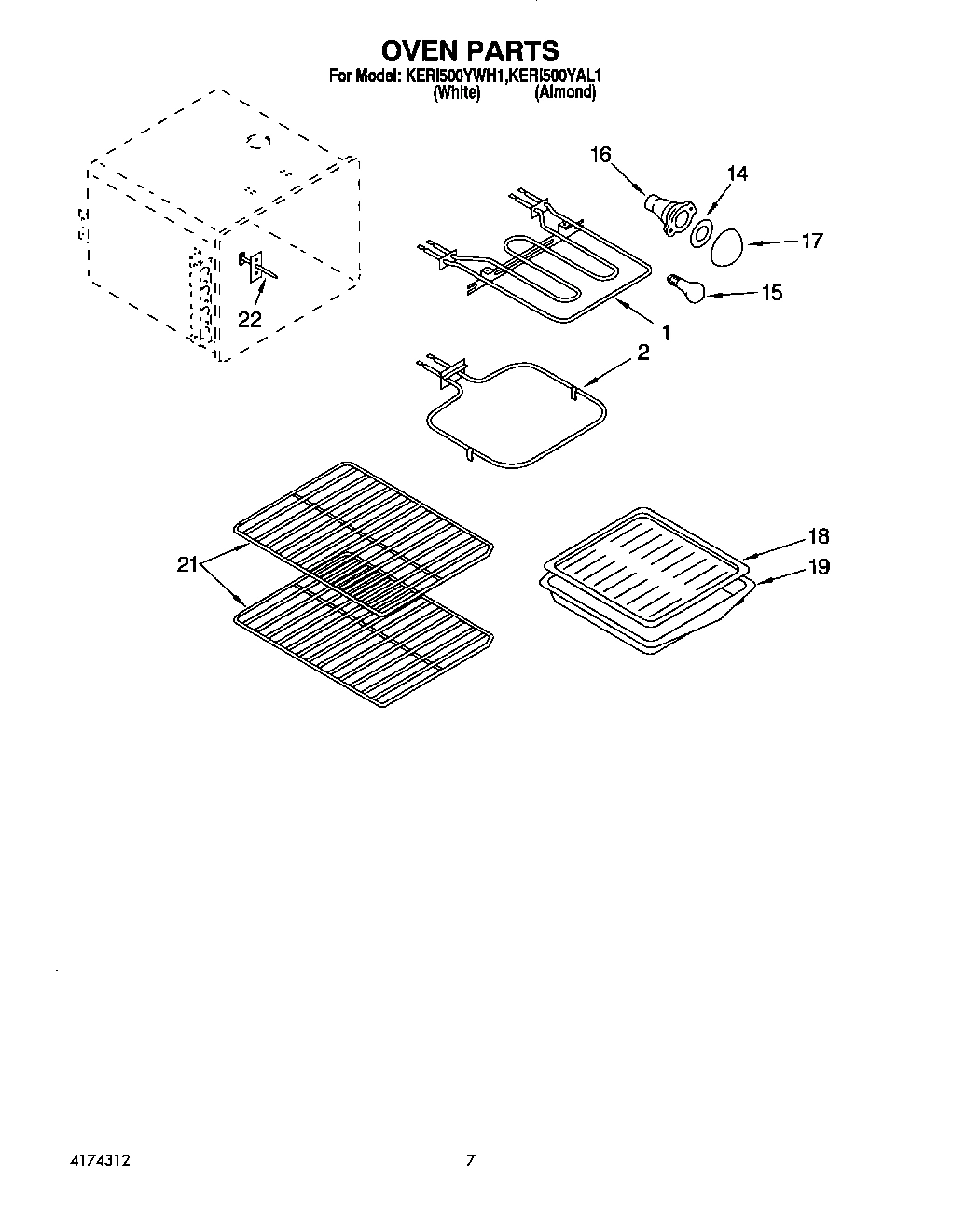

05 - OVEN

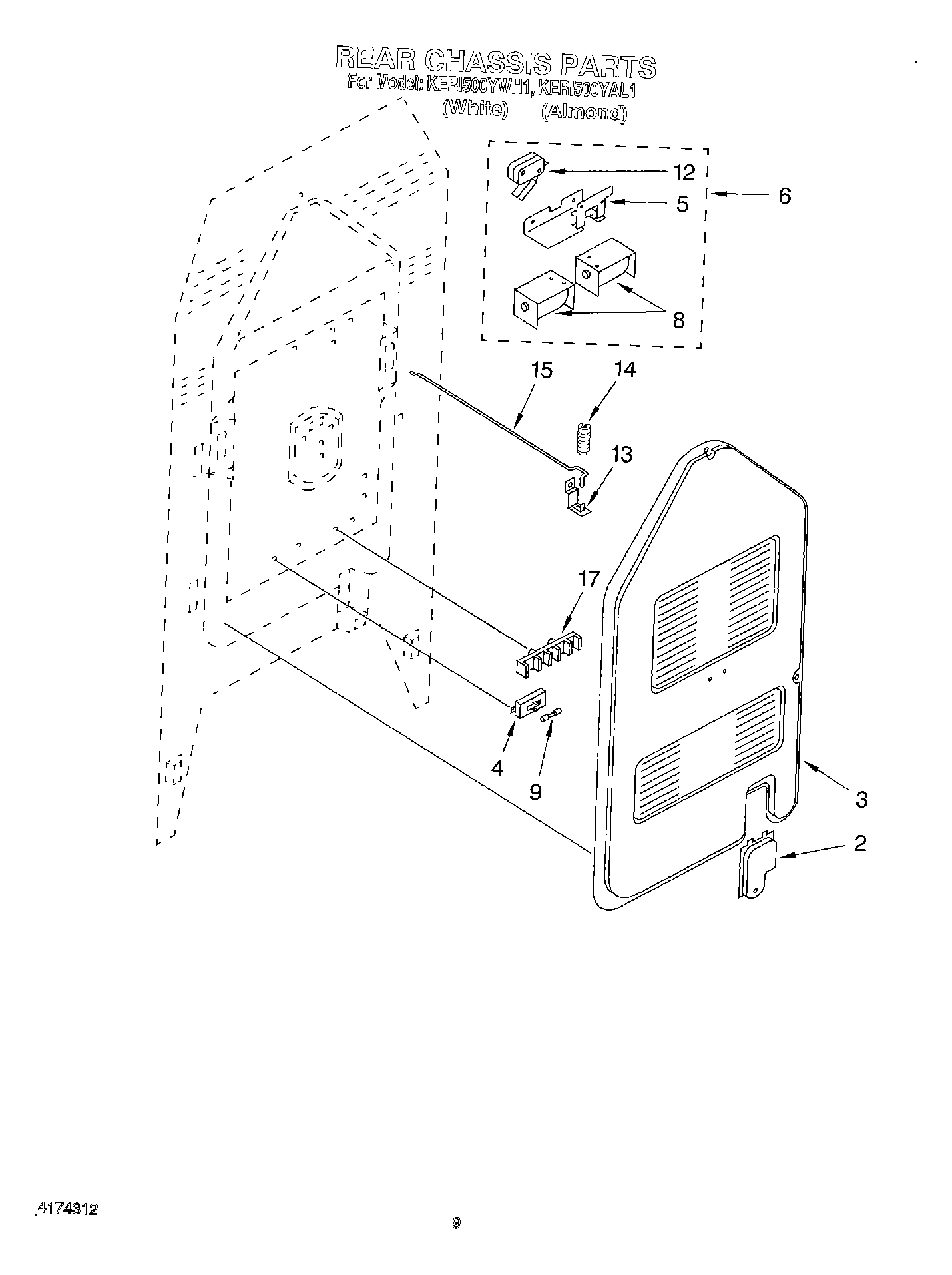

07 - REAR CHASSIS, OPTIONAL
Common parts from model Whirlpool KERI500YWH1
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Instructions, Installation WPL LIT9750520 Contact Us For Availability
Wiring Diagram WPL LIT9750876 Contact Us For Availability
Tech Sheet-K/A WPL LIT9750877 Contact Us For Availability
Quick Set (oven) WPL LIT9780689 Contact Us For Availability
Use And Care Guide WPL LIT9780932 Contact Us For Availability
Label, Instruction (Lamp Cover) WPL LIT9780944 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (White) WPL 9780732 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9780733 Contact Us For Availability
1
Harness, (Oven/With Fuse) WPL 9751153 Contact Us For Availability
1
Cooktop, Coil (White) WPL 4211942 Contact Us For Availability
1
Cooktop, Coil (Almond) WPL 4211943 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4211912 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 4211914 Contact Us For Availability
2
Harness, (Lock Switch) WPL 9780316 Contact Us For Availability
2
Cooktop Rod WPL 9750255 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
3
Lamp Cover Insert (White) WPL 9780729 Contact Us For Availability
3
Lamp Cover Insert (Almond) WPL 9780730 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4211910 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 4211911 Contact Us For Availability
3
Harness, (Cooktop) WPL 9751014 Contact Us For Availability
3
Clip, Receptacle WPL 9750735 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
4
End Cap R.H. (Almond) WPL 4211933 Contact Us For Availability
4
End Cap R.H. (White) WPL 4211934 Contact Us For Availability
4
Trim, Door Bottom (White) WPL 4211925 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 4211926 Contact Us For Availability
4
Harness, Wire (Control) WPL 9750910 Contact Us For Availability
4
Screw (1) xxNOTE WPL 9750904 Contact Us For Availability
4
Holder, Fuse WPL 9750941 Contact Us For Availability
5
End Cap L.H. (Almond) WPL 4211936 Contact Us For Availability
5
End Cap L.H. (White) WPL 4211937 Contact Us For Availability
5
Glass, Door (White) WPL 9780314 Contact Us For Availability
5
Glass, Door (Almond) WPL 9780328 Contact Us For Availability
5
Harness, (Door) WPL 9750376 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability
6
Panel, Control (White) WPL 9780727 Contact Us For Availability
6
Panel, Control (Almond) WPL 9780728 Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Vent, Door (White) WPL 4211907 Contact Us For Availability
6
Vent, Door (Almond) WPL 4211908 Contact Us For Availability
6
Trim Ring, Chrome (8``) WPL 9750504 Contact Us For Availability
6
Trim Ring, Chrome (6``) WPL 9750505 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
7
Drip Bowl 8`` WPL 4211951 Contact Us For Availability
7
Vent Back WPL 9750898 Contact Us For Availability
7
Drip Bowl 6`` WPL 4211950 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Handle, Door (White) WPL 9750705 Contact Us For Availability
8
Handle, Door (Almond) WPL 9750706 Contact Us For Availability
8
Hanger, Cable WPL 9750984 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
9
Gasket, Door Glass WPL 9750694 Contact Us For Availability
9
Lead, Ground WPL 9751003 Contact Us For Availability
9
Fuse, 20-Amp xxNOTE WPL 9750940 Contact Us For Availability
10
Harness, Lead (Fused) WPL 9751369 Contact Us For Availability
10
Medallion, (4) WPL 4211952 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Shield Door WPL 4211941 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9750918 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750919 Contact Us For Availability
15
Window Pack Assy. WPL 9751245 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
Toast WPL 285365 Contact Us For Availability
17
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
17
Enamal, Toast (1 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 308498 WPL 308498 Contact Us For Availability
17
WPL 313660 WPL 313660 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 98884 WPL 98884 Contact Us For Availability
19
Liner, Door WPL 4212163 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Trim, Drawer Bottm. (White) WPL 4211905 Contact Us For Availability
22
Trim, Drawer Bottm. (Almond) WPL 4211906 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Trim, Drawer Top (White) WPL 4211931 Contact Us For Availability
23
Trim, Drawer Top (Almond) WPL 4211932 Contact Us For Availability
24
Infinite Switch (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability
24
Front, Drawer (White) WPL 4211916 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211917 Contact Us For Availability
25
Glass, Drawer Face (White) WPL 9750612 Contact Us For Availability
25
Glass, Drawer Face (Almond) WPL 9780326 Contact Us For Availability
26
Latch, Drawer WPL 9750775 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
× ![]()
