Model Whirlpool KERI500HWH1 – Common Parts & Diagrams
01 - COOKTOP, LITERATURE
02 - CONTROL PANEL

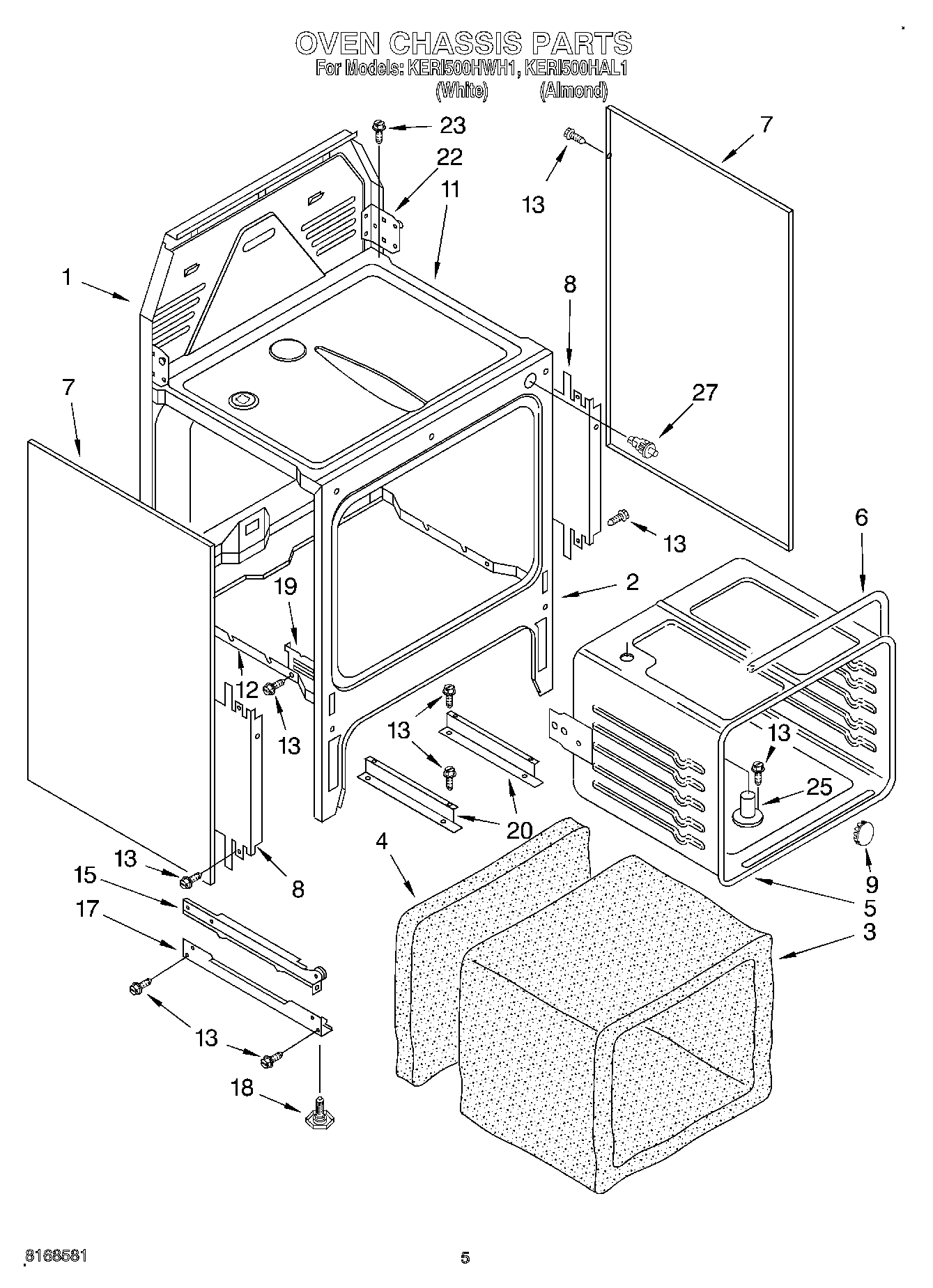

04 - OVEN CHASSIS

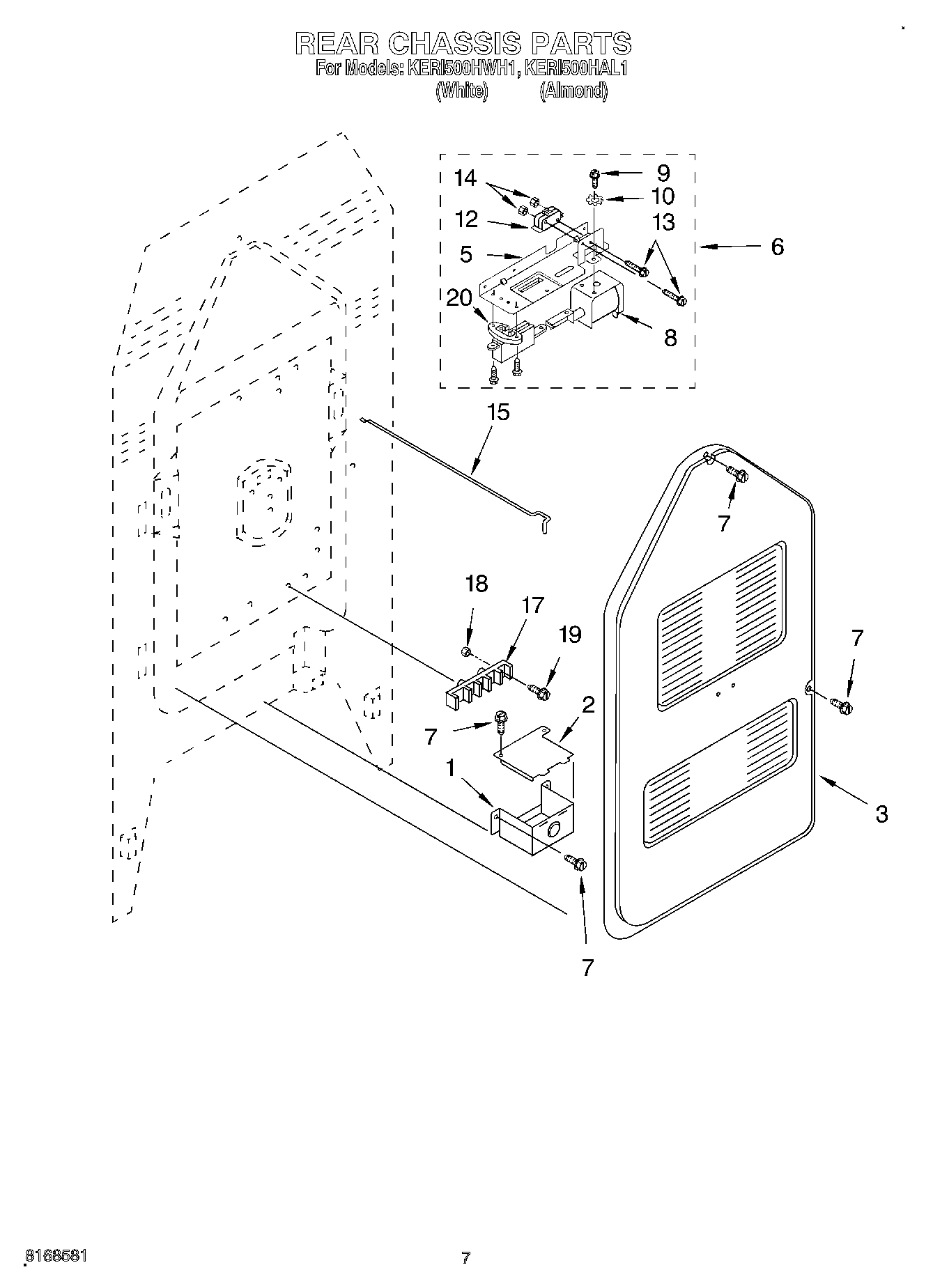

05 - REAR CHASSIS

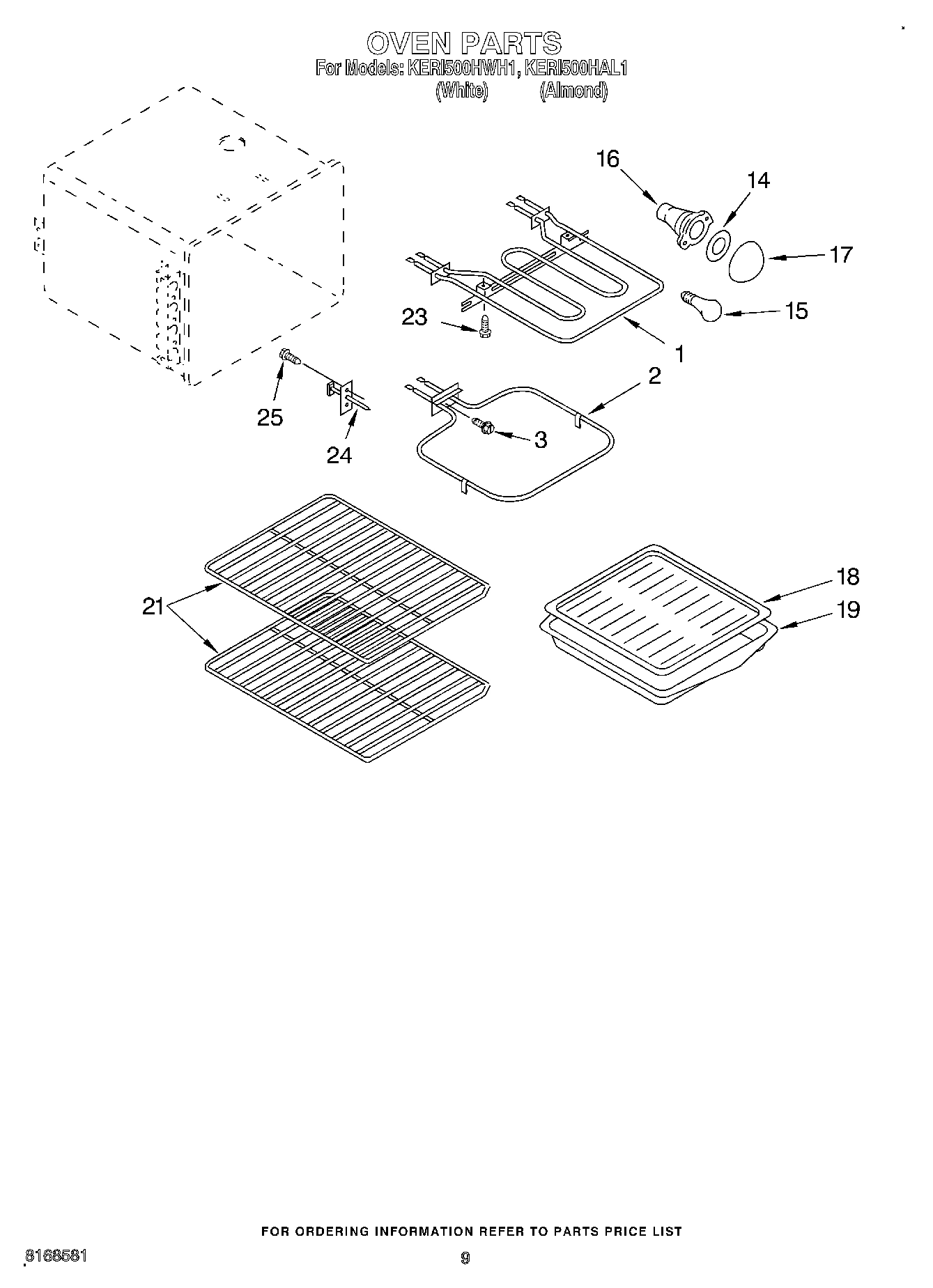

06 - OVEN, OPTIONAL

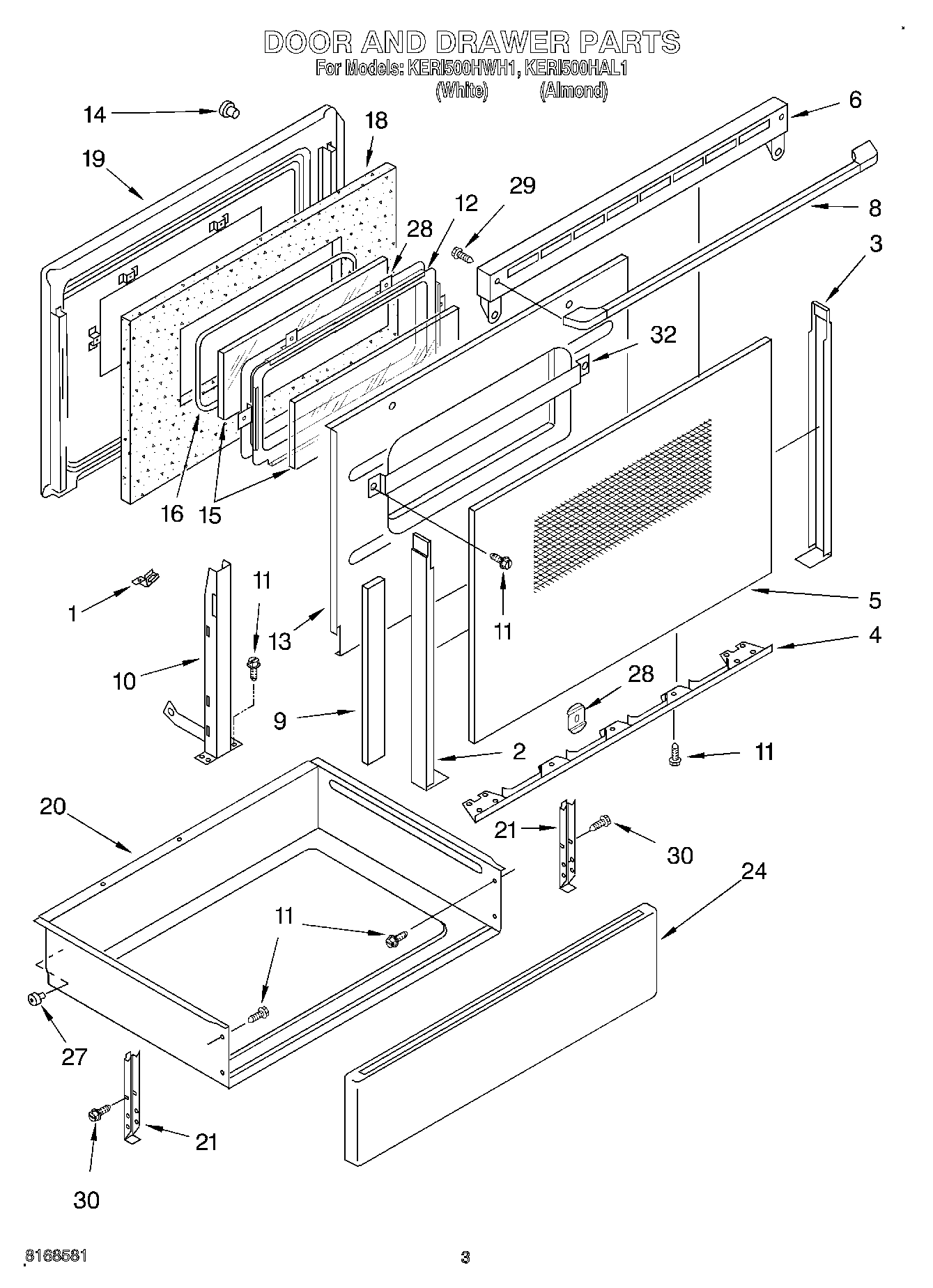

03 - DOOR AND DRAWER
Common parts from model Whirlpool KERI500HWH1
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Box, Terminal WPL 9752344 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cover, Terminal Box WPL 9752345 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9782003PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Panel, Rear WPL 9750150 Contact Us For Availability
3
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9782004PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Oven Lock Assembly WPL 9752404 Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Oven, Side Panel (Almond) WPL 9781907PT Contact Us For Availability
7
Oven, Side Panel (White) WPL 9781907PW Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Knobs, Control (Almond) WPL 9750372FT Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Washe, Lock No.10 WPL 424238 Contact Us For Availability
11
Light Module WPL 9753422 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9753636CT Contact Us For Availability
15
Oven Control Assembly (White) WPL 9753636CW Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
24
Sensor WPL 8053344 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
25
WPL 9751745 WPL 9751745 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
25
Grease WPL 261582 Contact Us For Availability
25
Coffee WPL 261886 Contact Us For Availability
25
New Avocado WPL 261888 Contact Us For Availability
25
Harvest Gold WPL 261890 Contact Us For Availability
25
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
25
Clip, Ground Wire WPL 313660 Contact Us For Availability
25
Strap, Ground WPL 3169573 Contact Us For Availability
25
Paint, Touch-Up 1/2 Oz. WPL 72108 Contact Us For Availability
25
WPL 799832 WPL 799832 Contact Us For Availability
25
WPL 9750744 WPL 9750744 Contact Us For Availability
25
WPL 9751003 WPL 9751003 Contact Us For Availability
25
WPL 9751014 WPL 9751014 Contact Us For Availability
25
WPL 9752771 WPL 9752771 Contact Us For Availability
25
WPL 9781903 WPL 9781903 Contact Us For Availability
25
WPL 9781908 WPL 9781908 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
27
Door Switch WPL 9781580 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
30
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
32
Channel, Heat WPL 9750693 Contact Us For Availability
× ![]()
