Model Whirlpool KERI500HWH0 – Common Parts & Diagrams

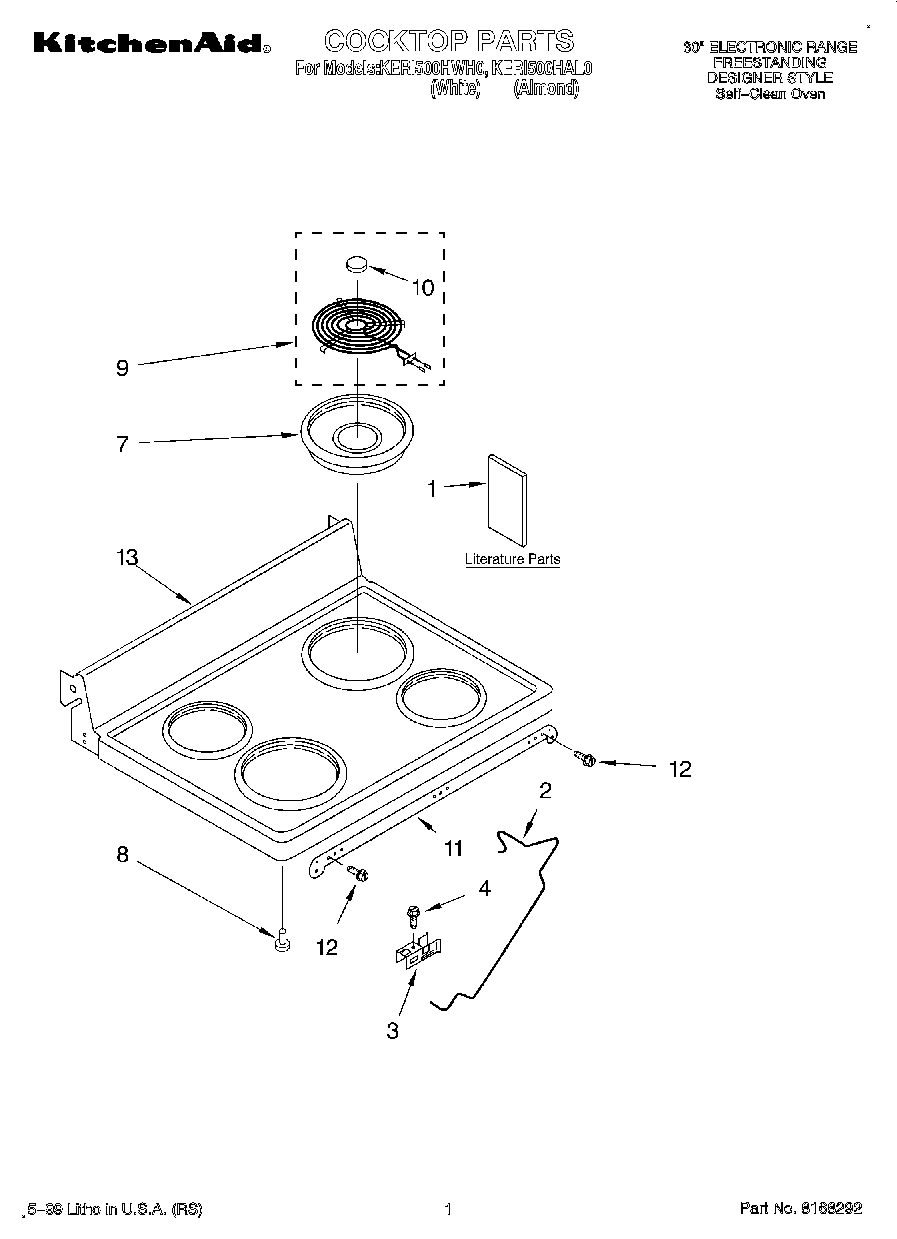

01 - COOKTOP, LITERATURE

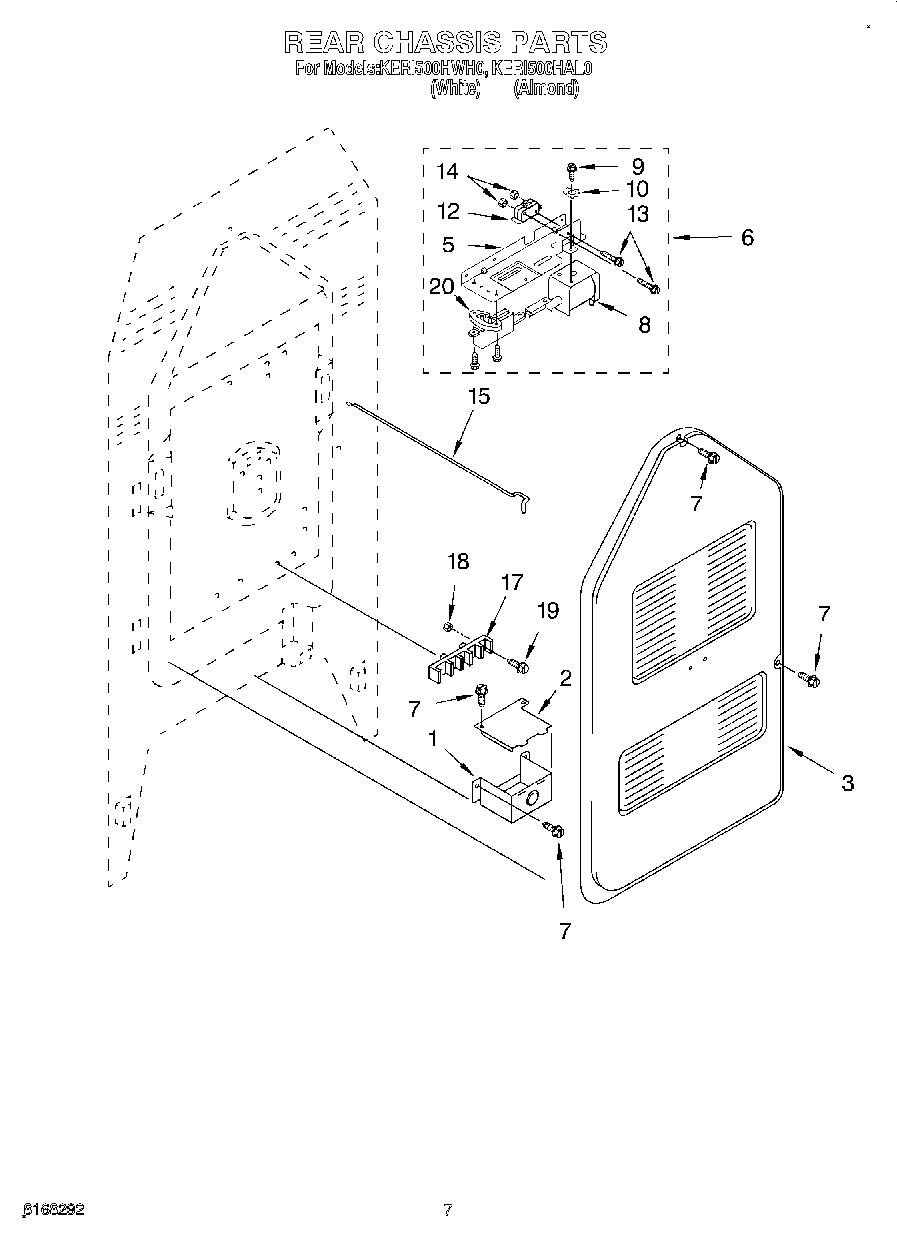

05 - REAR CHASSIS

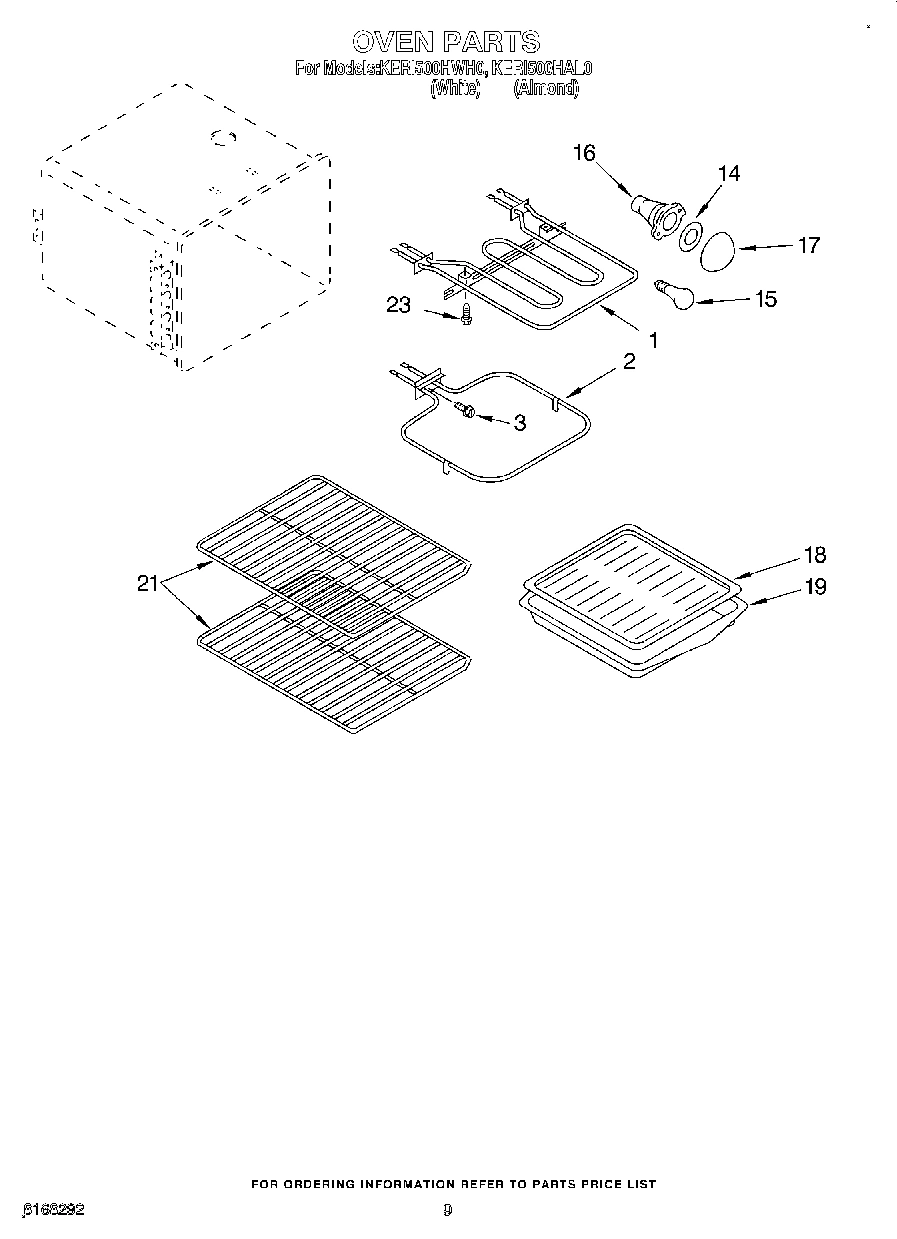

06 - OVEN, OPTIONAL

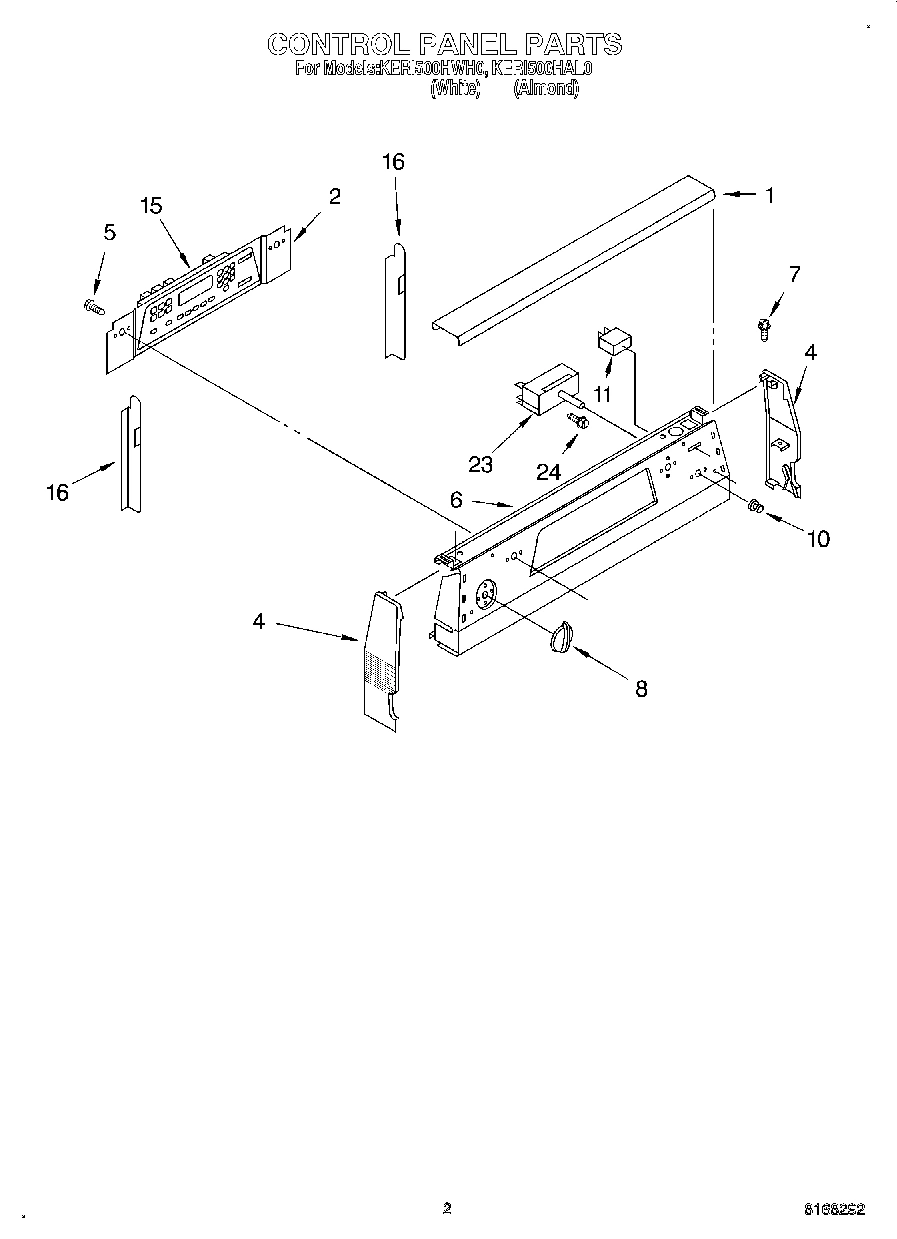

02 - CONTROL PANEL

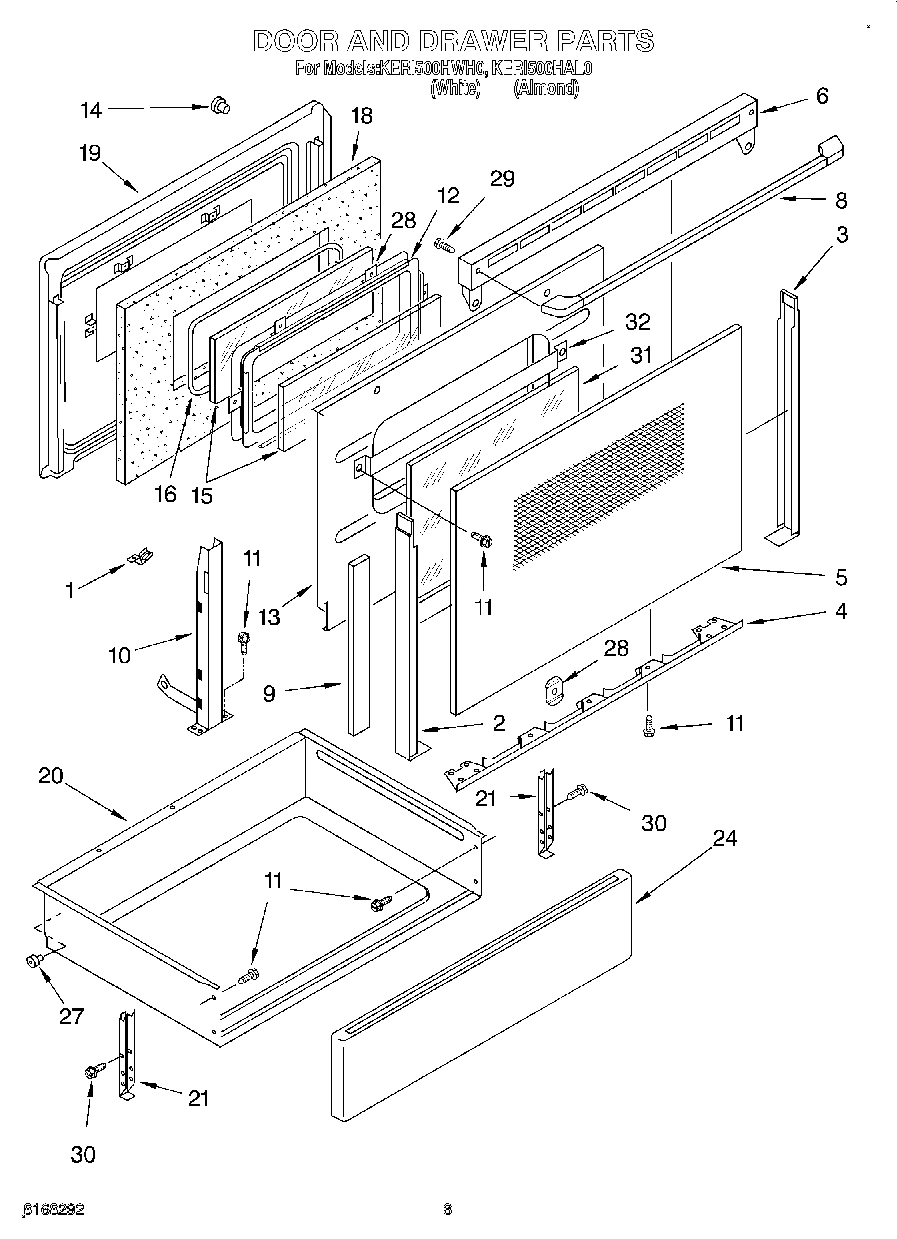

03 - DOOR AND DRAWER

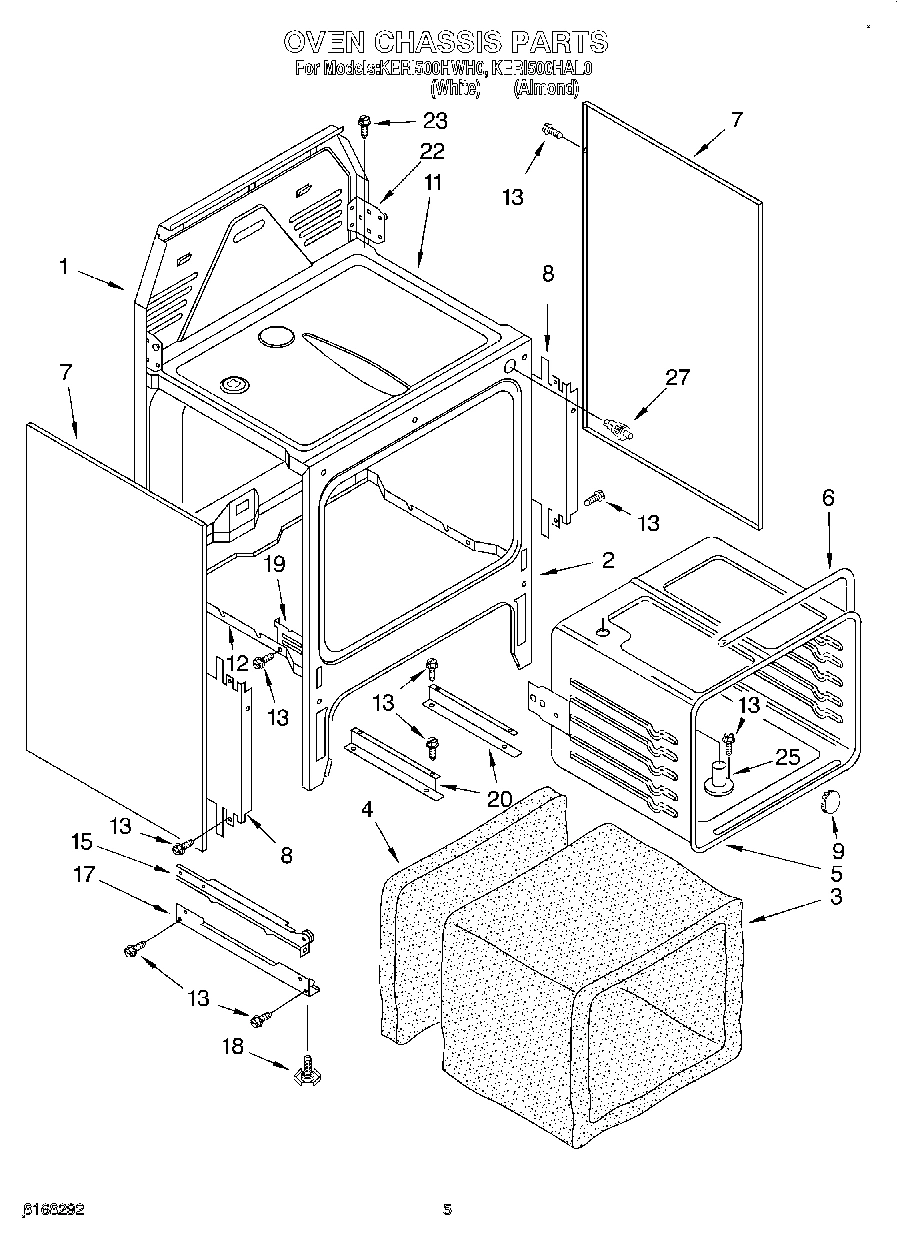

04 - OVEN CHASSIS
Common parts from model Whirlpool KERI500HWH0
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9753156PT Contact Us For Availability
1
Lamp Cover (White) WPL 9753156PW Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Bracket, Timer WPL 9753690 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9750366FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9750367FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Panel, Control (Almond) WPL 9753723PT Contact Us For Availability
6
Panel, Control (White) WPL 9753723PW Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
7
Insulation WPL 9752639 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side Panel (Almond) WPL 9781907PT Contact Us For Availability
7
Oven, Side Panel (White) WPL 9781907PW Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Knobs, Control (Almond) WPL 9750372FT Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
11
Light Module WPL 9753422 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9753636CT Contact Us For Availability
15
Oven Control Assembly (White) WPL 9753636CW Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
20
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9751904 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Harvest Gold WPL 261890 Contact Us For Availability
23
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
23
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750376 WPL 9750376 Contact Us For Availability
23
WPL 9751003 WPL 9751003 Contact Us For Availability
23
WPL 9751014 WPL 9751014 Contact Us For Availability
23
WPL 9752771 WPL 9752771 Contact Us For Availability
23
WPL 9753685 WPL 9753685 Contact Us For Availability
23
WPL 9781542 WPL 9781542 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
27
Door Switch WPL 9781581 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
30
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
31
Baffle, Door WPL 9781592 Contact Us For Availability
32
Channel, Heat WPL 9750693 Contact Us For Availability
× ![]()
