Model Whirlpool KERI500EWH3 – Common Parts & Diagrams

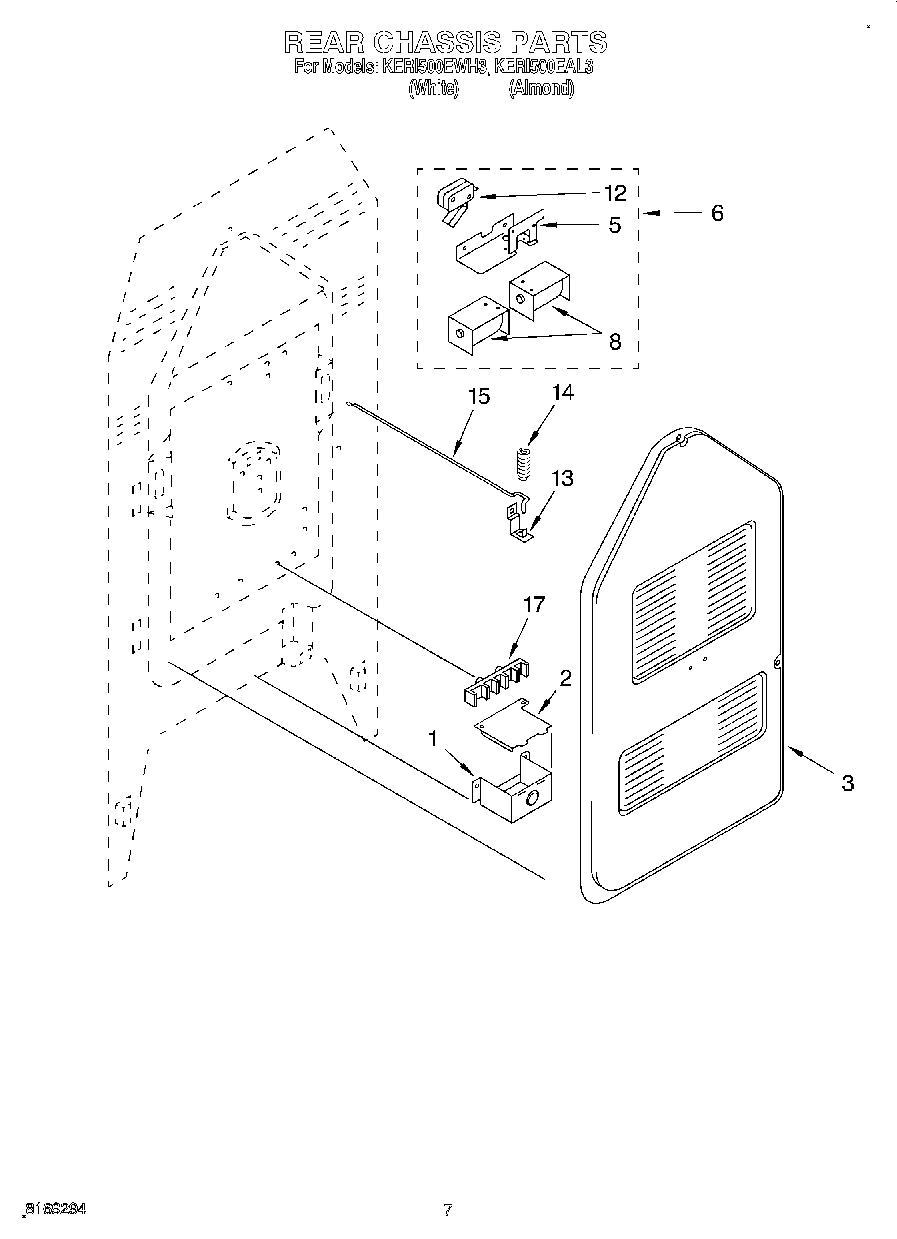

05 - REAR CHASSIS

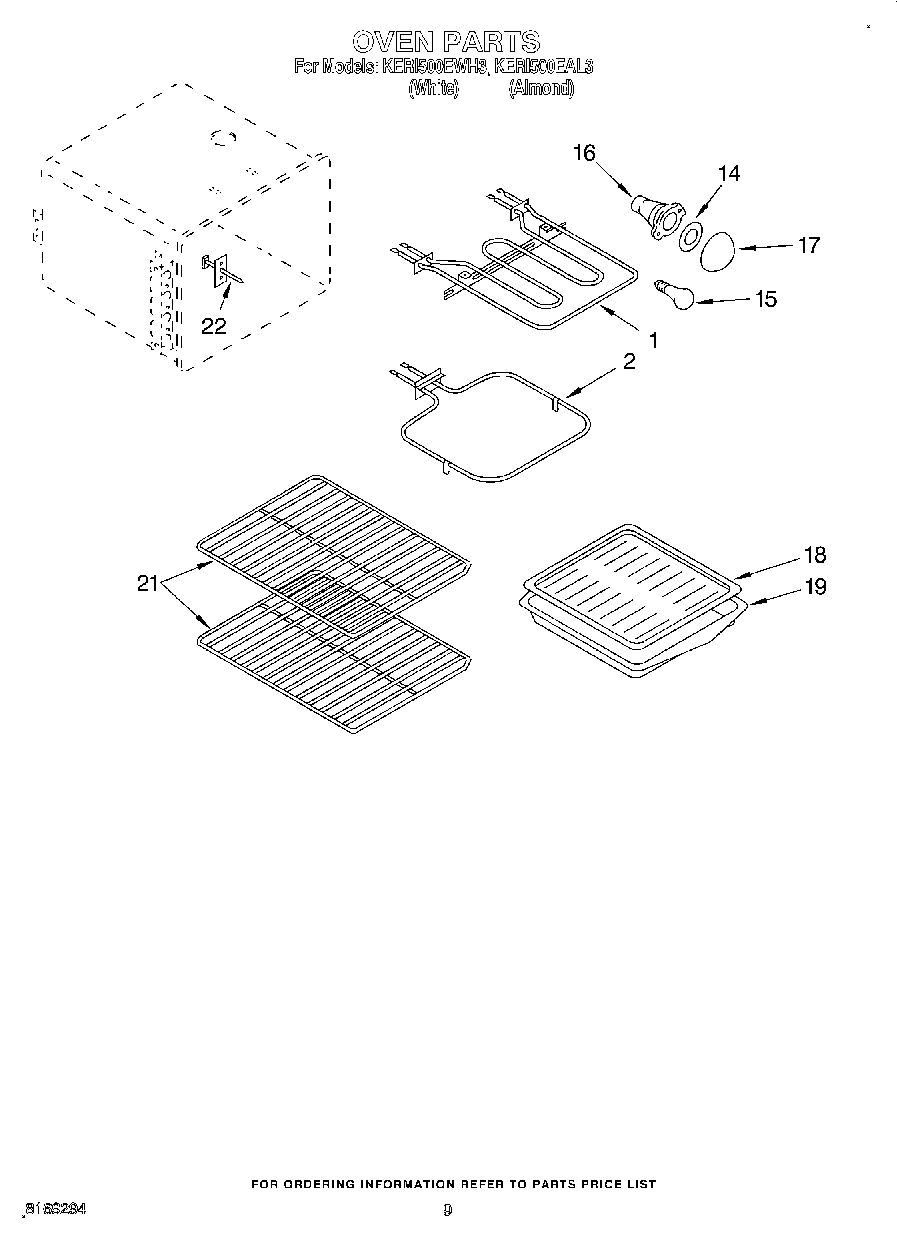

06 - OVEN, LIT/OPTIONAL

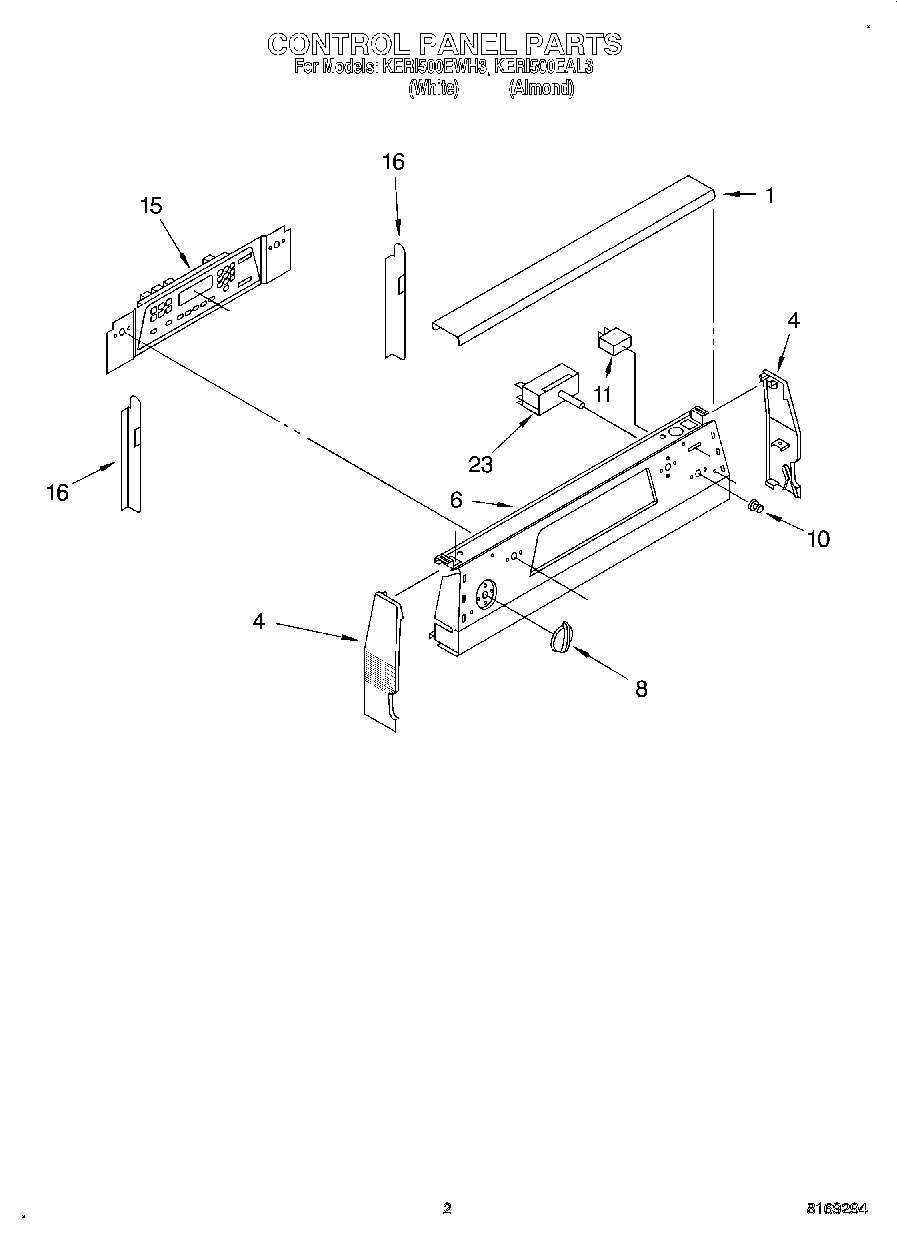

02 - CONTROL PANEL

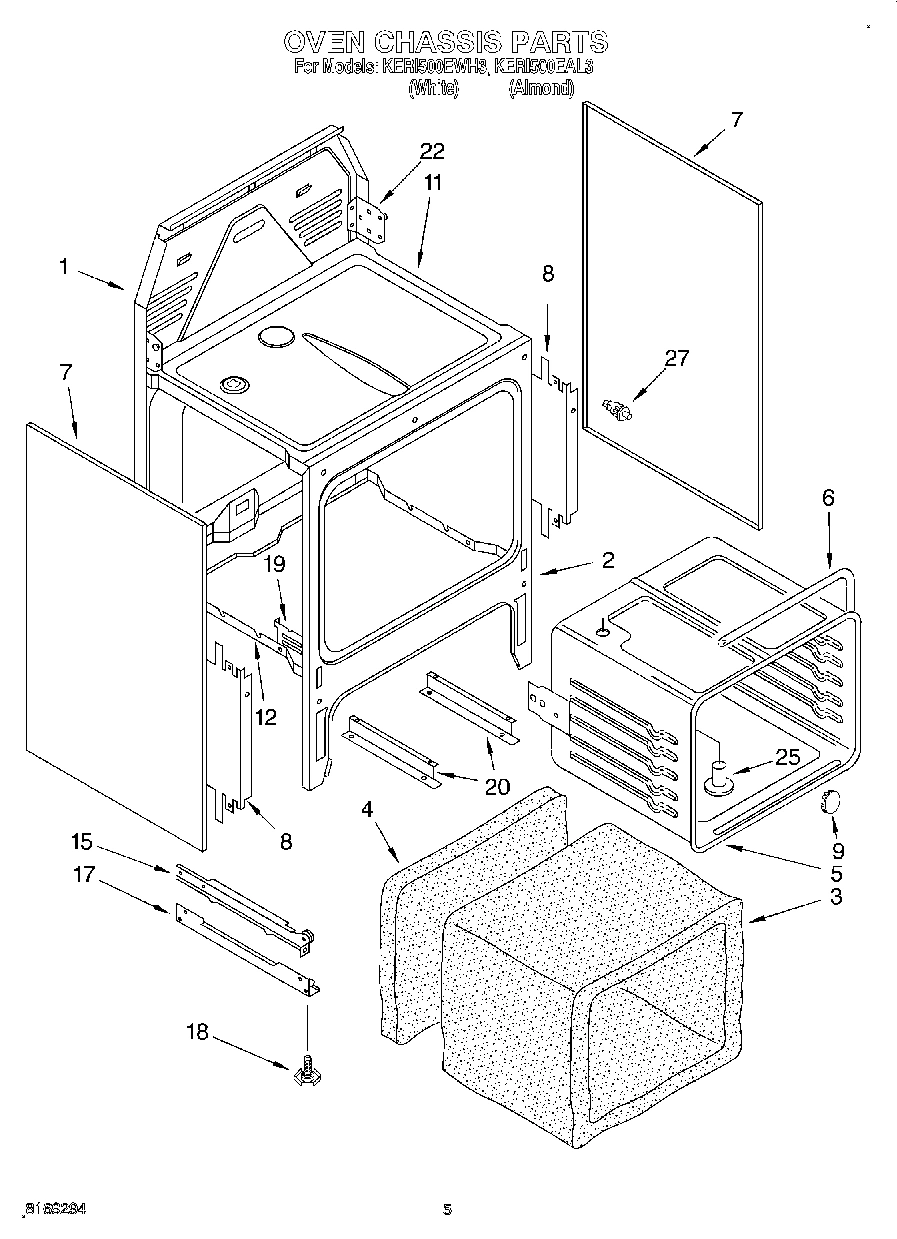

04 - OVEN CHASSIS

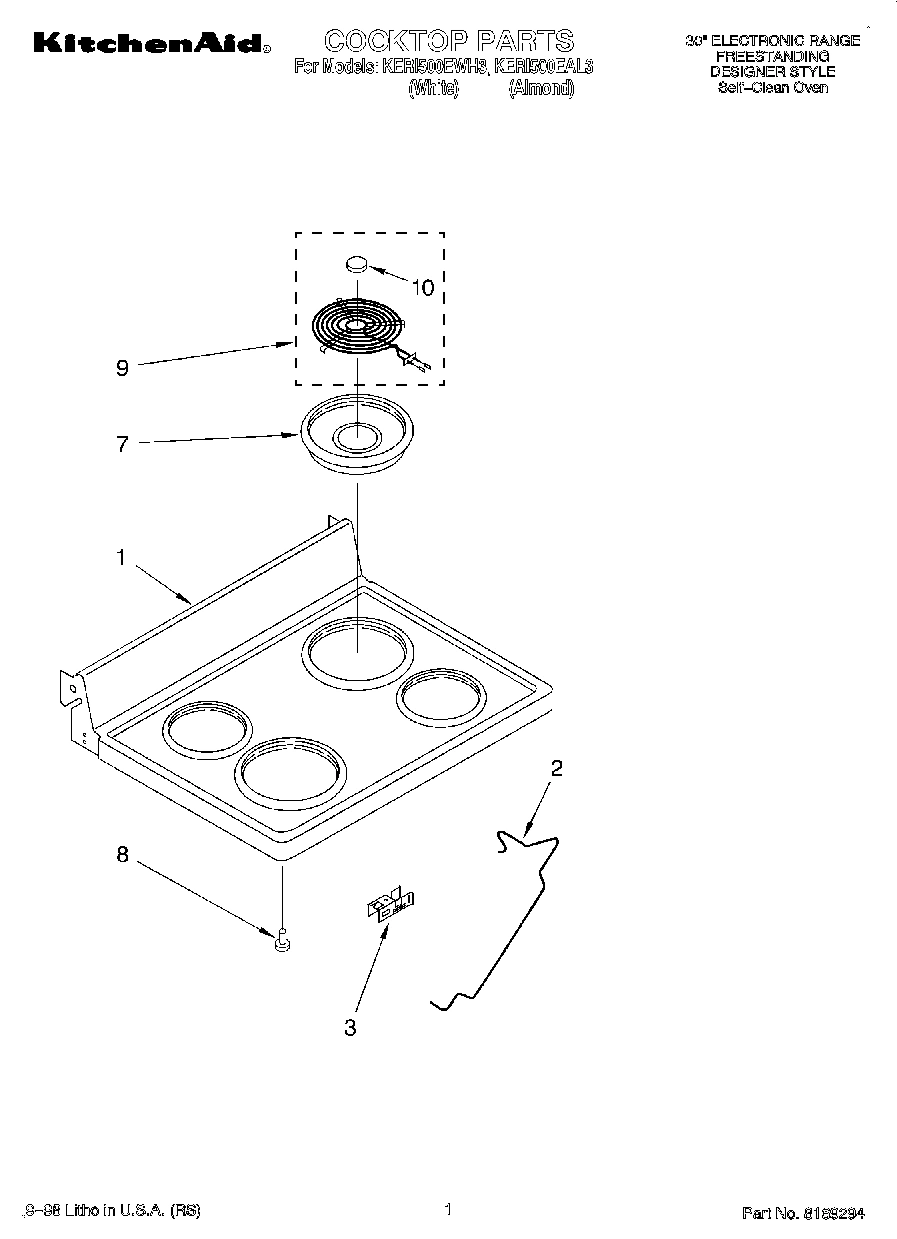

01 - COOKTOP

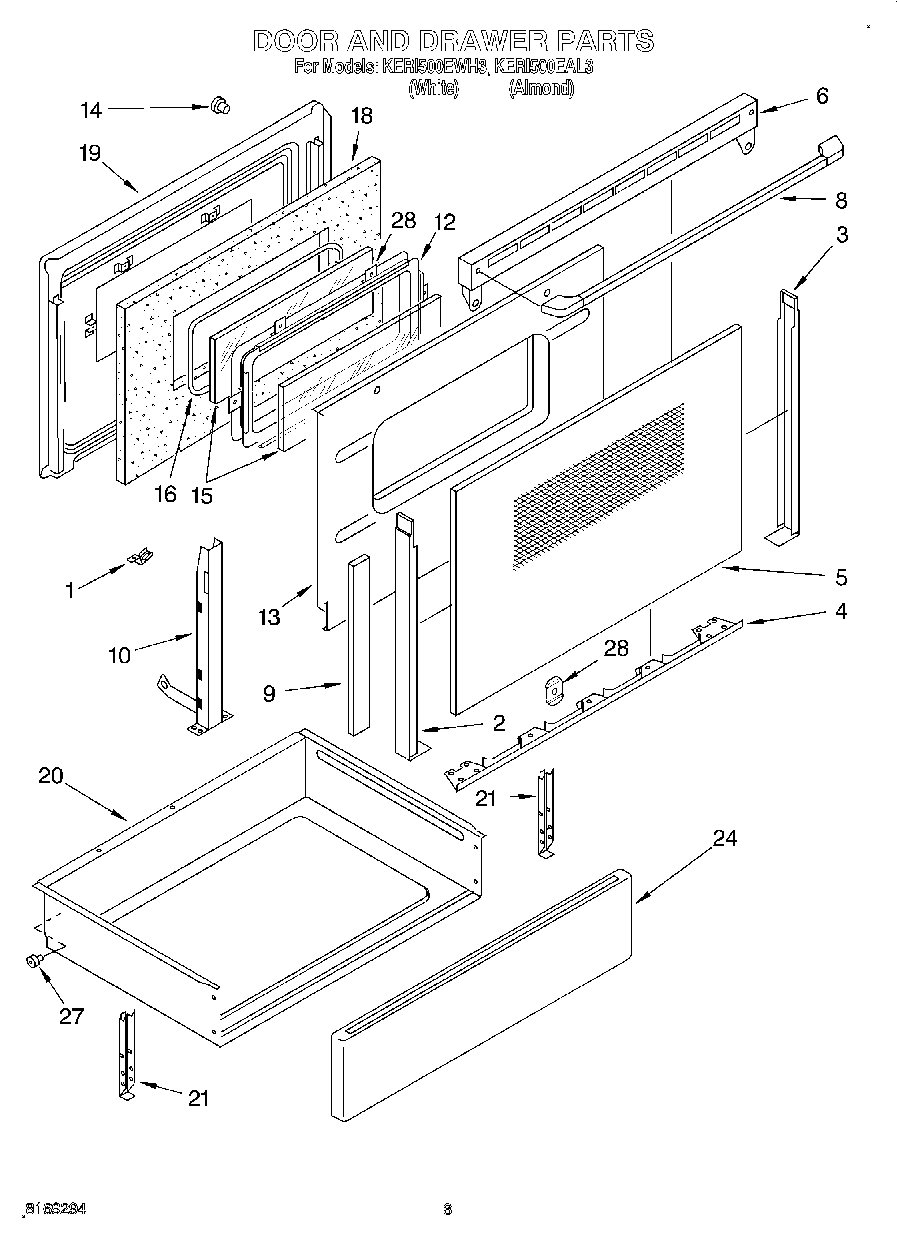

03 - DOOR AND DRAWER
Common parts from model Whirlpool KERI500EWH3
WPL 9781542 WPL 9781542 Contact Us For Availability
WPL 9781755 WPL 9781755 Contact Us For Availability
WPL LIT3191638 WPL LIT3191638 Contact Us For Availability
WPL LIT9752381 WPL LIT9752381 Contact Us For Availability
WPL LIT9752387 WPL LIT9752387 Contact Us For Availability
WPL LIT9752776 WPL LIT9752776 Contact Us For Availability
WPL LIT9753308 WPL LIT9753308 Contact Us For Availability
WPL LIT9753481 WPL LIT9753481 Contact Us For Availability
WPL LIT9780689 WPL LIT9780689 Contact Us For Availability
WPL LIT9780944 WPL LIT9780944 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (White) WPL 3190562 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9752335 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Cooktop, Coil (Almond) WPL 9750160GT Contact Us For Availability
1
Cooktop, Coil (White) WPL 9750160GW Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cooktop Rod WPL 9751538 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Receptacle Clip WPL 9781324 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9750366FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9750367FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Glass, Door (Almond) WPL 9781784GT Contact Us For Availability
5
Glass, Door (White) WPL 9781784GW Contact Us For Availability
6
Panel, Control (Almond) WPL 9752321PT Contact Us For Availability
6
Panel, Control (White) WPL 9752321PW Contact Us For Availability
6
Panel, Control (Insulation) WPL 9752639 Contact Us For Availability
6
Panel, Control (Screw, (2)) WPL 9780852 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Vent, Door (Almond) WPL 9783498GT Contact Us For Availability
7
Oven, Side Panel (Almond, L or R) WPL 9750148PT Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9750148PW Contact Us For Availability
8
Knobs, Control (Almond) WPL 9750372FT Contact Us For Availability
8
Shield, Insulation WPL 9781447 Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Element, Surface (Coil, 6`` LR (Accu-Simmer)) WPL 9781327 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Medallion, (4) WPL 4211952 Contact Us For Availability
11
Light Module WPL 9753422 Contact Us For Availability
11
Washer (3) WPL 83205 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Frame, Window WPL 9781601 Contact Us For Availability
13
Shield Door WPL 9781588 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9752278CT Contact Us For Availability
15
Oven Control Assembly (White) WPL 9752278CW Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Seal, Window WPL 9781591 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
WPL 9751745 WPL 9751745 Contact Us For Availability
22
WPL 9781509 WPL 9781509 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Coffee WPL 261886 Contact Us For Availability
22
New Avocado WPL 261888 Contact Us For Availability
22
Harvest Gold WPL 261890 Contact Us For Availability
22
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
22
Toast WPL 285365 Contact Us For Availability
22
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
22
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
22
Platinum (Uncut) WPL 285368 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
22
WPL 72108 WPL 72108 Contact Us For Availability
22
WPL 72112 WPL 72112 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
27
Door Switch WPL 9781581 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
× ![]()
