Model Whirlpool KERC600GBS1 COOKTOP – Common Parts & Diagrams
05 - REAR CHASSIS
06 - CONTROL PANEL, LIT/OPTIONAL

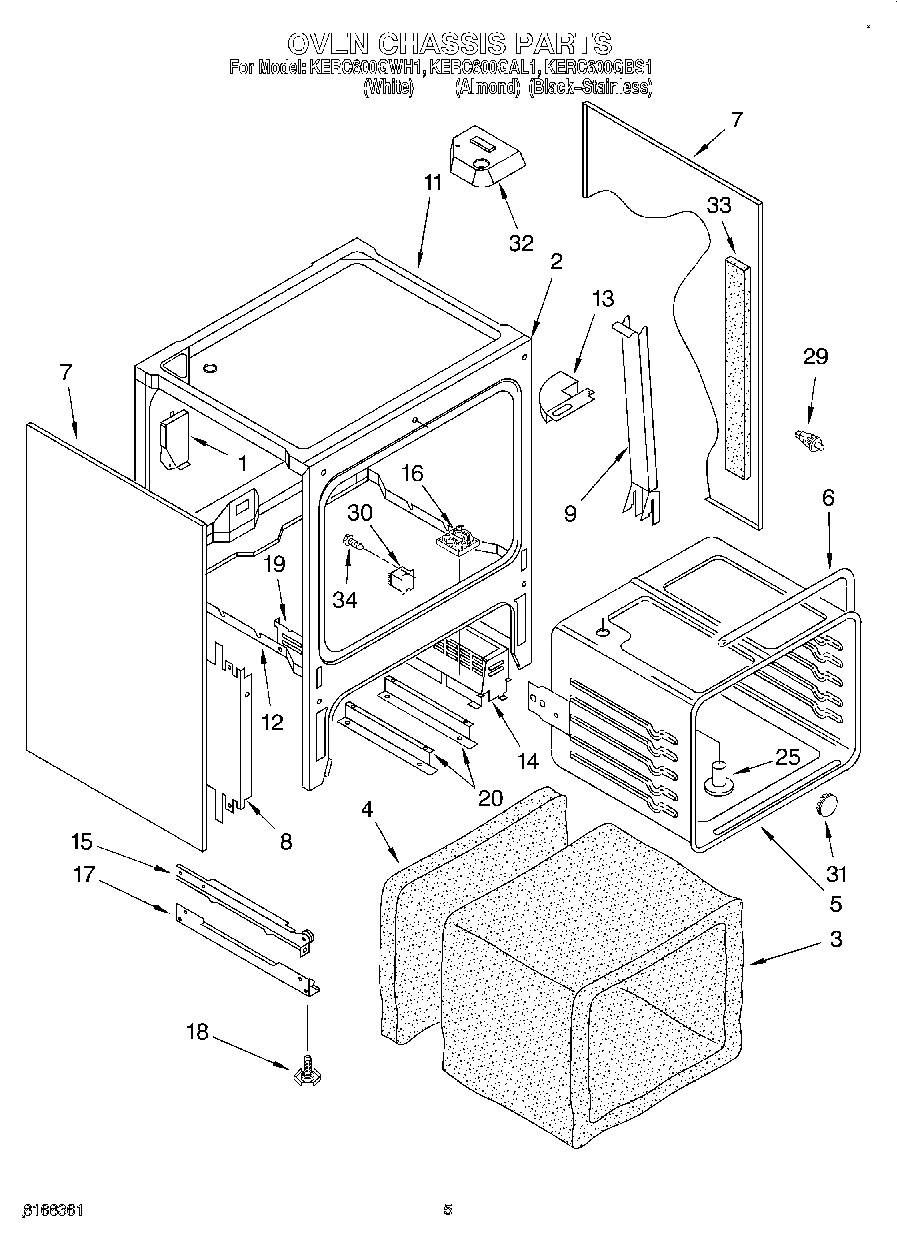

03 - OVEN CHASSIS

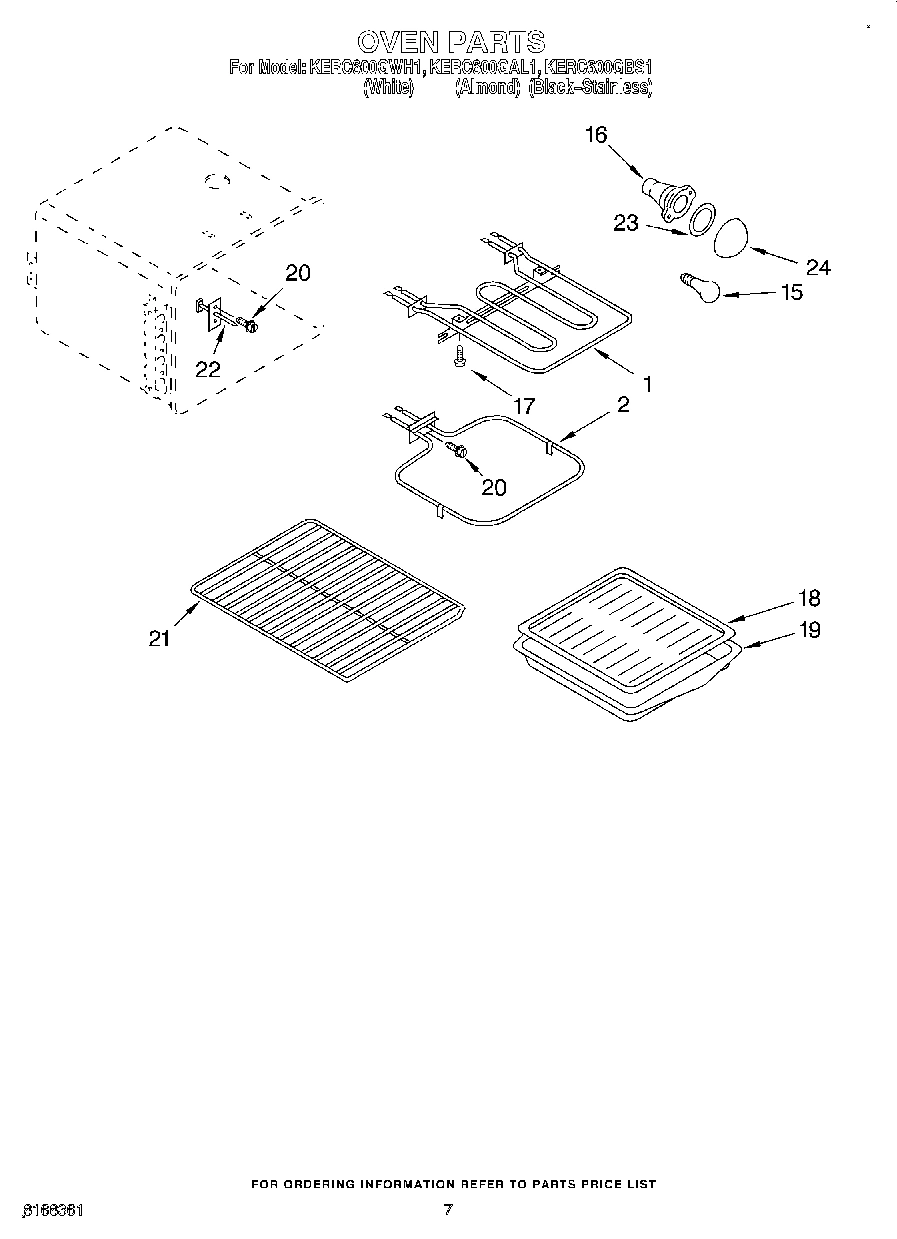

04 - OVEN

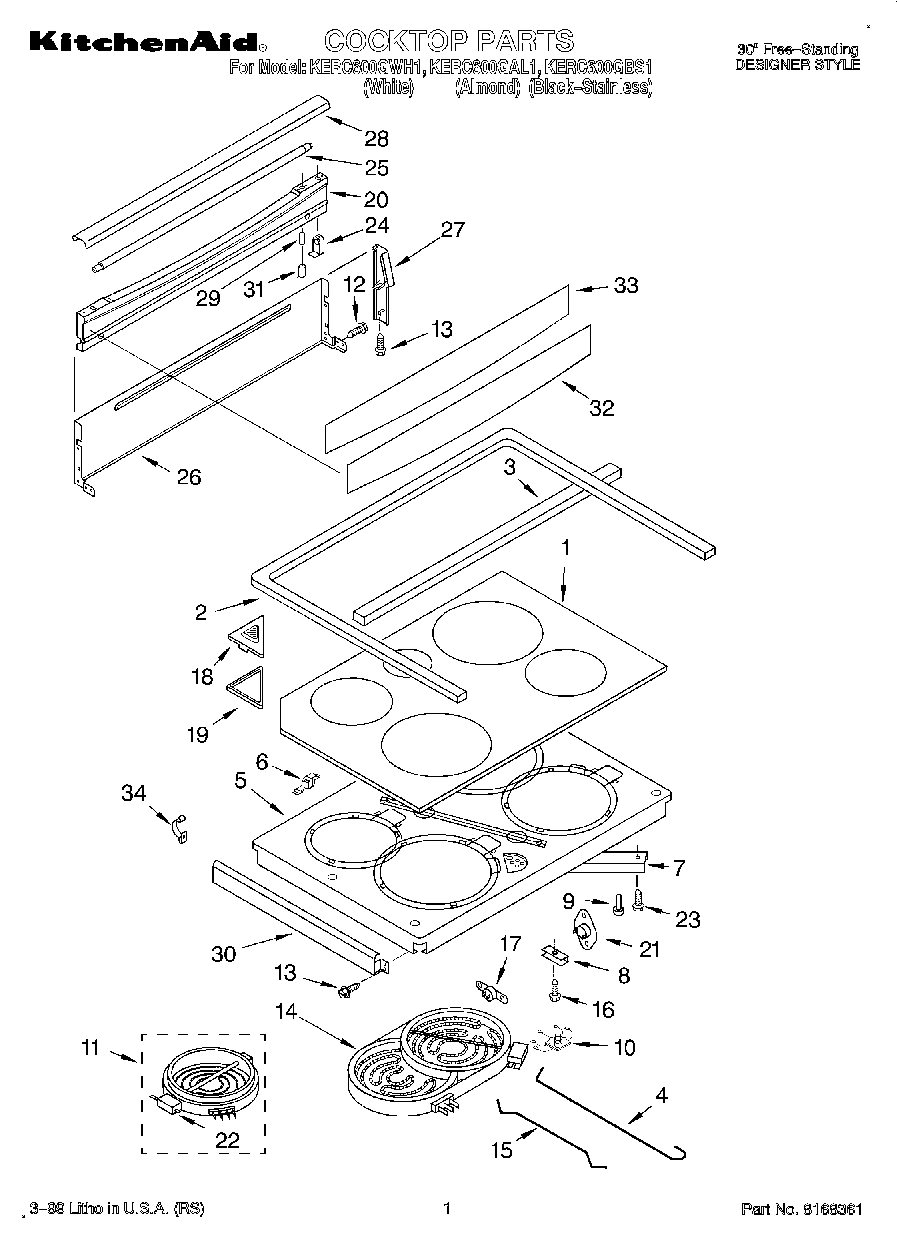

01 - COOKTOP

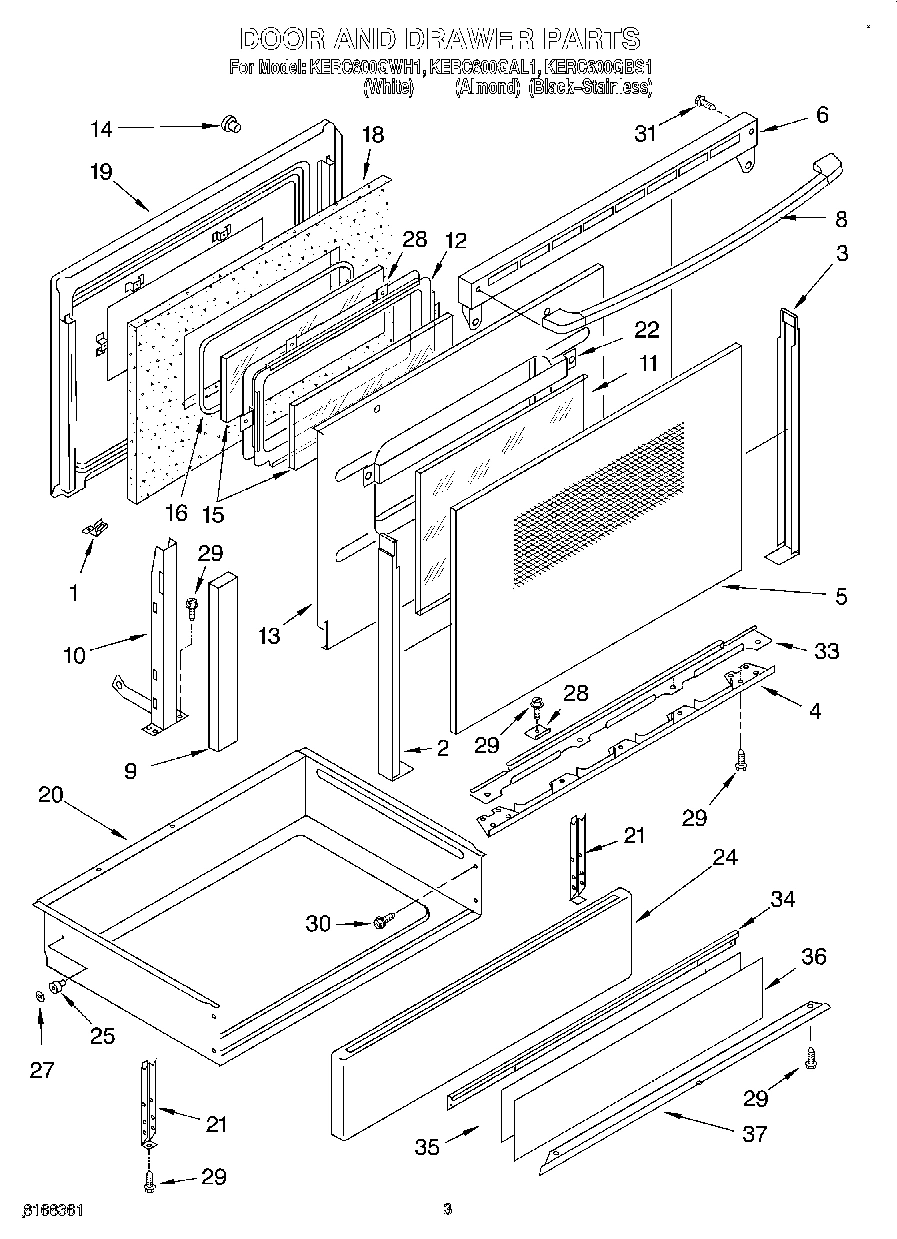

02 - DOOR AND DRAWER
Common parts from model Whirlpool KERC600GBS1 COOKTOP
WPL 9781769 WPL 9781769 Contact Us For Availability
WPL LIT9753028 WPL LIT9753028 Contact Us For Availability
WPL LIT9753311 WPL LIT9753311 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (Washer) WPL 420719 Contact Us For Availability
1
Console, Glass (Black) WPL 9751899 Contact Us For Availability
1
Console, Glass (Almond) WPL 9752356CT Contact Us For Availability
1
Console, Glass (White) WPL 9752356CW Contact Us For Availability
1
Console, Glass (Spacer) WPL 9781488 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751752 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751753 Contact Us For Availability
1
Cooktop, Ceran (Black) WPL 9751754 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Timer, Electronic WPL 3191107 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Gasket, Cooktop WPL 9781614 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751279FB Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9751279FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Black, Right) WPL 9751280FB Contact Us For Availability
4
End Cap Right Hand (Almond) WPL 9751280FT Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Support, Element WPL 9781548 Contact Us For Availability
5
Glass, Door (Black) WPL 9753378 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Vent, Door (Black (Assy w/SS Panel)) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Oven , Side L or R (Black) WPL 9750148PB Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 9750148PT Contact Us For Availability
7
Oven , Side L or R (White) WPL 9750148PW Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Knobs, Control (Almond) WPL 9750372FT Contact Us For Availability
8
Shield, Insulation WPL 9781447 Contact Us For Availability
8
Clip, Support (4) WPL 9750821 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Element, Surface (2500W - LF) WPL 9753475 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
2500W - RR WPL 8053605 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw WPL 9751871 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Backsplash (Black) WPL 9751266GB Contact Us For Availability
20
Backsplash (Almond) WPL 9751266GT Contact Us For Availability
20
Backsplash (White) WPL 9751266GW Contact Us For Availability
20
Drawer & Roller (For Black-SS) WPL 9750257 Contact Us For Availability
20
Drawer & Roller (For White & Almond) WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Screw WPL 9781509 Contact Us For Availability
22
Limiter, Temp. (LF) WPL 3191988 Contact Us For Availability
22
Limiter, Temp. (LR-RF-RR) WPL 8053620 Contact Us For Availability
22
Channel, Heat WPL 9750693 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Ha WPL 261890 Contact Us For Availability
23
WPL 261891 WPL 261891 Contact Us For Availability
23
WPL 285365 WPL 285365 Contact Us For Availability
23
WPL 285366 WPL 285366 Contact Us For Availability
23
WPL 285367 WPL 285367 Contact Us For Availability
23
WPL 285368 WPL 285368 Contact Us For Availability
23
WPL 72108 WPL 72108 Contact Us For Availability
23
WPL 72112 WPL 72112 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Receptacle, Lamp WPL 9750273 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Front, Drawer (Black) WPL 9750569PB Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Screw (4)) WPL 3149333 Contact Us For Availability
27
Endcap, Backsplash (Black (Left)) WPL 9751267FB Contact Us For Availability
27
Endcap, Backsplash (Almond (Left)) WPL 9751267FT Contact Us For Availability
27
Endcap, Backsplash (White (Left)) WPL 9751267FW Contact Us For Availability
27
Endcap, Backsplash (Black (Right)) WPL 9751268FB Contact Us For Availability
27
Endcap, Backsplash (Almond (Right)) WPL 9751268FT Contact Us For Availability
27
Endcap, Backsplash (White (Right)) WPL 9751268FW Contact Us For Availability
28
Cover, Light (White) WPL 9751327 Contact Us For Availability
28
Cover, Light (Black) WPL 9751632 Contact Us For Availability
28
Cover, Light (Almond) WPL 9751633 Contact Us For Availability
28
Retainer, Glass (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
Starter, Light WPL 9781118 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
30
Trim, Cooktop (Black (Right)) WPL 9751275PB Contact Us For Availability
30
Trim, Cooktop (Almond (Right)) WPL 9751275PT Contact Us For Availability
30
Trim, Cooktop (White (Right)) WPL 9751275PW Contact Us For Availability
30
Trim, Cooktop (Black, Left) WPL 9751276PB Contact Us For Availability
30
WPL 9751276PT WPL 9751276PT Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
31
WPL 9750866 WPL 9750866 Contact Us For Availability
32
Block, Balance WPL 9753413 Contact Us For Availability
32
WPL 9781154 WPL 9781154 Contact Us For Availability
33
Insulation, Side WPL 9752654 Contact Us For Availability
33
WPL 9753291 WPL 9753291 Contact Us For Availability
33
Deflector, Steam (For Black-SS) WPL 9781771 Contact Us For Availability
34
Screw WPL 9751808 Contact Us For Availability
34
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (S WPL 9753293 Contact Us For Availability
37
WPL 9750613PB WPL 9750613PB Contact Us For Availability
× ![]()
