Model Whirlpool KERC600GAL1 COOKTOP – Common Parts & Diagrams

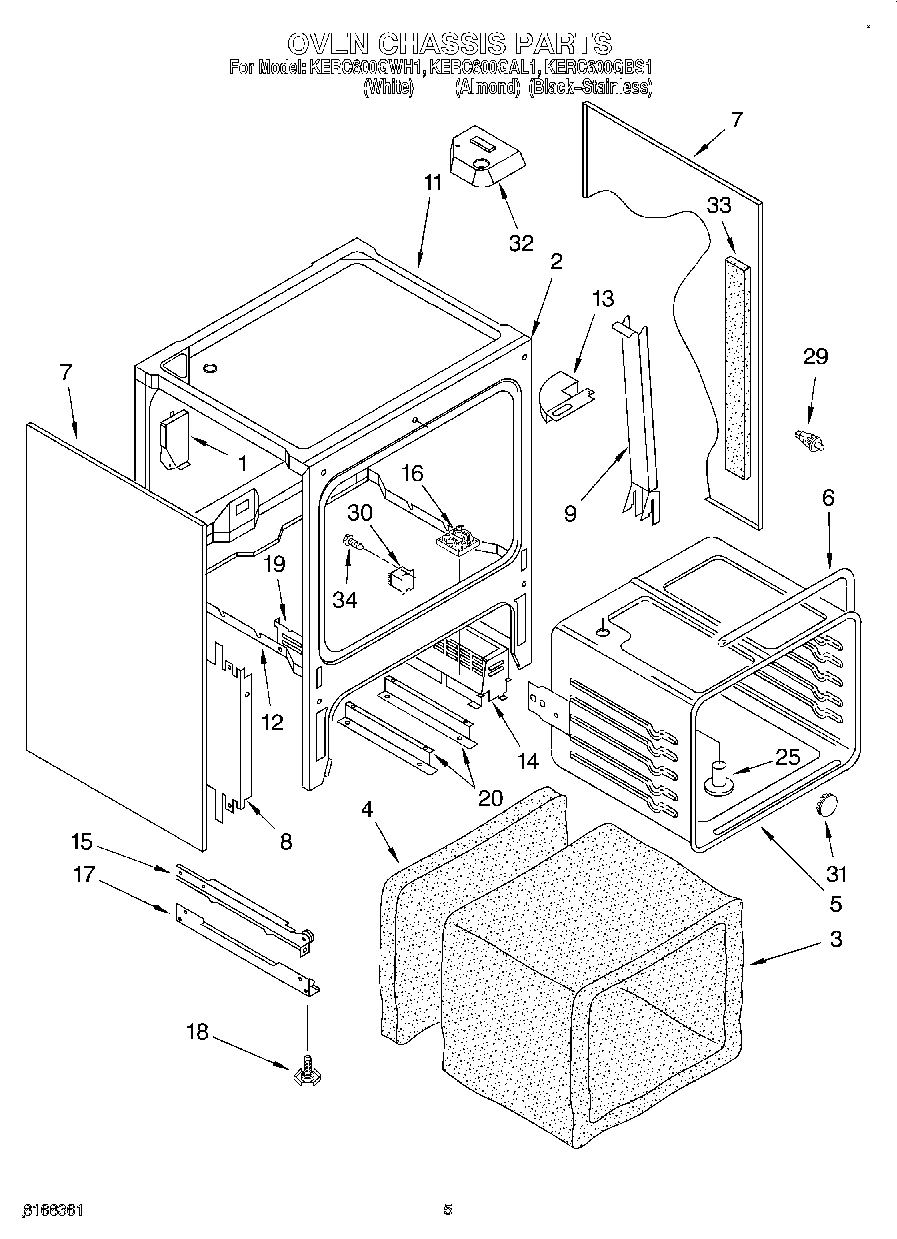

03 - OVEN CHASSIS

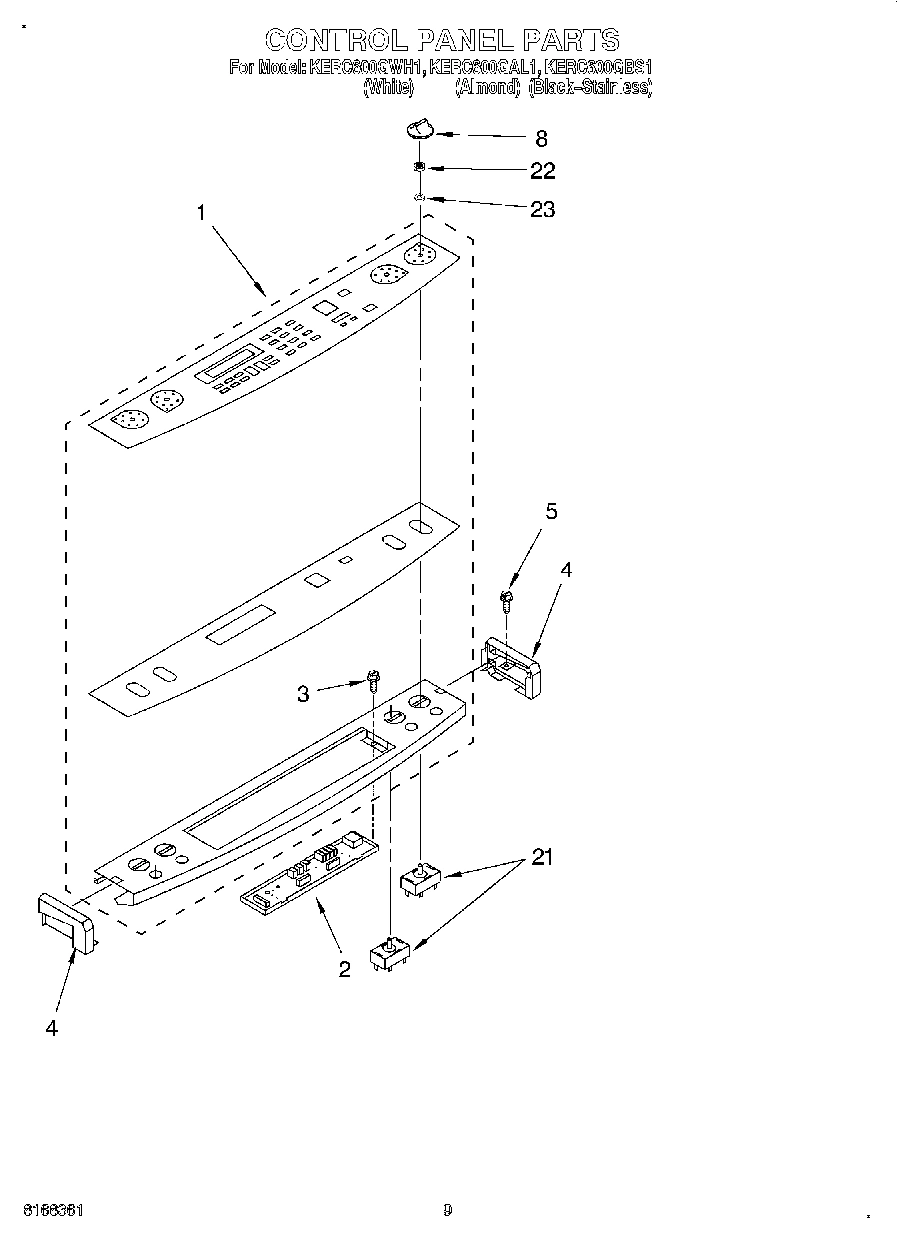

06 - CONTROL PANEL, LIT/OPTIONAL
05 - REAR CHASSIS
01 - COOKTOP
02 - DOOR AND DRAWER
04 - OVEN
Common parts from model Whirlpool KERC600GAL1 COOKTOP
WPL 9781769 WPL 9781769 Contact Us For Availability
WPL LIT9752043 WPL LIT9752043 Contact Us For Availability
WPL LIT9752686 WPL LIT9752686 Contact Us For Availability
WPL LIT9752775 WPL LIT9752775 Contact Us For Availability
WPL LIT9753027 WPL LIT9753027 Contact Us For Availability
WPL LIT9753028 WPL LIT9753028 Contact Us For Availability
WPL LIT9753311 WPL LIT9753311 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Console, Glass (Washer) WPL 420719 Contact Us For Availability
1
Console, Glass (Black) WPL 9751899 Contact Us For Availability
1
Console, Glass (Almond) WPL 9752356CT Contact Us For Availability
1
Console, Glass (White) WPL 9752356CW Contact Us For Availability
1
Console, Glass (Spacer) WPL 9781488 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751752 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751753 Contact Us For Availability
1
Cooktop, Ceran (Black) WPL 9751754 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Timer, Electronic WPL 3191107 Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Gasket, Cooktop WPL 9781614 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751279FB Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9751279FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Black, Right) WPL 9751280FB Contact Us For Availability
4
End Cap Right Hand (Almond) WPL 9751280FT Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Support, Element WPL 9781548 Contact Us For Availability
5
Glass, Door (Black) WPL 9753378 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781627PT Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Vent, Door (Black (Assy w/SS Panel)) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Knobs, Control (Almond) WPL 9750372FT Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Clip, Support (4) WPL 9750821 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PT Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Element, Surface (2500W - LF) WPL 9753475 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Screw WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
2500W - RR WPL 8053605 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
16
Washer WPL 424238 Contact Us For Availability
16
Ballast, Light WPL 3191044 Contact Us For Availability
16
Screw WPL 9751871 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Vent Back, Oven WPL 9751798 Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
20
Backsplash (Black) WPL 9751266GB Contact Us For Availability
20
Backsplash (Almond) WPL 9751266GT Contact Us For Availability
20
Backsplash (White) WPL 9751266GW Contact Us For Availability
20
Drawer & Roller (For Black-SS) WPL 9750257 Contact Us For Availability
20
Drawer & Roller (For White & Almond) WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1700W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2100-2600W, LF) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1250-1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
22
Screw WPL 98884 Contact Us For Availability
22
Limiter, Temp. (LF) WPL 3191988 Contact Us For Availability
22
Limiter, Temp. (LR-RF-RR) WPL 8053620 Contact Us For Availability
22
Channel, Heat WPL 9750693 Contact Us For Availability
22
Screw WPL 9781509 Contact Us For Availability
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Ha WPL 261890 Contact Us For Availability
23
WPL 261891 WPL 261891 Contact Us For Availability
23
WPL 285365 WPL 285365 Contact Us For Availability
23
WPL 285366 WPL 285366 Contact Us For Availability
23
WPL 285367 WPL 285367 Contact Us For Availability
23
WPL 285368 WPL 285368 Contact Us For Availability
23
WPL 72108 WPL 72108 Contact Us For Availability
23
WPL 72112 WPL 72112 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750221 WPL 9750221 Contact Us For Availability
23
WPL 9750222 WPL 9750222 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
Screw WPL 423247 Contact Us For Availability
24
Receptacle, Lamp WPL 9750273 Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Front, Drawer (Black) WPL 9750569PB Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Screw (4)) WPL 3149333 Contact Us For Availability
27
Endcap, Backsplash (Black (Left)) WPL 9751267FB Contact Us For Availability
27
Endcap, Backsplash (Almond (Left)) WPL 9751267FT Contact Us For Availability
27
Endcap, Backsplash (White (Left)) WPL 9751267FW Contact Us For Availability
27
Endcap, Backsplash (Black (Right)) WPL 9751268FB Contact Us For Availability
27
Endcap, Backsplash (Almond (Right)) WPL 9751268FT Contact Us For Availability
27
Endcap, Backsplash (White (Right)) WPL 9751268FW Contact Us For Availability
28
Cover, Light (White) WPL 9751327 Contact Us For Availability
28
Cover, Light (Black) WPL 9751632 Contact Us For Availability
28
Cover, Light (Almond) WPL 9751633 Contact Us For Availability
28
Retainer, Glass (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
Starter, Light WPL 9781118 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
30
Trim, Cooktop (Black (Right)) WPL 9751275PB Contact Us For Availability
30
Trim, Cooktop (Almond (Right)) WPL 9751275PT Contact Us For Availability
30
Trim, Cooktop (White (Right)) WPL 9751275PW Contact Us For Availability
30
Trim, Cooktop (Black, Left) WPL 9751276PB Contact Us For Availability
30
WPL 9751276PT WPL 9751276PT Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
31
WPL 9750866 WPL 9750866 Contact Us For Availability
32
WPL 9781154 WPL 9781154 Contact Us For Availability
33
WPL 9753291 WPL 9753291 Contact Us For Availability
33
Deflector, Steam (For Black-SS) WPL 9781771 Contact Us For Availability
34
Trim, Drawer-Top WPL 9750614PB Contact Us For Availability
35
Spacer WPL 9753329 Contact Us For Availability
36
Panel, Drawer (S WPL 9753293 Contact Us For Availability
37
WPL 9750613PB WPL 9750613PB Contact Us For Availability
× ![]()
