Model Whirlpool KERC500EAL2 – Common Parts & Diagrams

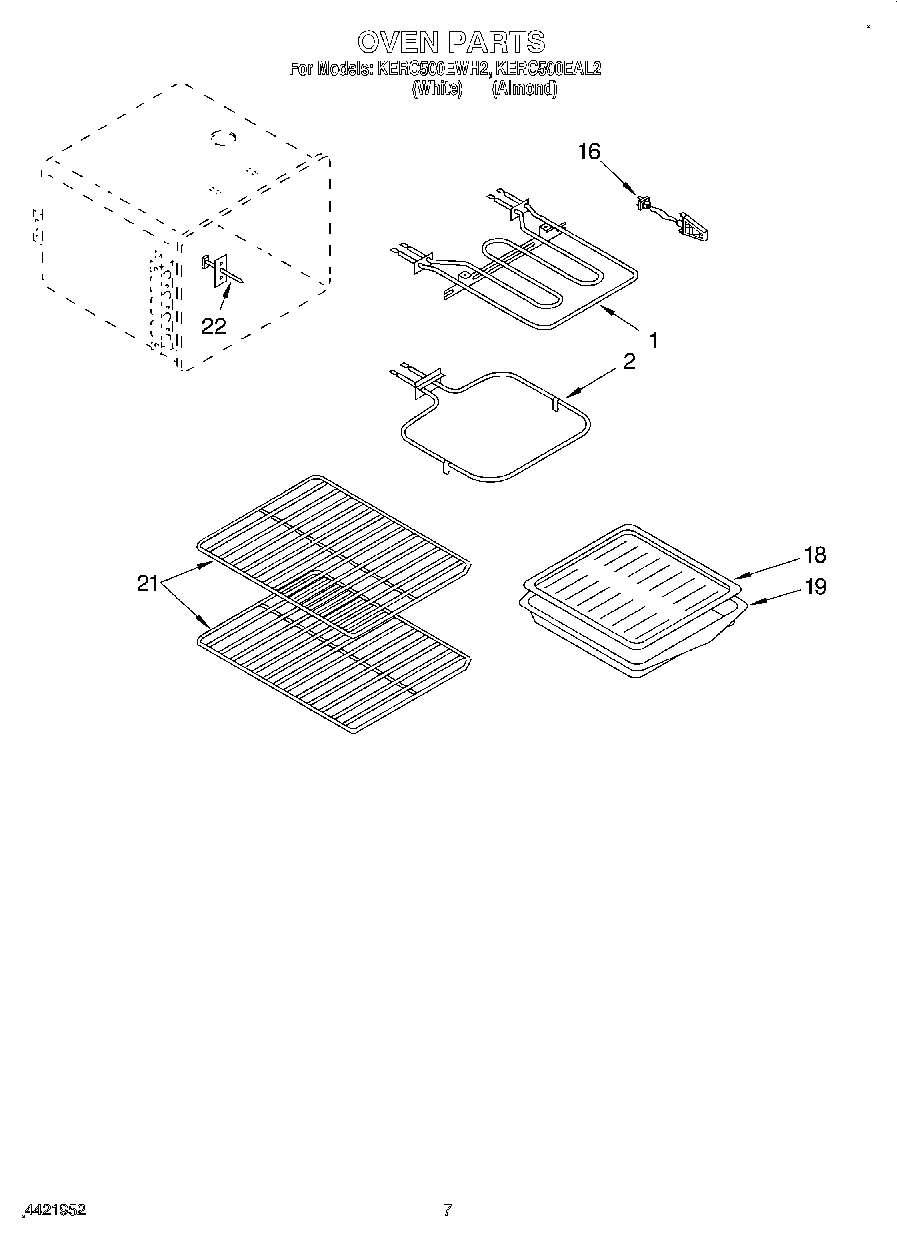

05 - OVEN

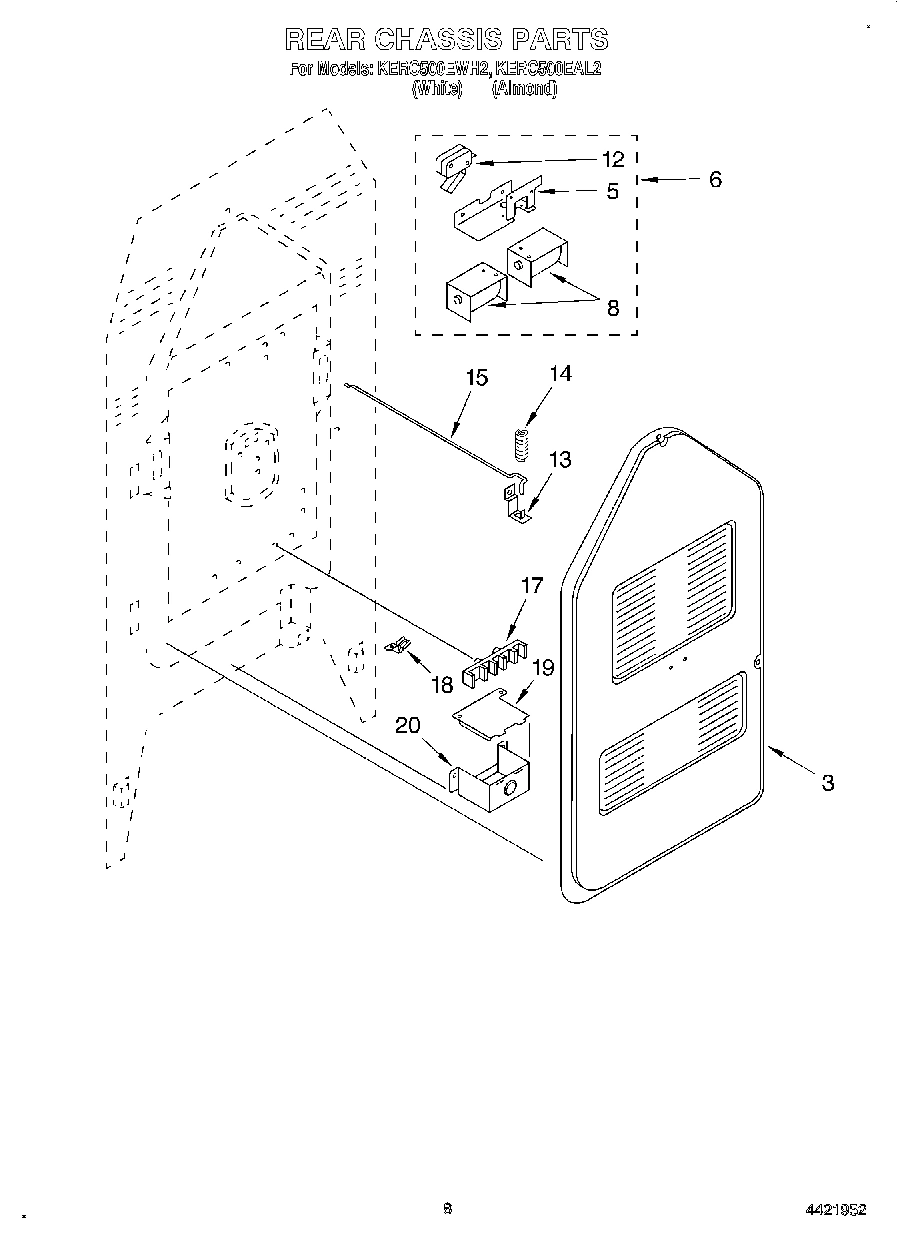

06 - REAR CHASSIS, LIT/OPTIONAL
02 - CONTROL PANEL
01 - COOKTOP
03 - DOOR AND DRAWER
04 - OVEN CHASSIS
Common parts from model Whirlpool KERC500EAL2
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (White) WPL 3190562 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9752335 Contact Us For Availability
1
Cooktop, Ceran (Almond Mdl.) WPL 9752311CT Contact Us For Availability
1
Cooktop, Ceran (White Mdl.) WPL 9752311CW Contact Us For Availability
1
Retainer, Glass WPL 9781206 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4212028 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Chassis, Front WPL 4212002 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4212029 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9750366FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9750367FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
4
Frame, Cooktop (White) WPL 4212024 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 9750456PT Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
5
Support, Element WPL 9781549 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
5
Oven Liner WPL 3191045GM Contact Us For Availability
6
Back Splash (Screw (4) 10AB x 1/2``) WPL 3149333 Contact Us For Availability
6
Panel, Control (Almond) WPL 9752320PT Contact Us For Availability
6
Panel, Control (White) WPL 9752320PW Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Back Splash (Almond) WPL 9752337GT Contact Us For Availability
6
Back Splash (White) WPL 9752337GW Contact Us For Availability
6
Vent, Door (Almond) WPL 9751242GT Contact Us For Availability
6
Vent, Door (White) WPL 9751242GW Contact Us For Availability
6
Vent, Door (Gasket, Vent) WPL 9781450 Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Spacer, Door Vent WPL 9781453 Contact Us For Availability
7
Oven , Side L or R (Black) WPL 4211895 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Screw, (4) 10PH-B x 3/4 WPL 423248 Contact Us For Availability
8
Support Clip (4) WPL 9750821 Contact Us For Availability
8
Handle, Door (White) WPL 4212069 Contact Us For Availability
8
Handle, Door (Almond Mdl.) WPL 4421442 Contact Us For Availability
8
Shield, Insulation WPL 9781447 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
10
Screw, (2) 8 x 3/8 WPL 9780269 Contact Us For Availability
10
Guard, Wire WPL 9780585 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
11
Element, Surface (6`` L.R. 1400W) WPL 3189894 Contact Us For Availability
11
Element, Surface (7`` R.F. 1700W) WPL 3189895 Contact Us For Availability
11
Element, Surface (8`` R.R. 2100W) WPL 3189896 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) WPL 9780275 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9752278CT Contact Us For Availability
15
Oven Control Assembly (White) WPL 9752278CW Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Limiter, Temp (1700W - RF) WPL 3190250 Contact Us For Availability
16
Limiter, Temp (2100W - RR) WPL 3190252 Contact Us For Availability
16
Limiter, Temp. (1400 W - LR) WPL 3190253 Contact Us For Availability
16
Limiter, Temp (2400W - LF) WPL 3190441 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
17
Cover, Vent (Almond) WPL 9752342CT Contact Us For Availability
17
Cover, Vent (White) WPL 9752342CW Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Clip, Vent Cover WPL 3149190 Contact Us For Availability
18
Clip, (1) WPL 313660 Contact Us For Availability
18
Strap, Ground WPL 3169573 Contact Us For Availability
19
Cover, Terminal Box WPL 9752345 Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
19
Hinge, Receiver (2) WPL 9750149 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Coffee WPL 261886 Contact Us For Availability
20
New Avocado WPL 261888 Contact Us For Availability
20
Harvest Gold WPL 261890 Contact Us For Availability
20
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
20
Toast WPL 285365 Contact Us For Availability
20
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
20
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
20
Pla WPL 285368 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 9752344 WPL 9752344 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Infinite Switch (Insulation, Control) WPL 9752639 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Retainer, Glass WPL 9750676 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Switch, Door WPL 9750897 Contact Us For Availability
30
Anti-Tip Kit WPL 9751745 Contact Us For Availability
30
Clip, Wire WPL 9781555 Contact Us For Availability
× ![]()
