Model Whirlpool KEMS378YWH0 – Common Parts & Diagrams
06 - CABINET AND STIRRER, OPTIONAL
07 - INTERNAL OVEN

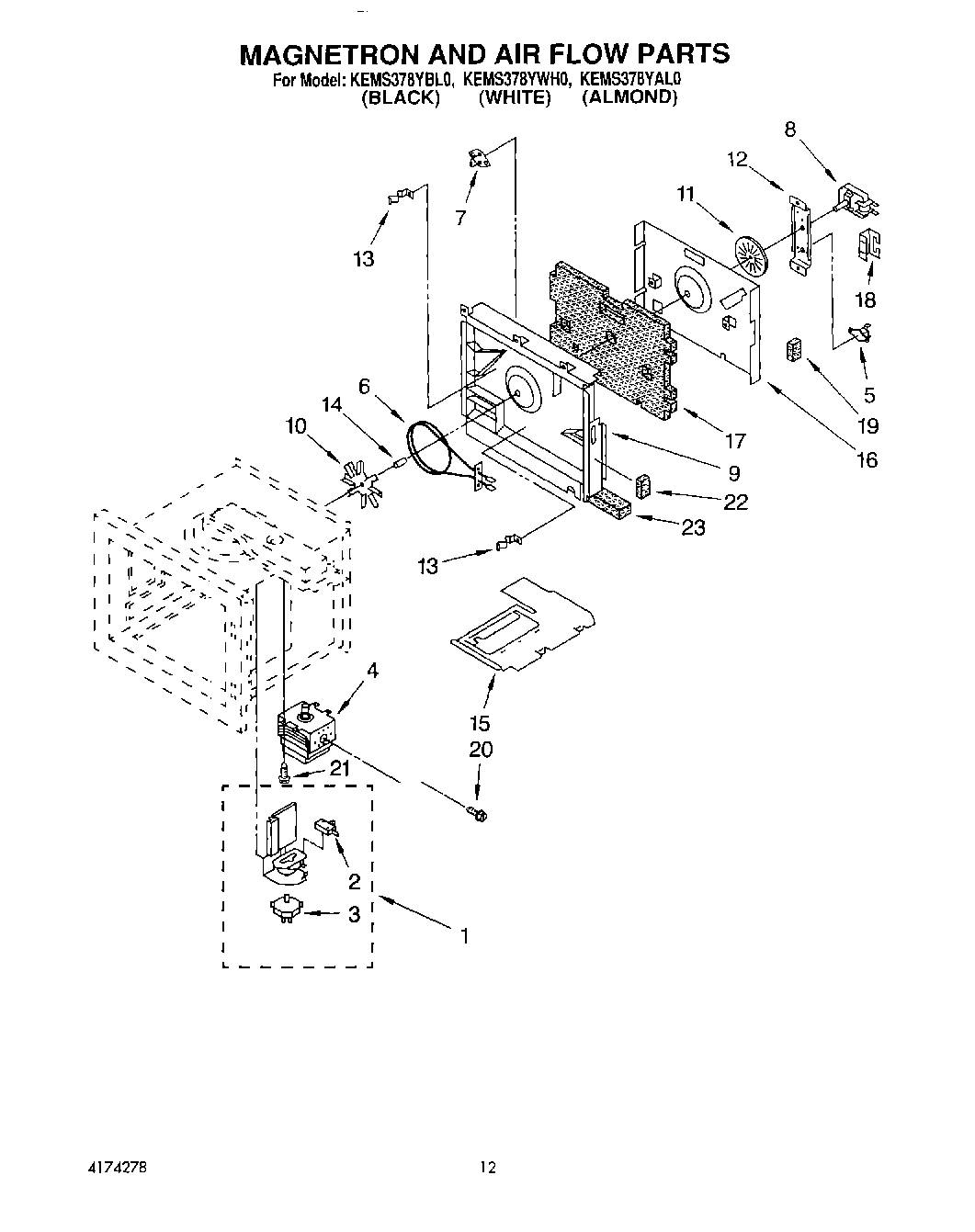

09 - MAGNETRON AND AIR FLOW

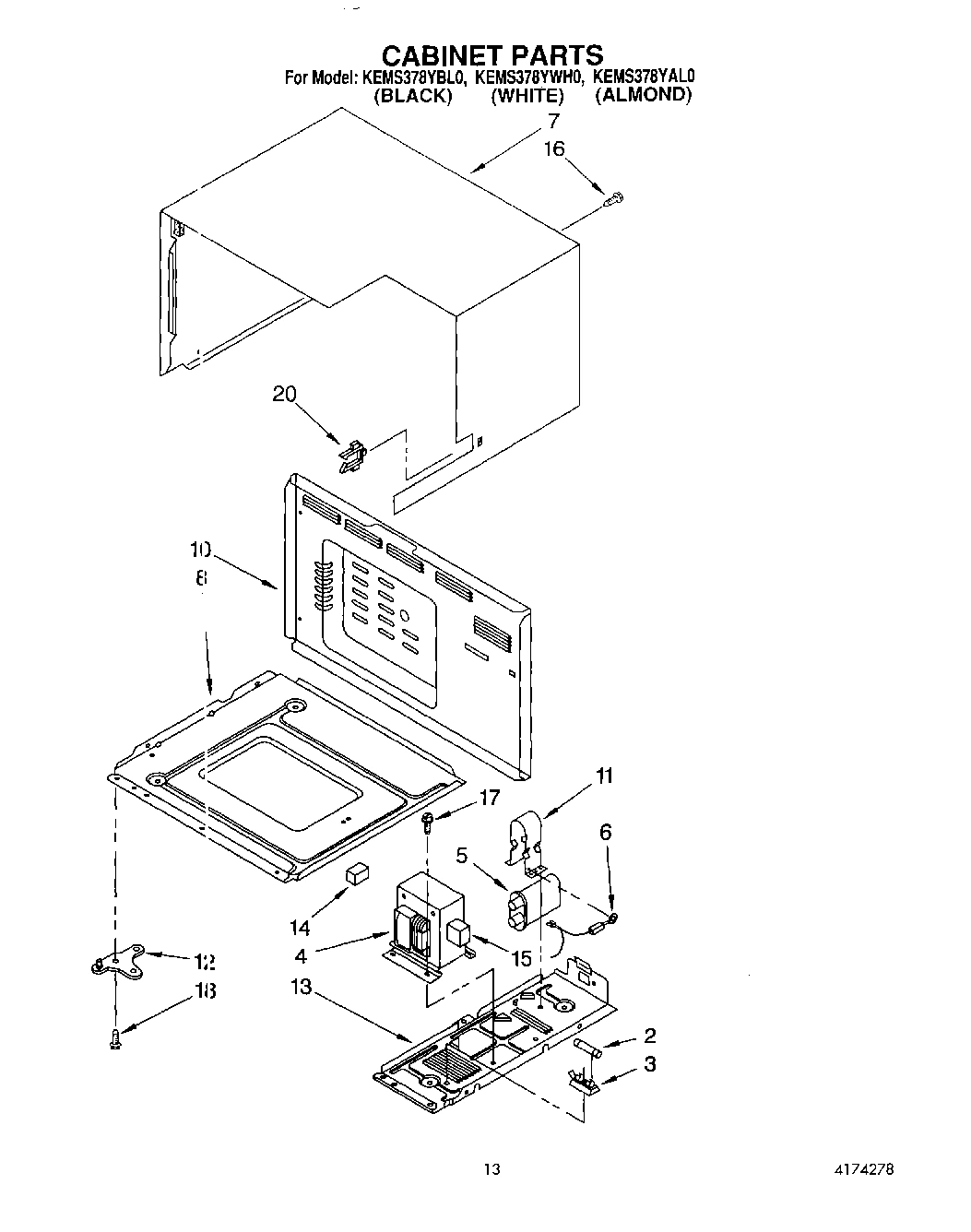

10 - CABINET

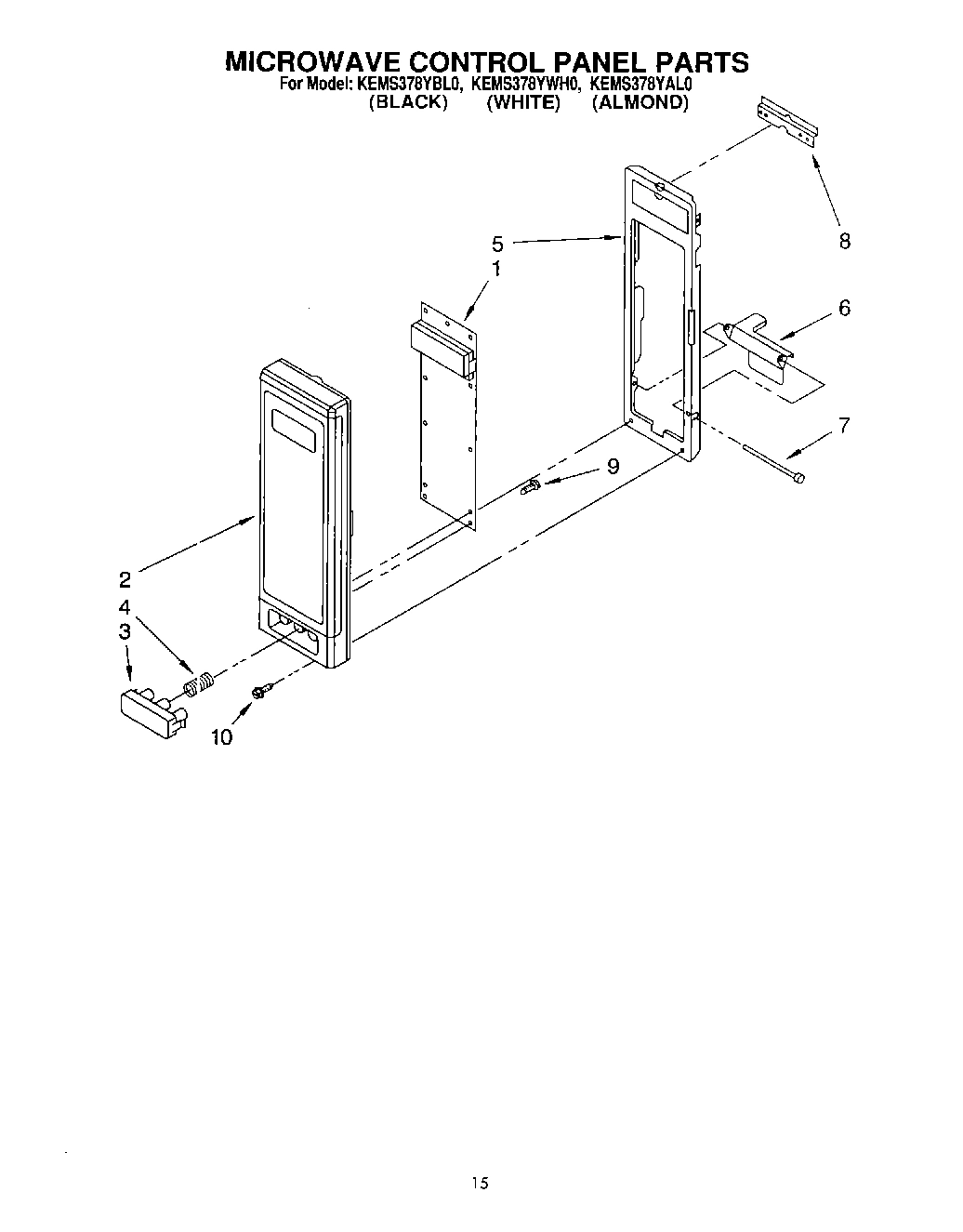

12 - MICROWAVE CONTROL PANEL

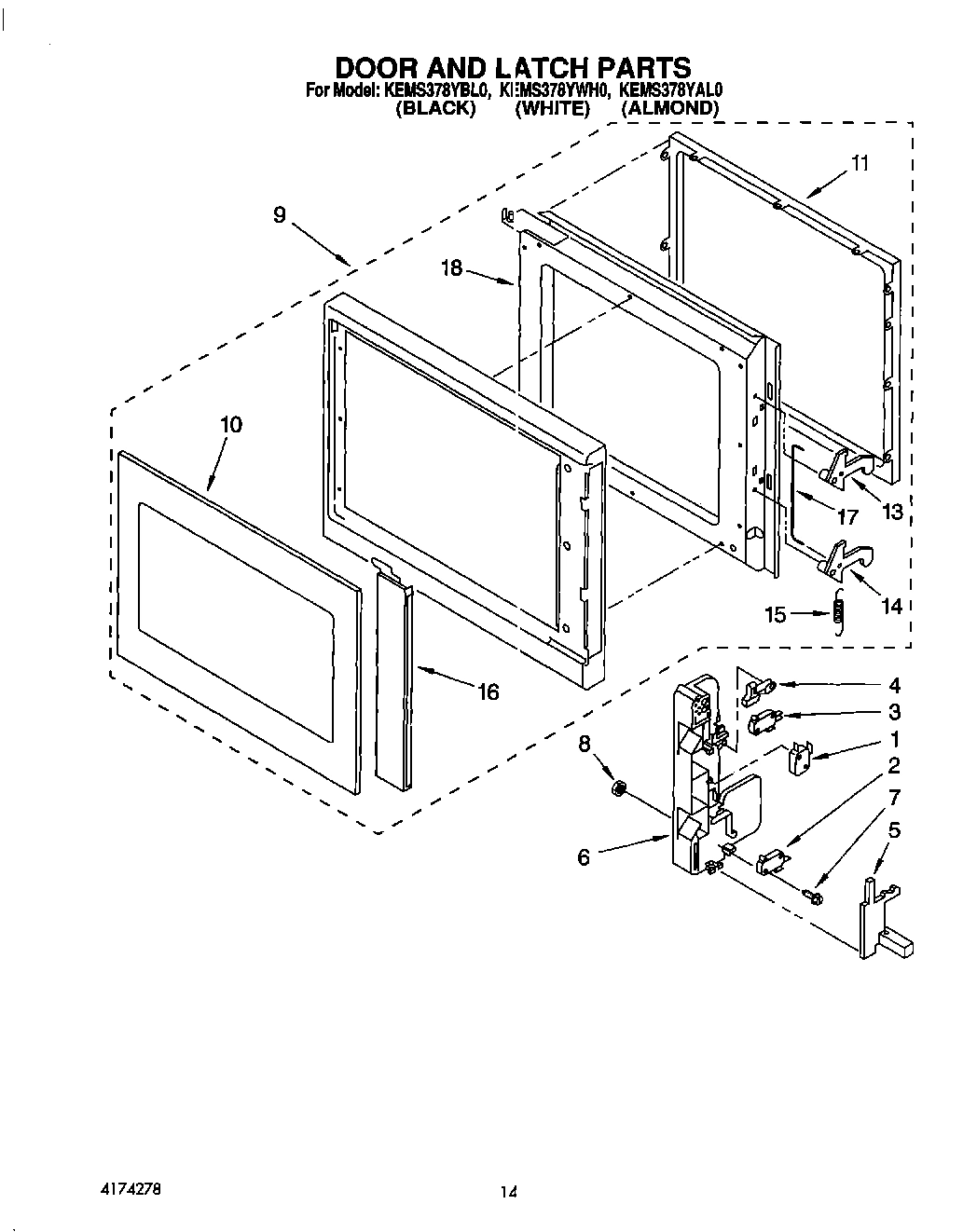

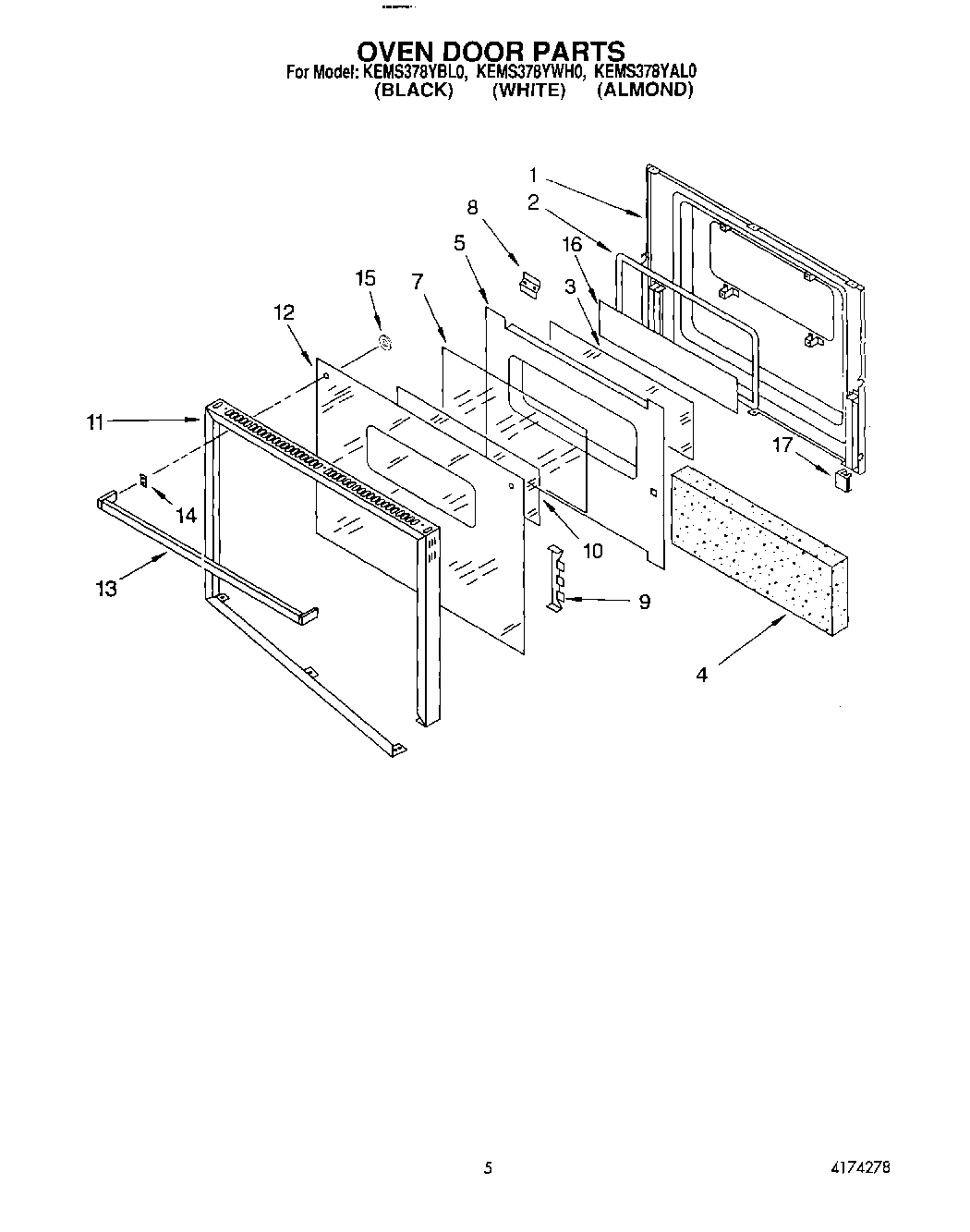

04 - OVEN DOOR

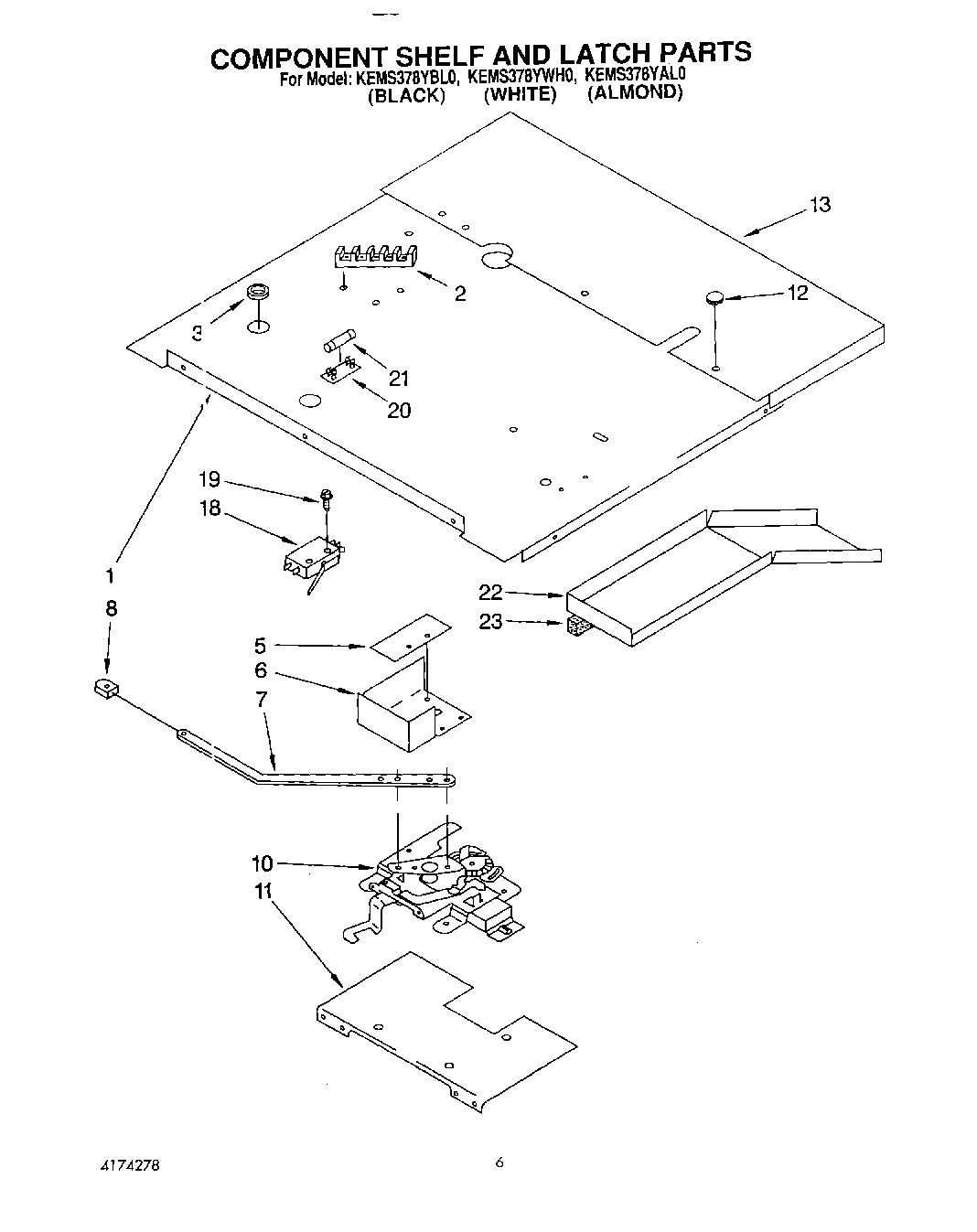

05 - COMPONENT SHELF AND LATCH
11 - DOOR AND LATCH

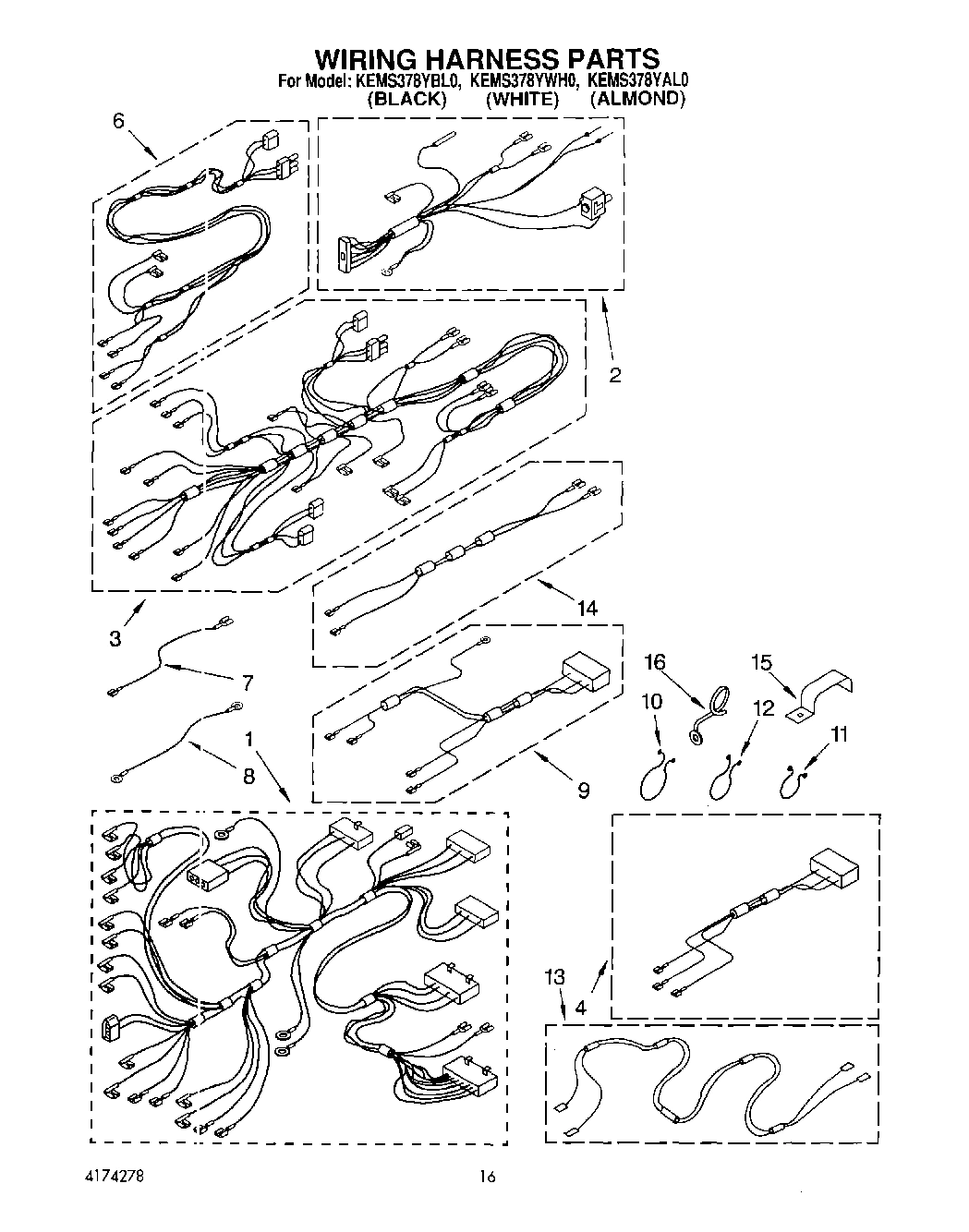

13 - WIRING HARNESS

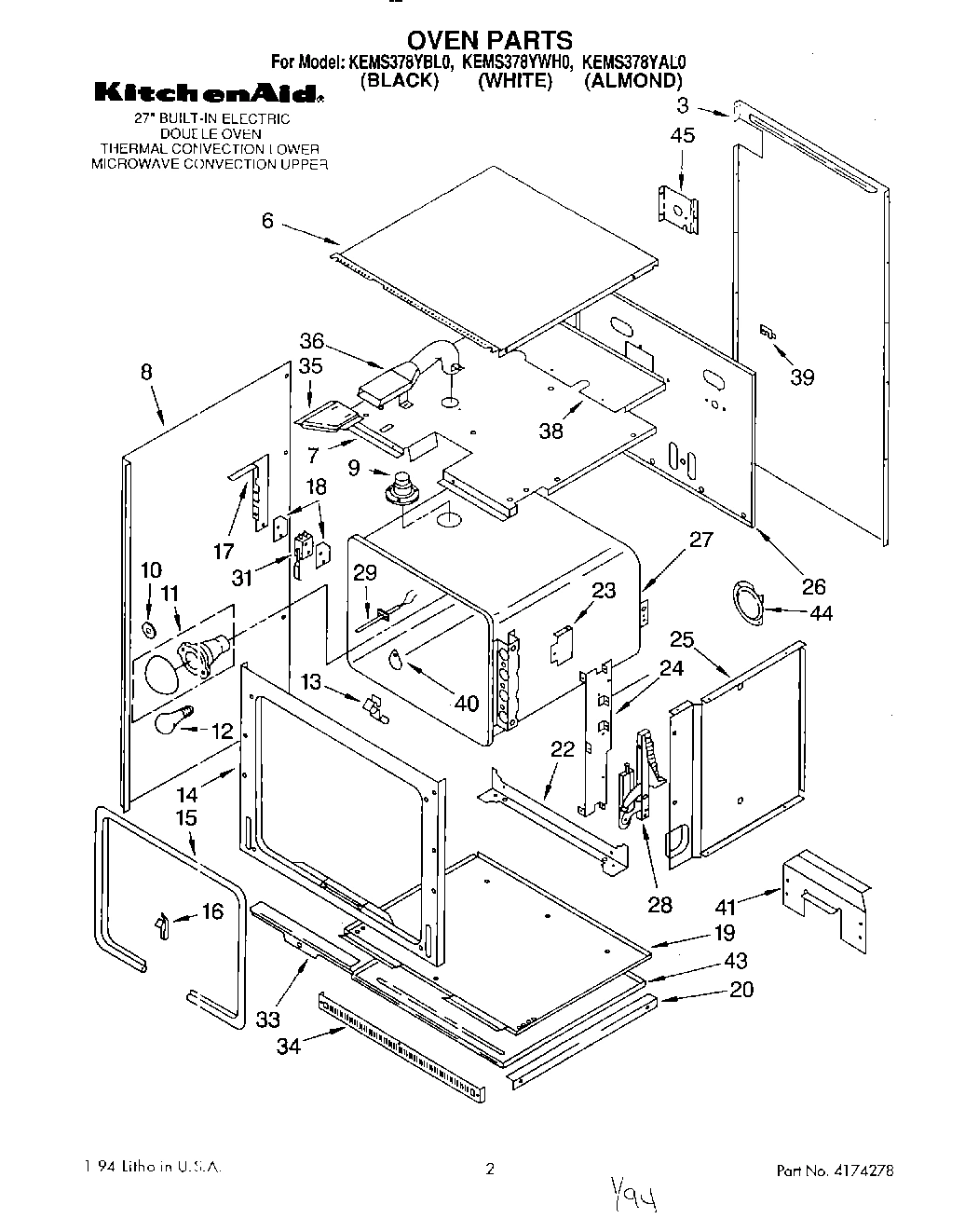

01 - OVEN

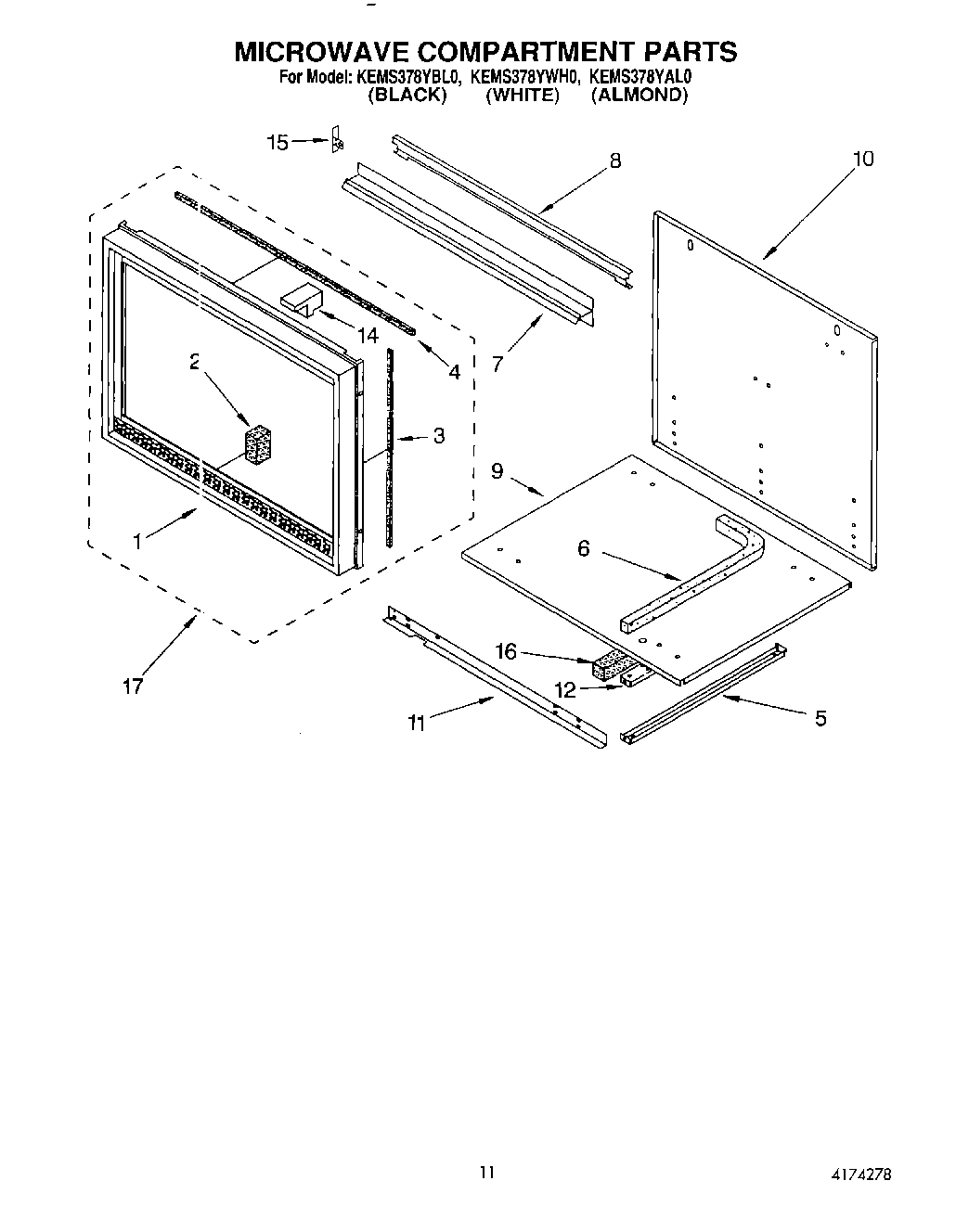

08 - MICROWAVE COMPARTMENT

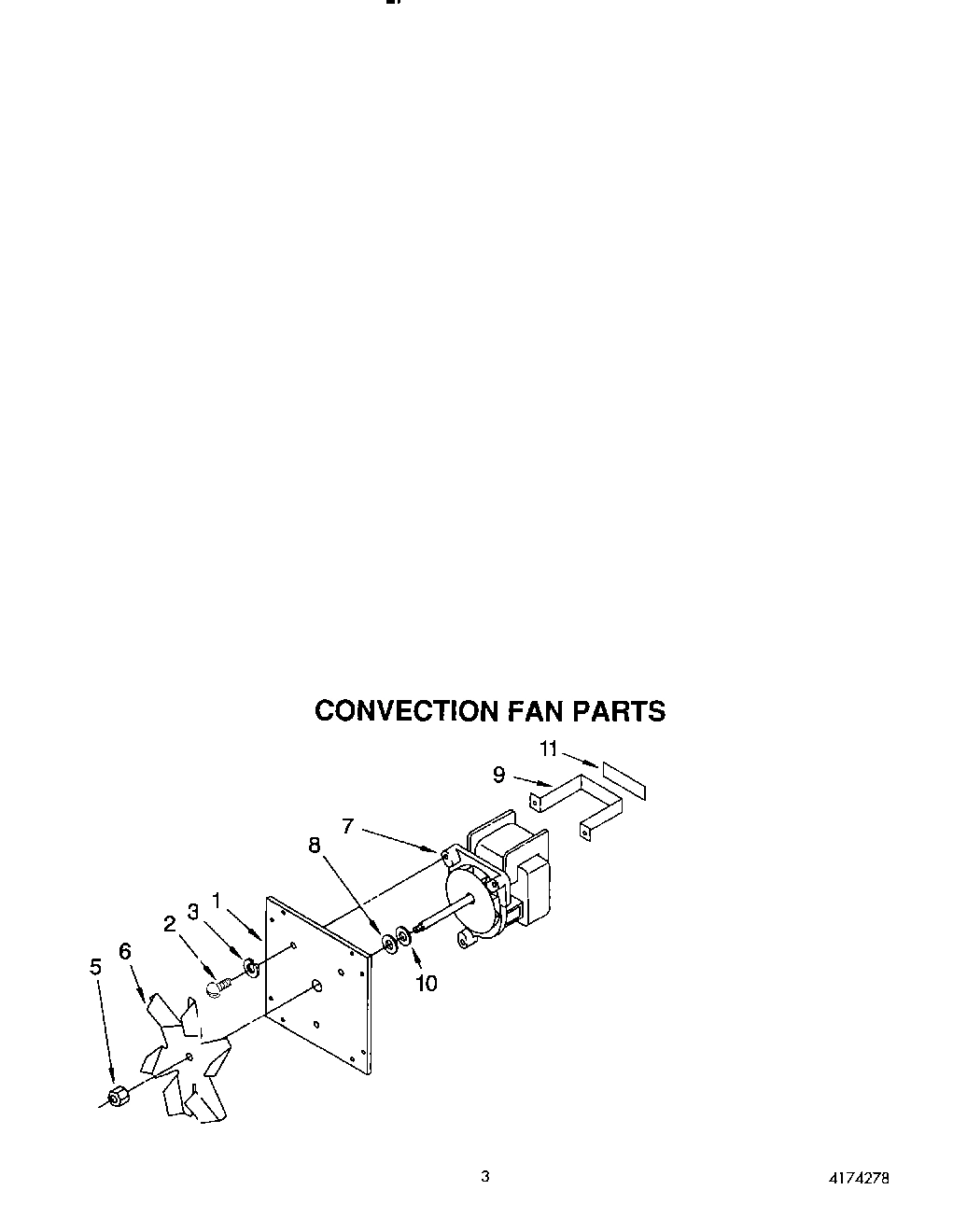

02 - CONVECTION FAN

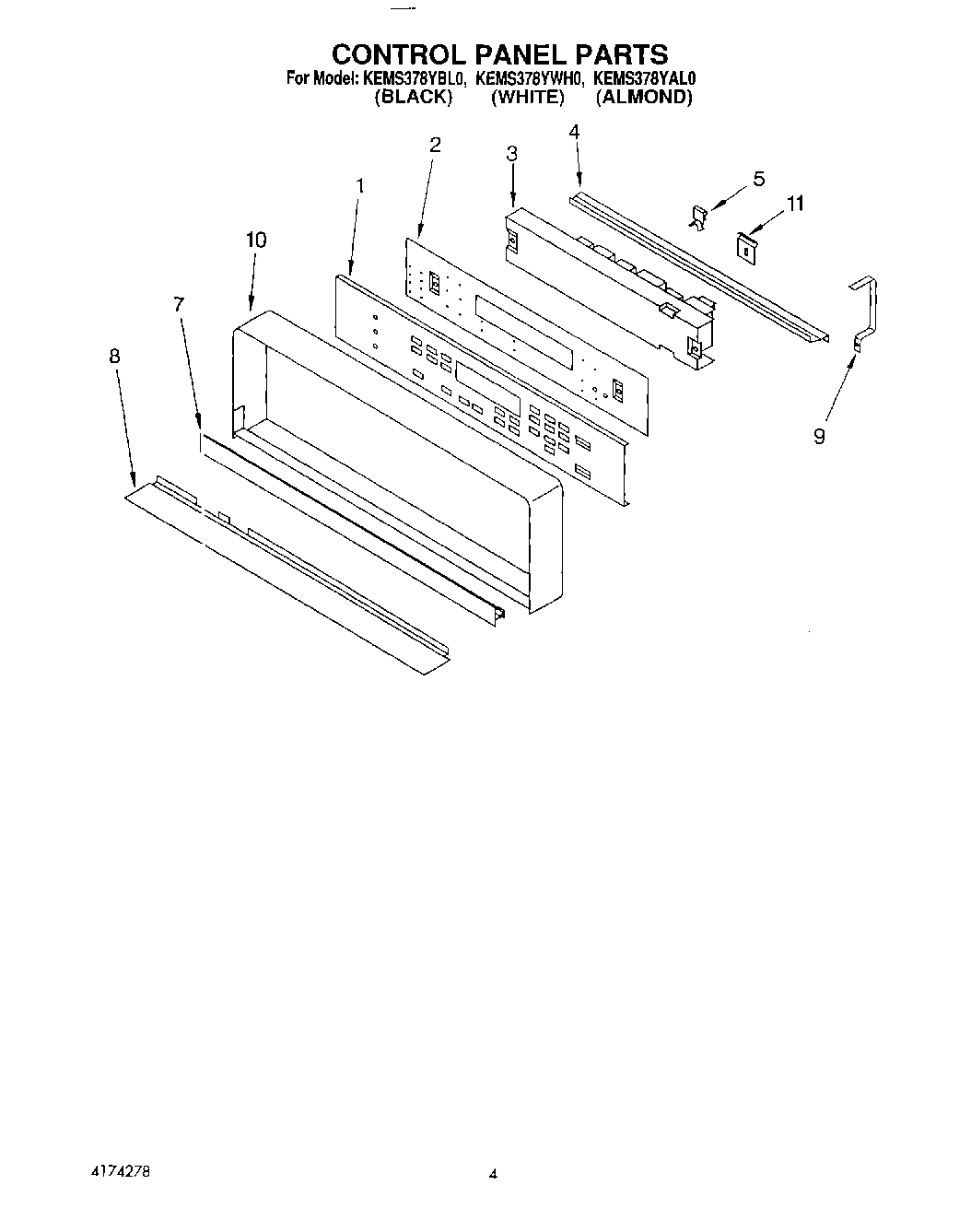

03 - CONTROL, LITERATURE
Common parts from model Whirlpool KEMS378YWH0
Chart, Quick Ref. WPL LIT3150143 Contact Us For Availability
Cookbook T/C Oven WPL LIT3150693 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3180511 Contact Us For Availability
Installation Instructions WPL LIT3184435 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT3184437 Contact Us For Availability
Tech Sheet WPL LIT3184524 Contact Us For Availability
Repair Parts List WPL LIT4174278 Contact Us For Availability
Cookbook Microwave WPL LIT4313007 Contact Us For Availability
Label, Auto Cook Guide WPL LIT4313011 Contact Us For Availability
Label, Defrost Guide WPL LIT4313012 Contact Us For Availability
1
Damper Assy. WPL 4312988 Contact Us For Availability
1
Microcomputer WPL 4312961 Contact Us For Availability
1
Screw WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Shelf, Component WPL 3184592 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4312819 Contact Us For Availability
1
Harness, Wiring (Main Oven) WPL 3184750 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3180975 Contact Us For Availability
1
Frame, Outer (Almond Model) WPL 3180976 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3180977 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 3181780 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 3181781 Contact Us For Availability
1
Membrane, Switch (Almond, Model) WPL 3181782 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Fuse, 20 Amp WPL 4312924 Contact Us For Availability
2
Frame, Control Panel (Black) WPL 4312966 Contact Us For Availability
2
Frame, Control Panel (White) WPL 4312967 Contact Us For Availability
2
Frame, Control Panel (Almond) WPL 4312968 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Harness, Wiring (Jack Assembly) WPL 4312950 Contact Us For Availability
2
Block, Foam WPL 3182384 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Motor, Damper WPL 4312949 Contact Us For Availability
3
Fuse Holder WPL 4312820 Contact Us For Availability
3
Push Button (Black) WPL 4312972 Contact Us For Availability
3
Push Button (White) WPL 4312973 Contact Us For Availability
3
Push Button (Almond) WPL 4312974 Contact Us For Availability
3
Bushing, Electric WPL 3181919 Contact Us For Availability
3
Harness, Wiring (Main Microwave) WPL 4313003 Contact Us For Availability
3
Cabinet, Back WPL 3177740 Contact Us For Availability
3
Seal, Foam (Side) (Black Model) WPL 3182380 Contact Us For Availability
3
Seal, Foam (Side) (White or Almond Model) WPL 3182381 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Microcomputer WPL 3181703 Contact Us For Availability
4
Magnetron WPL 4312833 Contact Us For Availability
4
Transformer WPL 4312952 Contact Us For Availability
4
Spring, Button WPL 4312975 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
4
Harness, Wiring (Latch, Combo) (Base Plate) WPL 3184819 Contact Us For Availability
4
Seal, Foam (Top) (Screw) WPL 3179847 Contact Us For Availability
4
Seal, Foam (Top) (Black Model) WPL 3182382 Contact Us For Availability
4
Seal, Foam (Top) (White or Almond Model) WPL 3182383 Contact Us For Availability
4
Screw WPL 3182939 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
5
Rack, Offset WPL 3185307 Contact Us For Availability
5
Thermal Protector (2) WPL 4312830 Contact Us For Availability
5
Capacitor WPL 4312831 Contact Us For Availability
5
Plate, Mounting WPL 4312852 Contact Us For Availability
5
Retainer, Insulation WPL 3185437 Contact Us For Availability
5
Screw WPL 4173601 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Latch Lever WPL 4312878 Contact Us For Availability
5
Rail, Microwave WPL 3179973 Contact Us For Availability
5
Screw (4) WPL 3181067 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
6
Rack, Oven WPL 3185308 Contact Us For Availability
6
Heating Element WPL 4312951 Contact Us For Availability
6
Rectifier WPL 4312953 Contact Us For Availability
6
Release Lever WPL 4312853 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Latch Hook WPL 4312879 Contact Us For Availability
6
Cabinet, Top WPL 3178142 Contact Us For Availability
6
Seal, Foam WPL 3180454 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
7
Thermistor WPL 4312824 Contact Us For Availability
7
Outer Cabinet WPL 4312955 Contact Us For Availability
7
Mounting Pin WPL 4312854 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Handle, Latch WPL 3181963 Contact Us For Availability
7
Screw WPL 4312917 Contact Us For Availability
7
Wire, Jumper WPL 4313005 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Vent, Middle Trim (Black Model) WPL 3181965 Contact Us For Availability
7
Vent, Middle Trim (White or Almond Model) WPL 3181968 Contact Us For Availability
7
Motor WPL 3182088 Contact Us For Availability
7
Door, Latch Handle (Black Model) WPL 3183597 Contact Us For Availability
7
Door, Latch Handle (Almond Model) WPL 3183598 Contact Us For Availability
7
Door, Latch Handle (White Model) WPL 3183599 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Motor, Fan (Convection) WPL 4312828 Contact Us For Availability
8
Cabinet Base WPL 4312956 Contact Us For Availability
8
Bracket, Mounting WPL 4312855 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Nut WPL 4312923 Contact Us For Availability
8
Wire, Ground WPL 4312912 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3181695 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3181696 Contact Us For Availability
8
Screw WPL 4168863 Contact Us For Availability
8
Brace, Center Vent WPL 3181848 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Trim, Panel (Black) WPL 318516 Contact Us For Availability
8
Trim, Panel (White) WPL 318517 Contact Us For Availability
8
Trim, Panel (Almond) WPL 318518 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Heater Duct Assy. WPL 4312835 Contact Us For Availability
9
Screw (5) WPL 4312920 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Door, Complete (Black) WPL 4312996 Contact Us For Availability
9
Door, Complete (White) WPL 4312997 Contact Us For Availability
9
Door, Complete (Almond) WPL 4312998 Contact Us For Availability
9
Harness, Wire (Microwave Power) WPL 3184821 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Support, Module WPL 3180330 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Fan Blade (Convection) WPL 4312984 Contact Us For Availability
10
Cabinet Rear WPL 4312957 Contact Us For Availability
10
Screw (2) WPL 4312921 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Panel, Glass (Black) WPL 4312993 Contact Us For Availability
10
Panel, Glass (White) WPL 4312994 Contact Us For Availability
10
Panel, Glass (Almond) WPL 4312995 Contact Us For Availability
10
Clip, Harness WPL 4313010 Contact Us For Availability
10
Back, Microwave Compartment WPL 3180336 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Frame, Control Panel WPL 3182148 Contact Us For Availability
11
Screw WPL 3179117 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Fan Blade (Reflection) WPL 4312837 Contact Us For Availability
11
Capacitor Holder WPL 4312844 Contact Us For Availability
11
Frame, Door WPL 3181402 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Retainer Ring WPL 4312898 Contact Us For Availability
11
Clip, Harness WPL 4313009 Contact Us For Availability
11
Ext. Module Support WPL 3182764 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
12
Plate, Motor Mounting WPL 4312985 Contact Us For Availability
12
Lower Hinge WPL 4312931 Contact Us For Availability
12
Screw WPL 3148443 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3185474 Contact Us For Availability
12
Glass, Door (White Model) WPL 3185476 Contact Us For Availability
12
Glass, Door (Almond Model) WPL 3185478 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Clip, harness WPL 4313008 Contact Us For Availability
12
Rail, Chassis WPL 3179972 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Clip, Element (2) WPL 4312880 Contact Us For Availability
13
Extension, Cabinet Base WPL 4312958 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3182165 Contact Us For Availability
13
Handle, Door (White Model) WPL 3182168 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 3182171 Contact Us For Availability
13
Upper Latch WPL 4312900 Contact Us For Availability
13
Harness, Wire (Light Switch) WPL 3185130 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Collar WPL 4312986 Contact Us For Availability
14
Block, Foam WPL 4312960 Contact Us For Availability
14
Spacer, Door Handle WPL 3182138 Contact Us For Availability
14
Lower Latch WPL 4312901 Contact Us For Availability
14
Harness, Wiring (Combo-Probe) WPL 3184822 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Block, Foam WPL 3182387 Contact Us For Availability
15
Plate, Protector WPL 4312987 Contact Us For Availability
15
Vibration Block WPL 4312847 Contact Us For Availability
15
Bushing, Door Handle WPL 3185456 Contact Us For Availability
15
Spring, Latch WPL 4312902 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Insert, Middle Vent Trim WPL 3181733 Contact Us For Availability
16
Bracket, Element WPL 3180694 Contact Us For Availability
16
Plate, Thermal Protector WPL 4312884 Contact Us For Availability
16
Screw (9) WPL 4312913 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3185470 Contact Us For Availability
16
Cover, Frame (Black) WPL 4312999 Contact Us For Availability
16
Cover, Frame (White) WPL 4313000 Contact Us For Availability
16
Cover, Frame (Almond) WPL 4313001 Contact Us For Availability
16
Standoff, Wireform (2) WPL 3179668 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Seal, Foam WPL 313756 Contact Us For Availability
17
Insulation WPL 4312885 Contact Us For Availability
17
Screw (2) WPL 4312914 Contact Us For Availability
17
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Shaft, Latch WPL 4312904 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Assembly-Frame & Seal (Black Model) WPL 3182290 Contact Us For Availability
17
Assembly-Frame & Seal (White Model) WPL 3182291 Contact Us For Availability
17
Assembly-Frame & Seal (Almond Model) WPL 3182292 Contact Us For Availability
18
Cover, Thermal Protector WPL 4312887 Contact Us For Availability
18
Screw (3) WPL 4312915 Contact Us For Availability
18
Switch, latch WPL 3183784 Contact Us For Availability
18
Liner, Door WPL 4312896 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Fan Blade Assy. WPL 4312983 Contact Us For Availability
19
Spacer - Tubing WPL 3179672 Contact Us For Availability
19
Foam Block WPL 4312890 Contact Us For Availability
19
Screw WPL 98106 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Clip, Retainer WPL 4312872 Contact Us For Availability
20
Element, Convection WPL 3178517 Contact Us For Availability
20
Screw (2) WPL 4312919 Contact Us For Availability
20
Holder, Wire WPL 4313006 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Plastic Screw WPL 4312874 Contact Us For Availability
21
Screw (4) WPL 4312916 Contact Us For Availability
21
Cover, Fan WPL 3180815 Contact Us For Availability
22
Rack Support (L.H.) WPL 4312875 Contact Us For Availability
22
Rack Support (R.H.) WPL 4312876 Contact Us For Availability
22
Rack, Roasting WPL 3181534 Contact Us For Availability
22
Foam Block WPL 4312991 Contact Us For Availability
22
Baffle, Module WPL 3150736 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Block, Foam WPL 4312892 Contact Us For Availability
23
Seal, Foam WPL 4312990 Contact Us For Availability
23
Seal, Foam WPL 3180455 Contact Us For Availability
23
Seal, Foam WPL 3180458 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Block, Foam WPL 4312888 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177561 Contact Us For Availability
27
Block, Foam WPL 4312895 Contact Us For Availability
27
Liner, Oven WPL 3185563 Contact Us For Availability
28
Cookie Sheet WPL 4313002 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Rack (Upper) WPL 4312906 Contact Us For Availability
29
Screw WPL 3185383 Contact Us For Availability
29
Sensor, Heat WPL 3148440 Contact Us For Availability
30
Rack (Lower) WPL 4312907 Contact Us For Availability
31
Tray, Cooking WPL 4312908 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Block, Foam WPL 4312989 Contact Us For Availability
33
Block, Foam WPL 4312894 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Temperature Probe Assy. WPL 4312954 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177787 Contact Us For Availability
34
Vent, Lower Trim (White Or Almond Model) WPL 3177789 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3181964 Contact Us For Availability
36
Block, Foam WPL 4312889 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179945 Contact Us For Availability
37
Magnetron Duct Assembly WPL 4312982 Contact Us For Availability
38
Screw (2) WPL 4314918 Contact Us For Availability
38
Extension, Shelf WPL 3180332 Contact Us For Availability
39
WPL 799344 WPL 799344 Contact Us For Availability
39
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
39
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
39
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
39
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
39
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
39
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
39
white WPL 242826 Contact Us For Availability
39
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
39
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
39
Red WPL 242829 Contact Us For Availability
39
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
39
Yellow 12 Ga. 150~c Rating WPL 242832 Contact Us For Availability
39
Harvest Gold WPL 261890 Contact Us For Availability
39
Harvest Gold WPL 261891 Contact Us For Availability
39
WPL 285365 WPL 285365 Contact Us For Availability
39
WPL 285366 WPL 285366 Contact Us For Availability
39
WPL 285367 WPL 285367 Contact Us For Availability
39
WPL 285368 WPL 285368 Contact Us For Availability
39
WPL 3171507 WPL 3171507 Contact Us For Availability
39
WPL 350806 WPL 350806 Contact Us For Availability
39
WPL 350941 WPL 350941 Contact Us For Availability
39
WPL 4312992 WPL 4312992 Contact Us For Availability
39
WPL 591014 WPL 591014 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 786020 WPL 786020 Contact Us For Availability
39
WPL 786032 WPL 786032 Contact Us For Availability
39
WPL 799832 WPL 799832 Contact Us For Availability
39
WPL 832985 WPL 832985 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Plate, Cover WPL 3185085 Contact Us For Availability
41
Bracket, Control WPL 3183752 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
45
Insulation, Back WPL 3177872 Contact Us For Availability
45
Insulation, Wrap WPL 3185551 Contact Us For Availability
× ![]()
