Model Whirlpool KEMS378XWH0 – Common Parts & Diagrams
05 - OVEN DOOR
07 - CONVECTION FAN

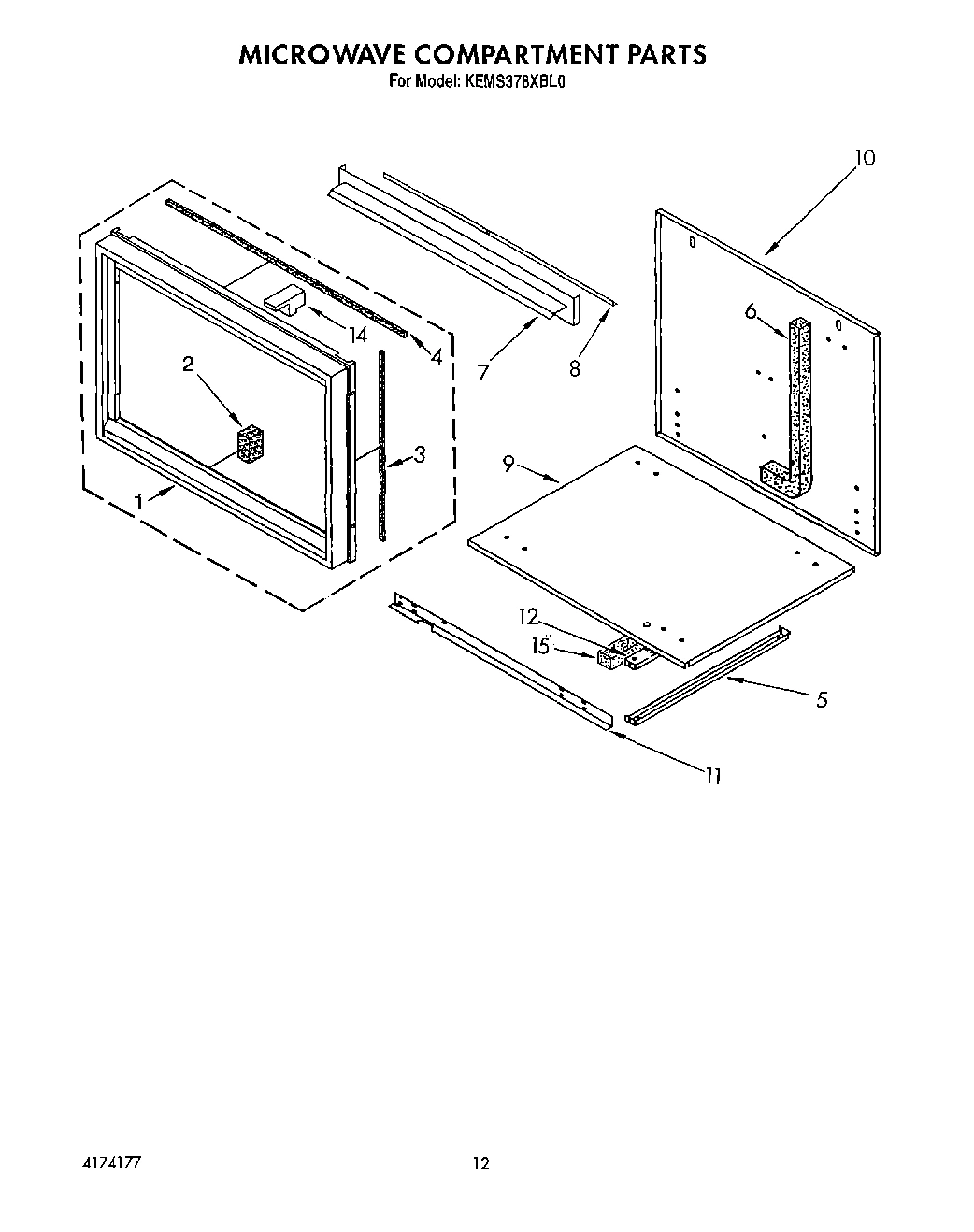

09 - MICROWAVE COMPARTMENT

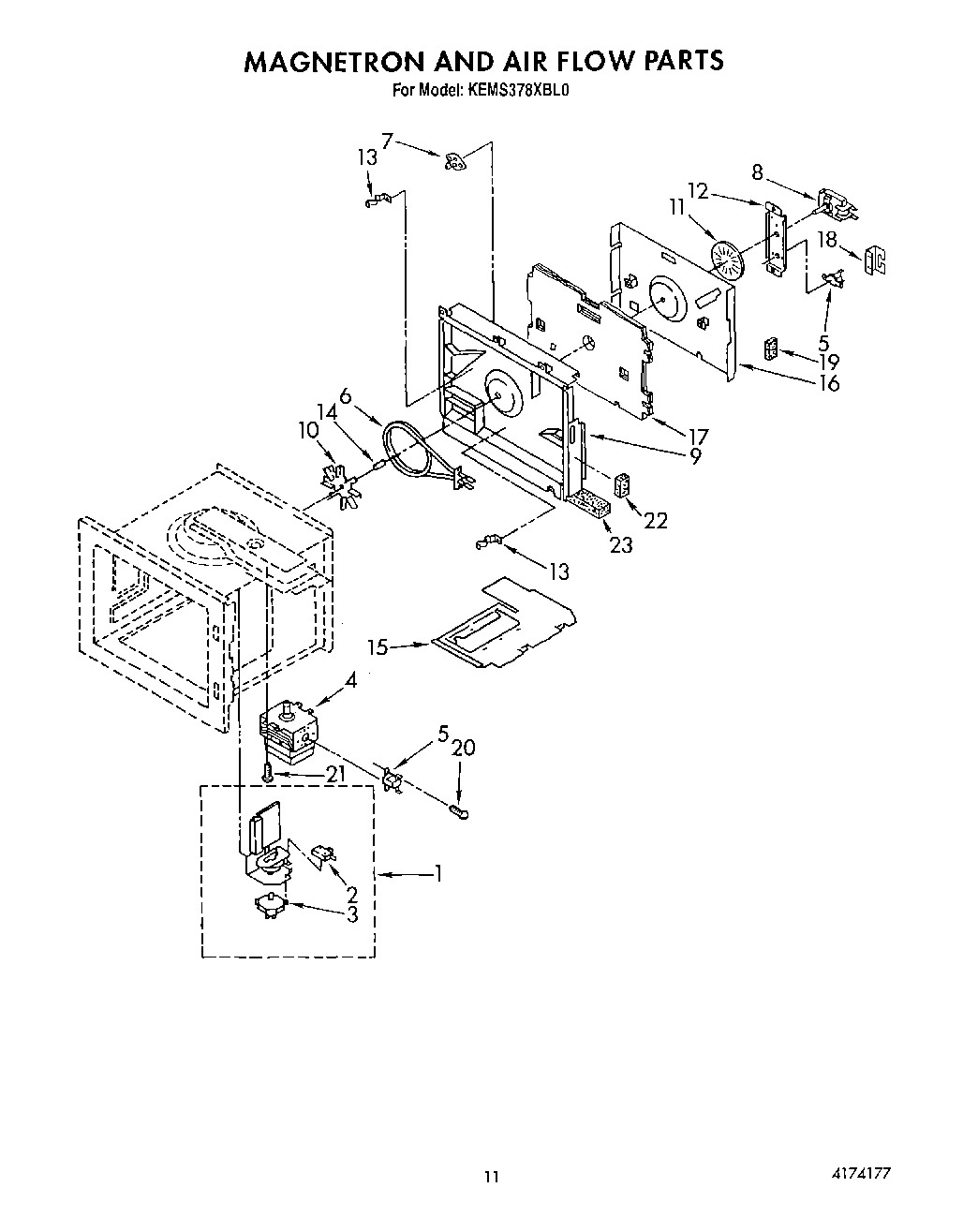

08 - MAGNETRON AND AIR FLOW

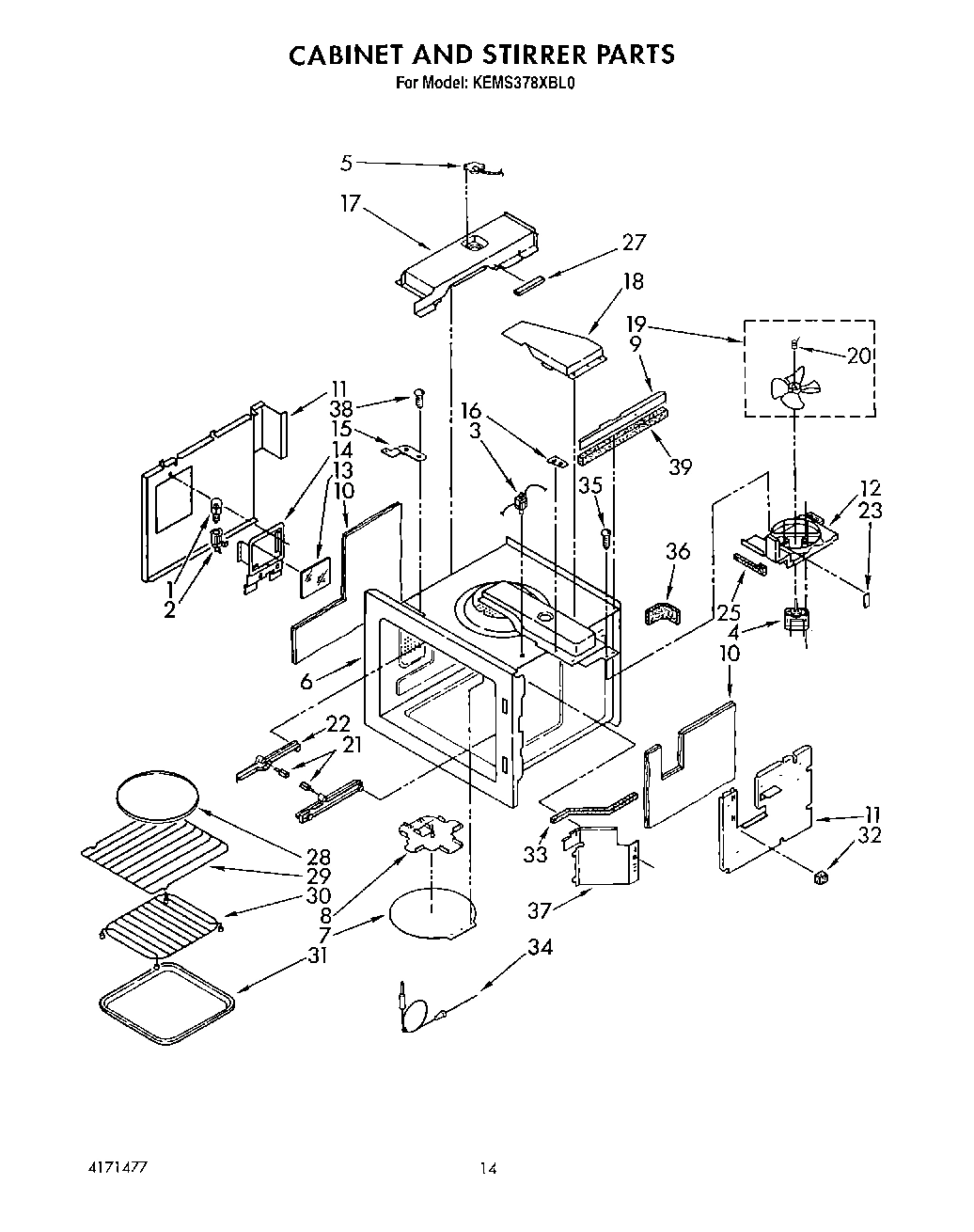

10 - CABINET AND STIRRER, OPTIONAL

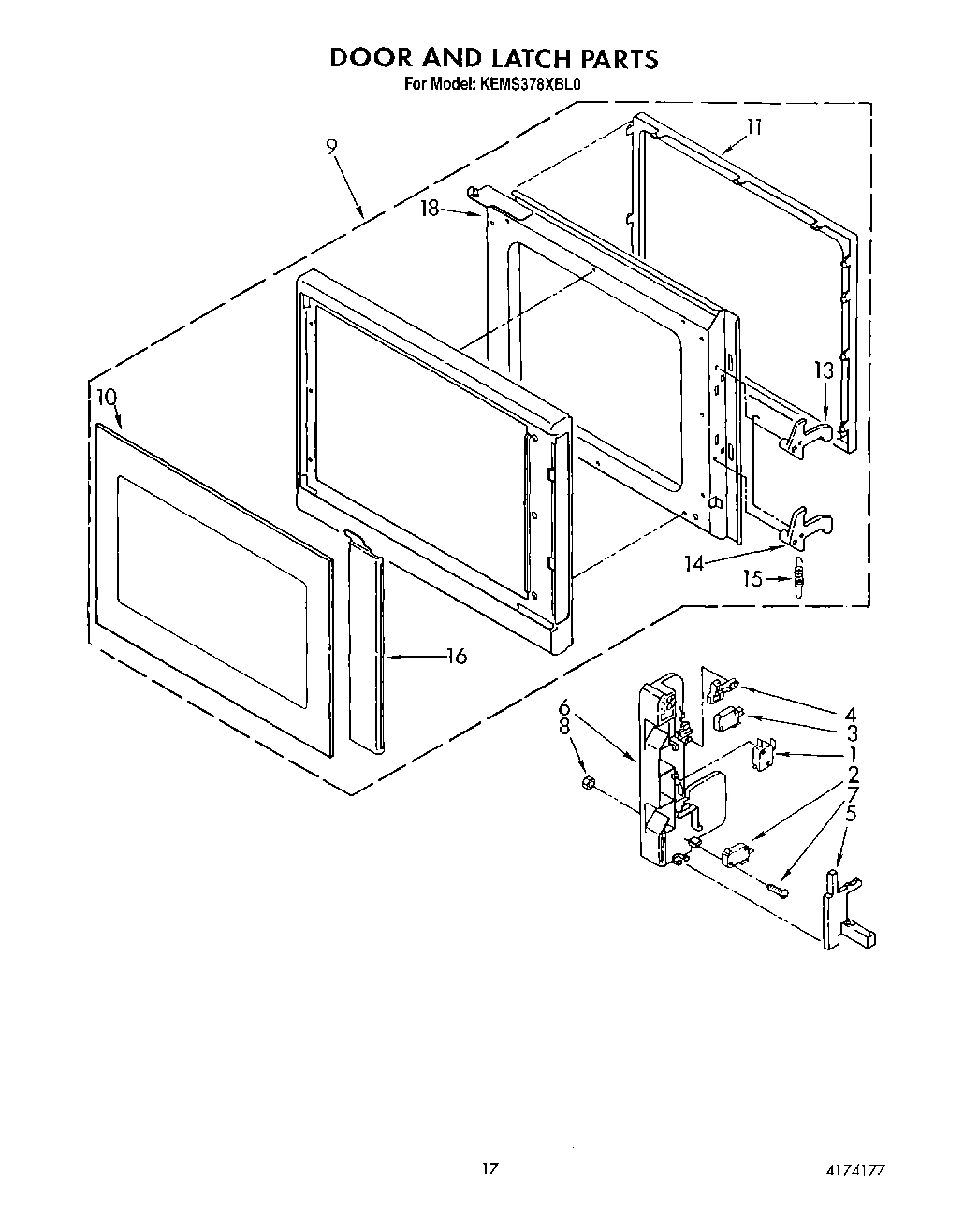

12 - DOOR AND LATCH

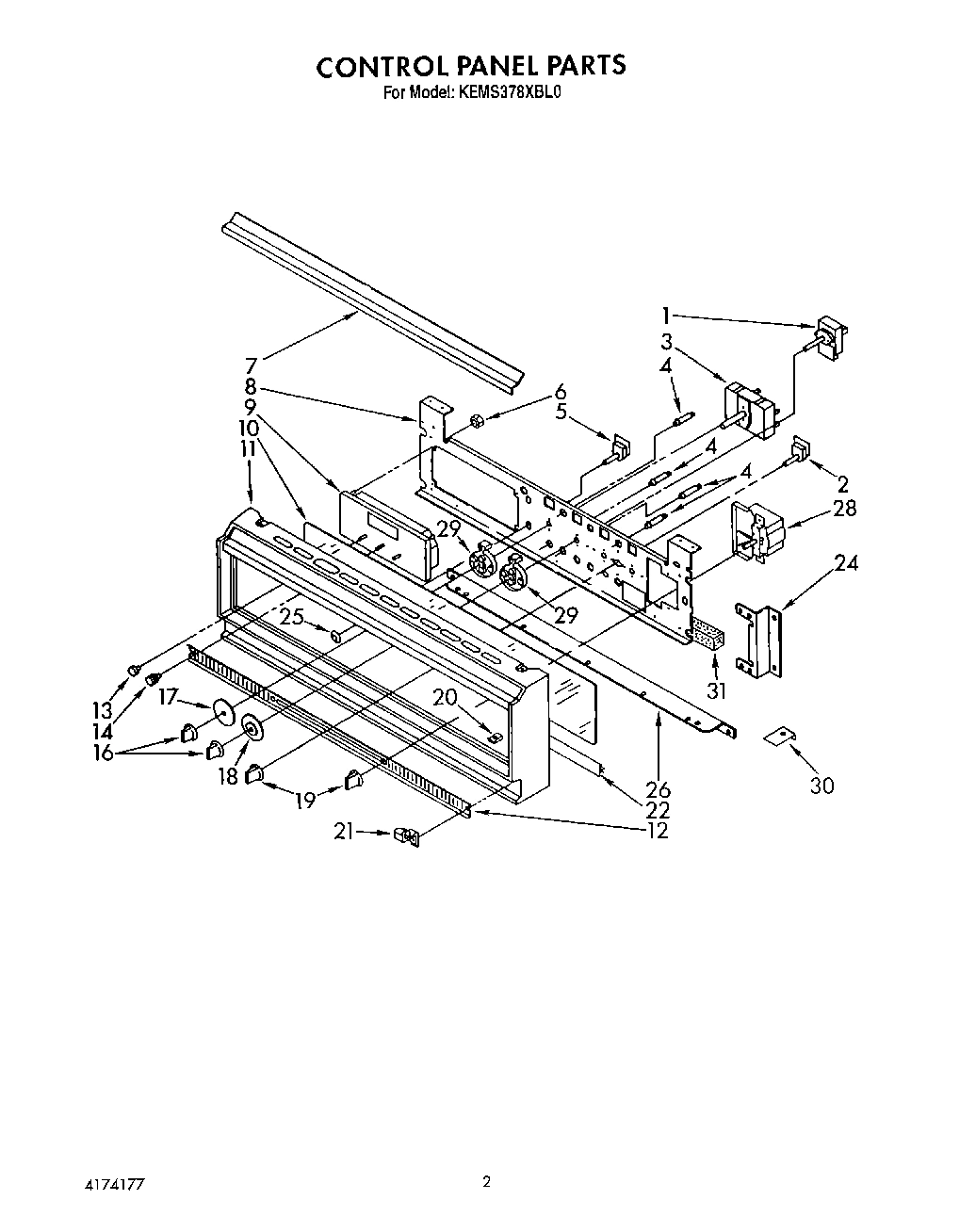

02 - CONTROL PANEL, LIT/OPTIONAL

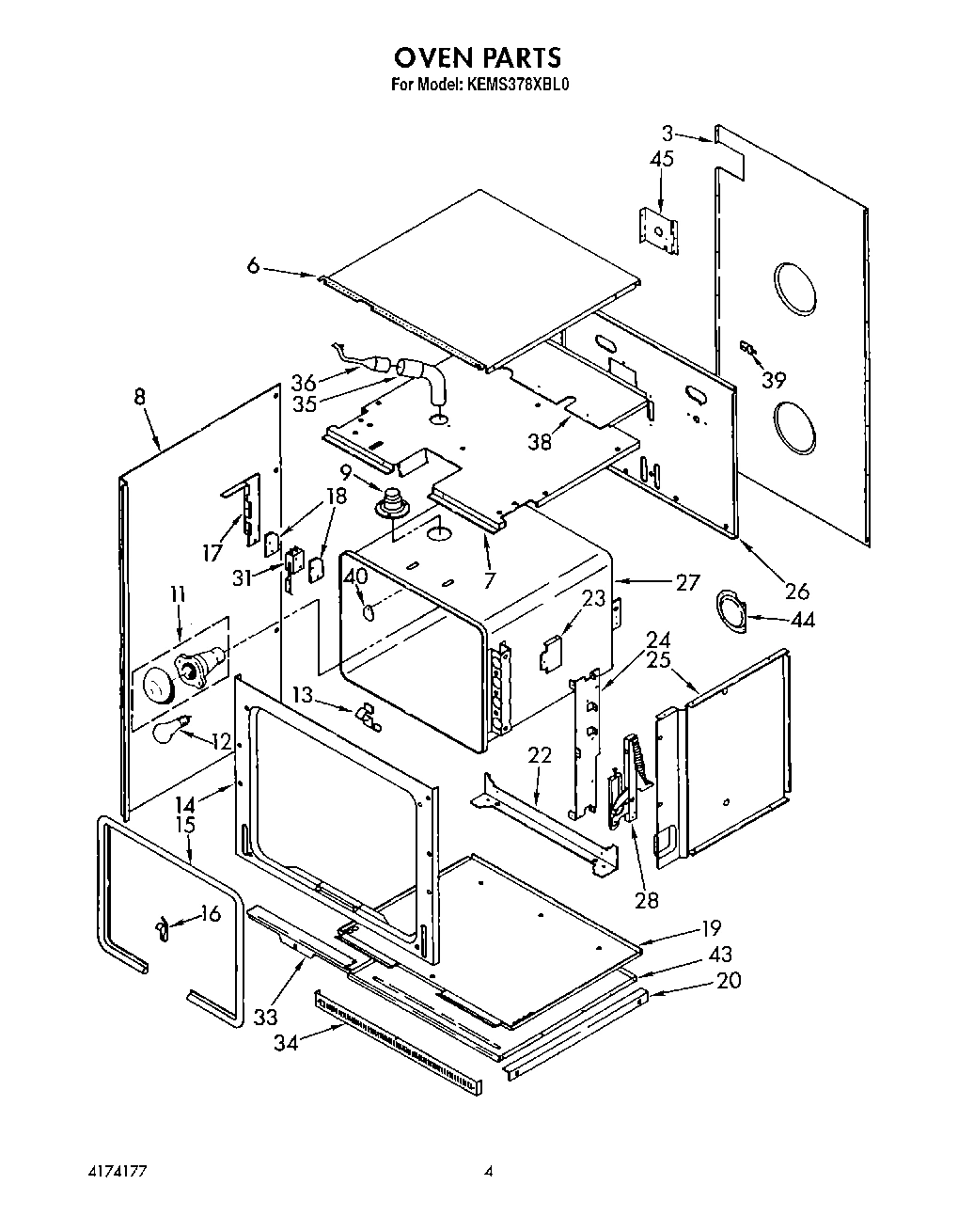

03 - OVEN

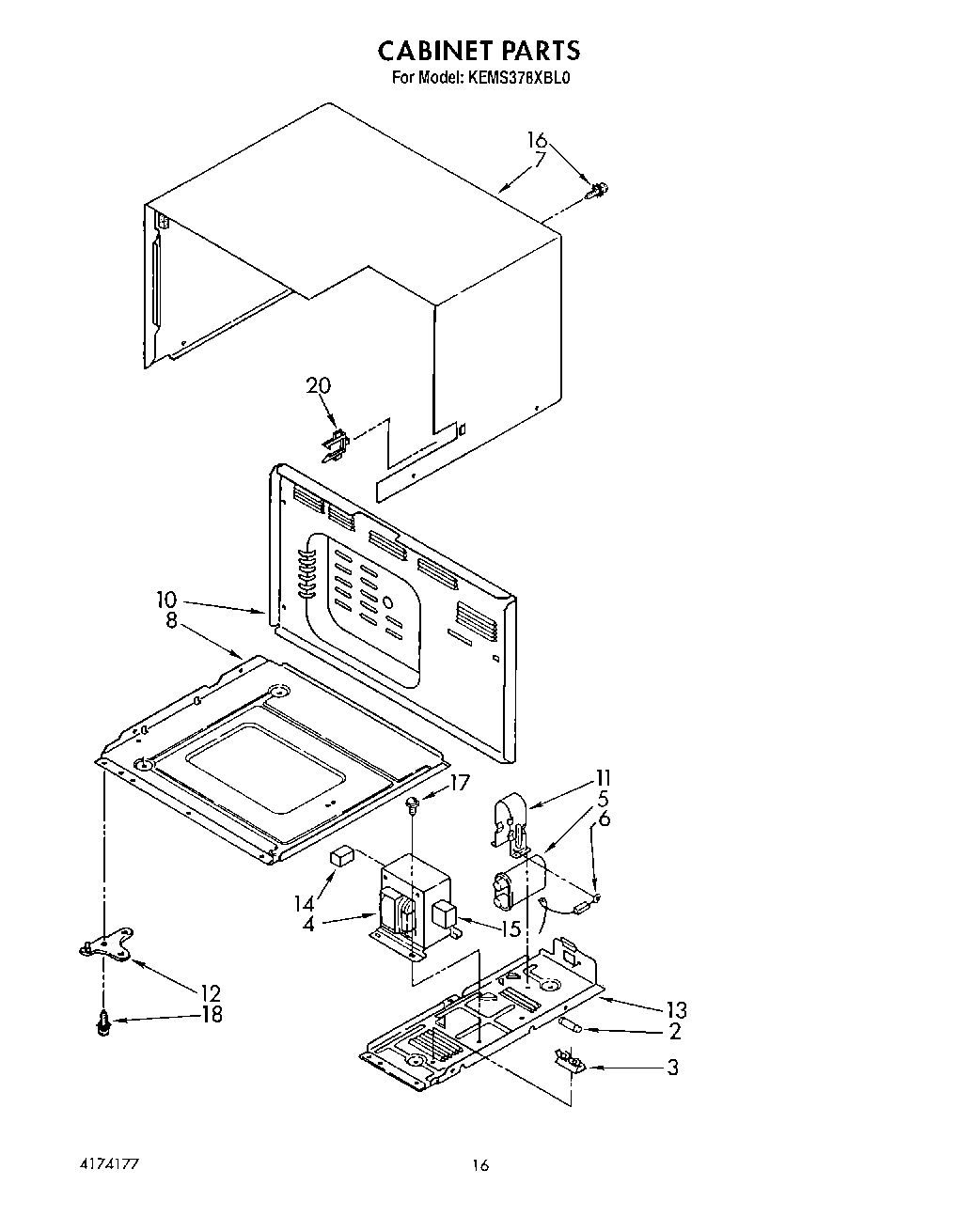

11 - CABINET

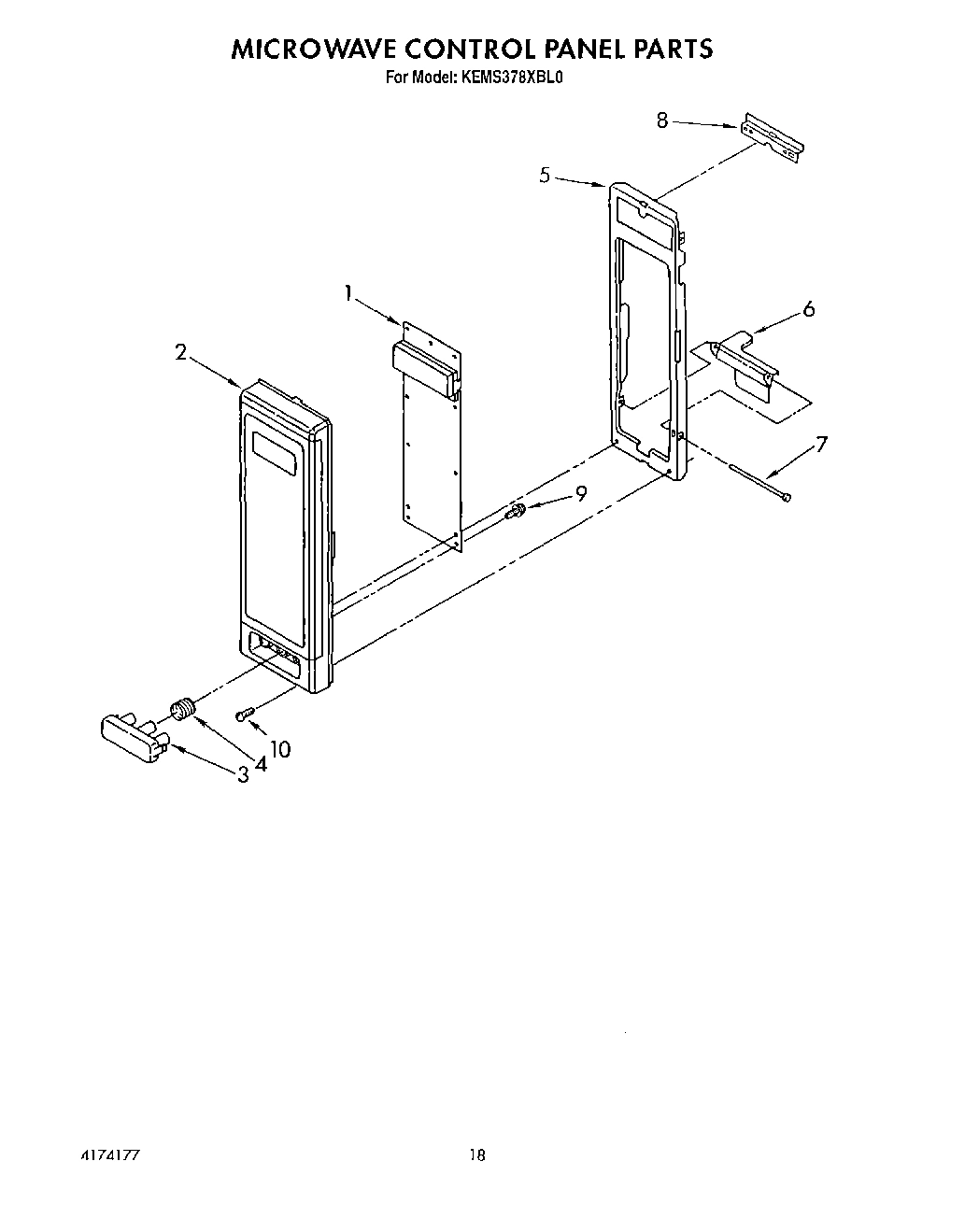

13 - MICROWAVE CONTROL PANEL

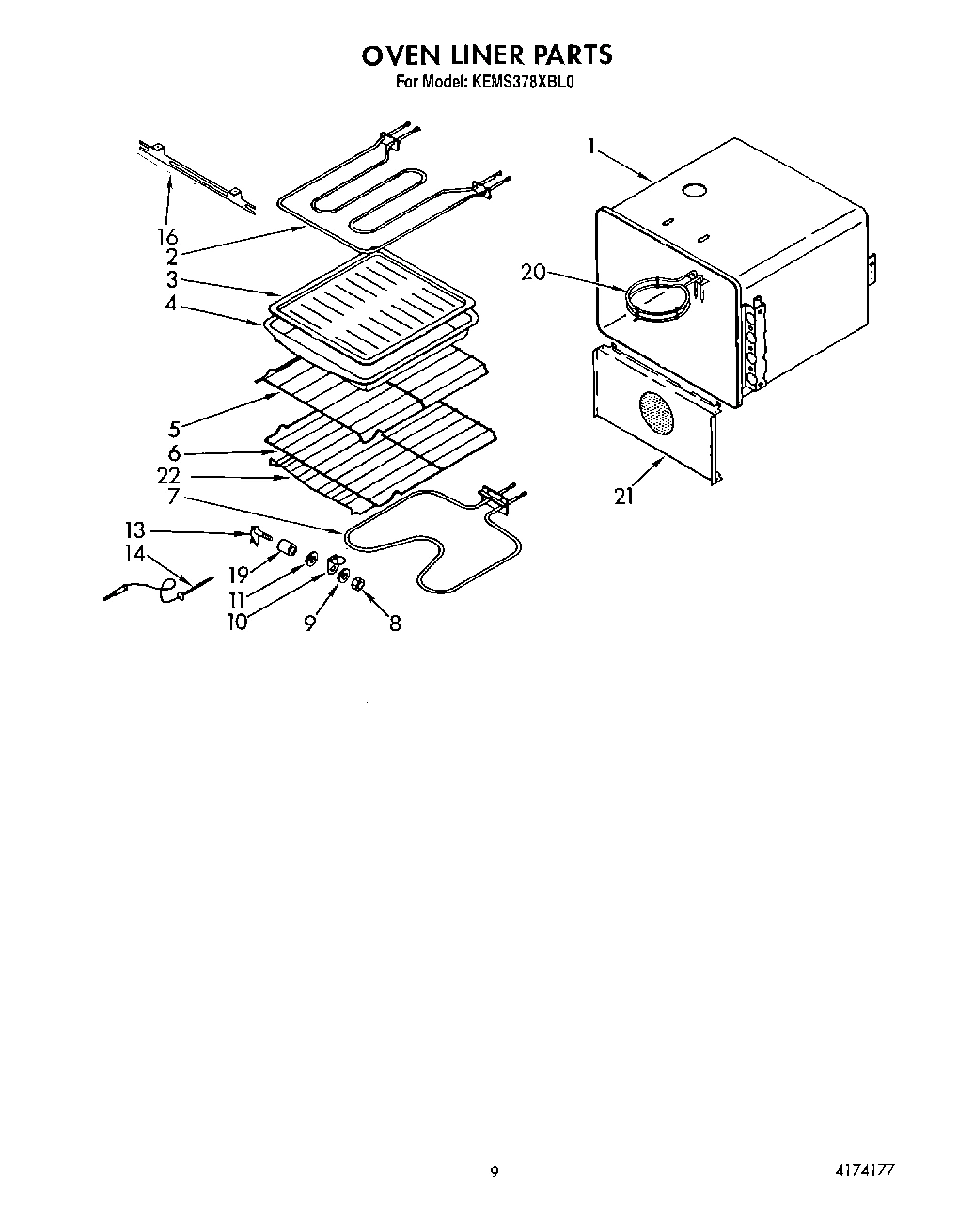

06 - OVEN LINER

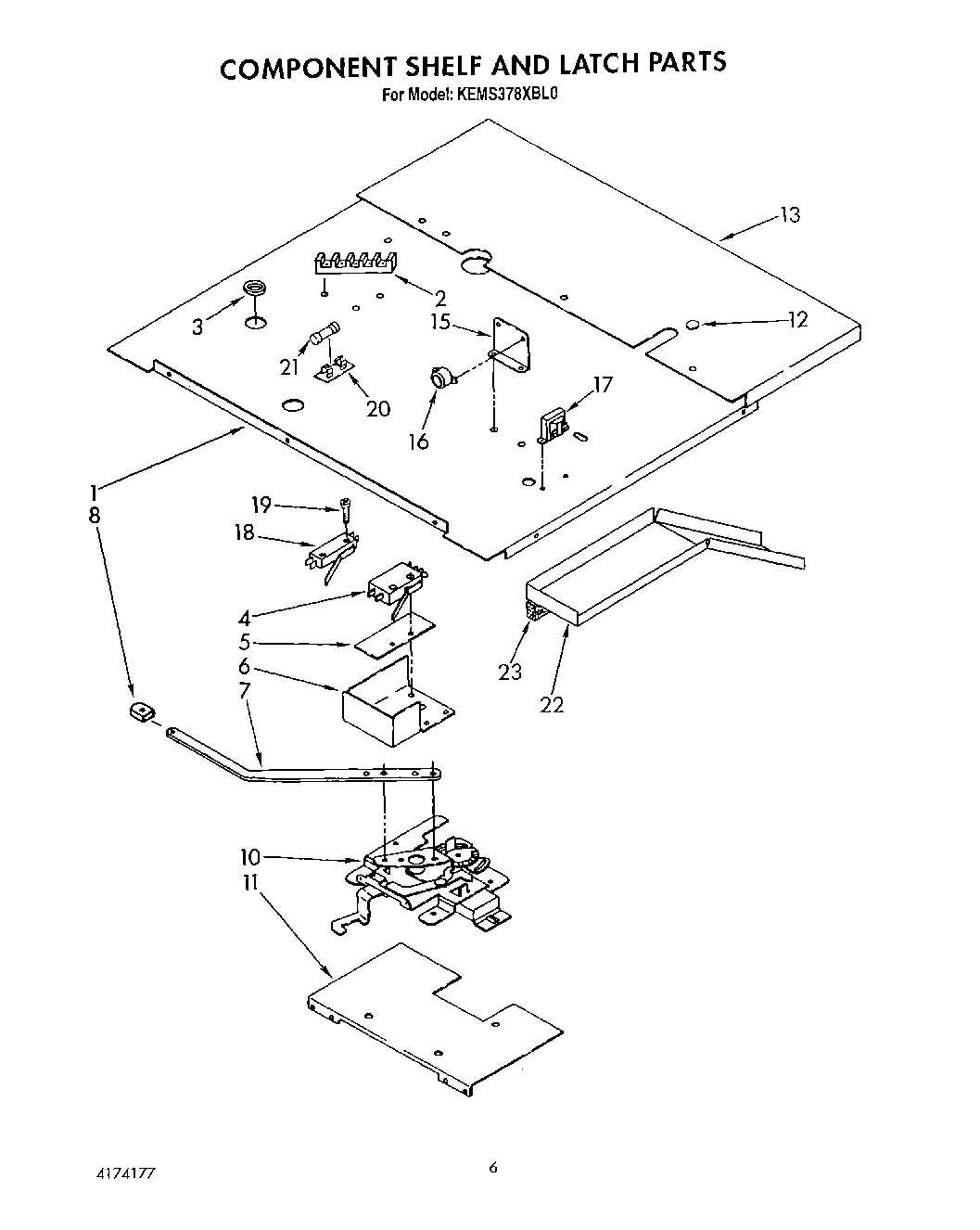

04 - COMPONENT SHELF AND LATCH

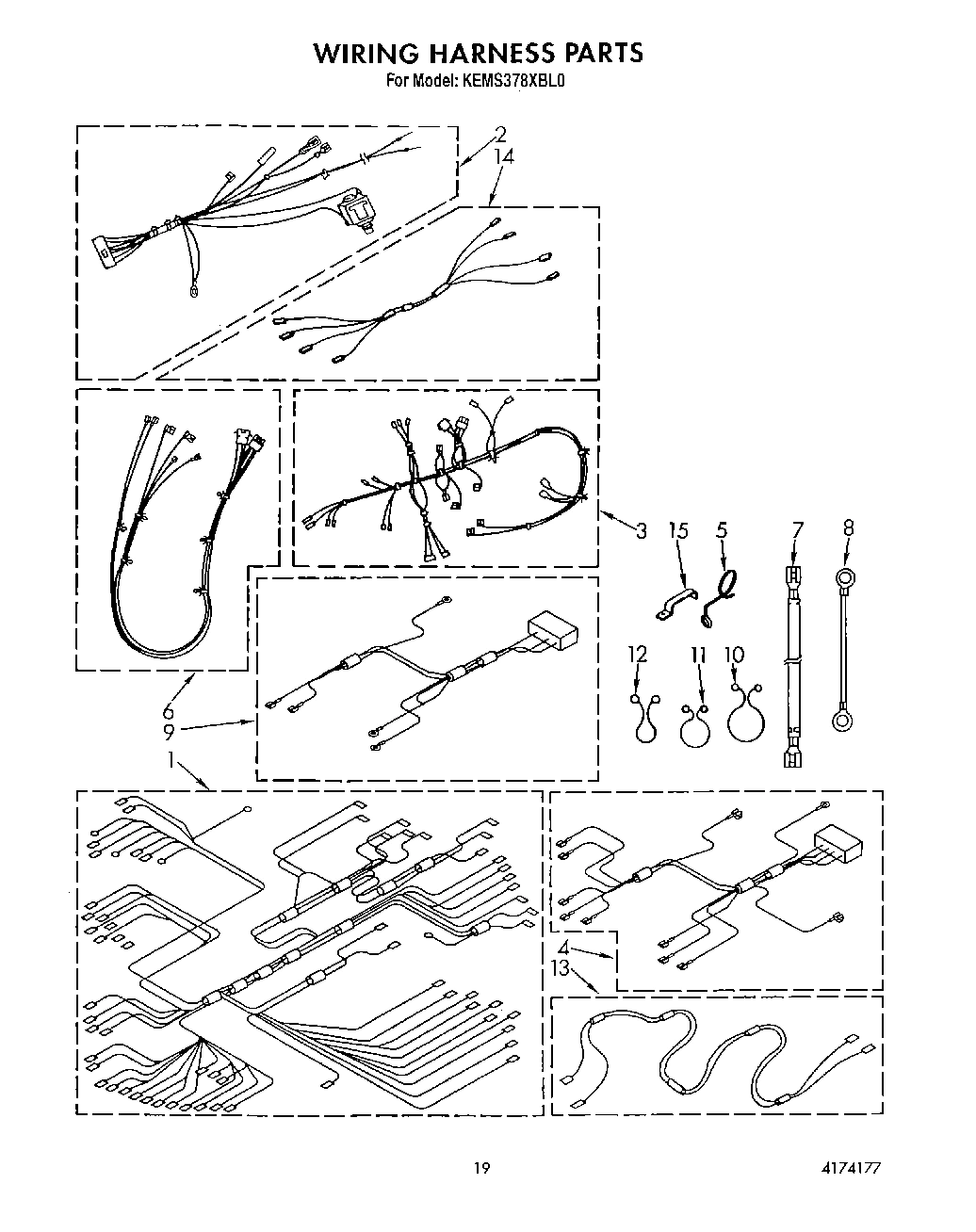

14 - WIRING HARNESS
Common parts from model Whirlpool KEMS378XWH0
Mounting Hardware WPL 3171507 Contact Us For Availability
Chart, Quick Ref. WPL LIT3150143 Contact Us For Availability
Cookbook WPL LIT3150693 Contact Us For Availability
Tech Sheet WPL LIT3180509 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT3180510 Contact Us For Availability
Use & Care Gui WPL LIT3180511 Contact Us For Availability
WPL LIT3180512 WPL LIT3180512 Contact Us For Availability
WPL LIT4174177 WPL LIT4174177 Contact Us For Availability
WPL LIT4313007 WPL LIT4313007 Contact Us For Availability
WPL LIT4313011 WPL LIT4313011 Contact Us For Availability
WPL LIT4313012 WPL LIT4313012 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3182290 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3182291 Contact Us For Availability
1
Frame, Outer (Almond Model) WPL 3182292 Contact Us For Availability
1
Damper Assy. WPL 4312988 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4312819 Contact Us For Availability
1
Thermostat, Upper WPL 3178274 Contact Us For Availability
1
Liner, Oven WPL 3180782 Contact Us For Availability
1
Microcomputer WPL 4312961 Contact Us For Availability
1
Shelf, Component WPL 3178091 Contact Us For Availability
1
Harness, Wiring (Main Oven) WPL 3180451 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Block, Foam WPL 3182384 Contact Us For Availability
2
Light Socket WPL 4174730 Contact Us For Availability
2
Harness, Wiring (Jack Assembly) WPL 4312950 Contact Us For Availability
2
Switch, Rotory WPL 3178126 Contact Us For Availability
2
Fuse, 20 Amp WPL 4312924 Contact Us For Availability
2
Frame, Control Panel (Black) WPL 4312966 Contact Us For Availability
2
Frame, Control Panel (White) WPL 4312967 Contact Us For Availability
2
Frame, Control Panel (Almond) WPL 4312968 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Seal, Foam (Side) (Black Model) WPL 3182380 Contact Us For Availability
3
Seal, Foam (Side) (White or Almond Model) WPL 3182381 Contact Us For Availability
3
Motor, Damper WPL 4312949 Contact Us For Availability
3
Switch, Selector WPL 3178236 Contact Us For Availability
3
Cabinet, Back WPL 3177740 Contact Us For Availability
3
Fuse Holder WPL 4312820 Contact Us For Availability
3
Push Button (Black) WPL 4312972 Contact Us For Availability
3
Push Button (White) WPL 4312973 Contact Us For Availability
3
Push Button (Almond) WPL 4312974 Contact Us For Availability
3
Bushing, Electric WPL 3181919 Contact Us For Availability
3
Harness, Wiring (Main Microwave) WPL 4313003 Contact Us For Availability
4
Seal, Foam (Top) (Black Model) WPL 3182382 Contact Us For Availability
4
Seal, Foam (Top) (White or Almond Model) WPL 3182383 Contact Us For Availability
4
Magnetron WPL 4312833 Contact Us For Availability
4
Motor, Fan Cooling WPL 4312829 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
4
Light, Indicator WPL 4168598 Contact Us For Availability
4
Transformer WPL 4312952 Contact Us For Availability
4
Spring, Button WPL 4312975 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Harness, Wiring (T/C Meat Probe) WPL 3179937 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Rail, Microwave WPL 3179973 Contact Us For Availability
5
Screw (4) WPL 3181067 Contact Us For Availability
5
Thermal Protector (2) WPL 4312830 Contact Us For Availability
5
Sensor Assy. WPL 4312925 Contact Us For Availability
5
Latch Lever WPL 4312878 Contact Us For Availability
5
Switch, Oven Light (White or Almond Model) WPL 3179708 Contact Us For Availability
5
Switch, Oven Light (Black) WPL 3179891 Contact Us For Availability
5
Capacitor WPL 4312831 Contact Us For Availability
5
Plate, Mounting WPL 4312852 Contact Us For Availability
5
Rack, Offset WPL 3180865 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Standoff, Harness Wireform (2) WPL 3179668 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Seal, Foam WPL 3180456 Contact Us For Availability
6
Heating Element WPL 4312951 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI86257A7 Contact Us For Availability
6
Latch Hook WPL 4312879 Contact Us For Availability
6
Nut, Timer (4) WPL 98788 Contact Us For Availability
6
Cabinet, Top WPL 3178140 Contact Us For Availability
6
Rectifier WPL 4312953 Contact Us For Availability
6
Release Lever WPL 4312853 Contact Us For Availability
6
Rack, Oven WPL 3180864 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Harness, Wire (Base Plate) WPL 4313004 Contact Us For Availability
7
Motor WPL 4173612 Contact Us For Availability
7
Vent, Middle Trim (White or Almond Model) WPL 3177753 Contact Us For Availability
7
Vent, Middle Trim (Black Model) WPL 3177755 Contact Us For Availability
7
Thermistor WPL 4312824 Contact Us For Availability
7
Stirrer Cover Assy. WPL 4312978 Contact Us For Availability
7
Screw WPL 4312917 Contact Us For Availability
7
Insert, Top (Almond) WPL 3180130 Contact Us For Availability
7
Insert, Top (White) WPL 3180131 Contact Us For Availability
7
Insert, Top (Black) WPL 4173163 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
7
Outer Cabinet WPL 4312955 Contact Us For Availability
7
Mounting Pin WPL 4312854 Contact Us For Availability
7
Handle, Latch WPL 3177970 Contact Us For Availability
7
Wire, Jumper WPL 4313005 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Brace, Center Vent WPL 3182481 Contact Us For Availability
8
Motor, Fan (Convection) WPL 4312828 Contact Us For Availability
8
Stirrer Fan Assy. WPL 4312857 Contact Us For Availability
8
Nut WPL 4312923 Contact Us For Availability
8
Control Panel WPL 3177804 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3181695 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3181696 Contact Us For Availability
8
Cabinet Base WPL 4312956 Contact Us For Availability
8
Bracket, Mounting WPL 4312855 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Knob, Latch Handle WPL 3183293 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Wire, Ground WPL 4312912 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Support, Module WPL 3180330 Contact Us For Availability
9
Heater Duct Assy. WPL 4312835 Contact Us For Availability
9
Support, Chassis WPL 4312858 Contact Us For Availability
9
Door, Complete (Black) WPL 4312996 Contact Us For Availability
9
Door, Complete (White) WPL 4312997 Contact Us For Availability
9
Door, Complete (Almond) WPL 4312998 Contact Us For Availability
9
Timer, Electronic WPL 3148111 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw (5) WPL 4312920 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Harness, Wire (Microwave Power) WPL 3180450 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Back, Microwave Compartment WPL 3180336 Contact Us For Availability
10
Fan Blade (Convection) WPL 4312984 Contact Us For Availability
10
Insulation (L.H.) WPL 4312859 Contact Us For Availability
10
Insulation (R.H.) WPL 4312886 Contact Us For Availability
10
Panel, Glass (Black) WPL 4312993 Contact Us For Availability
10
Panel, Glass (White) WPL 4312994 Contact Us For Availability
10
Panel, Glass (Almond) WPL 4312995 Contact Us For Availability
10
Glass, Control Panel (Black) WPL 3181285 Contact Us For Availability
10
Glass, Control Panel (White) WPL 3181601 Contact Us For Availability
10
Glass, Control Panel (Almond) WPL 3181602 Contact Us For Availability
10
Cabinet Rear WPL 4312957 Contact Us For Availability
10
Screw (2) WPL 4312921 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Clip, Harness WPL 4313010 Contact Us For Availability
11
Spacer (2) (Almond) WPL 3178742 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Ext. Module Support WPL 3182764 Contact Us For Availability
11
Fan Blade (Reflection) WPL 4312837 Contact Us For Availability
11
Panel, Oven Cavity (L.H.) WPL 4312860 Contact Us For Availability
11
Panel, Oven Cavity (R.H.) WPL 4312883 Contact Us For Availability
11
Retainer Ring WPL 4312898 Contact Us For Availability
11
Frame, Control Panel (Black) WPL 3177762 Contact Us For Availability
11
Frame, Control Panel (White) WPL 3177763 Contact Us For Availability
11
Frame, Control Panel (Almond) WPL 3177764 Contact Us For Availability
11
Capacitor Holder WPL 4312844 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Clip, Harness WPL 4313009 Contact Us For Availability
12
Rail, Chassis WPL 3179972 Contact Us For Availability
12
Plate, Motor Mounting WPL 4312985 Contact Us For Availability
12
Stirrer Fan Duct WPL 4312981 Contact Us For Availability
12
Trim, Control Panel (White Model) WPL 3180447 Contact Us For Availability
12
Trim, Control Panel (Almond Model) WPL 3180448 Contact Us For Availability
12
Trim, Control Panel (Black Model) WPL 3180449 Contact Us For Availability
12
Lower Hinge WPL 4312931 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Clip, harness WPL 4313008 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
13
Clip, Element (2) WPL 4312880 Contact Us For Availability
13
Glass, Oven Light WPL 4312862 Contact Us For Availability
13
Upper Latch WPL 4312900 Contact Us For Availability
13
Knob, Timer (2) WPL 3179705 Contact Us For Availability
13
Extension, Shelf WPL 3180332 Contact Us For Availability
13
Extension, Cabinet Base WPL 4312958 Contact Us For Availability
13
Receptacle, Lighted Probe WPL 4173189 Contact Us For Availability
13
Harness, Wire (Door Switch) WPL 3179962 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
14
Block, Foam WPL 3182387 Contact Us For Availability
14
Collar WPL 4312986 Contact Us For Availability
14
Mounting Plate, Oven Light WPL 4312863 Contact Us For Availability
14
Lower Latch WPL 4312901 Contact Us For Availability
14
Knob, Timer WPL 3179704 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Block, Foam WPL 4312960 Contact Us For Availability
14
Meat Probe WPL 4167267 Contact Us For Availability
14
Harness, Wire Temperature Probe WPL 3182054 Contact Us For Availability
15
Bushing WPL 3181651 Contact Us For Availability
15
Seal, Foam WPL 3180454 Contact Us For Availability
15
Plate, Protector WPL 4312987 Contact Us For Availability
15
Upper Hinge WPL 4312980 Contact Us For Availability
15
Spring, Latch WPL 4312902 Contact Us For Availability
15
Screw, WPL 254225 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Vibration Block WPL 4312847 Contact Us For Availability
15
Bracket, Buzzer WPL 3179695 Contact Us For Availability
16
Knob, Control (4) WPL 3178400 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
16
Plate, Thermal Protector WPL 4312884 Contact Us For Availability
16
Divider Plate WPL 4312865 Contact Us For Availability
16
Cover, Frame (Black) WPL 4312999 Contact Us For Availability
16
Cover, Frame (White) WPL 4313000 Contact Us For Availability
16
Cover, Frame (Almond) WPL 4313001 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Screw (9) WPL 4312913 Contact Us For Availability
16
Bracket, Element WPL 3180694 Contact Us For Availability
16
Buzzer, Meat Probe WPL 3179914 Contact Us For Availability
16
Screw (2) WPL 3180129 Contact Us For Availability
17
Insulation WPL 4312885 Contact Us For Availability
17
Exhaust Duct Assy. WPL 4312868 Contact Us For Availability
17
Shaft, Latch WPL 4312904 Contact Us For Availability
17
Disc, Selector WPL 3178265 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Screw (2) WPL 4312914 Contact Us For Availability
17
Transformer WPL 3179532 Contact Us For Availability
18
Cover, Thermal Protector WPL 4312887 Contact Us For Availability
18
Cooling Duct Magnetron WPL 4312979 Contact Us For Availability
18
Liner, Door WPL 4312896 Contact Us For Availability
18
Disc, Thermostat (Self Clean) (2) WPL 3178481 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Screw (3) WPL 4312915 Contact Us For Availability
18
Switch, Latch WPL 3178187 Contact Us For Availability
19
Foam Block WPL 4312890 Contact Us For Availability
19
Fan Blade Assy. WPL 4312983 Contact Us For Availability
19
Knob WPL 4163840 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
19
Screw WPL 4312922 Contact Us For Availability
19
Spacer - Tubing WPL 3179672 Contact Us For Availability
19
Screw (2) WPL 3177988 Contact Us For Availability
20
Screw (2) WPL 4312919 Contact Us For Availability
20
Clip, Retainer WPL 4312872 Contact Us For Availability
20
nut (3) WPL 4168838 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
Holder, Wire WPL 4313006 Contact Us For Availability
20
Element, Convection WPL 3178517 Contact Us For Availability
21
Screw (2) WPL 3179847 Contact Us For Availability
21
Plastic Screw WPL 4312874 Contact Us For Availability
21
Hinge, Door (2) WPL 3177971 Contact Us For Availability
21
Screw (4) WPL 3179117 Contact Us For Availability
21
Cover, Fan WPL 3180815 Contact Us For Availability
22
Foam Block WPL 4312991 Contact Us For Availability
22
Rack Support (L.H.) WPL 4312875 Contact Us For Availability
22
Rack Support (R.H.) WPL 4312876 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer, Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Rack, Roasting WPL 3181534 Contact Us For Availability
22
Baffle, Module WPL 3150736 Contact Us For Availability
23
Seal, Foam WPL 4312990 Contact Us For Availability
23
Block, Foam WPL 4312892 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Seal, Foam WPL 3180455 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Block, Foam WPL 4312888 Contact Us For Availability
25
Bezel, Switch (White or Almond Model) WPL 3179707 Contact Us For Availability
25
Bezel, Switch (Black) WPL 4169372 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
26
Back, Module WPL 3177557 Contact Us For Availability
27
Block, Foam WPL 4312895 Contact Us For Availability
28
Cookie Sheet WPL 4313002 Contact Us For Availability
28
Indicator, Light Meat Probe WPL 4173611 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Rack (Upper) WPL 4312906 Contact Us For Availability
29
Backlight (2) WPL 3179778 Contact Us For Availability
30
Rack (Lower) WPL 4312907 Contact Us For Availability
30
Clip, Spacer WPL 3180844 Contact Us For Availability
31
Tray, Cooking WPL 4312908 Contact Us For Availability
31
Seal, Foam WPL 3180458 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Block, Foam WPL 4312989 Contact Us For Availability
33
Block, Foam WPL 4312894 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 4168863 Contact Us For Availability
34
Temperature Probe Assy. WPL 4312954 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177787 Contact Us For Availability
34
Vent, Lower Trim (White Or Almond Model) WPL 3177789 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
35
Screw WPL 4312916 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3179944 Contact Us For Availability
36
Block, Foam WPL 4312889 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179945 Contact Us For Availability
37
Magnetron Duct Assembly WPL 4312982 Contact Us For Availability
38
Screw (2) WPL 4314918 Contact Us For Availability
39
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
39
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
39
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
39
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
39
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
39
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
39
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
39
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
39
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
39
16 Ga. 80~c Rating (Blue) WPL 242829 Contact Us For Availability
39
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
39
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
39
WPL 261890 WPL 261890 Contact Us For Availability
39
WPL 261891 WPL 261891 Contact Us For Availability
39
WPL 285365 WPL 285365 Contact Us For Availability
39
WPL 285366 WPL 285366 Contact Us For Availability
39
WPL 285367 WPL 285367 Contact Us For Availability
39
WPL 285368 WPL 285368 Contact Us For Availability
39
WPL 350806 WPL 350806 Contact Us For Availability
39
WPL 350941 WPL 350941 Contact Us For Availability
39
WPL 4312992 WPL 4312992 Contact Us For Availability
39
WPL 591014 WPL 591014 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 786020 WPL 786020 Contact Us For Availability
39
WPL 786032 WPL 786032 Contact Us For Availability
39
WPL 799832 WPL 799832 Contact Us For Availability
39
WPL 832985 WPL 832985 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
44
Plate, Cover WPL 4163883 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
45
Insulation, Wrap WPL 3177862 Contact Us For Availability
45
Insulation, Back WPL 3177872 Contact Us For Availability
× ![]()
