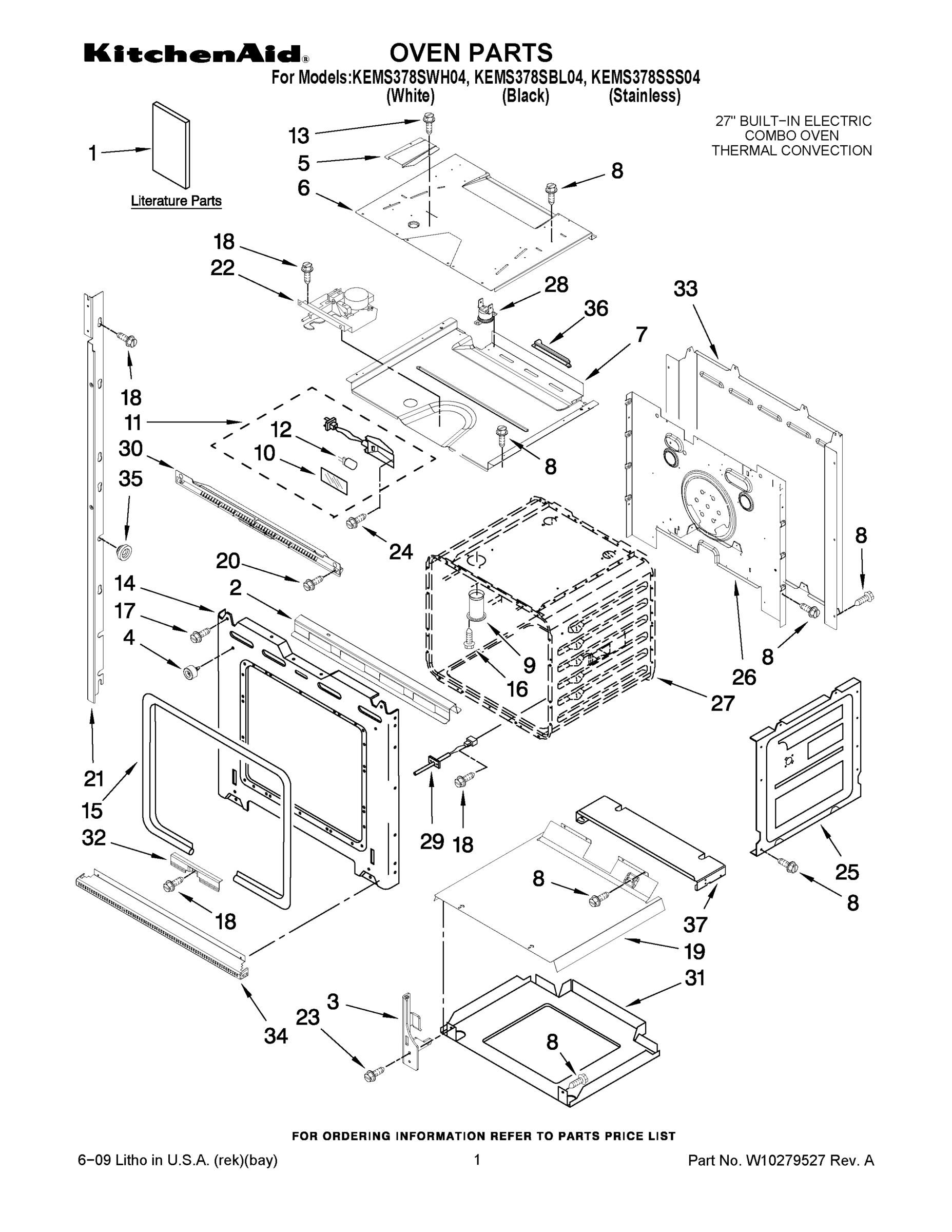

Model Whirlpool KEMS378SWH04 27`` BUILT-IN ELECTRIC COMBO OVEN THERMAL CONVECTI – Common Parts &amp; Diagrams

1

WPW10120480 Whirlpool Crisper Pan In Stock WPL WPW10120480 $41.30

2

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

2

461967750752 Whirlpool Support Bracket Backorder WPL 461967750752 $24.91

2

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $108.35

2

Hinge, Door (2) WPL W10174288 Contact Us For Availability

2

RESISTOR, DROP TOUCH WPL 8304441 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Keyboard, Glass Touch WPL 8303881 Contact Us For Availability

3

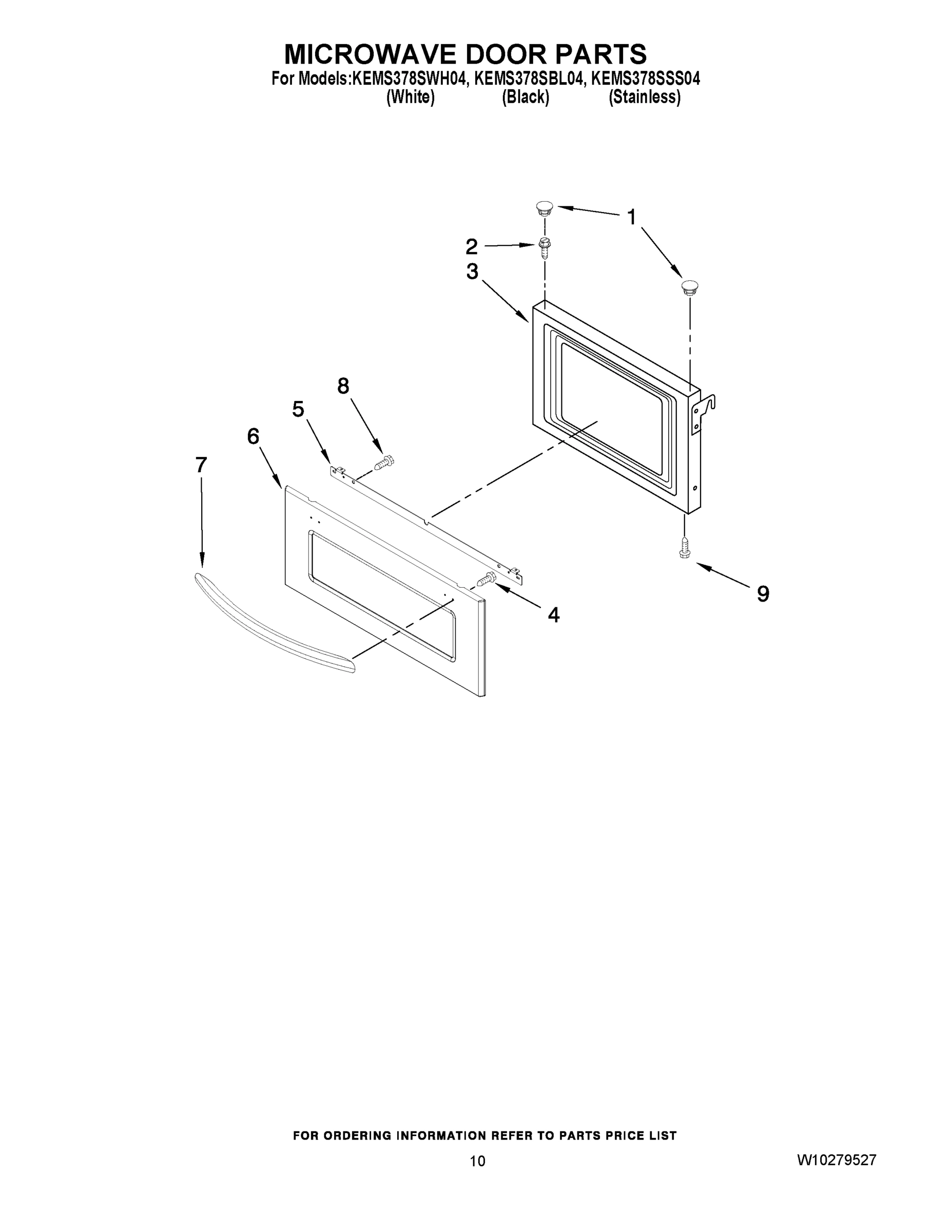

Door, Microwave WPL W10120488 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

4

Vent, Door Top WPL 8304580BL Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

5

Cover, Side Left WPL W10120471 Contact Us For Availability

6

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

6

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

6

Duct, Air Outlet WPL 8304643 Contact Us For Availability

7

Glass, Inner WPL 8303732 Contact Us For Availability

7

Transformer, Control WPL 9762053 Contact Us For Availability

7

Element, Convection WPL W10120224 Contact Us For Availability

8

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

8

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

9

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

9

Appliance Manager WPL W10119143 Contact Us For Availability

W10130891 Whirlpool Microwave Holder Backorder WPL W10130891 $51.33

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

11

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

11

WPW10120220 Whirlpool Microwave Filter In Stock WPL WPW10120220 $90.37

11

Bracket, Handle WPL 8304361BL Contact Us For Availability

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

Control, Electric Converter WPL W10120228 Contact Us For Availability

DOOR GLASS, ASSEMBLY INCLUDES No.17 (WHITE) WPL 8304003 Contact Us For Availability

13

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

13

Bracket, Support WPL W10130909 Contact Us For Availability

15

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

15

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

15

Gasket, Door WPL 8304494 Contact Us For Availability

16

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

16

Screw WPL 3400080 Contact Us For Availability

16

Door, Top Bracket WPL 8303754 Contact Us For Availability

17

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

17

Badge (Stainless) WPL 8304603SS Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

18

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

18

Bumper, Glass WPL 8304522 Contact Us For Availability

19

Bracket, Support WPL W10130897 Contact Us For Availability

20

W10549523 Whirlpool Microwave Filter Backorder WPL W10549523 $59.57

20

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

21

W10852735 Whirlpool Microwave Thermostat In Stock WPL W10852735 $98.25

21

Mounting Rail, Side Right (Black) WPL 8303679BL Contact Us For Availability

21

Mounting Rail, Side Left (Black) WPL 8303680BL Contact Us For Availability

22

W11346197 Whirlpool Magnetron In Stock WPL W11346197 $160.63

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

23

Plate, Air WPL W10130895 Contact Us For Availability

24

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

24

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

26

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

27

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

28

Thermostat WPL W10120222 Contact Us For Availability

29

W10211972 Whirlpool Microwave Switch Backorder WPL W10211972 $28.44

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

32

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

33

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

34

Trim, Bottom (White) WPL 8303706WH Contact Us For Availability

34

Trim, Bottom (Stainless) WPL W10165444 Contact Us For Availability

34

Top Vent WPL W10120476 Contact Us For Availability

36

Trim, Side (Right) WPL W10120472 Contact Us For Availability

36

Trim, Side (Left) WPL W10120474 Contact Us For Availability

38

Bracket, Support WPL W10130905 Contact Us For Availability

39

Bracket, Support WPL 8205708 Contact Us For Availability

40

W11126044 Whirlpool Drive Shaft Backorder WPL W11126044 $10.63

41

461967008471 Whirlpool Microwave Motor Cover Backorder WPL 461967008471 $32.79

42

Cover WPL W10120234 Contact Us For Availability

43

Gasket, Shaft WPL 4375252 Contact Us For Availability

44

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

45

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

46

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

47

W10874474 Whirlpool Door Hinge In Stock WPL W10874474 $27.29

48

Cover, Plate WPL W10130903 Contact Us For Availability

49

Cover, Rear WPL W10130904 Contact Us For Availability

50

8205680 Whirlpool Microwave Side Cover Backorder WPL 8205680 $52.26

51

Convection, Motor Assmebly WPL W10120221 Contact Us For Availability

52

Blower Assembly WPL 8205721 Contact Us For Availability

53

Cover, Inverter WPL W10130907 Contact Us For Availability

54

W10217711 Whirlpool Microwave Inverter In Stock WPL W10217711 $204.09

55

W10130906 Whirlpool Holder Backorder WPL W10130906 $62.93

56

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

57

Baffle, Air WPL W10130908 Contact Us For Availability

58

Plate, Air WPL W10130899 Contact Us For Availability

59

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

60

SENSOR WPL W10120225 Contact Us For Availability

61

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

64

WP8205683 Whirlpool Microwave Interlock In Stock WPL WP8205683 $34.57

65

Insulation WPL W10130900 Contact Us For Availability

66

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

67

Insulation WPL W10130902 Contact Us For Availability

69

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

70

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

71

W11214480 Whirlpool Microwave Arm In Stock WPL W11214480 $37.04

73

W10871220 Whirlpool Microwave Sensor Backorder WPL W10871220 $69.63

74

W10130898 Whirlpool Microwave Duct Assembly Backorder WPL W10130898 $110.79

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10231531 Whirlpool Wire Harness Backorder WPL W10231531 $64.54

W11209404 Whirlpool Wire Harness Backorder WPL W11209404 $78.81

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, User Interface WPL 8304052 Contact Us For Availability
