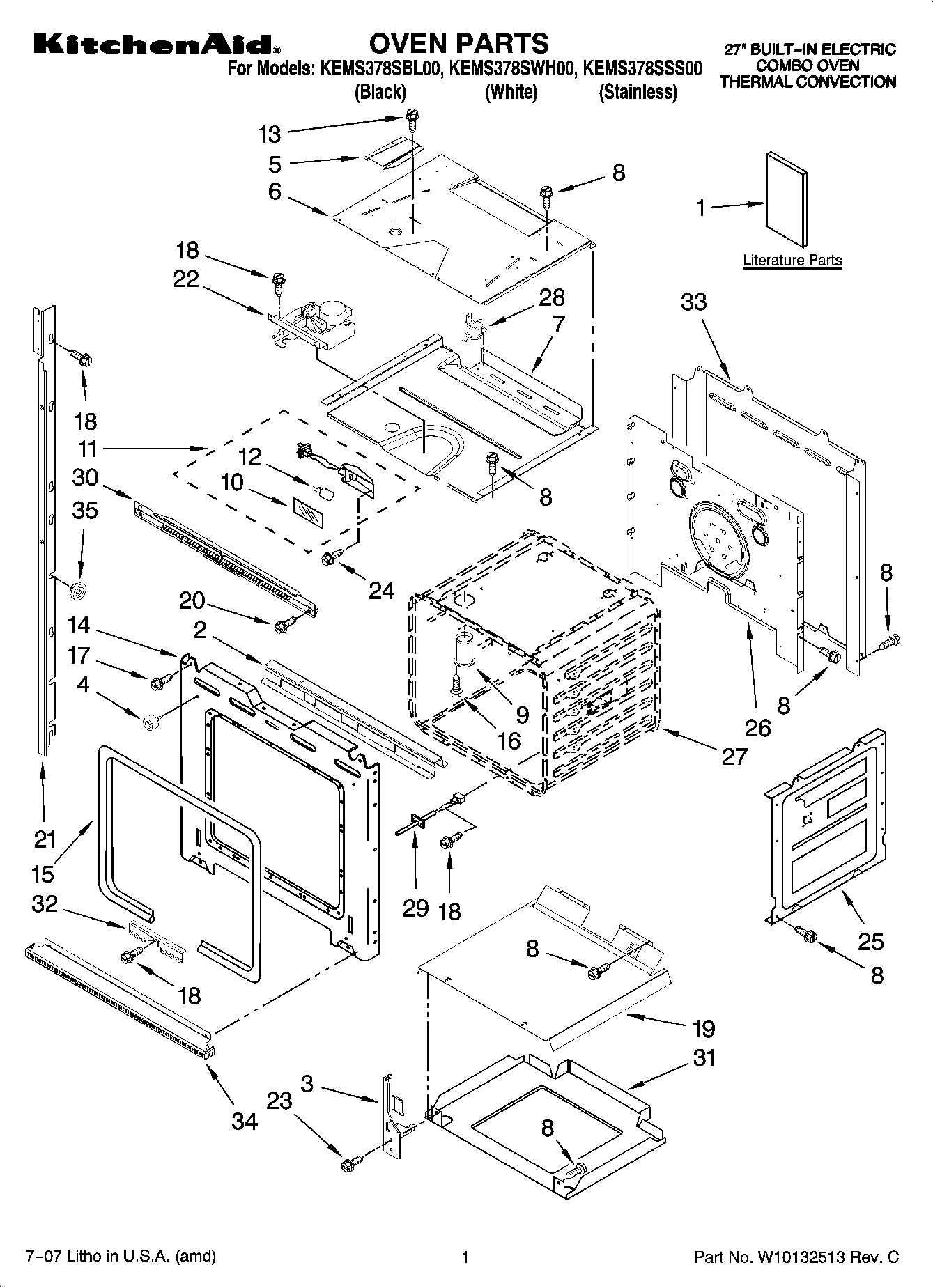

Model Whirlpool KEMS378SWH00 27`` BUILT-IN ELECTRIC COMBO OVEN THERMAL CONVECTI – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, User Interface WPL 8304052 Contact Us For Availability

1

8304588BL Whirlpool Button Plug Backorder WPL 8304588BL $10.76

1

WP8304602 Whirlpool Heat Shield Assembly Backorder WPL WP8304602 $33.73

1

WPW10120480 Whirlpool Crisper Pan Backorder WPL WPW10120480 $41.30

1

Door Liner WPL 8303738BL Contact Us For Availability

1

Panel, Control (Black) WPL 8303717BL Contact Us For Availability

1

Panel, Control (Stainless) WPL 8303717SS Contact Us For Availability

1

Panel, Control (White) WPL 8303717WH Contact Us For Availability

2

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

2

461967750752 Whirlpool Support Bracket Backorder WPL 461967750752 $24.91

2

W10660052 Whirlpool Microwave Steamer Cookwar Backorder WPL W10660052 $9.48

2

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $108.35

2

Resistor, Drop WPL 8304441 Contact Us For Availability

2

Hinge, Door (2) WPL 8303990 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Door, Microwave WPL W10120488 Contact Us For Availability

3

Rack, Oven WPL 8303842 Contact Us For Availability

3

Bracket, Glass Touch WPL 8303797 Contact Us For Availability

4

W10587374 Whirlpool Baking Pan In Stock WPL W10587374 $28.17

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

4

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

4

Keyboard, Glass Touch WPL 8303881 Contact Us For Availability

4

Vent, Door Top WPL 8304580BL Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Bracket, Door (Right) WPL 8304377 Contact Us For Availability

5

Tray, Bake WPL 4455036 Contact Us For Availability

5

Oven, User Interface WPL W10118734 Contact Us For Availability

6

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

6

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

6

Exhaust Duct WPL 8303514 Contact Us For Availability

6

Backer, Control WPL 8303720 Contact Us For Availability

7

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

7

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

7

Glass, Inner WPL 8303732 Contact Us For Availability

7

Transformer, Control WPL 9762053 Contact Us For Availability

7

Bracket,Enclosure WPL 8303887 Contact Us For Availability

8

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

8

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

8

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

8

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

8

WPW10776938 Whirlpool Microwave Turn Shaft In Stock WPL WPW10776938 $11.38

9

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

9

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

9

Cover, Fan WPL 8304422BU Contact Us For Availability

W10754409 Whirlpool Seal Backorder WPL W10754409 $27.12

W10776940 Whirlpool Microwave Element Backorder WPL W10776940 $215.18

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Appliance Manager WPL W10119143 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WPW10120220 Whirlpool Microwave Filter Backorder WPL WPW10120220 $90.37

Bracket, Handle WPL 8304361BL Contact Us For Availability

Back Chassis Panel WPL 8304509 Contact Us For Availability

Microwave, User Interface WPL W10118735 Contact Us For Availability

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Control, Electric Converter WPL W10120228 Contact Us For Availability

Door Glass, Assembly Includes 17 (White) WPL 8304003 Contact Us For Availability

Door Glass, Assembly Includes 17 (Stainless) WPL 8303999 Contact Us For Availability

Door Glass, Assembly Includes 17 (Black) WPL 8304001 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

Side, Combo (Left) WPL 8303539 Contact Us For Availability

Side, Combo (Right) WPL 8304546 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Fan, Convection WPL 4451583 Contact Us For Availability

Handle, Door (Black) WPL 8303775BL Contact Us For Availability

Handle, Door (Stainless) WPL 8303775SS Contact Us For Availability

Handle, Door (White) WPL 8303775WH Contact Us For Availability

Channel, Rear Combo WPL 8303538 Contact Us For Availability

14

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

14

W10754473 Whirlpool Seal Backorder WPL W10754473 $8.80

14

Cover, Top WPL 8303802 Contact Us For Availability

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Gasket, Door WPL 8304494 Contact Us For Availability

Frame, Door Side WPL 8303745BL Contact Us For Availability

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

Door, Top Bracket WPL 8303754 Contact Us For Availability

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

Badge (Stainless) WPL 8304603SS Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Badge (Black) WPL 8304603BL Contact Us For Availability

Badge (White) WPL 8304603WH Contact Us For Availability

18

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

18

Bumper, Glass WPL 8304522 Contact Us For Availability

18

Oven Rack (Sliding) WPL 8303840 Contact Us For Availability

20

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

21

W10852735 Whirlpool Microwave Thermostat Backorder WPL W10852735 $98.25

21

Mounting Rail, Side Right (Black) WPL 8303679BL Contact Us For Availability

21

Mounting Rail, Side Left (Black) WPL 8303680BL Contact Us For Availability

22

W11346197 Whirlpool Magnetron In Stock WPL W11346197 $160.63

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

28

Thermostat WPL W10120222 Contact Us For Availability

31

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

32

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

33

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

34

Trim, Bottom (White) WPL 8303706WH Contact Us For Availability

40

W11126044 Whirlpool Drive Shaft Backorder WPL W11126044 $10.63

42

Cover WPL W10120234 Contact Us For Availability

43

Gasket, Shaft WPL 4375252 Contact Us For Availability

45

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

46

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

51

Convection, Motor Assmebly WPL W10120221 Contact Us For Availability

52

Blower Assembly WPL 8205721 Contact Us For Availability

53

Cover, Inverter WPL W10130907 Contact Us For Availability

56

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

57

Baffle, Air WPL W10130908 Contact Us For Availability

58

Plate, Air WPL W10130899 Contact Us For Availability

59

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

60

SENSOR WPL W10120225 Contact Us For Availability

61

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

64

WP8205683 Whirlpool Microwave Interlock In Stock WPL WP8205683 $34.57

65

Insulation WPL W10130900 Contact Us For Availability

66

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

67

Insulation WPL W10130902 Contact Us For Availability

69

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

70

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

71

W11214480 Whirlpool Microwave Arm In Stock WPL W11214480 $37.04

73

W10871220 Whirlpool Microwave Sensor Backorder WPL W10871220 $69.63

74

W10130898 Whirlpool Microwave Duct Assembly Backorder WPL W10130898 $110.79
