Model Whirlpool KEMS378BWH2 – Common Parts & Diagrams
07 - INTERNAL OVEN
04 - OVEN DOOR

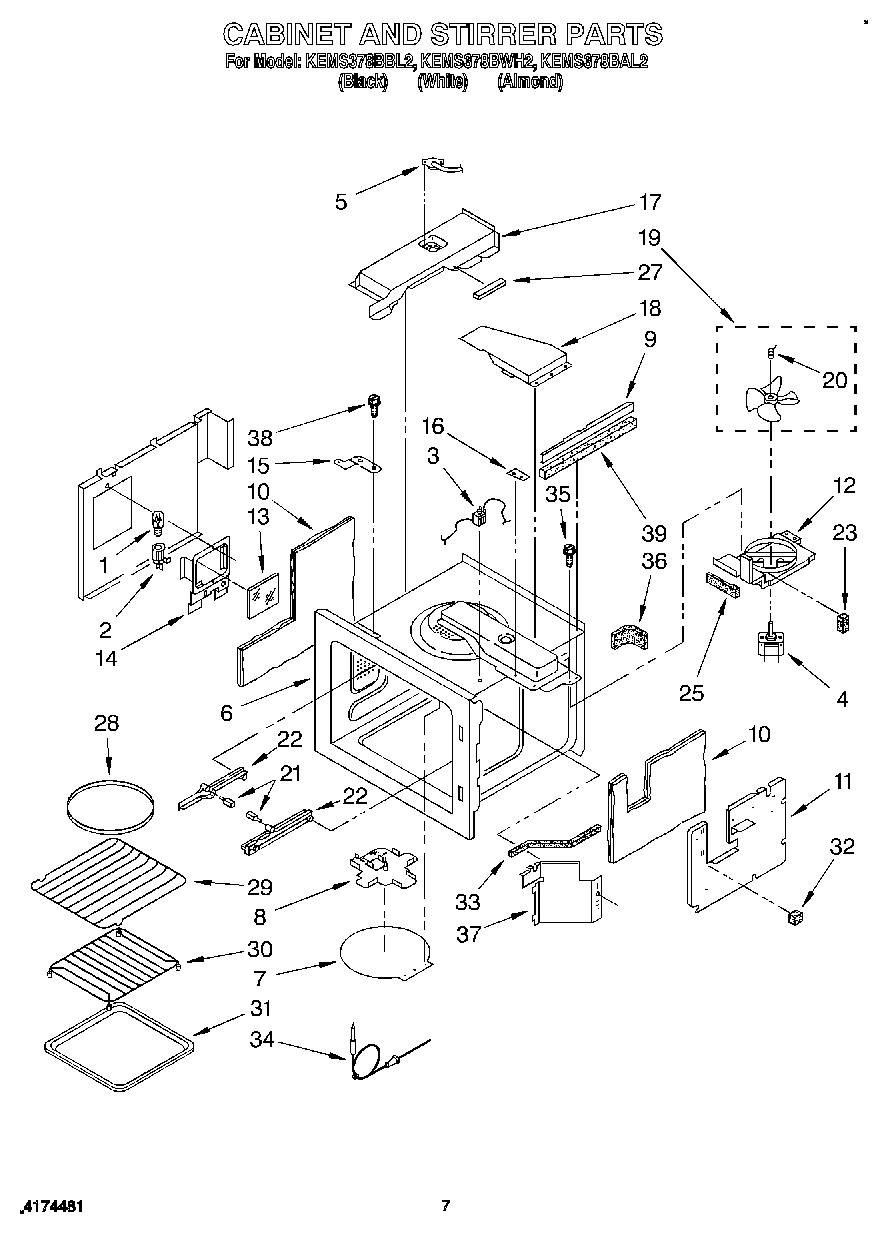

06 - CABINET AND STIRRER, OPTIONAL

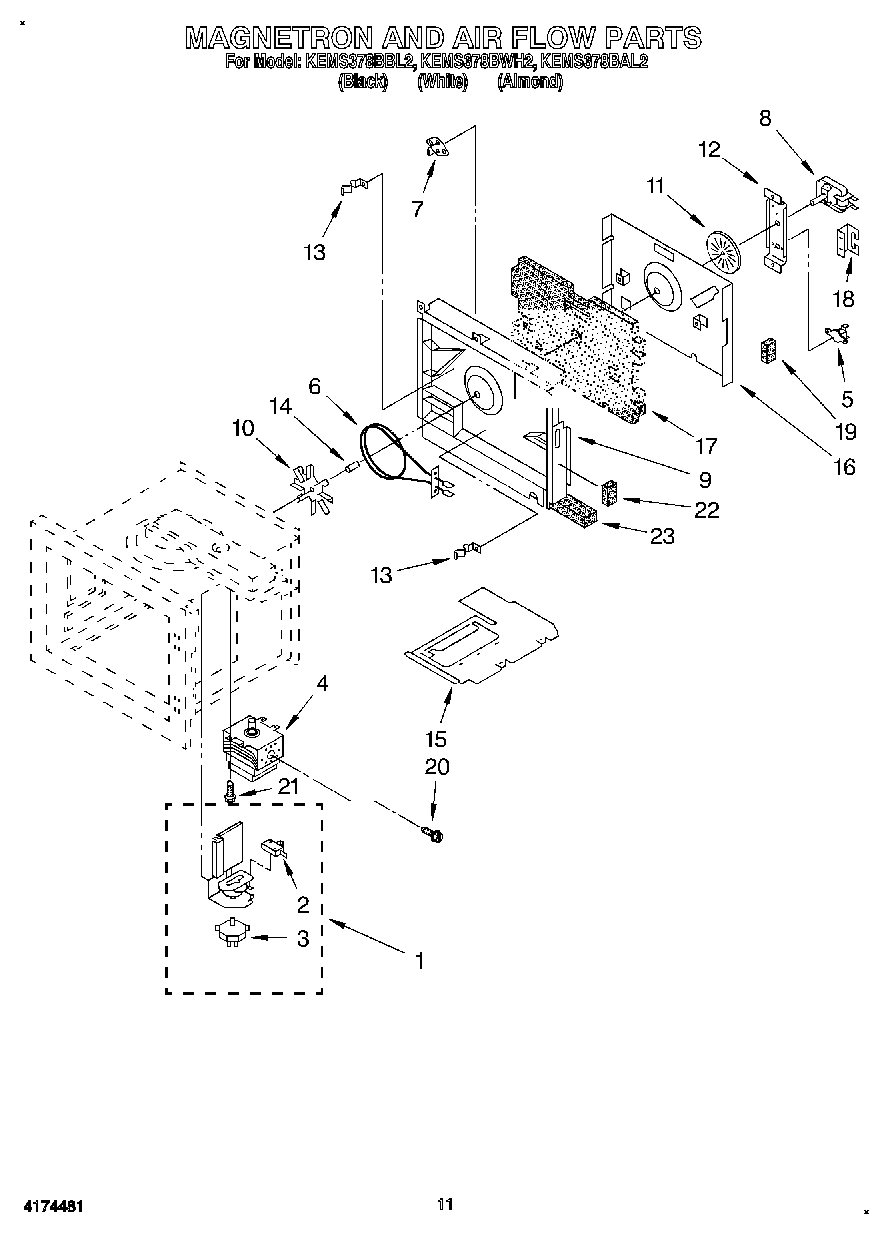

09 - MAGNETRON AND AIR FLOW
11 - DOOR AND LATCH

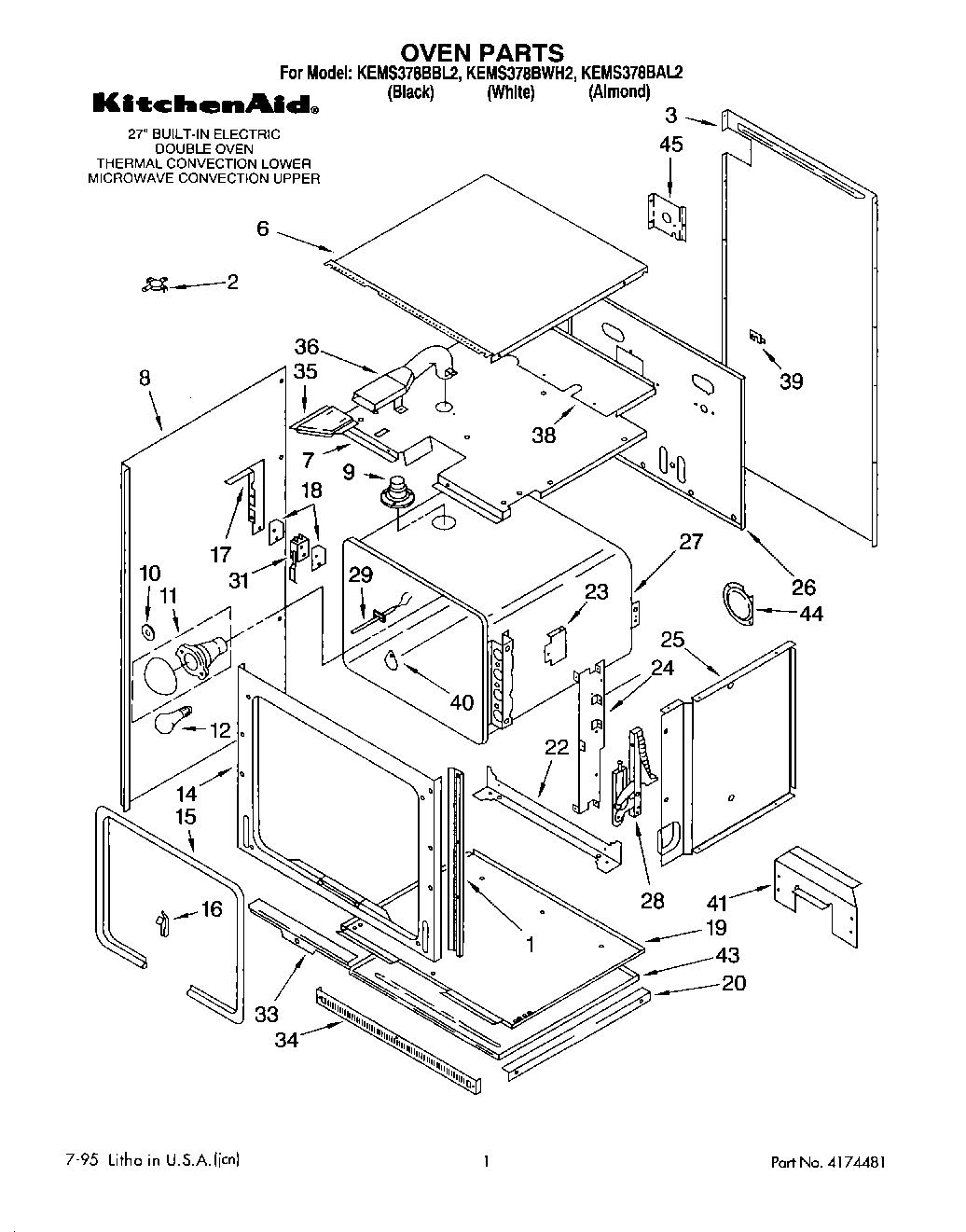

01 - OVEN

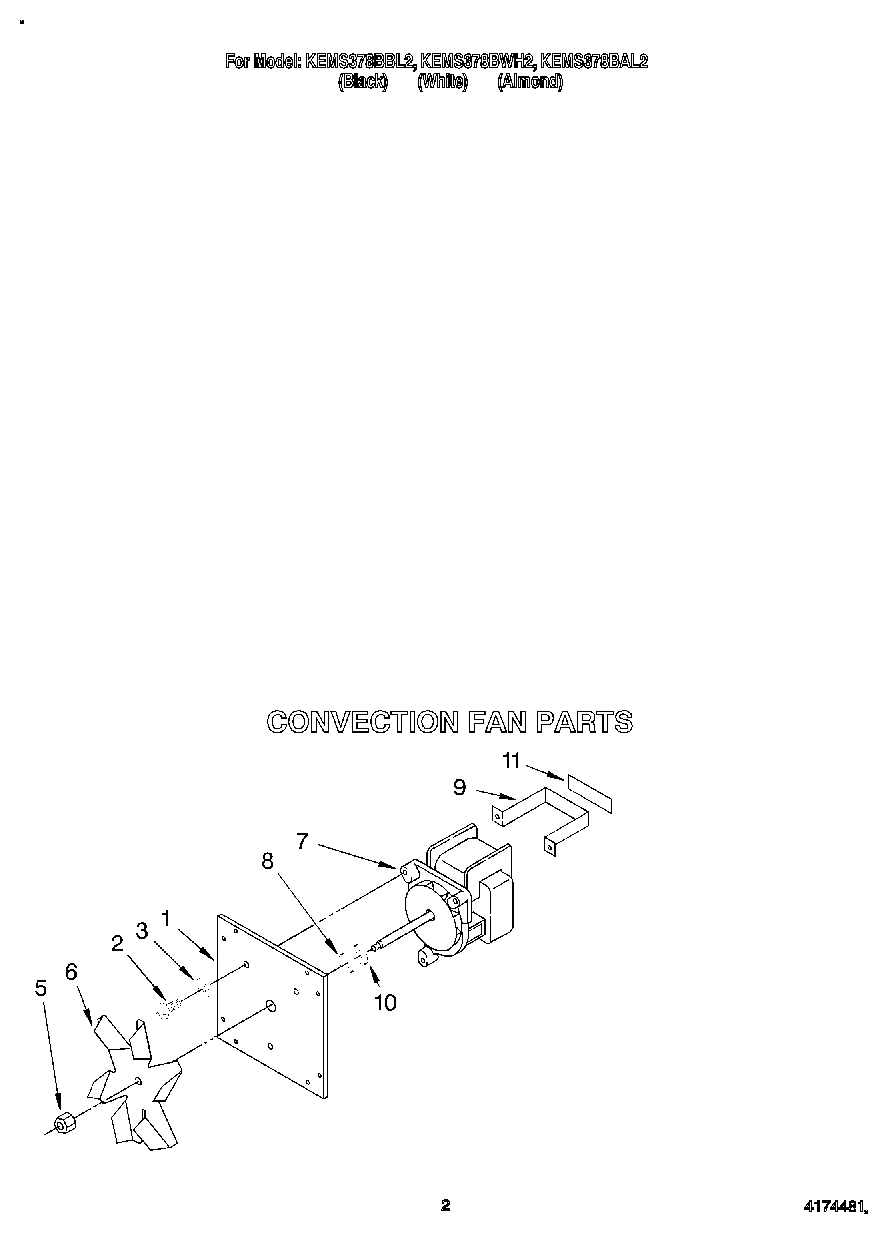

02 - CONVECTION FAN

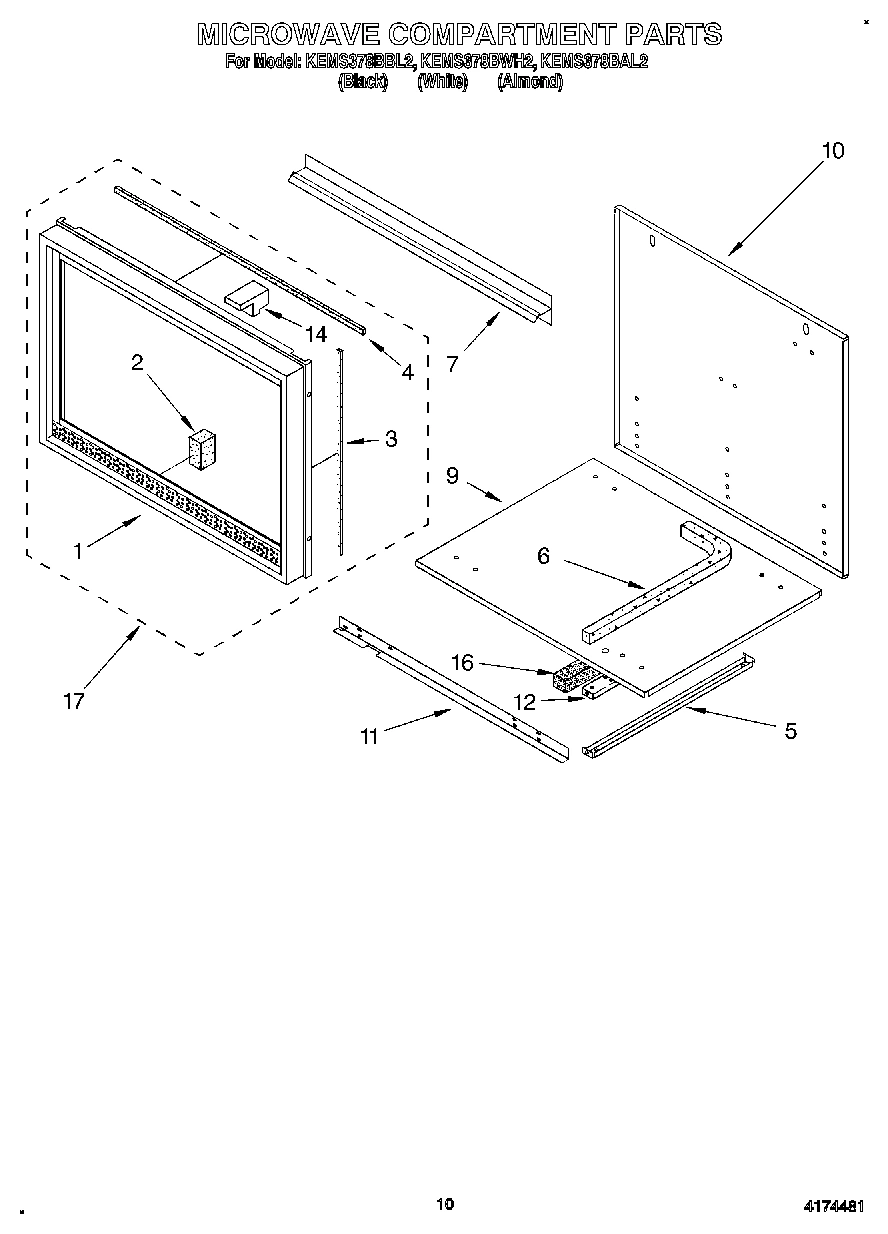

08 - MICROWAVE COMPARTMENT

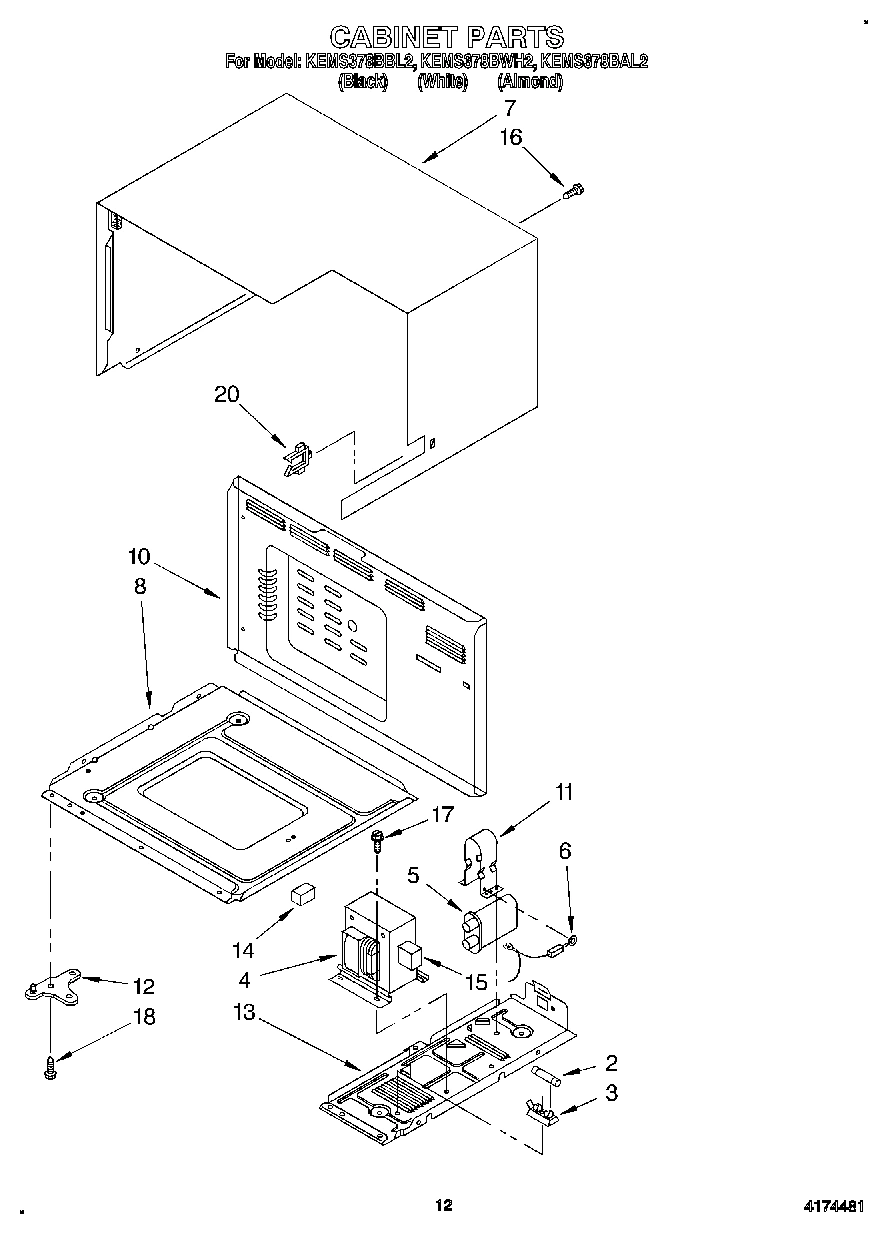

10 - CABINET

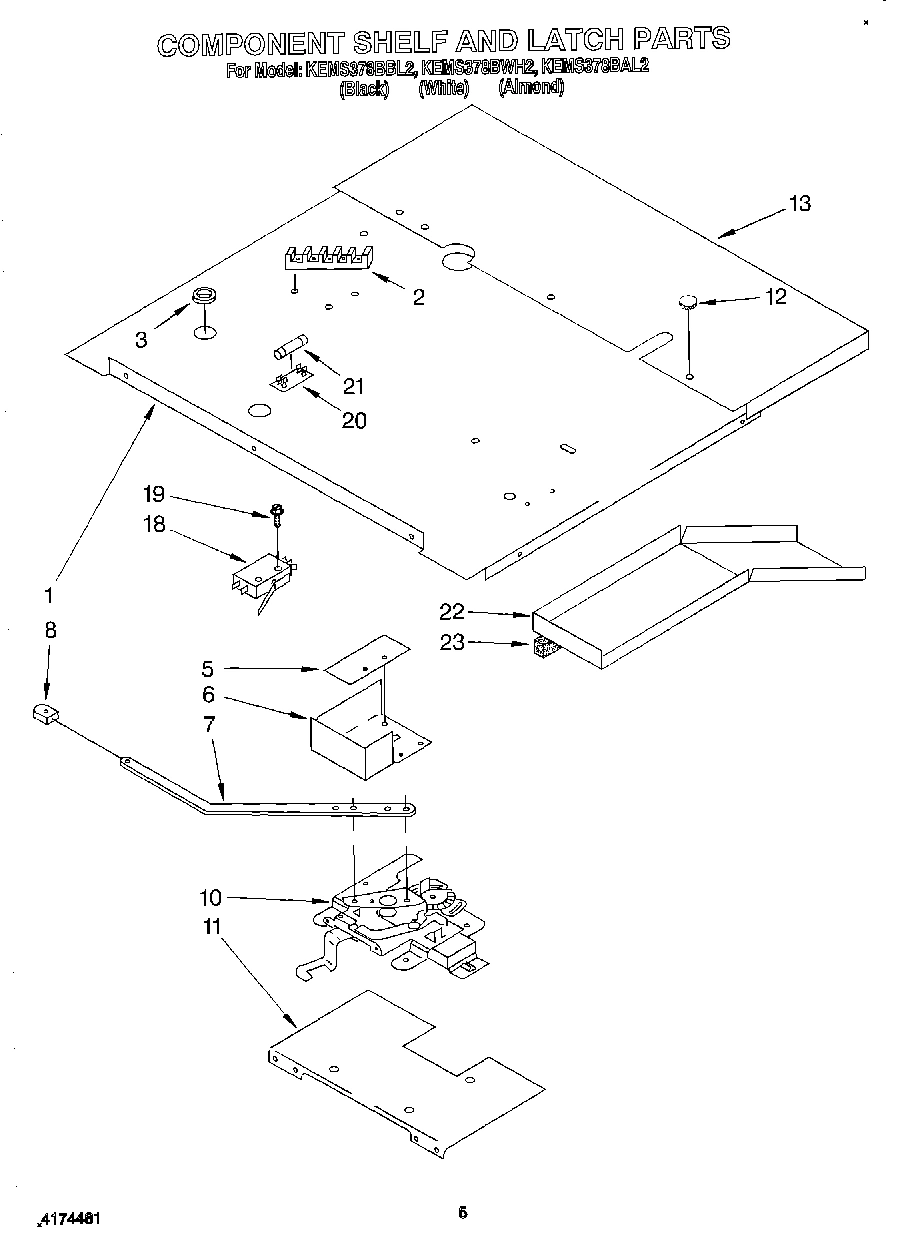

05 - COMPONENT SHELF AND LATCH
12 - MICROWAVE CONTROL PANEL

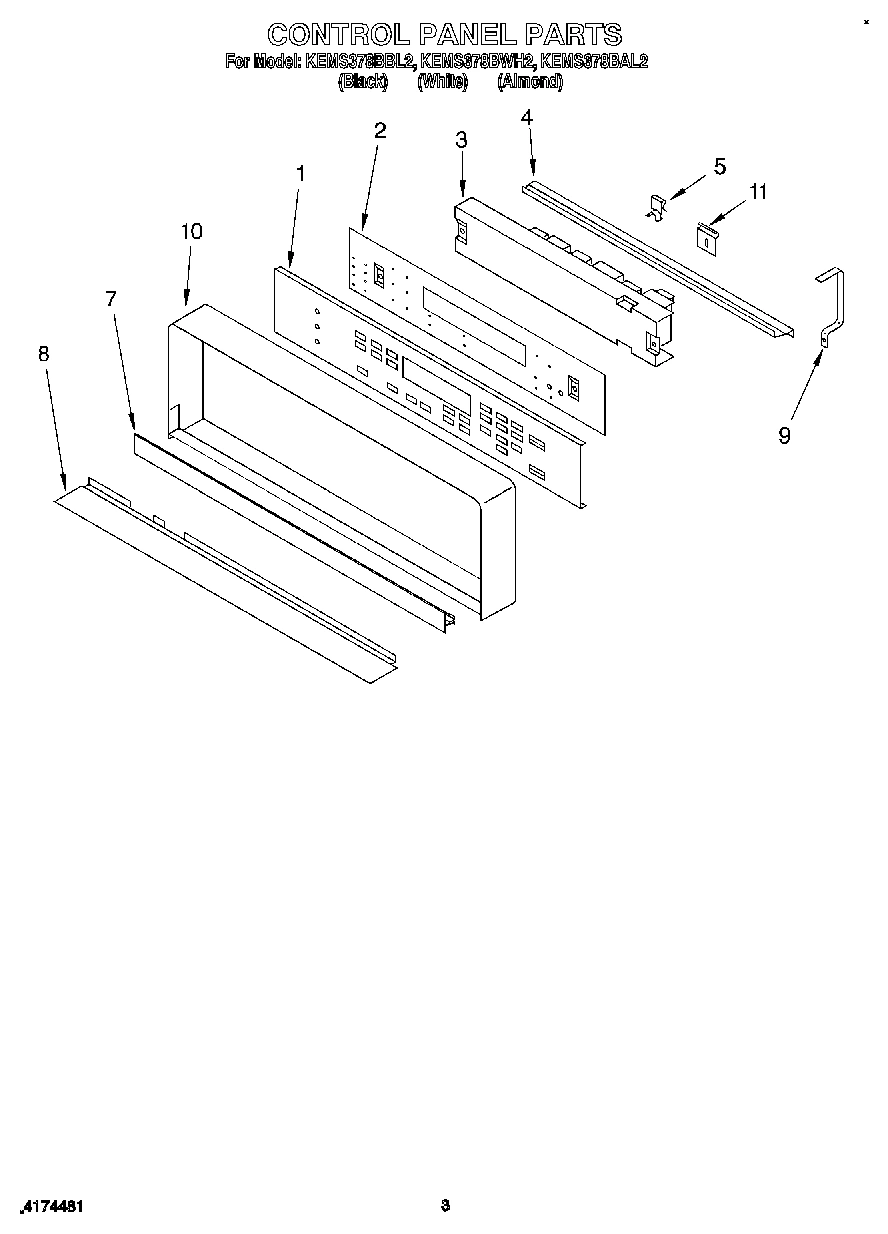

03 - CONTROL PANEL, LITERATURE

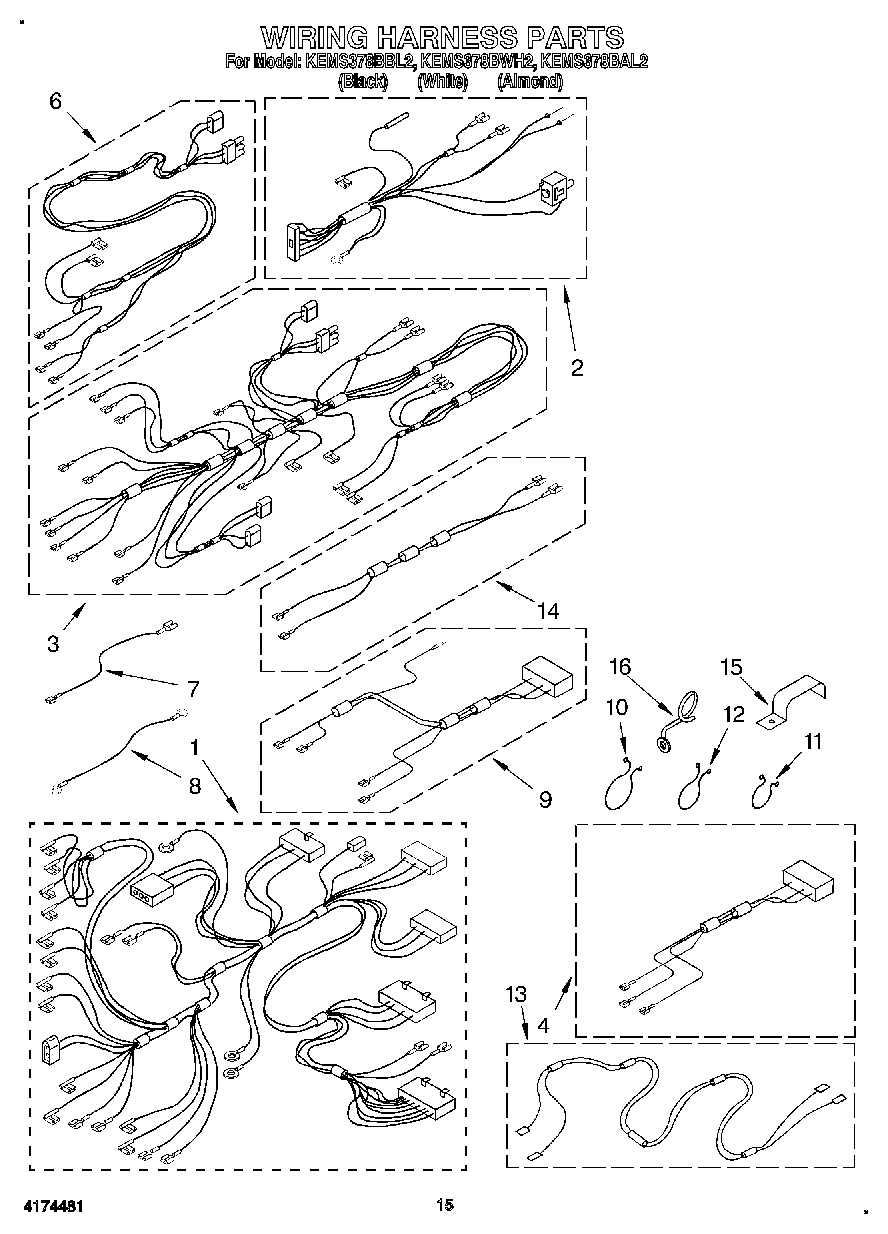

13 - WIRING HARNESS
Common parts from model Whirlpool KEMS378BWH2
Cookbook T/C Oven WPL LIT3150693 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Installation Instructions WPL LIT3184435 Contact Us For Availability
Tech Sheet WPL LIT3184524 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3188187 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT3188195 Contact Us For Availability
Cookbook Microwave WPL LIT4313007 Contact Us For Availability
Label, Auto Cook Guide WPL LIT4313011 Contact Us For Availability
Label, Defrost Guide WPL LIT4313012 Contact Us For Availability
1
Damper Assy. WPL 4312988 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4312819 Contact Us For Availability
1
Side Trim, Door (Black Model) WPL 3187874 Contact Us For Availability
1
Side Trim, Door (Almond Model) WPL 3187880 Contact Us For Availability
1
Side Trim, Door (White Model) WPL 3188827 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Frame, Outer (Almond Model) WPL 3188339 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3188340 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3188816 Contact Us For Availability
1
Shelf, Component WPL 3184592 Contact Us For Availability
1
Microcomputer WPL 4312961 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 4454358 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 4454359 Contact Us For Availability
1
Membrane, Switch (Almond, Model) WPL 4454360 Contact Us For Availability
1
Harness, Wiring (Main Oven) WPL 3184750 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Light Socket WPL 4174730 Contact Us For Availability
2
Harness, Wiring (Jack Assembly) WPL 4312950 Contact Us For Availability
2
SPST Thermostat WPL 3149652 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Block, Foam WPL 3182384 Contact Us For Availability
2
Fuse, 20 Amp WPL 4312924 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
2
Frame, Control Panel (Black) WPL 4312966 Contact Us For Availability
2
Frame, Control Panel (White) WPL 4312967 Contact Us For Availability
2
Frame, Control Panel (Almond) WPL 4312968 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Motor, Damper WPL 4312949 Contact Us For Availability
3
Cabinet, Back WPL 3177740 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Seal, Foam (Side) (Black Model) WPL 3182380 Contact Us For Availability
3
Seal, Foam (Side) (White or Almond Model) WPL 3184859 Contact Us For Availability
3
Fuse Holder WPL 4312820 Contact Us For Availability
3
Bushing, Electric WPL 3181919 Contact Us For Availability
3
Push Button (Black) WPL 4312972 Contact Us For Availability
3
Push Button (White) WPL 4312973 Contact Us For Availability
3
Push Button (Almond) WPL 4312974 Contact Us For Availability
3
Microcomputer WPL 3181703 Contact Us For Availability
3
Harness, Wiring (Main Microwave) WPL 4313003 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Screw WPL 3185647 Contact Us For Availability
4
Motor, Fan Cooling WPL 4312829 Contact Us For Availability
4
Magnetron WPL 4312833 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
4
Seal, Foam (Top) (Screw) WPL 3179847 Contact Us For Availability
4
Seal, Foam (Top) (Black Model) WPL 3182382 Contact Us For Availability
4
Seal, Foam (Top) (White or Almond Model) WPL 3184860 Contact Us For Availability
4
Transformer WPL 4312952 Contact Us For Availability
4
Spring, Button WPL 4312975 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Harness, Wiring (Latch-Combo) WPL 3184819 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Screw WPL 4173601 Contact Us For Availability
5
Sensor Assy. WPL 4312925 Contact Us For Availability
5
Thermal Protector (2) WPL 4312830 Contact Us For Availability
5
Latch Lever WPL 4312878 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Rail, Microwave WPL 3179973 Contact Us For Availability
5
Screw (4) WPL 3181067 Contact Us For Availability
5
Capacitor WPL 4312831 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Plate, Mounting WPL 4312852 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI86208A6 Contact Us For Availability
6
Heating Element WPL 4312951 Contact Us For Availability
6
Latch Hook WPL 4312879 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Seal, Foam WPL 3180454 Contact Us For Availability
6
Rectifier WPL 4312953 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Release Lever WPL 4312853 Contact Us For Availability
6
Harness, Wire (Base Plate) WPL 4313004 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Stirrer Cover Assy. WPL 4312978 Contact Us For Availability
7
Thermistor WPL 4312824 Contact Us For Availability
7
Screw WPL 4312917 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Door, Latch Handle (Screw) WPL 3185648 Contact Us For Availability
7
Motor WPL 3182088 Contact Us For Availability
7
Vent, Middle Trim (Black Model) WPL 3187883 Contact Us For Availability
7
Vent, Middle Trim (Almond Model) WPL 3187887 Contact Us For Availability
7
Vent, Middle Trim (White Model) WPL 3188830 Contact Us For Availability
7
Outer Cabinet WPL 4312955 Contact Us For Availability
7
Handle, Latch WPL 3181963 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
7
Mounting Pin WPL 4312854 Contact Us For Availability
7
Door, Latch Handle (Black Model) WPL 3183597 Contact Us For Availability
7
Door, Latch Handle (Almond Model) WPL 3183598 Contact Us For Availability
7
Door, Latch Handle (White Model) WPL 3188833 Contact Us For Availability
7
Wire, Jumper WPL 4313005 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Stirrer Fan Assy. WPL 4312857 Contact Us For Availability
8
Motor, Fan (Convection) WPL 4312828 Contact Us For Availability
8
Nut WPL 4312923 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3181695 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3181696 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Cabinet Base WPL 4312956 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Bracket, Mounting WPL 4312855 Contact Us For Availability
8
Trim, Panel (Black Model) WPL 3184516 Contact Us For Availability
8
Trim, Panel (Almond Model) WPL 3184518 Contact Us For Availability
8
Trim, Panel (White Model) WPL 3188832 Contact Us For Availability
8
Wire, Ground WPL 4312912 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Support, Chassis WPL 4312858 Contact Us For Availability
9
Heater Duct Assy. WPL 4312835 Contact Us For Availability
9
Door, Complete (Black) WPL 4357404 Contact Us For Availability
9
Door, Complete (White) WPL 4357405 Contact Us For Availability
9
Door, Complete (Almond) WPL 4357407 Contact Us For Availability
9
Tube, Vent WPL 3186684 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Support, Module WPL 3180330 Contact Us For Availability
9
Screw (5) WPL 4312920 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Harness, Wire (Microwave Power) WPL 3184821 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Insulation (L.H.) WPL 4312859 Contact Us For Availability
10
Insulation (R.H.) WPL 4312886 Contact Us For Availability
10
Fan Blade (Convection) WPL 4312984 Contact Us For Availability
10
Panel, Glass (Black) WPL 4357401 Contact Us For Availability
10
Panel, Glass (White) WPL 4357402 Contact Us For Availability
10
Panel, Glass (Almond) WPL 4357403 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Back, Microwave Compartment WPL 3180336 Contact Us For Availability
10
Cabinet Rear WPL 4312957 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Screw (2) WPL 4312921 Contact Us For Availability
10
Frame, Control Panel (Black Model) WPL 3187954 Contact Us For Availability
10
Frame, Control Panel (Almond Model) WPL 3187956 Contact Us For Availability
10
Frame, Control Panel (White Model) WPL 3188818 Contact Us For Availability
10
Clip, Harness WPL 4313010 Contact Us For Availability
11
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
11
Frame, Door (Almond Model) WPL 3187854 Contact Us For Availability
11
Frame, Door (White Model) WPL 3187855 Contact Us For Availability
11
Panel, Oven Cavity (L.H.) WPL 4312860 Contact Us For Availability
11
Panel, Oven Cavity (R.H.) WPL 4312883 Contact Us For Availability
11
Fan Blade (Reflection) WPL 4312837 Contact Us For Availability
11
Retainer Ring WPL 4312898 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Ext. Module Support WPL 3182764 Contact Us For Availability
11
Capacitor Holder WPL 4312844 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Clip, Harness WPL 4313009 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3188594 Contact Us For Availability
12
Glass, Door (White Model) WPL 3188595 Contact Us For Availability
12
Glass, Door (Almond Model) WPL 3188596 Contact Us For Availability
12
Stirrer Fan Duct WPL 4312981 Contact Us For Availability
12
Plate, Motor Mounting WPL 4312985 Contact Us For Availability
12
Rail, Chassis WPL 3179972 Contact Us For Availability
12
Lower Hinge WPL 4312931 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Clip, harness WPL 4313008 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3185986 Contact Us For Availability
13
Handle, Door (White Model) WPL 3185987 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 3185988 Contact Us For Availability
13
Glass, Oven Light WPL 4312862 Contact Us For Availability
13
Clip, Element (2) WPL 4312880 Contact Us For Availability
13
Upper Latch WPL 4312900 Contact Us For Availability
13
Extension, Shelf WPL 3180332 Contact Us For Availability
13
Extension, Cabinet Base WPL 4312958 Contact Us For Availability
13
Harness, Wire (Light Switch) WPL 3185130 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Spacer, Door Handle WPL 3182138 Contact Us For Availability
14
Mounting Plate, Oven Light WPL 4312863 Contact Us For Availability
14
Collar WPL 4312986 Contact Us For Availability
14
Lower Latch WPL 4312901 Contact Us For Availability
14
Frame, Front WPL 3186950 Contact Us For Availability
14
Screw WPL 309133 Contact Us For Availability
14
Block, Foam WPL 3182387 Contact Us For Availability
14
Block, Foam WPL 4312960 Contact Us For Availability
14
Harness, Wiring (Combo-Probe) WPL 3184822 Contact Us For Availability
15
Screw WPL 3184037 Contact Us For Availability
15
Bushing, Door Handle WPL 3188599 Contact Us For Availability
15
Upper Hinge WPL 4312980 Contact Us For Availability
15
Plate, Protector WPL 4312987 Contact Us For Availability
15
Spring, Latch WPL 4312902 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Vibration Block WPL 4312847 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3188633 Contact Us For Availability
16
Divider Plate WPL 4312865 Contact Us For Availability
16
Plate, Thermal Protector WPL 4312884 Contact Us For Availability
16
Cover, Frame (Black) WPL 4312999 Contact Us For Availability
16
Cover, Frame (White) WPL 4313000 Contact Us For Availability
16
Cover, Frame (Almond) WPL 4313001 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Seal, Foam WPL 313756 Contact Us For Availability
16
Screw (9) WPL 4312913 Contact Us For Availability
16
Standoff, Wireform (2) WPL 3179668 Contact Us For Availability
17
Exhaust Duct Assy. WPL 4312868 Contact Us For Availability
17
Insulation WPL 4312885 Contact Us For Availability
17
Shaft, Latch WPL 4312904 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Assembly-Frame & Seal (Black Model) WPL 3188370 Contact Us For Availability
17
Assembly-Frame & Seal (Almond Model) WPL 3188372 Contact Us For Availability
17
Assembly-Frame & Seal (White Model) WPL 3188927 Contact Us For Availability
17
Screw (2) WPL 4312914 Contact Us For Availability
18
Foil-Adhesive WPL 3188635 Contact Us For Availability
18
Cooling Duct Magnetron WPL 4312979 Contact Us For Availability
18
Cover, Thermal Protector WPL 4312887 Contact Us For Availability
18
Liner, Door WPL 4312896 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Screw (3) WPL 4312915 Contact Us For Availability
18
Switch, latch WPL 3183784 Contact Us For Availability
19
Fan Blade Assy. WPL 4312983 Contact Us For Availability
19
Foam Block WPL 4312890 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
19
Screw WPL 98106 Contact Us For Availability
20
Clip, Retainer WPL 4312872 Contact Us For Availability
20
Screw (2) WPL 4312919 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
Holder, Wire WPL 4313006 Contact Us For Availability
21
Plastic Screw WPL 4312874 Contact Us For Availability
21
Screw (4) WPL 4312916 Contact Us For Availability
22
Rack Support (L.H.) WPL 4312875 Contact Us For Availability
22
Rack Support (R.H.) WPL 4312876 Contact Us For Availability
22
Foam Block WPL 4312991 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Baffle, Module WPL 3150736 Contact Us For Availability
23
Block, Foam WPL 4312892 Contact Us For Availability
23
Seal, Foam WPL 4312990 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Seal, Foam WPL 3180455 Contact Us For Availability
23
Seal, Foam WPL 3180458 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
25
Block, Foam WPL 4312888 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177561 Contact Us For Availability
27
Block, Foam WPL 4312895 Contact Us For Availability
27
Liner, Oven WPL 3185563 Contact Us For Availability
28
Cookie Sheet WPL 4313002 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Rack (Upper) WPL 4312906 Contact Us For Availability
29
Sensor, Heat WPL 3148440 Contact Us For Availability
30
Rack (Lower) WPL 4312907 Contact Us For Availability
31
Tray, Cooking WPL 4312908 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Block, Foam WPL 4312989 Contact Us For Availability
33
Block, Foam WPL 4312894 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Temperature Probe WPL 4312954 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 4168863 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177783 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Vent, Lower Trim (Almond Model) WPL 3187959 Contact Us For Availability
34
Vent, Lower Trim (White Model) WPL 3189147 Contact Us For Availability
35
Vent, Tube (Upper, Female) (White Model) WPL 3181964 Contact Us For Availability
35
Vent, Tube (Upper, Female) (Black Model) WPL 3187388 Contact Us For Availability
36
Block, Foam WPL 4312889 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179945 Contact Us For Availability
37
Magnetron Duct Assembly WPL 4312982 Contact Us For Availability
38
Screw (2) WPL 4314918 Contact Us For Availability
39
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
39
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
39
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
39
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
39
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
39
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
39
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
39
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
39
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
39
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
39
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
39
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
39
Harvest Gold WPL 261890 Contact Us For Availability
39
Harvest Gold WPL 261891 Contact Us For Availability
39
WPL 285365 WPL 285365 Contact Us For Availability
39
WPL 285366 WPL 285366 Contact Us For Availability
39
WPL 285367 WPL 285367 Contact Us For Availability
39
WPL 285368 WPL 285368 Contact Us For Availability
39
WPL 350806 WPL 350806 Contact Us For Availability
39
WPL 350941 WPL 350941 Contact Us For Availability
39
WPL 4312992 WPL 4312992 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 786020 WPL 786020 Contact Us For Availability
39
WPL 786032 WPL 786032 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Plate, Cover WPL 3185085 Contact Us For Availability
41
Bracke WPL 3183752 Contact Us For Availability
43
WPL 3177551 WPL 3177551 Contact Us For Availability
44
WPL 4163883 WPL 4163883 Contact Us For Availability
45
WPL 3177545 WPL 3177545 Contact Us For Availability
45
WPL 3177872 WPL 3177872 Contact Us For Availability
45
WPL 3185551 WPL 3185551 Contact Us For Availability
× ![]()
