Model Whirlpool KEMS377XBL2 – Common Parts & Diagrams
02 - CONTROL PANEL, LIT/OPTIONAL
09 - MICROWAVE COMPARTMENT

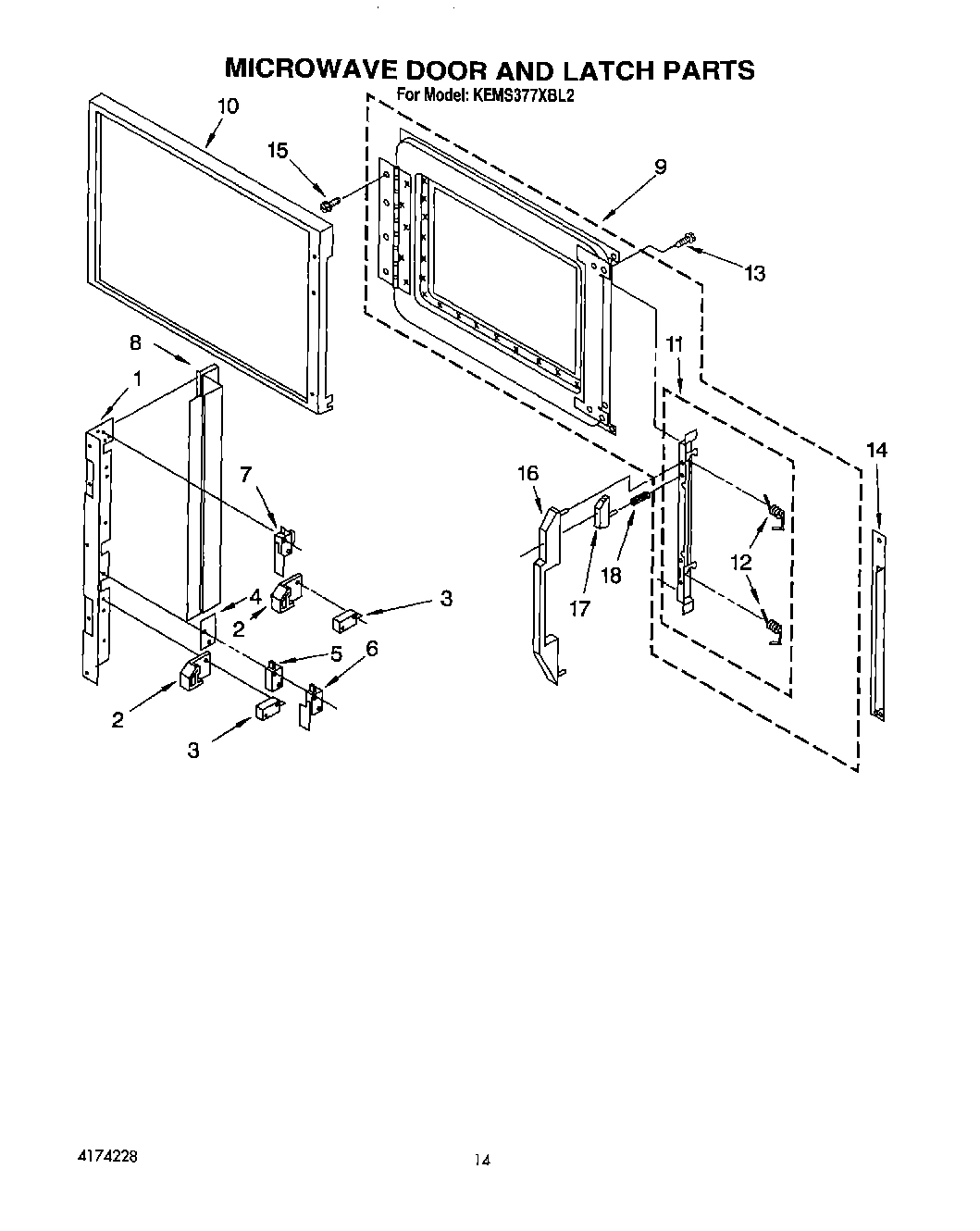

11 - MICROWAVE DOOR AND LATCH

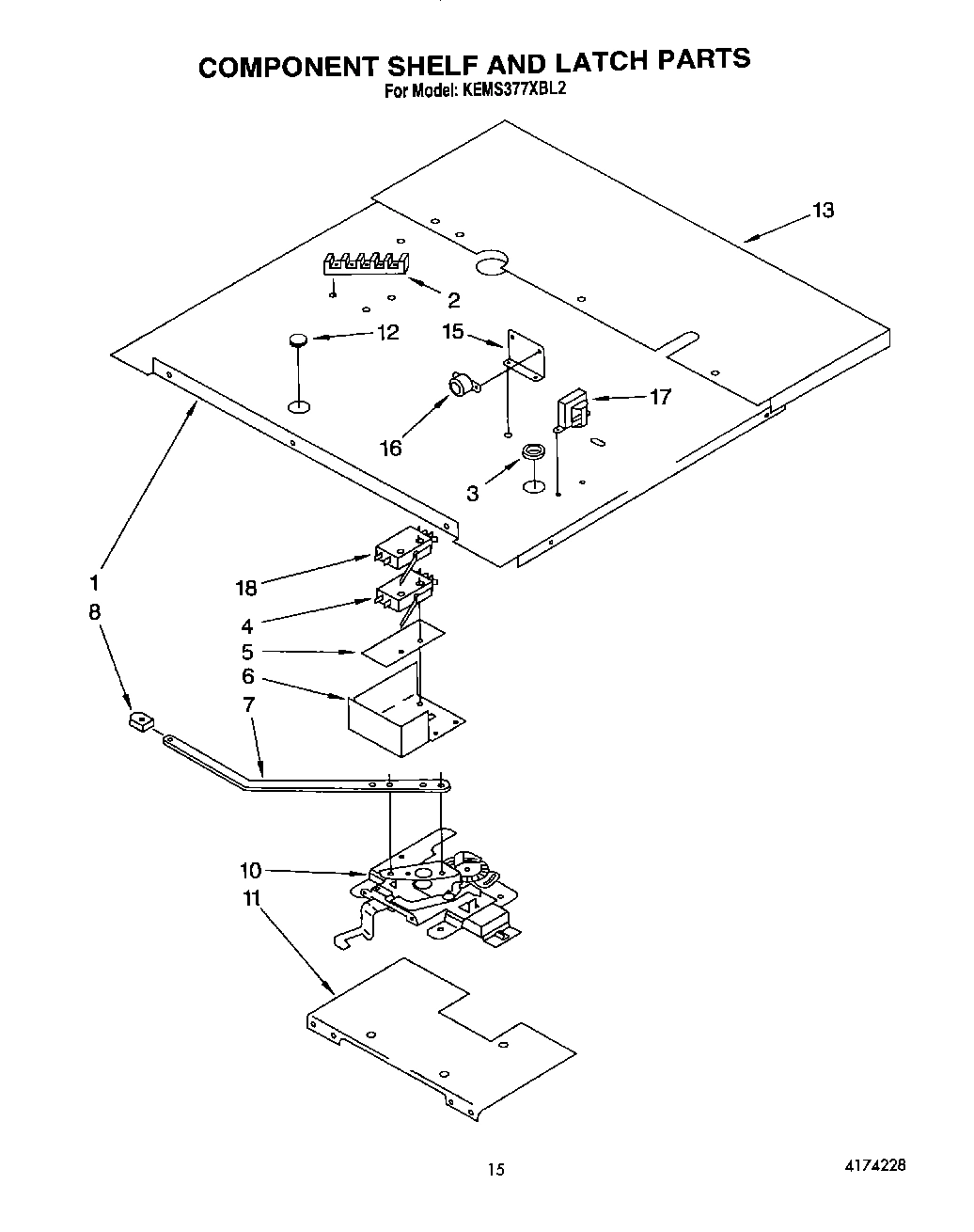

12 - COMPONENT SHELF AND LATCH

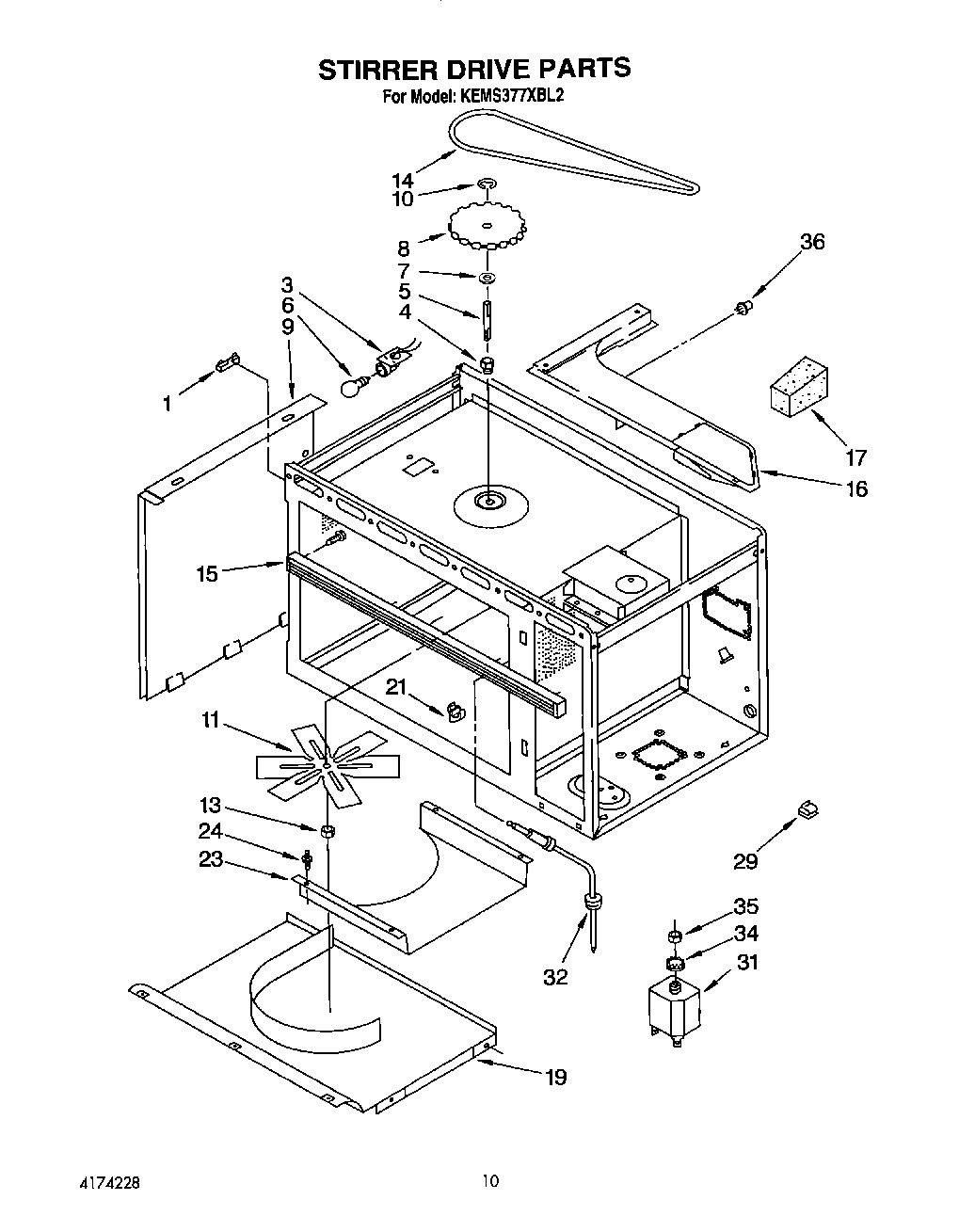

08 - STIRRER DRIVE, OPTIONAL

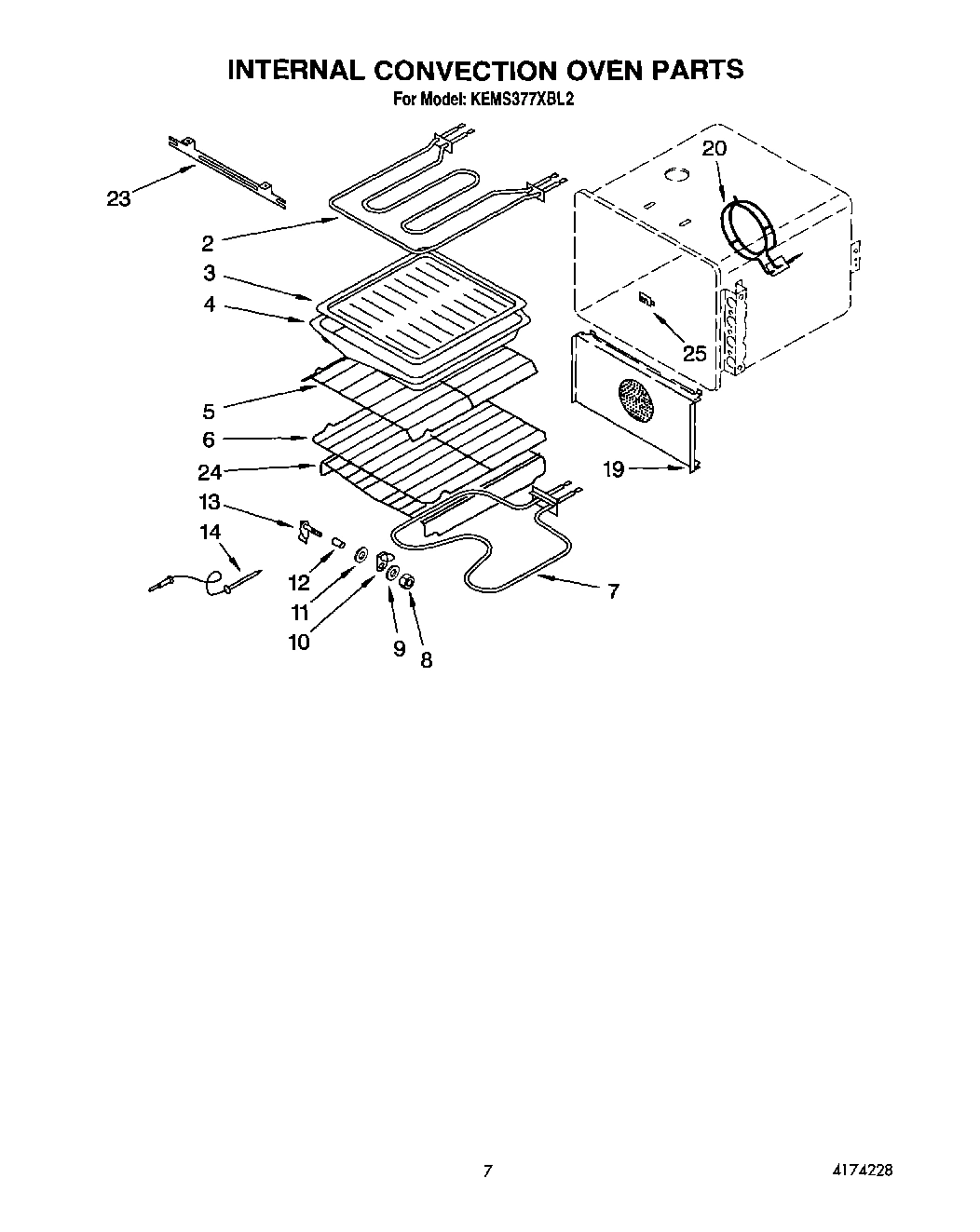

06 - INTERNAL CONVECTION OVEN
07 - MAGNETRON AND AIR FLOW

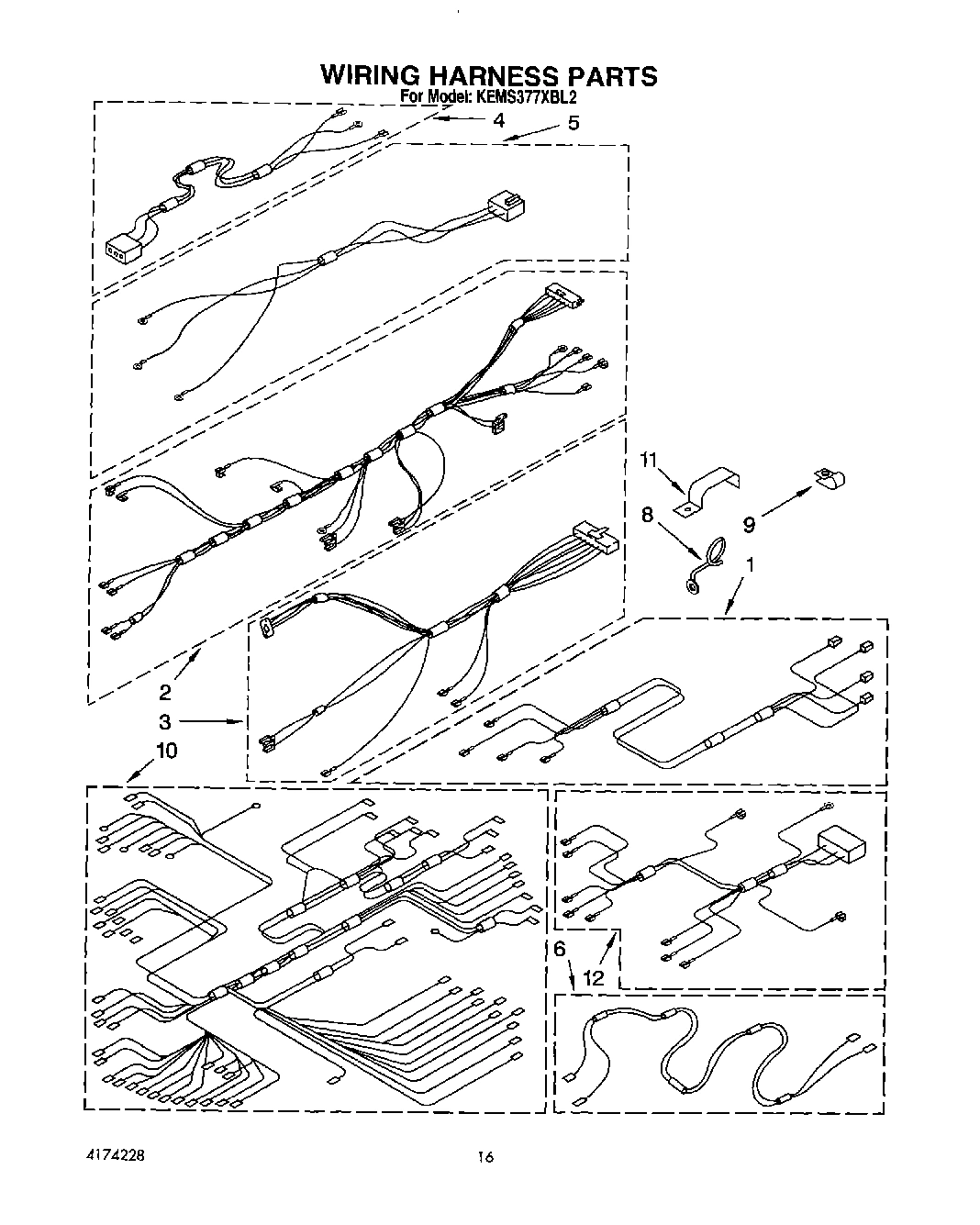

13 - WIRING HARNESS

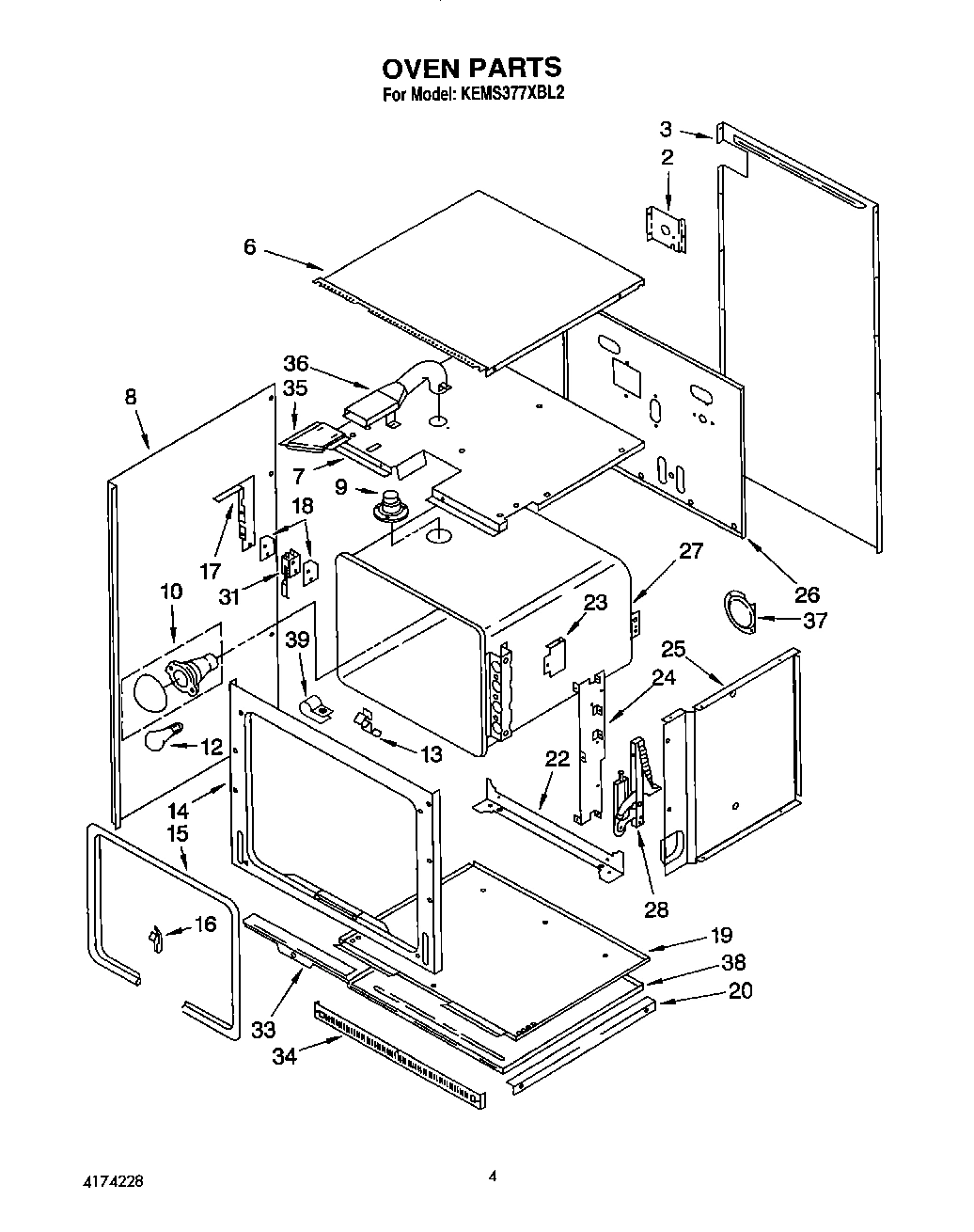

03 - OVEN

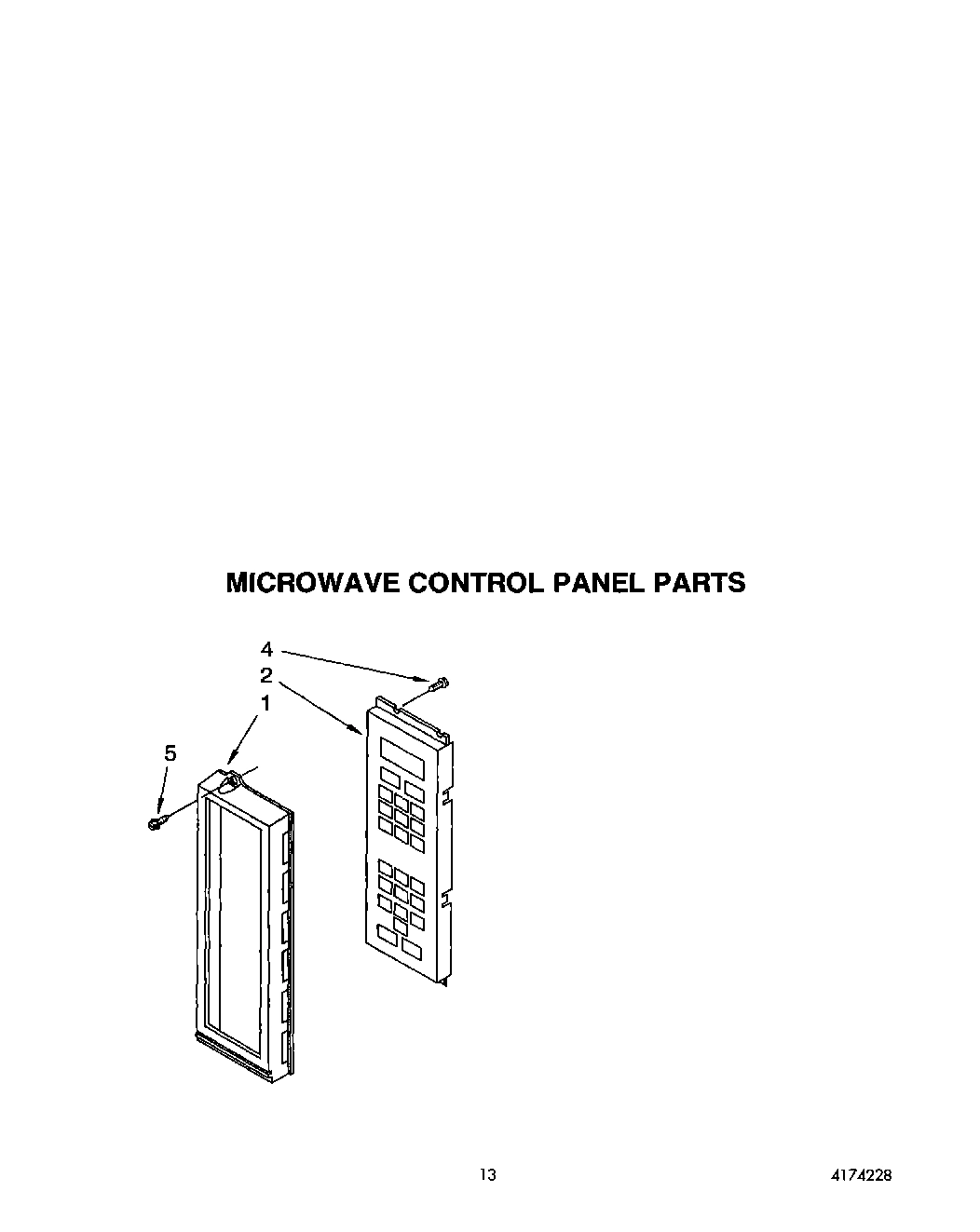

10 - MICROWAVE CONTROL PANEL

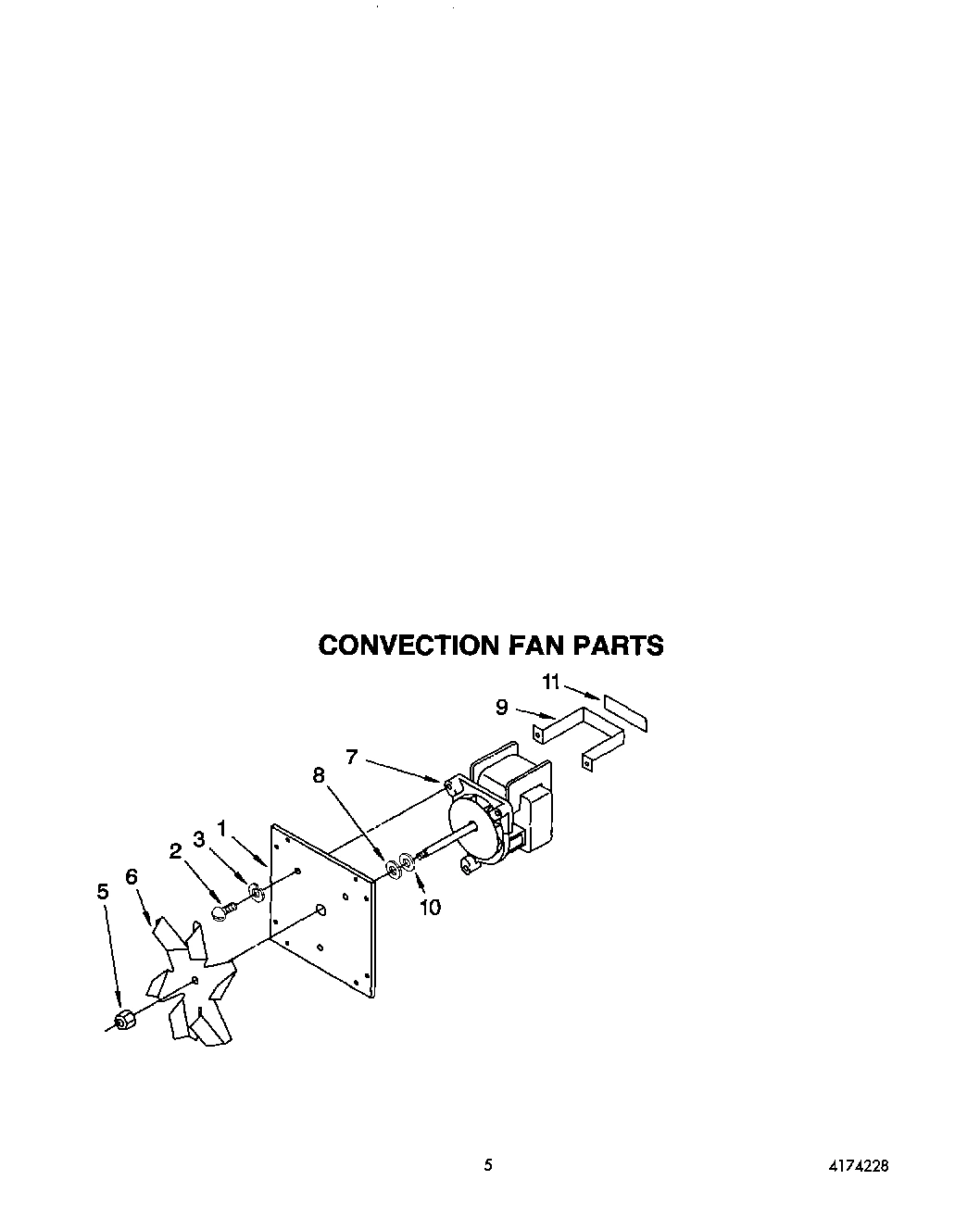

04 - CONVECTION FAN

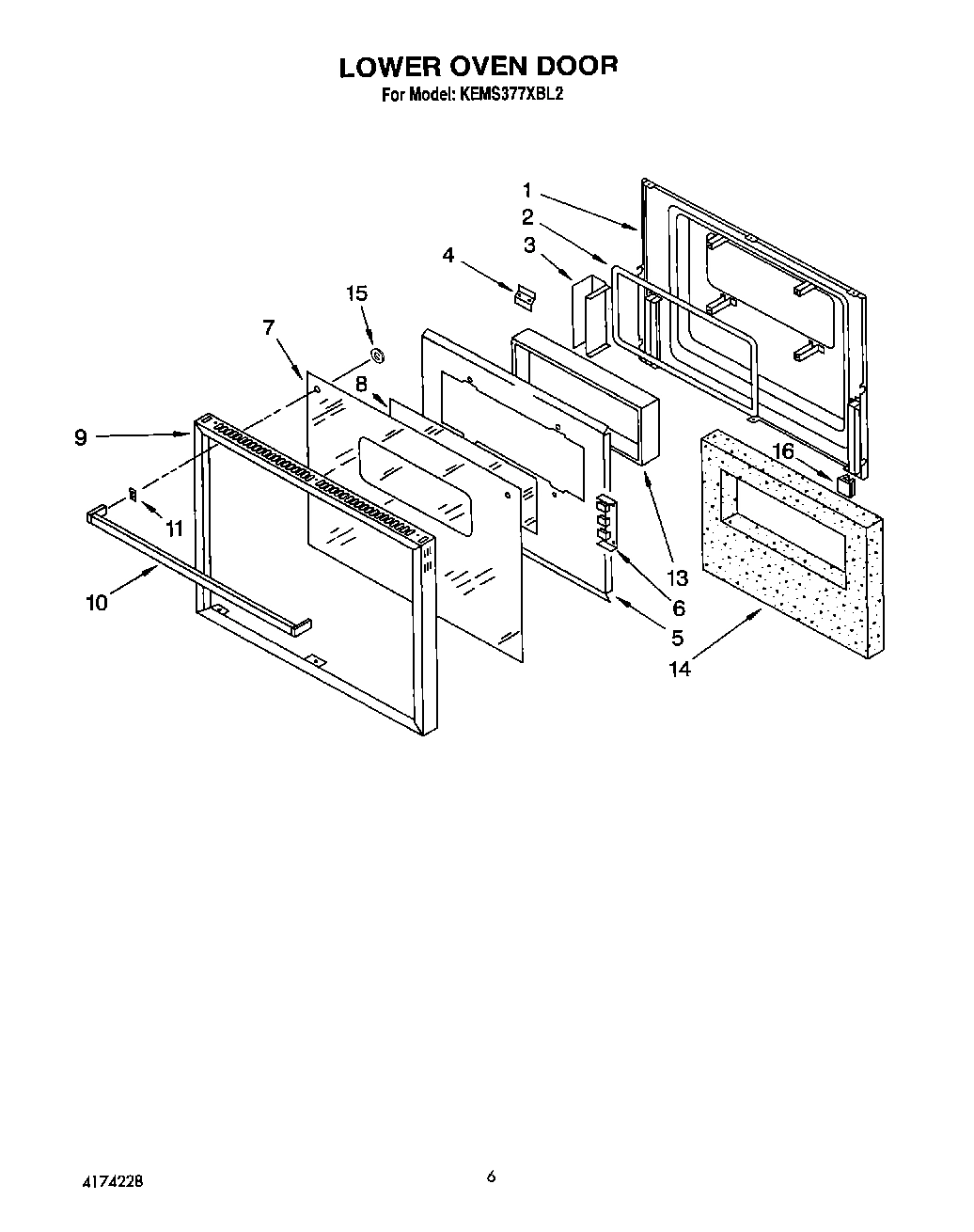

05 - LOWER OVEN
Common parts from model Whirlpool KEMS377XBL2
1
Frame, Outer (Black) WPL 3182287 Contact Us For Availability
1
Frame, Outer (White) WPL 3182288 Contact Us For Availability
1
Screw (Ground) 8-32 x 3/8 WPL 309080 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Shelf, Component WPL 3178091 Contact Us For Availability
1
Thermal Fuse WPL 313855 Contact Us For Availability
1
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
1
Transformer WPL 3147853 Contact Us For Availability
1
Harness, Wire WPL 3180451 Contact Us For Availability
1
Frame, Control Panel (Black Unit) WPL 3182407 Contact Us For Availability
1
Frame, Control Panel (White Unit) WPL 3182409 Contact Us For Availability
1
Plate, Mounting WPL 3178512 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw (2) WPL 3178001 Contact Us For Availability
2
Foam Seal (Bottom) WPL 3182384 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Capacitor WPL 312619 Contact Us For Availability
2
Harness, Wire (Main) WPL 3147072 Contact Us For Availability
2
Bracket, Conduit WPL 3177545 Contact Us For Availability
2
Module, Control (Black Unit) WPL 3182563 Contact Us For Availability
2
Module, Control (White Unit) WPL 3182564 Contact Us For Availability
2
Screw (3) WPL 4173193 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
3
Side Foam Seal (2) (Black) WPL 3182380 Contact Us For Availability
3
Side Foam Seal (2) (White) WPL 3182381 Contact Us For Availability
3
Bushing WPL 3181919 Contact Us For Availability
3
Socket, Light WPL 330514 Contact Us For Availability
3
Capacitor WPL 661004 Contact Us For Availability
3
Harness, Wire M/W Control WPL 3147164 Contact Us For Availability
3
Cabinet, Back WPL 3177740 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
4
Top Foam Seal (Black) WPL 3182382 Contact Us For Availability
4
Top Foam Seal (White) WPL 3182383 Contact Us For Availability
4
Insulator WPL 313126 Contact Us For Availability
4
Switch, Latch WPL 3178668 Contact Us For Availability
4
Bushing, Stirrer WPL 312023 Contact Us For Availability
4
screw (2) WPL 312713 Contact Us For Availability
4
Screw (6) WPL 313818 Contact Us For Availability
4
Harness, Wire A.C. Supply WPL 3148981 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
rack, wire WPL 313663 Contact Us For Availability
5
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Shaft, Stirrer WPL 312026 Contact Us For Availability
5
Screw 8-32 X 1/2 WPL 313679 Contact Us For Availability
5
Rack, Offset WPL 3185307 Contact Us For Availability
5
Rectifier, High Voltage WPL 313830 Contact Us For Availability
5
Harness, Wiring (Microwave Power) WPL 3181721 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
6
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
6
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
6
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven (2) WPL 3185308 Contact Us For Availability
6
Harness, Wire Door Switch (Lower Oven) WPL 3179962 Contact Us For Availability
6
Cabinet, Top WPL 3178140 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Bracket (2), Glass Mounting WPL 4163855 Contact Us For Availability
7
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
7
Screw (2) 4-40 x 3/4 WPL 312717 Contact Us For Availability
7
Switch, Electronic WPL 313120 Contact Us For Availability
7
Handle, Latch WPL 3181963 Contact Us For Availability
7
Screw (2) WPL 4159187 Contact Us For Availability
7
Washer, Stirrer WPL 312025 Contact Us For Availability
7
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
7
Top, Module WPL 3177436 Contact Us For Availability
7
Motor WPL 4173612 Contact Us For Availability
7
Glass, Door (Black) WPL 3181548 Contact Us For Availability
7
Glass, Door (White) WPL 3181550 Contact Us For Availability
8
Shelf, Ceramic WPL 313639 Contact Us For Availability
8
Shield WPL 3149424 Contact Us For Availability
8
Knob, Latch Handle WPL 3183293 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Pulley, WPL 311923 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Seal, Air Duct WPL 313752 Contact Us For Availability
8
Standoff, Harness WPL 3179668 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3181695 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3181696 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Rail, (2) WPL 3179973 Contact Us For Availability
9
Inner Door Asm. (Black Unit) WPL 3171012 Contact Us For Availability
9
Inner Door Asm. (White Unit) WPL 3171806 Contact Us For Availability
9
Cover, Side WPL 3147004 Contact Us For Availability
9
Screw (4) WPL 4170323 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Screw (3) WPL 3179117 Contact Us For Availability
9
Motor WPL 313641 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Clip (2) Glass (Top & Bottom) WPL 3179506 Contact Us For Availability
9
Clip (2) Glass (Sides) WPL 3179507 Contact Us For Availability
9
Frame, Door WPL 3181402 Contact Us For Availability
10
Seal, Foam WPL 3180456 Contact Us For Availability
10
Outer Door Asm. (White Unit) WPL 3171816 Contact Us For Availability
10
Outer Door Asm. (Black Unit) WPL 3172227 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Pulley, Motor WPL 311922 Contact Us For Availability
10
Harness, Wire, Combo Probe WPL 3182054 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Handle, Door (Black) WPL 3178646 Contact Us For Availability
10
Handle, Door (White) WPL 3178648 Contact Us For Availability
11
Frame, Control Panel (Black) WPL 3177762 Contact Us For Availability
11
Frame, Control Panel (White) WPL 3177763 Contact Us For Availability
11
Insert, Middle Vent Trim WPL 3181733 Contact Us For Availability
11
Latch, Complete WPL 329066 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
``E`` Ring (2) WPL 311999 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Spacer, Handle (Black) WPL 3178740 Contact Us For Availability
11
Spacer, Handle (White) WPL 3178741 Contact Us For Availability
11
Spacer, Handle (Screw (2)) WPL 3181637 Contact Us For Availability
12
Trim, Middle Vent (Black) WPL 3181965 Contact Us For Availability
12
Trim, Middle Vent (White or Almond Model) WPL 3181968 Contact Us For Availability
12
Trim, Middle Vent (Screw (1)) WPL 4173601 Contact Us For Availability
12
Spring, Torsion (2) WPL 311352 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Spacer - Tubing WPL 3179672 Contact Us For Availability
12
Bracket, Motor WPL 313601 Contact Us For Availability
12
Harness, Wire T/C Meat Probe WPL 3179937 Contact Us For Availability
13
Knob, Timer (2) WPL 3179704 Contact Us For Availability
13
Brace, Center Vent WPL 3181848 Contact Us For Availability
13
Screw (2) WPL 313820 Contact Us For Availability
13
Screw WPL 254217 Contact Us For Availability
13
Extension, Shelf WPL 3180332 Contact Us For Availability
13
Meat Probe Jack WPL 4173189 Contact Us For Availability
13
Wheel, Blower WPL 3147223 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Knob, Timer WPL 3179705 Contact Us For Availability
14
Support, Module WPL 3180330 Contact Us For Availability
14
End Cap (Black) WPL 3148297 Contact Us For Availability
14
End Cap (White) WPL 3148298 Contact Us For Availability
14
Meat Probe WPL 4167267 Contact Us For Availability
14
Magnetron WPL 660595 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Trim, Control Panel (White) WPL 3180447 Contact Us For Availability
15
Trim, Control Panel (Black) WPL 3180449 Contact Us For Availability
15
Back, Microwave Compartment WPL 3180336 Contact Us For Availability
15
Bracket, Buzzer WPL 3179695 Contact Us For Availability
15
Screw (2) WPL 3180129 Contact Us For Availability
15
Grill, Air (White) WPL 3149311 Contact Us For Availability
15
Grill, Air (Black) WPL 3149315 Contact Us For Availability
15
Grill, Air (Screw (3) (White)) WPL 3150024 Contact Us For Availability
15
Grill, Air (Screw (3) (Black)) WPL 3150025 Contact Us For Availability
15
Screw (2) WPL 312782 Contact Us For Availability
15
Thermal Protector WPL 661165 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Bushing, Handle WPL 3181651 Contact Us For Availability
16
Knob, Control (2) WPL 3178400 Contact Us For Availability
16
Ext. Module Support WPL 3182764 Contact Us For Availability
16
Handle, Door (Screw 8-32 (4)) WPL 313823 Contact Us For Availability
16
Handle, Door (Black) WPL 314169 Contact Us For Availability
16
Handle, Door (White) WPL 3149218 Contact Us For Availability
16
Buzzer, Meat Probe WPL 3179914 Contact Us For Availability
16
Fastener WPL 310423 Contact Us For Availability
16
Baffle, Air WPL 3150039 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Disc, Selector WPL 3178265 Contact Us For Availability
17
Rail, Chassis (2) WPL 3179972 Contact Us For Availability
17
Button, Door Handle (Black) WPL 3149637 Contact Us For Availability
17
Button, Door Handle (White) WPL 3149638 Contact Us For Availability
17
Transformer WPL 3179532 Contact Us For Availability
17
Seal, Foam WPL 3150090 Contact Us For Availability
17
Jumper, High Voltage 14 Ga. WPL 3147863 Contact Us For Availability
17
Screw (2) WPL 313489 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Disc, Thermostat WPL 3178481 Contact Us For Availability
18
Spring, Compression WPL 310197 Contact Us For Availability
18
Screw (2) WPL 3177988 Contact Us For Availability
18
Switch, Latch WPL 3178187 Contact Us For Availability
18
Jumper, High Voltage 20 Ga. WPL 313130 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Meat Probe Indicator Assy. WPL 4173611 Contact Us For Availability
19
Fastener (4) WPL 313740 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
19
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
19
Cover, Fan WPL 3180815 Contact Us For Availability
19
Module, Bottom WPL 3177621 Contact Us For Availability
20
Nut (3), Tinnerman WPL 4168838 Contact Us For Availability
20
Element, Convection WPL 3178517 Contact Us For Availability
20
Screw WPL 346893 Contact Us For Availability
20
Extension, Air Duct WPL 3147262 Contact Us For Availability
20
Rail, Support (4) WPL 3179220 Contact Us For Availability
22
Screw (6) WPL 4159456 Contact Us For Availability
22
Retainer (2) Glass WPL 4167590 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Control Panel WPL 3177747 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
24
Rack, Roasting T/C WPL 3181534 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
25
Bezel, Switch (Chrome) WPL 3179707 Contact Us For Availability
25
Bezel, Switch (Black) WPL 4169372 Contact Us For Availability
25
Screw (1) WPL 4159445 Contact Us For Availability
25
Cover, Capillary WPL 4168203 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Screw WPL 3179847 Contact Us For Availability
26
Support, Frame WPL 3177650 Contact Us For Availability
26
Back, Module WPL 3177557 Contact Us For Availability
27
Liner, Oven WPL 3185318 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Switch, Rotory (2) WPL 3178126 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
30
Clip, Spacer WPL 3180844 Contact Us For Availability
30
Knob, (3) Meat Probe Auto-Time Maxi-Broil WPL 4163840 Contact Us For Availability
31
Jack, Probe WPL 661209 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
32
Probe, Temperature WPL 313527 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Trim, Lower Vent (Screw (4)) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent (Screw (2)) WPL 4168863 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
34
Trim, Lower Vent (Black) WPL 3177787 Contact Us For Availability
34
Trim, Lower Vent (Brushed Chrome) WPL 3177789 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
35
Vent, Tube (Female) WPL 3181964 Contact Us For Availability
36
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
36
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
36
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
36
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
36
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
36
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
36
18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability
36
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
36
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
36
18 Ga. 80~c Rating (Blue 14 Ga. 150~c Rating) WPL 242829 Contact Us For Availability
36
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
36
18 Ga. 80~c Rating (Yellow 12 Ga. 150~c Ratin WPL 242832 Contact Us For Availability
36
Harvest Gold WPL 261890 Contact Us For Availability
36
Harvest Gold WPL 261891 Contact Us For Availability
36
Toast WPL 285365 Contact Us For Availability
36
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
36
Enam WPL 285367 Contact Us For Availability
36
WPL 285368 WPL 285368 Contact Us For Availability
36
WPL 3147060 WPL 3147060 Contact Us For Availability
36
WPL 350806 WPL 350806 Contact Us For Availability
36
WPL 350941 WPL 350941 Contact Us For Availability
36
WPL 591014 WPL 591014 Contact Us For Availability
36
WPL 72112 WPL 72112 Contact Us For Availability
36
WPL 786020 WPL 786020 Contact Us For Availability
36
WPL 786032 WPL 786032 Contact Us For Availability
36
WPL 799832 WPL 799832 Contact Us For Availability
36
WPL 832985 WPL 832985 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Vent, Tube (Male) WPL 3179945 Contact Us For Availability
37
Plate, Cover WPL 4163883 Contact Us For Availability
38
Bottom, Main Oven WPL 3177551 Contact Us For Availability
39
Insulation, Wrap WPL 3177862 Contact Us For Availability
39
Insulation, Back WPL 3177872 Contact Us For Availability
39
Clip, Capillary WPL 4164586 Contact Us For Availability
× ![]()
