Model Whirlpool KEMS376TAL1 – Common Parts & Diagrams
02 - CONTROL PANEL , LIT/OPTIONAL
04 - CONTROL COMPARTMENT

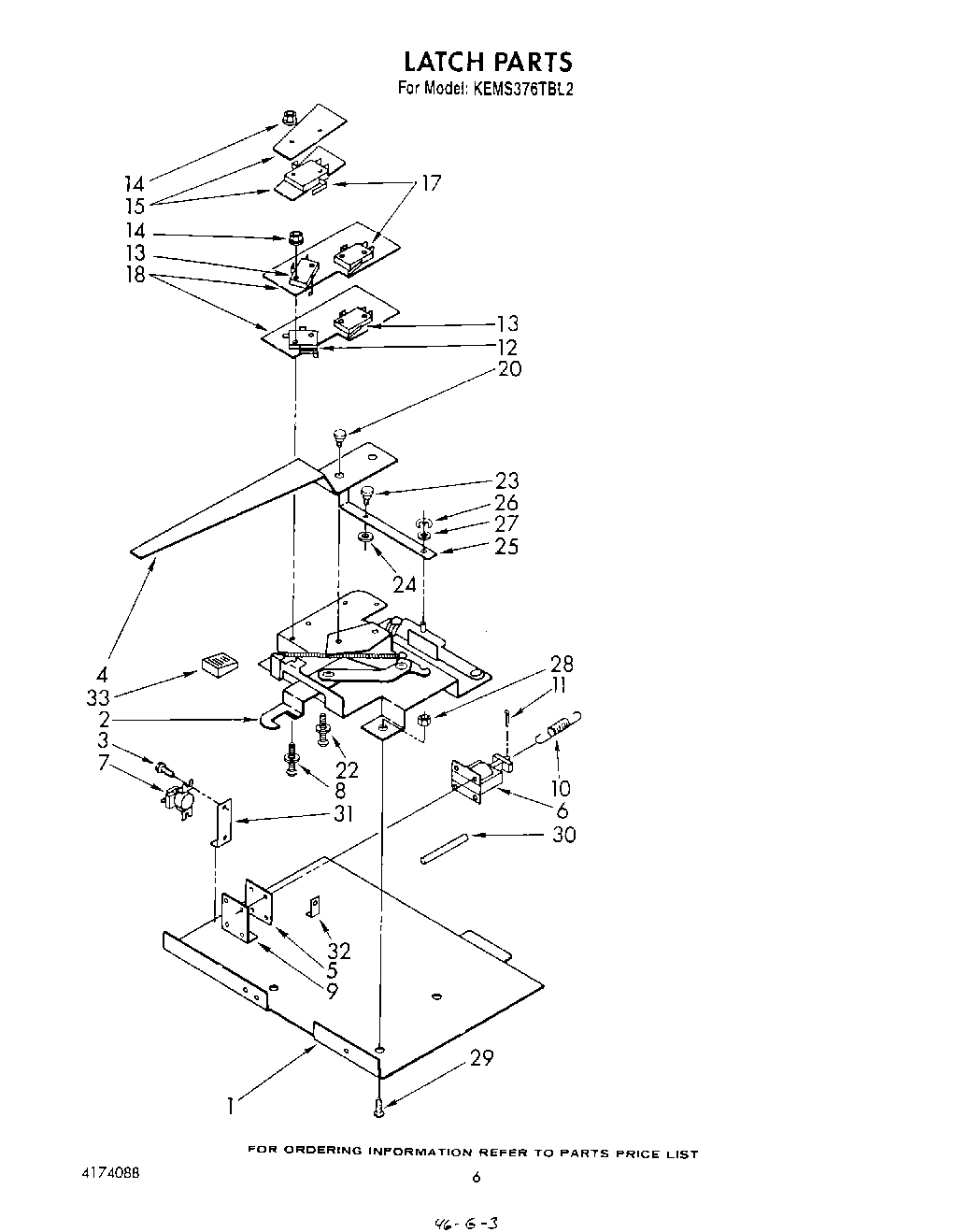

06 - LATCH

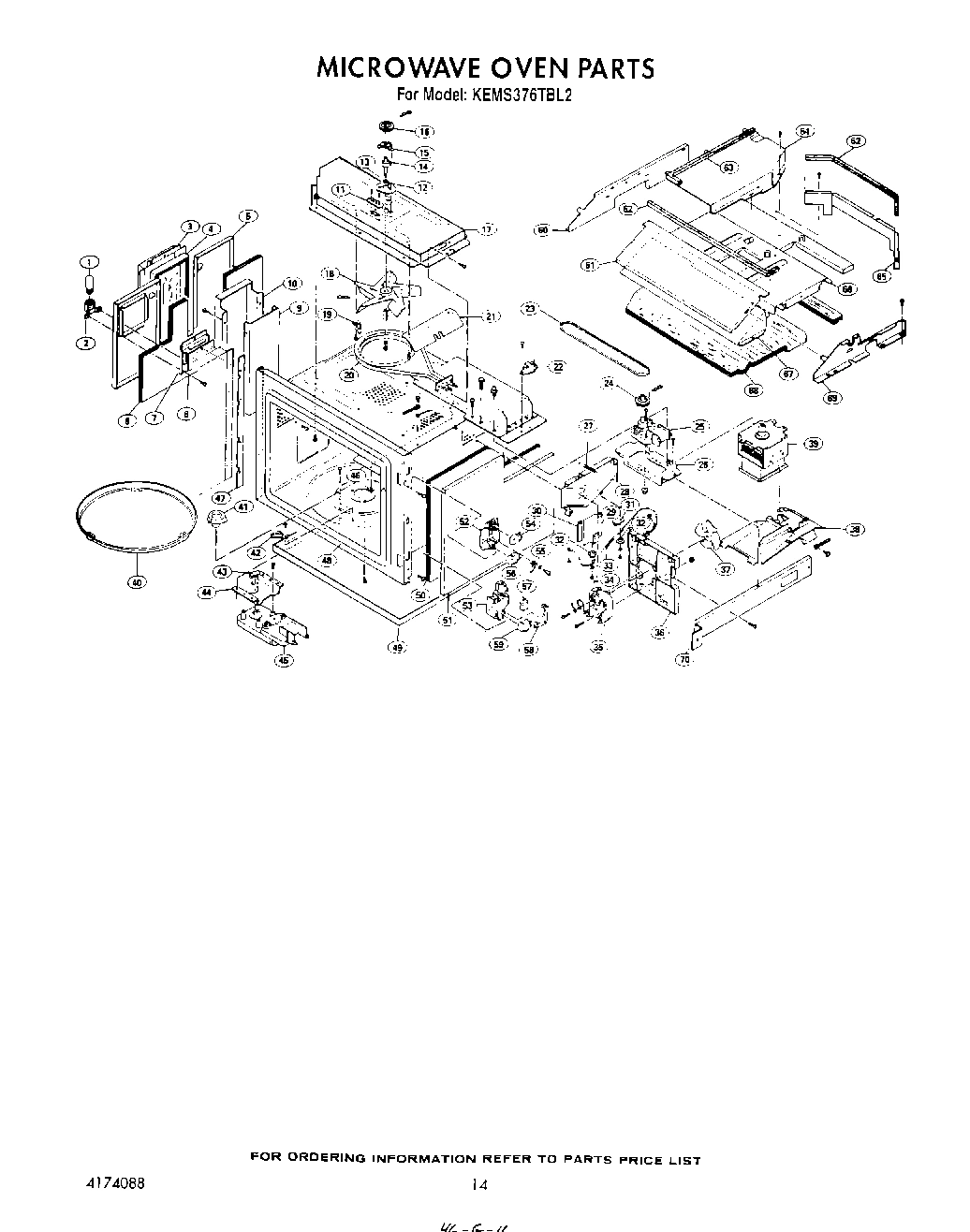

11 - MICROWAVE OVEN

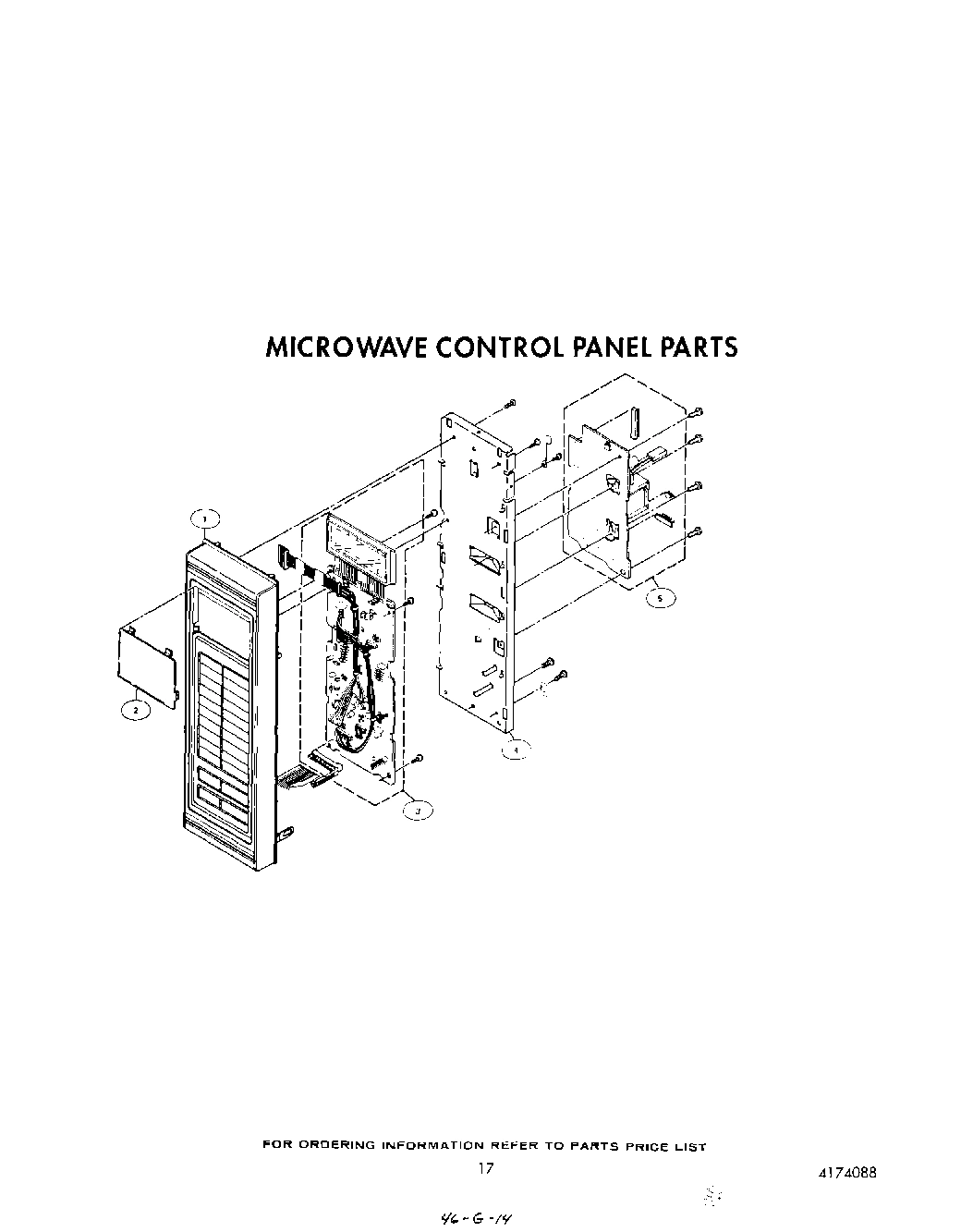

13 - MICROWAVE CONTROL PANEL

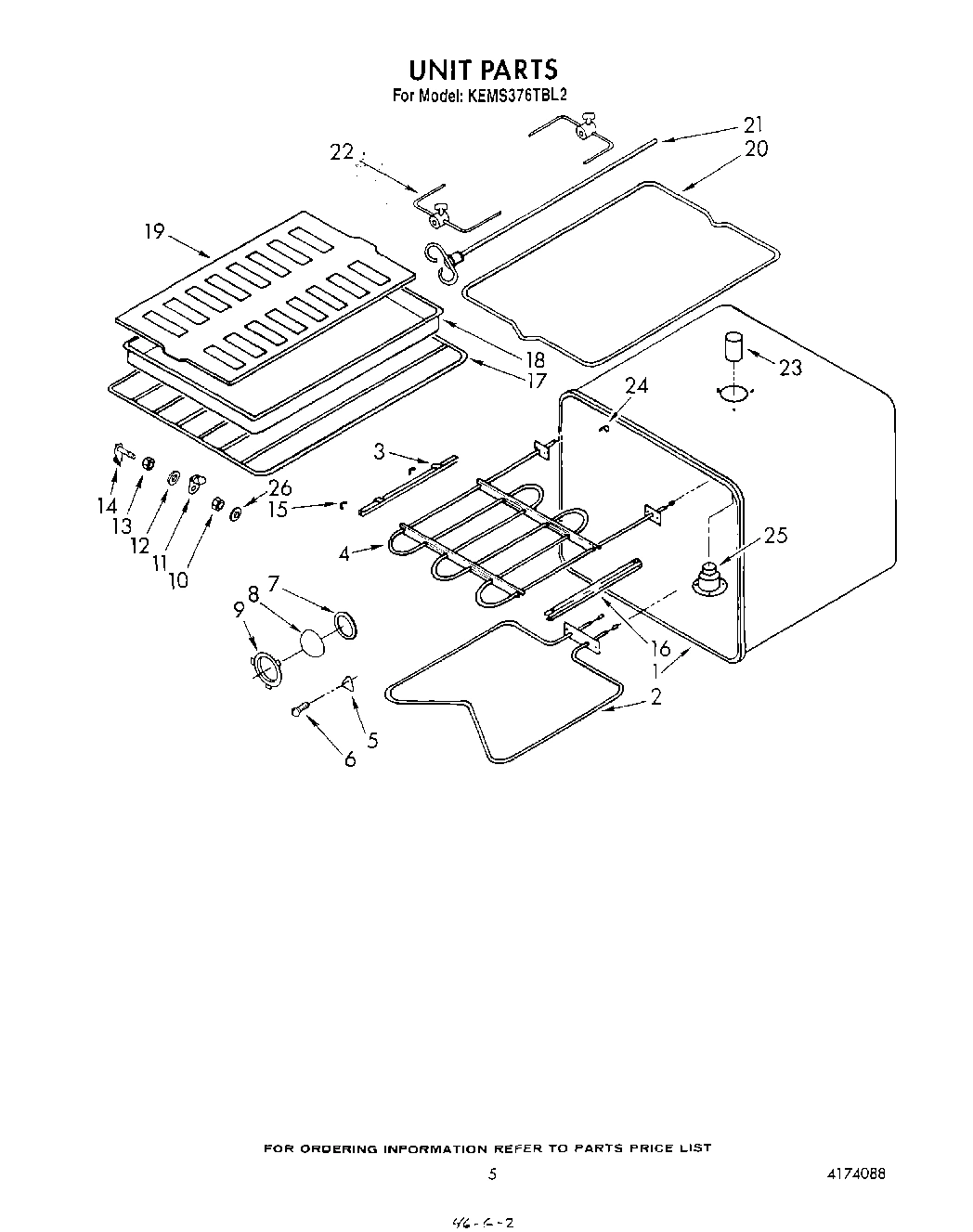

05 - UNIT

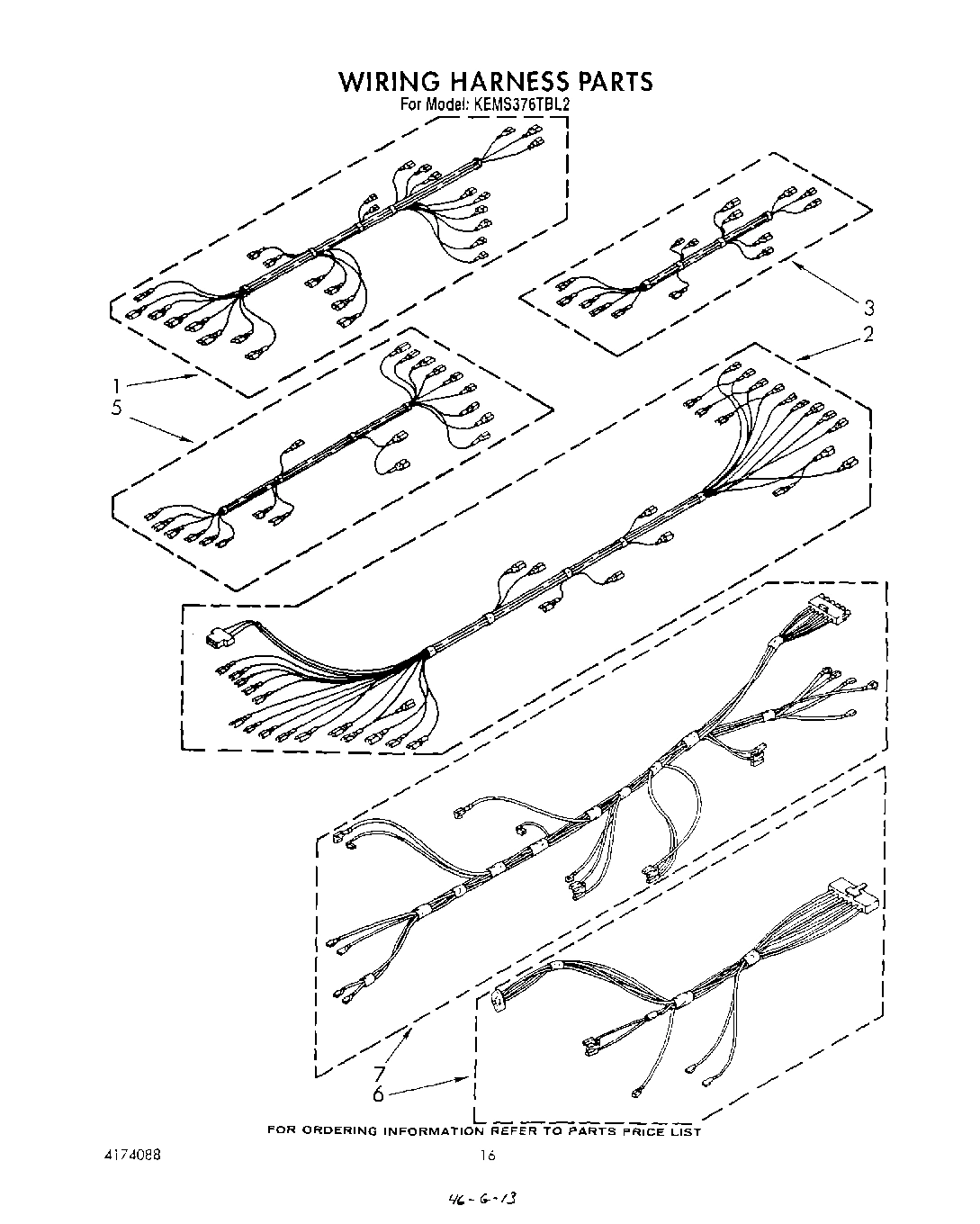

12 - WIRING HARNESS

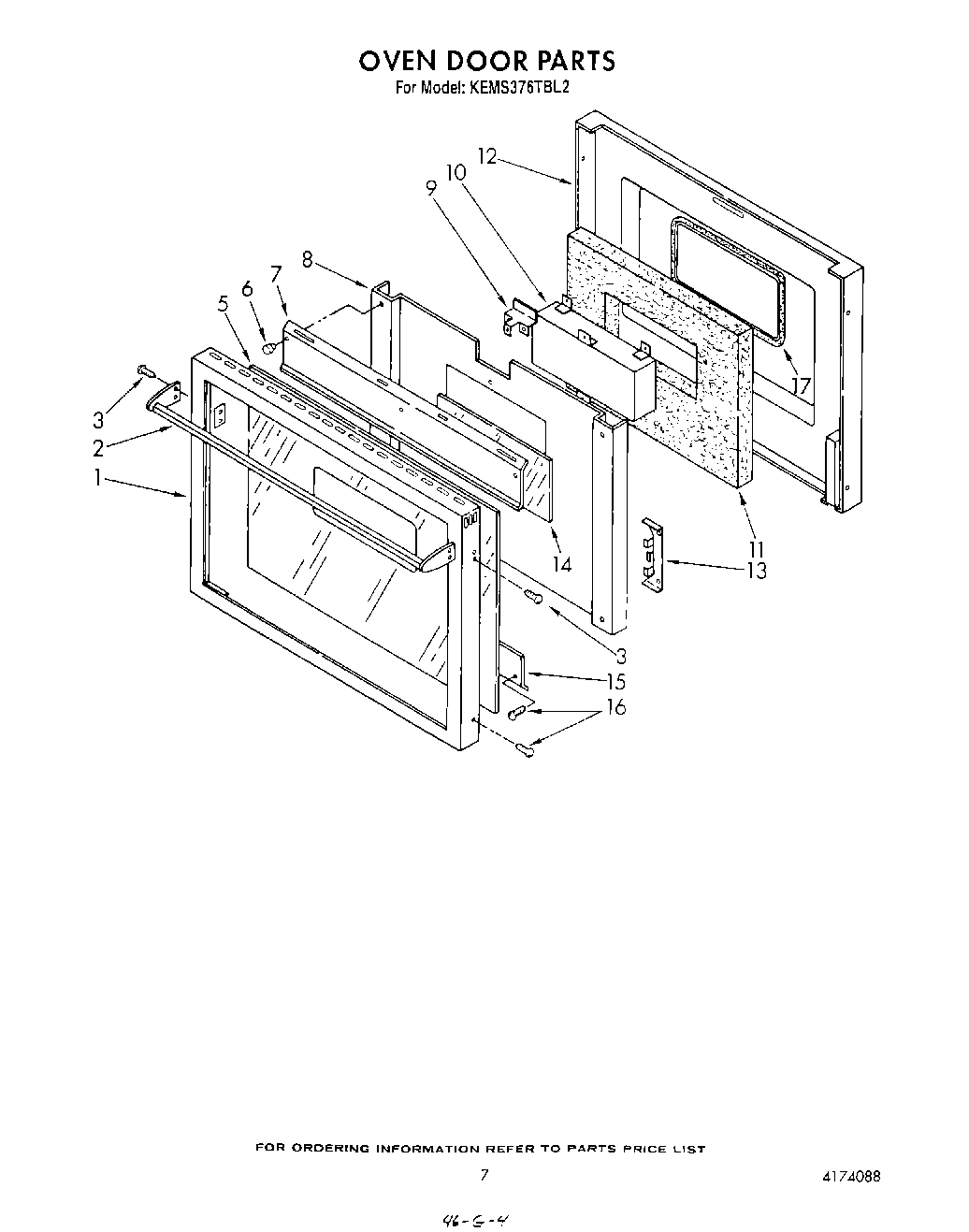

07 - OVEN DOOR

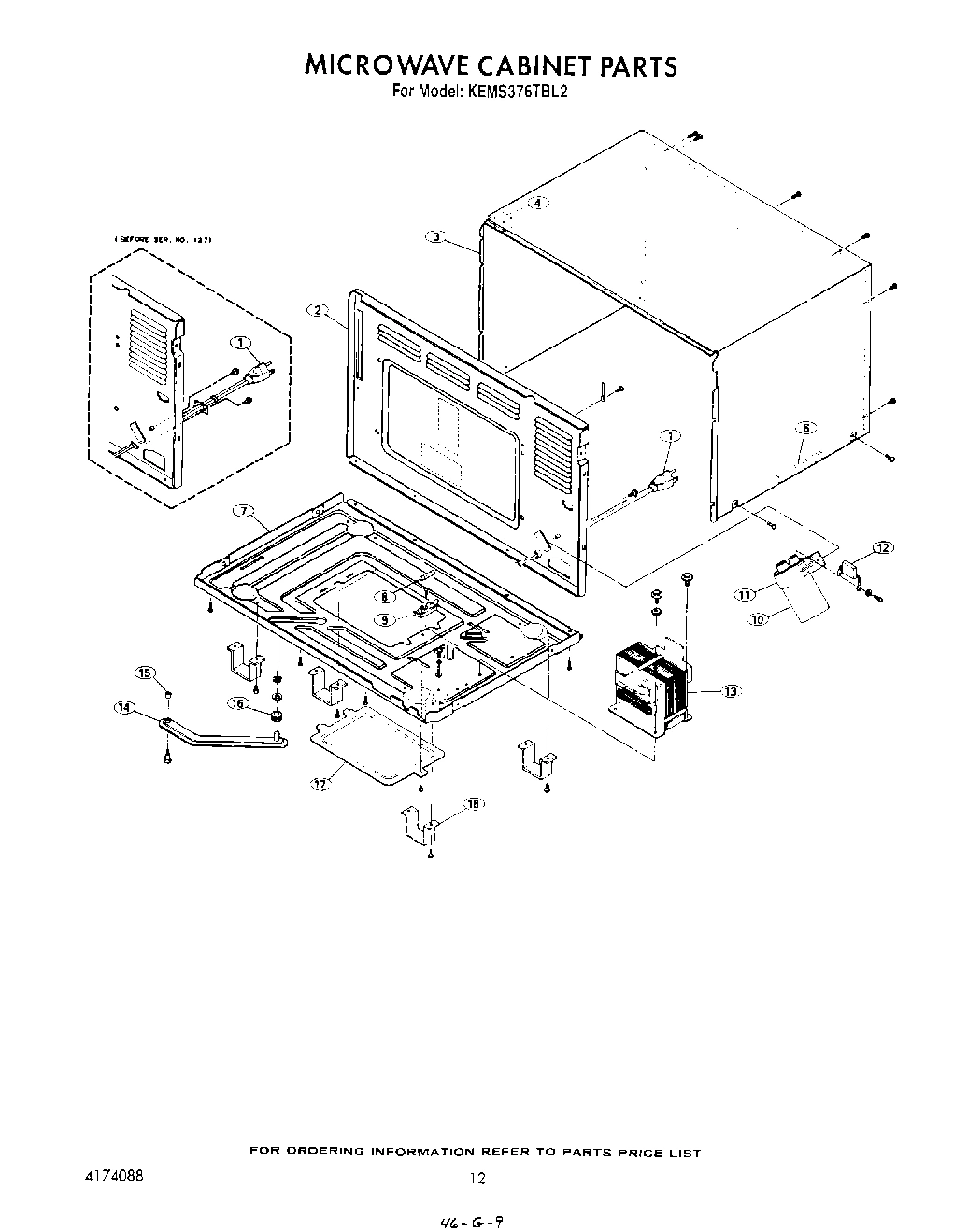

10 - MICROWAVE CABINET

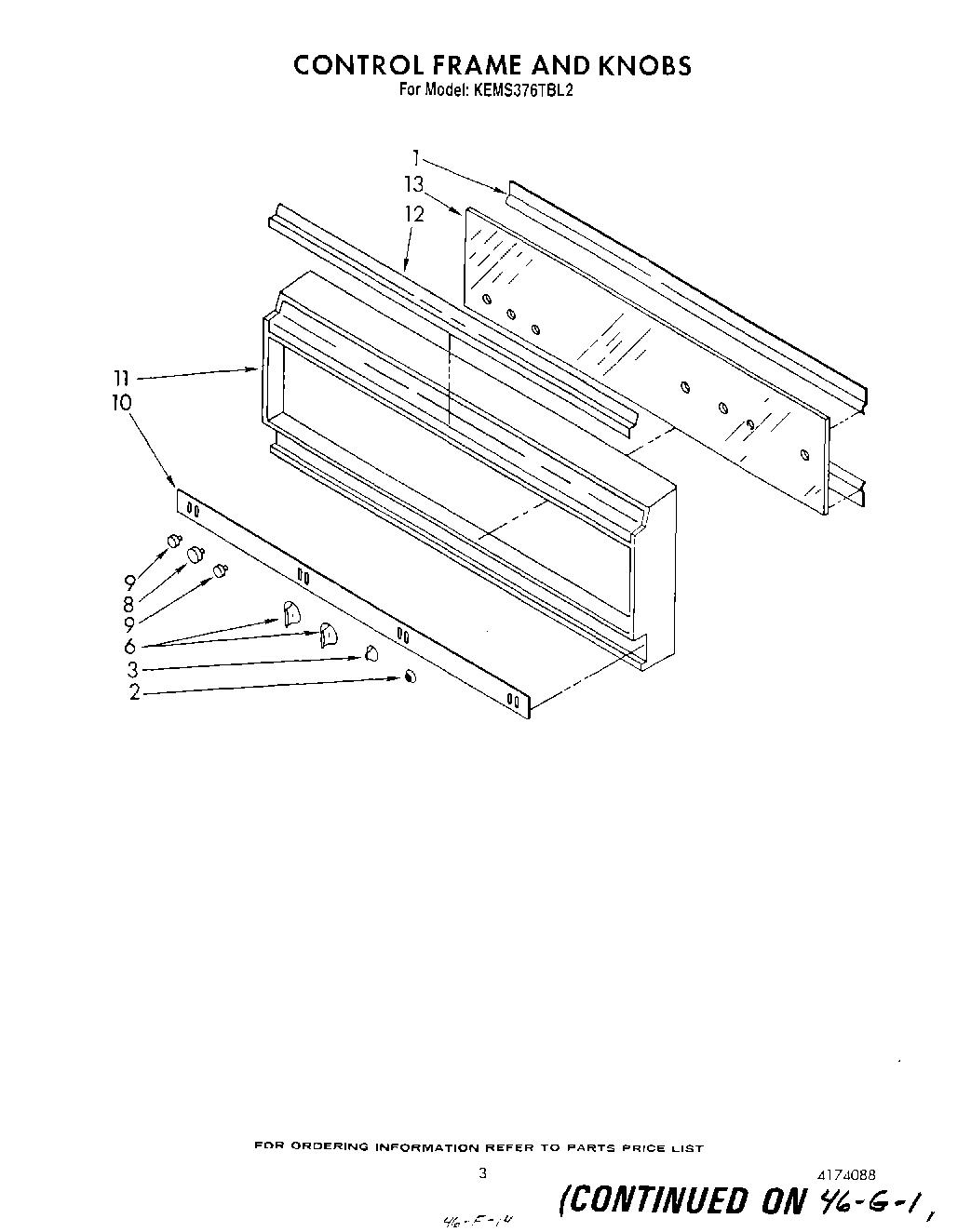

03 - CONTROL FRAME AND KNOBS

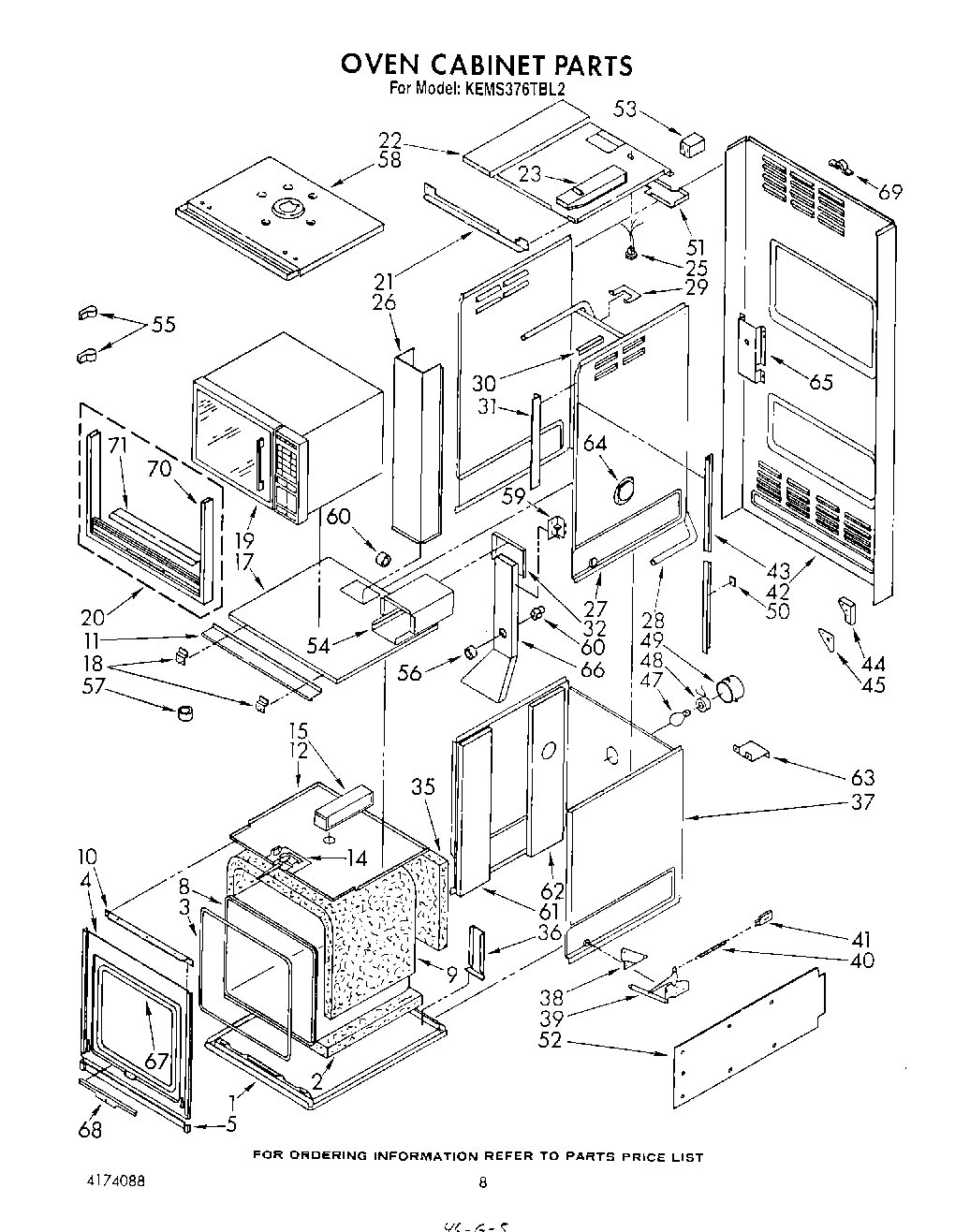

08 - OVEN CABINET

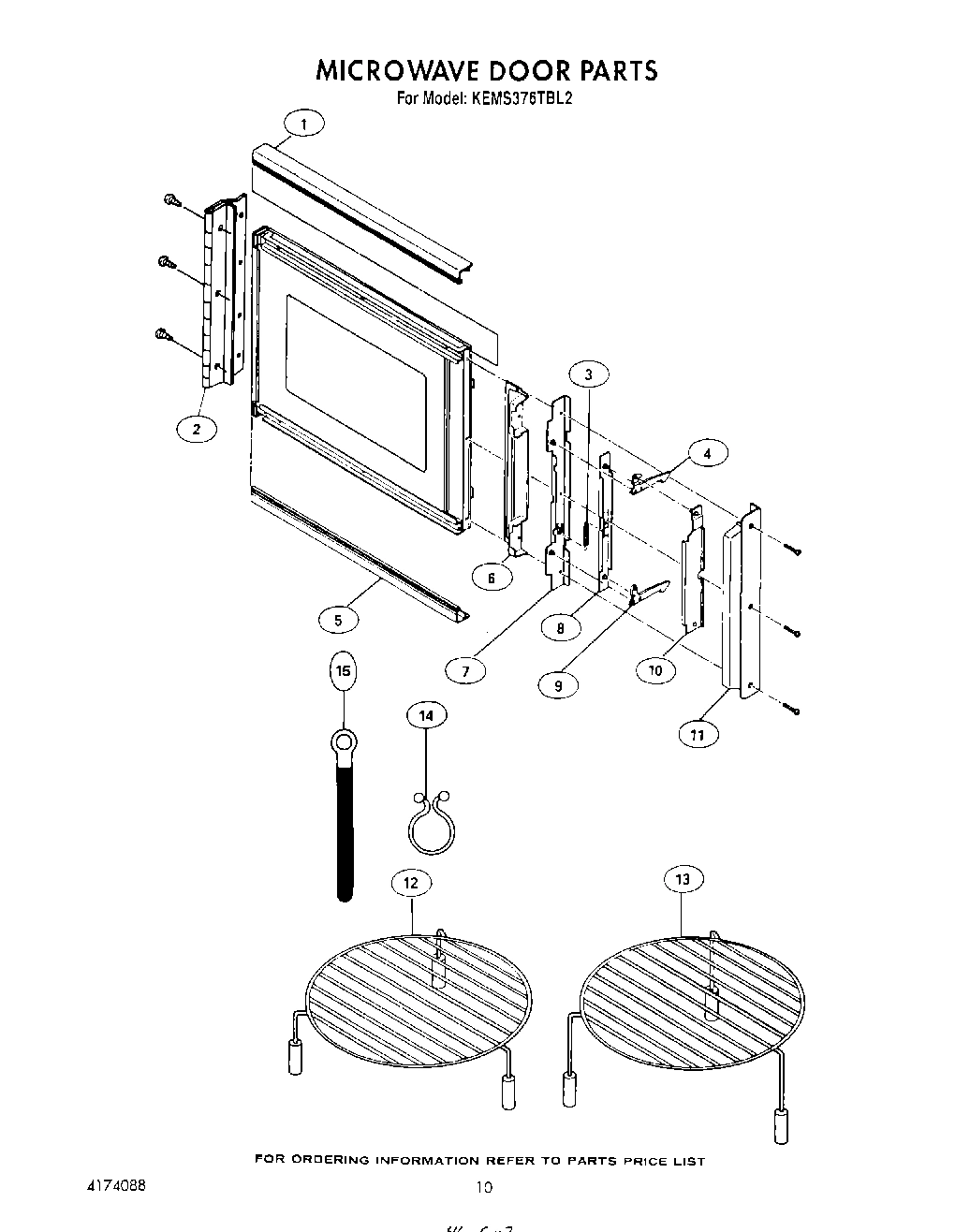

09 - MICROWAVE DOOR
Common parts from model Whirlpool KEMS376TAL1
WPL 4164533 WPL 4164533 Contact Us For Availability
WPL 4164535 WPL 4164535 Contact Us For Availability
WPL 4164536 WPL 4164536 Contact Us For Availability
WPL 4164538 WPL 4164538 Contact Us For Availability
WPL 4164539 WPL 4164539 Contact Us For Availability
WPL 4164540 WPL 4164540 Contact Us For Availability
WPL 4164541 WPL 4164541 Contact Us For Availability
WPL 4164542 WPL 4164542 Contact Us For Availability
WPL 4164543 WPL 4164543 Contact Us For Availability
WPL 4164544 WPL 4164544 Contact Us For Availability
WPL 4164545 WPL 4164545 Contact Us For Availability
xScrew, Turntable Cover Mounting WPL 4164548 Contact Us For Availability
xWasher, Door Cam Roller WPL 4164556 Contact Us For Availability
WPL 4164561 WPL 4164561 Contact Us For Availability
WPL 4164563 WPL 4164563 Contact Us For Availability
WPL 4164564 WPL 4164564 Contact Us For Availability
xScrew, Capacitor Strap Mounting WPL 4164567 Contact Us For Availability
WPL 4164569 WPL 4164569 Contact Us For Availability
WPL 4164570 WPL 4164570 Contact Us For Availability
WPL 4164571 WPL 4164571 Contact Us For Availability
WPL 4164574 WPL 4164574 Contact Us For Availability
WPL 4164606 WPL 4164606 Contact Us For Availability
WPL 4164607 WPL 4164607 Contact Us For Availability
WPL 4164609 WPL 4164609 Contact Us For Availability
WPL 4164610 WPL 4164610 Contact Us For Availability
WPL 4173087 WPL 4173087 Contact Us For Availability
xScrews, Control Panel Mounting (3) WPL 4164551 Contact Us For Availability
xScrew, Panel Frame Mounting WPL 4164552 Contact Us For Availability
xScrews, Control Unit Mounting (3) WPL 4164603 Contact Us For Availability
xScrew, Grounding (Power Cord) WPL 4164547 Contact Us For Availability
xScrews, cabinet back, top and sides (28) WPL 4164549 Contact Us For Availability
xE-ring, Door Cam Roller WPL 4164555 Contact Us For Availability
xScrew, Diode Mounting WPL 4164558 Contact Us For Availability
xWasher, Diode Mounting WPL 4164559 Contact Us For Availability
xScrew, Bushing Holder (before serial number WPL 4164565 Contact Us For Availability
xScrew, Door Cam Mounting WPL 4164566 Contact Us For Availability
xScrew, Transformer Mounting (2) WPL 4164572 Contact Us For Availability
xWasher, Transformer Mounting WPL 4164579 Contact Us For Availability
xWasher, Grounding (Power Cord) WPL 4164605 Contact Us For Availability
xDoor, Complete WPL 4164487 Contact Us For Availability
xScrews, Latch Cover Mounting (3) WPL 4164593 Contact Us For Availability
xScrews, Door Hinge Mounting (3) WPL 4164594 Contact Us For Availability
1
Latch Mounting Plate WPL 4168063 Contact Us For Availability
1
frame, control panel WPL 4164483 Contact Us For Availability
1
liner, oven WPL 3178755 Contact Us For Availability
1
Wiring Harness Control WPL 4173229 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Power Cord WPL 4164504 Contact Us For Availability
1
screw (4) WPL 4159456 Contact Us For Availability
1
Retainer (2) WPL 4167590 Contact Us For Availability
1
Main Bottom (Includes Oven Support And Main B WPL 4173076 Contact Us For Availability
1
trim, upper door WPL 4164489 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Socket, Oven Light WPL 4164469 Contact Us For Availability
2
Filter, Display WPL 4164484 Contact Us For Availability
2
Wiring Harness Latch WPL 4164403 Contact Us For Availability
2
Door Handle WPL 4173018 Contact Us For Availability
2
Cabinet Back WPL 4164528 Contact Us For Availability
2
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
2
hinge, door WPL 4164592 Contact Us For Availability
3
hole cover (2) WPL 4168257 Contact Us For Availability
3
Cover, Insulation WPL 4164611 Contact Us For Availability
3
Unit, Control WPL 4164602 Contact Us For Availability
3
support, element WPL 4168218 Contact Us For Availability
3
Wiring Harness Meat Probe WPL 4164401 Contact Us For Availability
3
Cabinet Top & Sides WPL 4164529 Contact Us For Availability
3
Knob, Meat Probe WPL 4163840 Contact Us For Availability
3
Door Gasket WPL 4168829 Contact Us For Availability
3
spring, latch WPL 4164495 Contact Us For Availability
4
lever, latch WPL 3177965 Contact Us For Availability
4
spacer, latch WPL 4169362 Contact Us For Availability
4
Insulation, Convection Air Duck WPL 4164475 Contact Us For Availability
4
Plate, Control Panel Back WPL 4164485 Contact Us For Availability
4
Broiler Element WPL 3177405 Contact Us For Availability
4
Seal, Cabinet Side WPL 4164530 Contact Us For Availability
4
front frame WPL 3178717 Contact Us For Availability
4
catch, upper latch WPL 4164493 Contact Us For Availability
5
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
5
Electronic Timer WPL 4173071 Contact Us For Availability
5
Solenoid Spacer WPL 4168169 Contact Us For Availability
5
Inner Cabinet Side, Left WPL 4164479 Contact Us For Availability
5
Relay Unit WPL 4164604 Contact Us For Availability
5
Rotisserie Cover WPL 4167518 Contact Us For Availability
5
Wiring Harness High Temperature WPL 4173083 Contact Us For Availability
5
Door Glass WPL 4164241 Contact Us For Availability
5
Bottom Trim WPL 3178731 Contact Us For Availability
5
trim, door lower WPL 4164591 Contact Us For Availability
6
bracket, control WPL 4164218 Contact Us For Availability
6
Solenoid WPL 4169323 Contact Us For Availability
6
Insulation, Left Side WPL 4164473 Contact Us For Availability
6
Shoulder Screw WPL 4168874 Contact Us For Availability
6
Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability
6
rubber bumper (3) WPL 4168826 Contact Us For Availability
6
Seal, Cabinet Lower Side WPL 4164531 Contact Us For Availability
6
trim, door panel fram WPL 4164486 Contact Us For Availability
7
indicator, light (2) (oven and power on) WPL 4168597 Contact Us For Availability
7
Thermal Switch WPL 4173007 Contact Us For Availability
7
Oven Light Mounting Plate WPL 4164467 Contact Us For Availability
7
Light Lens Gasket WPL 4166868 Contact Us For Availability
7
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
7
air baffle top WPL 4163857 Contact Us For Availability
7
Base, Cabinet WPL 4164527 Contact Us For Availability
7
plate, latch WPL 4164490 Contact Us For Availability
8
Meat Probe Relay WPL 4163731 Contact Us For Availability
8
screw, 4-40 x 1 1/4 WPL 4173075 Contact Us For Availability
8
Glass, Oven Light WPL 4164468 Contact Us For Availability
8
Light Lens WPL 4166866 Contact Us For Availability
8
Retainer, Insulation WPL 4169357 Contact Us For Availability
8
Fuse, Monitor WPL 4164510 Contact Us For Availability
8
Knob, Timer (Rotary Control) WPL 3177122 Contact Us For Availability
8
Oven Liner (See Page 8) WPL ARI86091A9 Contact Us For Availability
8
lever, joint WPL 4164492 Contact Us For Availability
9
Switch, Selector WPL 3177174 Contact Us For Availability
9
transformer, meat WPL 4166561 Contact Us For Availability
9
Screw (3) WPL 4159445 Contact Us For Availability
9
plate, mounting WPL 4168292 Contact Us For Availability
9
Convection Airguide, Front WPL 4164449 Contact Us For Availability
9
Light Lens Retainer WPL 4167938 Contact Us For Availability
9
Bracket, Lock WPL 4163852 Contact Us For Availability
9
Holder, Fuse WPL 4164511 Contact Us For Availability
9
knob, timer (push button control) WPL 317721 Contact Us For Availability
9
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
9
catch, lower latch WPL 4164494 Contact Us For Availability
10
Thermostat WPL 4164362 Contact Us For Availability
10
Blower Assembly WPL 4168290 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Convection Air Guide, Rear WPL 4164450 Contact Us For Availability
10
Nut, Meat Probe WPL 4167277 Contact Us For Availability
10
Window Package WPL 4164235 Contact Us For Availability
10
Capacitor WPL 4164505 Contact Us For Availability
10
Nut (4) WPL 4166262 Contact Us For Availability
10
Vent Insert WPL 4168678 Contact Us For Availability
10
control panel support WPL 4169336 Contact Us For Availability
10
lever, latch release WPL 4164491 Contact Us For Availability
11
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Thermistor WPL 4164508 Contact Us For Availability
11
Probe, Jack Cover WPL 4167266 Contact Us For Availability
11
Insulation WPL 4163987 Contact Us For Availability
11
Capacitor Strap WPL 4164506 Contact Us For Availability
11
frame, control WPL 4164363 Contact Us For Availability
11
Module Air Baffle WPL 3178495 Contact Us For Availability
11
handle, door WPL 4164590 Contact Us For Availability
12
Latch Switch With Roller WPL 4168514 Contact Us For Availability
12
Lower Shaft And Mounting Plate WPL 4164452 Contact Us For Availability
12
Washer WPL 4173438 Contact Us For Availability
12
door liner WPL 3178768 Contact Us For Availability
12
Diode WPL 4164507 Contact Us For Availability
12
Top Insert WPL 4163744 Contact Us For Availability
12
Screw (5) WPL 4170323 Contact Us For Availability
12
Compartment Top WPL 4169314 Contact Us For Availability
12
rack, broiling WPL 4164435 Contact Us For Availability
13
Meat Probe Indicator WPL 4163730 Contact Us For Availability
13
Latch Switch, Normally Open WPL 4164366 Contact Us For Availability
13
Shading Cushion WPL 4164472 Contact Us For Availability
13
Nut, Hex Jam (2) WPL 4173084 Contact Us For Availability
13
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
13
Transformer WPL 4164513 Contact Us For Availability
13
glass, panel WPL 3179592 Contact Us For Availability
13
rack, baking WPL 4164434 Contact Us For Availability
14
Top, Cabinet WPL 4173445 Contact Us For Availability
14
locknut (2) WPL 4159117 Contact Us For Availability
14
Convection Fan Blade Shaft WPL 4164451 Contact Us For Availability
14
Meat Probe Jack WPL 4164293 Contact Us For Availability
14
Glass Panel WPL 4164243 Contact Us For Availability
14
Cam, Door WPL 4164553 Contact Us For Availability
14
Latch Assembly (See Pages 6 & 7) WPL ARI86092A1 Contact Us For Availability
14
wire tie, small WPL 4164519 Contact Us For Availability
15
Screw, WPL 254225 Contact Us For Availability
15
Switch, Oven Light WPL 4167332 Contact Us For Availability
15
insulator, switch (2) WPL 4163746 Contact Us For Availability
15
Upper Shaft Mounting Plate WPL 4164453 Contact Us For Availability
15
thermostat bulb clip WPL 4163275 Contact Us For Availability
15
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
15
Spacer, Door Cam WPL 4164588 Contact Us For Availability
15
Collector Box WPL 4168681 Contact Us For Availability
15
wire tie, large WPL 4164520 Contact Us For Availability
16
Pulley Fan Shaft WPL 4164456 Contact Us For Availability
16
element, support WPL 4168217 Contact Us For Availability
16
Roller, Door CAm WPL 4164554 Contact Us For Availability
17
Latch Switch WPL 4168517 Contact Us For Availability
17
Convection Airguide, Top WPL 4164457 Contact Us For Availability
17
Oven Rack WPL 4168401 Contact Us For Availability
17
screw WPL 4159330 Contact Us For Availability
17
Gasket, Window WPL 3178584 Contact Us For Availability
17
Cover, Turn- table WPL 4164518 Contact Us For Availability
17
module support assembly WPL 4173077 Contact Us For Availability
18
Nut, Tinnerman WPL 4168838 Contact Us For Availability
18
Insulator (2) WPL 4168522 Contact Us For Availability
18
Convection Fan Blade WPL 4164455 Contact Us For Availability
18
Foot, Cabinet (4) WPL 4164436 Contact Us For Availability
18
shim WPL 3178494 Contact Us For Availability
18
screw (4) WPL 4159451 Contact Us For Availability
18
Module Brace WPL 4164407 Contact Us For Availability
19
indicator, light (2) (clean and lock) WPL 4163869 Contact Us For Availability
19
Heating Element Holder WPL 4164608 Contact Us For Availability
19
Microwave Module (Complete Unit Not Available WPL ARI86093A3 Contact Us For Availability
20
screw, latch (2) lever shoulder WPL 4168579 Contact Us For Availability
20
Element, Convection Air WPL 4164459 Contact Us For Availability
20
Rotisserie Rack WPL 4168412 Contact Us For Availability
20
Module, Trim WPL 3178062 Contact Us For Availability
21
Convection Airguide End Cap WPL 4164458 Contact Us For Availability
21
Rotisserie Spear WPL 4168724 Contact Us For Availability
21
Control Frame Support WPL 4167693 Contact Us For Availability
22
screw, machine 4-40 x 1.250 (hex) WPL 4173053 Contact Us For Availability
22
Fuse, Magnetron Temperature WPL 4164512 Contact Us For Availability
22
Rotisserie Skewer WPL 4166352 Contact Us For Availability
22
Exhaust Shield WPL 4169514 Contact Us For Availability
23
Screw, Actuator Arm Shoulder WPL 4168554 Contact Us For Availability
23
Belt, Convection Fan WPL 4164517 Contact Us For Availability
23
Vent Tube Extension WPL 4168126 Contact Us For Availability
23
Vent Box WPL 4164312 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
24
Fan Motor Pulley WPL 4164516 Contact Us For Availability
24
Capillary Cover WPL 4168203 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
25
Motor, Convection Fan WPL 4164514 Contact Us For Availability
25
vent, tube WPL 4168492 Contact Us For Availability
25
Strain Relief Bushing WPL 4159030 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
26
Plate, Convection Fan Motor Mounting WPL 4164515 Contact Us For Availability
26
Gasket WPL 4163975 Contact Us For Availability
26
Meat Probe WPL 4167267 Contact Us For Availability
26
Cabinet Back Duct WPL 4164309 Contact Us For Availability
27
Spring, Damper WPL 4164440 Contact Us For Availability
27
Cabinet Side Upper WPL 4163726 Contact Us For Availability
28
nut, No.10-24 hex (3) WPL 4159109 Contact Us For Availability
28
Duct, Damper WPL 4164443 Contact Us For Availability
28
Vent Tube WPL 4168591 Contact Us For Availability
29
Screw (3) WPL 4159287 Contact Us For Availability
29
Damper WPL 4164439 Contact Us For Availability
29
upper vent retainer WPL 4168140 Contact Us For Availability
30
sleeve, insulator WPL 3178555 Contact Us For Availability
30
Seal, Damper WPL 4164442 Contact Us For Availability
30
Cabinet Side Extension WPL 4168311 Contact Us For Availability
31
bracket, switch WPL 4173521 Contact Us For Availability
31
Insulator WPL 4164445 Contact Us For Availability
31
Trim Bracket WPL 4164311 Contact Us For Availability
32
Screw (3) WPL 4169465 Contact Us For Availability
32
Bracket, Harness WPL 4173168 Contact Us For Availability
32
Insulator WPL 4164444 Contact Us For Availability
32
Intake Duct WPL 4168207 Contact Us For Availability
33
Screw WPL 4159201 Contact Us For Availability
33
knob, latch WPL 4163821 Contact Us For Availability
33
Spring, SMA WPL 4164438 Contact Us For Availability
34
Damper Shaft WPL 4164441 Contact Us For Availability
35
Motor, Cooling Fan WPL 4164523 Contact Us For Availability
35
Insulation, Rear WPL 4164192 Contact Us For Availability
36
Cooling Fan Shroud WPL 4164525 Contact Us For Availability
36
Rear Anchor WPL 4167526 Contact Us For Availability
37
Blade, Cooling Fan WPL 4164524 Contact Us For Availability
37
Cabinet Side Lower WPL 4173080 Contact Us For Availability
38
Duct, Magnetron Cooling WPL 4164526 Contact Us For Availability
38
Cam Plate, R.H. WPL 4167597 Contact Us For Availability
38
Cam Plate (L.H.) WPL 4167598 Contact Us For Availability
39
Magnetron WPL 4164509 Contact Us For Availability
39
Hinge Assembly WPL 4167596 Contact Us For Availability
40
Door Spring WPL 4173048 Contact Us For Availability
40
Tray, Turntable WPL 4164437 Contact Us For Availability
41
Coupling, Turn- table WPL 4164448 Contact Us For Availability
41
Spring, Anchor WPL 4167599 Contact Us For Availability
42
Roller, Turn- table (3) WPL 4164447 Contact Us For Availability
42
Cabinet Back WPL 4164297 Contact Us For Availability
43
Spacer, Turntable Motor WPL 4164466 Contact Us For Availability
43
cabinet suppo WPL 4163767 Contact Us For Availability
43
WPL 4163768 WPL 4163768 Contact Us For Availability
44
Plate, Turntalbe Motor Mounting WPL 4164464 Contact Us For Availability
44
WPL 4163836 WPL 4163836 Contact Us For Availability
45
Motor, Turntable WPL 4164465 Contact Us For Availability
45
WPL 4159501 WPL 4159501 Contact Us For Availability
45
WPL 4167469 WPL 4167469 Contact Us For Availability
46
Cover, Waveguide WPL 4164471 Contact Us For Availability
48
Oven Cavity WPL 4164446 Contact Us For Availability
48
WPL 4168755 WPL 4168755 Contact Us For Availability
49
Bottom, Inner Cabinet WPL 4164481 Contact Us For Availability
49
WPL 4167579 WPL 4167579 Contact Us For Availability
50
Insulation, Righ WPL 4164474 Contact Us For Availability
50
WPL 4159188 WPL 4159188 Contact Us For Availability
50
WPL 4168590 WPL 4168590 Contact Us For Availability
51
WPL 4164480 WPL 4164480 Contact Us For Availability
51
WPL 4164337 WPL 4164337 Contact Us For Availability
52
WPL 4164496 WPL 4164496 Contact Us For Availability
52
WPL 4159469 WPL 4159469 Contact Us For Availability
52
WPL 4164336 WPL 4164336 Contact Us For Availability
52
WPL 4164338 WPL 4164338 Contact Us For Availability
53
WPL 4164497 WPL 4164497 Contact Us For Availability
53
WPL 4164406 WPL 4164406 Contact Us For Availability
54
WPL 4159458 WPL 4159458 Contact Us For Availability
54
WPL 4173082 WPL 4173082 Contact Us For Availability
55
WPL 4159470 WPL 4159470 Contact Us For Availability
55
WPL 4159603 WPL 4159603 Contact Us For Availability
55
WPL 4164498 WPL 4164498 Contact Us For Availability
55
WPL 4164586 WPL 4164586 Contact Us For Availability
56
WPL 4159046 WPL 4159046 Contact Us For Availability
57
WPL 4164503 WPL 4164503 Contact Us For Availability
57
WPL 4173043 WPL 4173043 Contact Us For Availability
58
WPL 4173072 WPL 4173072 Contact Us For Availability
58
WPL 4164499 WPL 4164499 Contact Us For Availability
59
WPL 4159461 WPL 4159461 Contact Us For Availability
59
WPL 4159460 WPL 4159460 Contact Us For Availability
59
WPL 4173085 WPL 4173085 Contact Us For Availability
60
WPL 4164462 WPL 4164462 Contact Us For Availability
60
WPL 4164600 WPL 4164600 Contact Us For Availability
61
WPL 4164461 WPL 4164461 Contact Us For Availability
61
WPL 4173016 WPL 4173016 Contact Us For Availability
61
WPL 4173017 WPL 4173017 Contact Us For Availability
62
WPL 4164521 WPL 4164521 Contact Us For Availability
62
WPL 4163754 WPL 4163754 Contact Us For Availability
62
WPL 4163755 WPL 4163755 Contact Us For Availability
63
WPL 4164522 WPL 4164522 Contact Us For Availability
63
WPL 4168170 WPL 4168170 Contact Us For Availability
64
WPL 4164460 WPL 4164460 Contact Us For Availability
64
WPL 4163883 WPL 4163883 Contact Us For Availability
65
WPL 4164478 WPL 4164478 Contact Us For Availability
65
WPL 4159035 WPL 4159035 Contact Us For Availability
65
WPL 4168210 WPL 4168210 Contact Us For Availability
66
WPL 4175379 WPL 4175379 Contact Us For Availability
66
WPL 4164482 WPL 4164482 Contact Us For Availability
66
WPL 4173079 WPL 4173079 Contact Us For Availability
67
WPL 4164477 WPL 4164477 Contact Us For Availability
67
WPL 3178580 WPL 3178580 Contact Us For Availability
68
WPL 4164476 WPL 4164476 Contact Us For Availability
68
WPL 4168863 WPL 4168863 Contact Us For Availability
68
WPL 3177549 WPL 3177549 Contact Us For Availability
69
WPL 4159465 WPL 4159465 Contact Us For Availability
69
WPL 4164463 WPL 4164463 Contact Us For Availability
69
WPL 4167593 WPL 4167593 Contact Us For Availability
70
WPL 4164589 WPL 4164589 Contact Us For Availability
70
WPL 3178059 WPL 3178059 Contact Us For Availability
71
WPL 4159186 WPL 4159186 Contact Us For Availability
71
WPL 3178066 WPL 3178066 Contact Us For Availability
× ![]()
