Model Whirlpool KEMS306BWH0 – Common Parts & Diagrams
02 - MICROWAVE COMPARTMENT
01 - OVEN, LITERATURE

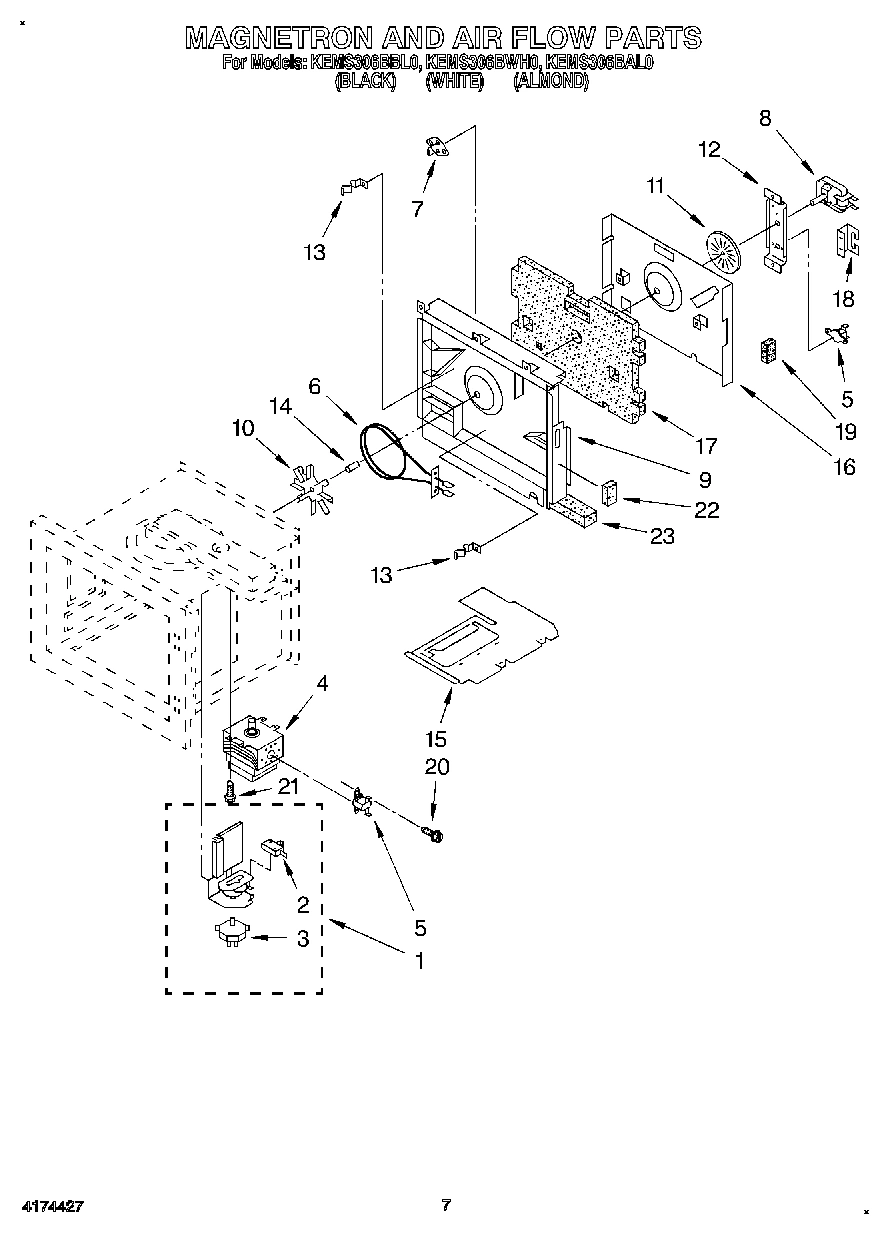

04 - MAGNETRON AND AIR FLOW

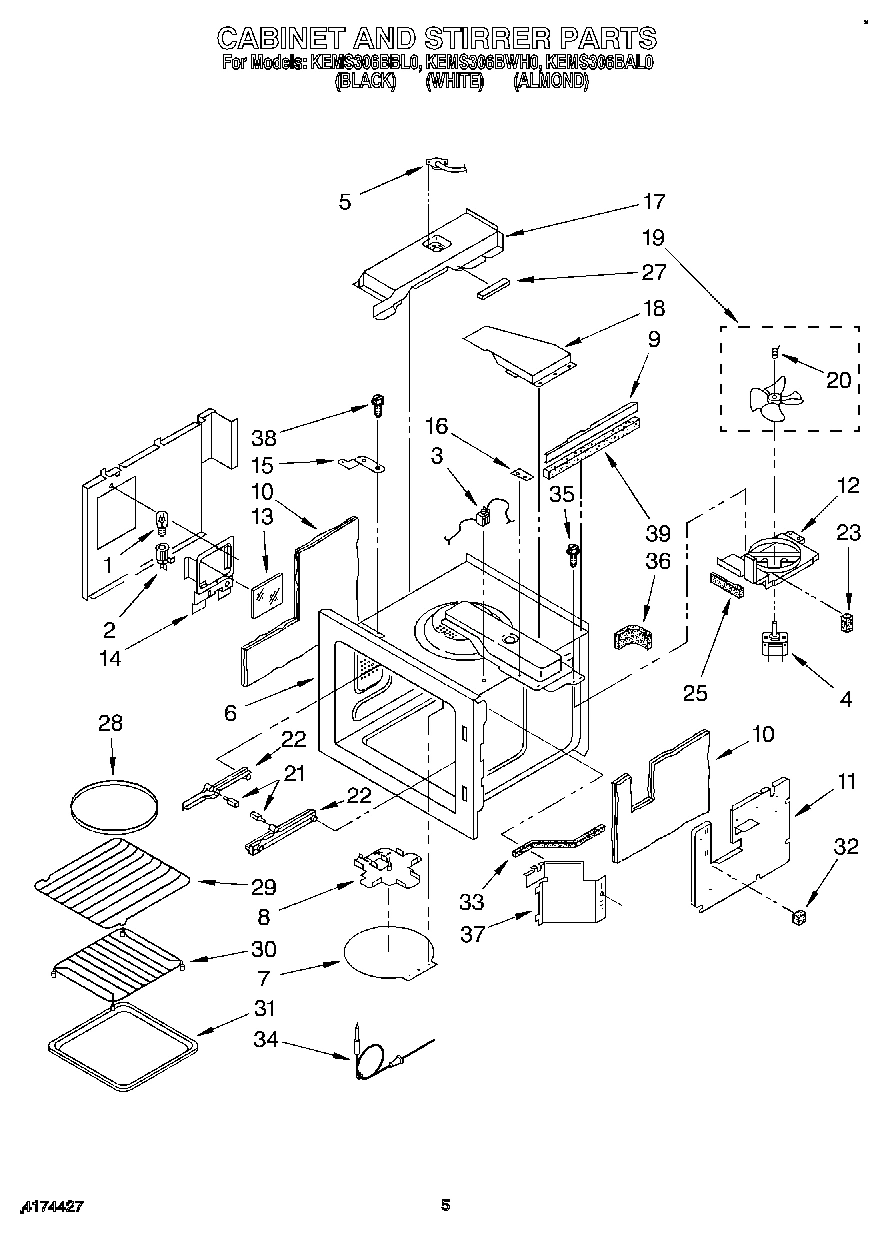

03 - CABINET AND STIRRER, OPTIONAL

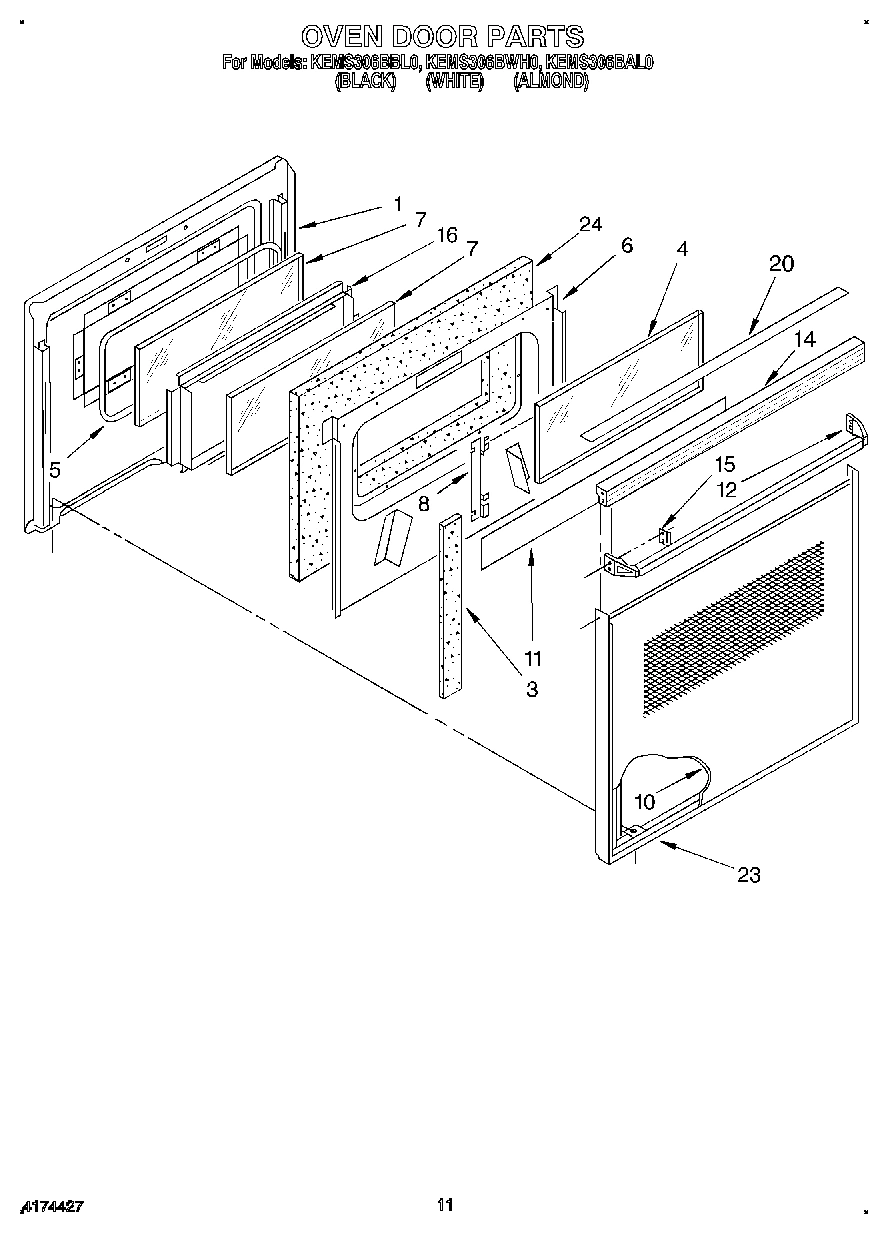

08 - OVEN DOOR

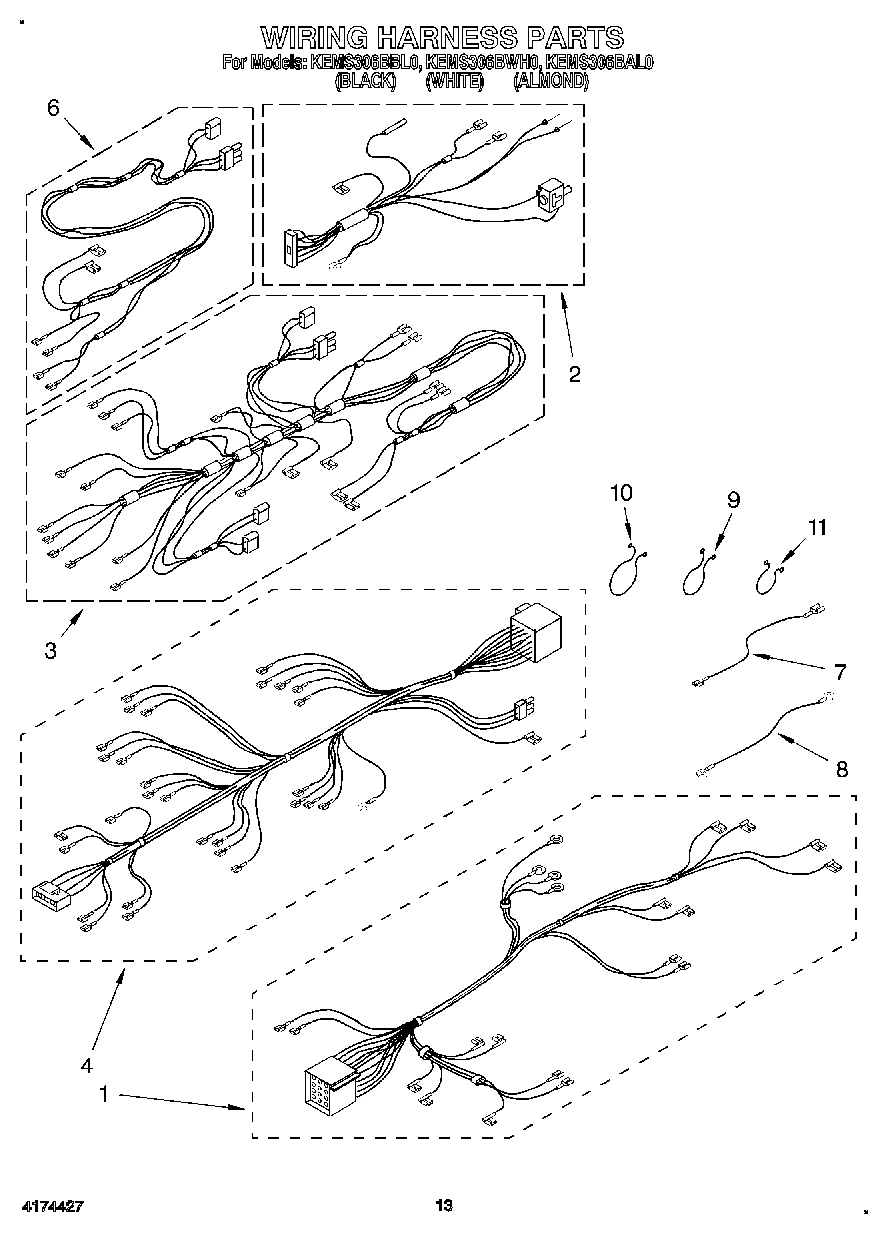

09 - WIRING HARNESS

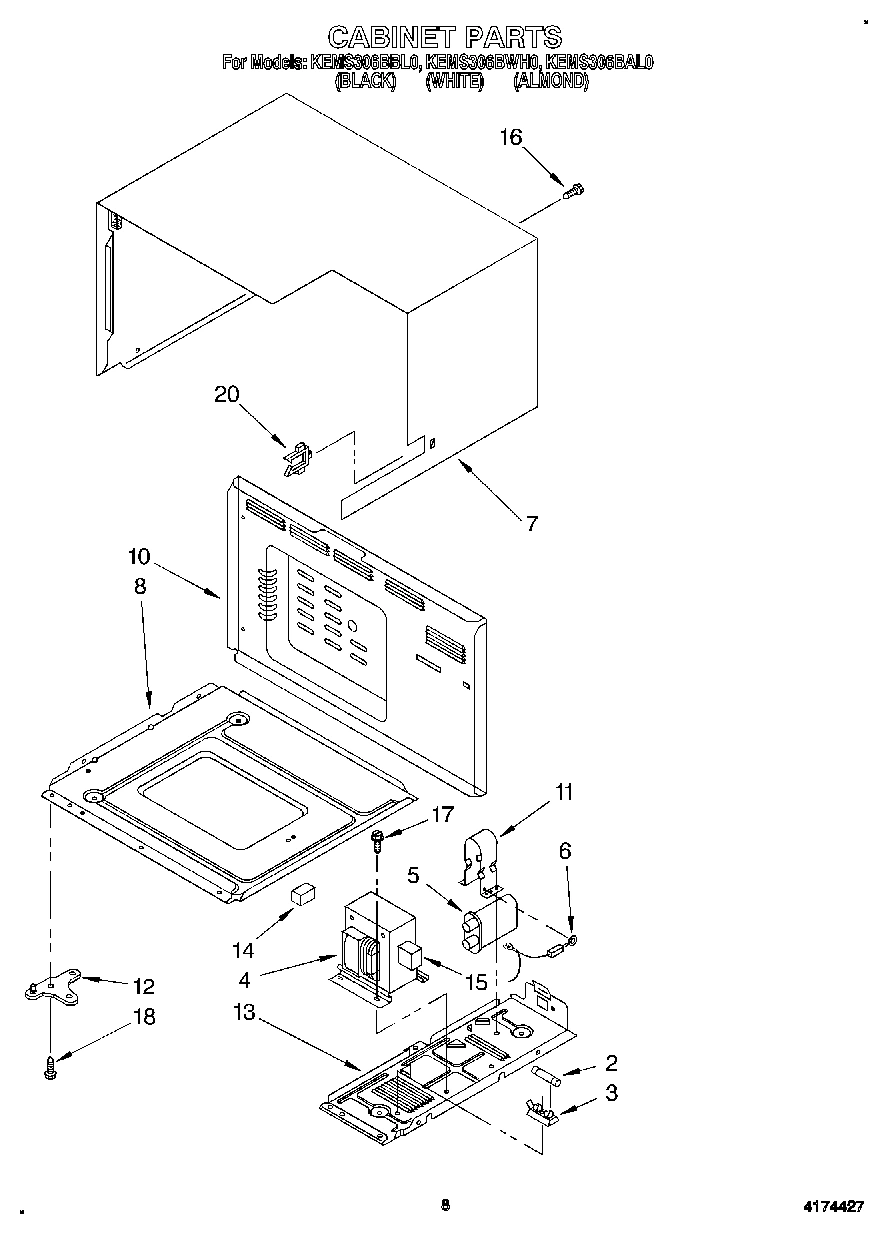

05 - CABINET

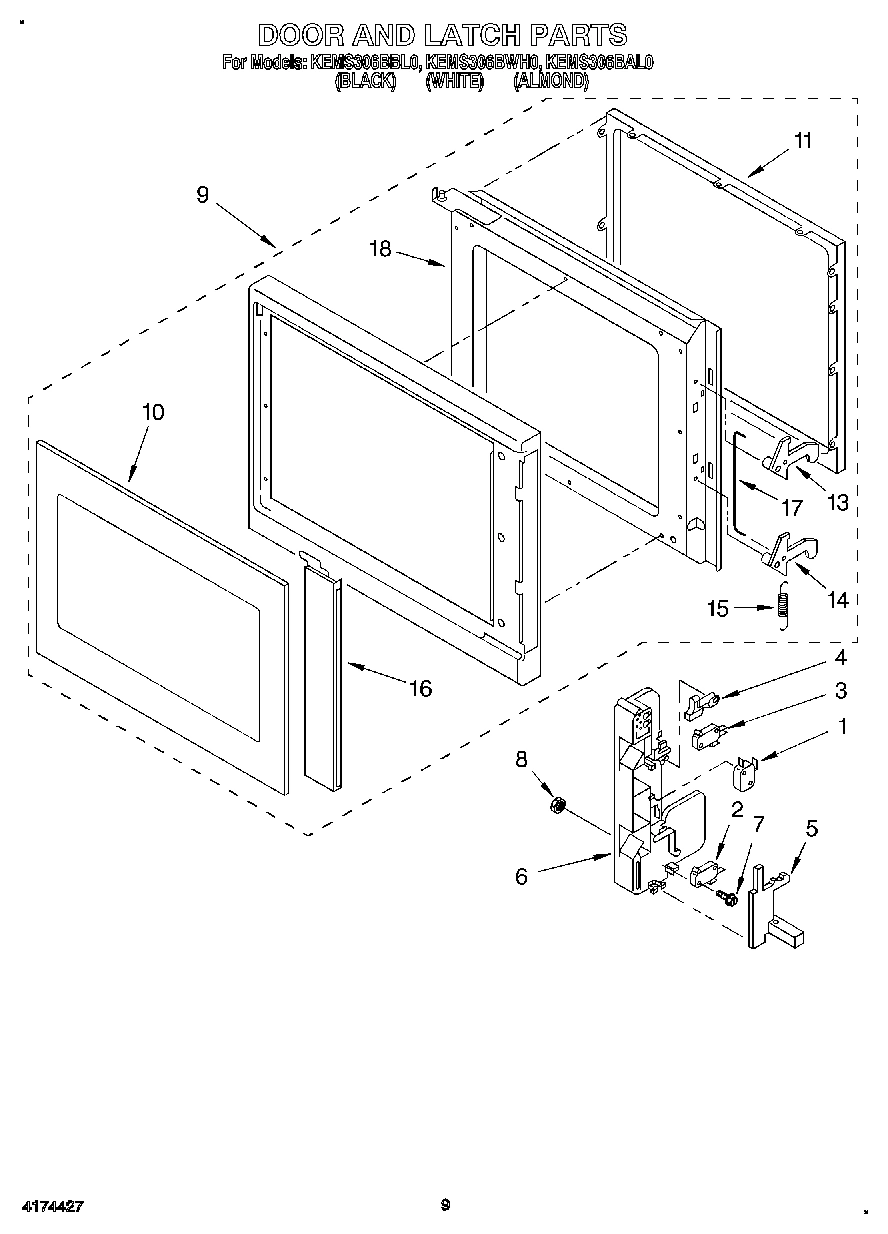

06 - DOOR AND LATCH

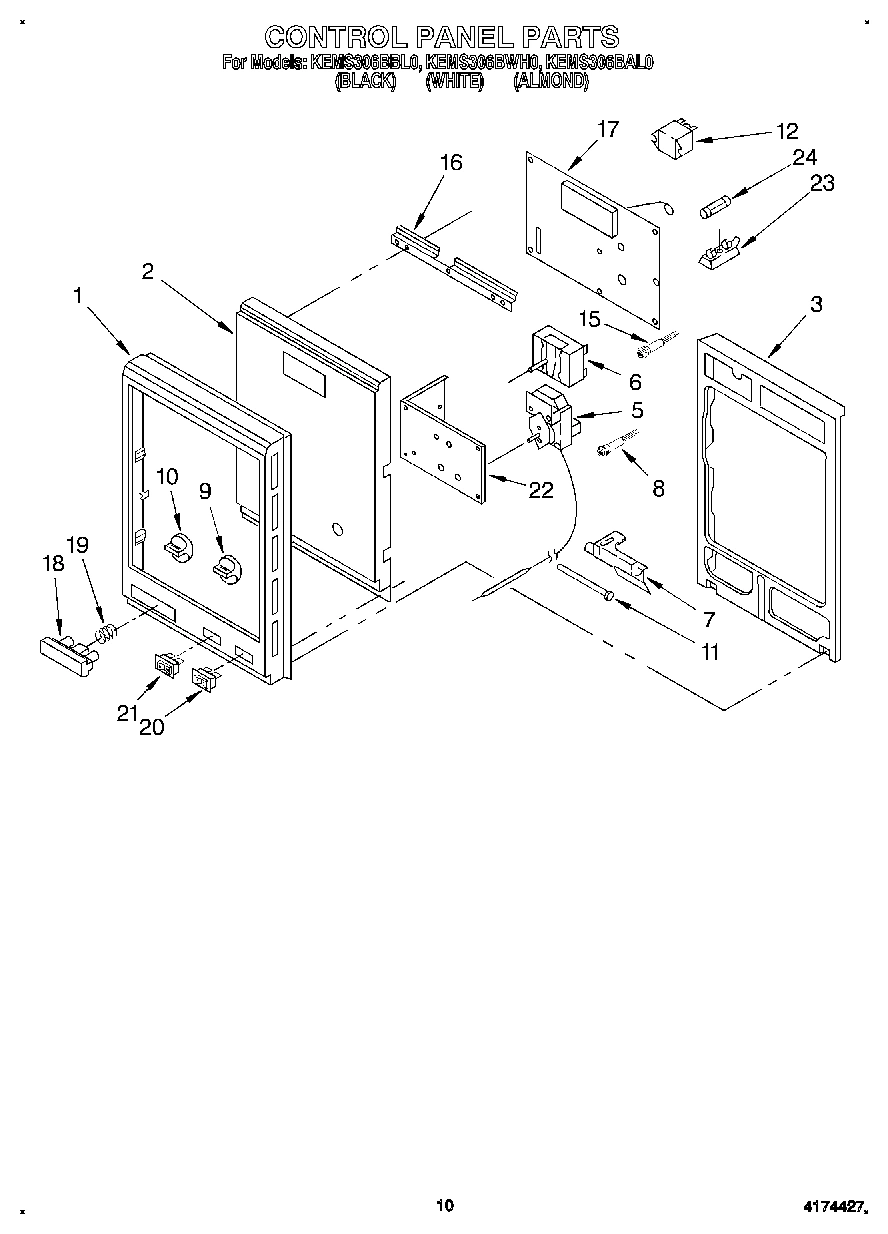

07 - CONTROL PANEL
Common parts from model Whirlpool KEMS306BWH0
WPL LIT3181679 WPL LIT3181679 Contact Us For Availability
WPL LIT3186660 WPL LIT3186660 Contact Us For Availability
WPL LIT3188186 WPL LIT3188186 Contact Us For Availability
WPL LIT3188188 WPL LIT3188188 Contact Us For Availability
WPL LIT4313007 WPL LIT4313007 Contact Us For Availability
WPL LIT4313011 WPL LIT4313011 Contact Us For Availability
WPL LIT4313012 WPL LIT4313012 Contact Us For Availability
1
Frame, Front WPL 3176705 Contact Us For Availability
1
Damper Assy. WPL 4312988 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wiring (Main Oven) WPL 3150108 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4312819 Contact Us For Availability
1
Frame, Control Panel (Screw (2)) WPL 4312921 Contact Us For Availability
1
Frame, Control Panel (Black) WPL 4312969 Contact Us For Availability
1
Frame, Control Panel (White) WPL 4312970 Contact Us For Availability
1
Frame, Control Panel (Almond) WPL 4312971 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Light Socket WPL 4174730 Contact Us For Availability
2
Harness, Wiring (Jack Assembly) WPL 4312950 Contact Us For Availability
2
Fuse, 20 Amp WPL 4312924 Contact Us For Availability
2
Switch Membrane (Control Module) (Black) WPL 4312963 Contact Us For Availability
2
Switch Membrane (Control Module) (White) WPL 4312964 Contact Us For Availability
2
Switch Membrane (Control Module) (Almond) WPL 4312965 Contact Us For Availability
2
Switch Membrane (Control Module) (Screw (2)) WPL 4357320 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Motor, Damper WPL 4312949 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Harness, Wiring (Main Microwave) WPL 4313003 Contact Us For Availability
3
Fuse Holder WPL 4312820 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 4312976 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Magnetron WPL 4312833 Contact Us For Availability
4
Motor, Fan Cooling WPL 4312829 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Harness, Wiring (Upper, Wire) WPL 3186662 Contact Us For Availability
4
Transformer WPL 4312952 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
5
Seal, Door WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Thermal Protector (2) WPL 4312830 Contact Us For Availability
5
Sensor Assy. WPL 4312925 Contact Us For Availability
5
Capacitor WPL 4312831 Contact Us For Availability
5
Latch Lever WPL 4312878 Contact Us For Availability
5
Thermostat WPL 3185629 Contact Us For Availability
5
Screw WPL 3186941 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
6
Heating Element WPL 4312951 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI85929A4 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Harness, Wire (Base Plate) WPL 4313004 Contact Us For Availability
6
Rectifier WPL 4312953 Contact Us For Availability
6
Latch Hook WPL 4312879 Contact Us For Availability
6
Switch, Selector WPL 3178238 Contact Us For Availability
6
Screw WPL 3186940 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Thermistor WPL 4312824 Contact Us For Availability
7
Stirrer Cover Assy. WPL 4312978 Contact Us For Availability
7
Wire, Jumper WPL 4313005 Contact Us For Availability
7
Seal, Foam WPL 313756 Contact Us For Availability
7
Outer Cabinet WPL 4312955 Contact Us For Availability
7
Screw WPL 4312917 Contact Us For Availability
7
Lever, Open WPL 4312853 Contact Us For Availability
8
Seal, Door WPL 3185197 Contact Us For Availability
8
Motor, Fan (Convection) WPL 4312828 Contact Us For Availability
8
Stirrer Fan Assy. WPL 4312857 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
8
Wire, Ground WPL 4312912 Contact Us For Availability
8
Seal, Foam WPL 313757 Contact Us For Availability
8
Cabinet Base WPL 4312956 Contact Us For Availability
8
Nut WPL 4312923 Contact Us For Availability
8
Light, Indictor WPL 3147517 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Heater Duct Assy. WPL 4312835 Contact Us For Availability
9
Support, Chassis WPL 4312858 Contact Us For Availability
9
Clip, Harness WPL 4313010 Contact Us For Availability
9
Door, Complete (Black) WPL 4312996 Contact Us For Availability
9
Door, Complete (White) WPL 4312997 Contact Us For Availability
9
Door, Complete (Almond) WPL 4312998 Contact Us For Availability
9
Knob, Control Adjustable WPL 3149106 Contact Us For Availability
10
Side Trim (Black Model, LH) WPL 3149236 Contact Us For Availability
10
Side Trim (Black Model, RH) WPL 3149237 Contact Us For Availability
10
Side Trim (Almond Model, RH) WPL 3187907 Contact Us For Availability
10
Side Trim (Almond Model, LH) WPL 3187913 Contact Us For Availability
10
Side Trim (White Model, LH) WPL 3188823 Contact Us For Availability
10
Side Trim (White Model, RH) WPL 3188824 Contact Us For Availability
10
Fan Blade (Convection) WPL 4312984 Contact Us For Availability
10
Insulation (L.H.) WPL 4312859 Contact Us For Availability
10
Insulation (R.H.) WPL 4312886 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3150347 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3150348 Contact Us For Availability
10
Clip, Harness WPL 4313009 Contact Us For Availability
10
Cabinet Rear WPL 4312957 Contact Us For Availability
10
Panel, Glass (Black) WPL 4312993 Contact Us For Availability
10
Panel, Glass (White) WPL 4312994 Contact Us For Availability
10
Panel, Glass (Almond) WPL 4312995 Contact Us For Availability
10
Knob, Control WPL 3149116 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Fan Blade (Reflection) WPL 4312837 Contact Us For Availability
11
Panel, Oven Cavity (L.H.) WPL 4312860 Contact Us For Availability
11
Panel, Oven Cavity (R.H.) WPL 4312883 Contact Us For Availability
11
Screw (2) WPL 247326 Contact Us For Availability
11
Foil WPL 3188706 Contact Us For Availability
11
Clip, harness WPL 4313008 Contact Us For Availability
11
Capacitor Holder WPL 4312844 Contact Us For Availability
11
Retainer Ring WPL 4312898 Contact Us For Availability
11
Shaft, Opener WPL 4312854 Contact Us For Availability
12
Handle, Door (Screw, Black) WPL 3149333 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Plate, Motor Mounting WPL 4312985 Contact Us For Availability
12
Stirrer Fan Duct WPL 4312981 Contact Us For Availability
12
Handle, Door (Screw) WPL 3149253 Contact Us For Availability
12
Handle, Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Door (White) WPL 3186525 Contact Us For Availability
12
Handle, Door (Almond) WPL 3186526 Contact Us For Availability
12
Lower Hinge WPL 4312931 Contact Us For Availability
12
Relay, Power WPL 3185879 Contact Us For Availability
13
Clip, Element (2) WPL 4312880 Contact Us For Availability
13
Glass, Oven Light WPL 4312862 Contact Us For Availability
13
Extension, Cabinet Base WPL 4313023 Contact Us For Availability
13
Upper Latch WPL 4312900 Contact Us For Availability
14
Collar WPL 4312986 Contact Us For Availability
14
Mounting Plate, Oven Light WPL 4312863 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Door, Top (Almond Model) WPL 3149355 Contact Us For Availability
14
Block, Foam WPL 4312960 Contact Us For Availability
14
Lower Latch WPL 4312901 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Brace, Bottom WPL 3182347 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Plate, Protector WPL 4312987 Contact Us For Availability
15
Upper Hinge WPL 4312980 Contact Us For Availability
15
Vibration Block WPL 4313022 Contact Us For Availability
15
Spring, Latch WPL 4312902 Contact Us For Availability
15
Screw (4) WPL 313818 Contact Us For Availability
15
Light, Indicator (2) WPL 3149034 Contact Us For Availability
16
Rail, Chassis WPL 3150513 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Plate, Thermal Protector WPL 4312884 Contact Us For Availability
16
Divider Plate WPL 4312865 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Screw (9) WPL 4312913 Contact Us For Availability
16
Cover, Frame (Black) WPL 4312999 Contact Us For Availability
16
Cover, Frame (White) WPL 4313000 Contact Us For Availability
16
Cover, Frame (Almond) WPL 4313001 Contact Us For Availability
16
Screw (3) WPL 4174838 Contact Us For Availability
16
Bracket, Mounting WPL 4312977 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Insulation WPL 4312885 Contact Us For Availability
17
Exhaust Duct Assy. WPL 4312868 Contact Us For Availability
17
Screw (2) WPL 4312914 Contact Us For Availability
17
Shaft, Latch WPL 4312904 Contact Us For Availability
17
Microcomputer WPL 4312962 Contact Us For Availability
17
Screw (8) WPL 4313632 Contact Us For Availability
18
Side Panel, R.H. WPL 3186987 Contact Us For Availability
18
Cover, Thermal Protector WPL 4312887 Contact Us For Availability
18
Cooling Duct Magnetron WPL 4312979 Contact Us For Availability
18
Screw (3) WPL 4312915 Contact Us For Availability
18
Liner, Door WPL 4312896 Contact Us For Availability
18
Button, Open (Black) WPL 4312972 Contact Us For Availability
18
Button, Open (White) WPL 4312973 Contact Us For Availability
18
Button, Open (Almond) WPL 4312974 Contact Us For Availability
19
Retainer, Insulation WPL 3150510 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Foam Block WPL 4312890 Contact Us For Availability
19
Fan Blade Assy. WPL 4312983 Contact Us For Availability
19
Spring, Button WPL 4312975 Contact Us For Availability
20
Insulation WPL 3150652 Contact Us For Availability
20
Screw (2) WPL 4312919 Contact Us For Availability
20
Clip, Retainer WPL 4312872 Contact Us For Availability
20
Cap, Top (White Model) WPL 3188825 Contact Us For Availability
20
Cap, Top (Black Model) WPL 3181366 Contact Us For Availability
20
Cap, Top (Almond Model) WPL 3188375 Contact Us For Availability
20
Holder, Wire WPL 4313006 Contact Us For Availability
21
Screw WPL 307831 Contact Us For Availability
21
Screw (2) WPL 309100 Contact Us For Availability
21
Panel, Top WPL 3147499 Contact Us For Availability
21
Plastic Screw WPL 4312874 Contact Us For Availability
22
Bushing, Snap WPL 3147647 Contact Us For Availability
22
Foam Block WPL 4312991 Contact Us For Availability
22
Rack Support (L.H.) WPL 4312875 Contact Us For Availability
22
Rack Support (R.H.) WPL 4312876 Contact Us For Availability
22
Bracket, Control Mounting WPL 3150124 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
23
Seal, Foam WPL 4312990 Contact Us For Availability
23
Block, Foam WPL 4312892 Contact Us For Availability
23
Frame, Door (Black Model) WPL 3171530 Contact Us For Availability
23
Frame, Door (Almond Model) WPL 3187921 Contact Us For Availability
23
Frame, Door (White Model) WPL 3187922 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Smoke Eliminator WPL 3186684 Contact Us For Availability
24
Insulation, Door WPL 3147951 Contact Us For Availability
25
screw (2) WPL 254225 Contact Us For Availability
25
Support, Vent Tube WPL 3187423 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Block, Foam WPL 4312888 Contact Us For Availability
26
Baffle, Bottom WPL 3150511 Contact Us For Availability
27
Protector, Edge WPL 3147757 Contact Us For Availability
27
Unit, Broil (240V) WPL 3182451 Contact Us For Availability
27
Block, Foam WPL 4312895 Contact Us For Availability
28
Cookie Sheet WPL 4313002 Contact Us For Availability
29
Frame, Outer (Black Model) WPL 3188364 Contact Us For Availability
29
Frame, Outer (Almond Model) WPL 3188366 Contact Us For Availability
29
Frame, WPL 3188930 Contact Us For Availability
29
Rack (Upper) WPL 4312906 Contact Us For Availability
30
Rack (Lower) WPL 4312907 Contact Us For Availability
31
Bracket, Element WPL 3180694 Contact Us For Availability
31
Tray, Cooking WPL 4312908 Contact Us For Availability
32
Block, Foam WPL 4312989 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
33
Block, Foam WPL 4312894 Contact Us For Availability
34
WPL 3186981 WPL 3186981 Contact Us For Availability
34
Safety Switch WPL 3186934 Contact Us For Availability
34
Temperature Probe Assembly WPL 4312954 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
35
Screw WPL 4312916 Contact Us For Availability
36
Screw (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
36
Block, Foam WPL 4312889 Contact Us For Availability
37
WPL 3147750 WPL 3147750 Contact Us For Availability
37
Screw (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
37
Magnetron Duct Assembly WPL 4312982 Contact Us For Availability
38
WPL 3147595 WPL 3147595 Contact Us For Availability
38
WPL 3184861 WPL 3184861 Contact Us For Availability
38
Screw WPL 3183294 Contact Us For Availability
38
Knob, Latch Handle WPL 3184039 Contact Us For Availability
38
Screw (2) WPL 4314918 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
39
WPL 799344 WPL 799344 Contact Us For Availability
39
WPL 3147596 WPL 3147596 Contact Us For Availability
39
WPL 3184862 WPL 3184862 Contact Us For Availability
39
Screw (2) WPL 98106 Contact Us For Availability
39
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
39
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
39
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
39
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
39
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
39
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
39
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
39
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
39
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
39
Blue 16 Ga. 80~c Rating WPL 242829 Contact Us For Availability
39
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
39
Yellow 14 Ga. 200~c Rating WPL 242832 Contact Us For Availability
39
WPL 261890 WPL 261890 Contact Us For Availability
39
WPL 261891 WPL 261891 Contact Us For Availability
39
WPL 285365 WPL 285365 Contact Us For Availability
39
WPL 285366 WPL 285366 Contact Us For Availability
39
WPL 285367 WPL 285367 Contact Us For Availability
39
WPL 285368 WPL 285368 Contact Us For Availability
39
WPL 350806 WPL 350806 Contact Us For Availability
39
WPL 350941 WPL 350941 Contact Us For Availability
39
WPL 4312992 WPL 4312992 Contact Us For Availability
39
WPL 591014 WPL 591014 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 786020 WPL 786020 Contact Us For Availability
39
WPL 786032 WPL 786032 Contact Us For Availability
39
WPL 799832 WPL 799832 Contact Us For Availability
39
WPL 832985 WPL 832985 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
40
Screw WPL 3150532 Contact Us For Availability
40
Plate WPL 3183005 Contact Us For Availability
42
WPL 3150131 WPL 3150131 Contact Us For Availability
42
WPL 3150133 WPL 3150133 Contact Us For Availability
43
WPL 313758 WPL 313758 Contact Us For Availability
43
WPL 3180022 WPL 3180022 Contact Us For Availability
45
WPL 3184208 WPL 3184208 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 3150349 WPL 3150349 Contact Us For Availability
47
WPL 3150350 WPL 3150350 Contact Us For Availability
47
WPL 3150351 WPL 3150351 Contact Us For Availability
48
WPL 3150107 WPL 3150107 Contact Us For Availability
49
WPL 3179672 WPL 3179672 Contact Us For Availability
50
WPL 4163975 WPL 4163975 Contact Us For Availability
51
WPL 4167266 WPL 4167266 Contact Us For Availability
52
WPL 3182052 WPL 3182052 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 3185945 WPL 3185945 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3185960 WPL 3185960 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
65
WPL 309080 WPL 309080 Contact Us For Availability
65
WPL 3149142 WPL 3149142 Contact Us For Availability
65
WPL 3149271 WPL 3149271 Contact Us For Availability
66
WPL 3148669 WPL 3148669 Contact Us For Availability
67
WPL 307748 WPL 307748 Contact Us For Availability
67
WPL 3147864 WPL 3147864 Contact Us For Availability
68
WPL 4167277 WPL 4167277 Contact Us For Availability
69
WPL 3150144 WPL 3150144 Contact Us For Availability
69
WPL 310433 WPL 310433 Contact Us For Availability
69
WPL 310435 WPL 310435 Contact Us For Availability
69
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
