Model Whirlpool KEMI371TBL2 – Common Parts & Diagrams

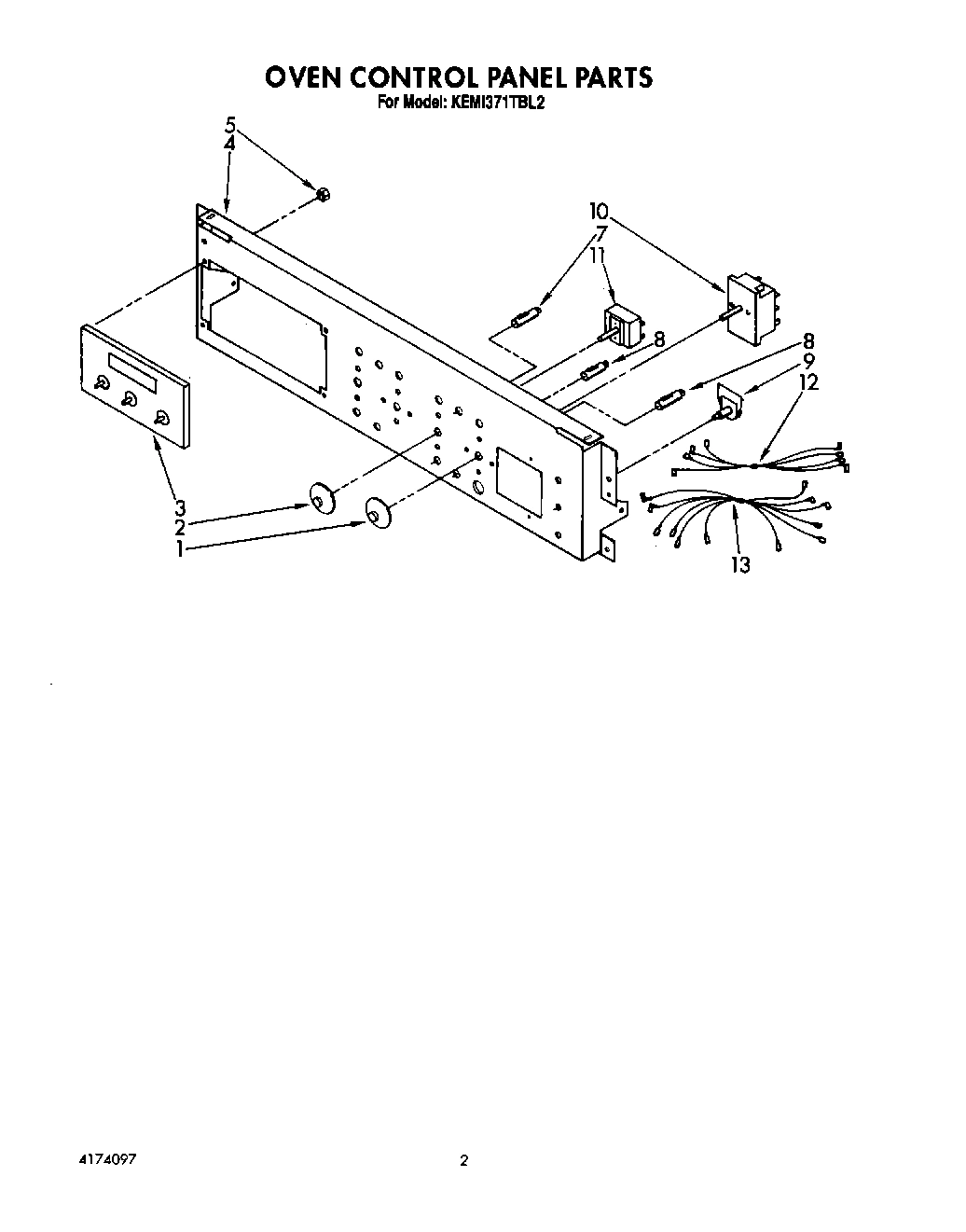

02 - OVEN CONTROL PANEL , LITERATURE

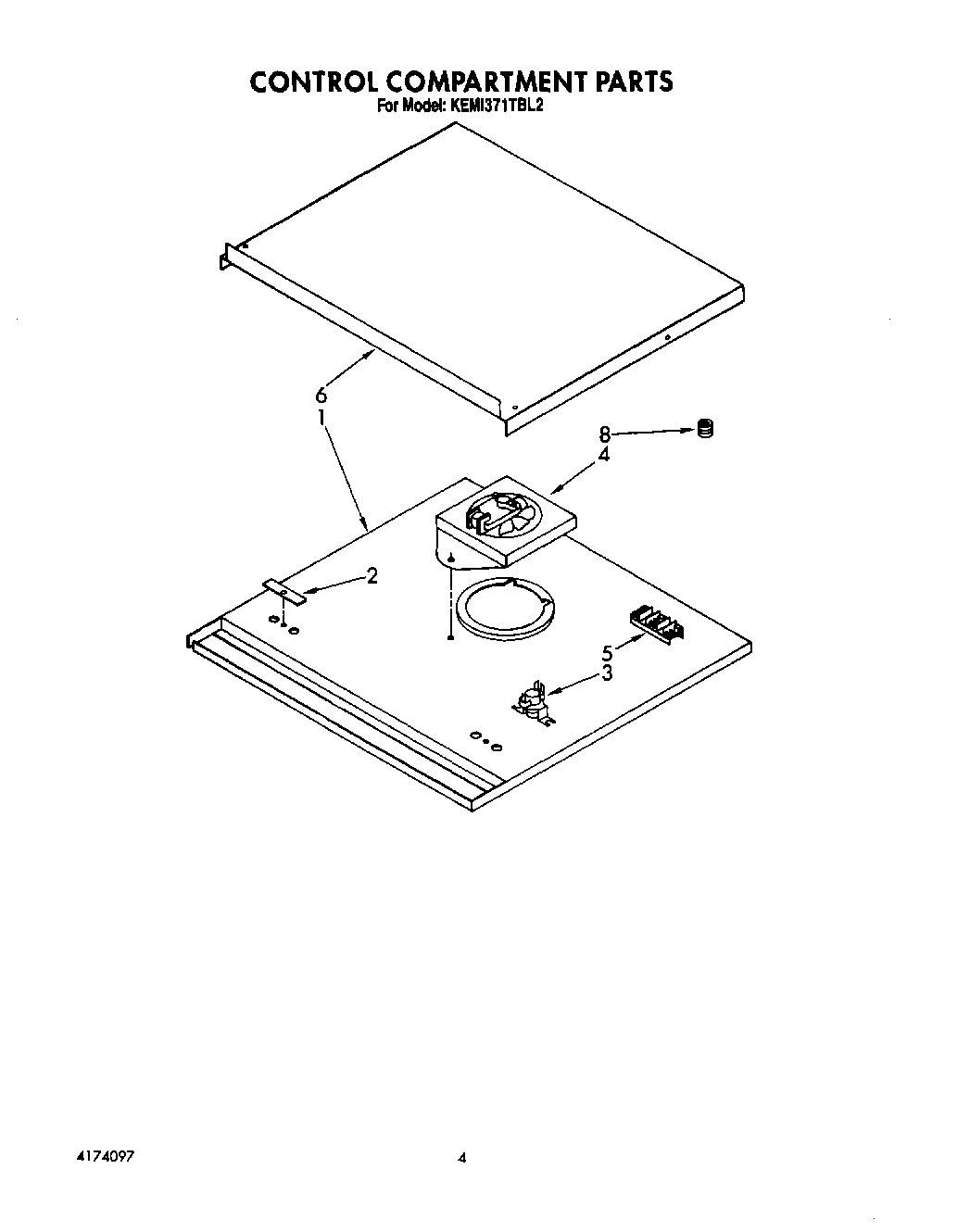

04 - CONTROL COMPARTMENT

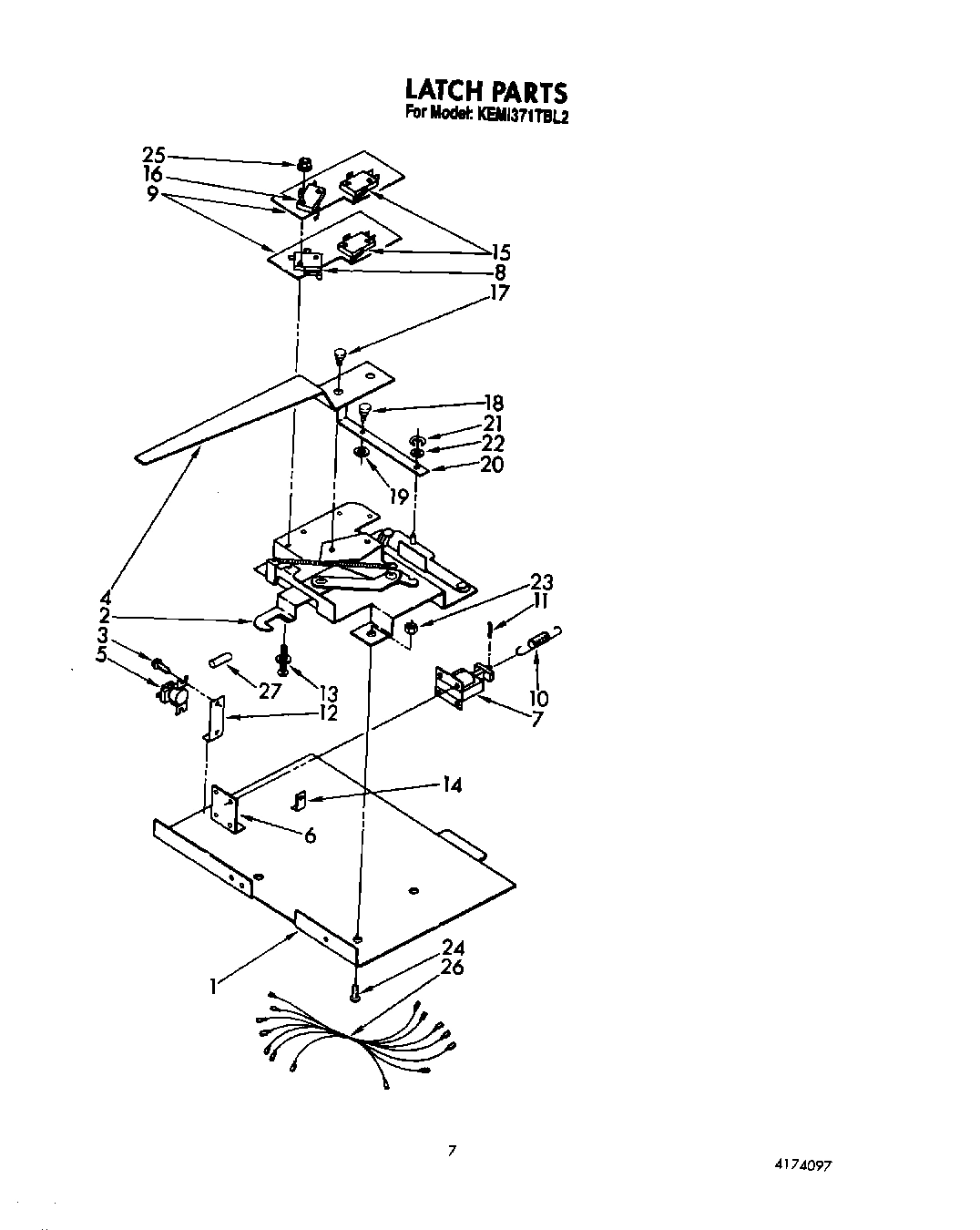

07 - LATCH

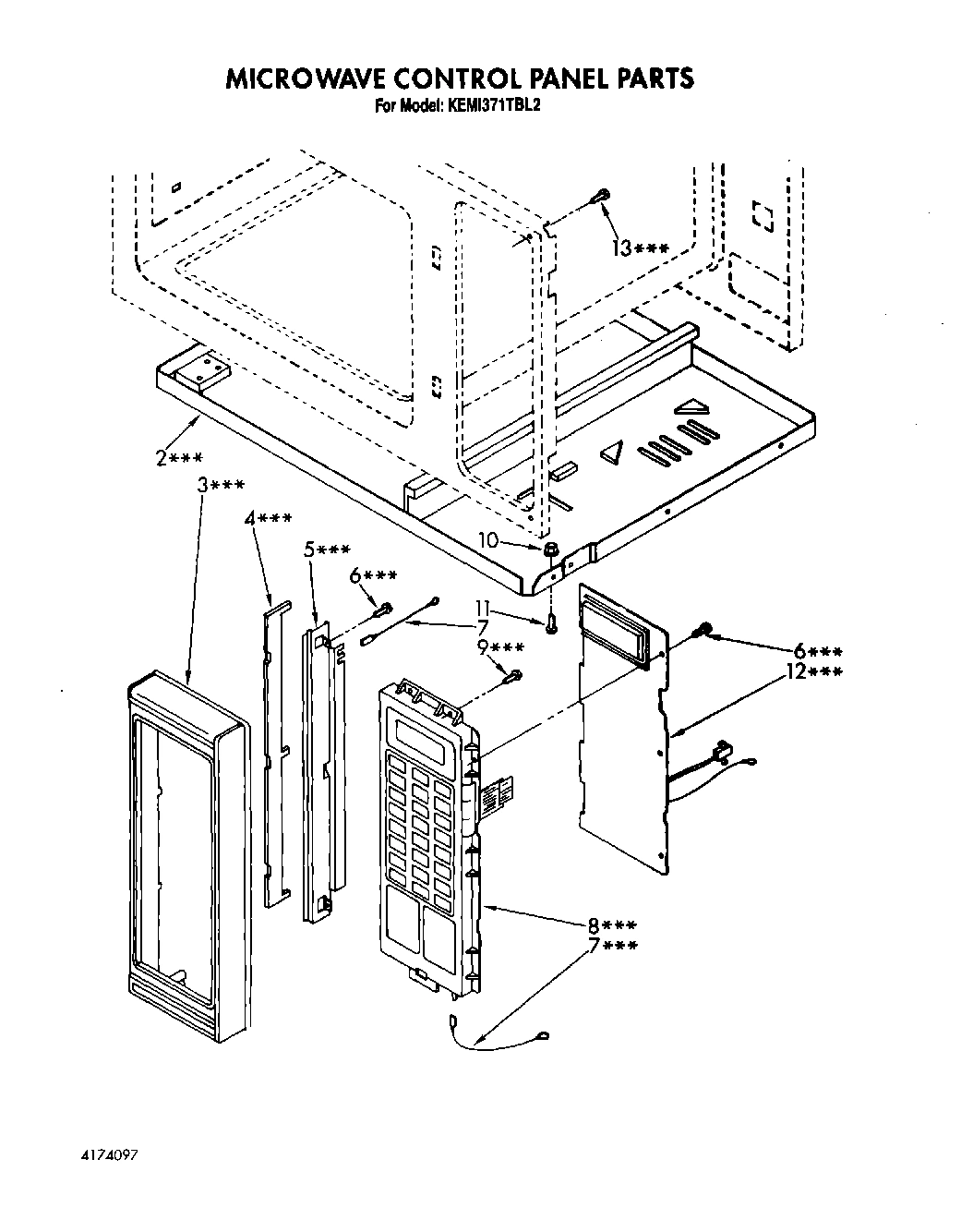

12 - MICROWAVE CONTROL PANEL

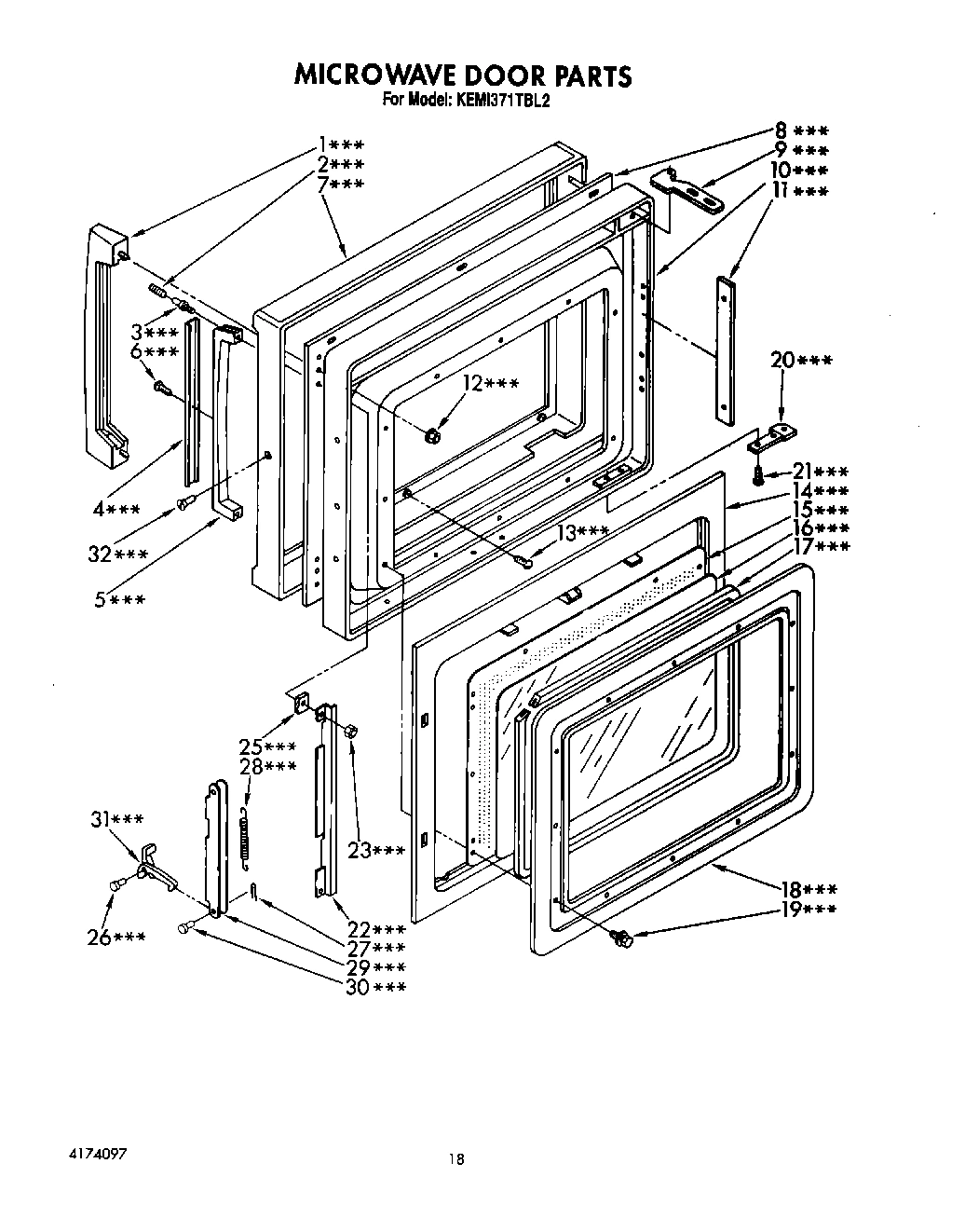

13 - MICROWAVE DOOR

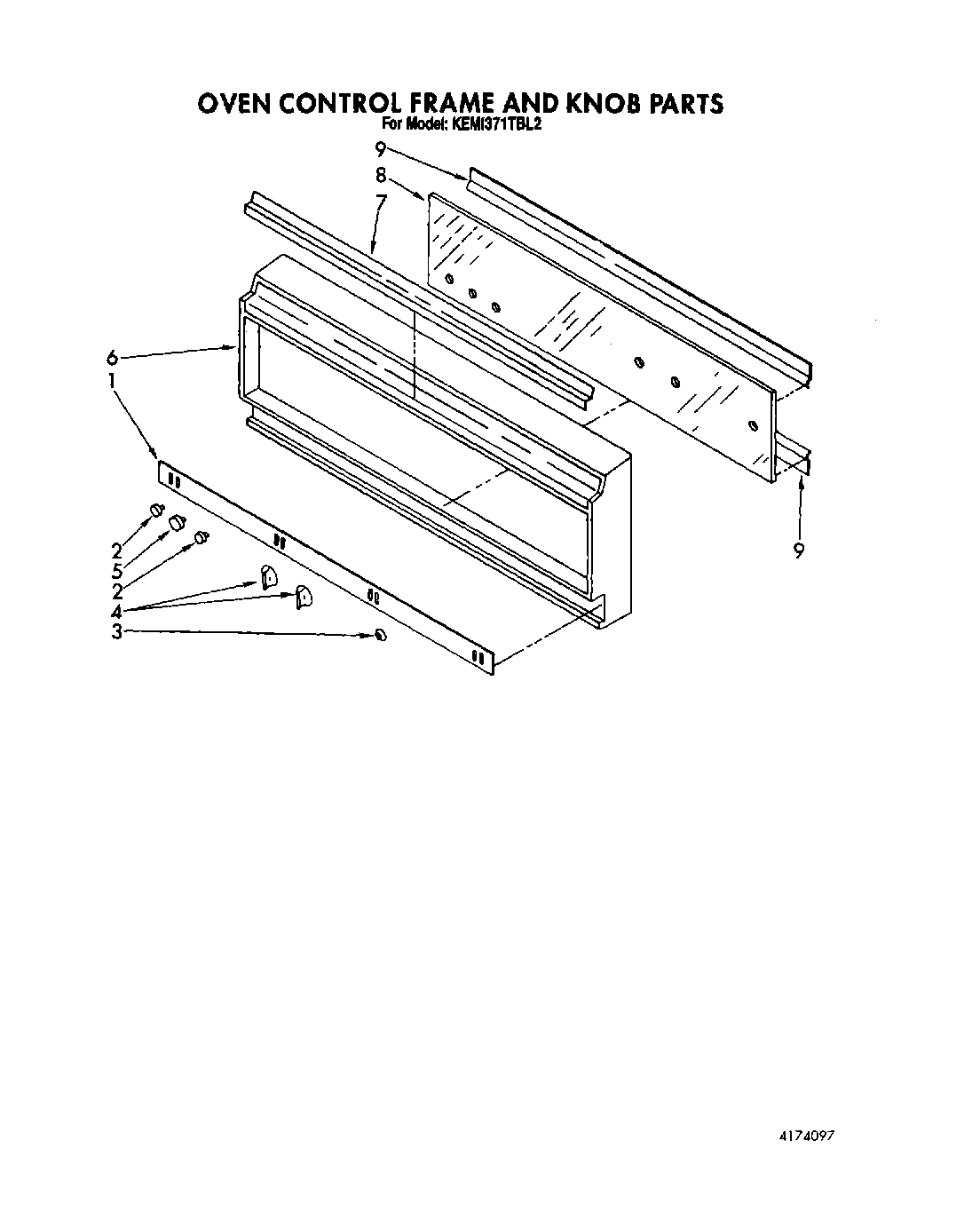

03 - OVEN CONTROL FRAME AND KNOB

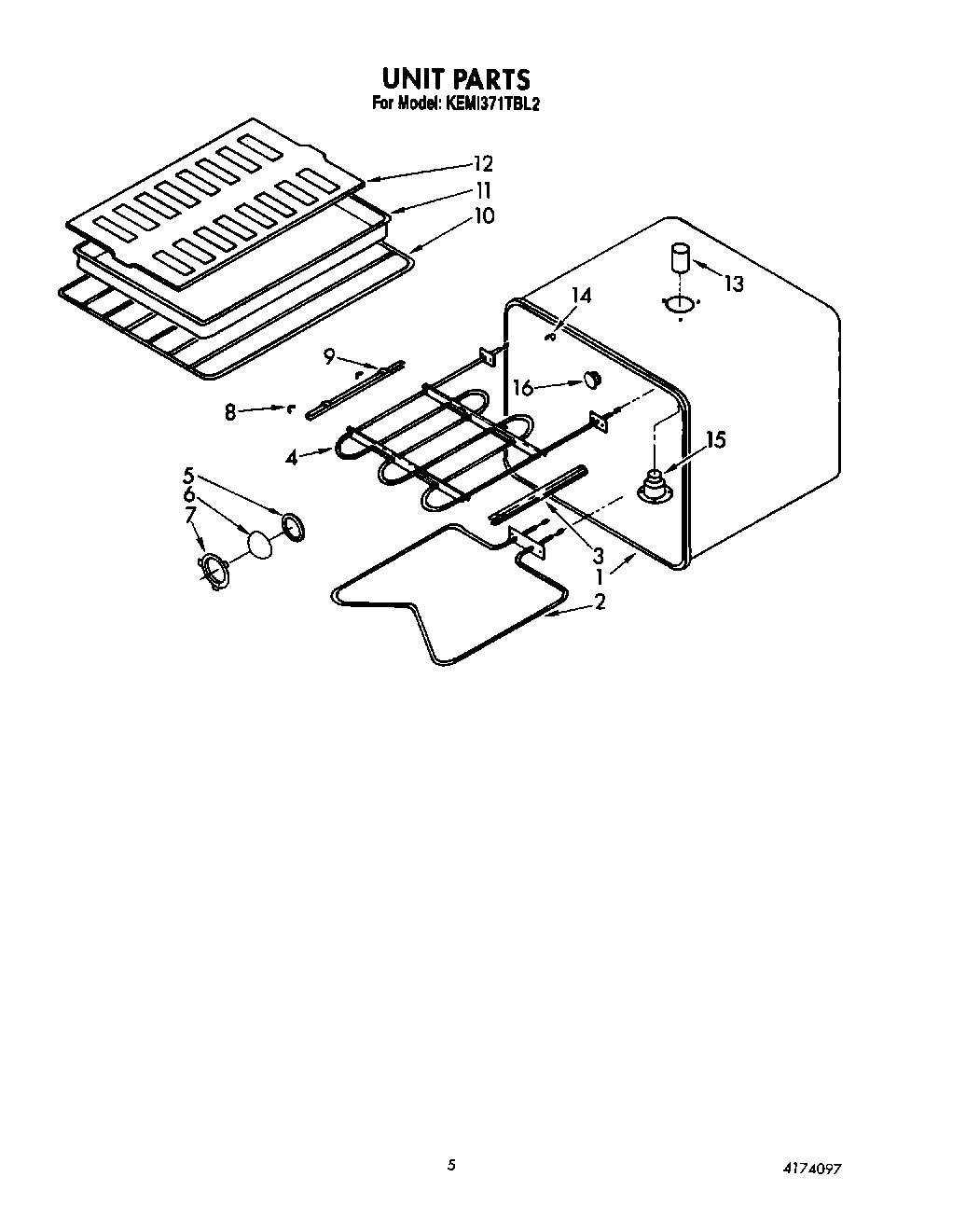

05 - UNIT

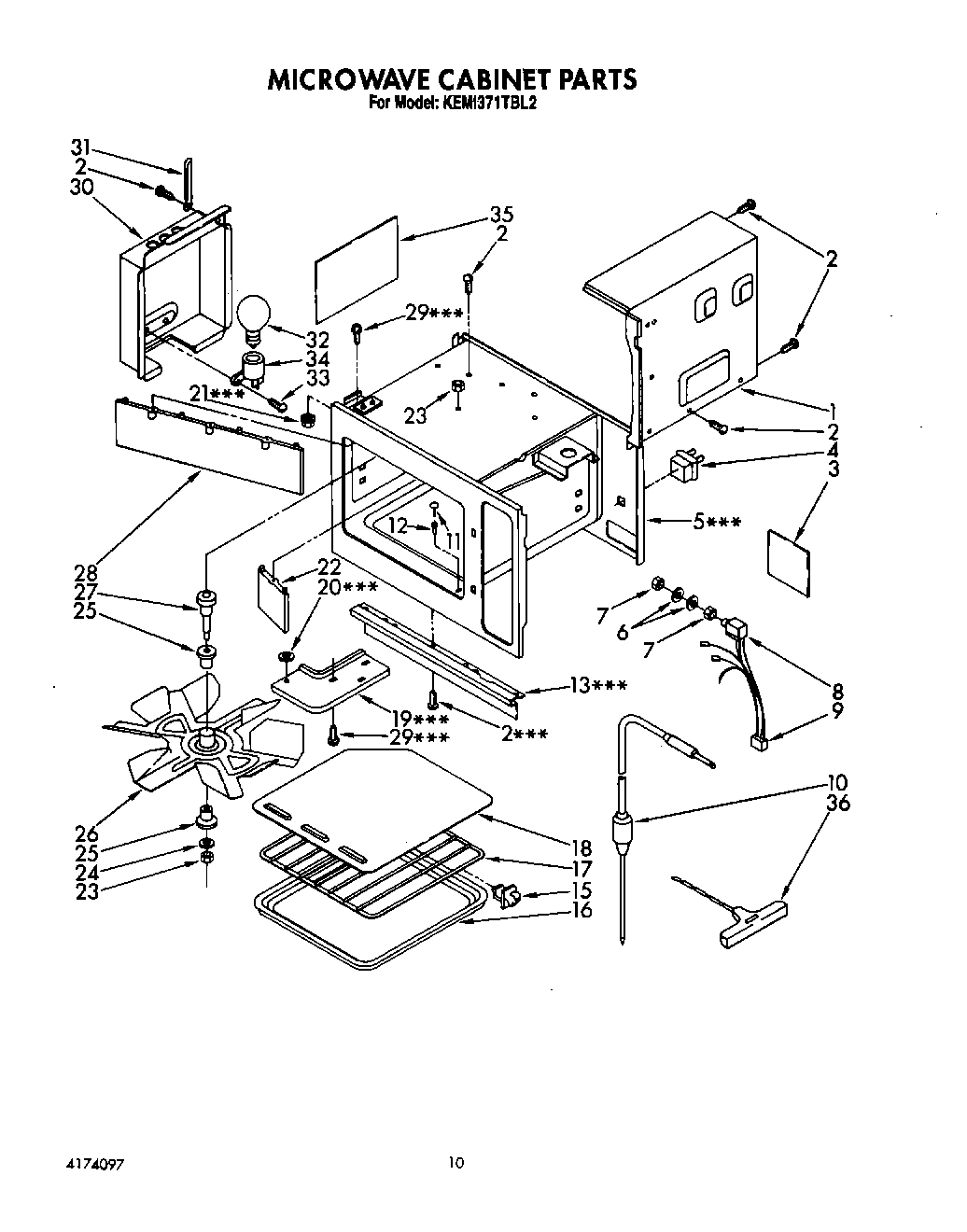

09 - MICROWAVE CABINET

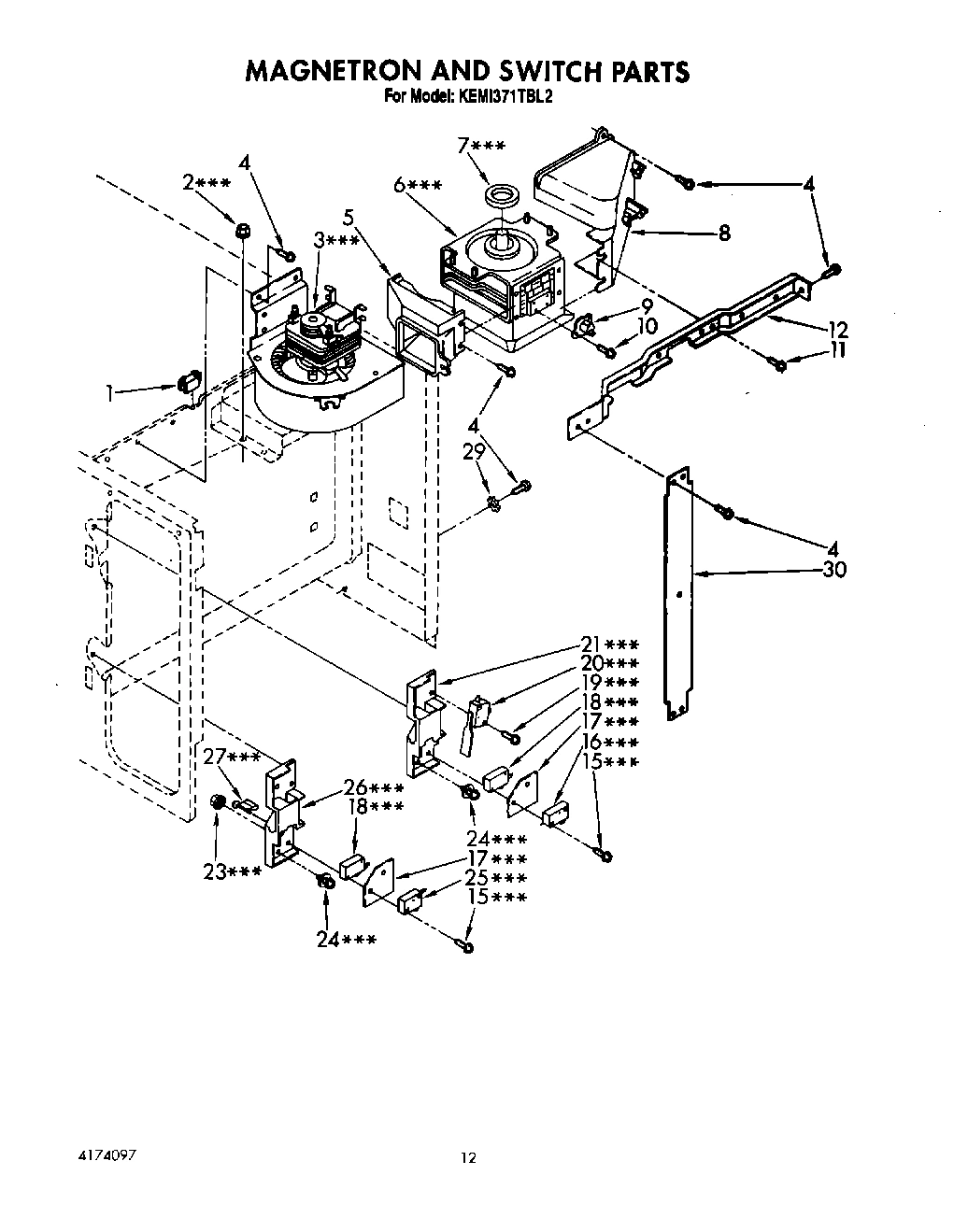

10 - MAGNETRON AND SWITCH

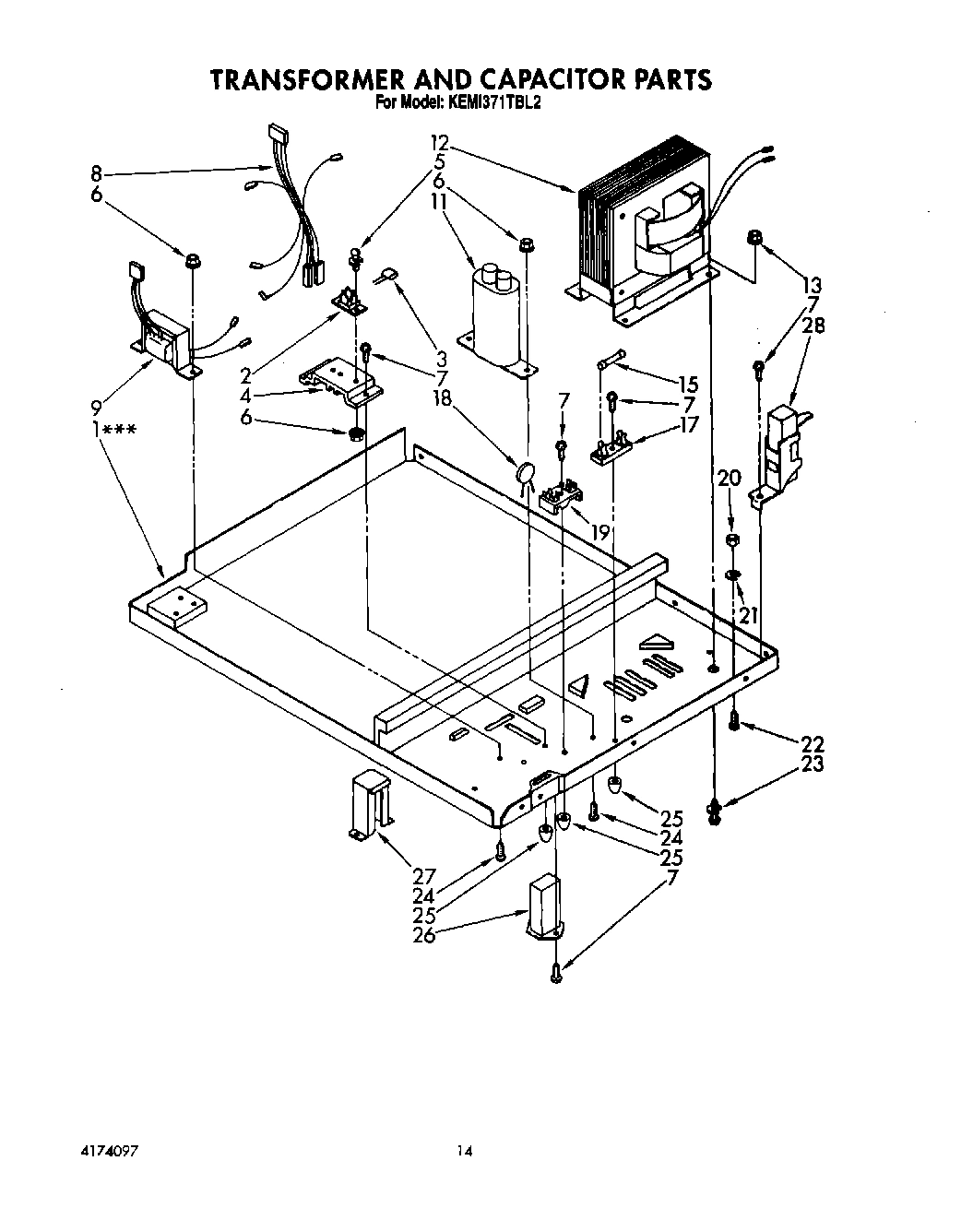

11 - TRANSFORMER AND CAPACITOR

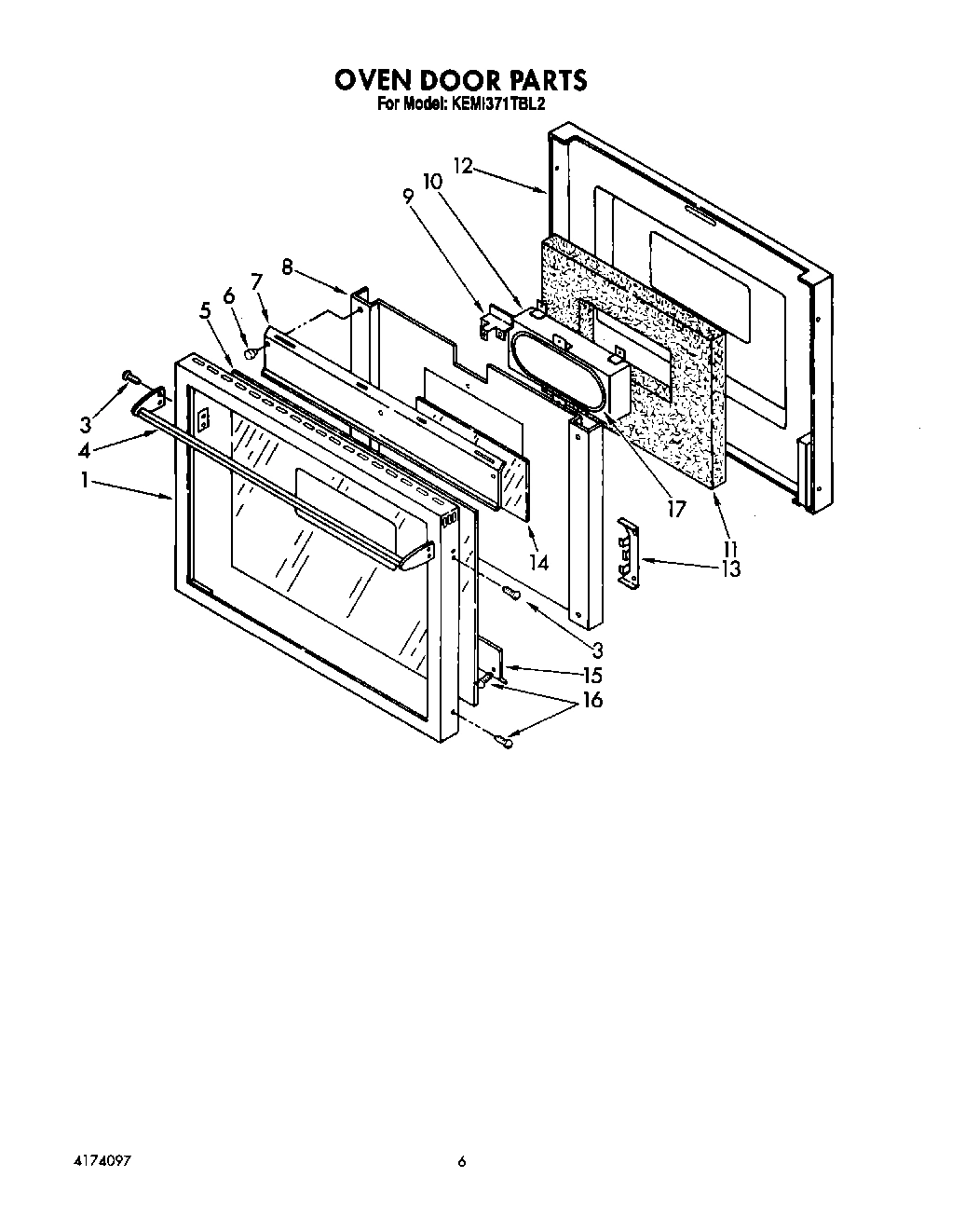

06 - OVEN DOOR

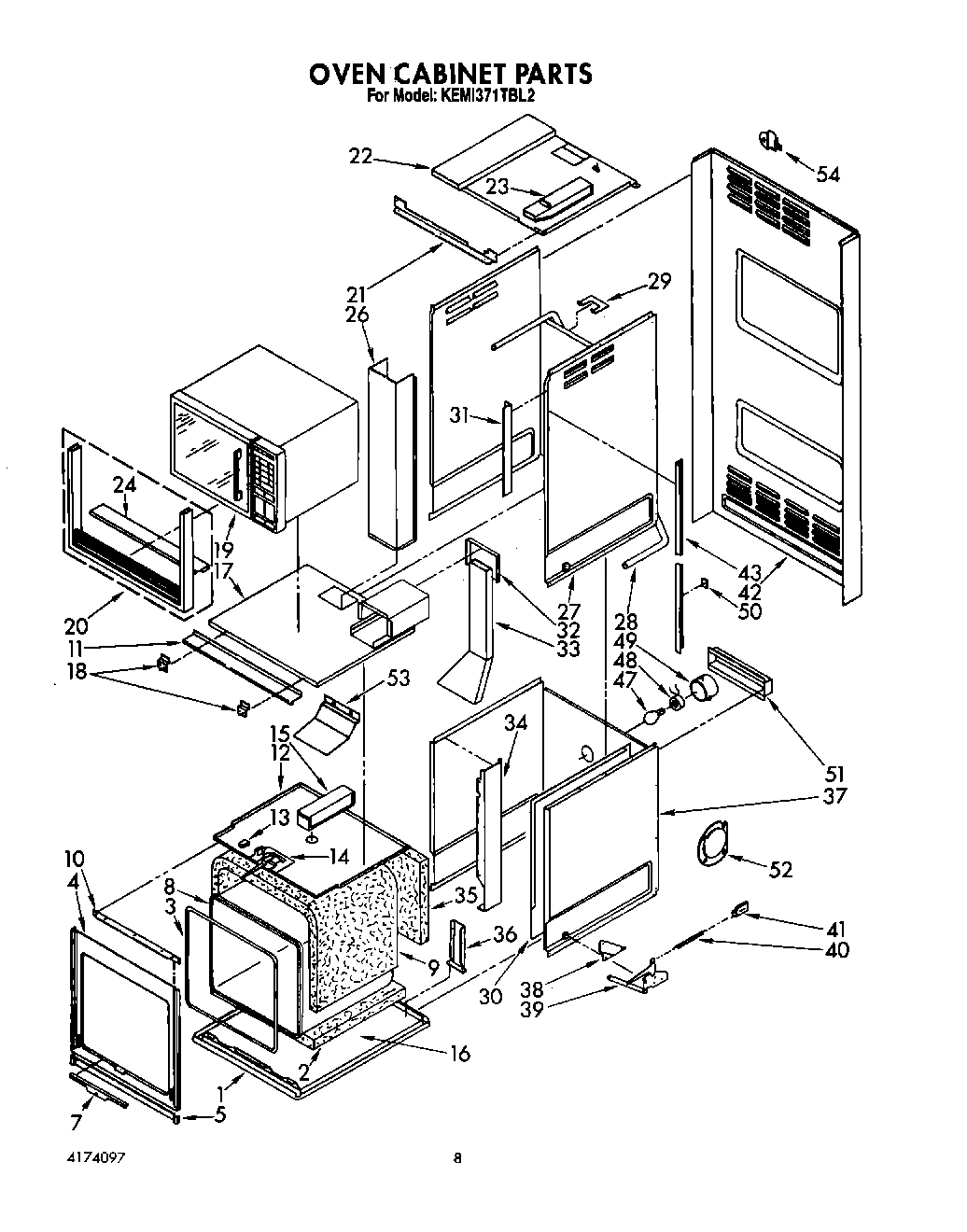

08 - OVEN CABINET
Common parts from model Whirlpool KEMI371TBL2
Installation Instructions WPL LIT3177139 Contact Us For Availability
Repair Parts List WPL LIT4174097 Contact Us For Availability
1
Thermostat Disc WPL 3178475 Contact Us For Availability
1
Sandwich Panel WPL 4163981 Contact Us For Availability
1
Latch Mounting Plate WPL 4168063 Contact Us For Availability
1
Bottom Platexxx WPL 4175511 Contact Us For Availability
1
Door Handle With Plastic Stripxxx WPL 4175521 Contact Us For Availability
1
Nut (4) WPL 4166262 Contact Us For Availability
1
Vent Insert WPL 4168678 Contact Us For Availability
1
Liner, Oven WPL 3178745 Contact Us For Availability
1
Cover, Cabinet WPL 4164041 Contact Us For Availability
1
Insulator, Oven Cavity WPL 4338836 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Main Bottom WPL 4173086 Contact Us For Availability
2
Selector Disc WPL 3178261 Contact Us For Availability
2
Hole Cover WPL 4168257 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Spring, Door Handlexxx WPL 4164096 Contact Us For Availability
2
Control Knob (2) Start/Stop WPL 3177121 Contact Us For Availability
2
Nut, Hex Hd. with Washer, 5mm WPL 4175559 Contact Us For Availability
2
Triac WPL 4166991 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
3
Clock WPL 4173071 Contact Us For Availability
3
Fan Switch WPL 4173008 Contact Us For Availability
3
Control Framexxx WPL 4175524 Contact Us For Availability
3
Shaft, Door Handlexxx WPL 4164097 Contact Us For Availability
3
Bezel, Oven Light WPL 4169372 Contact Us For Availability
3
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
3
Caution Label And Nameplate WPL 4164042 Contact Us For Availability
3
Blower Assembly WPL 4175504 Contact Us For Availability
3
Polyester Film Capacitor WPL 4164082 Contact Us For Availability
3
Insert WPL 3179716 Contact Us For Availability
3
Screw, 8-32 x 3/8 WPL 4159330 Contact Us For Availability
3
Door Gasket WPL 3178580 Contact Us For Availability
4
Control Mounting Plate WPL 4164218 Contact Us For Availability
4
screw WPL 4159461 Contact Us For Availability
4
Blower Assembly WPL 4168290 Contact Us For Availability
4
Latch Lever WPL 3177965 Contact Us For Availability
4
Ferrite Rubberxxx WPL 4164120 Contact Us For Availability
4
Reinforcementxxx WPL 4164098 Contact Us For Availability
4
Broiler Element WPL 3177405 Contact Us For Availability
4
Screw (8) WPL 4169465 Contact Us For Availability
4
Screw, Truss Hd. Tapping 4x8mm WPL 4164017 Contact Us For Availability
4
AC Plug WPL 4175566 Contact Us For Availability
4
Heat Sink WPL 4164083 Contact Us For Availability
4
Door Handle WPL 4173018 Contact Us For Availability
4
front frame WPL 3178717 Contact Us For Availability
5
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
5
Terminal Block WPL 4168735 Contact Us For Availability
5
Safety Switch WPL 4173007 Contact Us For Availability
5
Metal Bracketxxx WPL 4164121 Contact Us For Availability
5
Handle Gripxxx WPL 4164099 Contact Us For Availability
5
Knob, Clock WPL 3177122 Contact Us For Availability
5
Light Lens Gasket WPL 4166868 Contact Us For Availability
5
Oven Cavity (Also Order Caution Label (No.3) WPL 4164043 Contact Us For Availability
5
Duct, Intake WPL 4164066 Contact Us For Availability
5
Screw, Pan Hd. Machine W/Spring Washer 4x12mm WPL 4175509 Contact Us For Availability
5
Door Glass WPL 4164241 Contact Us For Availability
5
Bottom Trim WPL 3178731 Contact Us For Availability
6
Top, Cabinet WPL 4173445 Contact Us For Availability
6
Bracket, Solenoid WPL 4168292 Contact Us For Availability
6
Screw, Pan Hd. Tapping, 3x12mm WPL 4175525 Contact Us For Availability
6
Nut, Hex Hd. with Washer, 4mm WPL 4175554 Contact Us For Availability
6
Control Frame WPL 3179633 Contact Us For Availability
6
Light Lens WPL 4166866 Contact Us For Availability
6
Special Washer Temperature Probe Jack WPL 4338805 Contact Us For Availability
6
Magnetron, 2M-128 (Includes No.7) WPL 4164067 Contact Us For Availability
6
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
7
Indicator Light, WPL 4168597 Contact Us For Availability
7
Solenoid (Inc`s WPL 4173081 Contact Us For Availability
7
screw (3) light lens WPL 4159445 Contact Us For Availability
7
Ground Leadxxx WPL 4164122 Contact Us For Availability
7
Door Sash With Metal Trimmingxxx WPL 4164100 Contact Us For Availability
7
Screw (5) WPL 4170323 Contact Us For Availability
7
Top Insert WPL 4173307 Contact Us For Availability
7
Retainer WPL 4167938 Contact Us For Availability
7
Special Nut, Temperature Probe Jack WPL 4338806 Contact Us For Availability
7
Magnetron Gasketxxx WPL 4175564 Contact Us For Availability
7
Screw, Bind Hd. Tapping, 4x12mm WPL 4175555 Contact Us For Availability
7
Air Baffle WPL 4163857 Contact Us For Availability
7
Screw WPL 4168863 Contact Us For Availability
7
Retainer-Gasket WPL 3177549 Contact Us For Availability
8
Light, Lock/Clean WPL 4163869 Contact Us For Availability
8
Strain Relief WPL 4159034 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Touch Key Boardxxx WPL 4175526 Contact Us For Availability
8
Barrier WPL 4164101 Contact Us For Availability
8
Glass, Control Panel WPL 3179595 Contact Us For Availability
8
Screw (6) WPL 4159456 Contact Us For Availability
8
Clip, (2) Thermostat Bulb WPL 4173275 Contact Us For Availability
8
Jack, Temperature Probe WPL 4164047 Contact Us For Availability
8
Duct, Exhaust WPL 4175506 Contact Us For Availability
8
Connector, Triac WPL 4164084 Contact Us For Availability
8
Insulation Retainer WPL 4163851 Contact Us For Availability
8
Oven Liner (See Parts Page) WPL ARI85909A9 Contact Us For Availability
9
Switch, Oven Light WPL 4167332 Contact Us For Availability
9
Clamp, Conduit WPL 4167593 Contact Us For Availability
9
Insulator (2) WPL 4168522 Contact Us For Availability
9
Screw, Truss Hd. Tapping, 4x12mm WPL 4164023 Contact Us For Availability
9
Upper Hingexxx WPL 4175520 Contact Us For Availability
9
Retainer (2) WPL 4167590 Contact Us For Availability
9
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
9
5-Wire Harness With Socket WPL 4164046 Contact Us For Availability
9
Thermostat, Magnetron WPL 4338841 Contact Us For Availability
9
step-down transformer, control circuit WPL 4164085 Contact Us For Availability
9
Bracket, Lock WPL 4163852 Contact Us For Availability
9
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
10
Thermostat WPL 4164362 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Screw, Pan Hd. Tapping 3x6mm WPL 4164010 Contact Us For Availability
10
Door Main Frame WPL 4164103 Contact Us For Availability
10
Rack, Oven WPL 3178105 Contact Us For Availability
10
Temperature Probe WPL 4168761 Contact Us For Availability
10
Window Package WPL 4164235 Contact Us For Availability
10
Control Frame Support WPL 4169336 Contact Us For Availability
11
Switch, Selector WPL 3177173 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Ferrite Rubberxxx WPL 4164104 Contact Us For Availability
11
Plastic Stopper, Glass tray WPL 4164048 Contact Us For Availability
11
Screw, Pan Hd. Tapping 4x12mm WPL 4175507 Contact Us For Availability
11
High Voltage Capacitor with Resistor and Rect WPL 4164086 Contact Us For Availability
11
Insulation WPL 4163987 Contact Us For Availability
11
Module Air Baffle WPL 3178495 Contact Us For Availability
12
Wire Harness, Hi-Temp WPL 3177136 Contact Us For Availability
12
Bracket, Mounting Safety Switch WPL 4173521 Contact Us For Availability
12
Power & Control Circuit Boardxxx WPL 4175528 Contact Us For Availability
12
Plastic Stopper WPL 4164049 Contact Us For Availability
12
Stay, Cavity And Magnetron WPL 4164071 Contact Us For Availability
12
High Voltage Transformer WPL 4164087 Contact Us For Availability
12
door liner WPL 3178768 Contact Us For Availability
12
Compartment Top WPL 4169314 Contact Us For Availability
13
Wire Harness, Lo-Temp WPL 3177137 Contact Us For Availability
13
Screw (4) WPL 4173053 Contact Us For Availability
13
Screw, Truss Hd. Tapping 4x10mm WPL 4175556 Contact Us For Availability
13
Door, Complete WPL 4175530 Contact Us For Availability
13
Screw, Pan Hd. Tapping, 3x5mmxxx WPL 4175557 Contact Us For Availability
13
Extension, Vent Tube WPL 4168126 Contact Us For Availability
13
Trim Piece Assyxxx (Incls. 5 screws Key No.2, WPL 4164050 Contact Us For Availability
13
Nut, Hex Hd. With Washer, 6mm WPL 4175516 Contact Us For Availability
13
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
13
Screw WPL 4159201 Contact Us For Availability
13
Knob, Latch Handle (Clean) WPL 4163821 Contact Us For Availability
14
Bracket, Harness WPL 4173168 Contact Us For Availability
14
Choke Dielectric With Ferrite Rubber WPL 4164105 Contact Us For Availability
14
Capillary Cover WPL 4168203 Contact Us For Availability
14
Glass Panel WPL 4164243 Contact Us For Availability
14
Latch (See Parts Page) WPL ARI85910A2 Contact Us For Availability
15
Latch Switch (2) WPL 4168517 Contact Us For Availability
15
Perforated Screenxxx WPL 4164106 Contact Us For Availability
15
Smoke Eliminator WPL 4168492 Contact Us For Availability
15
Rack Holder WPL 4164051 Contact Us For Availability
15
Screw, Pan Hd. Machine 3x30mm WPL 4164016 Contact Us For Availability
15
Fuse, 15A WPL 4164088 Contact Us For Availability
15
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
15
Collector Box WPL 4168681 Contact Us For Availability
16
Latch Switch WPL 4164366 Contact Us For Availability
16
Glass Panelxxx WPL 4164107 Contact Us For Availability
16
Plug Button (3/8`` Hole) WPL 4159120 Contact Us For Availability
16
Plug Button (5/8`` Hole) WPL 4159122 Contact Us For Availability
16
Glass Tray WPL 4168889 Contact Us For Availability
16
Micro Switch, Door Sensing xxx WPL 4164072 Contact Us For Availability
16
Support, Oven WPL 4168212 Contact Us For Availability
17
Shoulder Screw, Latch Lever (2) WPL 4168579 Contact Us For Availability
17
Door Sealxxx WPL 4164108 Contact Us For Availability
17
Metal Tray WPL 4168657 Contact Us For Availability
17
Insulation Sheet, Micro Switchxxx WPL 4175565 Contact Us For Availability
17
Fuse Holder WPL 4164089 Contact Us For Availability
17
Gasket, Window WPL 3178584 Contact Us For Availability
17
Module Support WPL 4168313 Contact Us For Availability
18
nut (3) WPL 4168838 Contact Us For Availability
18
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
18
Retaining Frame, Perforated Screenxxx WPL 4164109 Contact Us For Availability
18
Stirrer Cover WPL 4164052 Contact Us For Availability
18
Varistor WPL 4164090 Contact Us For Availability
18
Module Brace WPL 4163980 Contact Us For Availability
19
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
19
Sink Screw, Oval Hd. Machine With Washer 4x8m WPL 4175522 Contact Us For Availability
19
Hinge, Lowerxxx WPL 4164053 Contact Us For Availability
19
Screw, Pan Hd. Tapping 3x16mmxxx WPL 4164015 Contact Us For Availability
19
Terminal Board WPL 4164091 Contact Us For Availability
19
Microwave Module (Complete Unit Not Available WPL ARI85911A5 Contact Us For Availability
20
Actuator Arm WPL 4168058 Contact Us For Availability
20
Lower Hinge, Door WPL 4164111 Contact Us For Availability
20
Washer, 5mm WPL 4175560 Contact Us For Availability
20
Micro Switch, Interlock Monitorxxx WPL 4164075 Contact Us For Availability
20
Nut, Hed Hd. 4mm Brass WPL 4164030 Contact Us For Availability
20
Module, Trim WPL 3178074 Contact Us For Availability
21
Retaining Ring WPL 4159160 Contact Us For Availability
21
Screw, Truss Hd. Machine 4x10mmxxx WPL 4175558 Contact Us For Availability
21
Lever Stopperxxx WPL 4164076 Contact Us For Availability
21
Spring Washer, 4mm, Phosphated WPL 4164037 Contact Us For Availability
21
Control Frame Support WPL 4167693 Contact Us For Availability
22
Washer, Flat WPL 4159603 Contact Us For Availability
22
Latch Lever WPL 4164128 Contact Us For Availability
22
Air Guide, Stirrer, Right WPL 4164054 Contact Us For Availability
22
Screw, Pan Hd. Machine, 4x10mm WPL 4164019 Contact Us For Availability
22
Exhaust Shield WPL 4163953 Contact Us For Availability
23
Nut, Hex (3) WPL 4159109 Contact Us For Availability
23
Nut, Hex Hd. with Washer, 3mmxxx WPL 4175553 Contact Us For Availability
23
Nut, Hex Hd., 8mm WPL 4164034 Contact Us For Availability
23
Bolt, Hex Hd. Machine with Spring Washer and WPL 4175561 Contact Us For Availability
23
Vent Box WPL 4164313 Contact Us For Availability
24
Screw (3) Bushing WPL 4159186 Contact Us For Availability
24
Screw (3) WPL 4159287 Contact Us For Availability
24
Screw, Pan Hd. Diacut 4x10mm WPL 4164021 Contact Us For Availability
24
Special Washer WPL 4164055 Contact Us For Availability
24
Deflector WPL 3178067 Contact Us For Availability
25
Locknut (4) WPL 4159117 Contact Us For Availability
25
Rubber Packingxxx WPL 4164112 Contact Us For Availability
25
Collar, Stirrer Shaft WPL 4164056 Contact Us For Availability
25
Micro Switch, Cavity Lightxxx WPL 4164125 Contact Us For Availability
25
Cap, Black Vinyl, Screw WPL 4164092 Contact Us For Availability
26
Wiring Harness WPL 3177138 Contact Us For Availability
26
Shaft, Door Latch WPL 4164113 Contact Us For Availability
26
Stirrer Fan Assy. WPL 4164057 Contact Us For Availability
26
Lever Stopperxxx WPL 4164126 Contact Us For Availability
26
Back-up Battery WPL 4164093 Contact Us For Availability
26
Cabinet Back Duct WPL 4163977 Contact Us For Availability
27
Insulator Sleeve WPL 3178555 Contact Us For Availability
27
Stopper, Latch Lever Shaftxxx WPL 4175562 Contact Us For Availability
27
Stirrer Shaft WPL 4164058 Contact Us For Availability
27
Latch Leverxxx WPL 4175563 Contact Us For Availability
27
Battery Holder WPL 4164094 Contact Us For Availability
27
Cabinet Side Upper WPL 4163725 Contact Us For Availability
28
Spring, Door Latch WPL 4164115 Contact Us For Availability
28
Air Guide, Stirrer, Left WPL 4164059 Contact Us For Availability
28
Surge Absorber WPL 4175519 Contact Us For Availability
28
Vent Tube WPL 4168591 Contact Us For Availability
29
Latch Leverxxx WPL 4164116 Contact Us For Availability
29
Bolt, Hex Hd. with Phillips Slot, 5x14mm WPL 4175501 Contact Us For Availability
29
Washer, External Tooth, 4mm WPL 4164036 Contact Us For Availability
29
Vent Tube, Retainer WPL 4168140 Contact Us For Availability
30
Shaft, Latch Lever WPL 4164117 Contact Us For Availability
30
Bracket, Lamp Cover WPL 4164060 Contact Us For Availability
30
Stay WPL 4175510 Contact Us For Availability
30
duct extension (left hand) WPL 4173016 Contact Us For Availability
30
Duct Extension (Right Hand) WPL 4173017 Contact Us For Availability
31
Door Latchxxx WPL 4164118 Contact Us For Availability
31
Wire Clip WPL 4338832 Contact Us For Availability
31
Trim Bracket WPL 4167519 Contact Us For Availability
32
Screw, Flat Hd. Tapping, 3x8mmxxx WPL 4164013 Contact Us For Availability
32
Screwdriver For Illus 19 WPL 4164129 Contact Us For Availability
32
Intake Duct WPL 4168207 Contact Us For Availability
33
Screw, Pan Hd. Tapping, 3x8mm WPL 4164012 Contact Us For Availability
33
Module Intake Duct WPL 4173146 Contact Us For Availability
34
Lamp Socket WPL 4175502 Contact Us For Availability
34
Air Duct, L.H. WPL 4163754 Contact Us For Availability
34
air duct, r.h. WPL 4163755 Contact Us For Availability
35
Cover, Light Opening WPL 4175503 Contact Us For Availability
35
Insulation, Rear WPL 4164192 Contact Us For Availability
36
Probe Spacer WPL 4168426 Contact Us For Availability
36
Rear Anchor WPL 4167526 Contact Us For Availability
37
Cabinet Side, Lower WPL 4163724 Contact Us For Availability
38
Cam Plate, R.H. WPL 4167597 Contact Us For Availability
38
Cam Plate (L.H.) WPL 4167598 Contact Us For Availability
39
Hinge Assembly WPL 4167596 Contact Us For Availability
40
Door Spring WPL 4173048 Contact Us For Availability
41
Spring, Anchor WPL 4167599 Contact Us For Availability
42
Cab WPL 4164297 Contact Us For Availability
43
WPL 4159470 WPL 4159470 Contact Us For Availability
43
WPL 4163763 WPL 4163763 Contact Us For Availability
43
WPL 4163764 WPL 4163764 Contact Us For Availability
48
WPL 4168755 WPL 4168755 Contact Us For Availability
49
WPL 4167579 WPL 4167579 Contact Us For Availability
50
WPL 4159188 WPL 4159188 Contact Us For Availability
50
WPL 4168590 WPL 4168590 Contact Us For Availability
51
WPL 4159451 WPL 4159451 Contact Us For Availability
51
WPL 4168210 WPL 4168210 Contact Us For Availability
52
WPL 4163883 WPL 4163883 Contact Us For Availability
53
WPL 4163978 WPL 4163978 Contact Us For Availability
54
WPL 4159465 WPL 4159465 Contact Us For Availability
× ![]()
