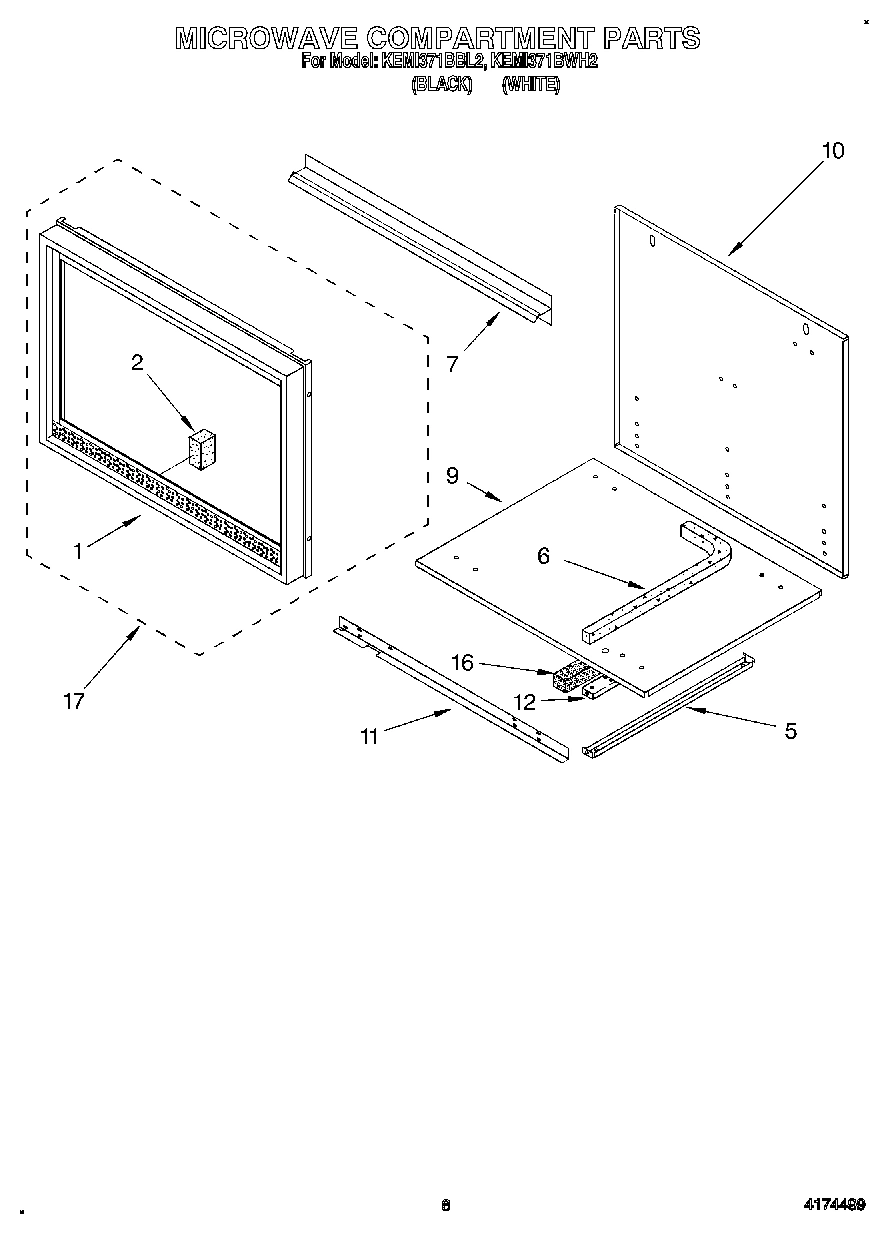

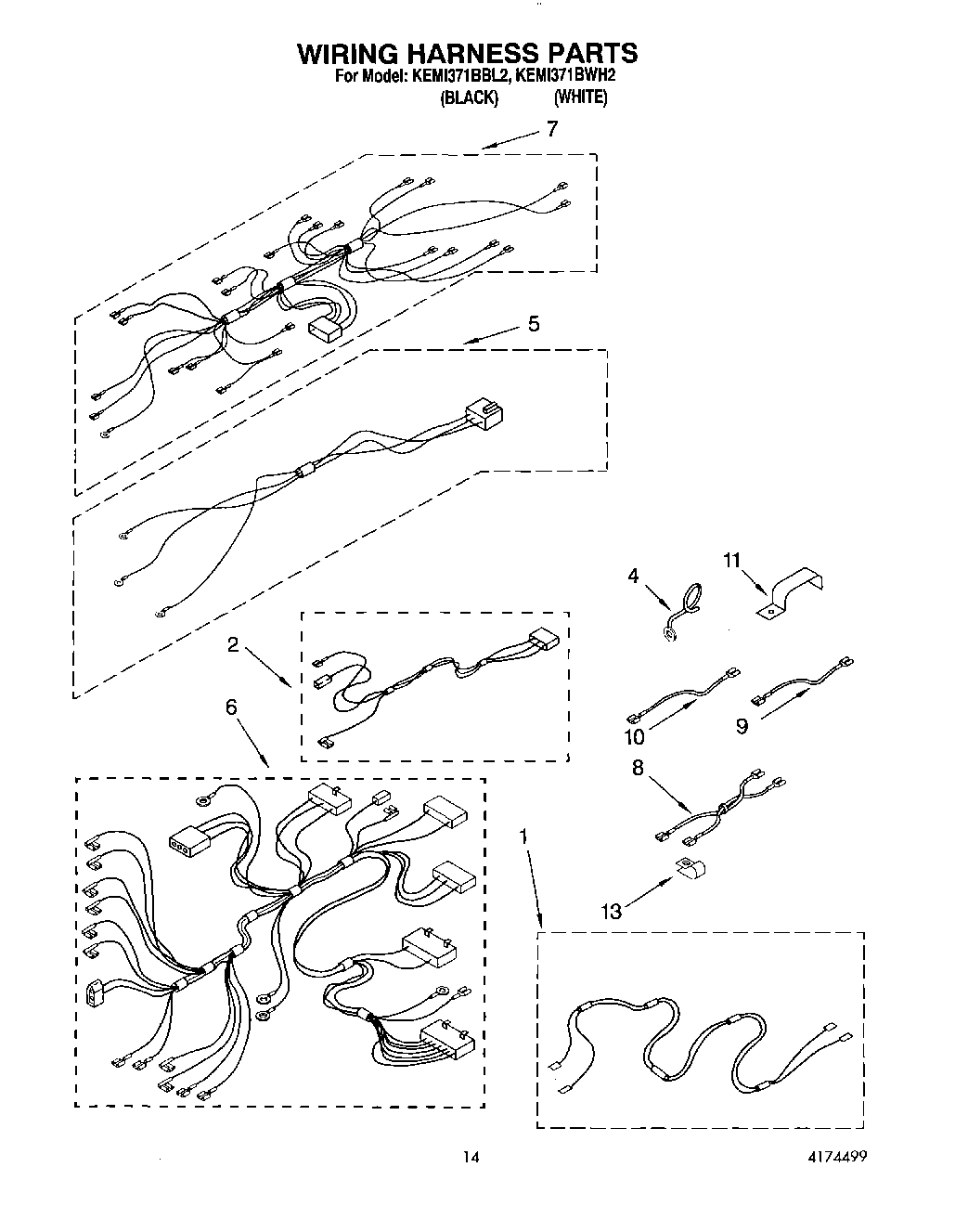

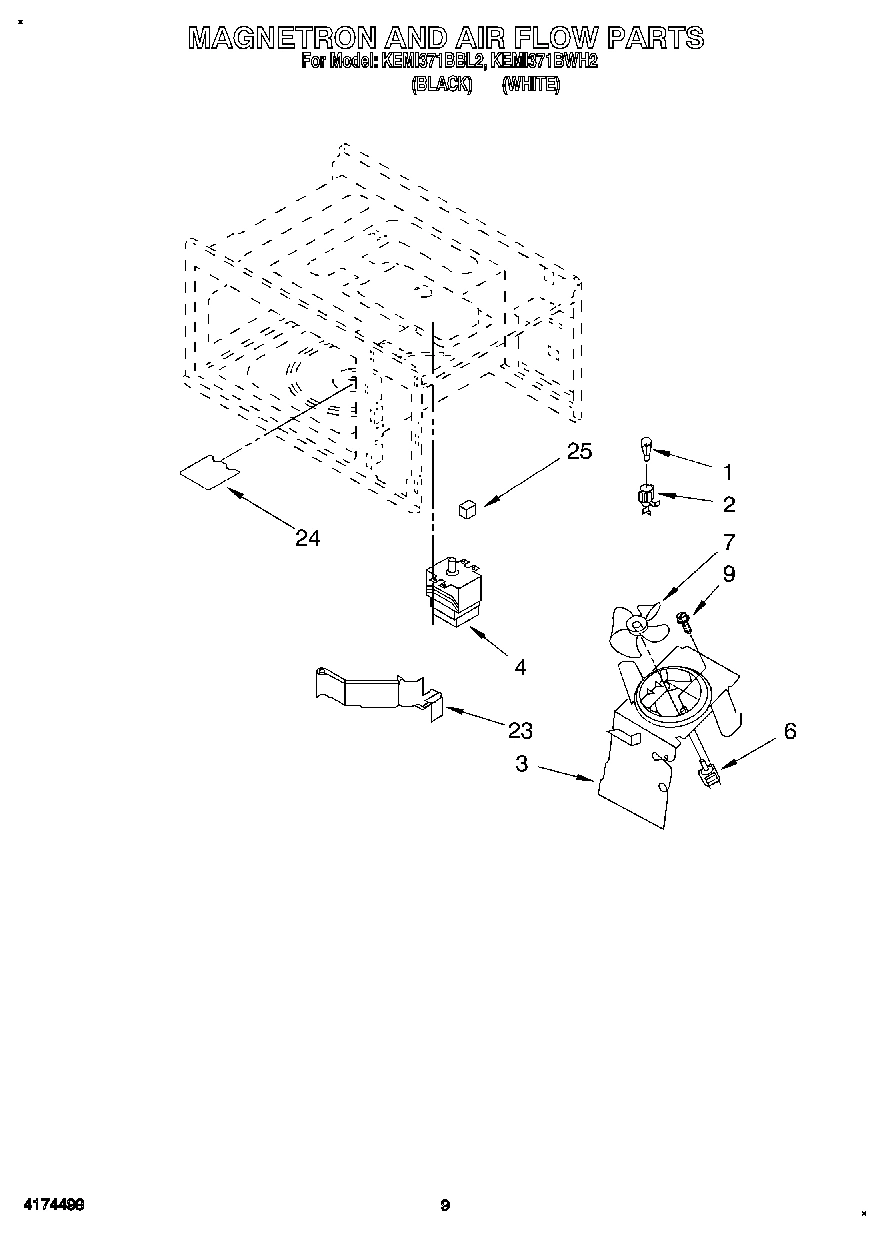

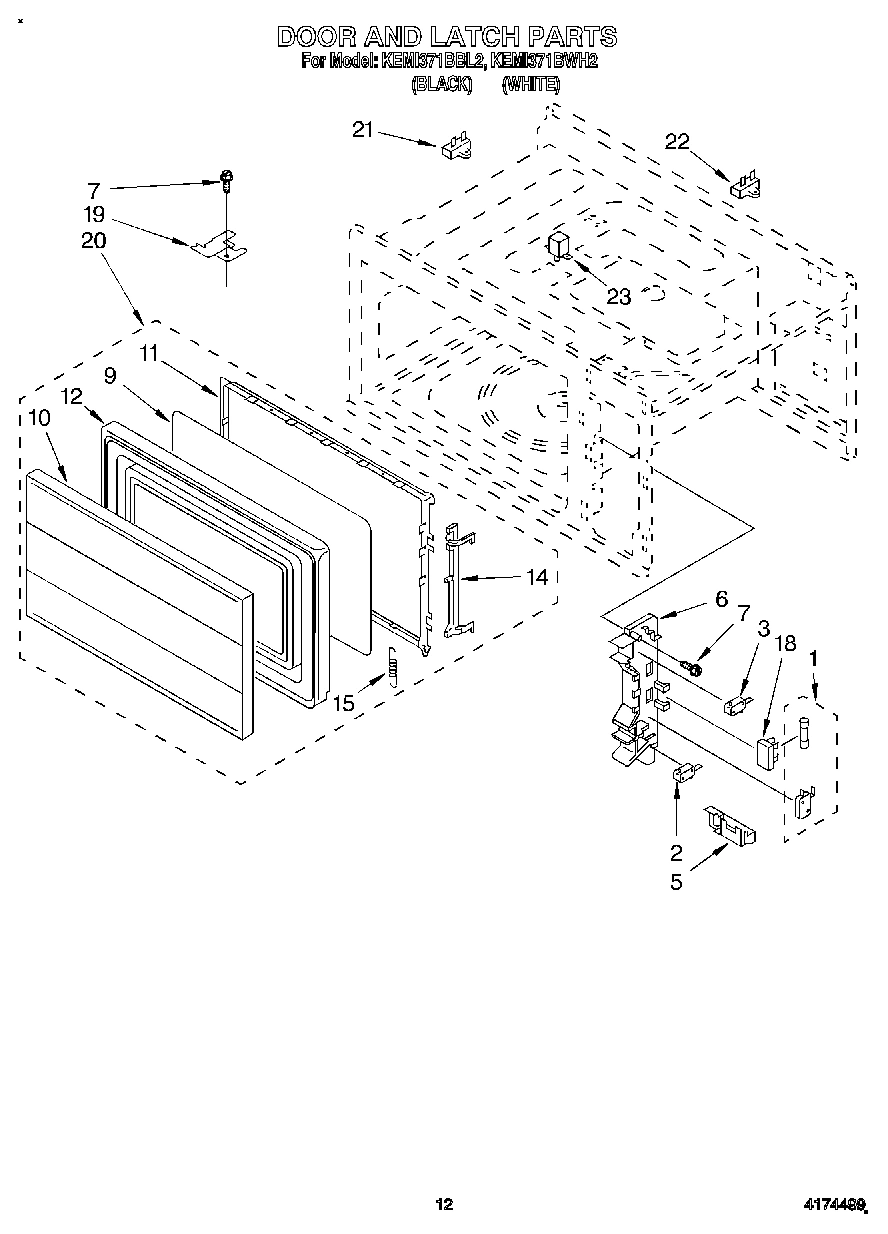

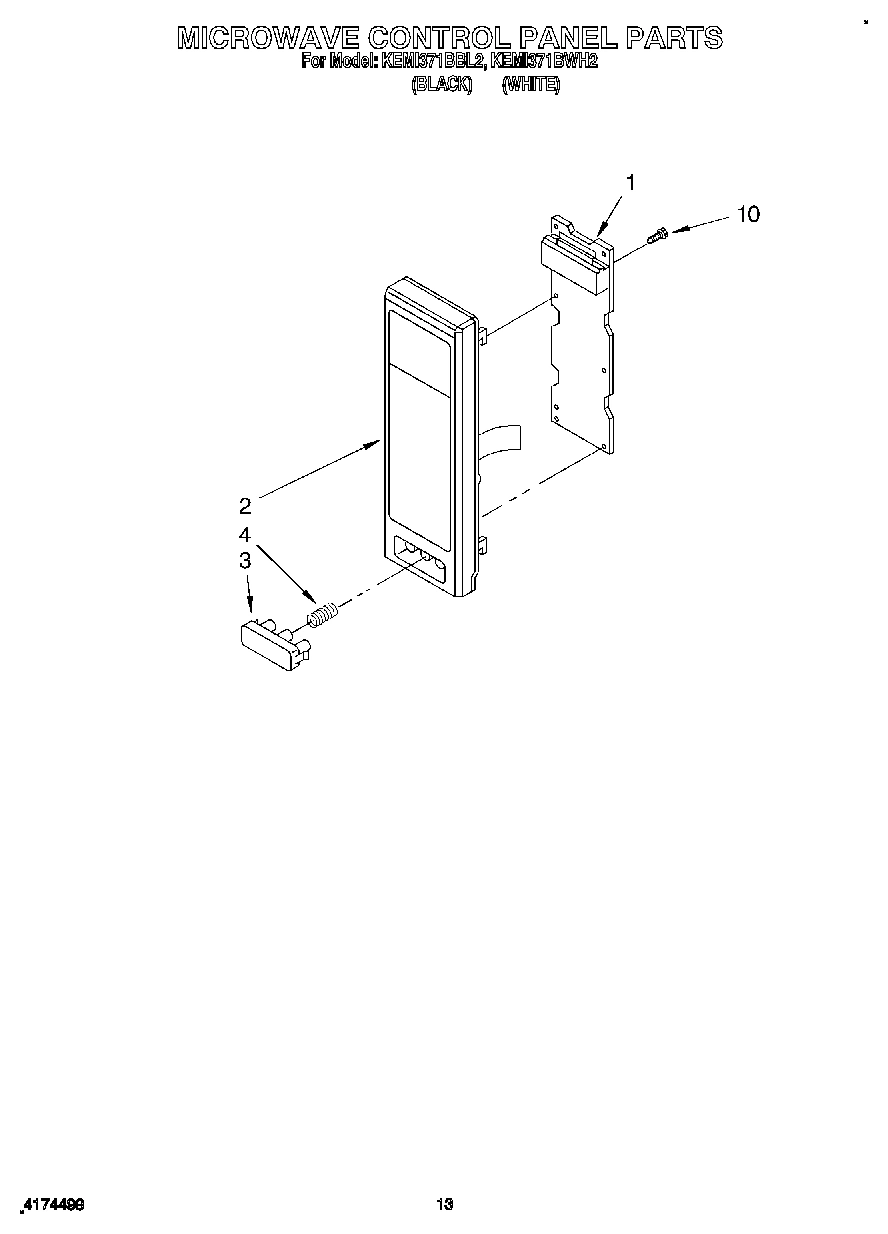

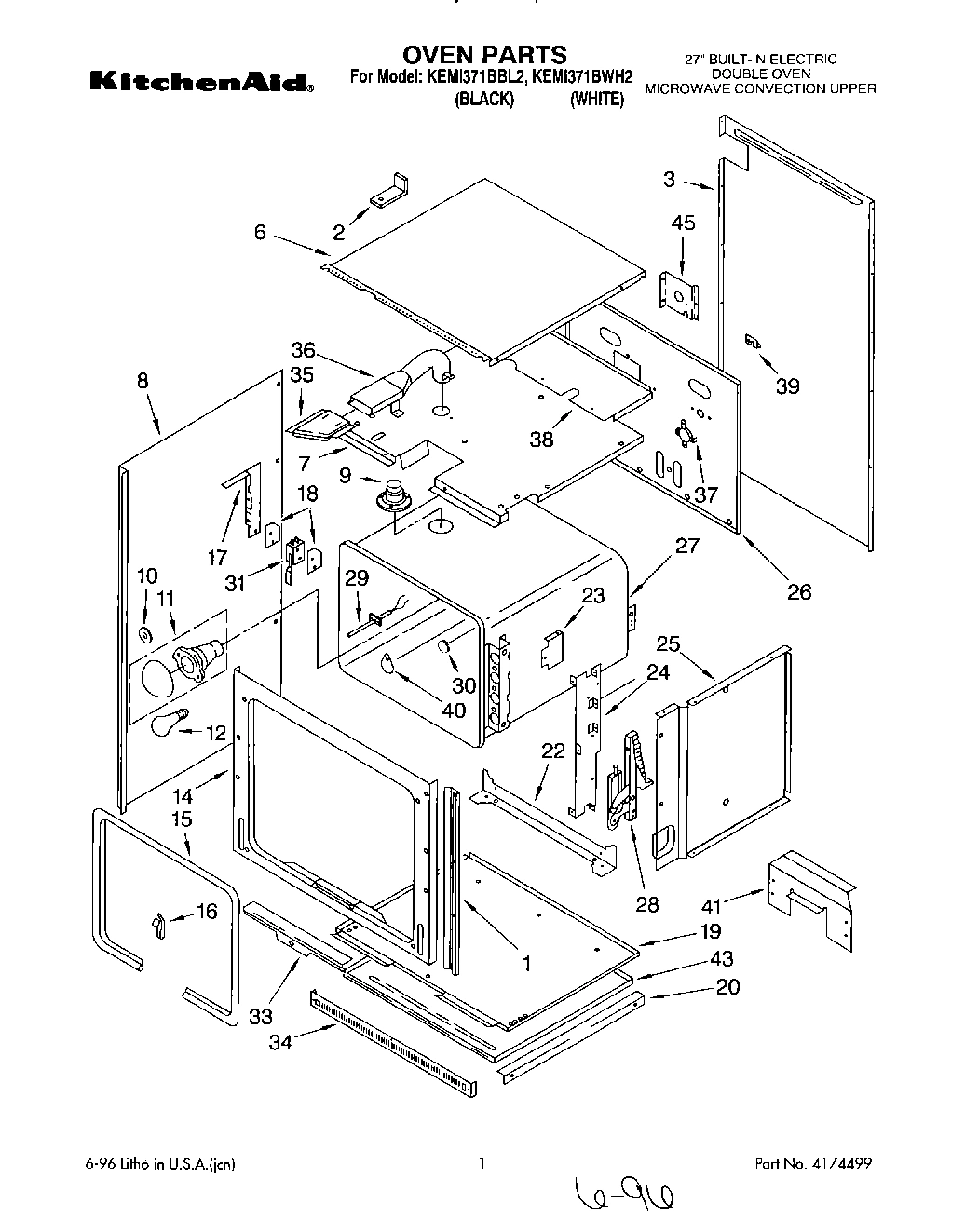

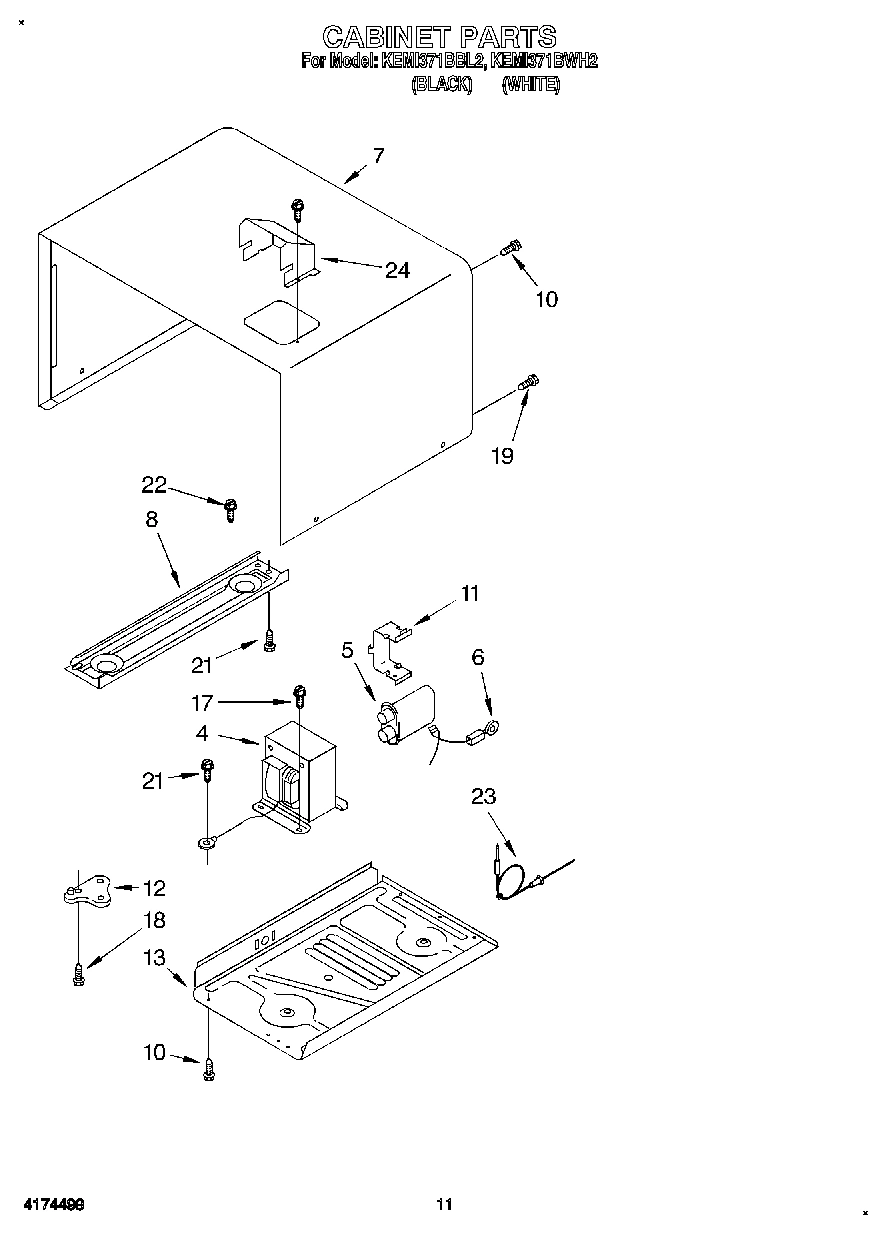

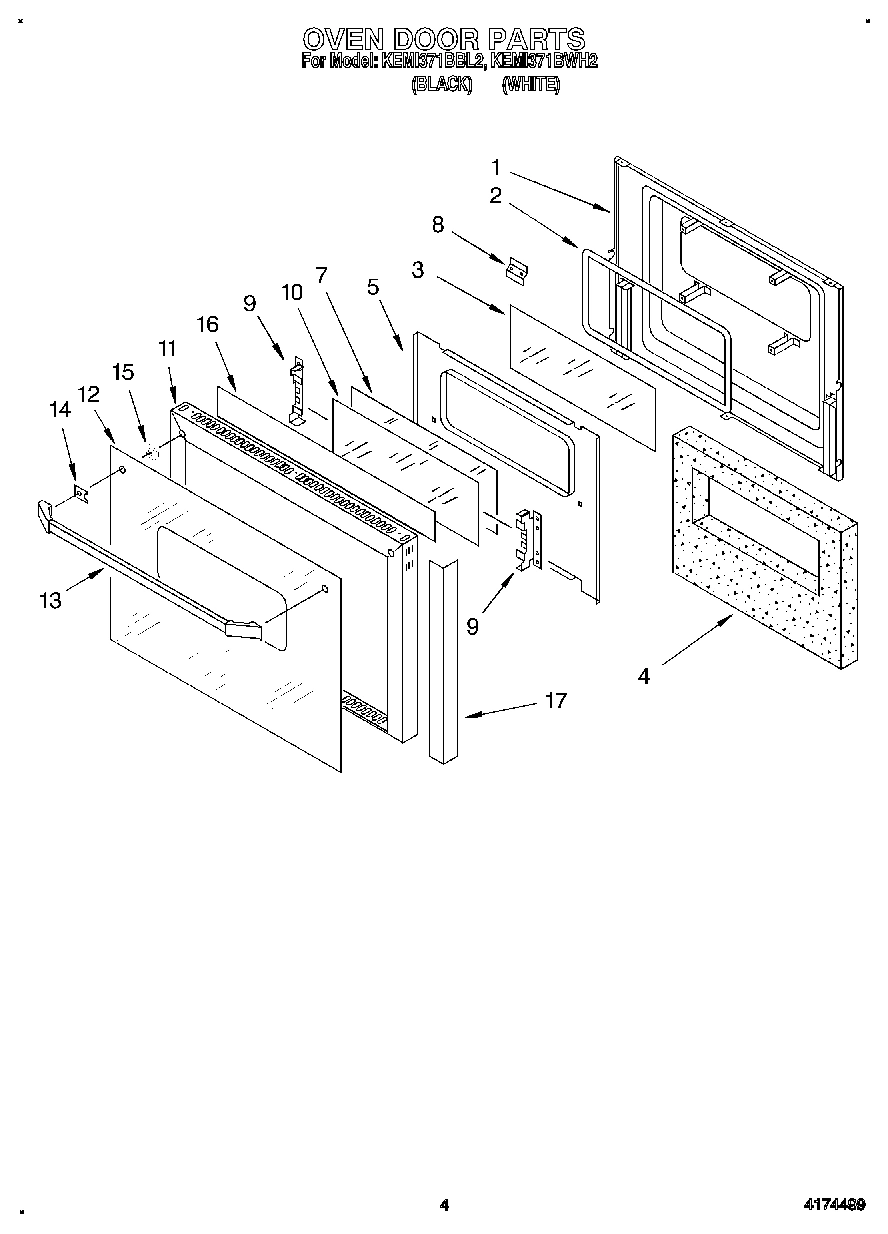

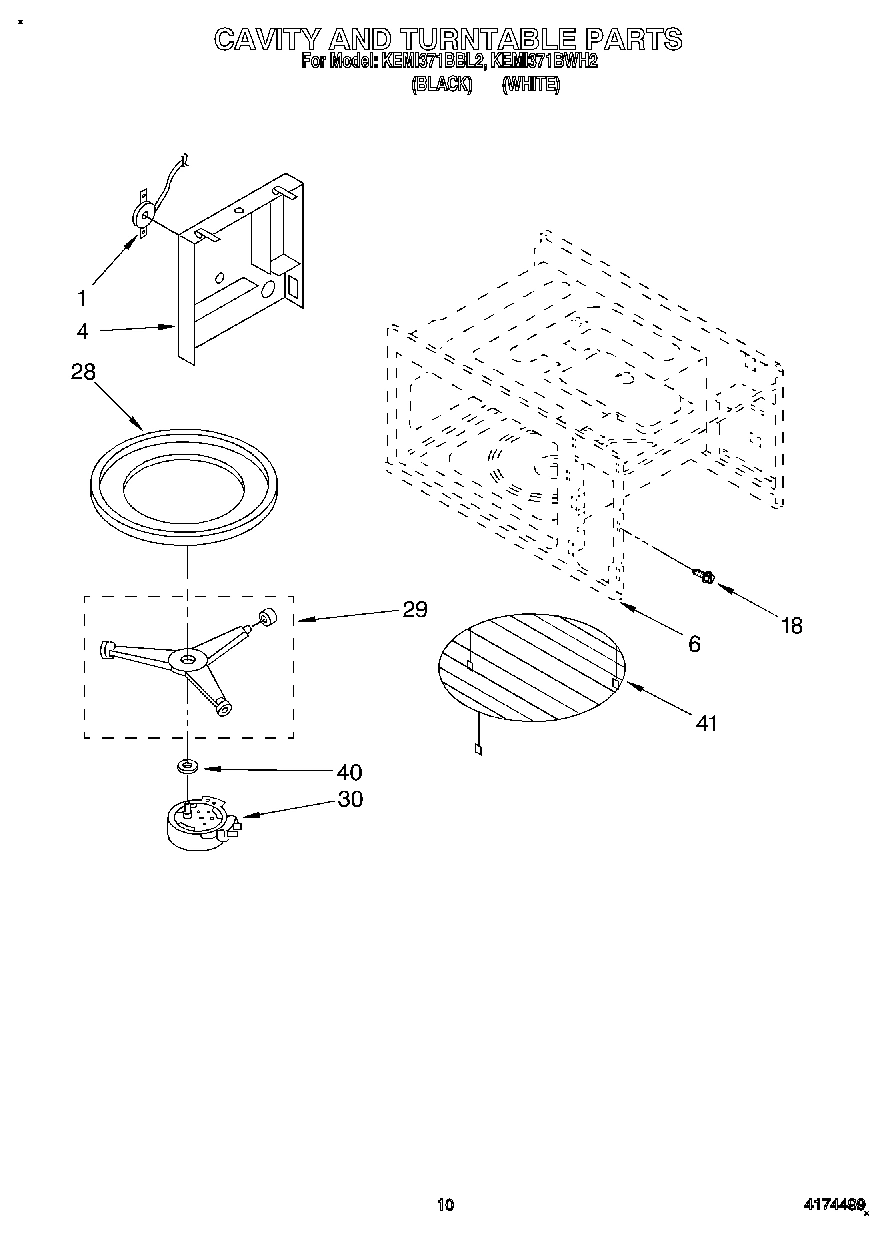

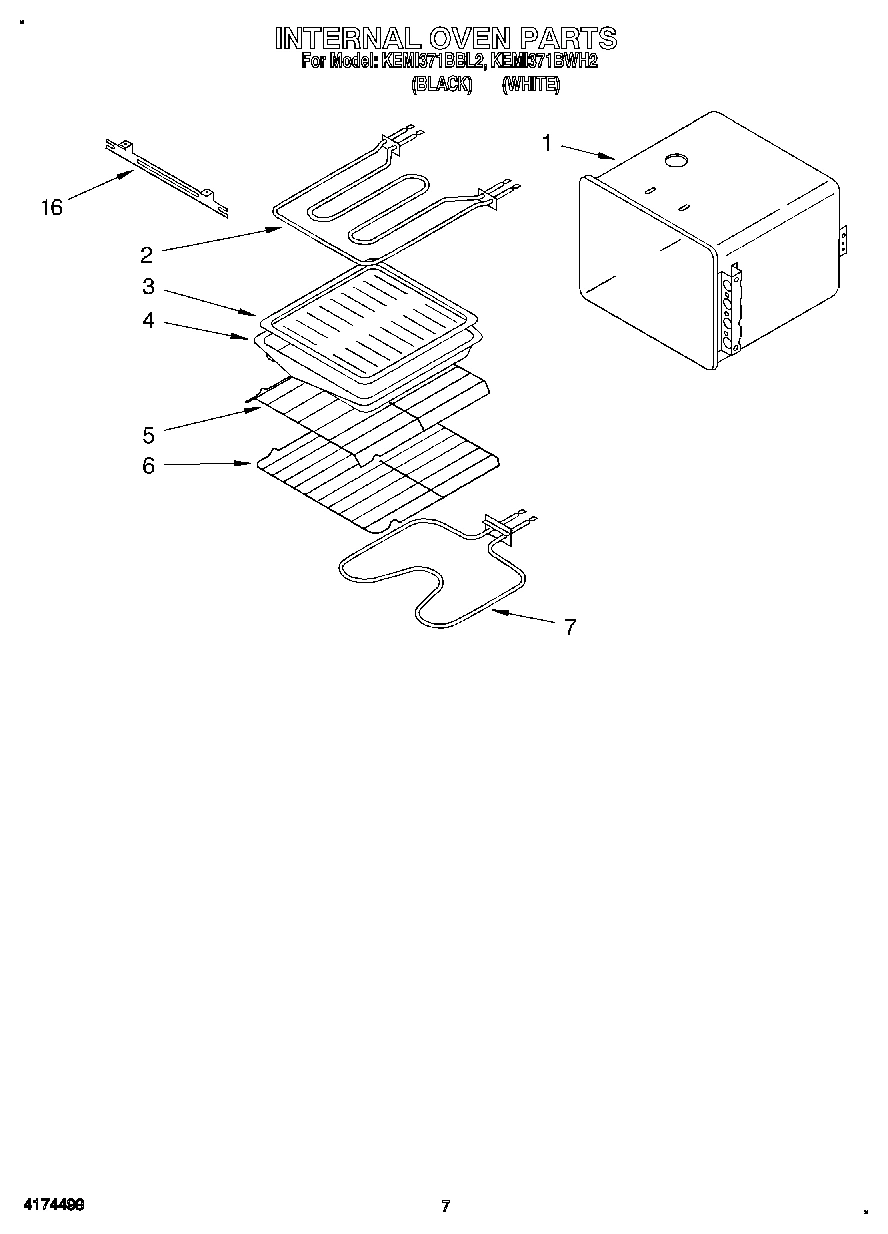

Model Whirlpool KEMI371BWH2 – Common Parts &amp; Diagrams

1

Switch and Fuse Assy. WPL 4365543 Contact Us For Availability

1

Shelf, Component WPL 3184592 Contact Us For Availability

1

Microcomputer WPL 4357393 Contact Us For Availability

1

Side Trim, Door (Black Model) WPL 3187874 Contact Us For Availability

1

Trim, Side Door (White Model) WPL 3187877 Contact Us For Availability

1

Screw WPL 3178001 Contact Us For Availability

1

Liner, Door WPL 3185497 Contact Us For Availability

1

Harness, Wiring (Light Switch) WPL 3185130 Contact Us For Availability

1

Frame, Outer (Black Model) WPL 3188341 Contact Us For Availability

1

Frame, Outer (White Model) WPL 3188342 Contact Us For Availability

1

Screw WPL 4174757 Contact Us For Availability

1

Sensor, Absolute Humidity WPL 4365549 Contact Us For Availability

2

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $11.80

2

Screw (2) WPL 308043 Contact Us For Availability

2

Element, Broil WPL 661415 Contact Us For Availability

2

Frame, Control Panel (White) WPL 4357394 Contact Us For Availability

2

Frame, Control Panel (Black) WPL 4357395 Contact Us For Availability

2

Brace, M/W Back WPL 3187369 Contact Us For Availability

2

Seal, Window WPL 3185462 Contact Us For Availability

2

Socket, Lamp WPL 4313607 Contact Us For Availability

2

Harness, Wiring (Latch-Combo) WPL 3184819 Contact Us For Availability

2

Block, Foam WPL 3187143 Contact Us For Availability

3

4392027 Whirlpool Microwave Primary Switch In Stock WPL 4392027 $75.02

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

Push Button (White) WPL 4365565 Contact Us For Availability

3

Push Button (Black) WPL 4365564 Contact Us For Availability

3

Glass, Clear WPL 3185457 Contact Us For Availability

3

Bushing, Electric WPL 3181919 Contact Us For Availability

3

Cabinet, Back WPL 3177623 Contact Us For Availability

3

Duct, Fan WPL 4313686 Contact Us For Availability

4

8205529 Whirlpool Microwave Spring Backorder WPL 8205529 $10.23

4

Insulation, Door WPL 3185460 Contact Us For Availability

4

Magnetron WPL 4365544 Contact Us For Availability

4

Transformer WPL 4365545 Contact Us For Availability

4

Harness, Wiring (Standoff) WPL 3179668 Contact Us For Availability

4

Duct, Sensor WPL 4365557 Contact Us For Availability

5

Insulator, Switch WPL 3178185 Contact Us For Availability

5

Latch Lever WPL 4313624 Contact Us For Availability

5

Rack, Offset WPL 3185367 Contact Us For Availability

5

Screw WPL 4168863 Contact Us For Availability

5

Retainer, Insulation WPL 3188815 Contact Us For Availability

5

Capacitor WPL 4313605 Contact Us For Availability

5

Harness, Wiring (Microwave Power) WPL 3181721 Contact Us For Availability

5

Rail, Microwave WPL 3179973 Contact Us For Availability

6

screw (2) WPL 254225 Contact Us For Availability

6

Guard, Latch WPL 3177662 Contact Us For Availability

6

Latch Hook WPL 4313620 Contact Us For Availability

6

Rack, Oven WPL 3185368 Contact Us For Availability

6

Cabinet, Top WPL 3178143 Contact Us For Availability

6

Motor, Fan WPL 4313672 Contact Us For Availability

6

Rectifier WPL 4313671 Contact Us For Availability

6

Screw WPL 4365530 Contact Us For Availability

6

Harness, Wire (Main Power) WPL 3184820 Contact Us For Availability

6

Seal, Foam WPL 3184897 Contact Us For Availability

6

Cavity, Oven (Not a Serviceable Part) WPL ARI85892A2 Contact Us For Availability

7

WP661416 Whirlpool Bake Element In Stock WPL WP661416 $73.58

7

Handle, Latch WPL 3181963 Contact Us For Availability

7

Screw WPL 3185414 Contact Us For Availability

7

Screw WPL 4365571 Contact Us For Availability

7

Module, Top WPL 3183748 Contact Us For Availability

7

Glass, Reflective WPL 3185458 Contact Us For Availability

7

Blade, Fan WPL 4174669 Contact Us For Availability

7

Outer Cabinet (Black Model) WPL 4365554 Contact Us For Availability

7

Outer Cabinet (White Model) WPL 4365555 Contact Us For Availability

7

Harness, Wiring (Microwave Main) WPL 4365576 Contact Us For Availability

7

Vent, Middle Trim (Black Model) WPL 3187883 Contact Us For Availability

7

Vent, Middle Trim (White Model) WPL 3187885 Contact Us For Availability

8

Screw WPL 3183294 Contact Us For Availability

8

Knob, Latch Handle WPL 3184039 Contact Us For Availability

8

Side, Cabinet WPL 3181695 Contact Us For Availability

8

Latch, Strike WPL 3185438 Contact Us For Availability

8

Base Plate, Left Side WPL 4365552 Contact Us For Availability

8

Harness, Wiring Thermal Protection WPL 4365506 Contact Us For Availability

9

Bracket WPL 3184321 Contact Us For Availability

9

Seal, Door (Not a Serviceable Part) WPL ARI85893A1 Contact Us For Availability

9

Tube, Vent WPL 3186684 Contact Us For Availability

9

Retainer, Glass WPL 3185439 Contact Us For Availability

9

Screw WPL 4313701 Contact Us For Availability

9

H.V. Wire WPL 4313679 Contact Us For Availability

9

Support, Module WPL 3180330 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $4.52

Frame, Control Panel (Black Model) WPL 3187954 Contact Us For Availability

Frame, Control Panel (White Model) WPL 3187955 Contact Us For Availability

Latch, Mechanism WPL 3178410 Contact Us For Availability

Screen, Door (Black) WPL 4313070 Contact Us For Availability

Screen, Door (White) WPL 4313073 Contact Us For Availability

Screw WPL 4313632 Contact Us For Availability

Glass, Clear WPL 3185459 Contact Us For Availability

Screw WPL 4357320 Contact Us For Availability

Sensor Ground Wire WPL 4365546 Contact Us For Availability

Back, Microwave Compartment WPL 3180336 Contact Us For Availability

7111P002-60 Whirlpool Clamp Backorder WPL 7111P002-60 $4.61

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

Screw WPL 309133 Contact Us For Availability

Clip, Control Frame WPL 3184567 Contact Us For Availability

Plate, Mounting WPL 3177496 Contact Us For Availability

Choke, Cover WPL 4313700 Contact Us For Availability

Frame, Door (Black Model) WPL 3187850 Contact Us For Availability

Frame, Door (White Model) WPL 3187852 Contact Us For Availability

Screw WPL 4313663 Contact Us For Availability

Bracket, Capacitor WPL 4313681 Contact Us For Availability

Ext. Module Support WPL 3182764 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

Plug, Button WPL 3179777 Contact Us For Availability

Screw WPL 3185647 Contact Us For Availability

Frame, Door (Not Serviceable) WPL ARI85894A9 Contact Us For Availability

Glass, Door (Black Model) WPL 3187863 Contact Us For Availability

Glass, Door (White Model) WPL 3187865 Contact Us For Availability

Hinge, Lower WPL 4313619 Contact Us For Availability

Rail, Chassis WPL 3179972 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

Handle, Door (Black Model) WPL 3185986 Contact Us For Availability

Handle, Door (White Model) WPL 3185987 Contact Us For Availability

Base Plate, Right Side WPL 4365551 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Trim, White WPL 4319146 Contact Us For Availability

Trim, Almond WPL 4319147 Contact Us For Availability

Trim, Gray WPL 4319148 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

14

Latch, Door WPL 4313652 Contact Us For Availability

14

Frame, Front WPL 3186950 Contact Us For Availability

14

Spacer, Door Handle WPL 3182138 Contact Us For Availability

Spring, Latch WPL 4174992 Contact Us For Availability

Seal, Door WPL 3179813 Contact Us For Availability

Screw WPL 3184037 Contact Us For Availability

Bushing, Door Handle WPL 3188599 Contact Us For Availability

Bracket, Element WPL 3180694 Contact Us For Availability

Clip, Oven Seal WPL 3179848 Contact Us For Availability

Foil-Adhesive Backed WPL 3188633 Contact Us For Availability

Seal, Foam WPL 3187142 Contact Us For Availability

Bracket, Switch WPL 3177681 Contact Us For Availability

Foil-Adhesive Backed WPL 3188635 Contact Us For Availability

Screw WPL 4365500 Contact Us For Availability

Assembly-Frame & Seal (Black Model) WPL 3188373 Contact Us For Availability

Assembly-Frame & Seal (White Model) WPL 3188374 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

Switch, latch WPL 3183784 Contact Us For Availability

Holder, Fuse WPL 4365542 Contact Us For Availability

Insulator, Switch WPL 3177923 Contact Us For Availability

Screw WPL 4313664 Contact Us For Availability

Screw WPL 98106 Contact Us For Availability

Hinge, Upper WPL 4365556 Contact Us For Availability

Bottom, Module WPL 3177621 Contact Us For Availability

Screw WPL 4313665 Contact Us For Availability

20

Door, Complete (Black) WPL 4313069 Contact Us For Availability

20

Door, Complete (White) WPL 4313072 Contact Us For Availability

20

Rail, Support (2) WPL 3179220 Contact Us For Availability

21

Fuse, Temp WPL 4313674 Contact Us For Availability

21

Screw WPL 4164610 Contact Us For Availability

Screw WPL 4174826 Contact Us For Availability

Fuse, Magnetron Temp WPL 4313613 Contact Us For Availability

Support, Oven WPL 3177434 Contact Us For Availability

Screw WPL 4174811 Contact Us For Availability

Screw WPL 4174756 Contact Us For Availability

Connector WPL 4174898 Contact Us For Availability

Shield, Radiation WPL 3178612 Contact Us For Availability

Duct, Magnetron WPL 4365553 Contact Us For Availability

Probe, Temperature WPL 4365550 Contact Us For Availability

24

Bracket, Hinge WPL 3177433 Contact Us For Availability

24

Cover, Wave Guide WPL 4313687 Contact Us For Availability

24

Duct, Exhaust (Front) WPL 4365558 Contact Us For Availability

25

Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability

25

Shield, Magnetron WPL 4313643 Contact Us For Availability

26

Back, Module WPL 3177560 Contact Us For Availability

27

Liner, Oven WPL 3185562 Contact Us For Availability

28

Screw (4) WPL 3179795 Contact Us For Availability

28

Hinge, Door (2) WPL 3178298 Contact Us For Availability

28

Tray, Glass WPL 4313690 Contact Us For Availability

29

Screw WPL 3185648 Contact Us For Availability

29

Sensor, Heat WPL 3148440 Contact Us For Availability

29

Support, Turntable WPL 4365526 Contact Us For Availability

30

Plug, Button WPL 3182814 Contact Us For Availability

30

Motor, Turntable WPL 4357340 Contact Us For Availability

31

Screw (2) WPL 313489 Contact Us For Availability

31

Nut (2) WPL 4159117 Contact Us For Availability

31

Switch, Door WPL 4173553 Contact Us For Availability

33

Retainer, Seal WPL 3179587 Contact Us For Availability

34

Vent, Lower Trim (Black Model) WPL 3177783 Contact Us For Availability

34

Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability

34

Trim, Lower Vent (White Model) WPL 3187957 Contact Us For Availability

35

White Model WPL 3181964 Contact Us For Availability

35

Black Model WPL 3187388 Contact Us For Availability

36

Vent, Tube (Upper, Male) WPL 3179945 Contact Us For Availability

37

SPST Thermostat WPL 3149652 Contact Us For Availability

38

Extension, Shelf WPL 3180332 Contact Us For Availability

39

Screw WPL 4159445 Contact Us For Availability

39

Cover, Cap Tube WPL 4168203 Contact Us For Availability

40

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

40

Plate, Cover WPL 3185085 Contact Us For Availability

40

Gasket, Turntable WPL 4313642 Contact Us For Availability

41

Bracket, Control WPL 3183752 Contact Us For Availability

41

Rack, Oven WPL 4357400 Contact Us For Availability

43

Bottom, Oven WPL 3177551 Contact Us For Availability

45

Bracket, Conduit WPL 3177545 Contact Us For Availability

45

Insulation, Back WPL 3177872 Contact Us For Availability

45

Insulation, Wrap WPL 4454418 Contact Us For Availability
