Model Whirlpool KEMI371BWH0 – Common Parts & Diagrams

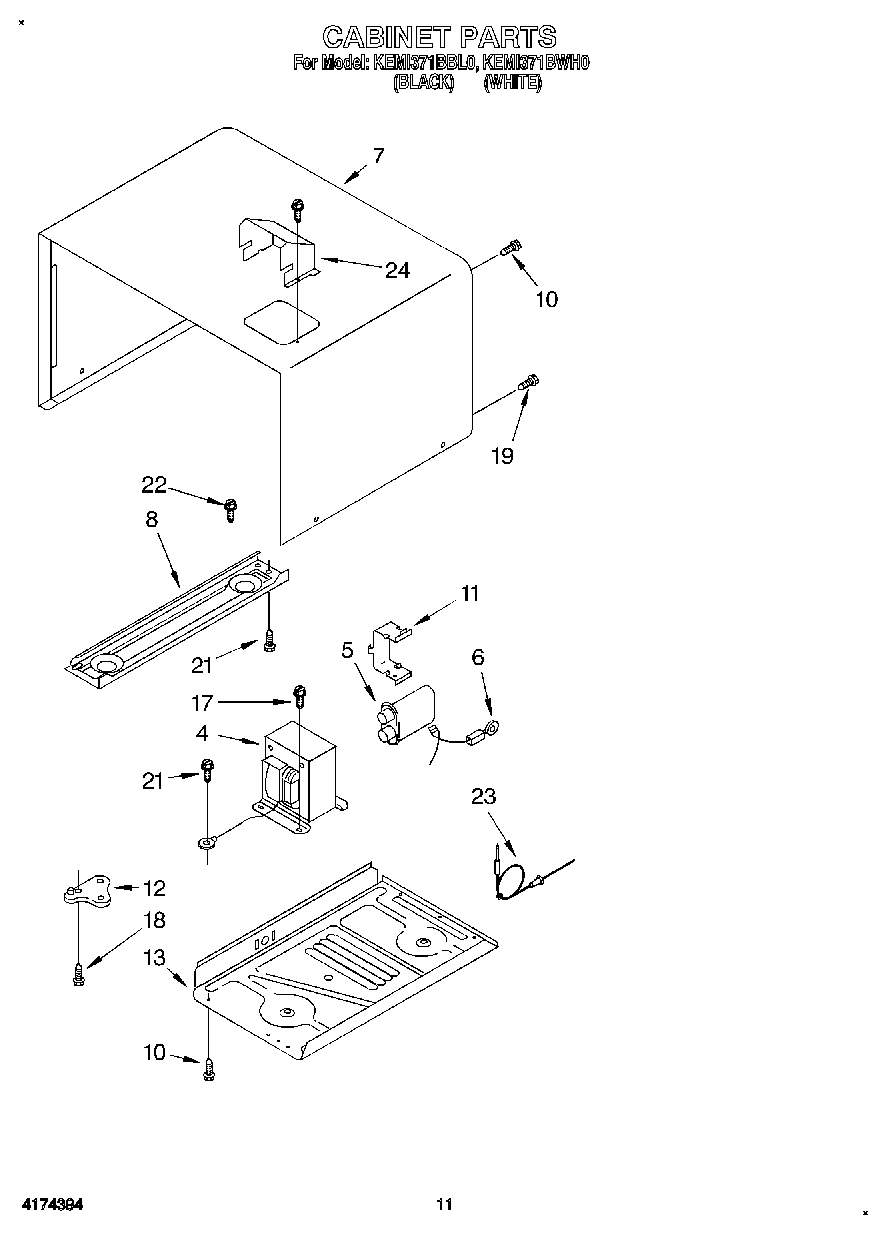

09 - CABINET

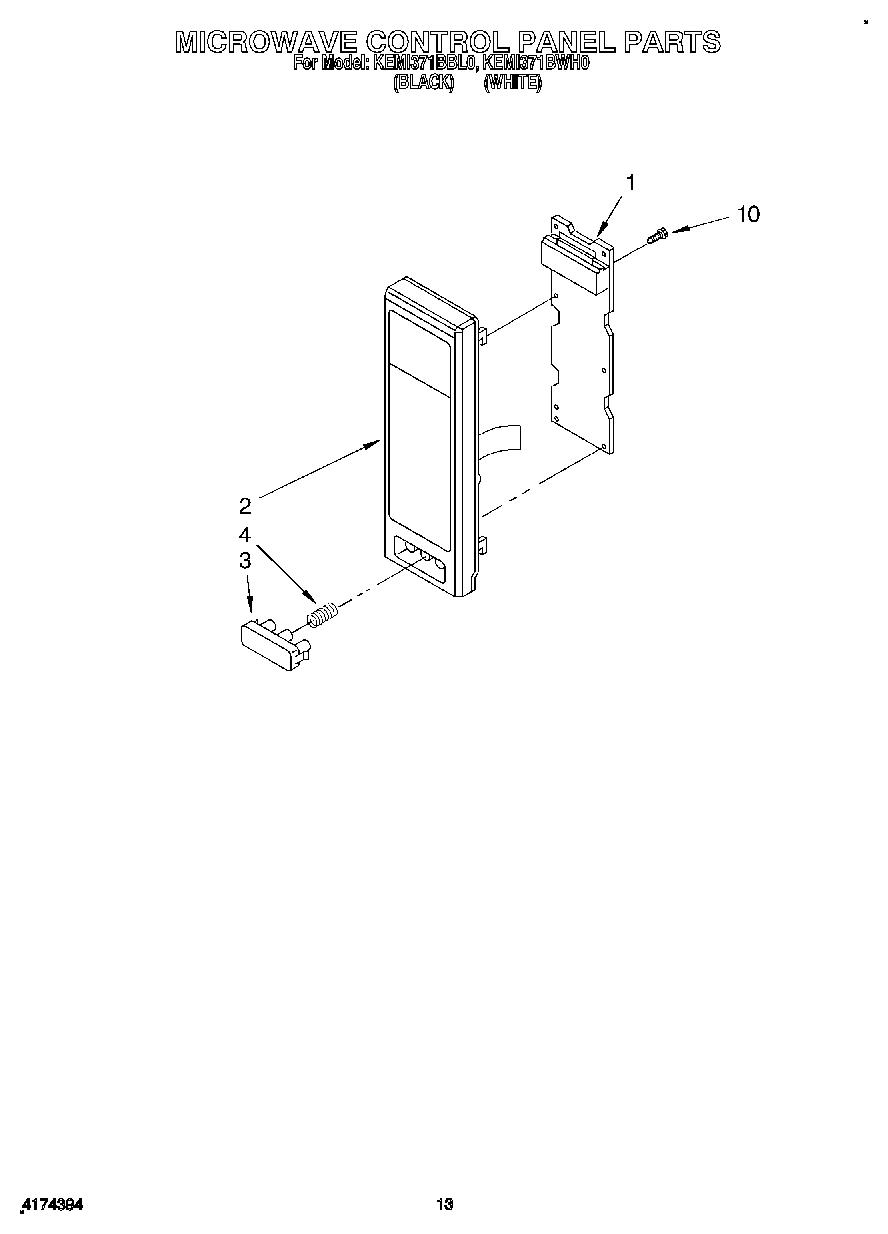

11 - MICROWAVE CONTROL PANEL

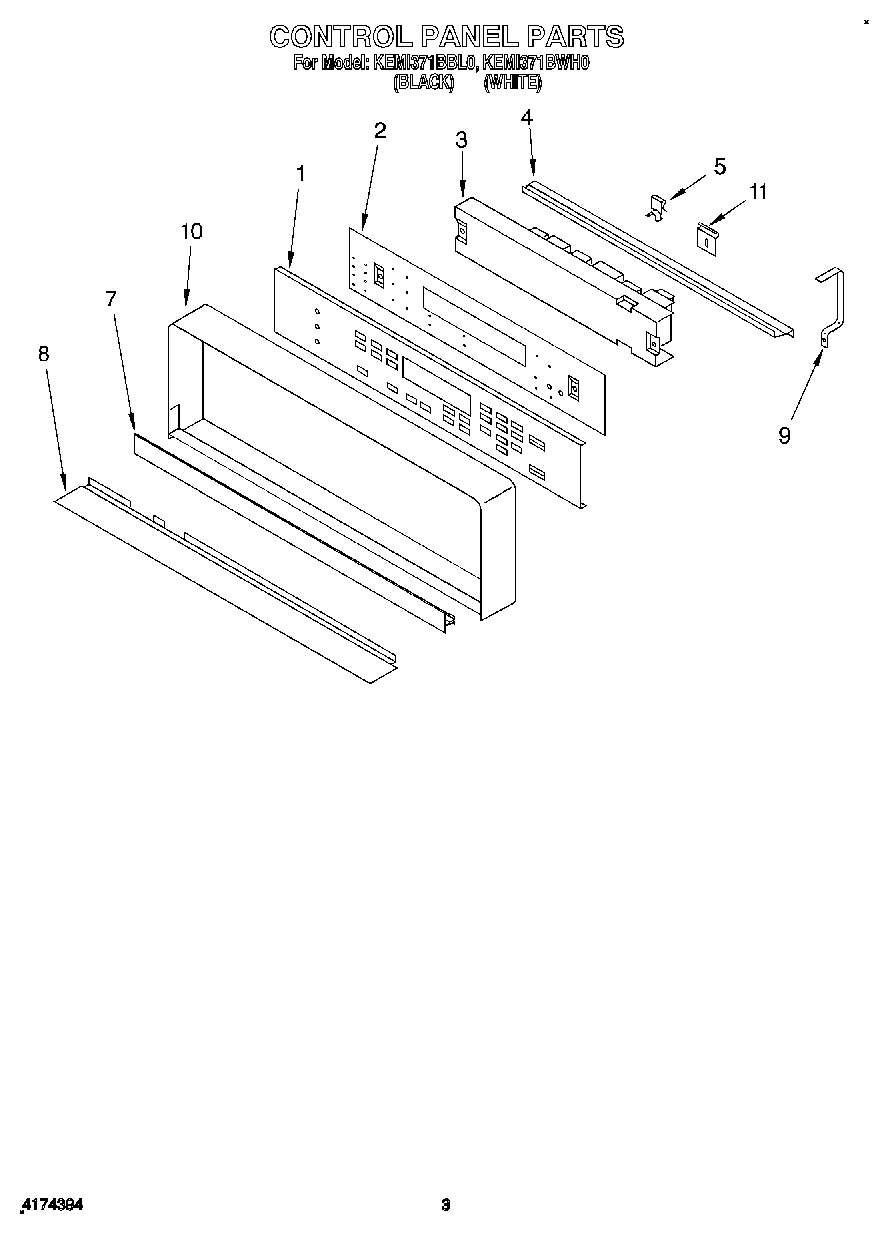

02 - CONTROL PANEL, LITERATURE

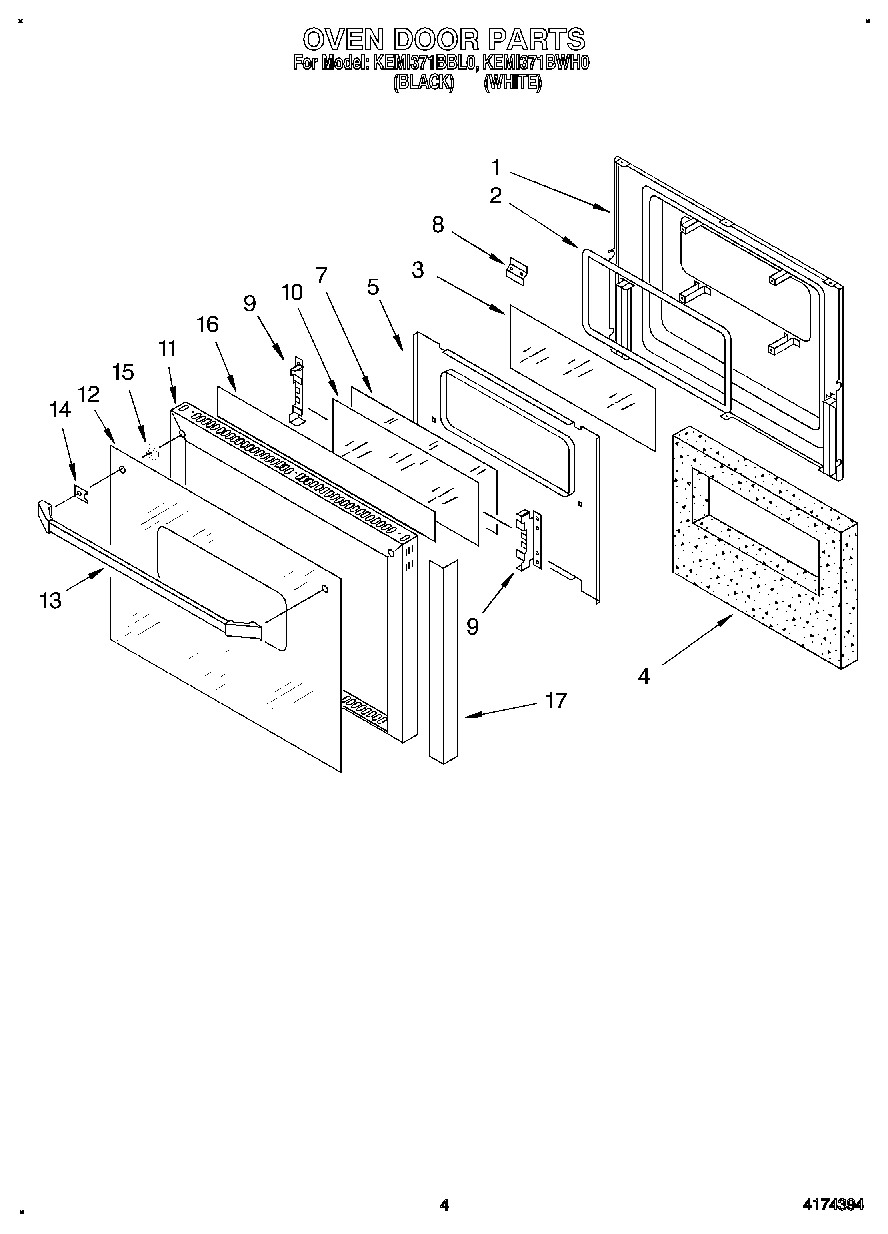

03 - OVEN DOOR

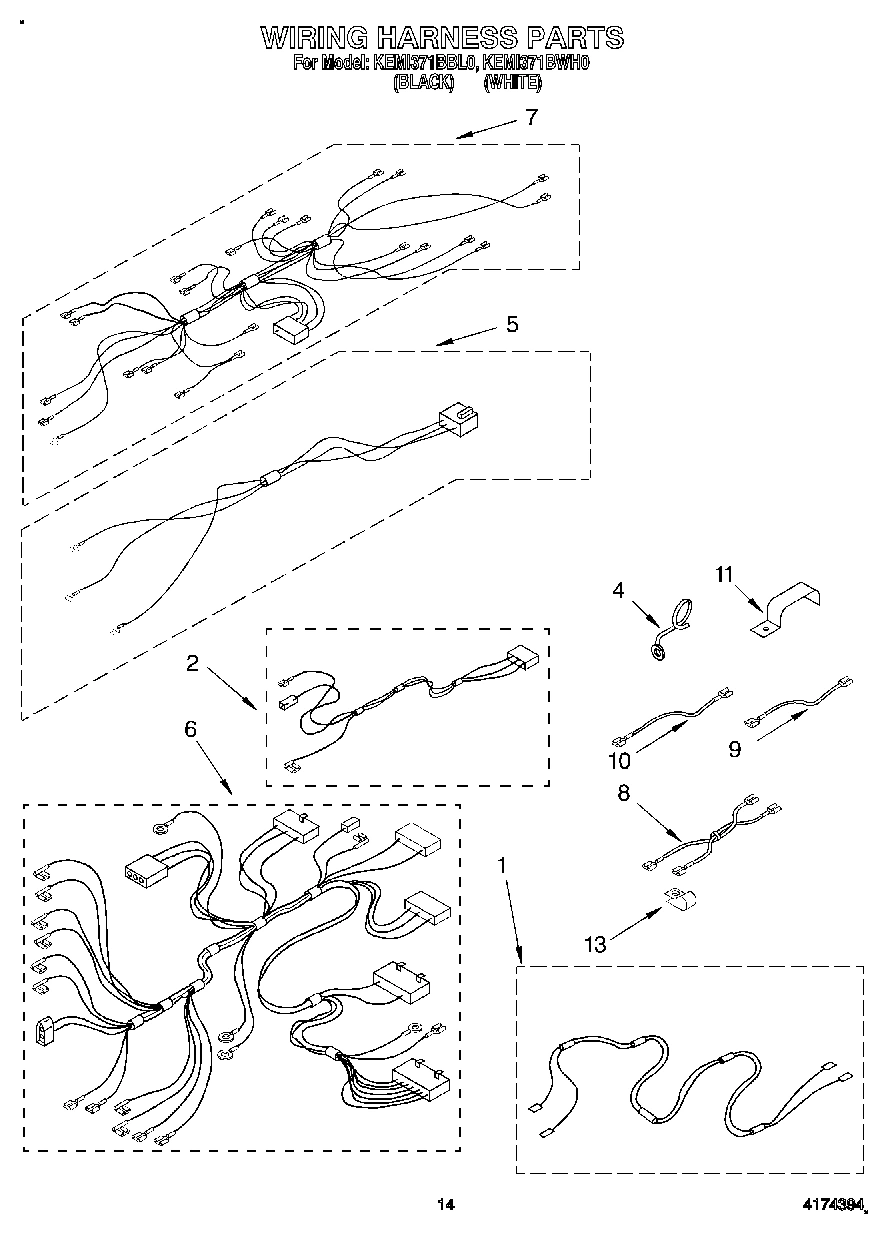

12 - WIRING HARNESS, OPTIONAL

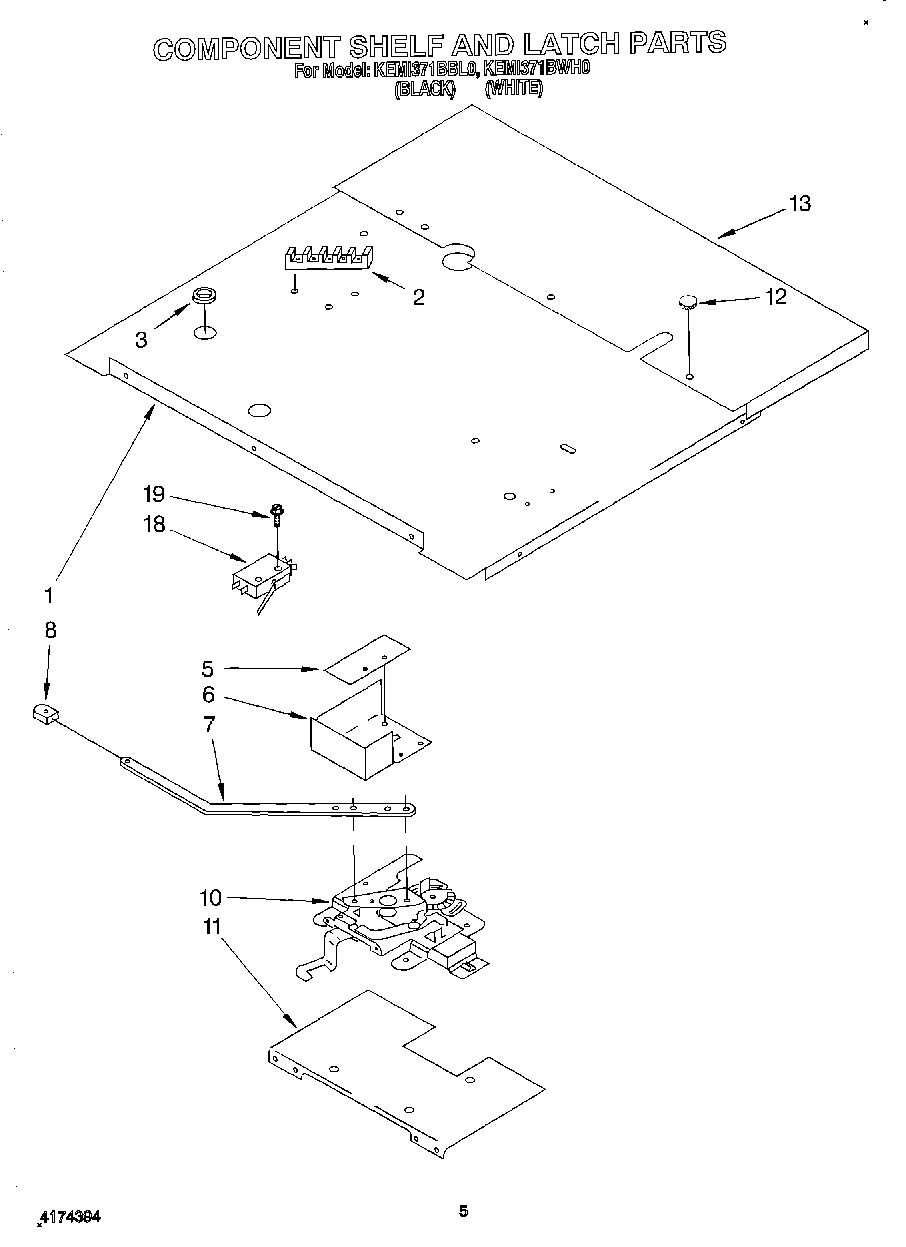

04 - COMPONENT SHELF AND LATCH

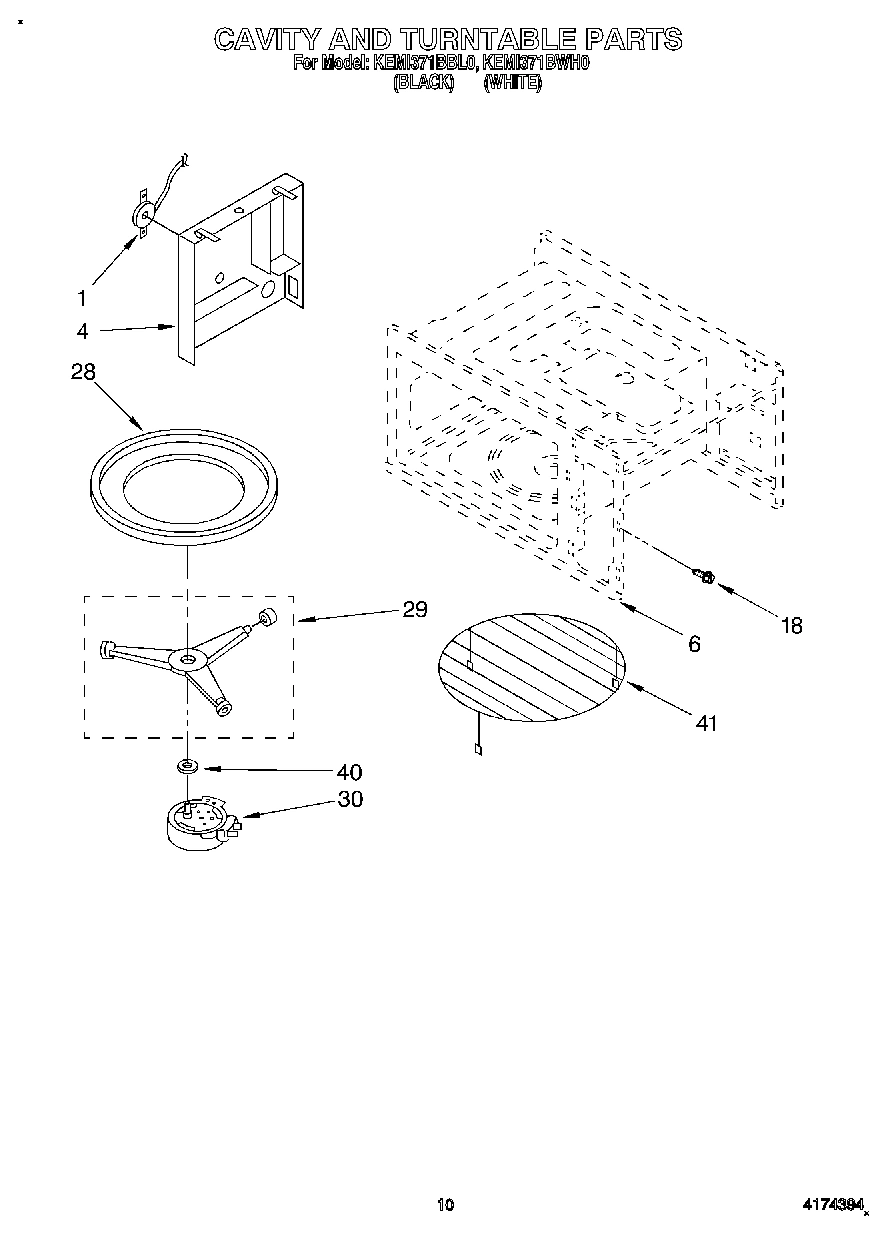

08 - CAVITY AND TURNTABLE

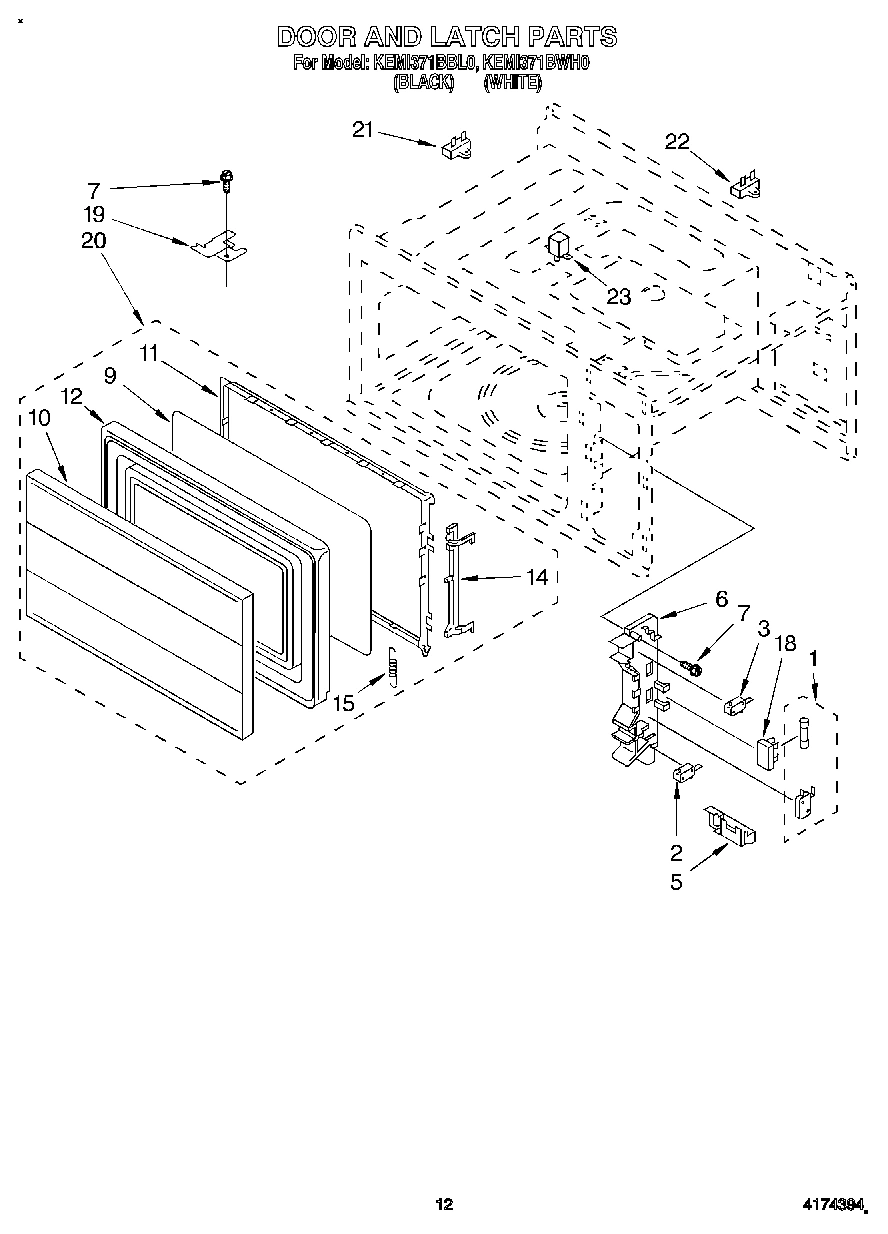

10 - DOOR AND LATCH

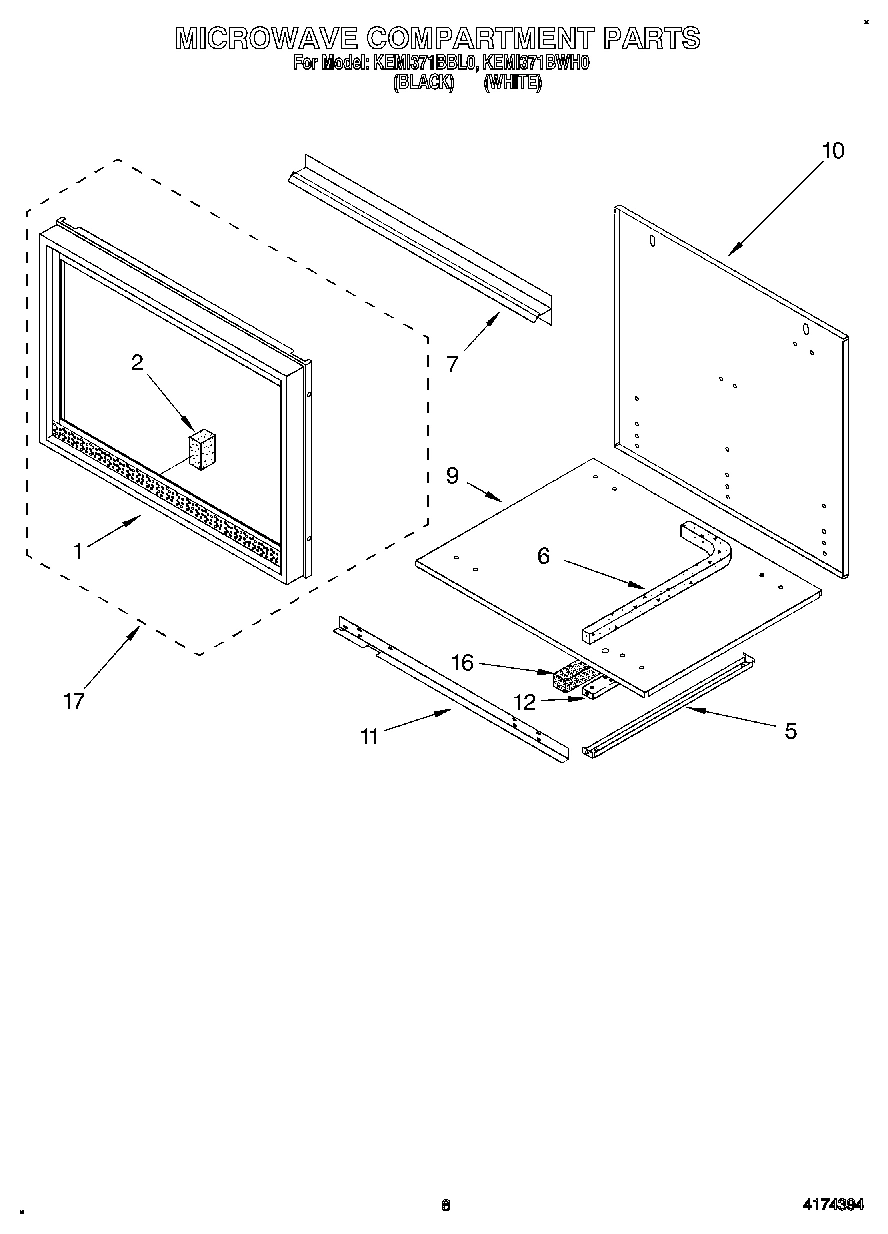

06 - MICROWAVE COMPARTMENT

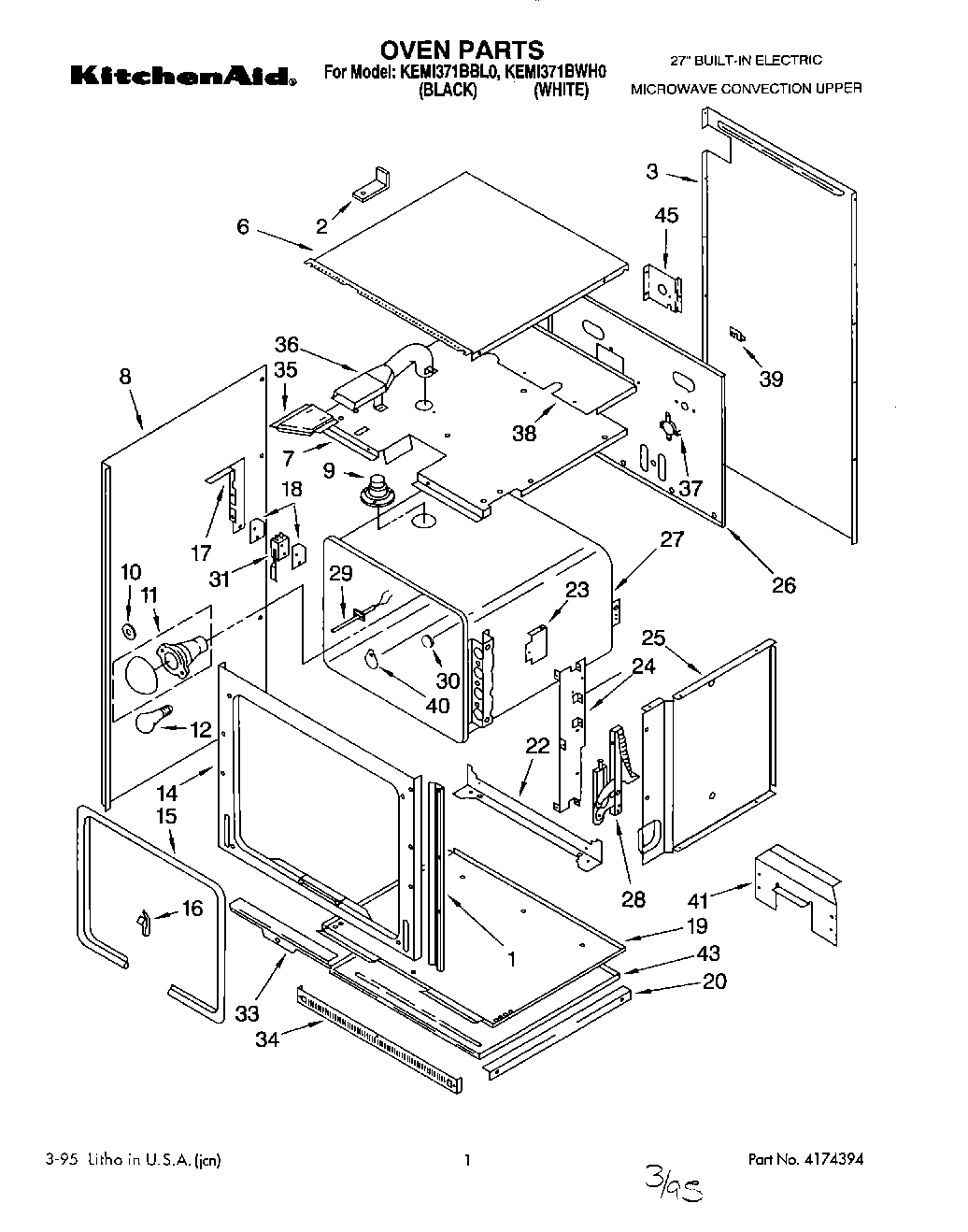

01 - OVEN

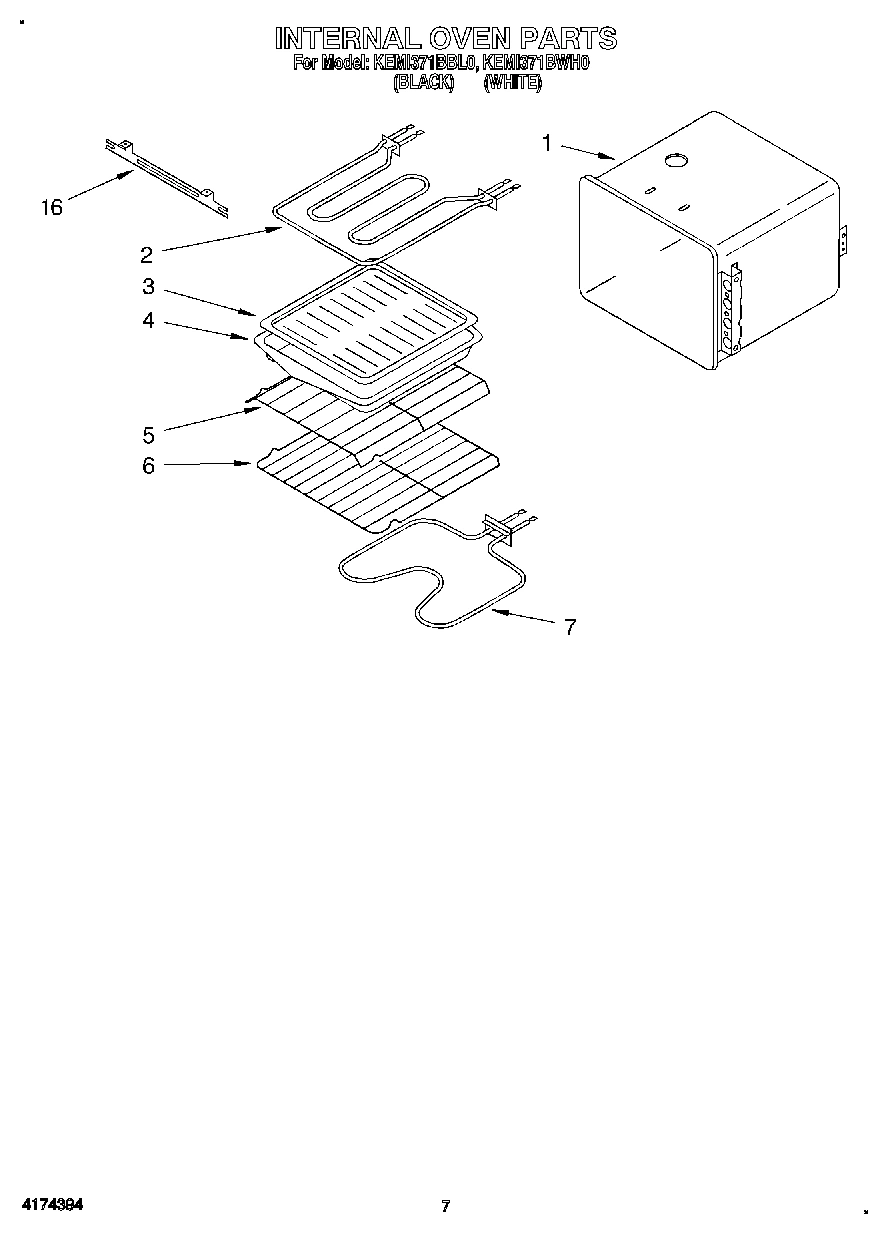

05 - INTERNAL OVEN

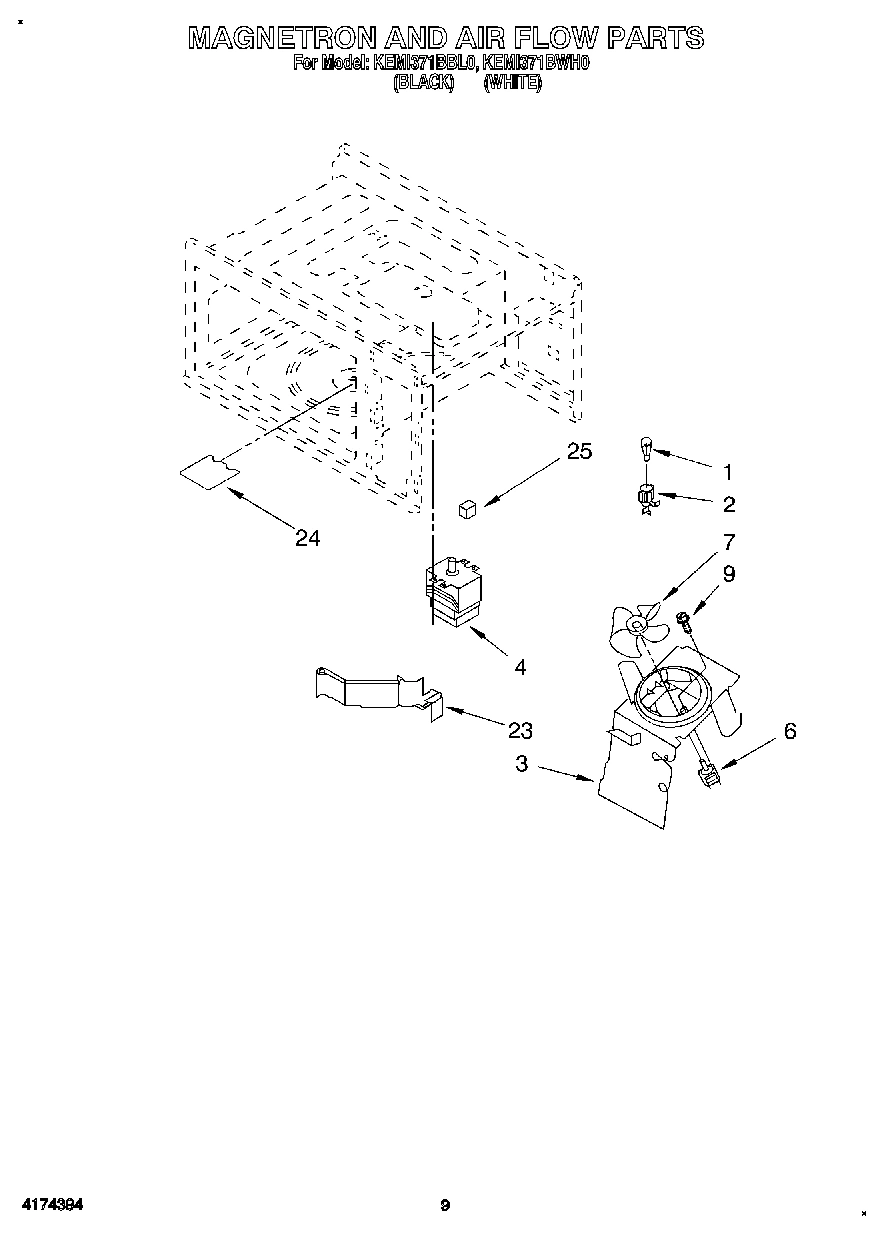

07 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool KEMI371BWH0
Installation Instructions WPL LIT3184435 Contact Us For Availability
Tech Sheet WPL LIT3184436 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT3188193 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3188194 Contact Us For Availability
Cookbook Microwave WPL LIT4357919 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4365543 Contact Us For Availability
1
Microcomputer WPL 4357393 Contact Us For Availability
1
Membrane, Switch (Black Model) WPL 3181776 Contact Us For Availability
1
Membrane, Switch (White, Model) WPL 3181777 Contact Us For Availability
1
Screw WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Harness, Wiring (Light Switch) WPL 3185130 Contact Us For Availability
1
Shelf, Component WPL 3184592 Contact Us For Availability
1
Screw WPL 4174757 Contact Us For Availability
1
Sensor, Absolute Humidity WPL 4365549 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3188341 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3188342 Contact Us For Availability
1
Side Trim, Door (Black Model) WPL 3187874 Contact Us For Availability
1
Trim, Side Door (White Model) WPL 3187877 Contact Us For Availability
1
Liner, Oven WPL 3185562 Contact Us For Availability
2
Frame, Control Panel (White) WPL 4357394 Contact Us For Availability
2
Frame, Control Panel (Black) WPL 4357395 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Seal, Window WPL 3185462 Contact Us For Availability
2
Harness, Wiring (Latch-Combo) WPL 3184819 Contact Us For Availability
2
Screw (2) WPL 308043 Contact Us For Availability
2
Block, Foam WPL 3187143 Contact Us For Availability
2
Brace, M/W Back WPL 3187369 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
3
Push Button (White) WPL 4365565 Contact Us For Availability
3
Push Button (Black) WPL 4365564 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Microcomputer WPL 3181702 Contact Us For Availability
3
Bushing, Electric WPL 3181919 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Duct, Fan WPL 4313686 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Harness, Wiring (Standoff) WPL 3179668 Contact Us For Availability
4
Duct, Sensor WPL 4365557 Contact Us For Availability
4
Screw WPL 4365500 Contact Us For Availability
4
Magnetron WPL 4365544 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Harness, Wiring (Microwave Power) WPL 3181721 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
5
Rail, Microwave WPL 3179973 Contact Us For Availability
5
Rack, Offset WPL 3185367 Contact Us For Availability
6
Harness, Wire (Main Power) WPL 3184820 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI85886A3 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
6
Seal, Foam WPL 3184897 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Rack, Oven WPL 3185368 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
7
Trim, Panel (Black Model) WPL 3183597 Contact Us For Availability
7
Trim, Panel (White Model) WPL 3183599 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Harness, Wiring (Microwave Main) WPL 4365576 Contact Us For Availability
7
Handle, Latch WPL 3181963 Contact Us For Availability
7
Screw WPL 4365571 Contact Us For Availability
7
Vent, Middle Trim (Black Model) WPL 3187883 Contact Us For Availability
7
Vent, Middle Trim (White Model) WPL 3187885 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
8
Trim, Panel WPL 3184516 Contact Us For Availability
8
Trim, Panel (White Model) WPL 3184517 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Harness, Wiring Thermal Protection WPL 4365506 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Side, Cabinet WPL 3181695 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
H.V. Wire WPL 4313679 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI85887A4 Contact Us For Availability
9
Support, Module WPL 3180330 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
10
Frame, Control Panel WPL 3182148 Contact Us For Availability
10
Black Model WPL 3187954 Contact Us For Availability
10
White Model WPL 3187955 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Sensor Ground Wire WPL 4365546 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Screen, Door (Black) WPL 4313070 Contact Us For Availability
10
Screen, Door (White) WPL 4313073 Contact Us For Availability
10
Back, Microwave Compartment WPL 3180336 Contact Us For Availability
11
Screw WPL 309133 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
11
Frame, Door (White Model) WPL 3187852 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Choke, Cover WPL 4313700 Contact Us For Availability
11
Ext. Module Support WPL 3182764 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3187863 Contact Us For Availability
12
Glass, Door (White Model) WPL 3187865 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI85888A6 Contact Us For Availability
12
Rail, Chassis WPL 3179972 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3185986 Contact Us For Availability
13
Handle, Door (White Model) WPL 3185987 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
13
Trim, White WPL 4319146 Contact Us For Availability
13
Trim, Almond WPL 4319147 Contact Us For Availability
13
Trim, Gray WPL 4319148 Contact Us For Availability
13
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
14
Spacer, Door Handle WPL 3182138 Contact Us For Availability
14
Latch, Door WPL 4313652 Contact Us For Availability
14
Frame, Front WPL 3185861 Contact Us For Availability
15
Screw WPL 3181637 Contact Us For Availability
15
Bushing, Door Handle WPL 3188599 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3188633 Contact Us For Availability
16
Seal, Foam WPL 3187142 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Screw (4) WPL 3185648 Contact Us For Availability
16
Bracket, Element WPL 3180694 Contact Us For Availability
17
Foil-Adhesive Backed WPL 3188635 Contact Us For Availability
17
Assembly-Frame & Seal (Black Model) WPL 3188373 Contact Us For Availability
17
Assembly-Frame & Seal (White Model) WPL 3188374 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Switch, latch WPL 3183784 Contact Us For Availability
18
Holder, Fuse WPL 4365542 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Screw WPL 4313665 Contact Us For Availability
19
Screw WPL 98106 Contact Us For Availability
19
Hinge, Upper WPL 4365556 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Door, Complete (Black) WPL 4313069 Contact Us For Availability
20
Door, Complete (White) WPL 4313072 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Screw WPL 4164610 Contact Us For Availability
21
Fuse, Temp WPL 4313674 Contact Us For Availability
22
Screw WPL 4174811 Contact Us For Availability
22
Screw WPL 4174826 Contact Us For Availability
22
Fuse, Magnetron Temp WPL 4313613 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Probe, Temperature WPL 4365550 Contact Us For Availability
23
Screw WPL 4174756 Contact Us For Availability
23
Connector WPL 4174898 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Duct, Magnetron WPL 4365553 Contact Us For Availability
24
Duct, Exhaust (Front) WPL 4365558 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Cover, Wave Guide WPL 4313687 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
25
Shield, Magnetron WPL 4313643 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
28
Tray, Glass WPL 4313690 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Support, Turntable WPL 4365526 Contact Us For Availability
29
Sensor, Heat WPL 3148440 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
30
Plug, Button WPL 3182814 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177783 Contact Us For Availability
34
Vent, Lower Trim (Screw (4)) WPL 3180022 Contact Us For Availability
34
Trim, Lower Vent (White Model) WPL 3187957 Contact Us For Availability
35
Black Model WPL 3181964 Contact Us For Availability
35
White Model WPL 3187388 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3179945 Contact Us For Availability
37
Screw WPL 3185647 Contact Us For Availability
37
SPST Thermostat WPL 3149652 Contact Us For Availability
38
Extension, Shelf WPL 3180332 Contact Us For Availability
39
Screw WPL 4168863 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
40
Plate, Cover WPL 3185085 Contact Us For Availability
41
Rack, Oven WPL 4357400 Contact Us For Availability
41
Bracket, Control WPL 3183752 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
45
Insulation, Back WPL 3177872 Contact Us For Availability
45
Insulation, Wrap WPL 3185551 Contact Us For Availability
× ![]()
