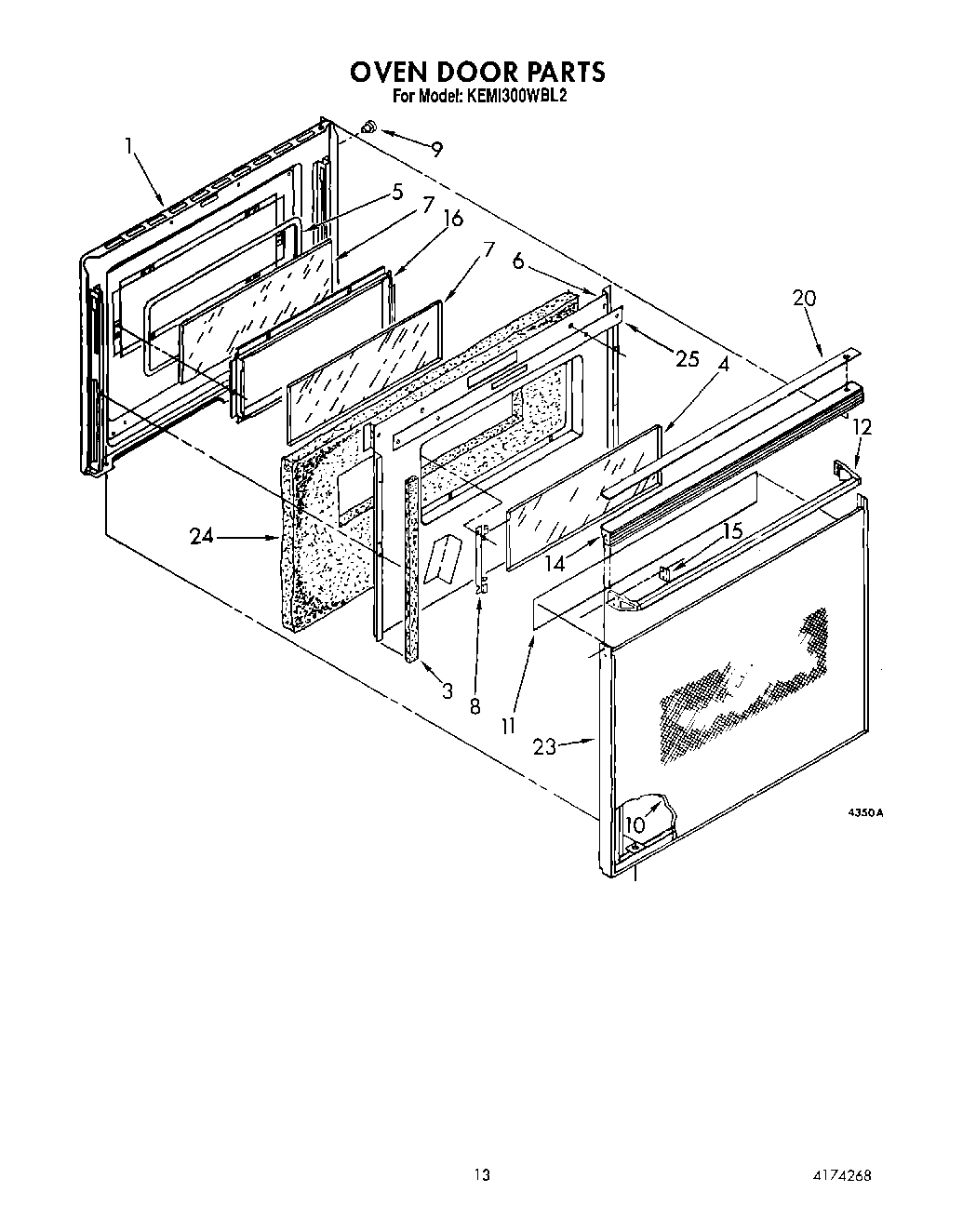

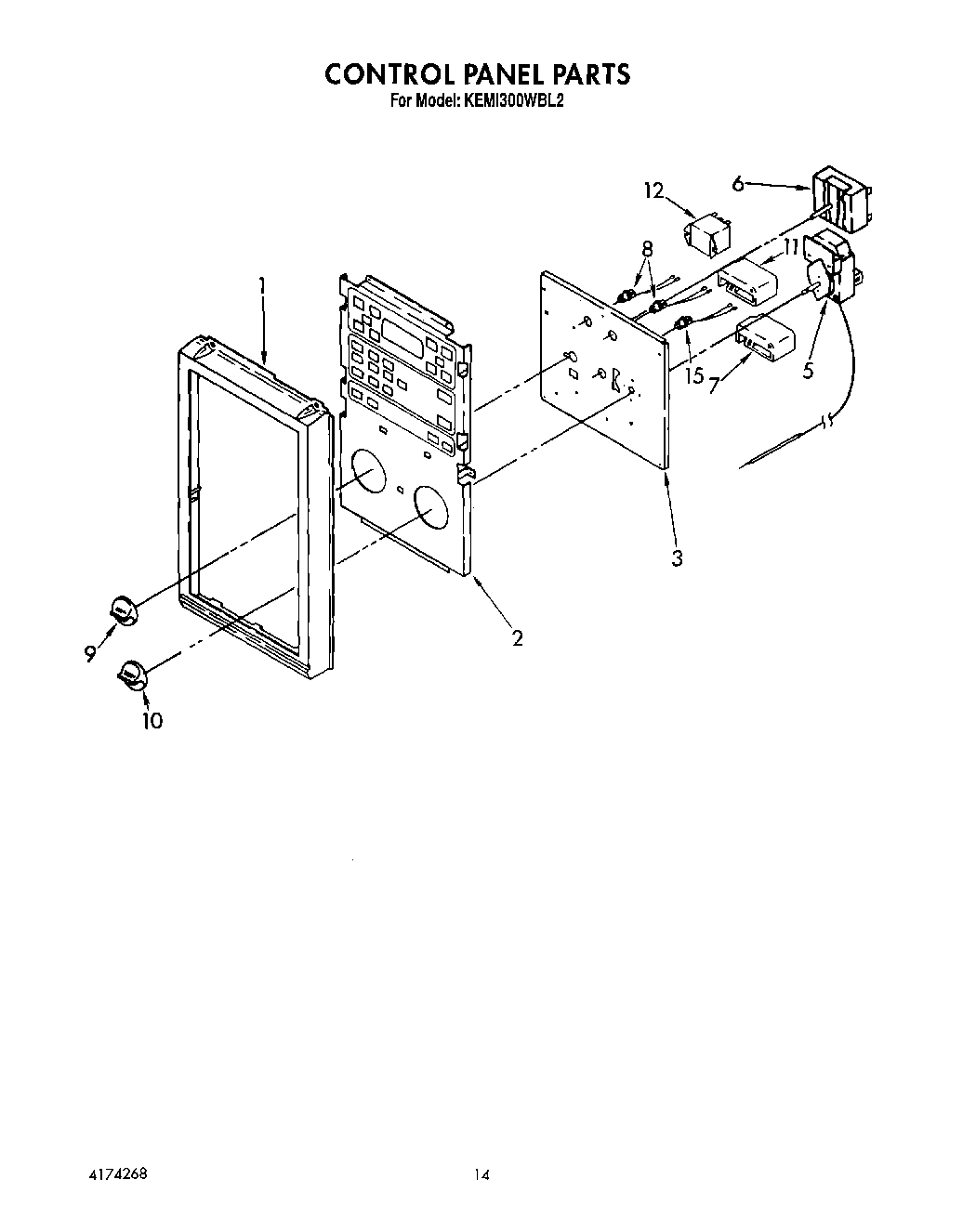

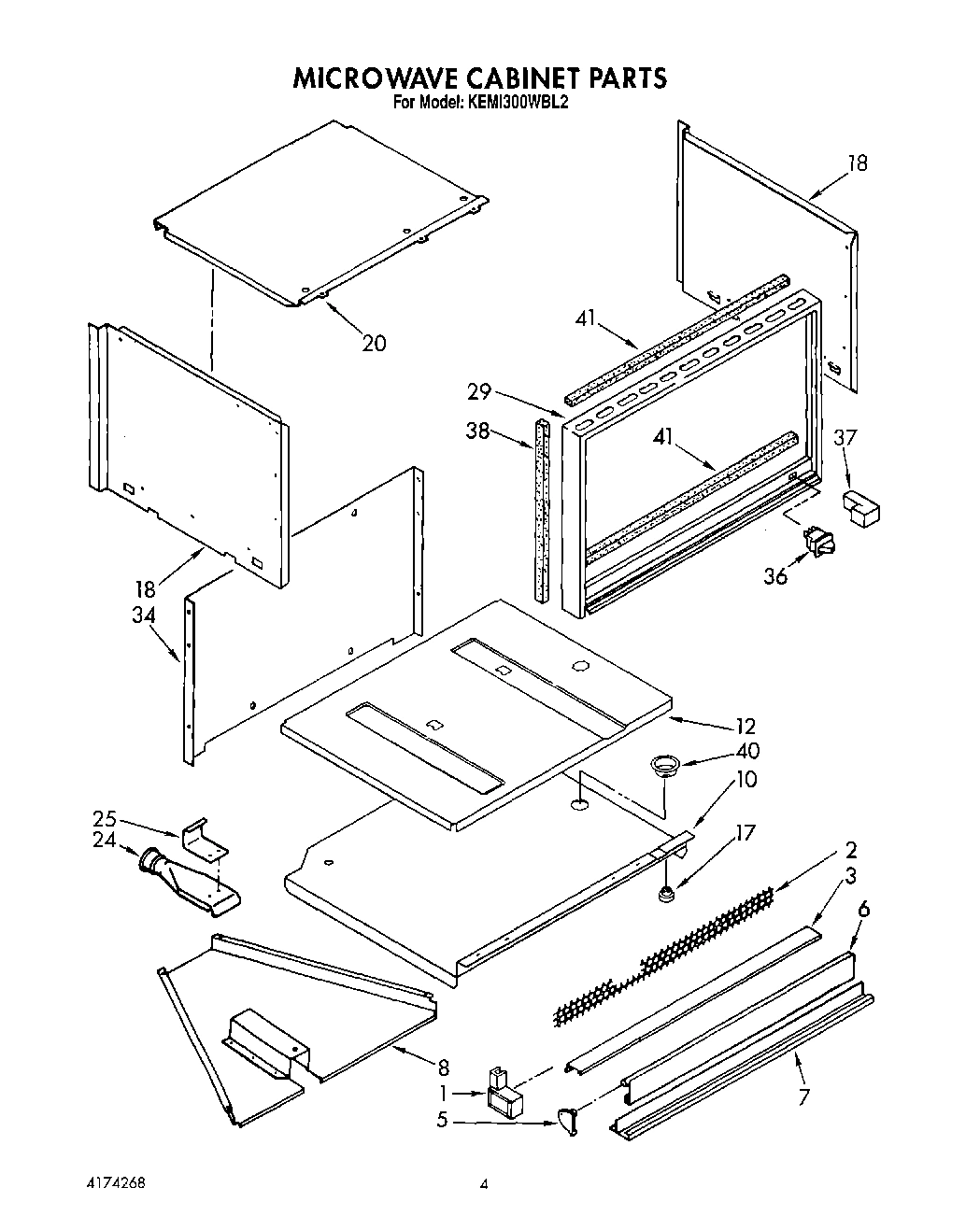

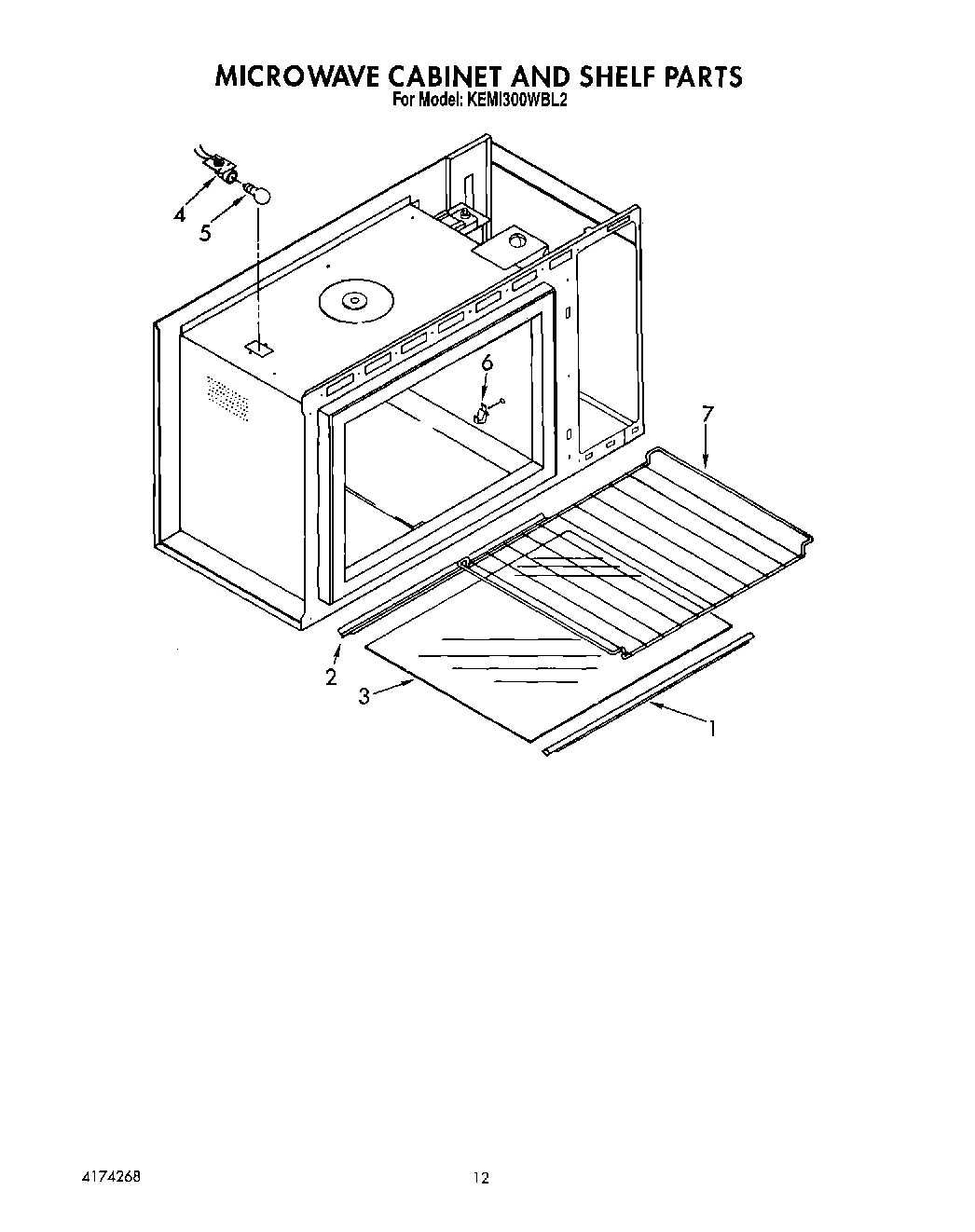

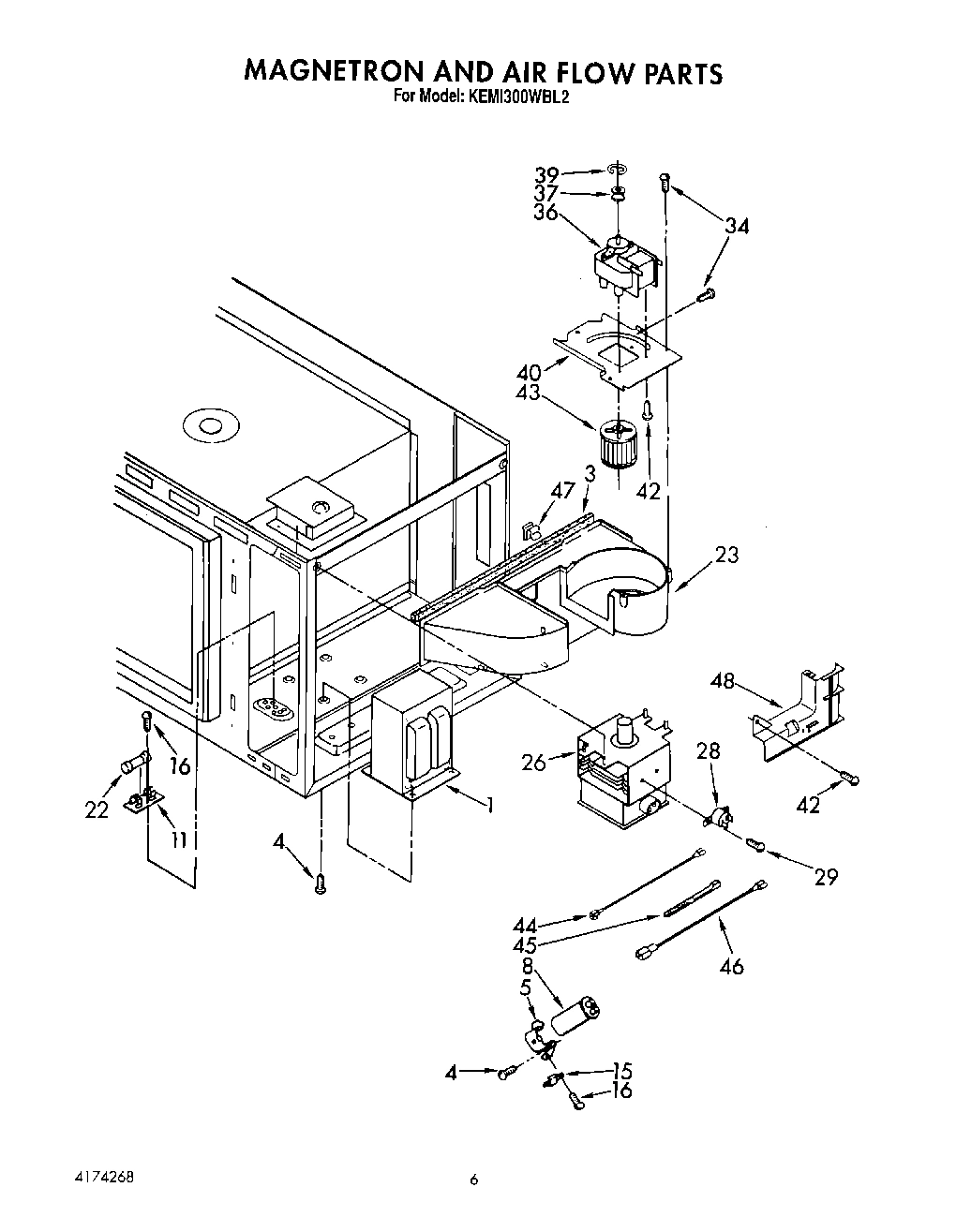

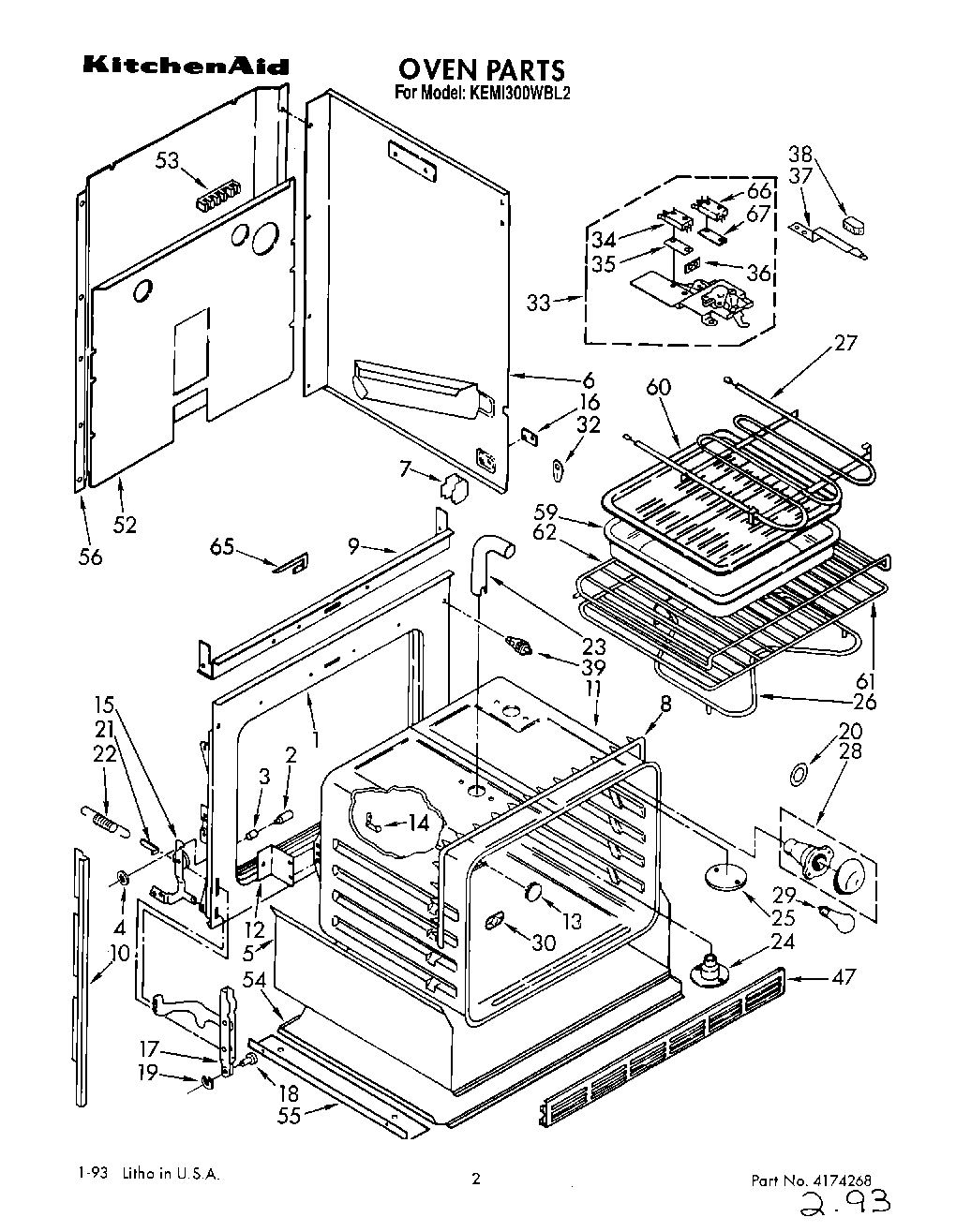

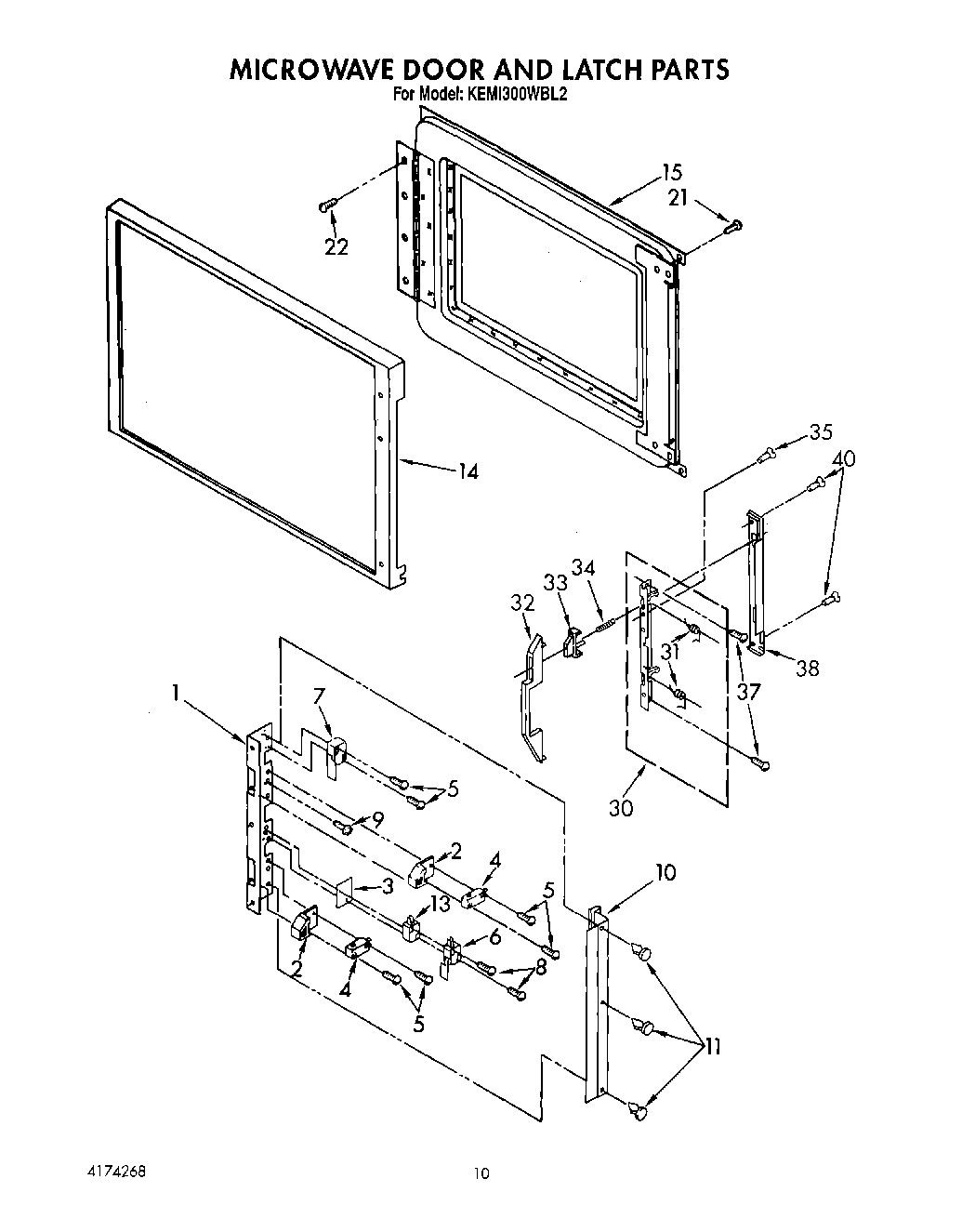

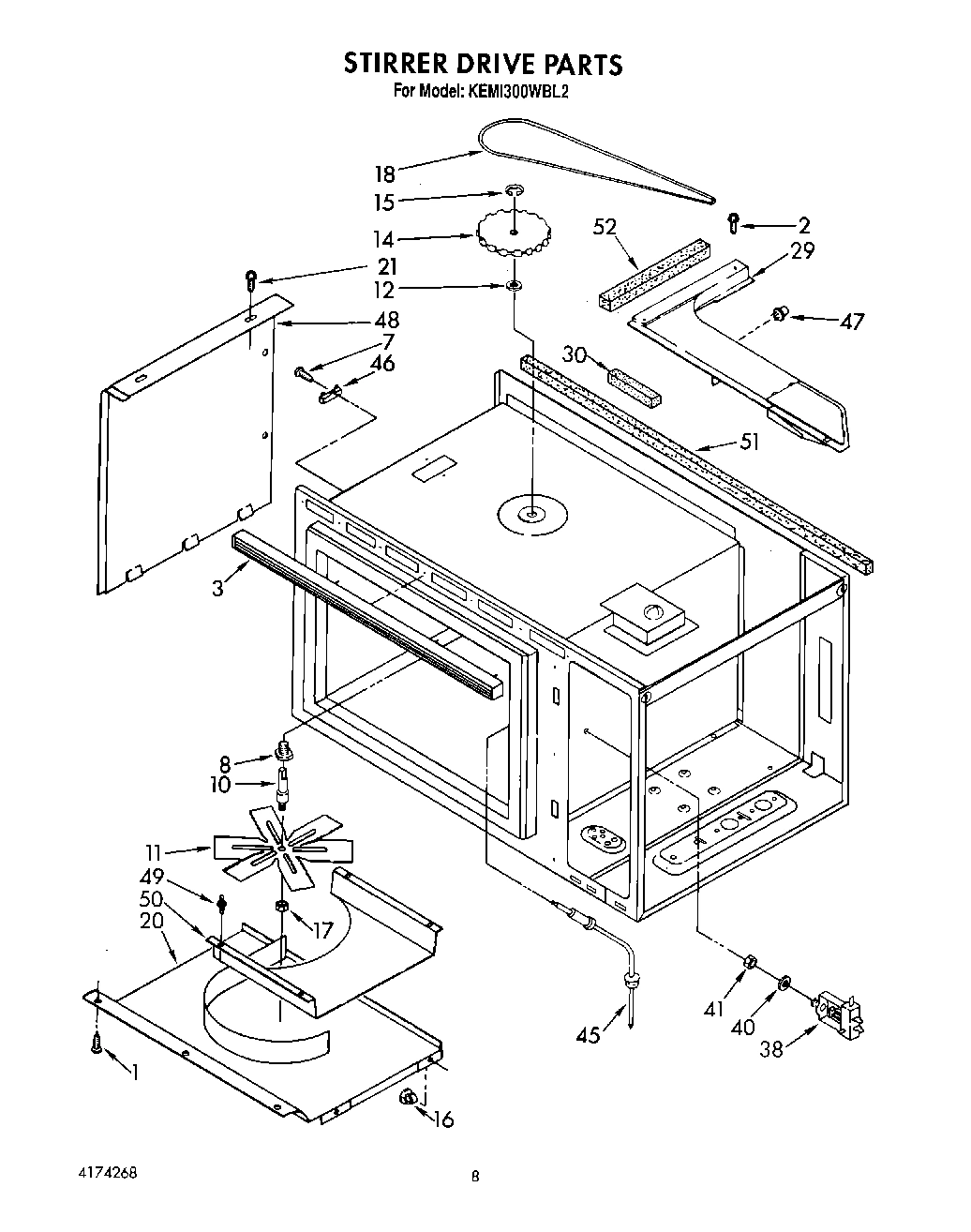

Model Whirlpool KEMI300WBL2 – Common Parts &amp; Diagrams

WPL 3171507 WPL 3171507 Contact Us For Availability

WPL LIT3147005 WPL LIT3147005 Contact Us For Availability

WPL LIT3147438 WPL LIT3147438 Contact Us For Availability

WPL LIT3147571 WPL LIT3147571 Contact Us For Availability

WPL LIT3147577 WPL LIT3147577 Contact Us For Availability

WPL LIT3149135 WPL LIT3149135 Contact Us For Availability

WPL LIT3149670 WPL LIT3149670 Contact Us For Availability

WPL LIT3150702 WPL LIT3150702 Contact Us For Availability

WPL LIT3181679 WPL LIT3181679 Contact Us For Availability

WPL LIT4174268 WPL LIT4174268 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

1

End Cap, L.H. WPL 3148928 Contact Us For Availability

1

End Cap, R.H. WPL 3148929 Contact Us For Availability

1

Transformer WPL 3147272 Contact Us For Availability

1

Trim, Shelf (Front) WPL 313614 Contact Us For Availability

1

Frame, Control Panel WPL 3182414 Contact Us For Availability

1

Frame, Front WPL 3176700 Contact Us For Availability

1

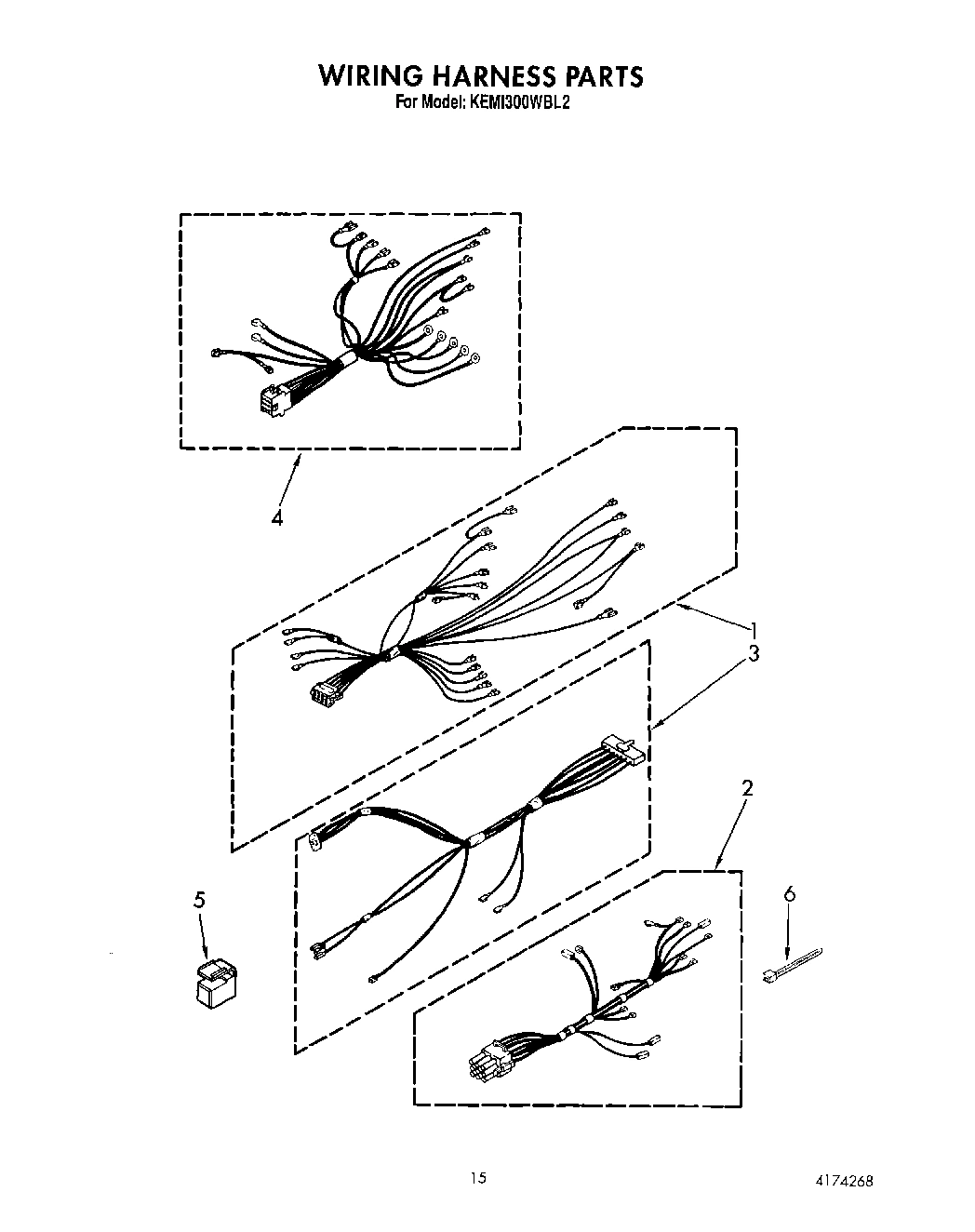

Wiring Harness (Main) WPL 3147938 Contact Us For Availability

2

Trim, Oven Vent WPL 312432 Contact Us For Availability

2

Trim, Shelf (Rear) WPL 313615 Contact Us For Availability

2

Switch Membrane (Control Module) WPL 3148276 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Harness, Wiring (Thermostat) WPL 3147916 Contact Us For Availability

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

3

Trim, Top WPL 3148678 Contact Us For Availability

3

Grill, Air WPL 3149301 Contact Us For Availability

3

screw (3) WPL 3150025 Contact Us For Availability

3

Seal, Foam WPL 313752 Contact Us For Availability

3

Shelf, Microwave WPL 313639 Contact Us For Availability

3

Screw (4) WPL 308119 Contact Us For Availability

3

Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability

4

Glass, Clear WPL 3169202 Contact Us For Availability

4

Screw (4) Hex Washer W/Ground Ring (10) WPL 312185 Contact Us For Availability

4

Socket, Complete WPL 330514 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability

5

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

5

WP3395618 Whirlpool Light Bulb Backorder WPL WP3395618 $26.21

5

Seal, Door WPL 3148183 Contact Us For Availability

5

End Trim, Vent Door L.H. WPL 3148697 Contact Us For Availability

5

End Trim, Vent Door R.H. WPL 3148698 Contact Us For Availability

5

screw (2) WPL 312713 Contact Us For Availability

5

Bracket, Capacitor WPL 312619 Contact Us For Availability

5

Thermostat WPL 3148932 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

5

Adapter, Terminal WPL 3147832 Contact Us For Availability

6

WP3149478 Whirlpool Microwave Support In Stock WPL WP3149478 $2.73

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

6

Door, Vent WPL 3182337 Contact Us For Availability

6

Switch, Selector WPL 3148420 Contact Us For Availability

6

Screw (2) WPL 4159448 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

screw (2) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 3148618 Contact Us For Availability

7

rack, wire WPL 313663 Contact Us For Availability

7

Switch, Bake WPL 314210 Contact Us For Availability

7

screw WPL 314215 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

8

Box Air WPL 3170178 Contact Us For Availability

8

Bushing, Stirrer WPL 312023 Contact Us For Availability

8

Capacitor WPL 661004 Contact Us For Availability

8

Light, Indictor (4) WPL 3147517 Contact Us For Availability

8

Seal, Door WPL 3185197 Contact Us For Availability

9

Bumper, Door (4) WPL 3148182 Contact Us For Availability

9

Knob, Control (2) WPL 3149106 Contact Us For Availability

9

Baffle, Top Insulation WPL 3183796 Contact Us For Availability

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

Glass, Panel WPL 3148185 Contact Us For Availability

Support Plate WPL 3147494 Contact Us For Availability

Shaft, Stirrer WPL 312026 Contact Us For Availability

Knob, Control WPL 3149116 Contact Us For Availability

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Foil, Handle WPL 3148184 Contact Us For Availability

Stirrer Blade WPL 313595 Contact Us For Availability

Screw (2) WPL 312006 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

Oven (30`` Pyro) WPL 3182032 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Handle, Door WPL 3183402 Contact Us For Availability

Panel, Support WPL 3149038 Contact Us For Availability

Washer, Nylon WPL 312025 Contact Us For Availability

Screw (2) WPL 246131 Contact Us For Availability

Relay, Power WPL 314125 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

13

Button, Plug WPL 3182814 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

14

Top, Door WPL 3148223 Contact Us For Availability

14

Pulley, Stirrer Blade WPL 311923 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Door, Inner WPL 3171012 Contact Us For Availability

Screw (4) WPL 313818 Contact Us For Availability

Rectifier, High Voltage WPL 313830 Contact Us For Availability

Light, Indicator WPL 3149034 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

screw (6) WPL 3148443 Contact Us For Availability

Frame, Glass WPL 3148234 Contact Us For Availability

Fastener (4) WPL 313740 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

17

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

17

Snap Bushing WPL 309552 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP313646 Whirlpool Microwave Drive Belt Backorder WPL WP313646 $27.61

Side Panel, R.H. WPL 3147492 Contact Us For Availability

Side Panel, L.H. WPL 3147493 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Screw (2) WPL 247326 Contact Us For Availability

Cap, Top WPL 3181363 Contact Us For Availability

Screw (2) WPL 309100 Contact Us For Availability

Panel, Top WPL 3147499 Contact Us For Availability

Stirrer Cover WPL 313563 Contact Us For Availability

Screw (3) WPL 313816 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Fastener WPL 310423 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

22

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

23

Frame, Door WPL 3148235 Contact Us For Availability

23

Air Duct (Horizontal) WPL 313578 Contact Us For Availability

23

Tube, Vent WPL 312697 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Insulation, Door WPL 3147951 Contact Us For Availability

Vent Tube WPL 312696 Contact Us For Availability

Eliminator, Smoke WPL 310839 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Shield, Door WPL 3148680 Contact Us For Availability

Support, Vent Tube WPL 312698 Contact Us For Availability

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Magnetron WPL 660595 Contact Us For Availability

26

Screw (2) WPL 3150532 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

28

Thermal Protector WPL 661165 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Frame WPL 3149798 Contact Us For Availability

Baffle, Air WPL 3147003 Contact Us For Availability

Screw (2) WPL 312782 Contact Us For Availability

30

Latch Assembly WPL 329066 Contact Us For Availability

30

Seal, Foam WPL 313753 Contact Us For Availability

30

Plate, Cover WPL 3184208 Contact Us For Availability

31

Spring, Torsion (2) WPL 311352 Contact Us For Availability

32

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

32

Handle, Door WPL 314169 Contact Us For Availability

32

Coverplate (2) WPL 3183005 Contact Us For Availability

33

Button, Door Handle WPL 3149637 Contact Us For Availability

33

Screw (2) WPL 311056 Contact Us For Availability

33

Latch Assembly WPL 3171148 Contact Us For Availability

Spring, Compression WPL 310197 Contact Us For Availability

Cover, Rear WPL 3147491 Contact Us For Availability

Safety Switch WPL 308185 Contact Us For Availability

Screw (2) WPL 98106 Contact Us For Availability

35

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

35

Insulator, Switch WPL 309245 Contact Us For Availability

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

Motor WPL 313641 Contact Us For Availability

Screw (2) WPL 309258 Contact Us For Availability

Terminal, Shield WPL 313035 Contact Us For Availability

Screw (3) WPL 313820 Contact Us For Availability

Seal, Foam (2) WPL 3147750 Contact Us For Availability

Pulley, Motor WPL 311922 Contact Us For Availability

Screw (2) WPL 308422 Contact Us For Availability

Latch, Handle WPL 310825 Contact Us For Availability

End Cap WPL 3148297 Contact Us For Availability

Seal, Foam (2) WPL 3147595 Contact Us For Availability

Probe Jack WPL 661209 Contact Us For Availability

Screw WPL 3183294 Contact Us For Availability

Knob, Latch Handle WPL 3184039 Contact Us For Availability

39

Switch, Door WPL 310345 Contact Us For Availability

39

``E`` Ring WPL 311999 Contact Us For Availability

screw (4) WPL 313823 Contact Us For Availability

Bushing, Snap WPL 3147647 Contact Us For Availability

Washer Probe WPL 313105 Contact Us For Availability

Bracket, Motor WPL 313601 Contact Us For Availability

41

Seal, Foam (2) WPL 3147596 Contact Us For Availability

41

Nut WPL 313104 Contact Us For Availability

42

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

43

Wheel, Blower WPL 3147223 Contact Us For Availability

44

Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability

45

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

45

Probe, Temperature WPL 313527 Contact Us For Availability

46

Fuse, Thermal WPL 313855 Contact Us For Availability

46

High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability

Sensor, Gas WPL 3147060 Contact Us For Availability

Clip WPL 311311 Contact Us For Availability

Screw (3) WPL 309029 Contact Us For Availability

Grill, Bottom WPL 3150349 Contact Us For Availability

48

Cover, Side WPL 3147004 Contact Us For Availability

48

Screw WPL 346893 Contact Us For Availability

48

Extension, Air Duct WPL 3147262 Contact Us For Availability

49

Support (4) WPL 313739 Contact Us For Availability

50

Plate, Tuning WPL 313735 Contact Us For Availability

52

Seal, Foam WPL 3147599 Contact Us For Availability

52

Panel, Back WPL 3182052 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Screw (2) WPL 308043 Contact Us For Availability

Screw WPL 3147001 Contact Us For Availability

54

Cover, Top & Bottom WPL 310458 Contact Us For Availability

55

Angle, Su WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 3185440 WPL 3185440 Contact Us For Availability

62

WPL 3185441 WPL 3185441 Contact Us For Availability

65

WPL 309080 WPL 309080 Contact Us For Availability

65

WPL 3149142 WPL 3149142 Contact Us For Availability

66

WPL 3148669 WPL 3148669 Contact Us For Availability

WPL 307748 WPL 307748 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 3147864 WPL 3147864 Contact Us For Availability

WPL 3149328 WPL 3149328 Contact Us For Availability
