Model Whirlpool KEMI300VBL2 – Common Parts & Diagrams

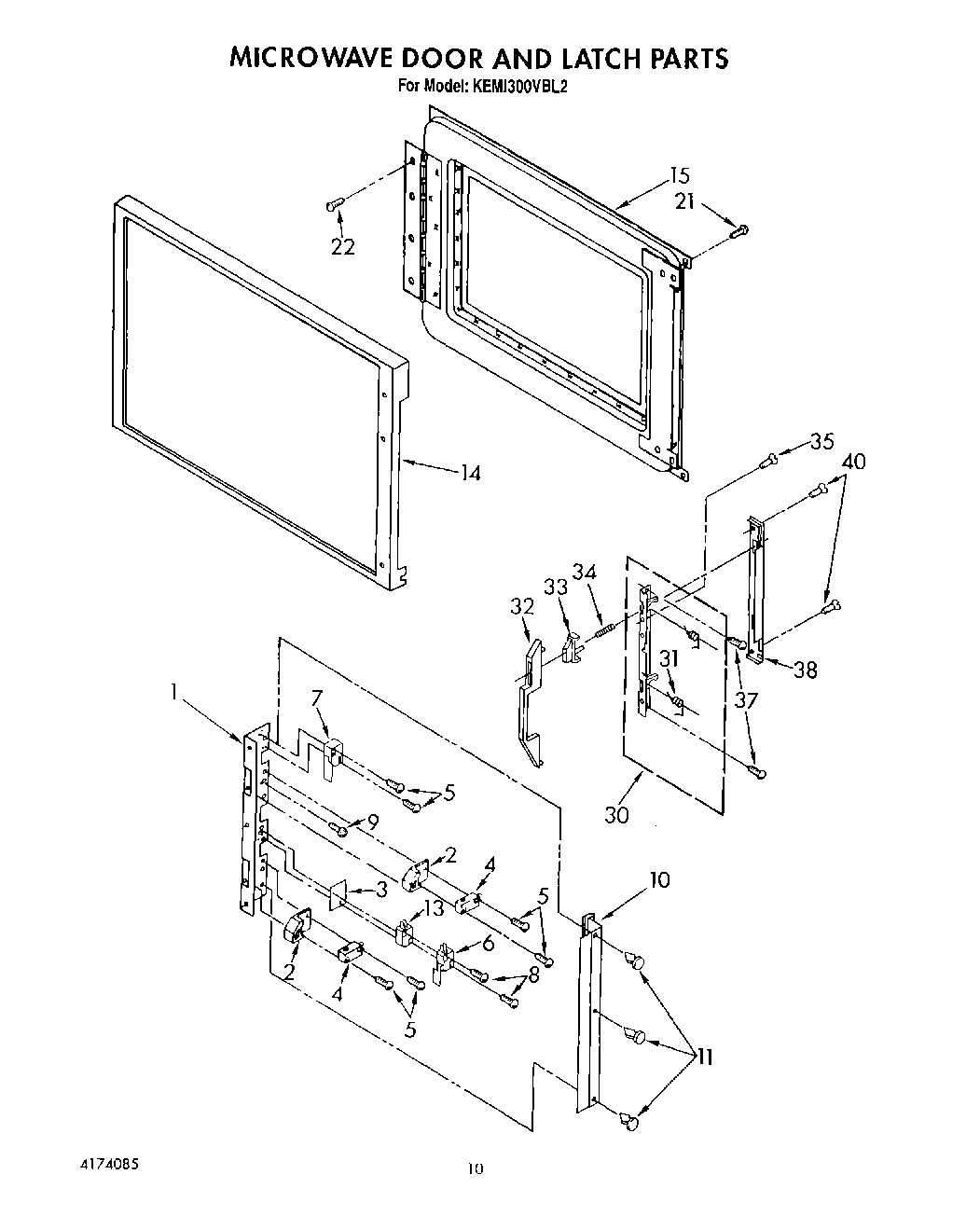

06 - MICROWAVE DOOR AND LATCH

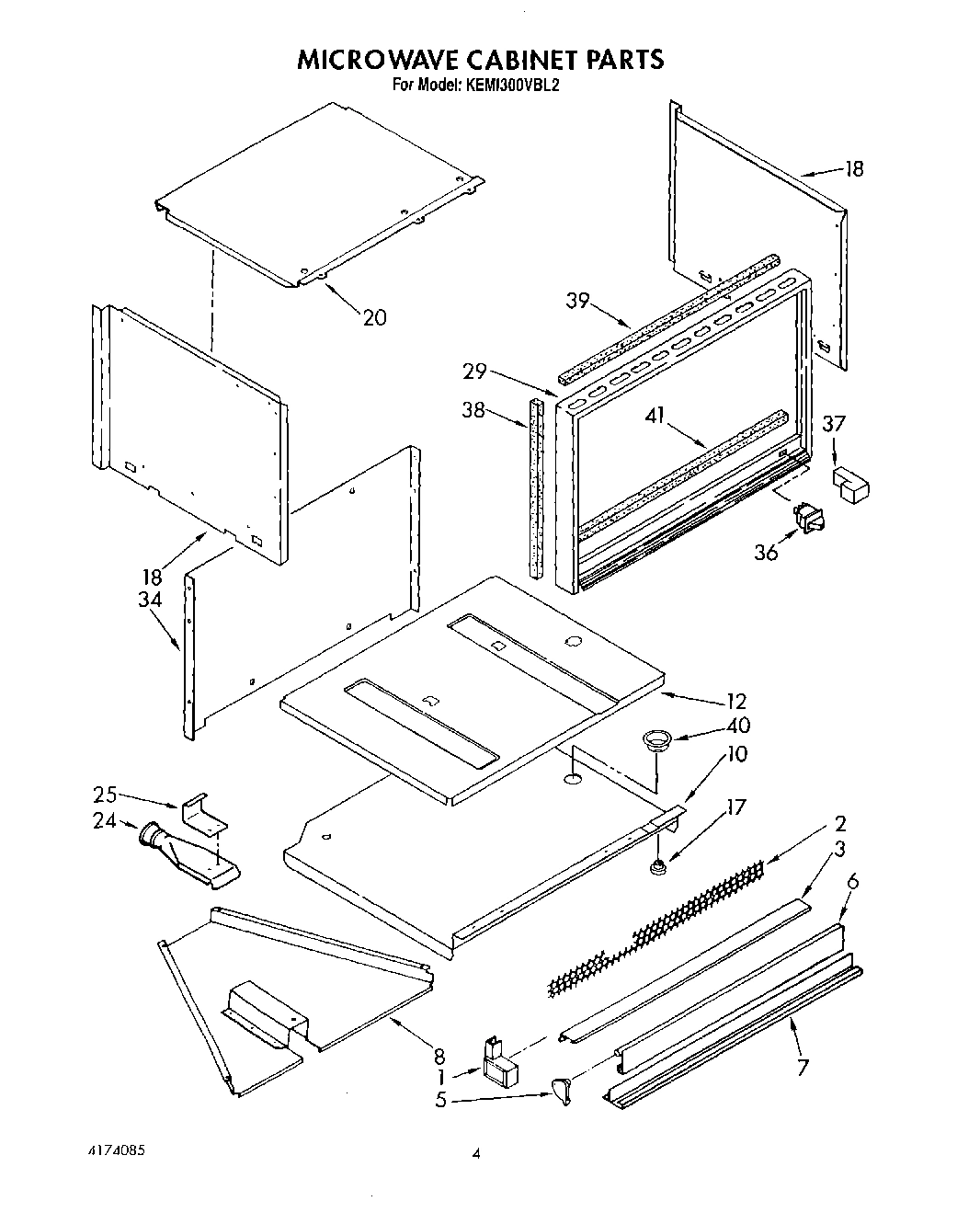

03 - MICROWAVE CABINET

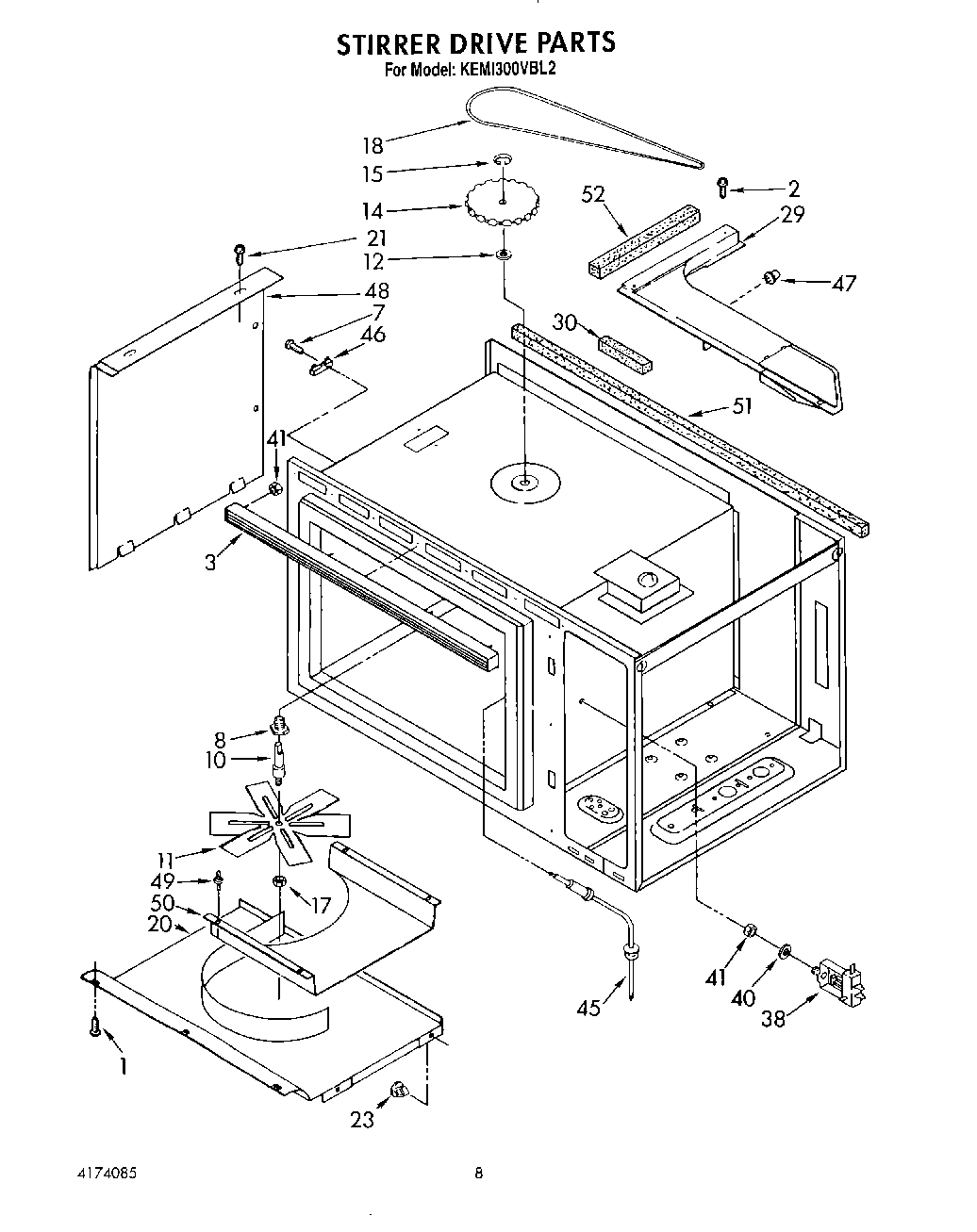

05 - STIRRER DRIVE

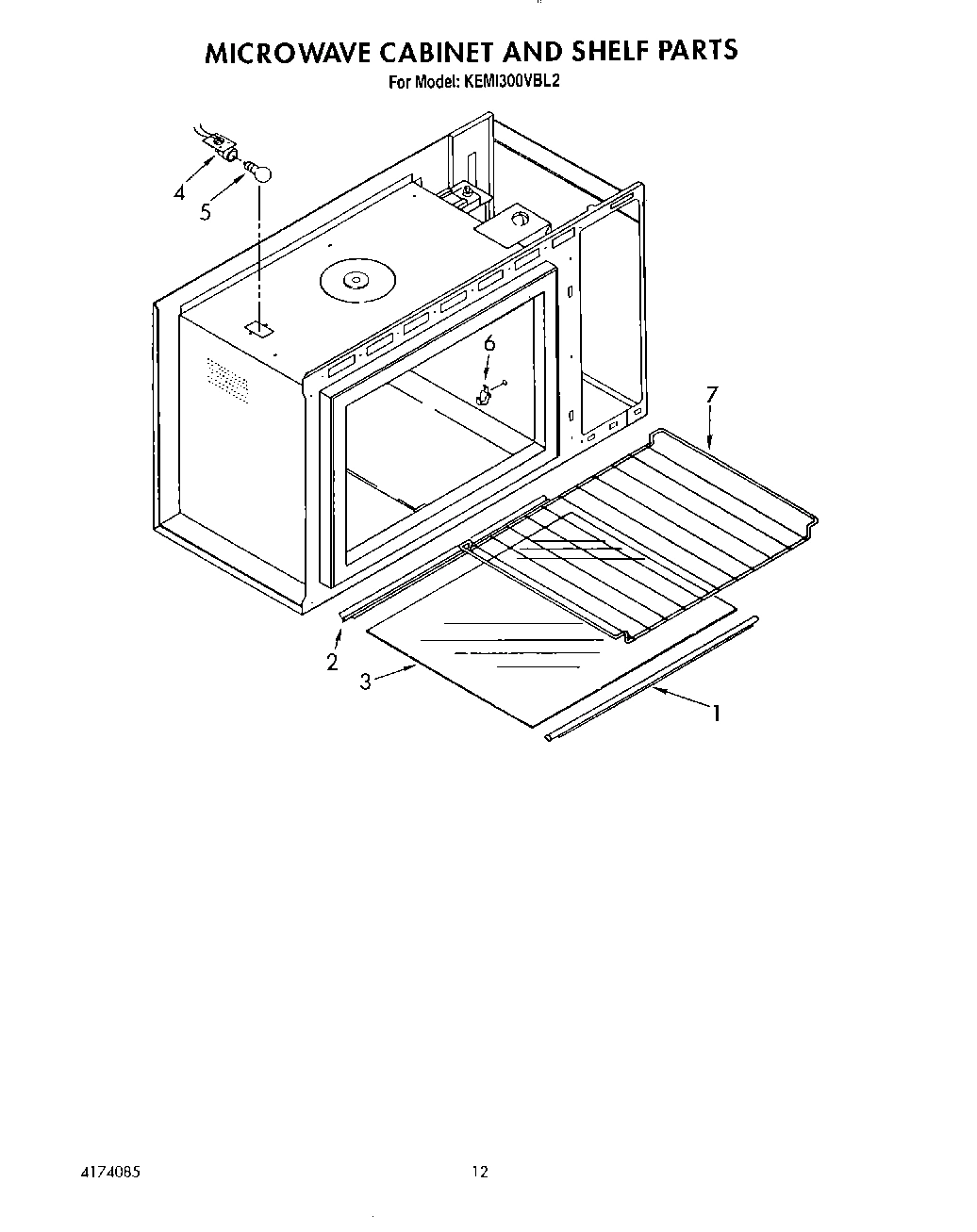

07 - MICROWAVE CABINET AND SHELF

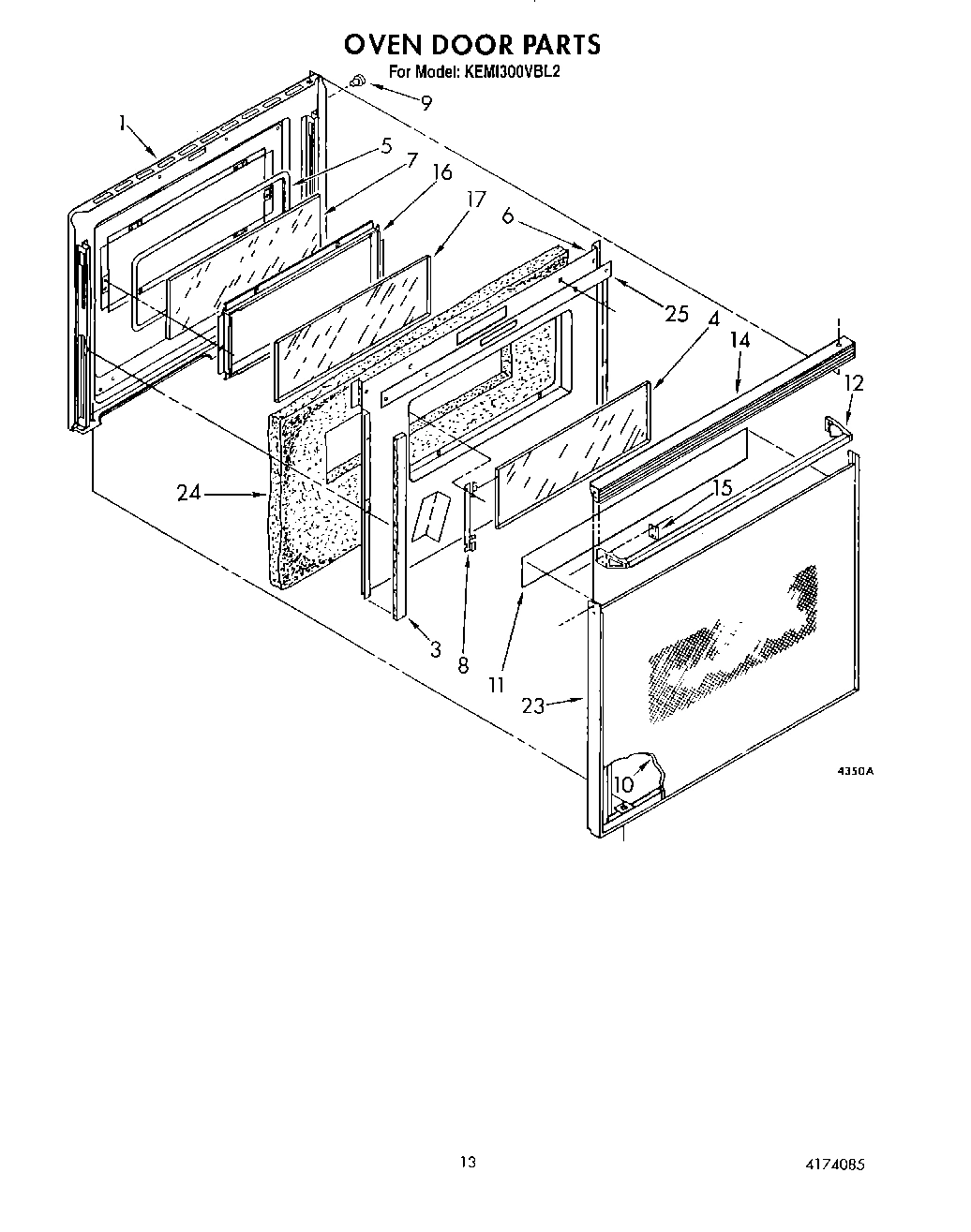

08 - OVEN DOOR

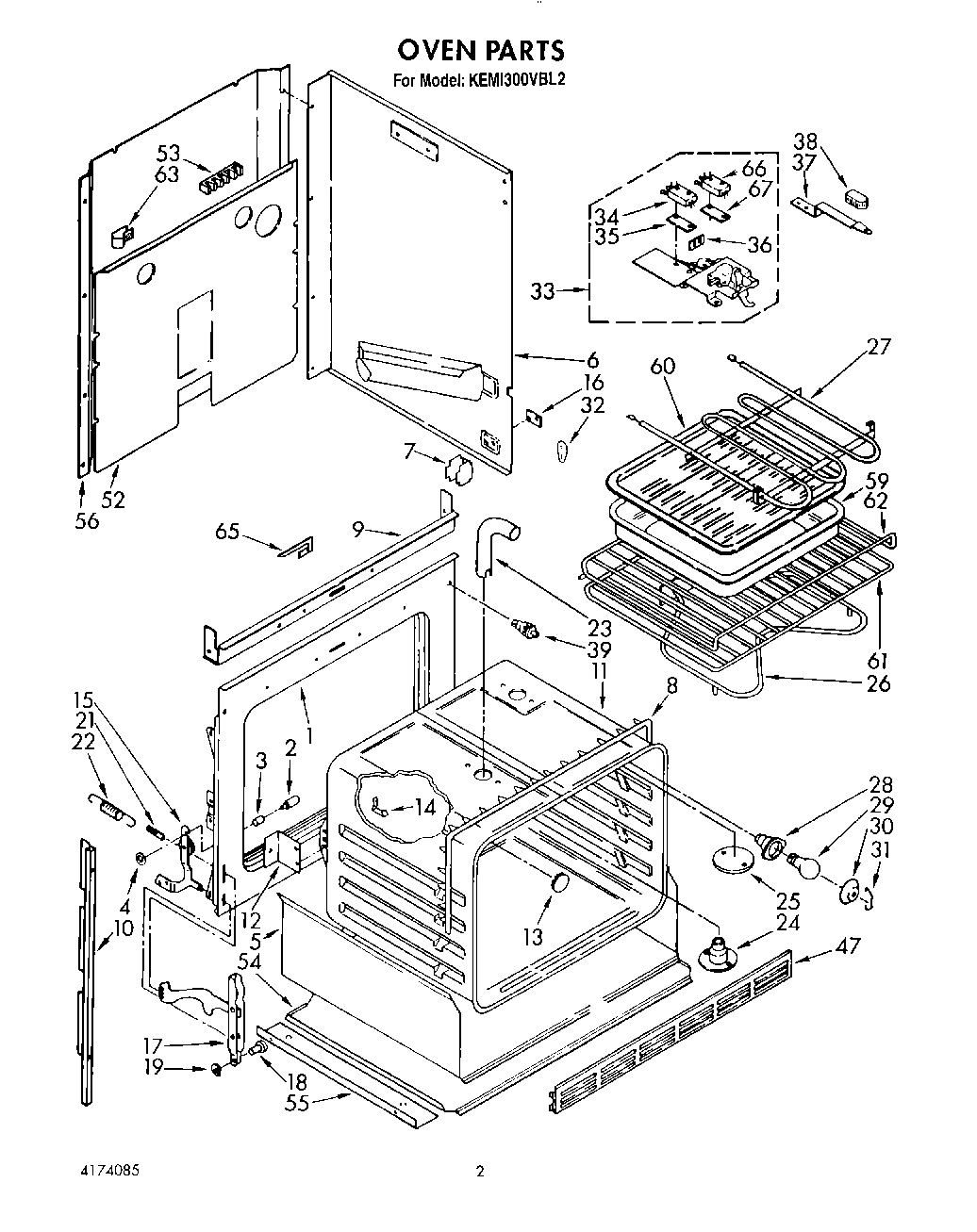

02 - OVEN, LIT/OPTIONAL

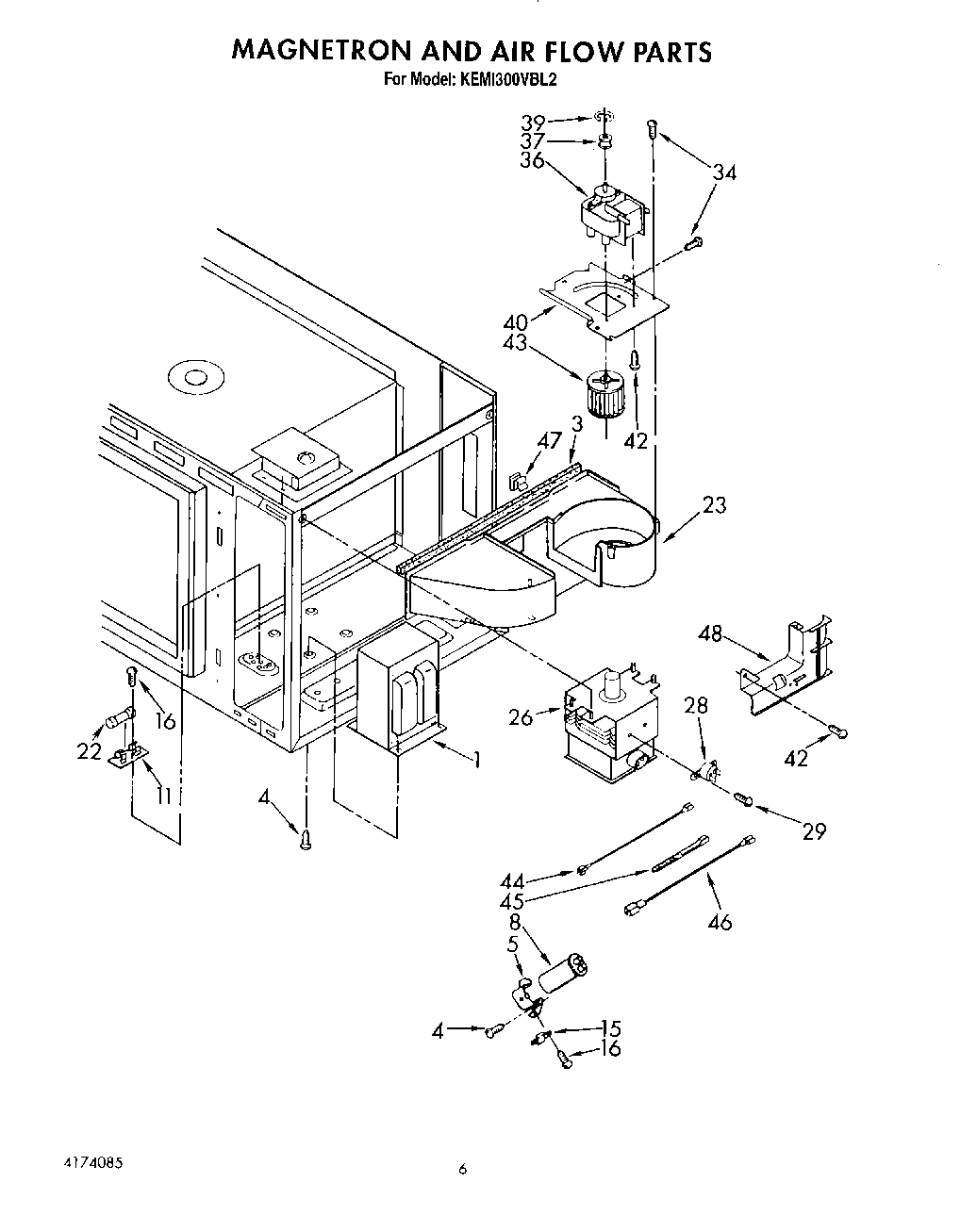

04 - MAGNETRON AND AIR FLOW

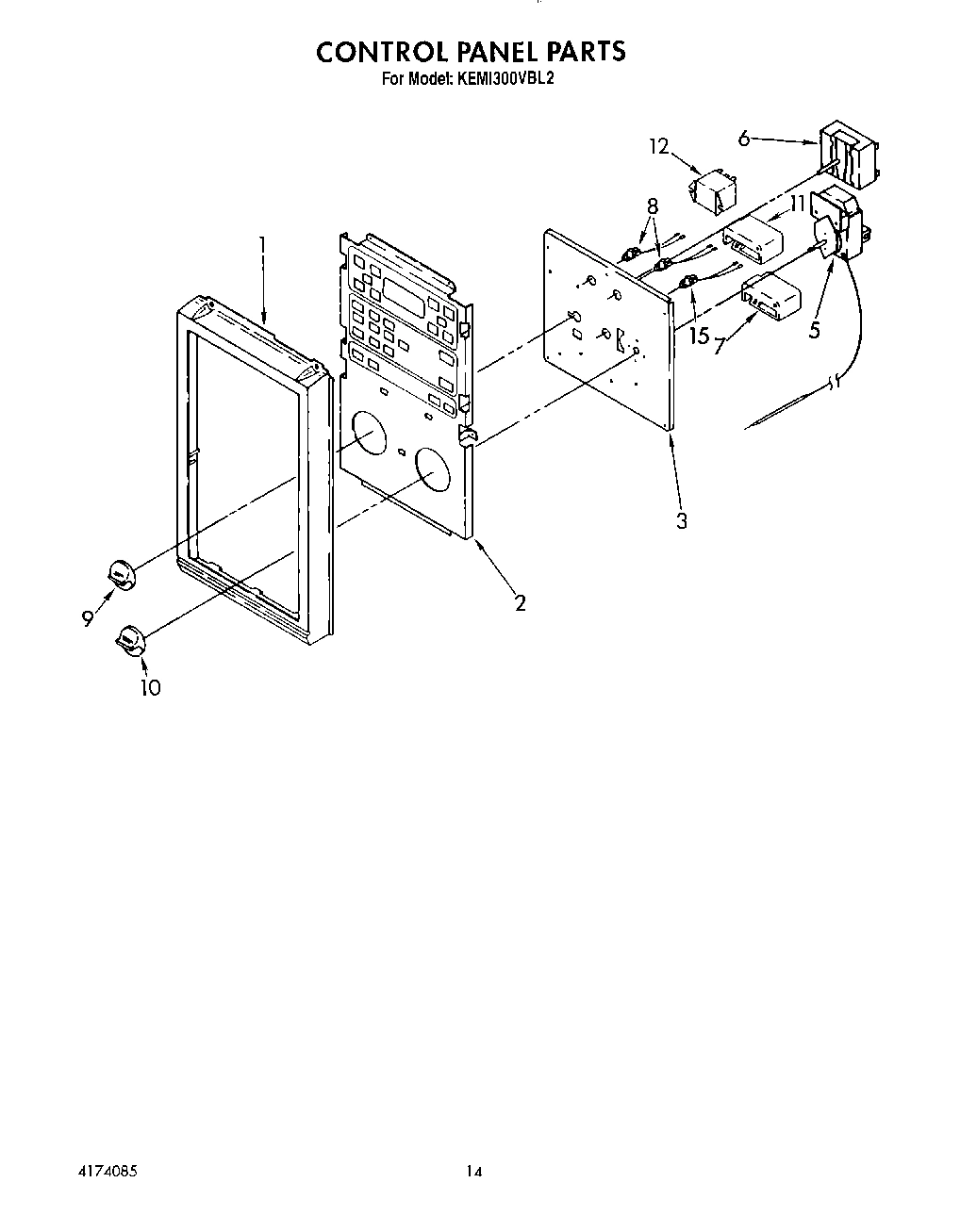

09 - CONTROL PANEL

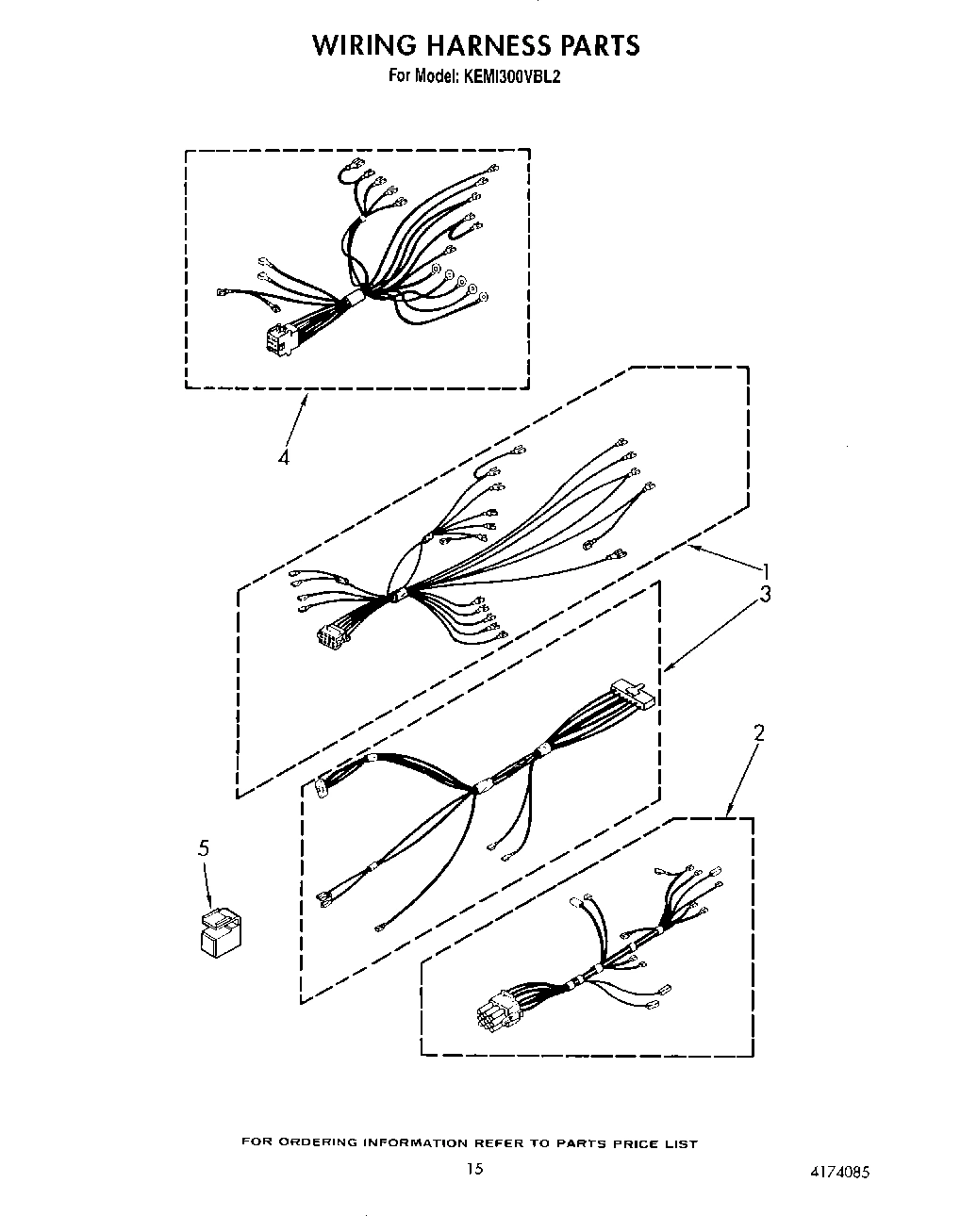

10 - WIRING HARNESS
Common parts from model Whirlpool KEMI300VBL2
WPL LIT3147005 WPL LIT3147005 Contact Us For Availability
WPL LIT3147382 WPL LIT3147382 Contact Us For Availability
WPL LIT3147436 WPL LIT3147436 Contact Us For Availability
WPL LIT3147438 WPL LIT3147438 Contact Us For Availability
WPL LIT3147571 WPL LIT3147571 Contact Us For Availability
WPL LIT3147577 WPL LIT3147577 Contact Us For Availability
WPL LIT3149135 WPL LIT3149135 Contact Us For Availability
WPL LIT3149670 WPL LIT3149670 Contact Us For Availability
WPL LIT4174085 WPL LIT4174085 Contact Us For Availability
1
End Cap, L.H. WPL 3148019 Contact Us For Availability
1
End Cap, R.H. WPL 3148020 Contact Us For Availability
1
Washer WPL 3148905 Contact Us For Availability
1
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
1
Liner, Door WPL 3170706 Contact Us For Availability
1
Frame, Front WPL 3170859 Contact Us For Availability
1
Transformer WPL 3148101 Contact Us For Availability
1
Frame, Control Panel WPL 3148093 Contact Us For Availability
1
Wiring Harness (Main) WPL 3147938 Contact Us For Availability
2
Trim, Oven Vent WPL 3147644 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Switch Membrane (Control Module) WPL 3148276 Contact Us For Availability
2
Harness, Wiring (Thermostat) WPL 3147916 Contact Us For Availability
3
Trim, Top WPL 3147642 Contact Us For Availability
3
Deflector, Air WPL 3149298 Contact Us For Availability
3
Seal, Foam WPL 313752 Contact Us For Availability
3
Shelf, Microwave WPL 313639 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Screw (4) WPL 308119 Contact Us For Availability
3
Bracket, Control (Mounting) WPL 3147282 Contact Us For Availability
3
Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability
4
Nut (3) WPL 3147378 Contact Us For Availability
4
Socket, Complete WPL 330514 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Screw (4) Hex Washer W/Ground Ring (10) WPL 312185 Contact Us For Availability
4
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
5
Seal, Door WPL 3148183 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
End Trim, Vent Door L.H. WPL 3148697 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Thermostat WPL 3148932 Contact Us For Availability
5
Adapter, Terminal WPL 3147832 Contact Us For Availability
6
Door, Vent WPL 3149423 Contact Us For Availability
6
Retainer, Insulation WPL 3148723 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Switch, Selector WPL 312289 Contact Us For Availability
7
screw (2) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
rack, wire WPL 313663 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Switch, Bake WPL 314211 Contact Us For Availability
8
Box Air WPL 3170178 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Seal, Door WPL 3148284 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Light, Indictor (4) WPL 3147517 Contact Us For Availability
9
Bumper, Door (4) WPL 3148182 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Knob, Control (2) WPL 314222 Contact Us For Availability
10
Support Plate WPL 3147494 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Glass, Panel WPL 3148185 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Knob, Control WPL 3149116 Contact Us For Availability
11
Adhesive WPL 312330 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Screw (2) WPL 247326 Contact Us For Availability
11
Foil, Handle WPL 3148184 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Screw (2) WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
12
Screw (5) WPL 3149333 Contact Us For Availability
12
Panel, Support WPL 3147496 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Handle, Door WPL 3147636 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Frame, Door WPL 3170440 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Door, Top WPL 3148606 Contact Us For Availability
15
Door, Inner WPL 3171012 Contact Us For Availability
15
Fastener (4) WPL 313740 Contact Us For Availability
15
Screw (4) WPL 313818 Contact Us For Availability
15
Clip, Mtg.(2) WPL 314235 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
Light, Indicator WPL 3149034 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Snap Bushing WPL 309552 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Side Panel, R.H. WPL 3147492 Contact Us For Availability
18
Side Panel, L.H. WPL 3147493 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Screw (2) WPL 309100 Contact Us For Availability
20
Panel, Top WPL 3147495 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
23
Fastener WPL 310423 Contact Us For Availability
23
Frame, Door WPL 3148784 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
24
Vent Tube WPL 312696 Contact Us For Availability
24
Insulation, Door WPL 3147951 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
screw (2) WPL 254225 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Shield, Door WPL 3148680 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
Unit, Broil (208V) WPL 312308 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
Frame WPL 3170177 Contact Us For Availability
29
Baffle, Air WPL 3147003 Contact Us For Availability
29
Screw (2) WPL 312782 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Seal, Foam WPL 313753 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Screw (2) WPL 312318 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Cover, Rear WPL 3147491 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
34
Screw (5) WPL 346893 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
36
Motor WPL 313641 Contact Us For Availability
37
Screw (3) WPL 313820 Contact Us For Availability
37
Seal, Foam (2) WPL 3147750 Contact Us For Availability
37
Screw (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
38
Seal, Foam (2) WPL 3147595 Contact Us For Availability
38
Probe Jack WPL 661209 Contact Us For Availability
38
Screw WPL 246135 Contact Us For Availability
38
Knob, Latch Handle WPL 311253 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
39
Seal, Foam (2) WPL 3147596 Contact Us For Availability
39
``E`` Ring WPL 311999 Contact Us For Availability
40
screw (4) WPL 313823 Contact Us For Availability
40
Bushing, Snap WPL 3147647 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
41
Seal, Foam WPL 3147590 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability
45
Probe, Temperature WPL 313527 Contact Us For Availability
46
Fuse, Thermal WPL 313855 Contact Us For Availability
46
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
47
screw WPL 312713 Contact Us For Availability
47
Sensor, Gas WPL 3147060 Contact Us For Availability
47
Screw (3) WPL 309029 Contact Us For Availability
47
Grill, Bottom WPL 310668 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Screw (4) WPL 313816 Contact Us For Availability
48
Cover, Side WPL 3147004 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
49
Support (4) WPL 313739 Contact Us For Availability
50
Plate, Tuning WPL 313735 Contact Us For Availability
52
Seal, Foam WPL 3147599 Contact Us For Availability
52
Back Pan WPL 3149542 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
53
WPL 3147001 WPL 3147001 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
65
WPL 309080 WPL 309080 Contact Us For Availability
65
WPL 3149142 WPL 3149142 Contact Us For Availability
66
WPL 3148669 WPL 3148669 Contact Us For Availability
67
WPL 310433 WPL 310433 Contact Us For Availability
67
WPL 310434 WPL 310434 Contact Us For Availability
67
WPL 3147864 WPL 3147864 Contact Us For Availability
67
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
