Model Whirlpool KEES705SAB1 – Common Parts & Diagrams

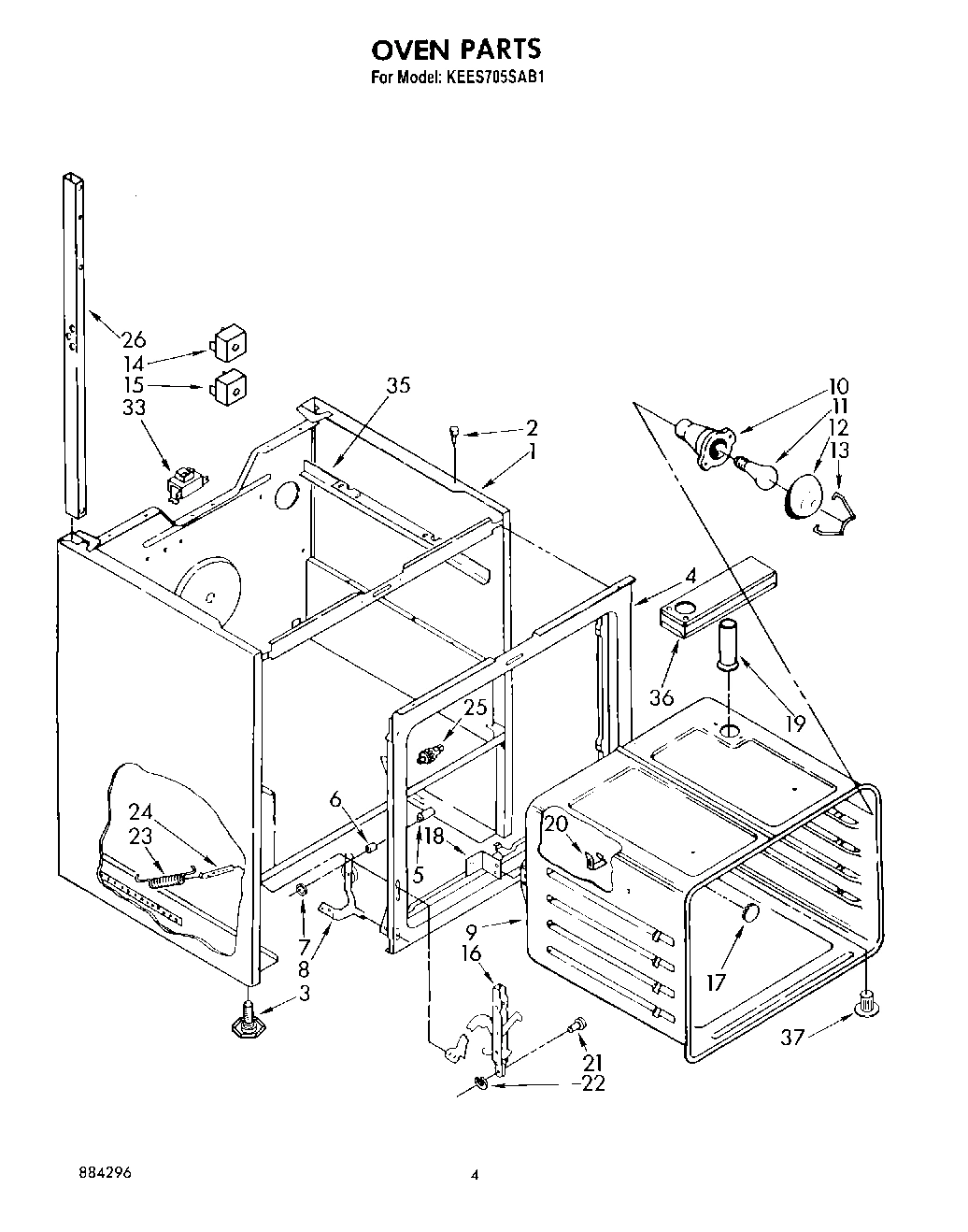

03 - OVEN

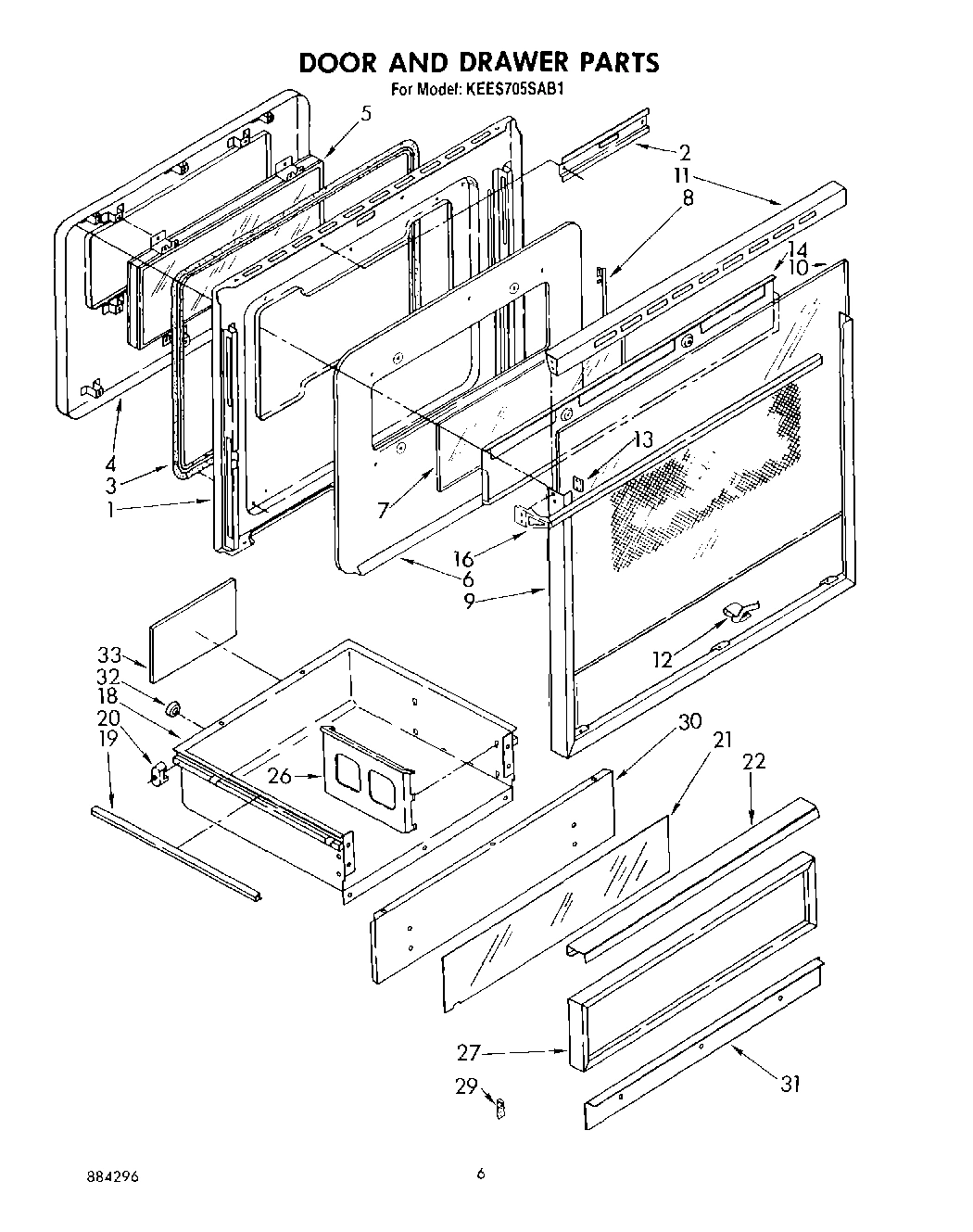

04 - DOOR AND DRAWER

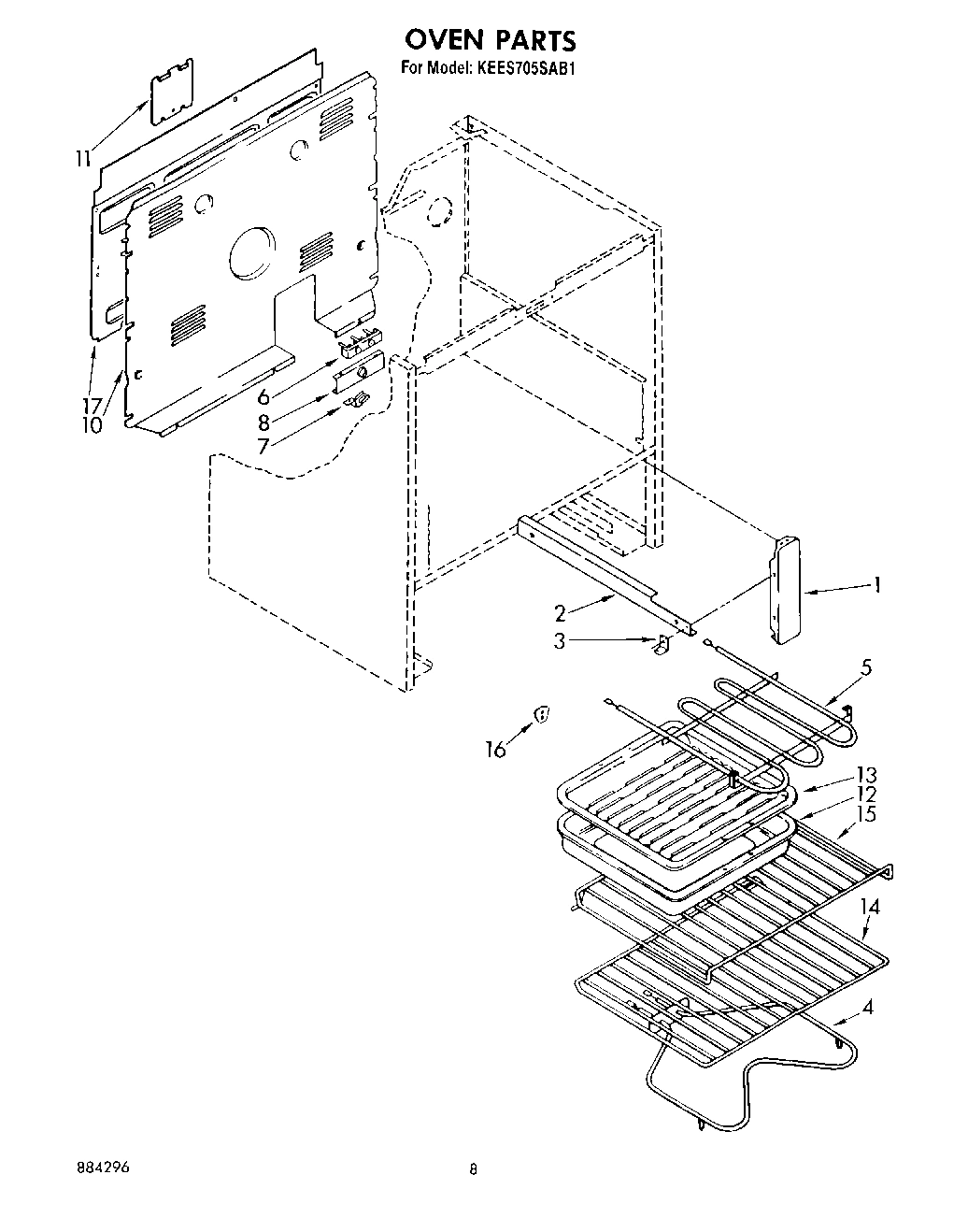

05 - OVEN (CONTINUED)

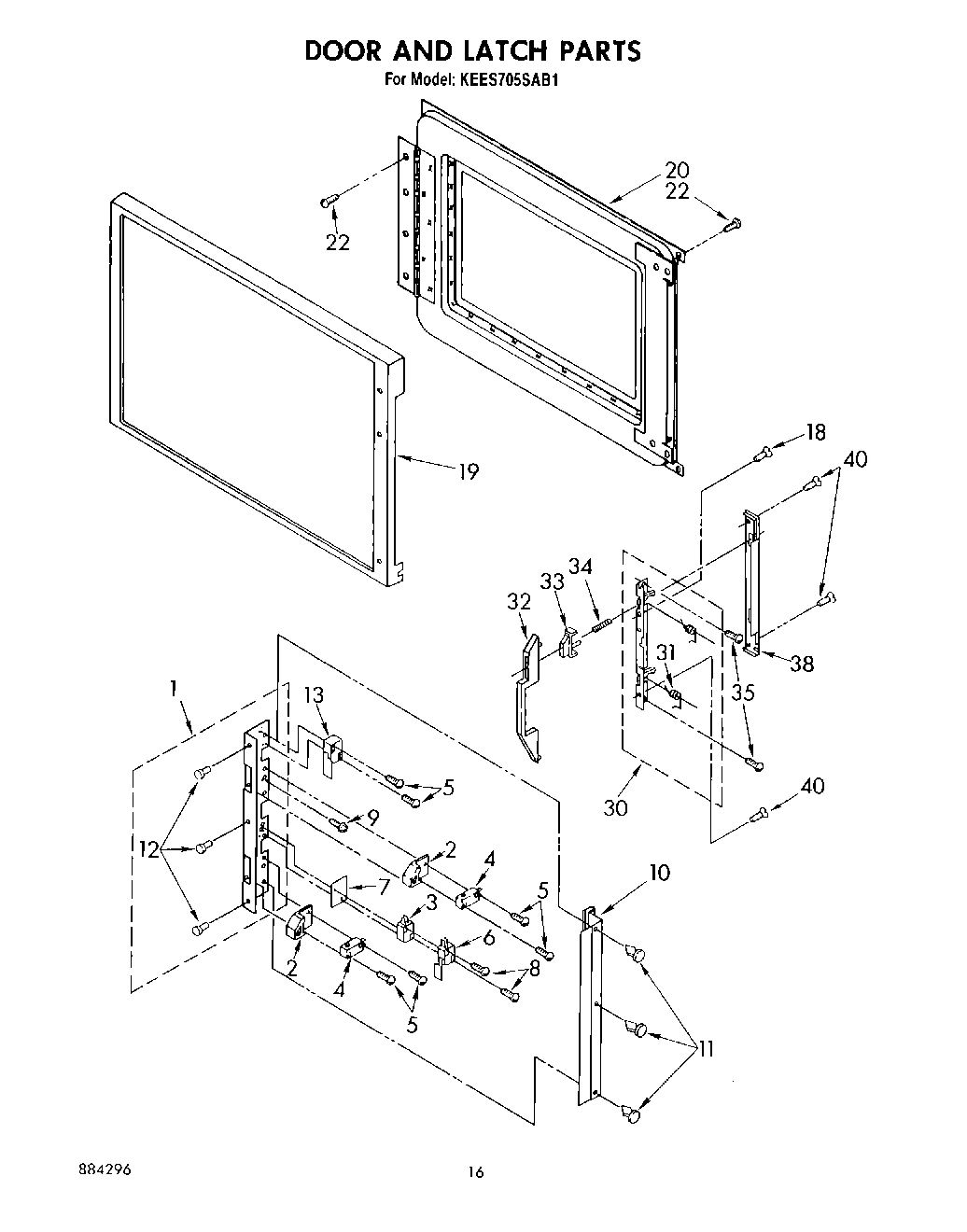

09 - DOOR AND LATCH

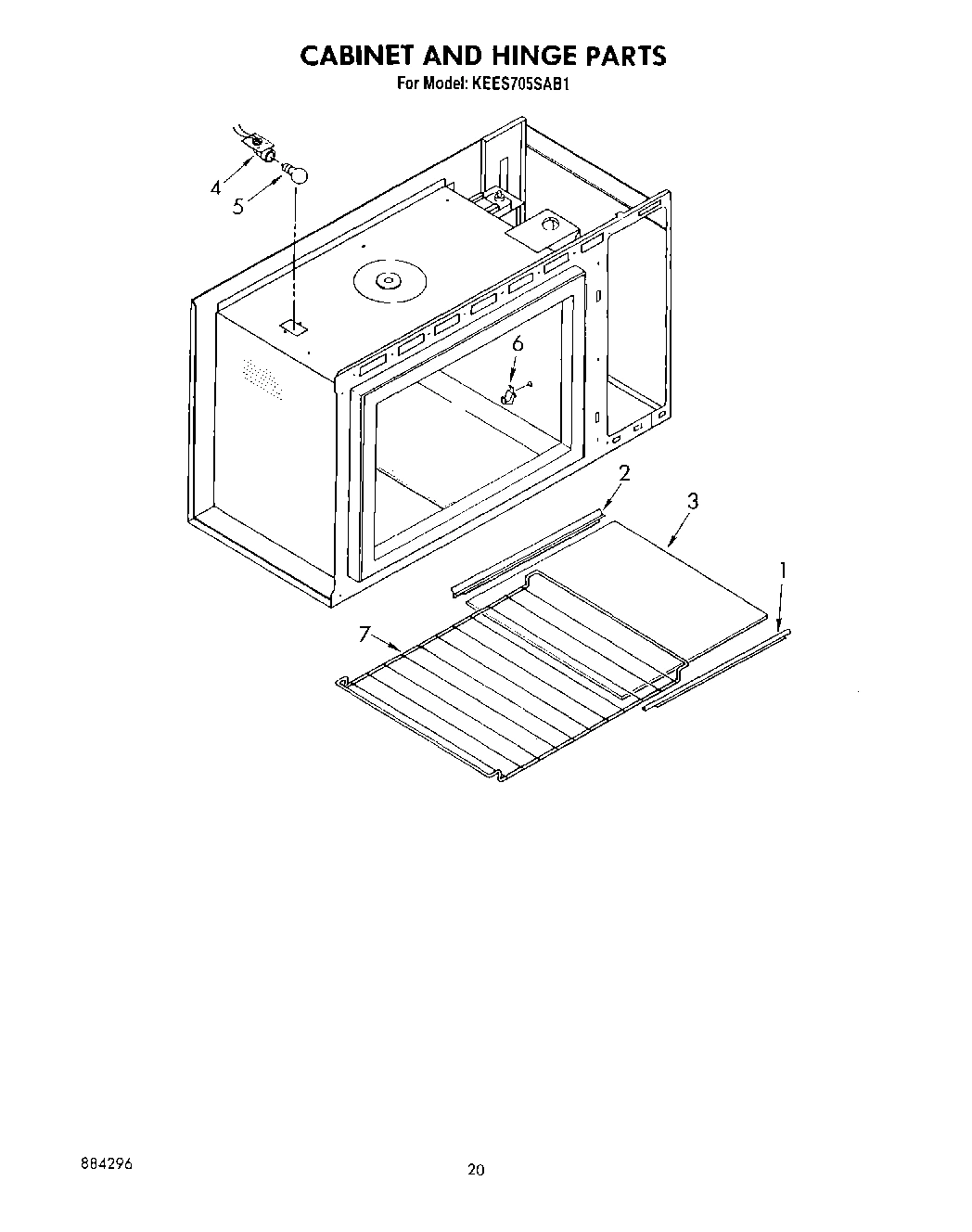

11 - CABINET AND HINGE

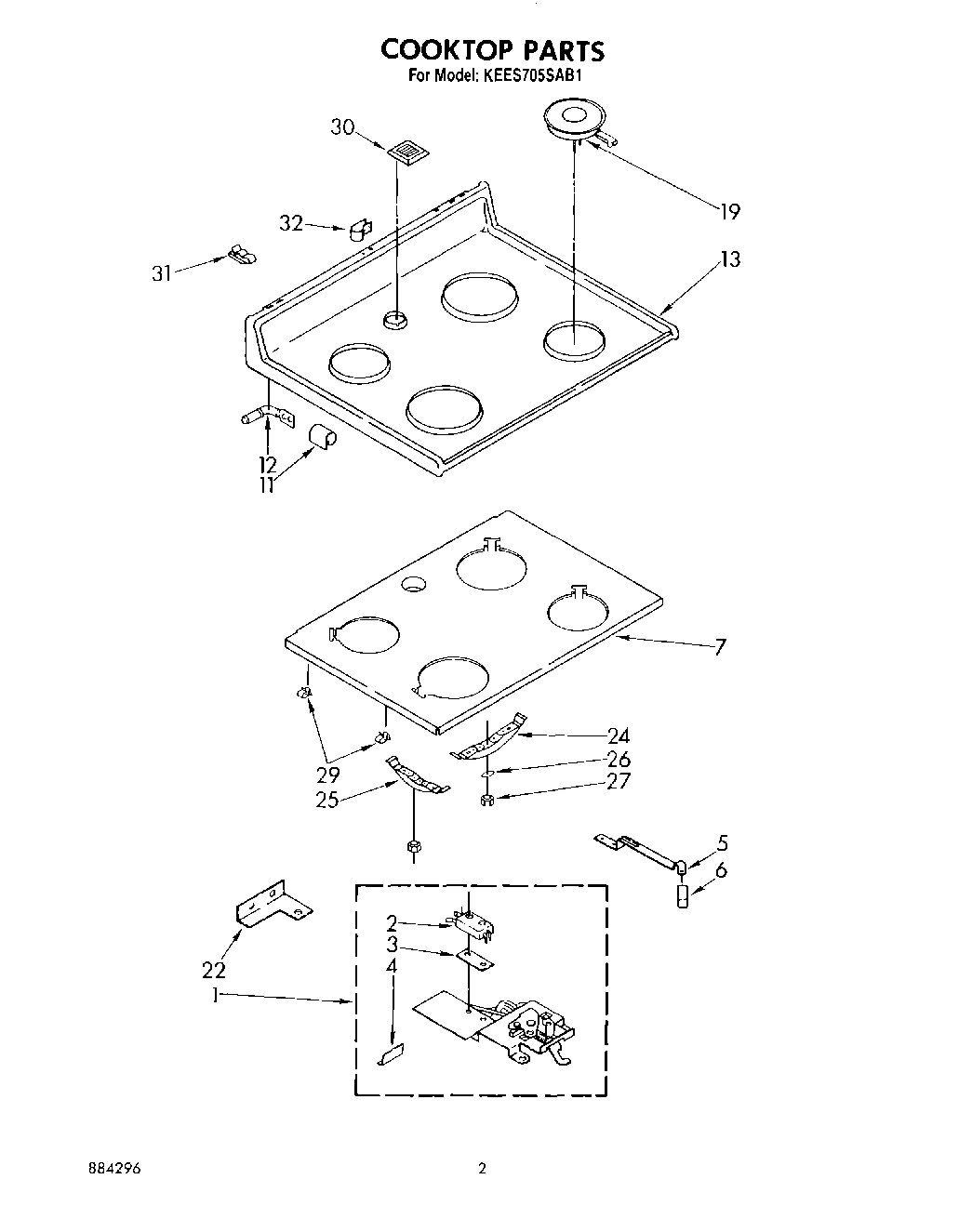

02 - COOKTOP

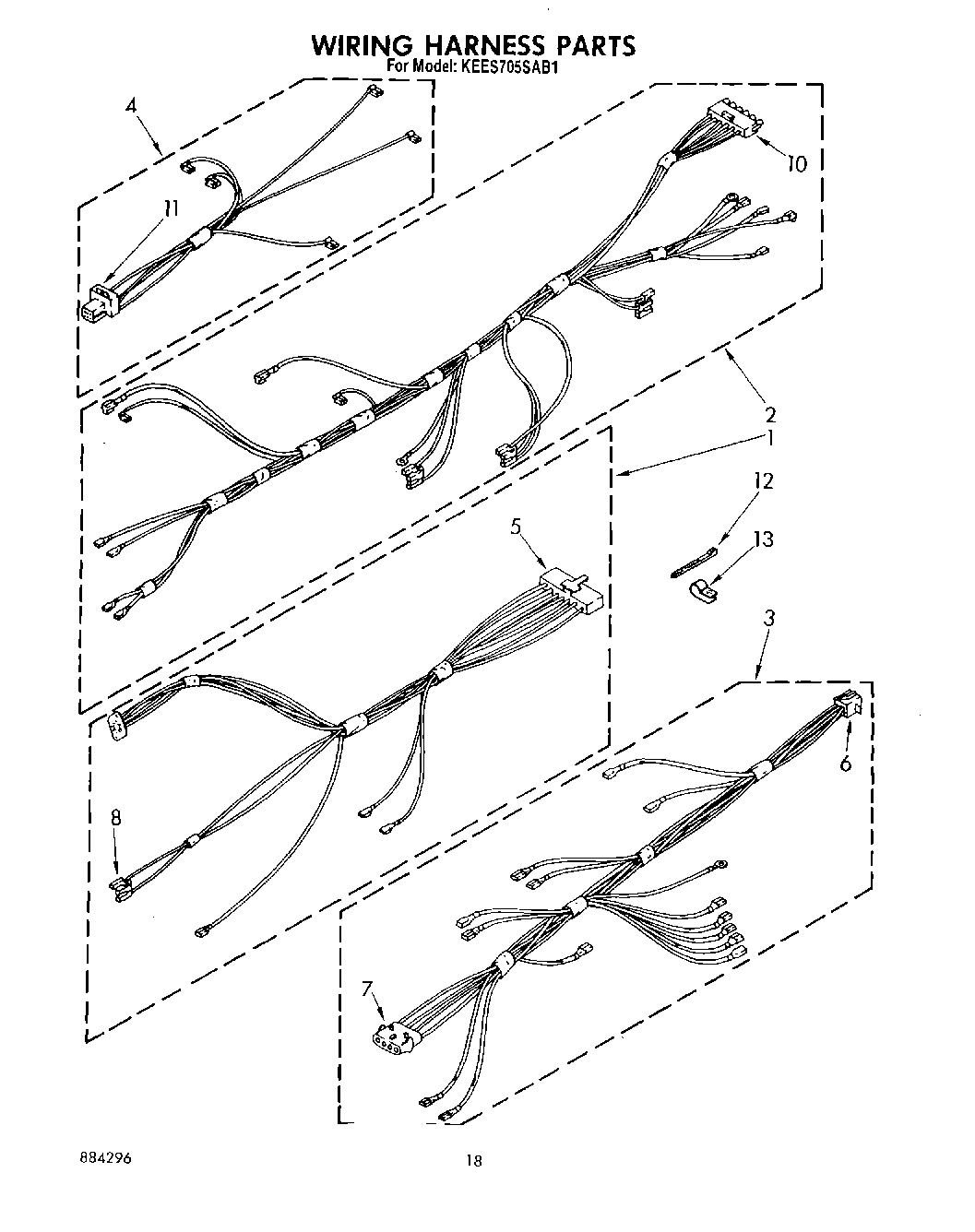

10 - WIRING HARNESS , LITERATURE AND OPTIONAL

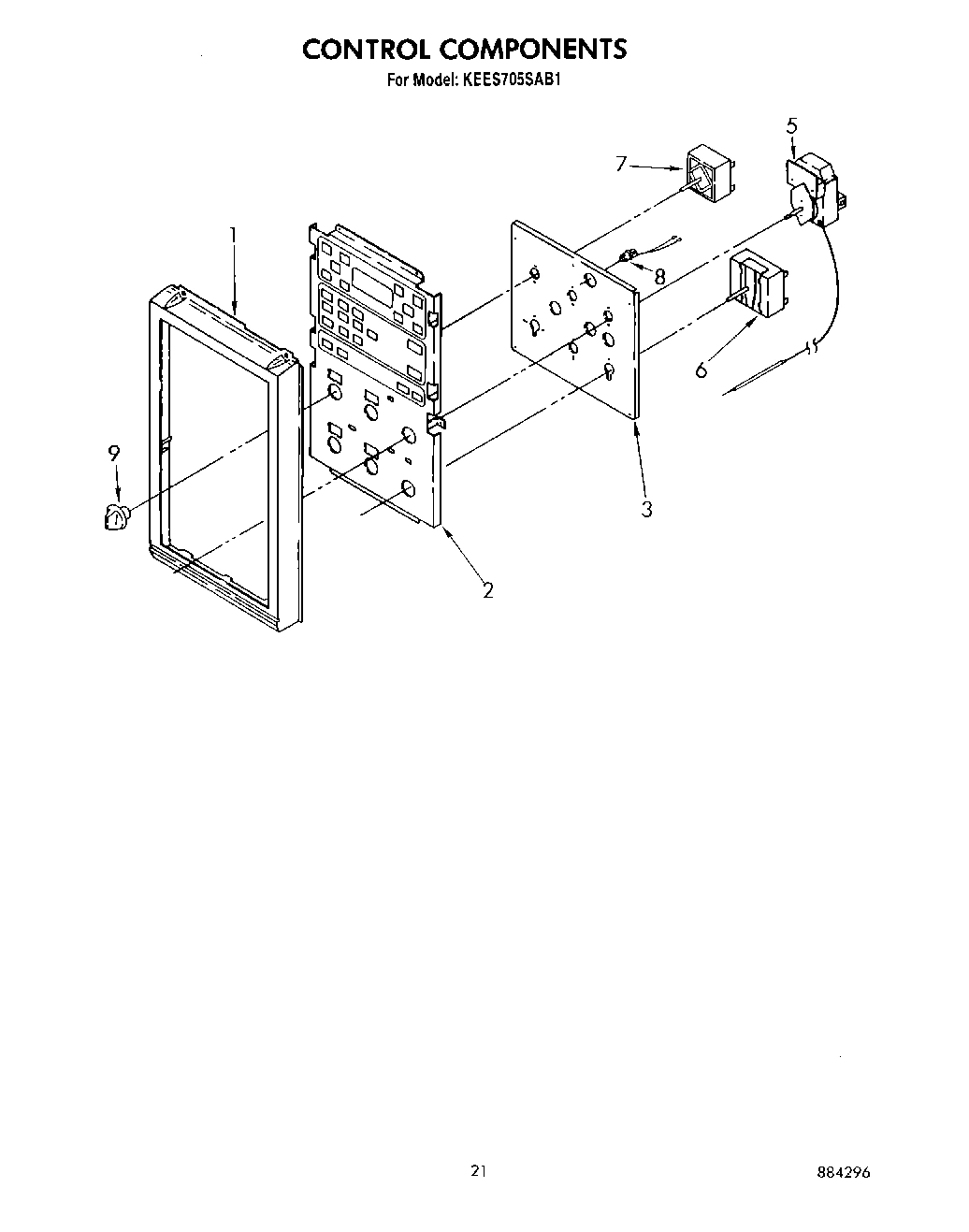

12 - CONTROL COMPONENTS

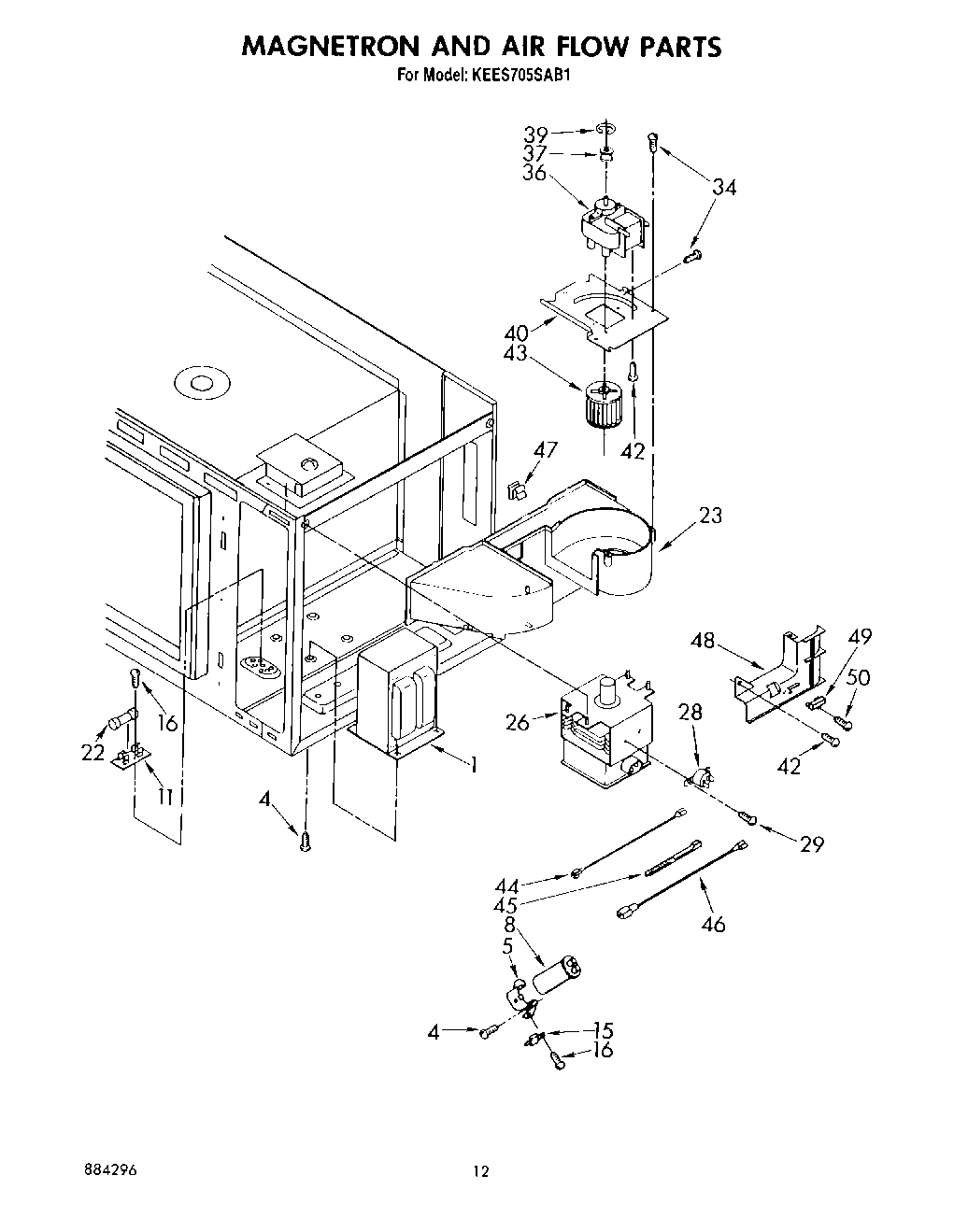

07 - MAGNETRON AND AIR FLOW

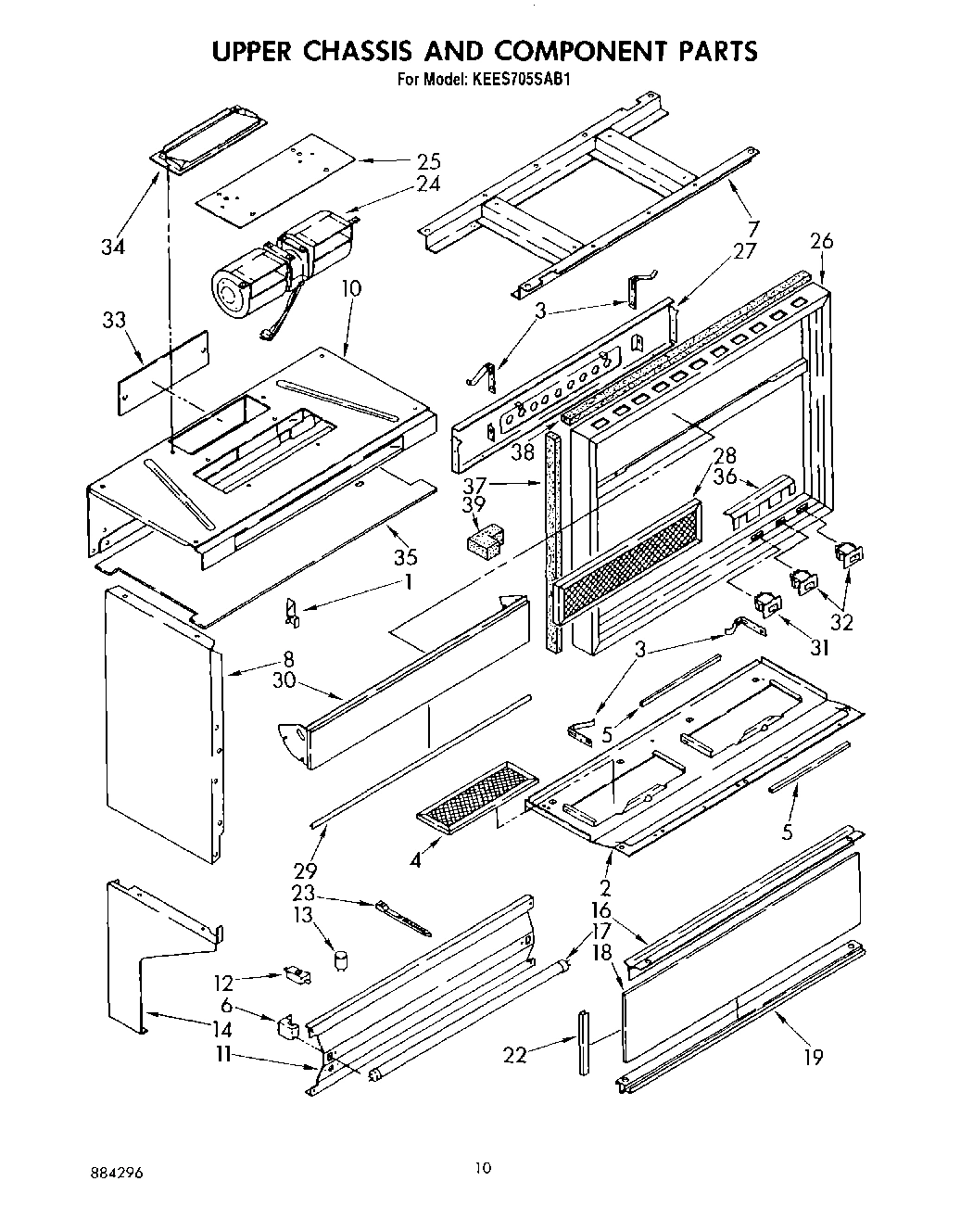

06 - UPPER CHASSIS AND COMPONENT

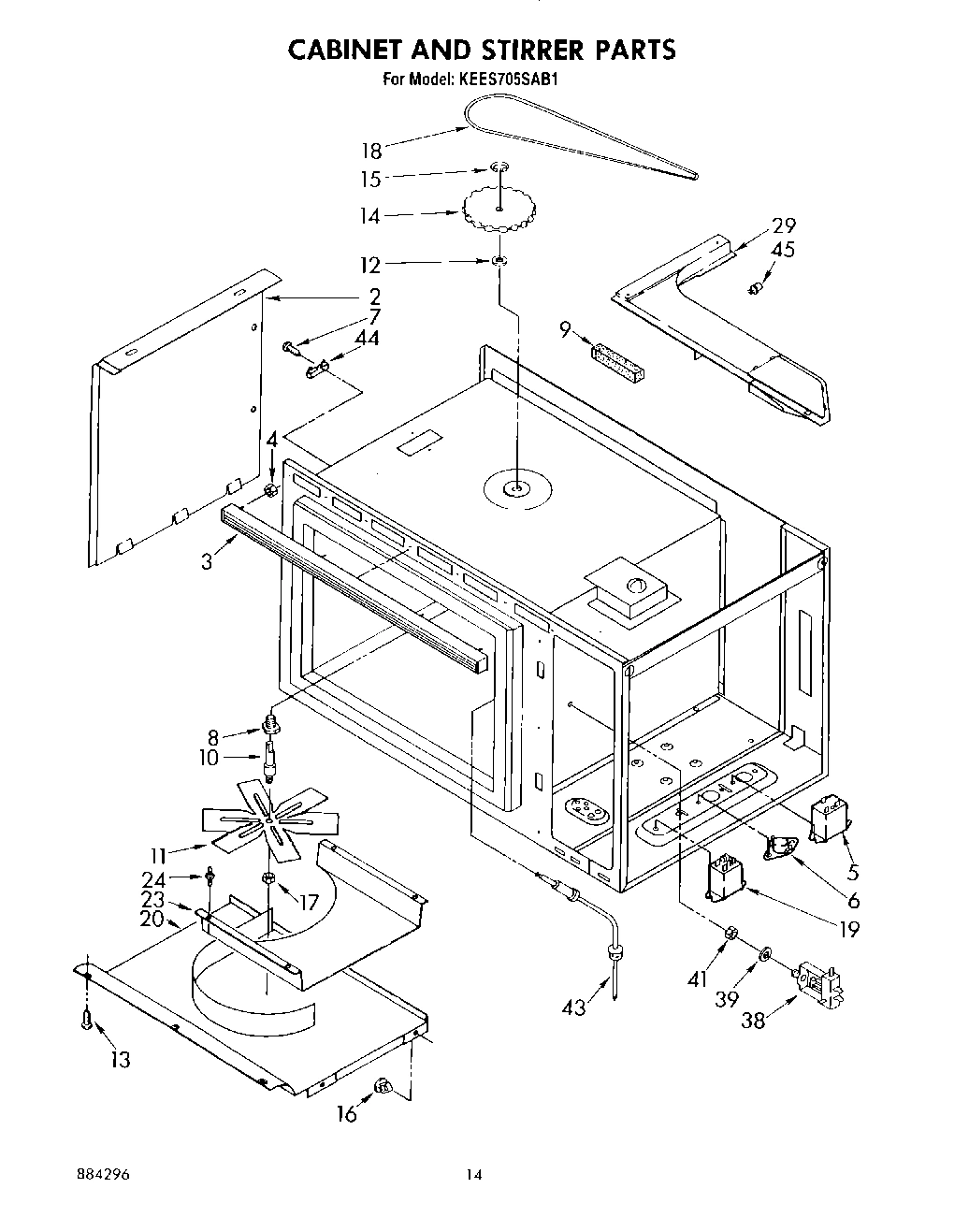

08 - CABINET AND STIRRER

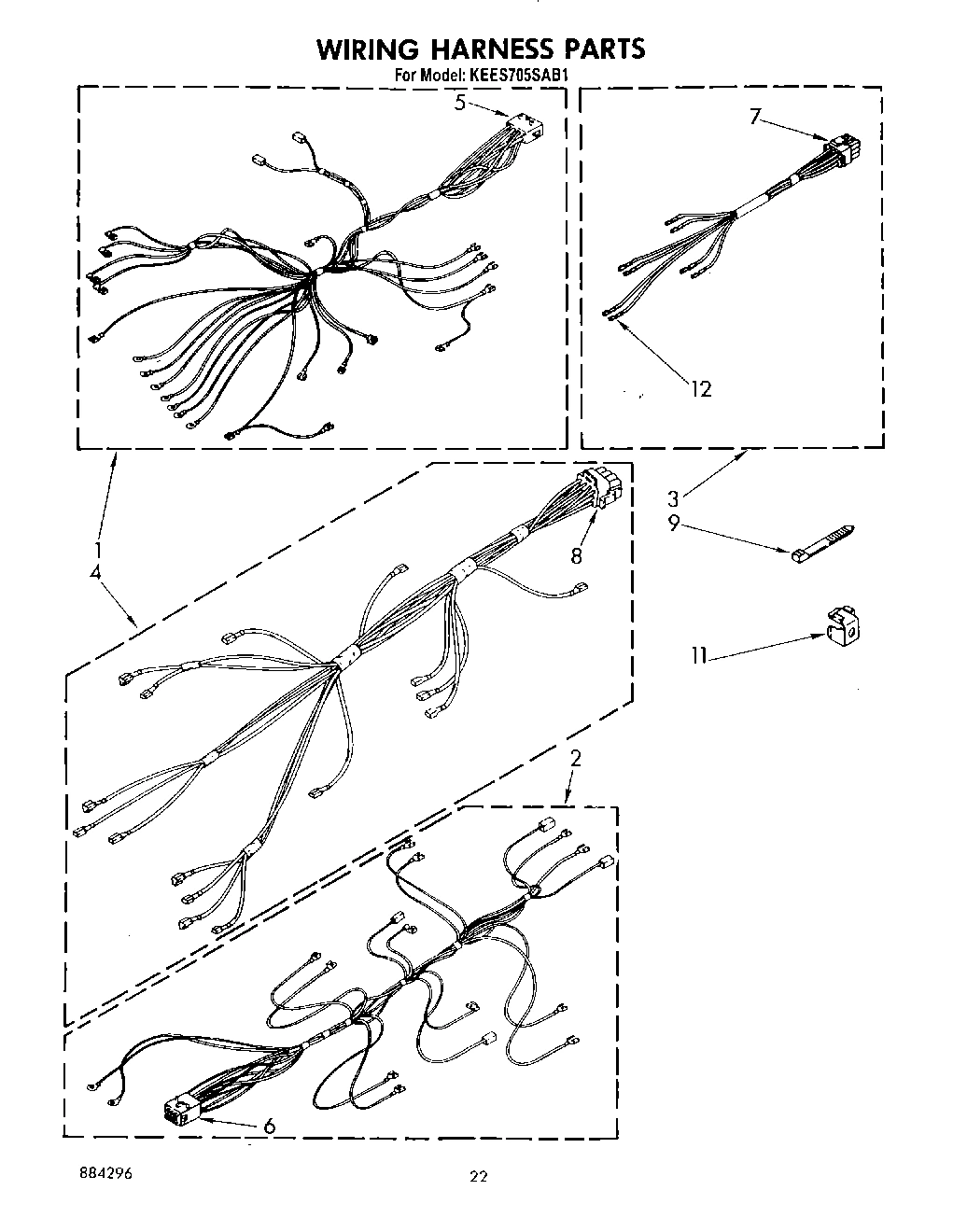

13 - WIRING HARNESS (CONTINUED)
Common parts from model Whirlpool KEES705SAB1
WPL LIT3147005 WPL LIT3147005 Contact Us For Availability
WPL LIT3147384 WPL LIT3147384 Contact Us For Availability
WPL LIT3147418 WPL LIT3147418 Contact Us For Availability
WPL LIT3147420 WPL LIT3147420 Contact Us For Availability
WPL LIT3147469 WPL LIT3147469 Contact Us For Availability
WPL LIT3147968 WPL LIT3147968 Contact Us For Availability
WPL LIT884296 WPL LIT884296 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability
1
Frame, Control Panel WPL 3148091 Contact Us For Availability
1
Transformer WPL 3147273 Contact Us For Availability
1
Bracket, Stop R.H. WPL 3147486 Contact Us For Availability
1
Bracket, Stop L.H. WPL 3147487 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 3147970 Contact Us For Availability
2
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
2
Switch Membrane (Control Module) WPL 3147198 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 314216 Contact Us For Availability
2
Seal, Foam WPL 3147593 Contact Us For Availability
2
Cover, Side WPL 3147004 Contact Us For Availability
2
Wiring Harness (Infinite Switch) WPL 3147549 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
(Alt.) WPL 313075 Contact Us For Availability
3
(Alt.) WPL 313123 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
Shelf, Microwave (Install with Silastic 48233 WPL 313639 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Harness Wiring Vent Motor WPL 3147556 Contact Us For Availability
3
Bracket, Control Mounting WPL 3147281 Contact Us For Availability
3
Grill, Air WPL 3148436 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 3147585 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Snap-In Socket WPL 330514 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Harness Wiring Switch, Rocker WPL 3147567 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Filter, Mesh (2) WPL 3147608 Contact Us For Availability
4
Nut (3) WPL 3147378 Contact Us For Availability
4
Harness, Wiring (Selector/ Thermostat) WPL 3147561 Contact Us For Availability
5
Window Package WPL 330038 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Screw (2) WPL 311056 Contact Us For Availability
5
Handle, Latch WPL 3147065 Contact Us For Availability
5
Connector, Housing WPL 308565 Contact Us For Availability
5
Thermostat WPL 313534 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Edge, Protector (2) WPL 3147756 Contact Us For Availability
5
Relay, Vent WPL 314125 Contact Us For Availability
5
Disconnect Block WPL 309408 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Screw, 10-16 x 3/4 (2) WPL 98884 Contact Us For Availability
6
(Alt.) WPL 313076 Contact Us For Availability
6
(Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Knob, Latch WPL 3147064 Contact Us For Availability
6
Disconnect Block WPL 3147362 Contact Us For Availability
6
Switch, Selector WPL 3147233 Contact Us For Availability
6
Socket, Assembly L.H. WPL 3147244 Contact Us For Availability
6
Socket, Assembly R.H. WPL 3147245 Contact Us For Availability
6
Screw, 6AB x 3/8 (2) WPL 246231 Contact Us For Availability
6
Thermostat WPL 3147274 Contact Us For Availability
6
Disconnect Block WPL 309409 Contact Us For Availability
7
Glass WPL 309842 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Screw, 8-32 x 3/8 Pan Head Phillips WPL 312713 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
rack, wire WPL 313663 Contact Us For Availability
7
Support, Cooktop WPL 3148048 Contact Us For Availability
7
Disconnect Block, Female WPL 310960 Contact Us For Availability
7
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
7
switch, infinite (4) WPL 308475 Contact Us For Availability
7
Support, Frame WPL 330677 Contact Us For Availability
7
Disconnect Block WPL 309406 Contact Us For Availability
8
Retainer WPL 309843 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Housing, Plug WPL 310241 Contact Us For Availability
8
Light, Indicator (4) WPL 3147517 Contact Us For Availability
8
(Alt.) WPL 312631 Contact Us For Availability
8
(Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
(Side Panel, R.H.) (White) WPL 3147142 Contact Us For Availability
8
Side Panel L.H. (White) WPL 3147143 Contact Us For Availability
8
(Side Panel, R.H.) (Almond) WPL 3147144 Contact Us For Availability
8
Side Panel L.H. (Almond) WPL 3147145 Contact Us For Availability
8
Side Panel L.H. (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
8
Side Panel, L.H. (Seal, Foam (2)) WPL 3147592 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Disconnect Block WPL 309405 Contact Us For Availability
9
Frame, Door WPL 3148023 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Knob, Control (6) WPL 314222 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Connector, Housing WPL 311574 Contact Us For Availability
10
Top Panel WPL 3170318 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
11
Top, Door Frame WPL 314250 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Pin, Housing WPL 3147361 Contact Us For Availability
11
Panel, Backguard WPL 3147589 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Adapter, Terminal WPL 3147832 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Socket, Flourscent WPL 3147224 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Sleeve WPL 3147138 Contact Us For Availability
13
Starter, Lamp WPL 387695 Contact Us For Availability
13
Clip (2) WPL 314235 Contact Us For Availability
13
Switch, Miniature WPL 313120 Contact Us For Availability
13
Cooktop (White) WPL 3147254 Contact Us For Availability
13
Cooktop (Almond) WPL 3147256 Contact Us For Availability
13
Leveler, Enamel WPL 206925 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
13
Rotisserie Kit WPL 242985 Contact Us For Availability
13
Touch-Up, Oven WPL 254323 Contact Us For Availability
13
Grease WPL 261582 Contact Us For Availability
13
Harvest Gold WPL 261890 Contact Us For Availability
13
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
13
Toast WPL 285365 Contact Us For Availability
13
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
13
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
13
Platinum (Uncut) WPL 285368 Contact Us For Availability
13
WPL 591014 WPL 591014 Contact Us For Availability
13
WPL 72112 WPL 72112 Contact Us For Availability
13
WPL 799340 WPL 799340 Contact Us For Availability
13
WPL 799832 WPL 799832 Contact Us For Availability
13
WPL 978883 WPL 978883 Contact Us For Availability
13
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
End Trim (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314198 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314199 Contact Us For Availability
14
End Trim R.H. (White) WPL 314203 Contact Us For Availability
14
End Trim (Almond, LH) WPL 314204 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
16
Handle, Oven Door WPL 3147636 Contact Us For Availability
16
Coverplate (2) WPL 311982 Contact Us For Availability
16
Fastener (4) WPL 313740 Contact Us For Availability
16
Trim, Glass (Top) WPL 313320 Contact Us For Availability
17
Cover WPL 3147490 Contact Us For Availability
18
Drawer, Utility WPL 330667 Contact Us For Availability
18
Glass Panel WPL 3147674 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Frame, Door WPL 3170440 Contact Us For Availability
19
Trim, Glass (Bottom) WPL 313321 Contact Us For Availability
19
Screw, 6AB x 3/8 (2) WPL 246131 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
21
Panel, Drawer WPL 314261 Contact Us For Availability
22
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
22
Handle, Drawer WPL 3148021 Contact Us For Availability
22
Shield, Insulation WPL 312320 Contact Us For Availability
22
Trim, End (Glass) (2) WPL 313319 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Seal, Foam WPL 313752 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
24
Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability
24
Blower, Exhaust WPL 3147817 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability
25
Cover, Access WPL 3147798 Contact Us For Availability
25
Nut (6) WPL 3147866 Contact Us For Availability
26
support, tubing L.H. WPL 314197 Contact Us For Availability
26
Rack, Literature WPL 357645 Contact Us For Availability
26
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
26
(Alt.) WPL 311992 Contact Us For Availability
26
(Alt.) WPL 311993 Contact Us For Availability
26
(Alt.) WPL 311994 Contact Us For Availability
26
(Alt.) WPL 311995 Contact Us For Availability
26
(Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Screw, 8-A x 5/8 (2) WPL 309133 Contact Us For Availability
26
Frame WPL 3170174 Contact Us For Availability
27
Frame, Glass WPL 3148022 Contact Us For Availability
27
Nut (4) WPL 3147189 Contact Us For Availability
27
Panel, Vent Door WPL 3147712 Contact Us For Availability
27
Screw, Schoulder (2) WPL 3147724 Contact Us For Availability
27
Rivet, Pla WPL 3147755 Contact Us For Availability
27
WPL 3147764 WPL 3147764 Contact Us For Availability
27
WPL 3147858 WPL 3147858 Contact Us For Availability
28
(Alt.) WPL 312800 Contact Us For Availability
28
(Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
WPL 3147525 WPL 3147525 Contact Us For Availability
28
WPL 3147609 WPL 3147609 Contact Us For Availability
29
Clip, Glass WPL 314234 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
WPL 3147763 WPL 3147763 Contact Us For Availability
29
Fastener WPL 310423 Contact Us For Availability
29
Baffle, Air Exhaust WPL 3147003 Contact Us For Availability
30
Liner, Glass WPL 314259 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Cover, Vent WPL 3147037 Contact Us For Availability
30
WPL 3170269 WPL 3170269 Contact Us For Availability
31
Plate, Kick WPL 314323 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Clamp, Tube WPL 313570 Contact Us For Availability
32
Bumper WPL 3147271 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
32
Strain, Relief WPL 308609 Contact Us For Availability
33
(Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
(Alt.) WPL 685591 Contact Us For Availability
33
Pad, Sound WPL 302340 Contact Us For Availability
33
WPL 3147726 WPL 3147726 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
WPL 3147843 WPL 3147843 Contact Us For Availability
35
Screw, 10A x 3/8 (2) WPL 254217 Contact Us For Availability
35
Support, Chassis WPL 3147646 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
WPL 3147250 WPL 3147250 Contact Us For Availability
35
WPL 3147590 WPL 3147590 Contact Us For Availability
36
Box, Vent WPL 3147076 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
36
WPL 3148158 WPL 3148158 Contact Us For Availability
37
Eliminator, Smoke WPL 3147241 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
WPL 3147595 WPL 3147595 Contact Us For Availability
38
Probe Jack WPL 314297 Contact Us For Availability
38
WPL 3147596 WPL 3147596 Contact Us For Availability
39
WPL 3147751 WPL 3147751 Contact Us For Availability
39
Washer, Internal Lock WPL 313105 Contact Us For Availability
40
Screw, 8-22 (5) WPL 313823 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
Probe, Temperature WPL 313527 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
45
Sensor, Gas WPL 3147060 Contact Us For Availability
46
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
49
Fuse, Thermal WPL 3147275 Contact Us For Availability
50
Screw WPL 313818 Contact Us For Availability
× ![]()
