Model Whirlpool KEDT207YAL1 – Common Parts & Diagrams

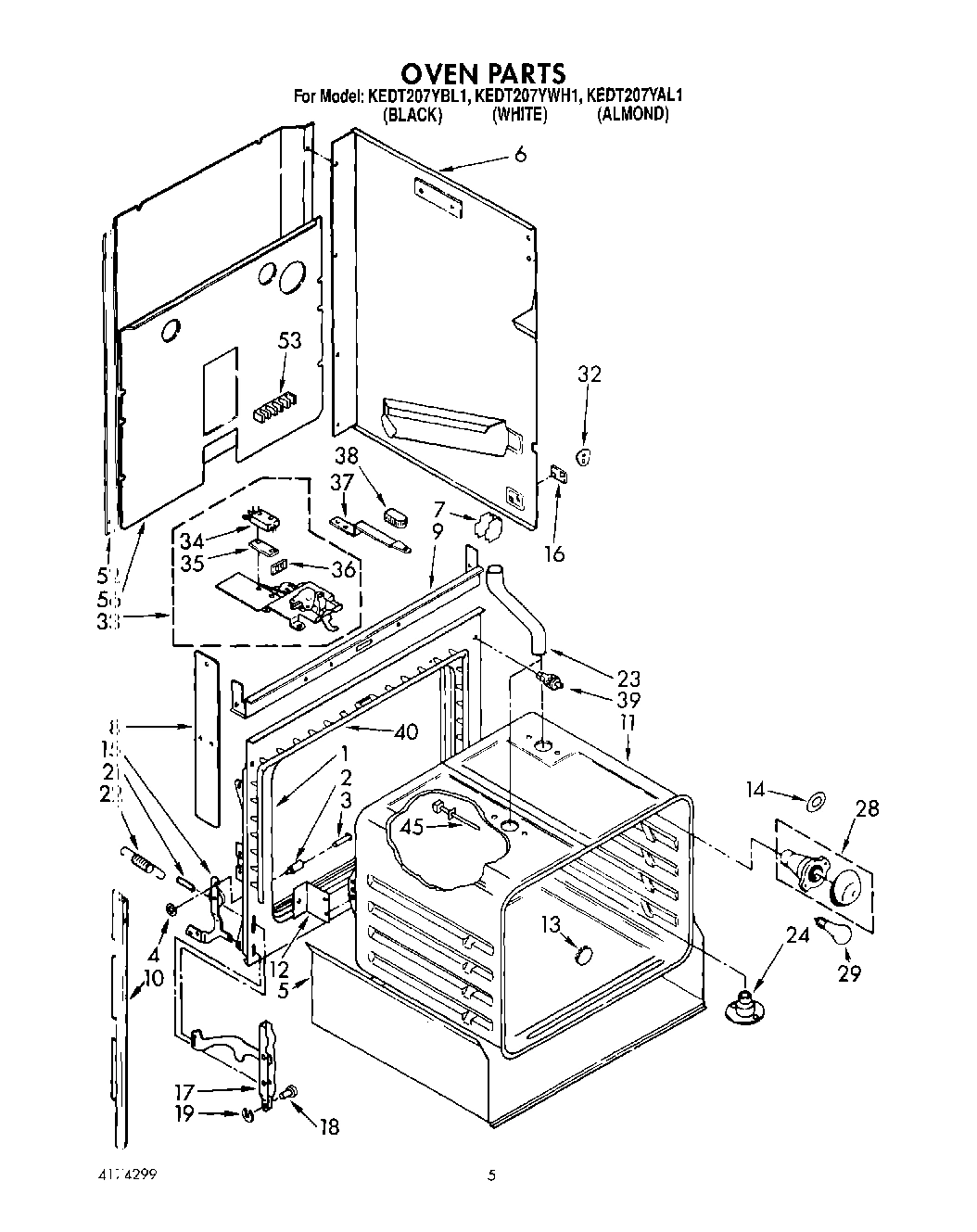

04 - OVEN, LITERATURE

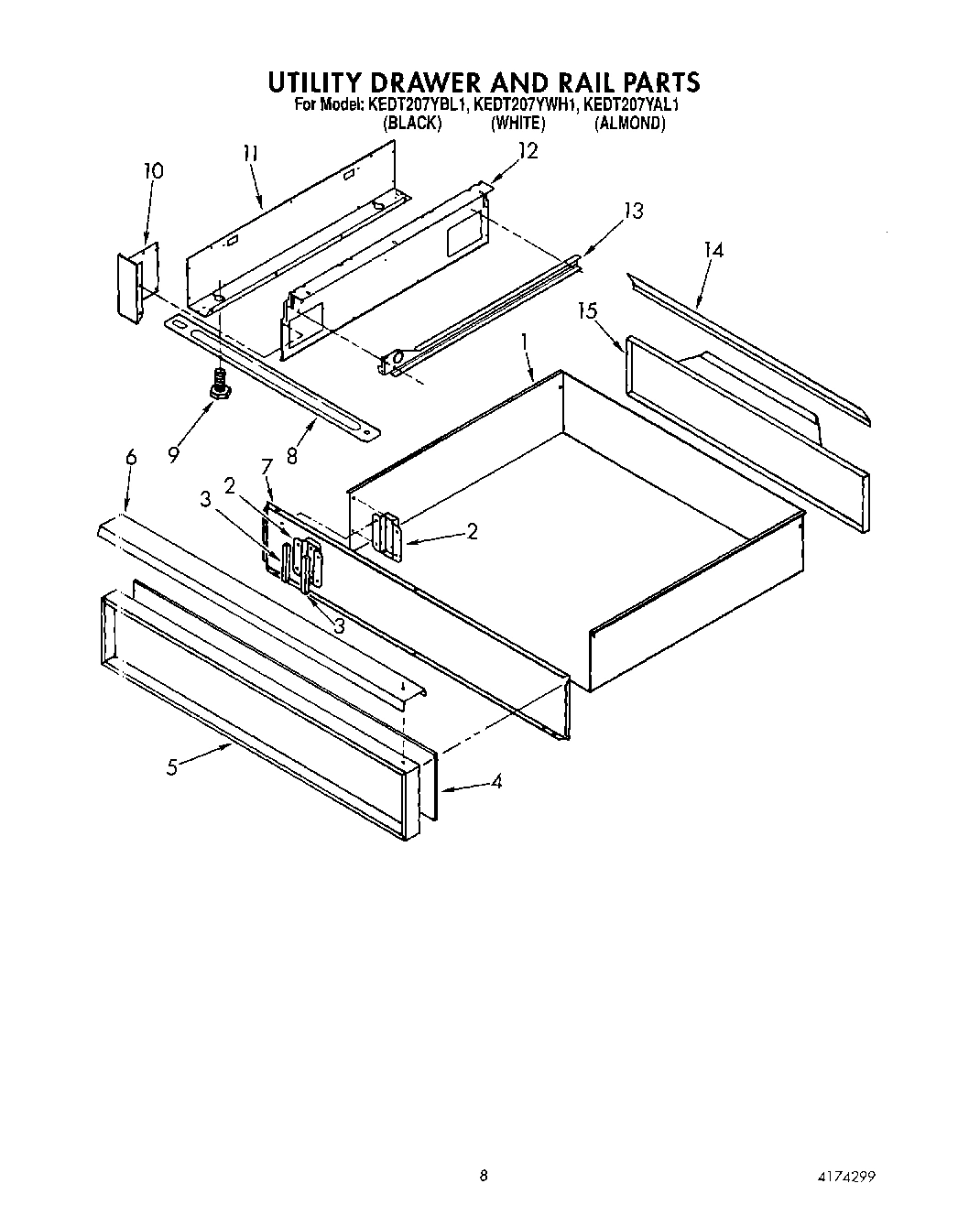

06 - UTILITY DRAWER AND RAIL
08 - WIRING HARNESS
05 - INTERNAL CONVECTION OVEN
07 - CONVECTION FAN
02 - OVEN DOOR
01 - COOKTOP
03 - CONTROL PANEL, OPTIONAL
Common parts from model Whirlpool KEDT207YAL1
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
Harness, Wire (Main) WPL 3187283 Contact Us For Availability
1
Plate, Mounting (Fan Motor) WPL 3182045 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Surface Unit, 8`` (2) WPL 3182762 Contact Us For Availability
1
End Cap. L.H. (Washer, Silicone) WPL 3148905 Contact Us For Availability
1
End Cap, L.H. (Black) WPL 3150728 Contact Us For Availability
1
End Cap, L.H. (Black) WPL 3150729 Contact Us For Availability
1
End Cap, L.H. (White) WPL 3150730 Contact Us For Availability
1
End Cap, L.H. (White) WPL 3150731 Contact Us For Availability
1
End Cap, L.H. (Almond) WPL 3150732 Contact Us For Availability
1
End Cap, L.H. (Almond) WPL 3150733 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Harness, Wire (suface Unit) WPL 3147825 Contact Us For Availability
2
Element, Broil WPL 3182451 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
3
screw (6) WPL 3148443 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Gasket (2) (6`` Burner) WPL 3147187 Contact Us For Availability
3
Gasket (2) (8`` Burner) WPL 3147188 Contact Us For Availability
3
Rail, Top (Black) WPL 3183329 Contact Us For Availability
3
Rail, Top (Bright Aluminum) WPL 3183341 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (Almond) WPL 3185227 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Fastener (2) WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
5
Rack, Offset WPL 3181639 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Glass Top (Black) WPL 3150103 Contact Us For Availability
5
Glass Top (White) WPL 3150104 Contact Us For Availability
5
Glass Top (Almond) WPL 3150105 Contact Us For Availability
5
End Trim, R.H. Vent Door (Brite Aluminum) WPL 3148471 Contact Us For Availability
5
End Trim, R.H. Vent Door (Brite Aluminum End WPL 3148472 Contact Us For Availability
5
End Trim, R.H. Vent Door (Black) WPL 3148697 Contact Us For Availability
5
End Trim, R.H. Vent Door (Black) WPL 3148698 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Handle, Drawer (Almond) WPL 3185208 Contact Us For Availability
6
Rack, Straight WPL 3181638 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
8`` Seal (2) WPL 3148561 Contact Us For Availability
6
6`` Seal (2) WPL 3148562 Contact Us For Availability
6
Vent Door (Black) WPL 314190 Contact Us For Availability
6
Vent Door (Brushed Chrome) WPL 3149676 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
7
Panel, Back WPL 3185162 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Screw (2) WPL 3150532 Contact Us For Availability
7
Motor, Fan WPL 3183220 Contact Us For Availability
7
Hook, Seal (4) WPL 3148563 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw (6) WPL 342043 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Plate, Backup WPL 3147038 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
9
Bracket, Switch WPL 3147735 Contact Us For Availability
10
Switch, Infinite (6`` Burner) WPL 3148949 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Cover, Probe WPL 4167266 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3150347 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3150348 Contact Us For Availability
10
Switch, Infinite (8`` Burner) WPL 3148958 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3183316 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182031 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Bracket, Support Motor WPL 3182042 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Foil WPL 3148184 Contact Us For Availability
11
Seal, Shaft (4) WPL 309839 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
12
Handle, Oven Door (Black) WPL 3183402 Contact Us For Availability
12
Handle, Oven Door (White) WPL 3183403 Contact Us For Availability
12
Handle, Oven Door (Almond) WPL 3183404 Contact Us For Availability
12
Tape, Foam WPL 3147485 Contact Us For Availability
12
Microcomputer WPL 3181703 Contact Us For Availability
13
Plug Button WPL 3185086 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Insulation WPL 3147951 Contact Us For Availability
13
Bracket, Mounting (6`` Burner) WPL 3147703 Contact Us For Availability
13
Bracket, Mounting (8`` Burner) WPL 3147704 Contact Us For Availability
13
Control Panel (Screw) WPL 98520 Contact Us For Availability
13
Panel, Control (Black) WPL 3182390 Contact Us For Availability
13
Panel, Control (White) WPL 3182680 Contact Us For Availability
13
Panel, Control (Almond) WPL 3182681 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
14
Protector (4) WPL 3148397 Contact Us For Availability
15
Pad, Handle Mtg. WPL 3148282 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
15
Nut (4) WPL 3147190 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
16
Washer, Flat (4) WPL 3148615 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Nut (4) WPL 3147189 Contact Us For Availability
18
Frame WPL 3148235 Contact Us For Availability
18
Lens (4) WPL 311688 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Cover, Fan WPL 3181724 Contact Us For Availability
19
Top, Door (Black) WPL 3148223 Contact Us For Availability
19
Door, Top (White or Almond Model) WPL 3149355 Contact Us For Availability
19
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
19
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
20
Element, Convection WPL 3183003 Contact Us For Availability
20
Cap, Top (White Or Almond Model) WPL 3181363 Contact Us For Availability
20
Rail, Back, Support (2) WPL 3147061 Contact Us For Availability
21
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
21
Knob, Control (4) (Shadow Grey) WPL 3150096 Contact Us For Availability
21
Knob, Control (4) (Coffee Bean) WPL 3150097 Contact Us For Availability
22
Cover, Top WPL 3147566 Contact Us For Availability
23
Tube, Vent Extension WPL 3184323 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
23
Bushing WPL 258109 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Rack, Roasting WPL 3181534 Contact Us For Availability
24
Indicator, Light WPL 3148054 Contact Us For Availability
25
SPST Thermostat WPL 3149652 Contact Us For Availability
25
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
25
Cover, Vent (White) WPL 3182497 Contact Us For Availability
25
Cover, Vent (Almond) WPL 3182498 Contact Us For Availability
26
Seal, Infinite Switch (4) WPL 3149899 Contact Us For Availability
26
Bumper, Rubber (4) WPL 3183328 Contact Us For Availability
27
Shield, Heat WPL 3185223 Contact Us For Availability
28
Washer, Lock (4) WPL 4173194 Contact Us For Availability
31
Brace, Control Bracket WPL 3183317 Contact Us For Availability
32
Coverplate WPL 310662 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183800 Contact Us For Availability
33
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
33
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Trim, End Cap (Almond) WPL 3149902 Contact Us For Availability
34
Safety Switch WPL 3183784 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
34
Shield, Air WPL 3149142 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
35
Screw, WPL 254225 Contact Us For Availability
35
Shield, Heat WPL 3149419 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
37
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
37
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
37
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
37
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
37
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
37
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
37
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
37
Wire (14 Ga. 150 c Yel WPL 242827 Contact Us For Availability
37
WPL 242828 WPL 242828 Contact Us For Availability
37
WPL 242829 WPL 242829 Contact Us For Availability
37
WPL 242830 WPL 242830 Contact Us For Availability
37
WPL 242832 WPL 242832 Contact Us For Availability
37
WPL 3183638 WPL 3183638 Contact Us For Availability
37
WPL 3183639 WPL 3183639 Contact Us For Availability
37
WPL 3183640 WPL 3183640 Contact Us For Availability
37
WPL 3183992 WPL 3183992 Contact Us For Availability
37
WPL 3185260 WPL 3185260 Contact Us For Availability
37
WPL 814128 WPL 814128 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch Handle WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
40
Seal WPL 3185197 Contact Us For Availability
45
Sensor WPL 3148440 Contact Us For Availability
52
Panel, Back WPL 3182052 Contact Us For Availability
53
Screw, 10-1 WPL 308043 Contact Us For Availability
56
WPL 310433 WPL 310433 Contact Us For Availability
56
WPL 310435 WPL 310435 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
56
WPL 3149328 WPL 3149328 Contact Us For Availability
56
WPL 3185222 WPL 3185222 Contact Us For Availability
× ![]()
