Model Whirlpool KEDT105WWH1 – Common Parts & Diagrams

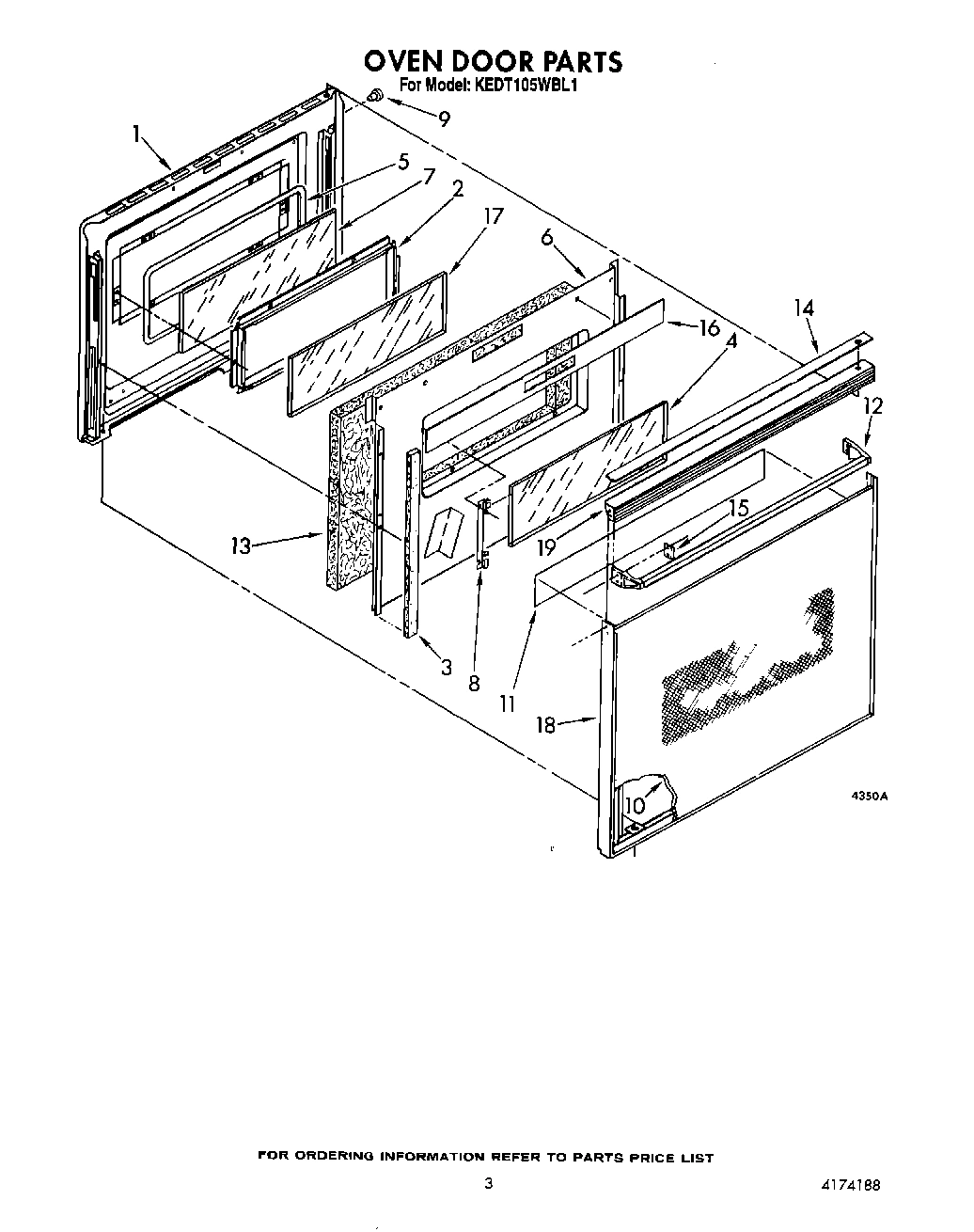

03 - OVEN DOOR

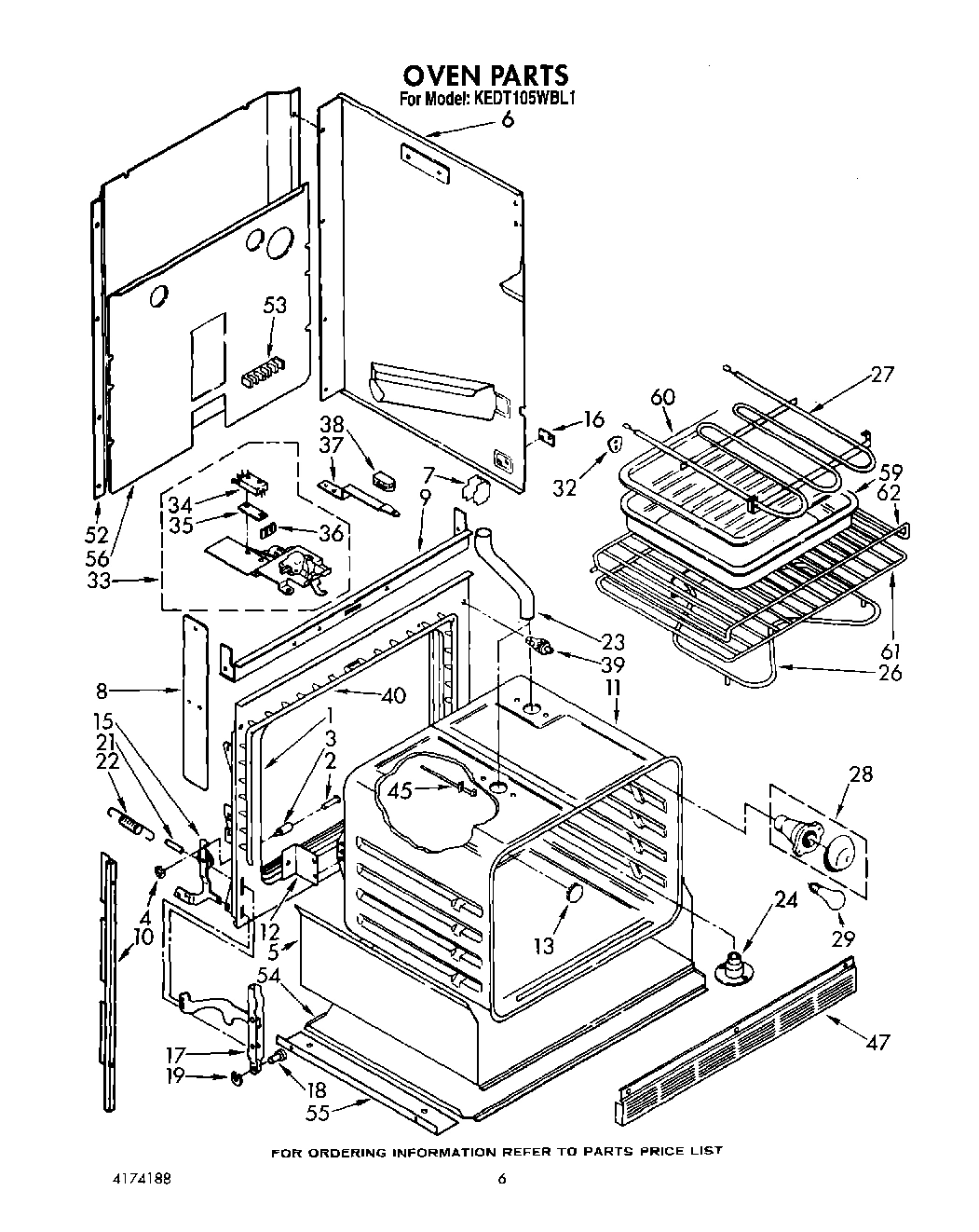

05 - OVEN, LIT/OPTIONAL

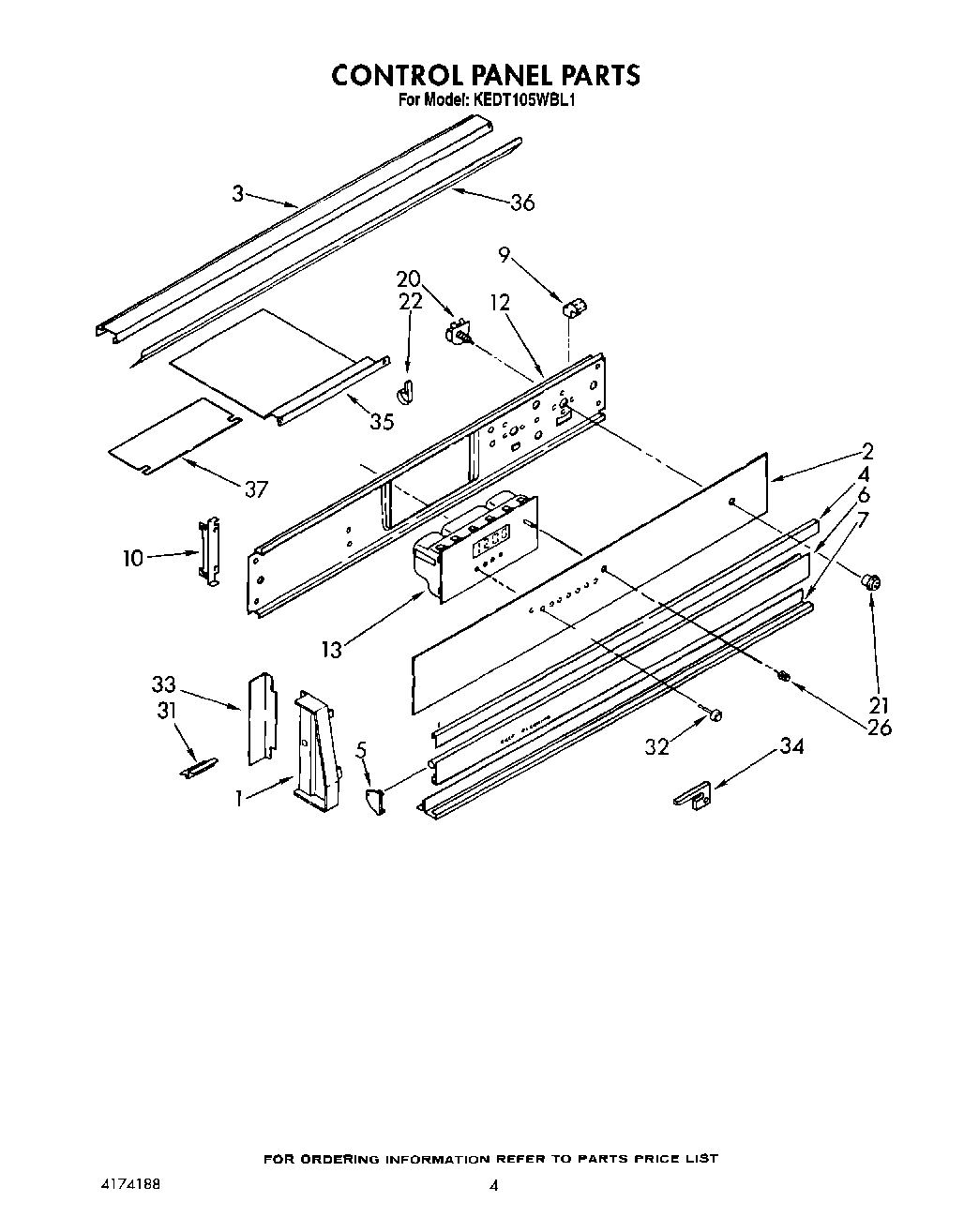

04 - CONTROL PANEL, OPTIONAL

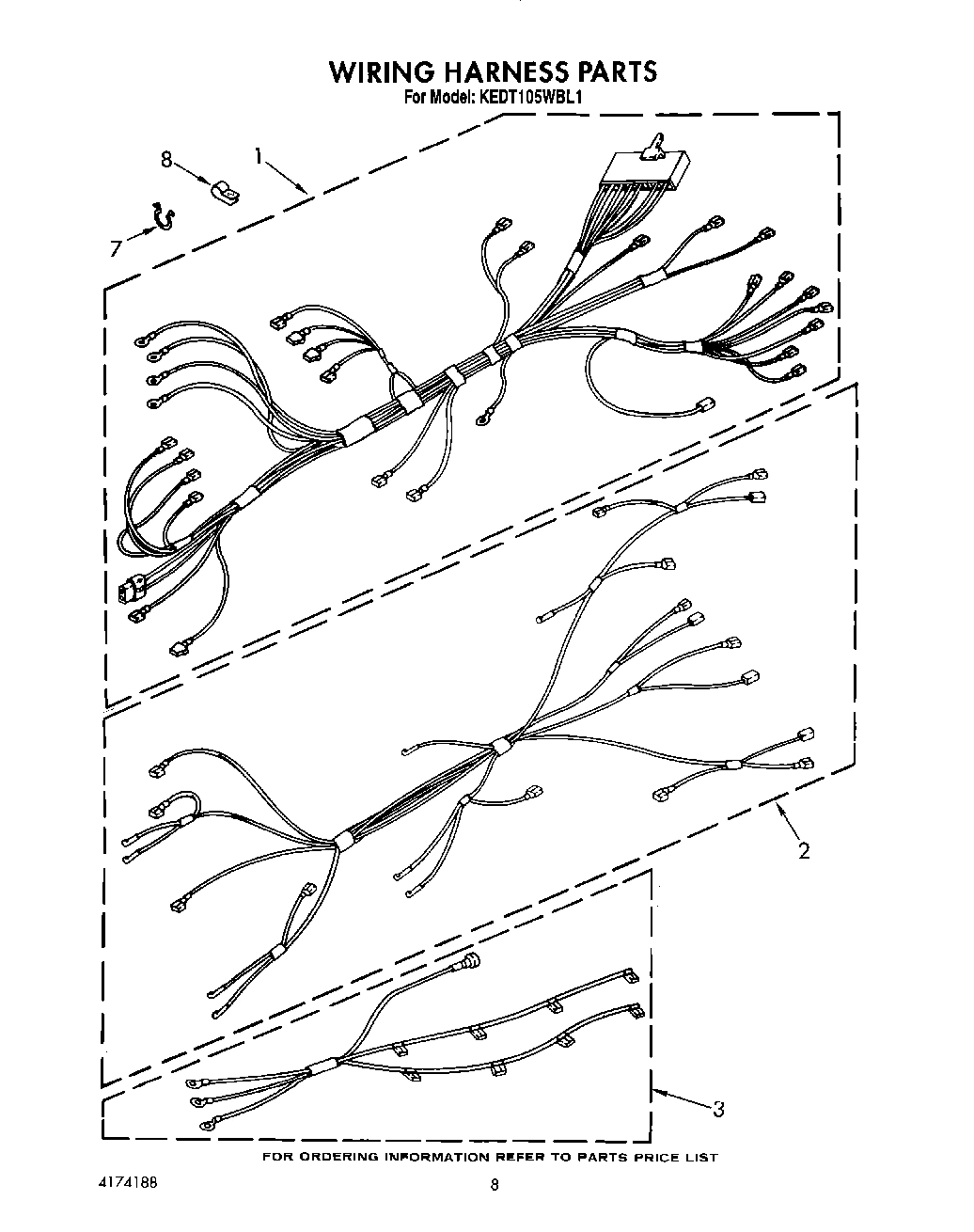

06 - WIRING HARNESS

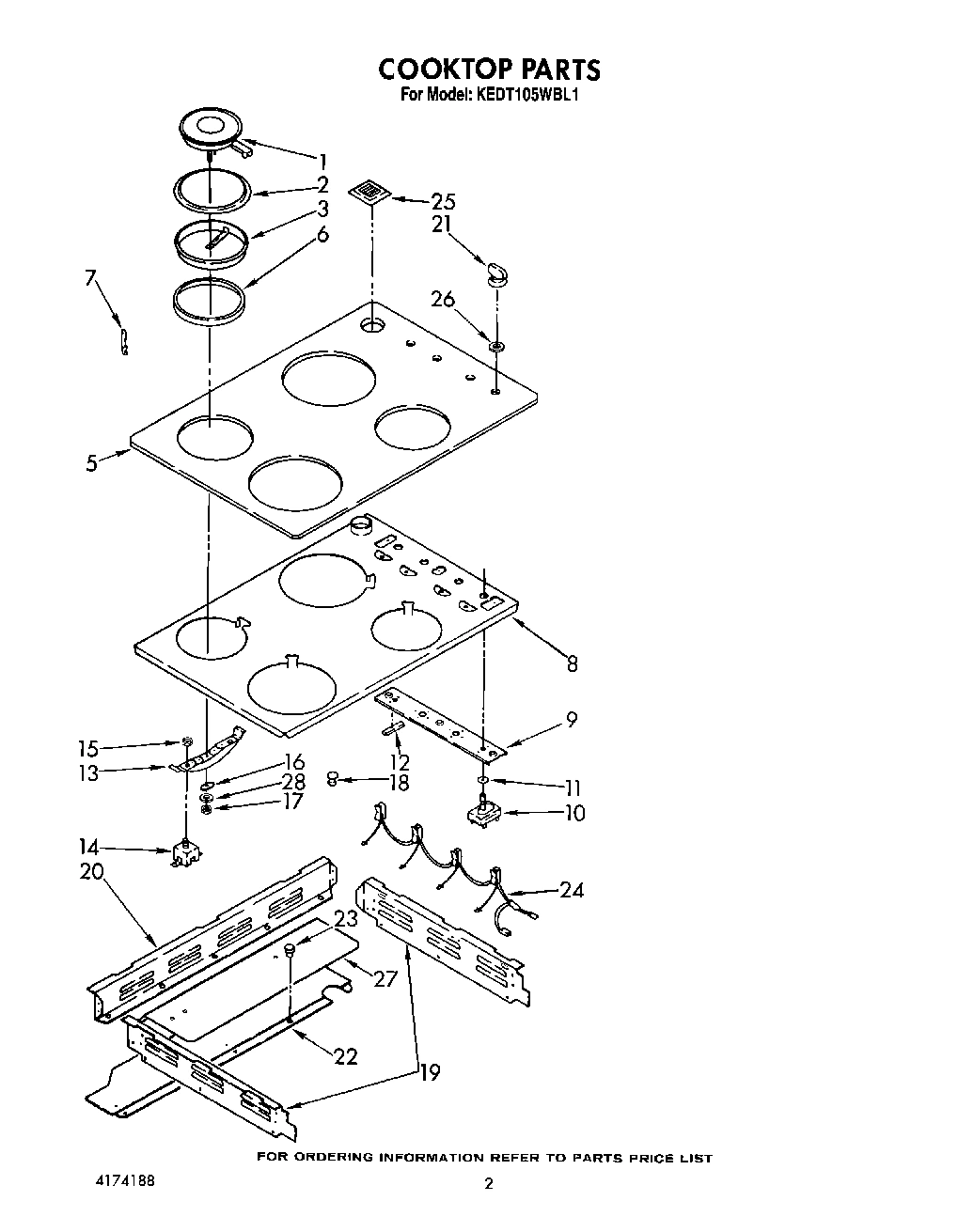

02 - COOKTOP
Common parts from model Whirlpool KEDT105WWH1
WPL 3150532 WPL 3150532 Contact Us For Availability
WPL LIT3147392 WPL LIT3147392 Contact Us For Availability
WPL LIT3149670 WPL LIT3149670 Contact Us For Availability
WPL LIT3150701 WPL LIT3150701 Contact Us For Availability
WPL LIT3185259 WPL LIT3185259 Contact Us For Availability
WPL LIT4174188 WPL LIT4174188 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
(End Cap R.H.) (Washer, Silicone) WPL 3148905 Contact Us For Availability
1
End Cap, L.H. (Black) WPL 3150728 Contact Us For Availability
1
End Cap (R.H.) (Black) WPL 3150729 Contact Us For Availability
1
End Cap, L.H. (White) WPL 3150730 Contact Us For Availability
1
End Cap (R.H.) (White) WPL 3150731 Contact Us For Availability
1
End Cap, L.H. (Almond) WPL 3150732 Contact Us For Availability
1
End Cap (R.H.) (Almond) WPL 3150733 Contact Us For Availability
1
Harness, Wire (Main) WPL 3185257 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Glass, Control Panel (Black) WPL 3150145 Contact Us For Availability
2
Glass, Control Panel (White) WPL 3150146 Contact Us For Availability
2
Glass, Control Panel (Almond) WPL 3150147 Contact Us For Availability
2
Harness, Wire (suface Unit) WPL 3147825 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (Black) WPL 3147185 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (Black) WPL 3147186 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (White) WPL 3148486 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (Almond) WPL 3148487 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (White) WPL 3148489 Contact Us For Availability
2
Ring, Intermediate 8`` Burner (Almond 6`` Bur WPL 3148490 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top (Black) WPL 314240 Contact Us For Availability
3
Rail, Top (Brite Aluminum) WPL 3148456 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3147269 Contact Us For Availability
3
Gasket (2) (6`` Burner) WPL 3147187 Contact Us For Availability
3
Gasket (2) (8`` Burner) WPL 3147188 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center (Brite Aluminum) WPL 3148453 Contact Us For Availability
4
Trim, Center (Black) WPL 3149420 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
(End Trim, L.H. Vent Door) (Rosemont Grey) WPL 3148471 Contact Us For Availability
5
End Trim, R.H. Vent Door (Rosemont Grey) WPL 3148472 Contact Us For Availability
5
(End Trim, L.H. Vent Door) (Black) WPL 3148697 Contact Us For Availability
5
End Trim, R.H. Vent Door (Black) WPL 3148698 Contact Us For Availability
5
Glass Top (Black) WPL 3150103 Contact Us For Availability
5
Glass Top (White) WPL 3150104 Contact Us For Availability
5
Glass Top (Almond) WPL 3150105 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Vent Door (Black) WPL 314190 Contact Us For Availability
6
Vent Door (Brushed Chrome) WPL 3149676 Contact Us For Availability
6
8`` Seal (2) WPL 3148561 Contact Us For Availability
6
6`` Seal (2) WPL 3148562 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw (6) WPL 342043 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Screw (2) WPL 308504 Contact Us For Availability
7
Hook, Seal (4) WPL 3148563 Contact Us For Availability
8
Insulation Baffle (2) WPL 311256 Contact Us For Availability
8
Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability
8
Plate, Backup WPL 3147038 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
9
Screw No.8x1/4 (3) WPL 254225 Contact Us For Availability
9
Bracket, Switch WPL 3147735 Contact Us For Availability
10
Switch, Infinite (6`` Burner) WPL 3148949 Contact Us For Availability
10
Switch, Infinite (8`` Burner) WPL 3148950 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172548 Contact Us For Availability
11
Seal, Shaft (4) WPL 309839 Contact Us For Availability
12
Handle, Oven Door (Black) WPL 3181318 Contact Us For Availability
12
Handle, Oven Door (White) WPL 3181319 Contact Us For Availability
12
Handle, Oven Door (Almond) WPL 3181320 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 3148647 Contact Us For Availability
12
Tape, Foam WPL 3147485 Contact Us For Availability
13
Insulation WPL 3147951 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Screw No.6-32 (4) WPL 313806 Contact Us For Availability
13
Oven Control WPL 3149459 Contact Us For Availability
13
Bracket, Mounting (6`` Burner) WPL 3147703 Contact Us For Availability
13
Bracket, Mounting (8`` Burner) WPL 3147704 Contact Us For Availability
14
Cap, Top WPL 3181363 Contact Us For Availability
14
Protector (4) WPL 3148397 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Nut (4) WPL 3147190 Contact Us For Availability
16
Shield WPL 3148680 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
16
Washer, Flat (4) WPL 3148615 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Nut (4) WPL 3147189 Contact Us For Availability
18
Frame WPL 3148235 Contact Us For Availability
18
Lens (4) WPL 311688 Contact Us For Availability
19
Top, Door (Black) WPL 3148223 Contact Us For Availability
19
Door Top (Panoramic Grey) WPL 3149355 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
19
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
20
Switch, Oven Light (Black) WPL 312581 Contact Us For Availability
20
Switch, Oven Light (Washer) WPL 312796 Contact Us For Availability
20
Switch, Oven Light (Bright Chrome) WPL 3148465 Contact Us For Availability
20
Rail, Back, Support (2) WPL 3147061 Contact Us For Availability
21
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
21
Bezel, Switch (Black) WPL 313030 Contact Us For Availability
21
Bezel, Switch (Brite Chrome) WPL 3148462 Contact Us For Availability
21
Bezel, Switch (Almond) WPL 3148463 Contact Us For Availability
21
Knob, Control (4) (Shadow Grey (KEDT105WWH1)) WPL 3150096 Contact Us For Availability
21
Knob, Control (4) (Coffee Bean (KEDT105WAL1)) WPL 3150097 Contact Us For Availability
22
Cover, Top WPL 3147566 Contact Us For Availability
23
Tube, Vent Extension WPL 3147220 Contact Us For Availability
23
Bushing WPL 258109 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Indicator, Light WPL 3148054 Contact Us For Availability
25
Cover, Vent WPL 3147037 Contact Us For Availability
26
Knob, Timer (1) (Black) WPL 3149784 Contact Us For Availability
26
Knob, Timer (1) (White) WPL 3149785 Contact Us For Availability
26
Knob, Timer (1) (Almond) WPL 3149786 Contact Us For Availability
26
Seal, Infinite Switch WPL 3149899 Contact Us For Availability
27
WPL 3185223 WPL 3185223 Contact Us For Availability
28
WPL 4173194 WPL 4173194 Contact Us For Availability
31
Brace, Control Bracket WPL 3148102 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
32
Button, Set (8) (Black) WPL 3149780 Contact Us For Availability
32
Button, Set (8) (Wh WPL 3149781 Contact Us For Availability
32
WPL 3149782 WPL 3149782 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171150 Contact Us For Availability
33
WPL 3149900 WPL 3149900 Contact Us For Availability
33
WPL 3149901 WPL 3149901 Contact Us For Availability
33
WPL 3149902 WPL 3149902 Contact Us For Availability
34
Safety Switch WPL 313309 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
34
WPL 3149142 WPL 3149142 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
35
WPL 98520 WPL 98520 Contact Us For Availability
35
WPL 309080 WPL 309080 Contact Us For Availability
35
WPL 3149419 WPL 3149419 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
36
WPL 313316 WPL 313316 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
37
WPL 242820 WPL 242820 Contact Us For Availability
37
WPL 242821 WPL 242821 Contact Us For Availability
37
WPL 242822 WPL 242822 Contact Us For Availability
37
WPL 242823 WPL 242823 Contact Us For Availability
37
WPL 242824 WPL 242824 Contact Us For Availability
37
WPL 242825 WPL 242825 Contact Us For Availability
37
WPL 242826 WPL 242826 Contact Us For Availability
37
WPL 242827 WPL 242827 Contact Us For Availability
37
WPL 242828 WPL 242828 Contact Us For Availability
37
WPL 242829 WPL 242829 Contact Us For Availability
37
WPL 242830 WPL 242830 Contact Us For Availability
37
WPL 242832 WPL 242832 Contact Us For Availability
37
WPL 3150352 WPL 3150352 Contact Us For Availability
37
WPL 3171507 WPL 3171507 Contact Us For Availability
37
WPL 814128 WPL 814128 Contact Us For Availability
38
Knob, Latch Handle WPL 3183293 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
39
Sw WPL 310345 Contact Us For Availability
40
WPL 3185197 WPL 3185197 Contact Us For Availability
45
WPL 3148440 WPL 3148440 Contact Us For Availability
47
WPL 3150349 WPL 3150349 Contact Us For Availability
47
WPL 3150350 WPL 3150350 Contact Us For Availability
47
WPL 3150351 WPL 3150351 Contact Us For Availability
52
WPL 3149542 WPL 3149542 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
62
WPL 310433 WPL 310433 Contact Us For Availability
62
WPL 310434 WPL 310434 Contact Us For Availability
62
WPL 3149328 WPL 3149328 Contact Us For Availability
62
WPL 3185222 WPL 3185222 Contact Us For Availability
× ![]()
