Model Whirlpool KEDS207BBL1 – Common Parts & Diagrams

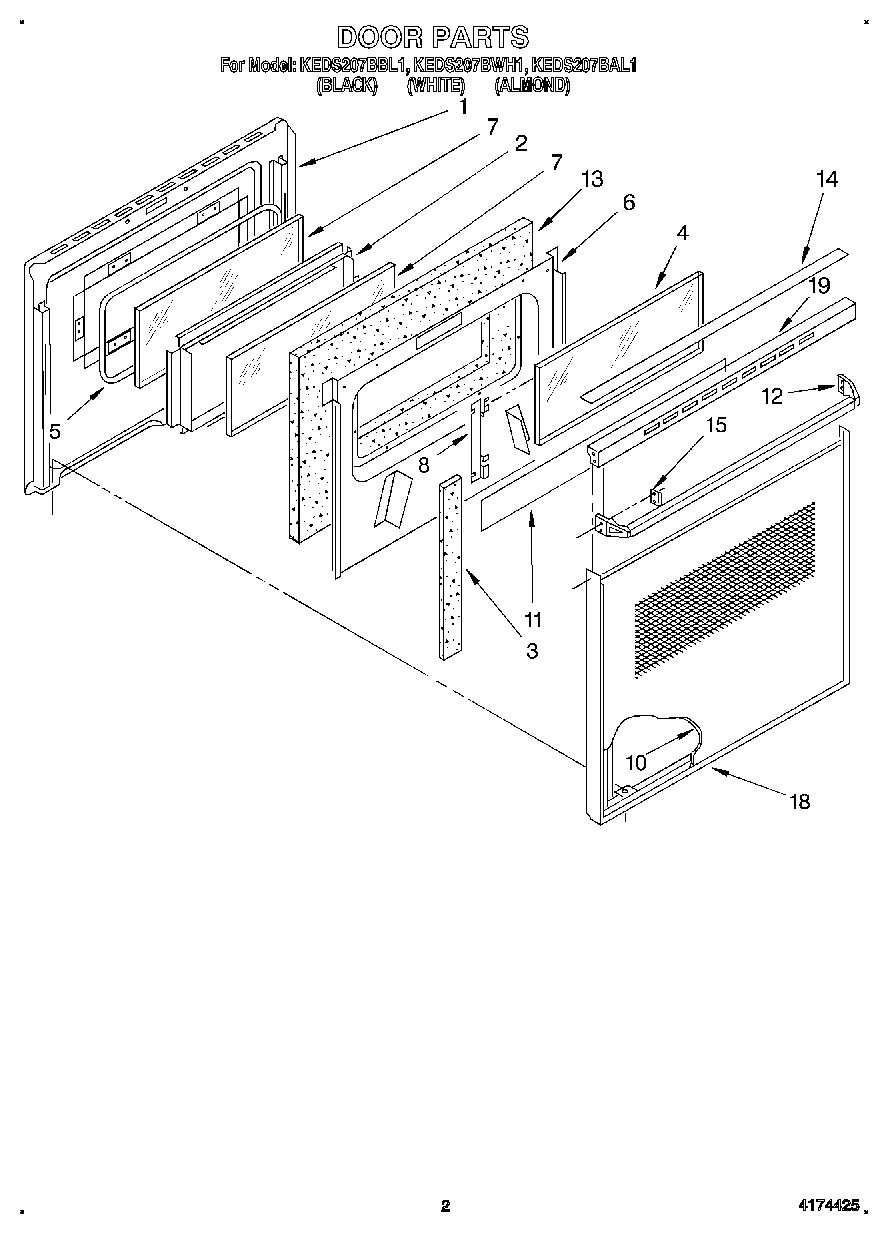

02 - DOOR

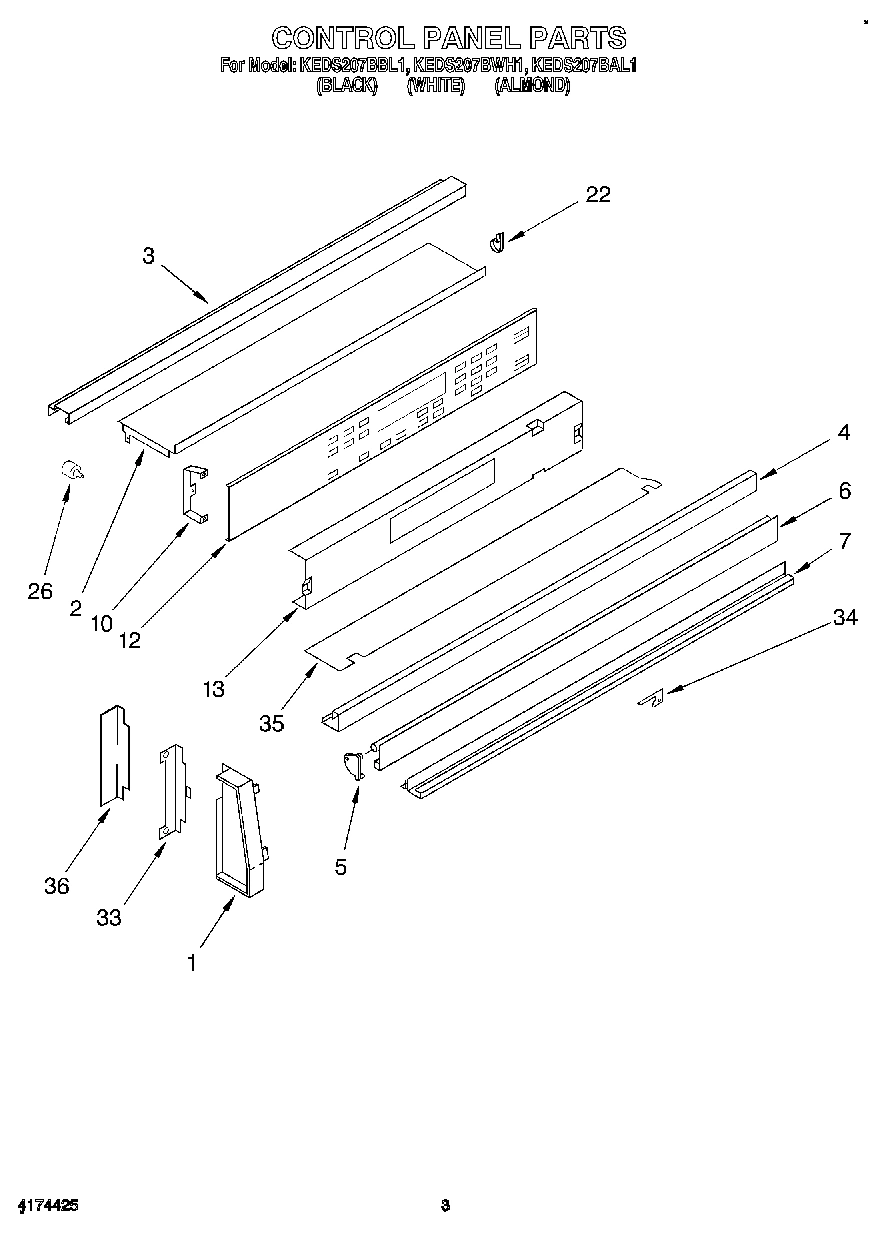

03 - CONTROL PANEL, OPTIONAL

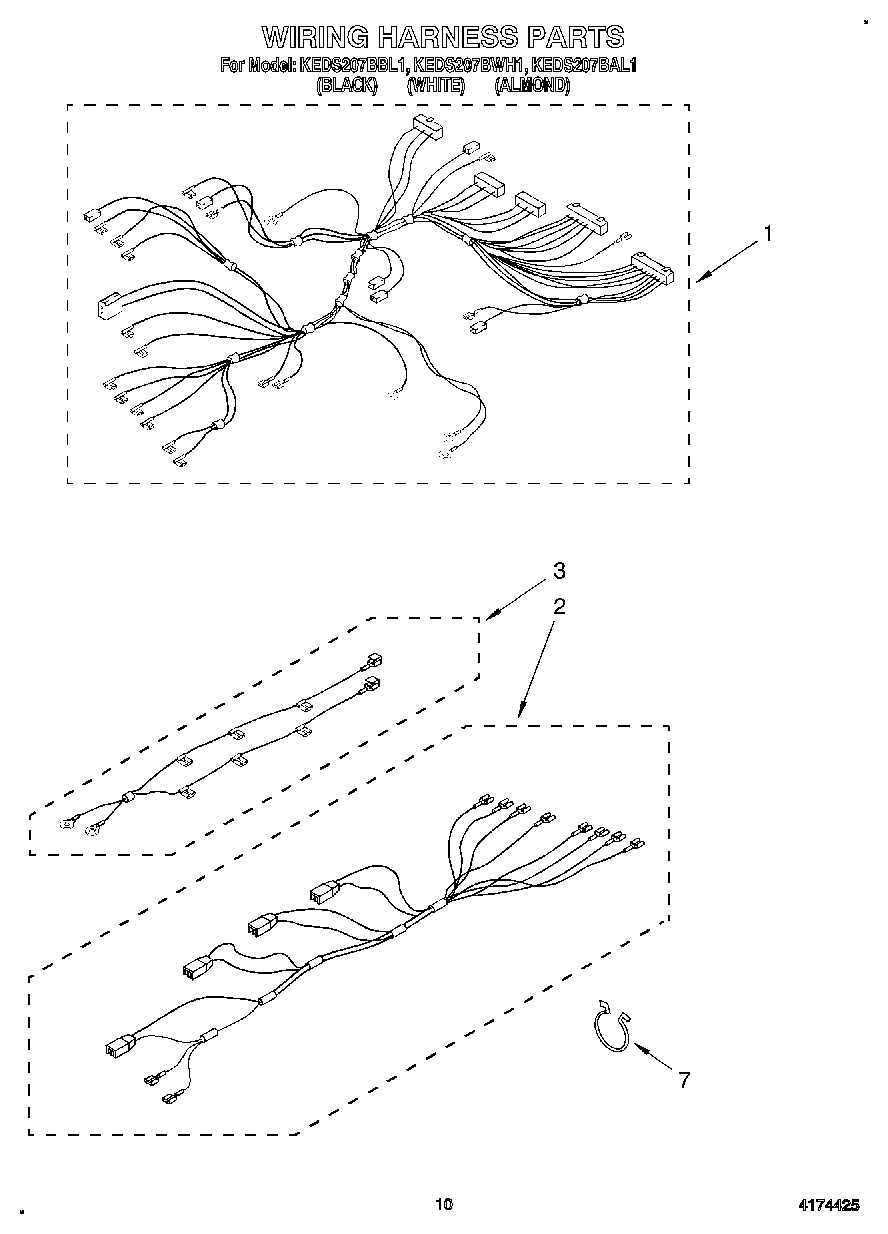

08 - WIRING HARNESS

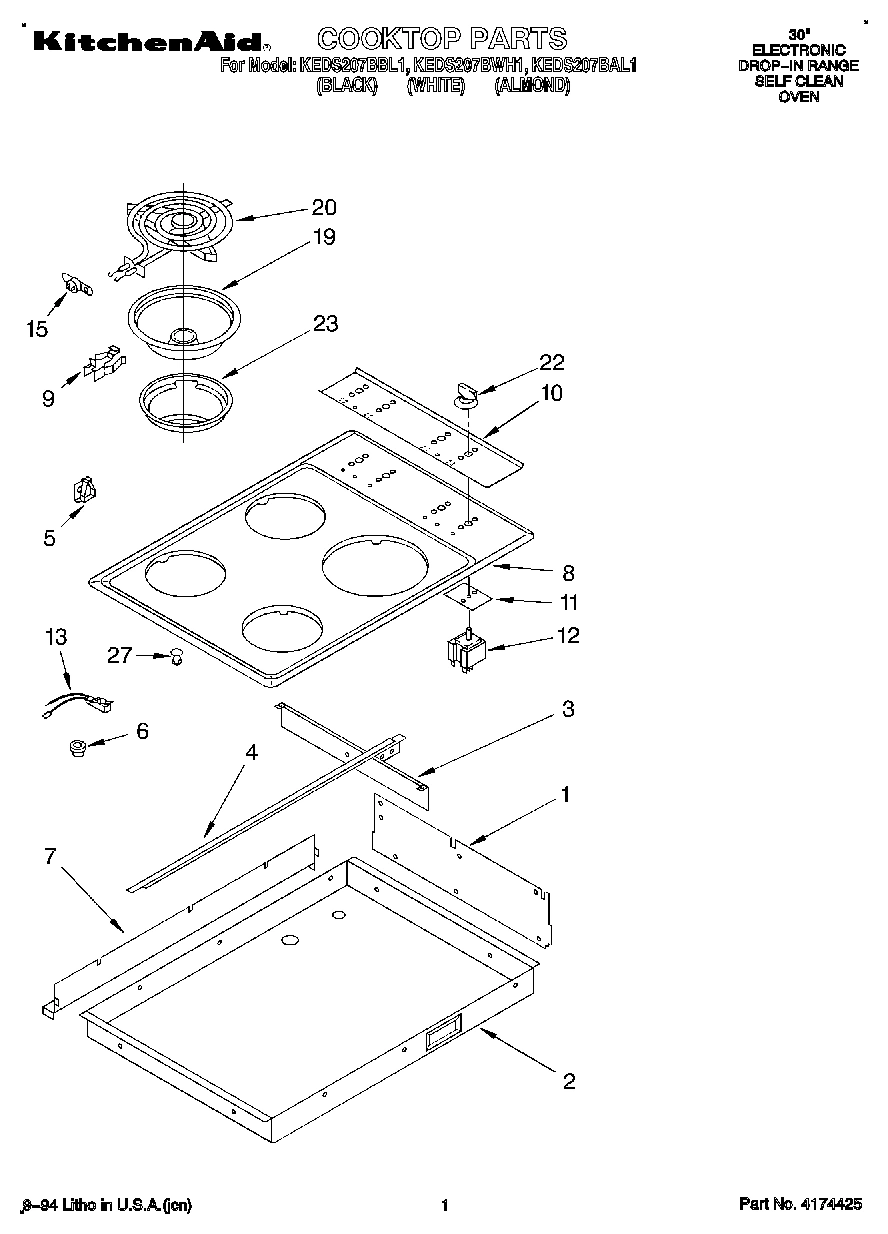

01 - COOKTOP

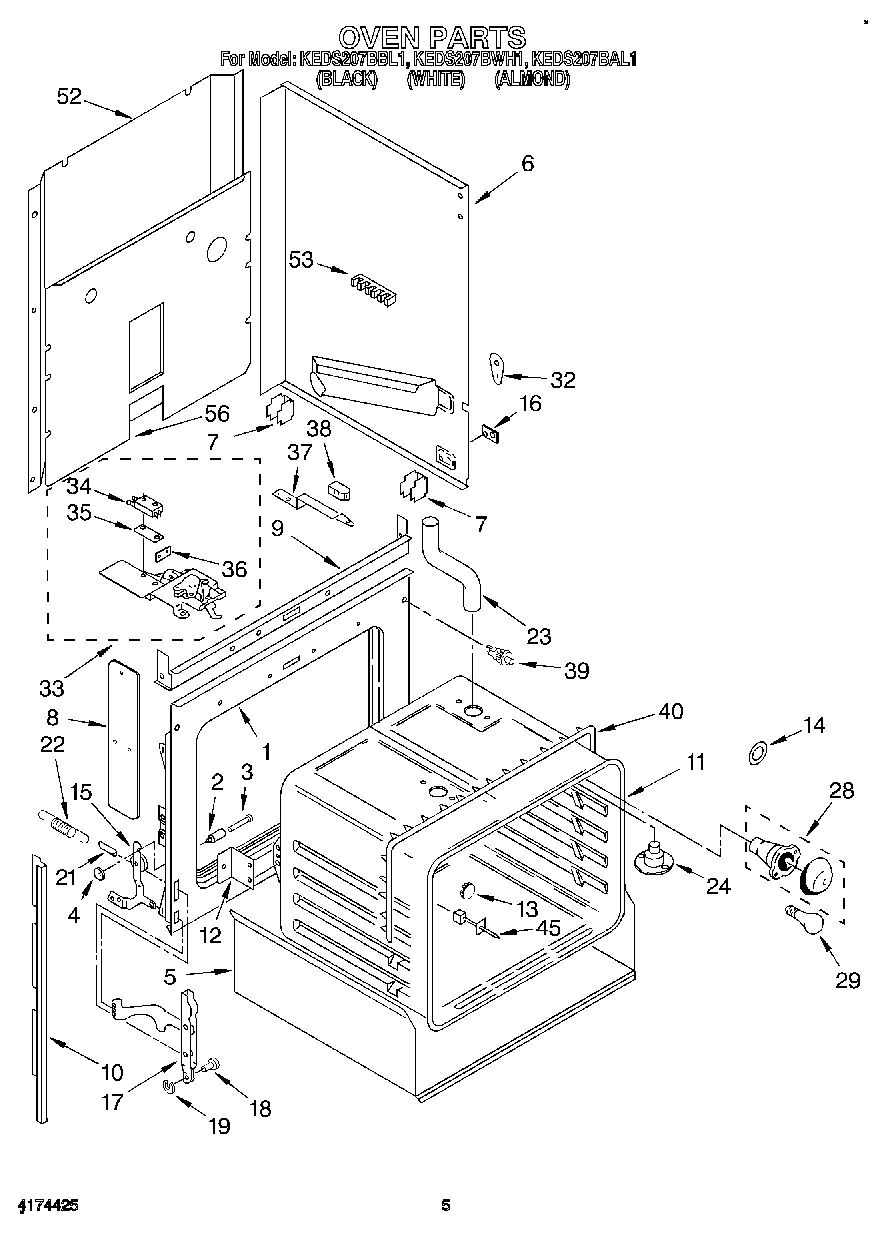

04 - OVEN, LITERATURE

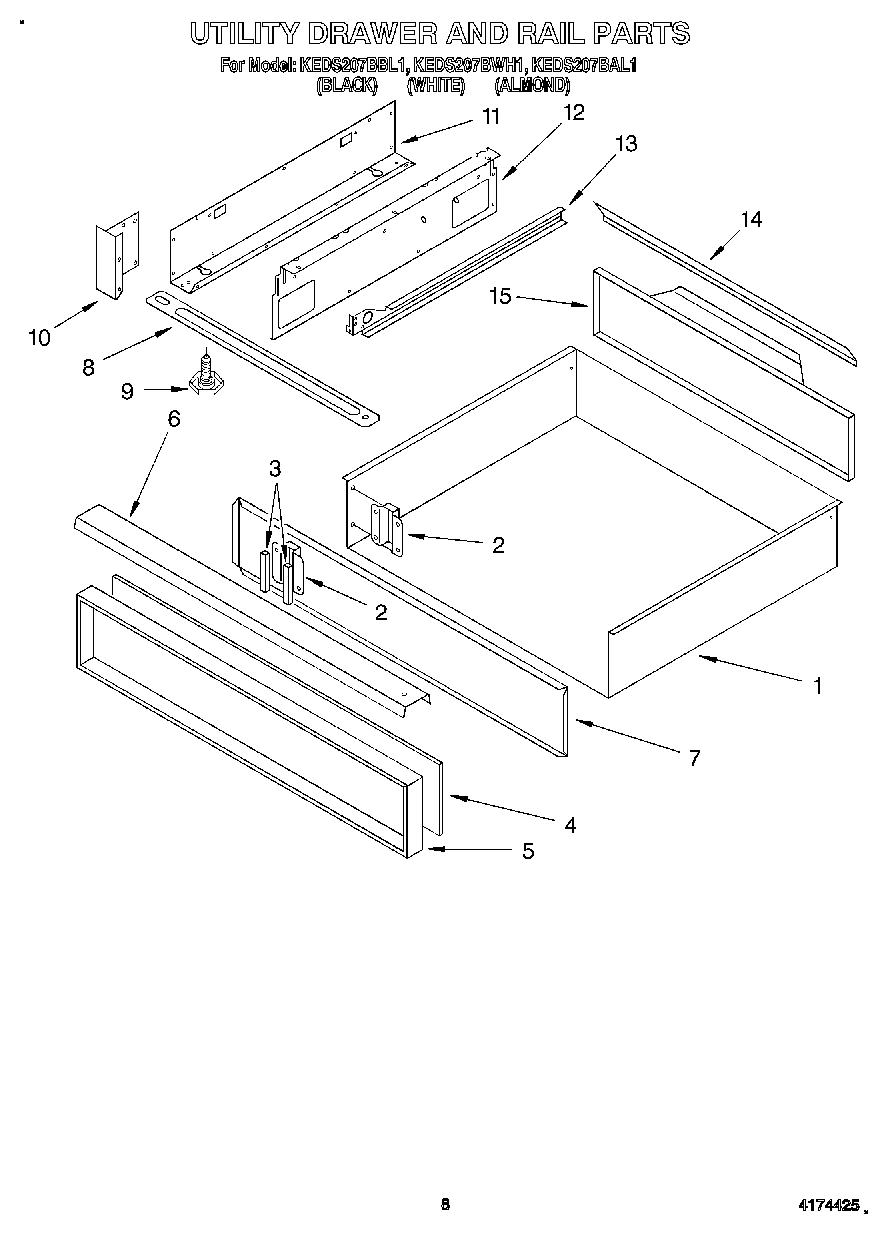

06 - UTILITY DRAWER AND RAIL

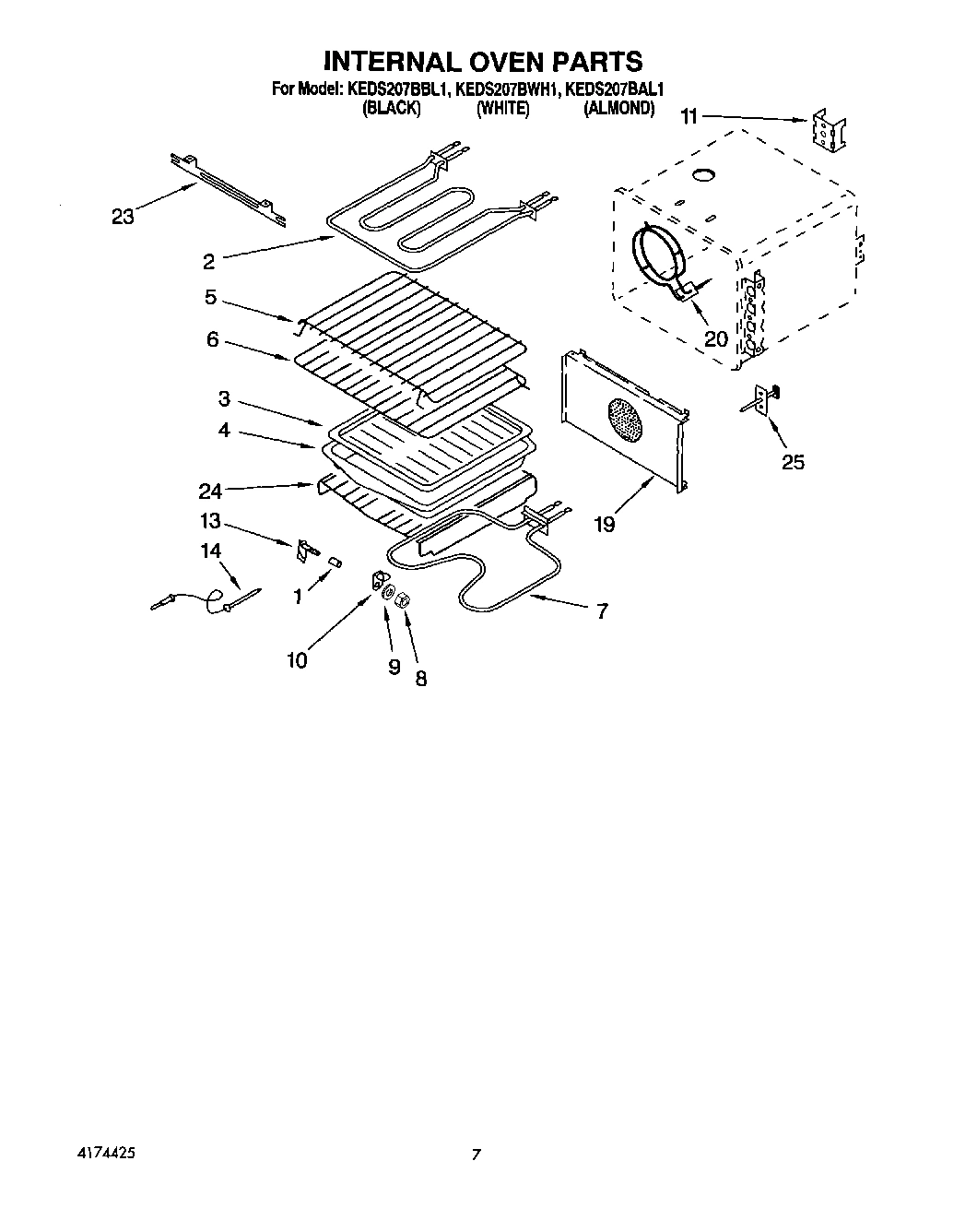

05 - INTERNAL OVEN

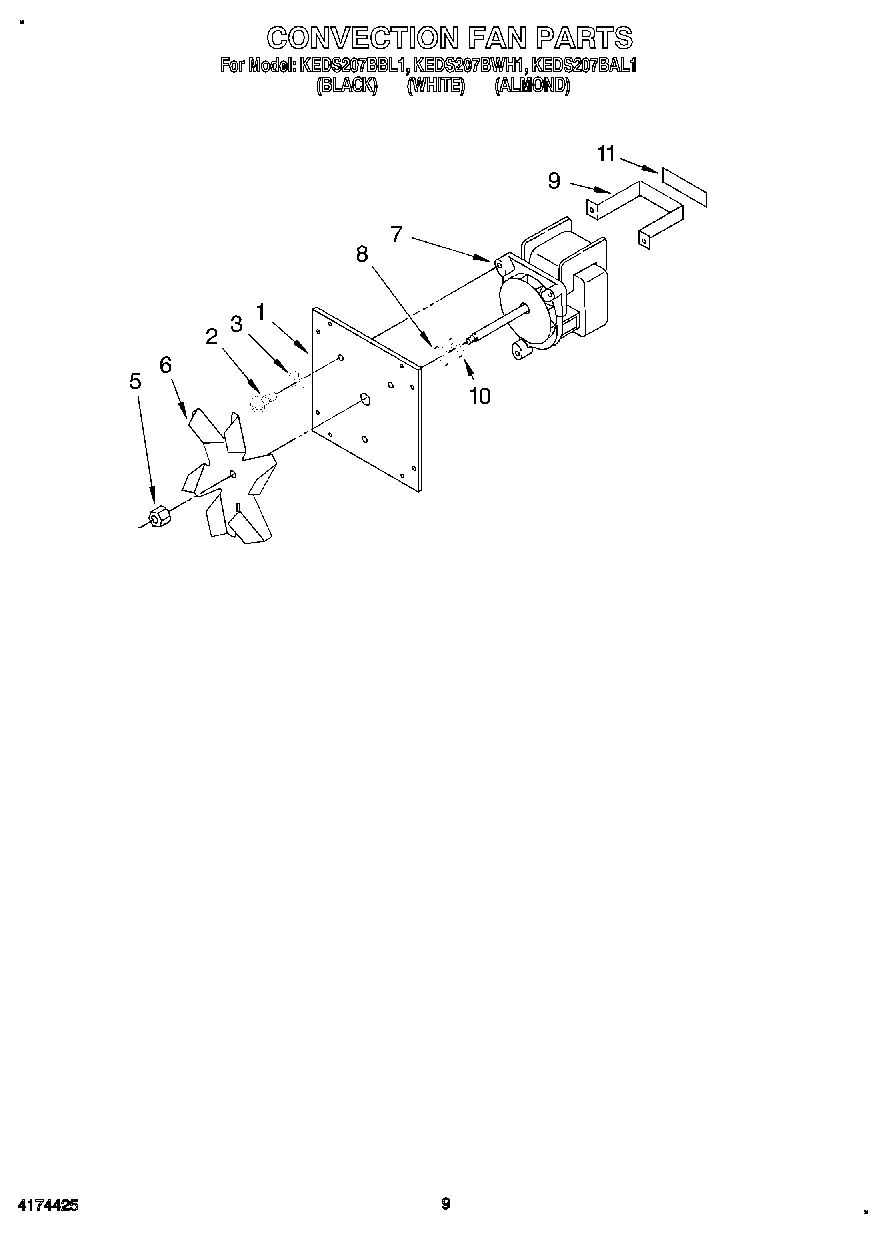

07 - CONVECTION FAN
Common parts from model Whirlpool KEDS207BBL1
WPL LIT3150693 WPL LIT3150693 Contact Us For Availability
WPL LIT3183987 WPL LIT3183987 Contact Us For Availability
WPL LIT3184873 WPL LIT3184873 Contact Us For Availability
WPL LIT3188262 WPL LIT3188262 Contact Us For Availability
WPL LIT3188573 WPL LIT3188573 Contact Us For Availability
1
Harness, Wire (Main) WPL 3188447 Contact Us For Availability
1
Plate, Mounting WPL 3188527 Contact Us For Availability
1
Front Frame WPL 3186975 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
Spacer - Tubing WPL 3179672 Contact Us For Availability
1
Plate, Mounting (Fan Motor) WPL 3182045 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
2
Box, Burner WPL 3188768 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Element, Broil WPL 661417 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
3
Shield, Heat WPL 3187446 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
4
Bracket, Mounting WPL 3188766 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (Almond) WPL 3185227 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent Door (Brite Aluminum, LH) WPL 3148471 Contact Us For Availability
5
End Trim, Vent Door (Brite Aluminum, RH) WPL 3148472 Contact Us For Availability
5
End Trim, Vent Door (Black, LH) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Black, RH) WPL 3148698 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Fastener (2) WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
5
Rack, Offset WPL 3181639 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
6
Vent Door (Black) WPL 314190 Contact Us For Availability
6
Vent Door (Brushed Chrome) WPL 3149676 Contact Us For Availability
6
Handle, Drawer (Screw) WPL 309133 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Handle, Drawer (Almond) WPL 3185208 Contact Us For Availability
6
Rack, Straight WPL 3181638 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw (6) WPL 342043 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Screw WPL 4159456 Contact Us For Availability
7
Cover, Rear WPL 3188528 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Panel, Back WPL 3186695 Contact Us For Availability
7
Screw (2) WPL 3150532 Contact Us For Availability
7
Motor, Fan WPL 3183220 Contact Us For Availability
8
Cooktop (Screw (6)) WPL 312318 Contact Us For Availability
8
Cooktop (White) WPL 3148754 Contact Us For Availability
8
Cooktop (Almond) WPL 3148755 Contact Us For Availability
8
Cooktop (Black) WPL 3183618 Contact Us For Availability
8
Insulation Baffle (2) WPL 311256 Contact Us For Availability
8
Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
10
Support, Control Panel (2) WPL 3183316 Contact Us For Availability
10
Control Panel (Black) WPL 3147680 Contact Us For Availability
10
Control Panel (White) WPL 3147681 Contact Us For Availability
10
Control Panel (Almond) WPL 3147682 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Cover, Probe WPL 4167266 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182031 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Bracket, Support Motor WPL 3182042 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
12
Control Panel (Black) WPL 3186988 Contact Us For Availability
12
Control Panel (White) WPL 3186989 Contact Us For Availability
12
Control Panel (Almond) WPL 3186990 Contact Us For Availability
12
Switch, Infinite (6`` Element (2)) WPL 3148967 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
13
Microcomputer WPL 3181703 Contact Us For Availability
13
Indicator Light WPL 3187777 Contact Us For Availability
13
Plug Button WPL 3185086 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
19
Door Top (Screw (5)) WPL 3149333 Contact Us For Availability
19
Reflector Pan (6`` (2)) WPL 3150198 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Cover, Fan WPL 3181724 Contact Us For Availability
20
Element, Convection WPL 661460 Contact Us For Availability
22
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
22
Knob, Control (4) (White) WPL 3150096 Contact Us For Availability
22
Knob, Control (4) (Almond) WPL 3150097 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Rack, Roasting WPL 3181534 Contact Us For Availability
25
SPST Thermostat WPL 3149653 Contact Us For Availability
26
Bumper, Rubber (4) WPL 3183328 Contact Us For Availability
27
Lens, Light WPL 313602 Contact Us For Availability
32
Coverplate WPL 310662 Contact Us For Availability
33
Support, Control Panel WPL 3183317 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183800 Contact Us For Availability
34
Shield, Air WPL 3149142 Contact Us For Availability
34
Safety Switch WPL 3183784 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Screw WPL 98520 Contact Us For Availability
35
Shield - Heat WPL 3183992 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
36
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
36
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
36
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
36
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
36
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
36
White 14 Ga. 150~c Rating WPL 242826 Contact Us For Availability
36
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
36
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
36
Red 12 Ga. 150~c Rating WPL 242829 Contact Us For Availability
36
Wire (14 Ga. 200 c Brow WPL 242830 Contact Us For Availability
36
WPL 242832 WPL 242832 Contact Us For Availability
36
WPL 261890 WPL 261890 Contact Us For Availability
36
WPL 261891 WPL 261891 Contact Us For Availability
36
WPL 285365 WPL 285365 Contact Us For Availability
36
WPL 285366 WPL 285366 Contact Us For Availability
36
WPL 285367 WPL 285367 Contact Us For Availability
36
WPL 285368 WPL 285368 Contact Us For Availability
36
WPL 3149900 WPL 3149900 Contact Us For Availability
36
WPL 3149901 WPL 3149901 Contact Us For Availability
36
WPL 3149902 WPL 3149902 Contact Us For Availability
36
WPL 3183638 WPL 3183638 Contact Us For Availability
36
WPL 3183639 WPL 3183639 Contact Us For Availability
36
WPL 3183640 WPL 3183640 Contact Us For Availability
36
WPL 3185260 WPL 3185260 Contact Us For Availability
36
WPL 350806 WPL 350806 Contact Us For Availability
36
WPL 350941 WPL 350941 Contact Us For Availability
36
WPL 591014 WPL 591014 Contact Us For Availability
36
WPL 72112 WPL 72112 Contact Us For Availability
36
WPL 799832 WPL 799832 Contact Us For Availability
36
WPL 814128 WPL 814128 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
Knob, Latch Handle WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
40
Seal WPL 3185197 Contact Us For Availability
45
Sensor WPL 3148440 Contact Us For Availability
52
Panel, Back WPL 3182052 Contact Us For Availability
53
Screw, 10- WPL 308043 Contact Us For Availability
56
WPL 310433 WPL 310433 Contact Us For Availability
56
WPL 310435 WPL 310435 Contact Us For Availability
56
WPL 3149328 WPL 3149328 Contact Us For Availability
56
WPL 3185960 WPL 3185960 Contact Us For Availability
56
WPL 3188439 WPL 3188439 Contact Us For Availability
× ![]()
