Model Whirlpool KEDH207YAL1 – Common Parts & Diagrams

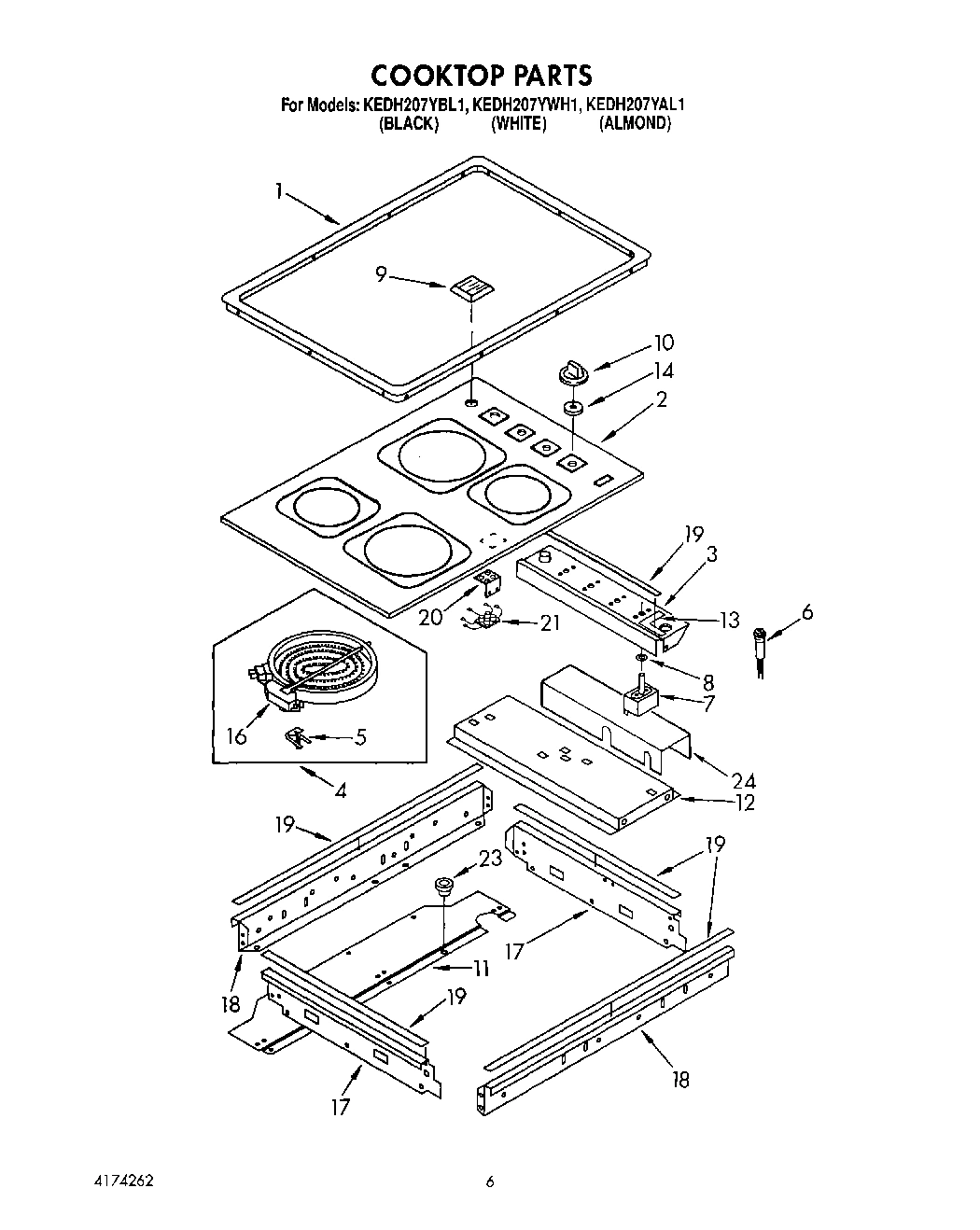

04 - COOKTOP, LIT/OPTIONAL

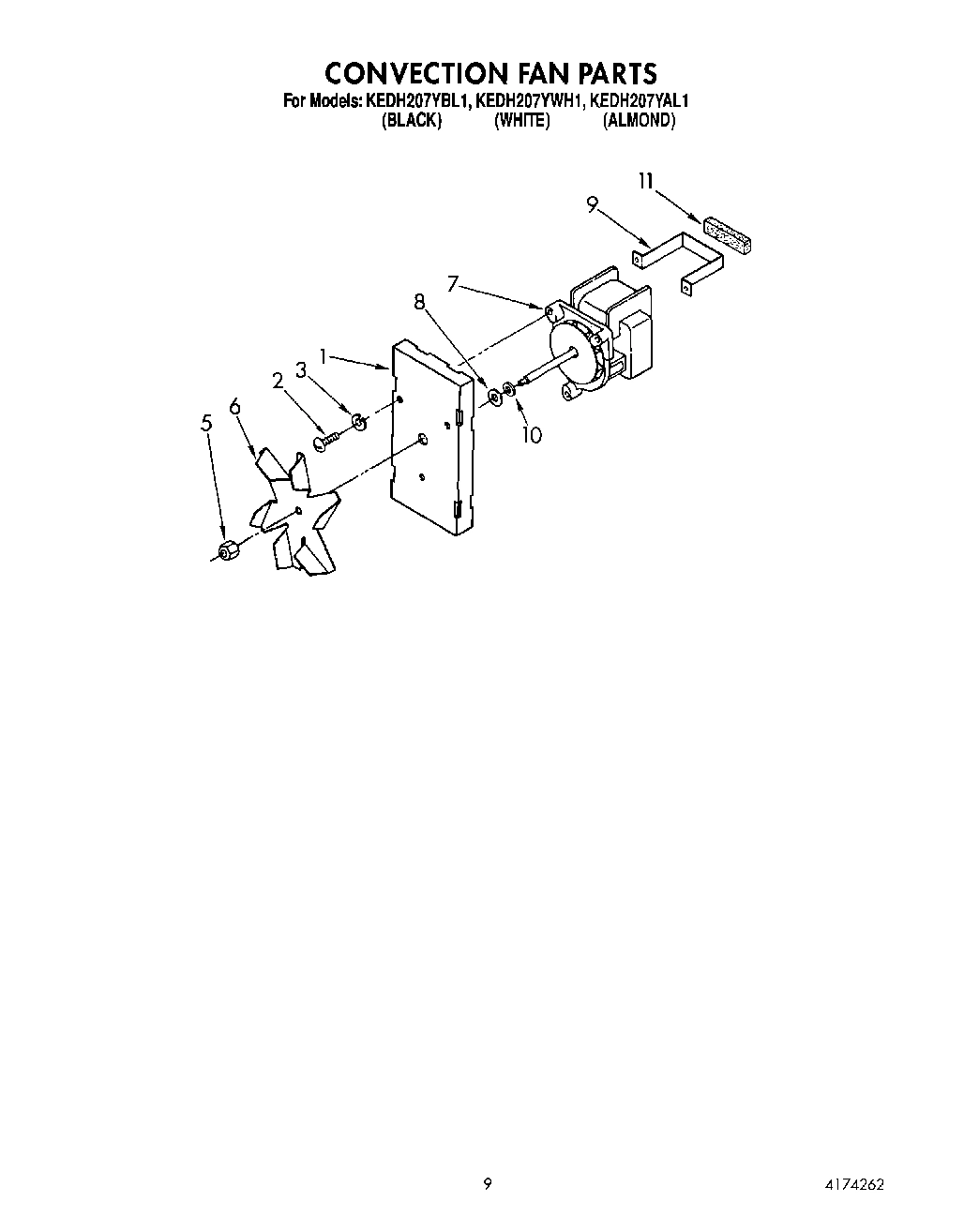

06 - CONVECTION FAN
08 - WIRING HARNESS
01 - OVEN
07 - UTILITY DRAWER AND RAIL
02 - CONTROL PANEL
03 - DOOR
05 - INTERNAL CONVECTION OVEN
Common parts from model Whirlpool KEDH207YAL1
WPL 3183639 WPL 3183639 Contact Us For Availability
WPL 3183640 WPL 3183640 Contact Us For Availability
WPL 3185260 WPL 3185260 Contact Us For Availability
WPL 814128 WPL 814128 Contact Us For Availability
WPL LIT3150693 WPL LIT3150693 Contact Us For Availability
WPL LIT3182755 WPL LIT3182755 Contact Us For Availability
WPL LIT3183987 WPL LIT3183987 Contact Us For Availability
WPL LIT3184873 WPL LIT3184873 Contact Us For Availability
WPL LIT3185220 WPL LIT3185220 Contact Us For Availability
WPL LIT4174262 WPL LIT4174262 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3150305 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3150306 Contact Us For Availability
1
Trim Ring, Cooktop (Almond) WPL 3150307 Contact Us For Availability
1
Plate, Mounting (Fan Motor) WPL 3182045 Contact Us For Availability
1
Harness, Wire (Main) WPL 3184573 Contact Us For Availability
1
Frame, Front WPL 3176698 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
(End Cap Right Hand) (Washer (2)) WPL 3148905 Contact Us For Availability
1
End Cap Left Hand (Black) WPL 3150728 Contact Us For Availability
1
(End Cap Right Hand) (Black) WPL 3150729 Contact Us For Availability
1
End Cap Left Hand (White) WPL 3150730 Contact Us For Availability
1
(End Cap Right Hand) (White) WPL 3150731 Contact Us For Availability
1
End Cap, L.H. (Almond) WPL 3150732 Contact Us For Availability
1
(End Cap Right Hand) (Almond) WPL 3150733 Contact Us For Availability
1
Liner, Door WPL 3148165 Contact Us For Availability
2
Cooktop, Glass (Black or Almond Model) WPL 3183182 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3183183 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3181503 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Element, Broil WPL 3182451 Contact Us For Availability
3
Bracket, Switch Mounting WPL 3150338 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3181496 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
Rail, Top (Black) WPL 3183329 Contact Us For Availability
3
Rail, Top (Bright Aluminum) WPL 3183341 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Element, Surface (2200W Right Rear) WPL 3182905 Contact Us For Availability
4
Element, Surface (1400W Left Rear) WPL 3183584 Contact Us For Availability
4
Element, Surface (1800W Right Front) WPL 3183585 Contact Us For Availability
4
Jumper, Infinite Switch WPL 3149964 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (Almond) WPL 3185227 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Spring Locator (8) WPL 3149191 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Fastener (2) WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
5
Trim, Vent Door (Left Hand) (Brite Aluminum) WPL 3148471 Contact Us For Availability
5
Trim, Vent Door (Right Hand) (Brite Aluminum) WPL 3148472 Contact Us For Availability
5
Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability
5
Trim, Vent Door (Right Hand (Black)) WPL 3148698 Contact Us For Availability
5
Trim, Vent Door WPL ARI84758A2 Contact Us For Availability
5
Rack, Offset WPL 3181639 Contact Us For Availability
6
Light, Indicator WPL 3149978 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Handle, Drawer (Screw, Black (3)) WPL 308504 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Handle, Drawer (Almond) WPL 3185208 Contact Us For Availability
6
Door, Vent (Screw (2)) WPL 254217 Contact Us For Availability
6
Door, Vent (Black) WPL 314190 Contact Us For Availability
6
Door, Vent (Semi-Bright Aluminum) WPL 3149676 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Rack, Straight WPL 3181638 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear Burne WPL 3148949 Contact Us For Availability
7
Switch, Infinite (Use W/1800W Right Front Bur WPL 3148950 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability
7
Switch, Infinite (Use W/2200W Right Rear Burn WPL 3148963 Contact Us For Availability
7
Motor, Fan WPL 3183220 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Panel, Back WPL 3185162 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
8
Seal, Switch Cover WPL 309839 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
Shield, Air WPL 3149142 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
9
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
9
Cover, Vent (White) WPL 3182497 Contact Us For Availability
9
Cover, Vent (Almond) WPL 3182498 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
9
Baffle, Top WPL 3183796 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
10
Knob, Control (4) (White) WPL 3150096 Contact Us For Availability
10
Knob, Control (4) (Almond) WPL 3150097 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Side Trim (Left Hand) WPL 310685 Contact Us For Availability
10
Side Trim (Right Hand) WPL 310689 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White) WPL 3150347 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3150348 Contact Us For Availability
10
Cover, Probe WPL 4167266 Contact Us For Availability
11
Cover, Top Rear WPL 3147566 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182031 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Bracket, Support Motor WPL 3182042 Contact Us For Availability
12
Support, Element WPL 3150316 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
12
Panel, Control (Black) WPL 3182390 Contact Us For Availability
12
Panel, Control (White) WPL 3182680 Contact Us For Availability
12
Panel, Control (Almond) WPL 3182681 Contact Us For Availability
12
Handle, Door (Black) WPL 3183402 Contact Us For Availability
12
Handle, Door (White) WPL 3183403 Contact Us For Availability
12
Handle, Door (Almond) WPL 3183404 Contact Us For Availability
13
Seal, Cooktop WPL 3184325 Contact Us For Availability
13
Button, Plug (2) WPL 3185086 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Microcomputer WPL 3181703 Contact Us For Availability
13
screw (2) WPL 254225 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Seal, Switch (4) WPL 3182435 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White Or Almond Model) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
16
Switch, Limit (Use W/3183632 Element) WPL 3149124 Contact Us For Availability
16
Switch, Limit (Use W/3183584 Element) WPL 3149129 Contact Us For Availability
16
Switch, Limit (Use W/3183585 Element) WPL 3149130 Contact Us For Availability
16
Switch, Limit (Use W/3182905 Element) WPL 3183975 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Bumper, Rubber (4) WPL 3183328 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
17
Rail, Side (Right Hand) WPL 3150323 Contact Us For Availability
17
Rail, Side (Left H WPL 3150324 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Bracket, Control Panel WPL 3183316 Contact Us For Availability
18
WPL 3181646 WPL 3181646 Contact Us For Availability
18
WPL 3183380 WPL 3183380 Contact Us For Availability
18
Shield, Control WPL 3183992 Contact Us For Availability
19
WPL 3185589 WPL 3185589 Contact Us For Availability
19
WPL 3185590 WPL 3185590 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Cover, Fan WPL 3181724 Contact Us For Availability
20
WPL 3150321 WPL 3150321 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
20
Insulation WPL 3147951 Contact Us For Availability
20
Element, Convection WPL 3183003 Contact Us For Availability
21
WPL 3150304 WPL 3150304 Contact Us For Availability
21
Cap, Top Door WPL 3181363 Contact Us For Availability
23
WPL 258109 WPL 258109 Contact Us For Availability
23
Tube, Vent WPL 3184323 Contact Us For Availability
23
Screw (2) WPL 3179117 Contact Us For Availability
23
Screw (2) WPL 98520 Contact Us For Availability
23
Shield, Heat WPL 3149419 Contact Us For Availability
23
Bracket, Element WPL 3180694 Contact Us For Availability
24
WPL 3184261 WPL 3184261 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Rack, Roasting WPL 3181534 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
SPST Thermostat WPL 3149652 Contact Us For Availability
27
Bracket, Support WPL 3183317 Contact Us For Availability
30
Sensor, Heat WPL 3148440 Contact Us For Availability
32
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
32
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
32
Trim, End Cap (Almond) WPL 3149902 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183800 Contact Us For Availability
34
Safety Switch WPL 3183784 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw (2) WPL 309258 Contact Us For Availability
36
Shield, Terminal WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw WPL 3183294 Contact Us For Availability
38
Knob, Latch WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
39
Screw WPL 4159372 Contact Us For Availability
52
Cover, Rear WPL 311012 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
56
Insulation, Wrap WPL 310433 Contact Us For Availability
56
Insulation, Oven WPL 310435 Contact Us For Availability
56
Insulation, Top WPL 3149328 Contact Us For Availability
56
Panel, Back WPL 3182052 Contact Us For Availability
56
Insulation WPL 3185222 Contact Us For Availability
× ![]()
