Model Whirlpool KEDH207BWH1 – Common Parts & Diagrams

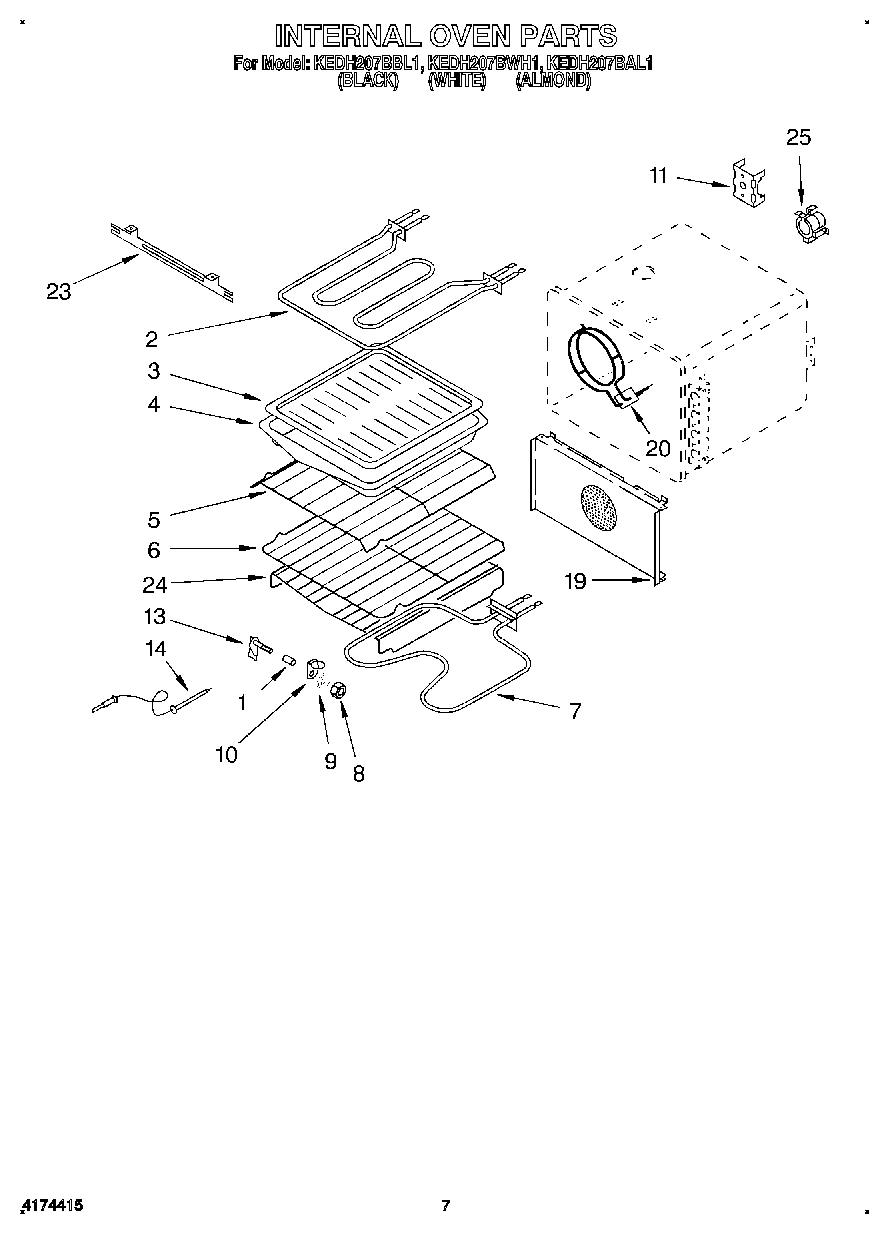

05 - INTERNAL OVEN

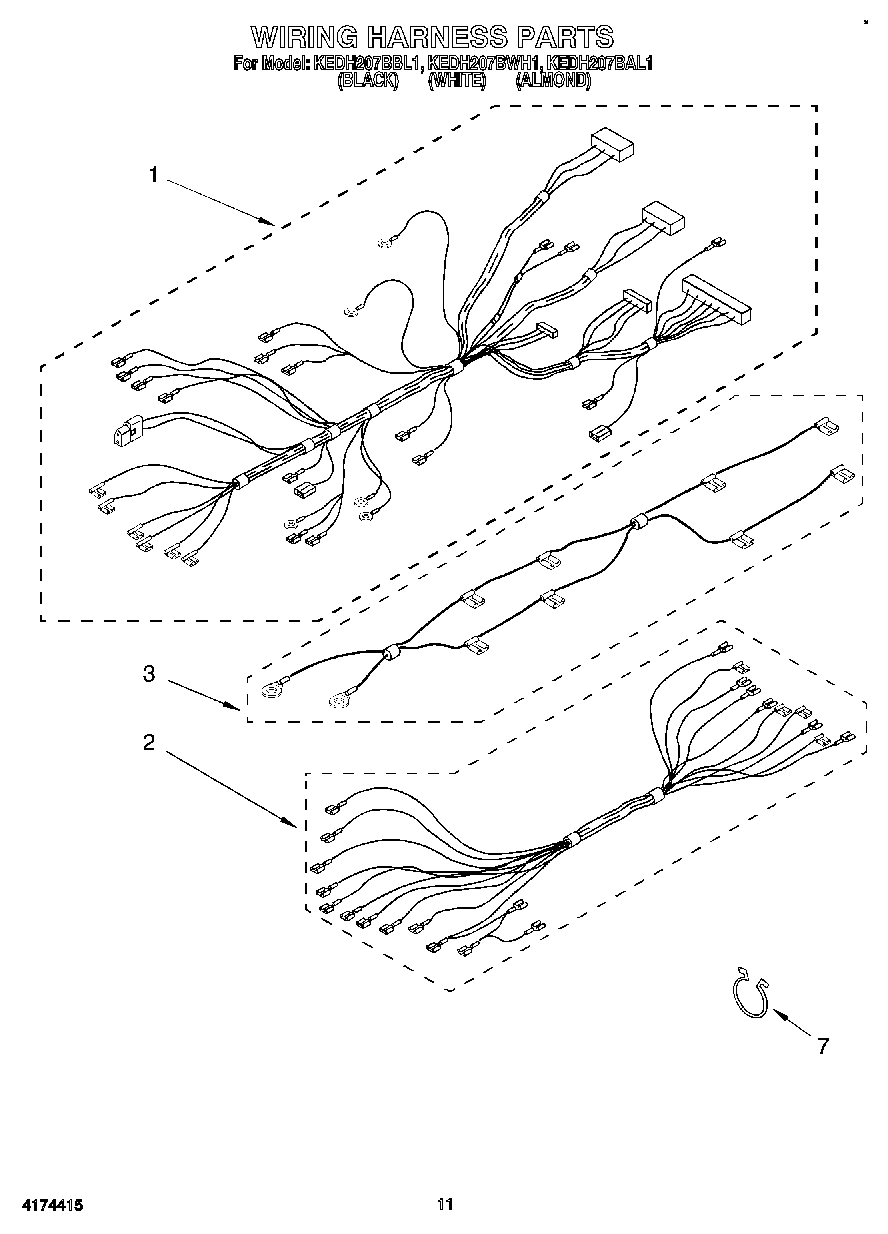

08 - WIRING HARNESS
03 - OVEN DOOR, LITERATURE
06 - CONVECTION FAN
07 - UTILITY DRAWER AND RAIL
01 - OVEN
02 - CONTROL PANEL
04 - COOKTOP, OPTIONAL
Common parts from model Whirlpool KEDH207BWH1
Cookbook WPL LIT3150693 Contact Us For Availability
Tech Sheet WPL LIT3182755 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Installation Instructions WPL LIT3184873 Contact Us For Availability
Use & Care Guide WPL LIT3188264 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Plate, Mounting (Fan Motor) WPL 3182045 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
Frame Front WPL 3176718 Contact Us For Availability
1
End Cap (Washer (2)) WPL 3148905 Contact Us For Availability
1
End Cap, L.H. (Black) WPL 3150728 Contact Us For Availability
1
End Cap (R.H.) (Black) WPL 3150729 Contact Us For Availability
1
End Cap, L.H. (White) WPL 3150730 Contact Us For Availability
1
End Cap (R.H.) (White) WPL 3150731 Contact Us For Availability
1
End Cap, L.H. (Almond) WPL 3150732 Contact Us For Availability
1
End Cap (R.H.) (Almond) WPL 3150733 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3187744 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3187745 Contact Us For Availability
1
Trim Ring, Cooktop (Almond) WPL 3187746 Contact Us For Availability
1
Trim Ring, Cooktop (Screw (14)) WPL 4168863 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Cooktop, Glass (Black or Almond Model) WPL 3185582 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3185583 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top (Black) WPL 3183329 Contact Us For Availability
3
Rail, Top (Bright Aluminum) WPL 3183341 Contact Us For Availability
3
Bracket, Switch Mounting WPL 3187584 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (Almond) WPL 3185227 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
4
Element, Surface (1400W Left Rear) WPL 3184952 Contact Us For Availability
4
Element, Surface (1800W Right Front) WPL 3184955 Contact Us For Availability
4
Element, Surface (2200W Right Rear) WPL 3184958 Contact Us For Availability
4
Element, Surface (2400W Left Front) WPL 3184960 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Fastener (2) WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Trim, Vent Door (Brite Aluminum, L.H.) WPL 3148471 Contact Us For Availability
5
Trim, Vent Door (Brite Aluminum, R.H.) WPL 3148472 Contact Us For Availability
5
Trim, Vent Door (Black, L.H.) WPL 3148697 Contact Us For Availability
5
Trim, Vent Door (Black, R.H.) WPL 3148698 Contact Us For Availability
5
Spring Locator (8) WPL 3187707 Contact Us For Availability
6
Handle, Drawer (Screw) WPL 309133 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Handle, Drawer (Almond) WPL 3185208 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Door, Vent (Screw (2)) WPL 254217 Contact Us For Availability
6
Door, Vent (Black) WPL 314190 Contact Us For Availability
6
Door, Vent (Semi-Bright Aluminum) WPL 3149676 Contact Us For Availability
6
Light, Indicator WPL 3187750 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear Burne WPL 3148949 Contact Us For Availability
7
Switch, Infinite (Use W/1800W Right Front Bur WPL 3148950 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Motor, Fan WPL 3183220 Contact Us For Availability
7
Panel, Back WPL 3186695 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw WPL 342043 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability
7
Switch, Infinite (Use W/2200W Right Rear Burn WPL 3148963 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188553 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Shield, Air WPL 3149142 Contact Us For Availability
8
Seal, Switch Cover WPL 309839 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
9
Baffle, Top WPL 3183796 Contact Us For Availability
9
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
9
Cover, Vent (White) WPL 3182497 Contact Us For Availability
9
Cover, Vent (Almond) WPL 3182498 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Almond Model) WPL 3188051 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Side Trim (Left Hand) WPL 310685 Contact Us For Availability
10
Side Trim (Right Hand) WPL 310689 Contact Us For Availability
10
Knob, Control (4) (White) WPL 3150096 Contact Us For Availability
10
Knob, Control (4) (Almond) WPL 3150097 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182031 Contact Us For Availability
11
Plate, Mounting WPL 3188527 Contact Us For Availability
12
Handle, Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Door (White) WPL 3186525 Contact Us For Availability
12
Handle, Door (Almond) WPL 3186526 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Panel, Control (Black) WPL 3182390 Contact Us For Availability
12
Panel, Control (White) WPL 3182680 Contact Us For Availability
12
Panel, Control (Almond) WPL 3182681 Contact Us For Availability
12
Cover, Rear WPL 3188528 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Button, Plug (2) WPL 3185086 Contact Us For Availability
13
Microcomputer WPL 3181703 Contact Us For Availability
13
Seal, Cooktop WPL 3185617 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Seal, Switch (4) WPL 3182435 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White Or Almond Model) WPL 3149355 Contact Us For Availability
14
Baffle, Drip WPL 3185225 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Screw WPL 247326 Contact Us For Availability
15
Panel, Back WPL 3185154 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Seal, Vent WPL 3187523 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Bumper, Rubber (4) WPL 3183328 Contact Us For Availability
16
Switch, Limit (Use W/3184952 Element) WPL 3187528 Contact Us For Availability
16
Switch, Limit (Use W/3184955 Element) WPL 3187530 Contact Us For Availability
16
Switch, Limit (Use W/3184958 Element) WPL 3187533 Contact Us For Availability
16
Switch, Limit (Use W/3184960 Element) WPL 3187535 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Bracket, Control Panel WPL 3183316 Contact Us For Availability
17
Bracket, Support WPL 3188526 Contact Us For Availability
18
Shield, Control WPL 3183992 Contact Us For Availability
18
Scr WPL 3148443 Contact Us For Availability
18
WPL 3187753 WPL 3187753 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
WPL 3185589 WPL 3185589 Contact Us For Availability
19
WPL 3185590 WPL 3185590 Contact Us For Availability
20
Insulation WPL 3147951 Contact Us For Availability
20
Baffle, Insulation WPL 311256 Contact Us For Availability
20
Screw (2) WPL 3148442 Contact Us For Availability
21
Cap, Top Door (Black & White Model) WPL 3181363 Contact Us For Availability
21
Cap, Top Door (Almond Model) WPL 3188375 Contact Us For Availability
21
WPL 3150304 WPL 3150304 Contact Us For Availability
22
WPL 3188432 WPL 3188432 Contact Us For Availability
23
Tube, Vent WPL 3184323 Contact Us For Availability
23
Screw (2) WPL 98520 Contact Us For Availability
23
Shield, Heat WPL 3188534 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
WPL W10355051 No Longer Available
25
SPST Thermostat WPL 3149653 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
WPL 242820 WPL 242820 Contact Us For Availability
25
WPL 242821 WPL 242821 Contact Us For Availability
25
WPL 242822 WPL 242822 Contact Us For Availability
25
WPL 242823 WPL 242823 Contact Us For Availability
25
WPL 242824 WPL 242824 Contact Us For Availability
25
WPL 242826 WPL 242826 Contact Us For Availability
25
WPL 242827 WPL 242827 Contact Us For Availability
25
WPL 242828 WPL 242828 Contact Us For Availability
25
WPL 242829 WPL 242829 Contact Us For Availability
25
WPL 242830 WPL 242830 Contact Us For Availability
25
WPL 242832 WPL 242832 Contact Us For Availability
25
WPL 261582 WPL 261582 Contact Us For Availability
25
WPL 3185260 WPL 3185260 Contact Us For Availability
25
WPL 3187754 WPL 3187754 Contact Us For Availability
27
Screw (4) WPL 254225 Contact Us For Availability
27
Bracket, Support WPL 3183317 Contact Us For Availability
30
Screw (2) WPL 3179117 Contact Us For Availability
30
Sensor, Heat WPL 3148440 Contact Us For Availability
32
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
32
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
32
Trim, End Cap (Almond) WPL 3149902 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183800 Contact Us For Availability
34
Safety Switch WPL 3183784 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw (2) WPL 309258 Contact Us For Availability
36
Shield, Terminal WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw WPL 3183294 Contact Us For Availability
38
Knob, Latch WPL 3184039 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
52
Cover, Rear WPL 3185960 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
56
Insulation, Wrap WPL 310433 Contact Us For Availability
56
Insulation, Oven WPL 310435 Contact Us For Availability
56
Insulation, Top WPL 3149328 Contact Us For Availability
56
Panel, Back WPL 3182052 Contact Us For Availability
56
Insulation, Vent WPL 3188439 Contact Us For Availability
× ![]()
