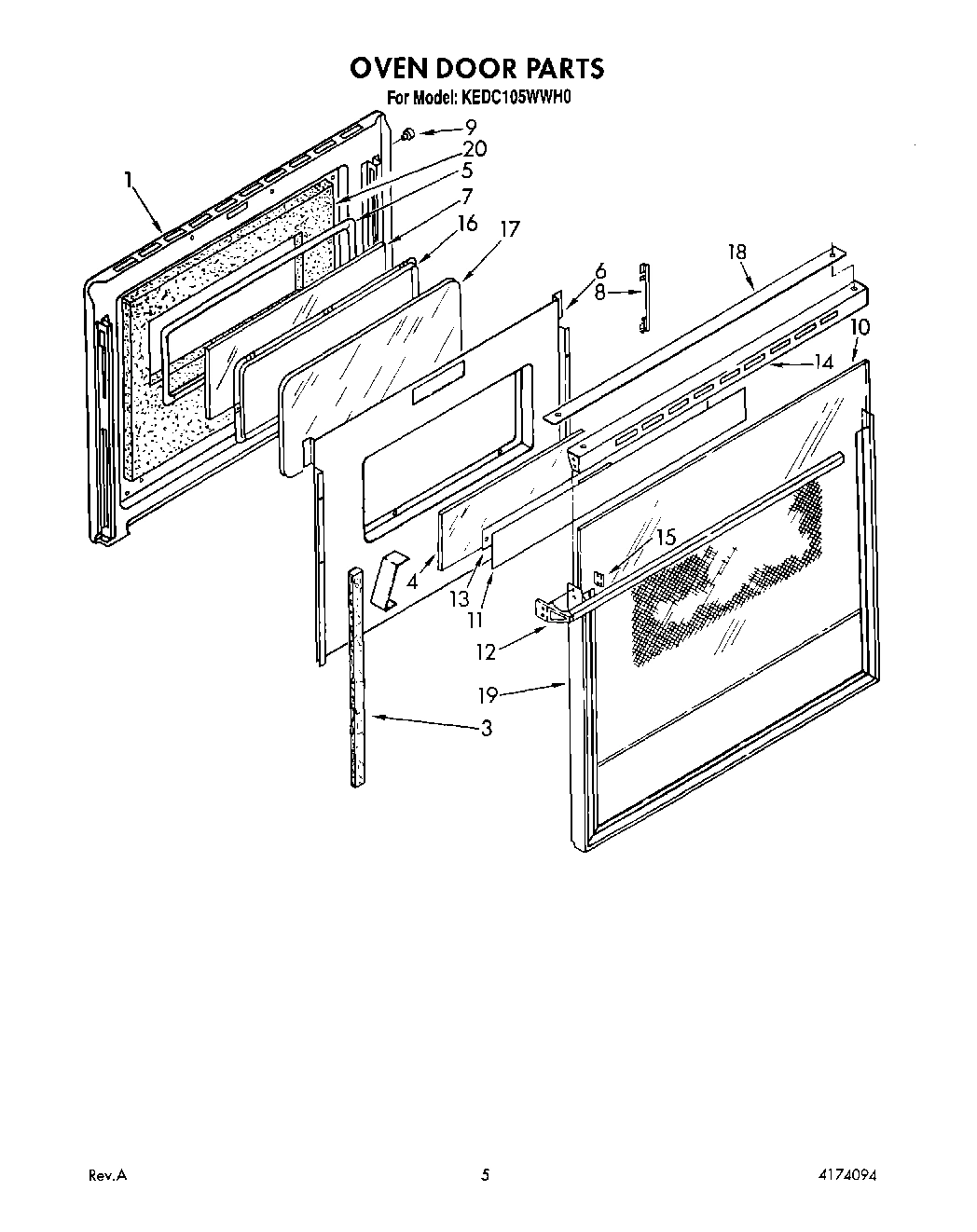

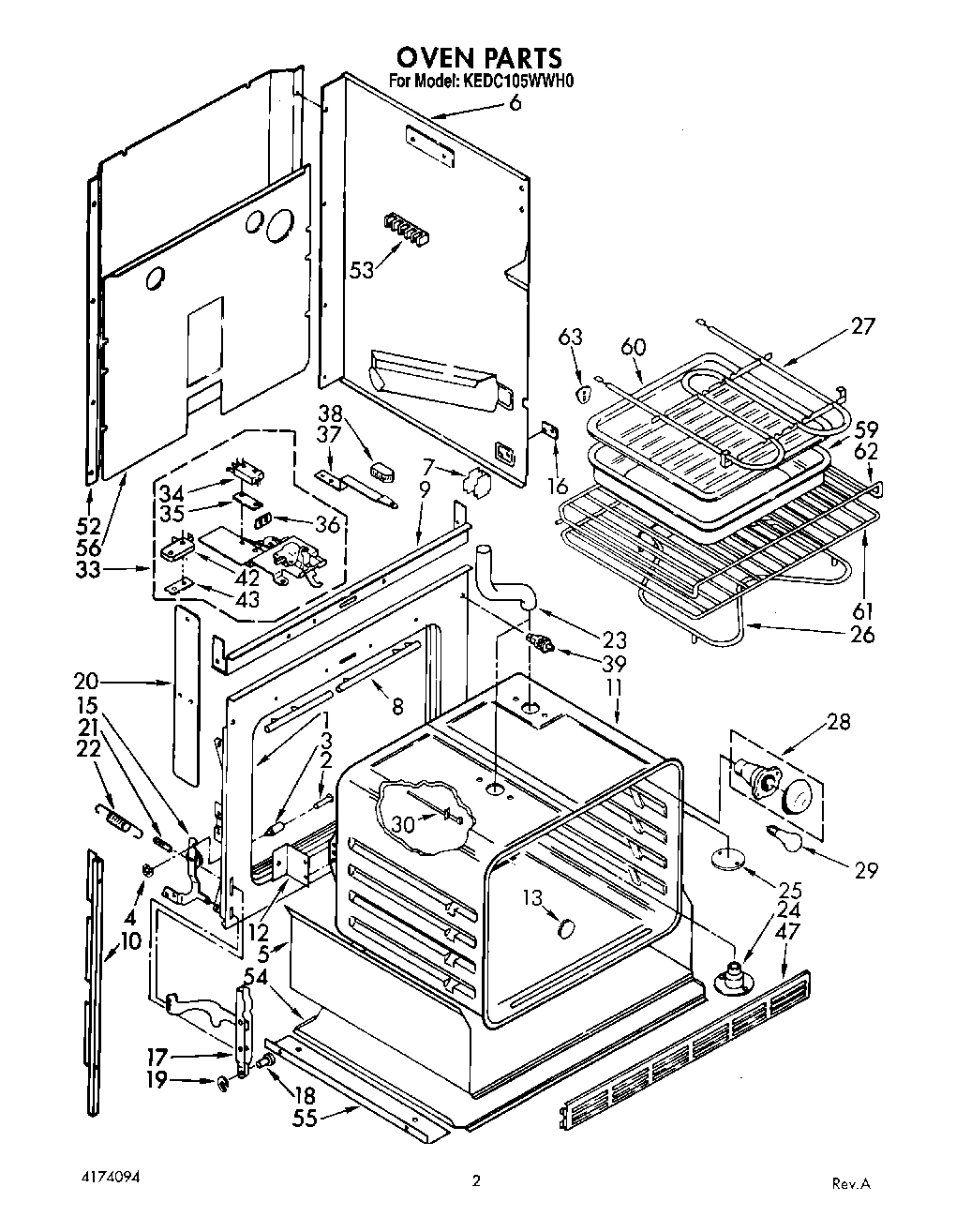

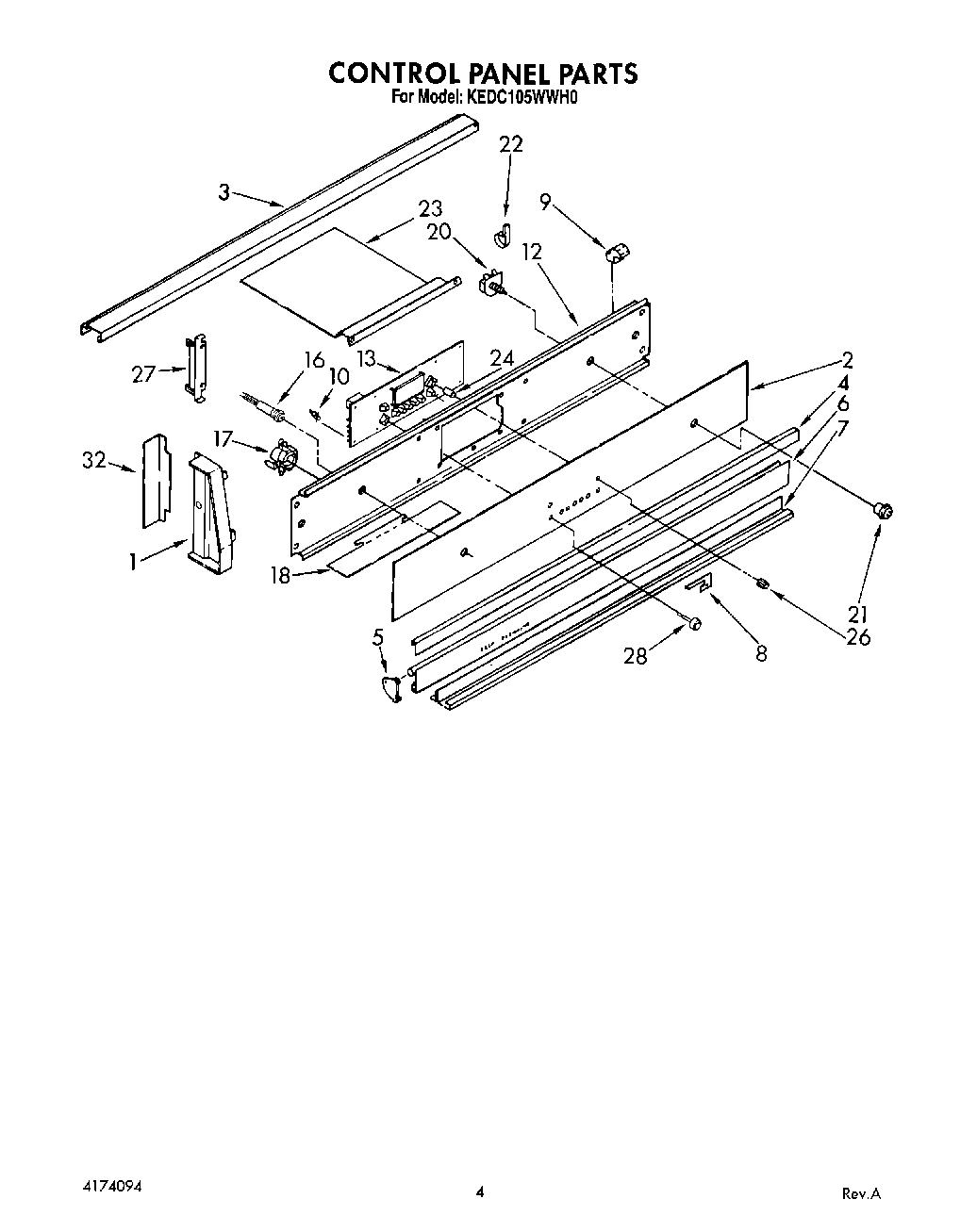

Model Whirlpool KEDC105WWH0 – Common Parts &amp; Diagrams

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

14 Ga. 200`C (Wire, White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

14 Ga. 150`C (Wire, Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

14 Ga. 150`C (Wire, Yellow) WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Hardware, Mounting WPL 3183146 Contact Us For Availability

Installation Instructions WPL LIT3147388 Contact Us For Availability

Cooking Guide WPL LIT3149670 Contact Us For Availability

Use & Care Guide WPL LIT3149931 Contact Us For Availability

Tech Sheet WPL LIT3150313 Contact Us For Availability

Repair Parts List WPL LIT4174094 Contact Us For Availability

1

Harness, Wire (Main) WPL 3149976 Contact Us For Availability

1

End Cap Left Hand (Washer (2)) WPL 3148905 Contact Us For Availability

1

End Cap Left Hand (Black) WPL 3150728 Contact Us For Availability

1

End Cap Left Hand (Black) WPL 3150729 Contact Us For Availability

1

End Cap Left Hand (White) WPL 3150730 Contact Us For Availability

1

End Cap Left Hand (White) WPL 3150731 Contact Us For Availability

1

End Cap, L.H. (Almond) WPL 3150732 Contact Us For Availability

1

End Cap, L.H. (Almond) WPL 3150733 Contact Us For Availability

1

Frame, Front WPL 3172194 Contact Us For Availability

1

Liner, Door WPL 3172218 Contact Us For Availability

2

Harness, Wire (Surface Elements) WPL 3181503 Contact Us For Availability

2

Glass, Control Panel (Black) WPL 3181536 Contact Us For Availability

2

Glass, Control Panel (White) WPL 3181537 Contact Us For Availability

2

Glass, Control Panel (Almond) WPL 3181538 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 3181496 Contact Us For Availability

3

Rail, Top (Black) WPL 314240 Contact Us For Availability

3

Rail, Top (Bright Aluminum) WPL 3148456 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

Jumper, Infinite Switch WPL 3149964 Contact Us For Availability

4

Trim, Center (Bright Aluminum) WPL 3148453 Contact Us For Availability

4

Trim, Center (Black) WPL 3149420 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Glass, Reflective WPL 3169202 Contact Us For Availability

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Spring Locator (8) WPL 3149191 Contact Us For Availability

5

Trim, Vent Door Left Hand (Rosemont Grey Righ WPL 3148471 Contact Us For Availability

5

Trim, Vent Door Left Hand (Rosemont Grey) WPL 3148472 Contact Us For Availability

5

Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability

5

Trim, Vent Door Left Hand (Black) WPL 3148698 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

6

Door, Vent (Screw (2)) WPL 342043 Contact Us For Availability

6

Door, Vent (Black) WPL 314190 Contact Us For Availability

6

Door, Vent (Semi-Bright Aluminum) WPL 3149676 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $11.62

7

Switch, Infinite (Use W/1400W Left Rear Burne WPL 3148949 Contact Us For Availability

7

Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability

7

Screw (2) WPL 307748 Contact Us For Availability

7

Trim, Bottom WPL 314184 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Seal, Switch Cover WPL 309839 Contact Us For Availability

8

Harness, Wire Thermo Disc WPL 3150242 Contact Us For Availability

8

Shield, Air WPL 3149142 Contact Us For Availability

8

Gasket, Door WPL 3185197 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

Cover, Vent WPL 3147037 Contact Us For Availability

9

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

9

Baffle, Top WPL 3183796 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability

Knob, Control (4) (White) WPL 3150096 Contact Us For Availability

Knob, Control (4) (Almond) WPL 3150097 Contact Us For Availability

Support, Circuit Board WPL 3181558 Contact Us For Availability

Side Trim (Left Hand) WPL 310685 Contact Us For Availability

Side Trim (Right Hand) WPL 310689 Contact Us For Availability

Glass, Panel (Black) WPL 3148185 Contact Us For Availability

Glass, Panel (White) WPL 3150347 Contact Us For Availability

Glass, Panel (Almond) WPL 3150348 Contact Us For Availability

11

Cover, Top Rear WPL 3147566 Contact Us For Availability

11

Oven (30`` Pyro) WPL 3172548 Contact Us For Availability

11

Foil, Door WPL 3148184 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Support, Element WPL 3150316 Contact Us For Availability

Bracket, Control WPL 3150535 Contact Us For Availability

Bracket, Oven WPL 310713 Contact Us For Availability

Handle, Door (Black) WPL 3181318 Contact Us For Availability

Handle, Door (White) WPL 3181319 Contact Us For Availability

Handle, Door (Almond) WPL 3181320 Contact Us For Availability

Electronic Range Control WPL 3150200 Contact Us For Availability

Button, Plug WPL 3185086 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Shield, Door WPL 3148680 Contact Us For Availability

14

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

Seal, Switch (4) WPL 3182435 Contact Us For Availability

14

Top, Door WPL 3149355 Contact Us For Availability

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

15

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Switch, Limit (Use W/3148829 Element) WPL 3149121 Contact Us For Availability

Switch, Limit (Use W/3148830 Element) WPL 3149122 Contact Us For Availability

Switch, Limit (Use W/3148832 Element) WPL 3149124 Contact Us For Availability

Switch, Limit (use W/3148831 Element) WPL 3149128 Contact Us For Availability

Light, Indicator WPL 3150241 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Frame, Glass WPL 3148234 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Rail, Side (Right Hand) WPL 3150323 Contact Us For Availability

Rail, Side (Left Hand) WPL 3150324 Contact Us For Availability

Thermostat, Oven WPL 3149649 Contact Us For Availability

Channel Arm (2) WPL 329713 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Clip, ``U Nut`` WPL 3181646 Contact Us For Availability

Rail, Front & Rear WPL 3183380 Contact Us For Availability

Shield, Control WPL 3181682 Contact Us For Availability

Cap, Top WPL 3181363 Contact Us For Availability

Seal, Sili WPL 3181644 Contact Us For Availability

WPL 3181645 WPL 3181645 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Frame, Glass Panel WPL 3148235 Contact Us For Availability

WPL 3150321 WPL 3150321 Contact Us For Availability

Washer WPL 312796 Contact Us For Availability

Switch, Oven Light WPL 3148465 Contact Us For Availability

Baffle, Insulation WPL 311256 Contact Us For Availability

Screw (2) WPL 3148442 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WPL 3150304 WPL 3150304 Contact Us For Availability

Bezel, Switch (Black) WPL 313030 Contact Us For Availability

Bezel, Switch (Almond) WPL 3148463 Contact Us For Availability

Bezel, Switch (White) WPL 3149170 Contact Us For Availability

22

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

23

WPL 258109 WPL 258109 Contact Us For Availability

23

Shield, Heat WPL 3149419 Contact Us For Availability

23

Tube, Vent WPL 3150319 Contact Us For Availability

24

Shaft, Bit Generator WPL 3149321 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

Knob, Bit Generator (Black) WPL 313523 Contact Us For Availability

Knob, Bit Generat WPL 3149176 Contact Us For Availability

WPL 3181653 WPL 3181653 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

27

WPL 98520 WPL 98520 Contact Us For Availability

27

WPL 310720 WPL 310720 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

WPL 313958 WPL 313958 Contact Us For Availability

WPL 3149177 WPL 3149177 Contact Us For Availability

WPL 3182923 WPL 3182923 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Sensor, Heat WPL 3148440 Contact Us For Availability

32

WPL 3149900 WPL 3149900 Contact Us For Availability

32

WPL 3149901 WPL 3149901 Contact Us For Availability

32

WPL 3149902 WPL 3149902 Contact Us For Availability

33

Screw (2) WPL 311056 Contact Us For Availability

33

Latch Assembly WPL 3183002 Contact Us For Availability

34

Safety Switch WPL 3183001 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

35

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw (2) WPL 309258 Contact Us For Availability

36

Shield, Terminal WPL 313035 Contact Us For Availability

37

Screw (4) WPL 308422 Contact Us For Availability

37

Latch, Handle WPL 310825 Contact Us For Availability

38

Knob, Latch WPL 3183293 Contact Us For Availability

38

Screw WPL 3183294 Contact Us For Availability

39

Switch, Door WPL 310345 Contact Us For Availability

39

Screw WPL 4159372 Contact Us For Availability

42

Switch, Lock WPL 3148669 Contact Us For Availability

43

Insulator, Switch WPL 3147864 Contact Us For Availability

47

Bottom Grill (Black) WPL 3150349 Contact Us For Availability

47

Bottom Grill (White) WPL 3150350 Contact Us For Availability

47

Bottom Grill (Almond) WPL 3150351 Contact Us For Availability

52

Cover, Rear WPL 311012 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

53

Screw (2 WPL 308043 Contact Us For Availability

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 3149542 WPL 3149542 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPL 311982 WPL 311982 Contact Us For Availability

WPL 3150532 WPL 3150532 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 310434 WPL 310434 Contact Us For Availability

WPL 3149328 WPL 3149328 Contact Us For Availability
