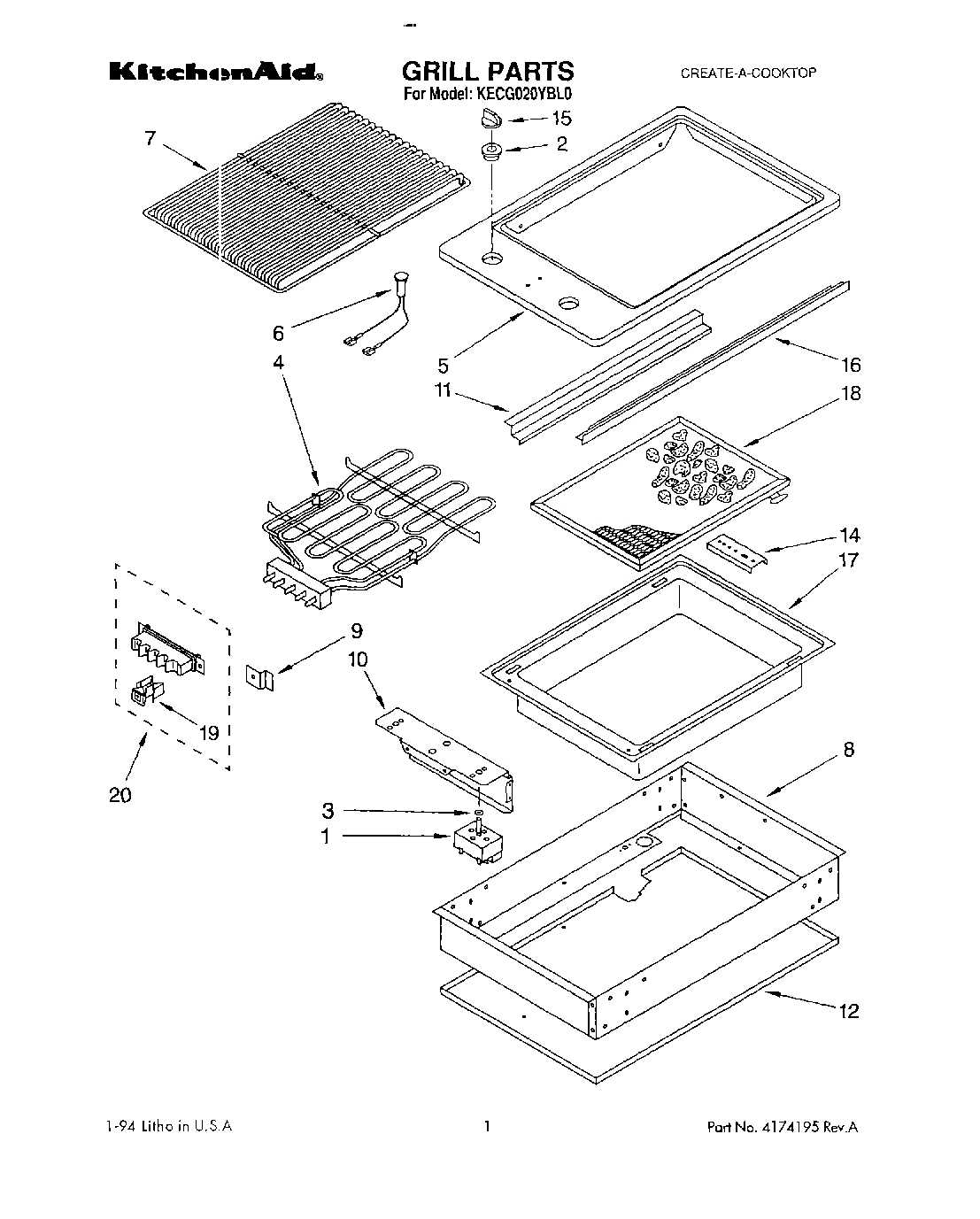

Model Whirlpool KECG020YWH0 – Common Parts & Diagrams

Use & Care Guide
Use & Care Guide WPL LIT3182047 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT3182048 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT4174195 Contact Us For Availability
View on Model
1
Switch, Inifinite (2)
Switch, Inifinite (2) WPL 3148964 Contact Us For Availability
View on Model
1

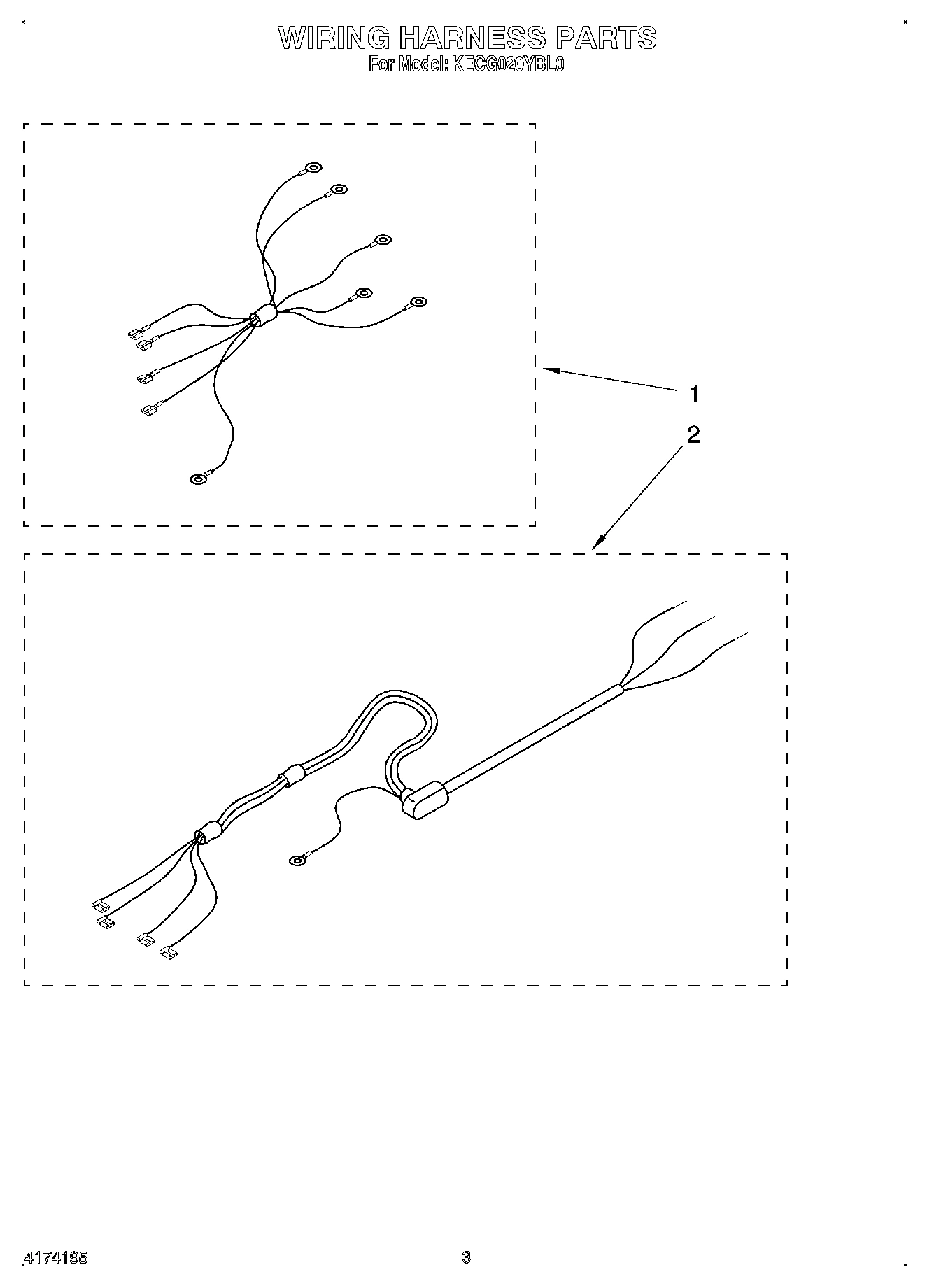

Harness, Wire (Element)
Harness, Wire (Element) WPL 3183512 Contact Us For Availability
View on Model
2
Seal, Inifinite Switch (2)
Seal, Inifinite Switch (2) WPL 3182435 Contact Us For Availability
View on Model
2
Harness, Wire (Power)
Harness, Wire (Power) WPL 3183514 Contact Us For Availability
View on Model
3
Seal, Switch Shaft (2)
Seal, Switch Shaft (2) WPL 309839 Contact Us For Availability
View on Model
4
Element, Grill (240 Volt)
Element, Grill (240 Volt) WPL 3182922 Contact Us For Availability
View on Model
4
Element, Grill (208 Volt (Opt.))
Element, Grill (208 Volt (Opt.)) WPL 814266 Contact Us For Availability
View on Model
5
Top, Burner Box (Black)
Top, Burner Box (Black) WPL 3182348 Contact Us For Availability
View on Model
5
Top, Burner Box (Almond)
Top, Burner Box (Almond) WPL 3182554 Contact Us For Availability
View on Model
5
Top, Burner Box (White)
Top, Burner Box (White) WPL 3182555 Contact Us For Availability
View on Model
6
Light, Indicator (2)
Light, Indicator (2) WPL 3182714 Contact Us For Availability
View on Model
7
Grate, Grill (Stainless Steel)
Grate, Grill (Stainless Steel) WPL 3183167 Contact Us For Availability
View on Model
7
Grate, Grill (Black)
Grate, Grill (Black) WPL 3183168 Contact Us For Availability
View on Model
8
Side, Burner Box (2)
Side, Burner Box (2) WPL 3182654 Contact Us For Availability
View on Model
9
Bracket, Terminal Block (2)
Bracket, Terminal Block (2) WPL 3182453 Contact Us For Availability
View on Model
10
Bracket, Control Panel
Bracket, Control Panel WPL 3182644 Contact Us For Availability
View on Model
11
Bracket, Wireway
Bracket, Wireway WPL 3182643 Contact Us For Availability
View on Model
12
Screw (4)
Screw (4) WPL 254225 Contact Us For Availability
View on Model
12
Screw,
Screw, WPL 312318 Contact Us For Availability
View on Model
12
Bottom, Burner Box
Bottom, Burner Box WPL 3182642 Contact Us For Availability
View on Model
14
Screw, 8-32 X 1 1/2
Screw, 8-32 X 1 1/2 WPL 3179368 Contact Us For Availability
View on Model
14
Screw, 8-32 X 2 1/2
Screw, 8-32 X 2 1/2 WPL 3179557 Contact Us For Availability
View on Model
14
Screw, Type AB
Screw, Type AB WPL 4159445 Contact Us For Availability
View on Model
14
Nut, 8-32
Nut, 8-32 WPL 4167077 Contact Us For Availability
View on Model
15
Knob, Control (2) (Black)
Knob, Control (2) (Black) WPL 3182570 Contact Us For Availability
View on Model
15
Knob, Control (2) (White)
Knob, Control (2) (White) WPL 3182571 Contact Us For Availability
View on Model
15
Knob, Control (2) (Almond)
Knob, Control (2) (Almond) WPL 3182572 Contact Us For Availability
View on Model
16
Trim, Extrusion (Black)
Trim, Extrusion (Black) WPL 3182437 Contact Us For Availability
View on Model
16
Trim, Extrusion (Almond)
Trim, Extrusion (Almond) WPL 3182438 Contact Us For Availability
View on Model
16
Trim, Extrusion (White)
Trim, Extrusion (White) WPL 3182439 Contact Us For Availability
View on Model
17
Pan, Grill
Pan, Grill WPL 3183190 Contact Us For Availability
View on Model
18
Screen Basket Assy. (Lava Rocks Included)
Screen Basket Assy. (Lava Rocks Included) WPL 3183221 Contact Us For Availability
View on Model
19
Clip, Terminal Block (5)
Clip, Terminal Block (5) WPL 3182839 Contact Us For Availability
View on Model
20
Block, Terminal
Block, Terminal WPL 3182838 Contact Us For Availability
View on Model
