Model Whirlpool KECD866RSS01 36`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

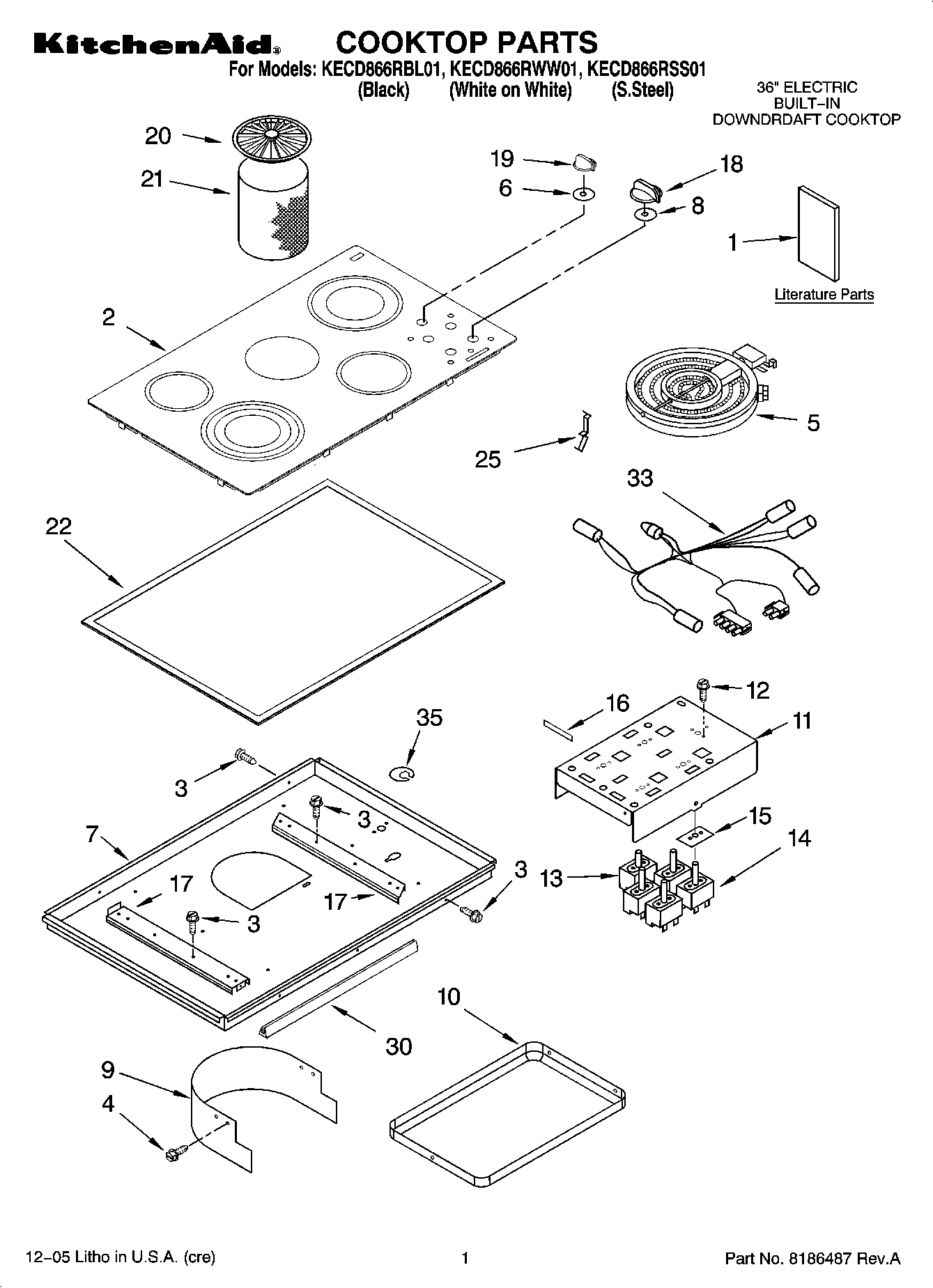

01 - COOKTOP PARTS

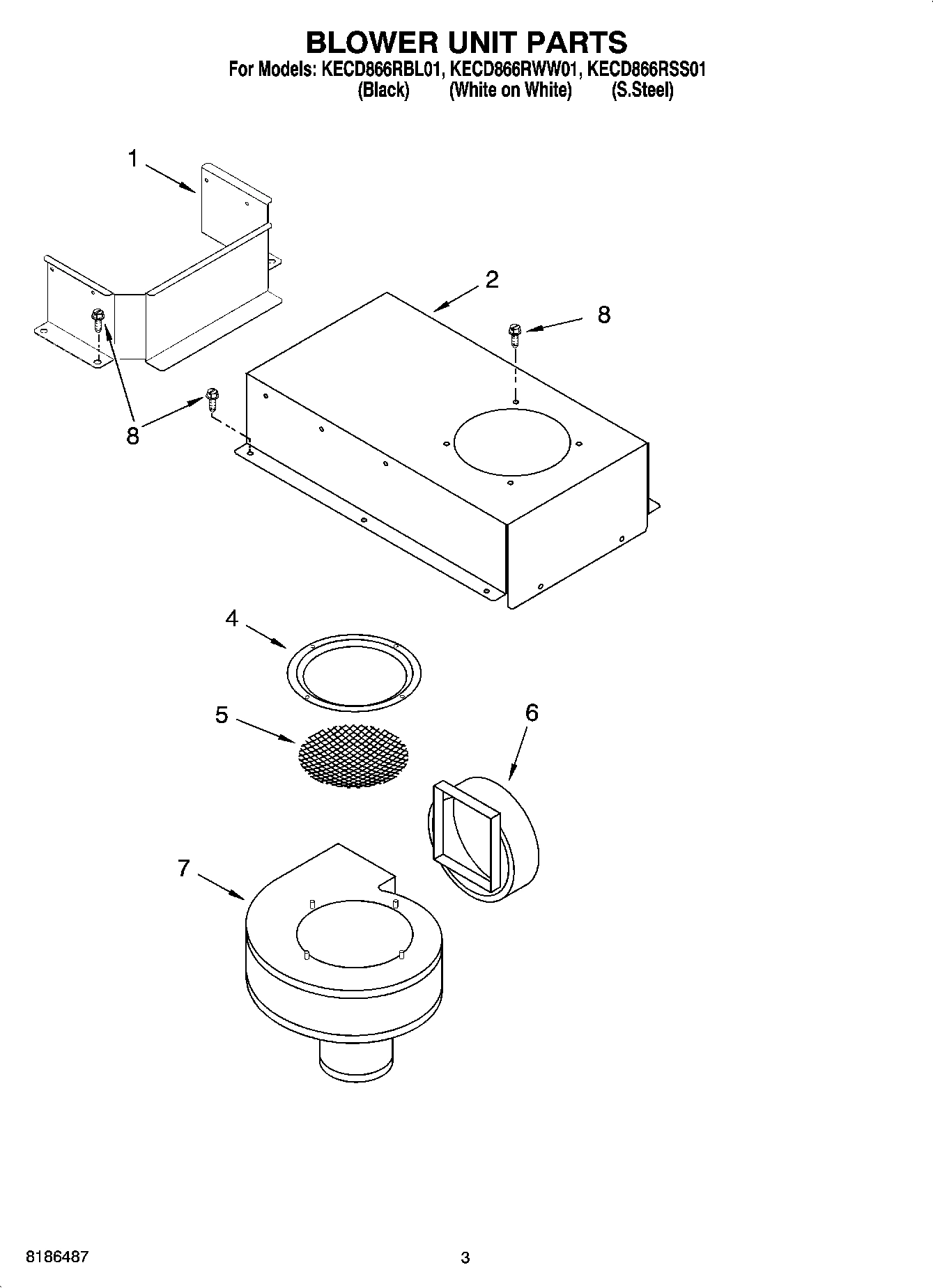

02 - BLOWER UNIT PARTS, OPTIONAL PARTS
Common parts from model Whirlpool KECD866RSS01 36`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Hardware, Mounting WPL 3172515 Contact Us For Availability
Jumper, Wire WPL 4456028 Contact Us For Availability
Harness, Wire (Blower/Switch) WPL 4456859 Contact Us For Availability
Harness, Wire (Ceran Downdraft) WPL 8286420 Contact Us For Availability
Conduit, Downdraft WPL 8286423 Contact Us For Availability
Strain Relief WPL 9760671 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI84686A5 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI84687A9 Contact Us For Availability
ACCESSORY PARTS WPL ARI84688A4 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI84689A2 Contact Us For Availability
1
Bracket, Shield WPL 8285958 Contact Us For Availability
2
Bracket, Blower Mounting WPL 3192403 Contact Us For Availability
4
Ring, Inlet WPL 9760484 Contact Us For Availability
5
Element, Surface (LF 900/1800/2500W) WPL 8285846 Contact Us For Availability
5
Screen, Inlet WPL 9760485 Contact Us For Availability
6
Adapter, Vent WPL 9760483 Contact Us For Availability
7
Box, Burner WPL 8285810 Contact Us For Availability
7
Blower Motor Asm. (Includes Fan Asm) WPL 9760440 Contact Us For Availability
8
Seal, Switch Cover WPL 3183956 Contact Us For Availability
9
Shield, Vent WPL 8285934 Contact Us For Availability
10
Drip Bowl, Grease WPL 3190656 Contact Us For Availability
11
Bracket, Control Mounting WPL 4455354 Contact Us For Availability
15
Seal, Switch WPL 8285469 Contact Us For Availability
17
Rail, Element (Right Hand) WPL 8285933 Contact Us For Availability
17
Rail, Element (Left Hand) WPL 8286054 Contact Us For Availability
18
Knob, Control (Cashmere Metalic) WPL 8286096CM Contact Us For Availability
18
Knob, Control (White) WPL 8286096WH Contact Us For Availability
19
Knob, Blower Switch (Cashmere Metalic) WPL 8286097CM Contact Us For Availability
19
Knob, Blower Switch (White) WPL 8286097WH Contact Us For Availability
20
Grille, Air (White) WPL 8285826 Contact Us For Availability
20
Grille, Air (Cashmere Metalic) WPL 8285874 Contact Us For Availability
20
Grille, Air (Black) WPL 8285875 Contact Us For Availability
21
Filter, Grease WPL 3192530 Contact Us For Availability
22
Frame, Cooktop (S.Steel Only) WPL 8285711 Contact Us For Availability
25
SPRING LOCATOR WPL 9759094 Contact Us For Availability
30
Gasket, Vent Shield WPL 3193032 Contact Us For Availability
33
Light, Hot Surface Indicator WPL 8286055 Contact Us For Availability
35
Plate, C WPL 3193094 Contact Us For Availability
× ![]()
