Model Whirlpool KECD866RBL00 36`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

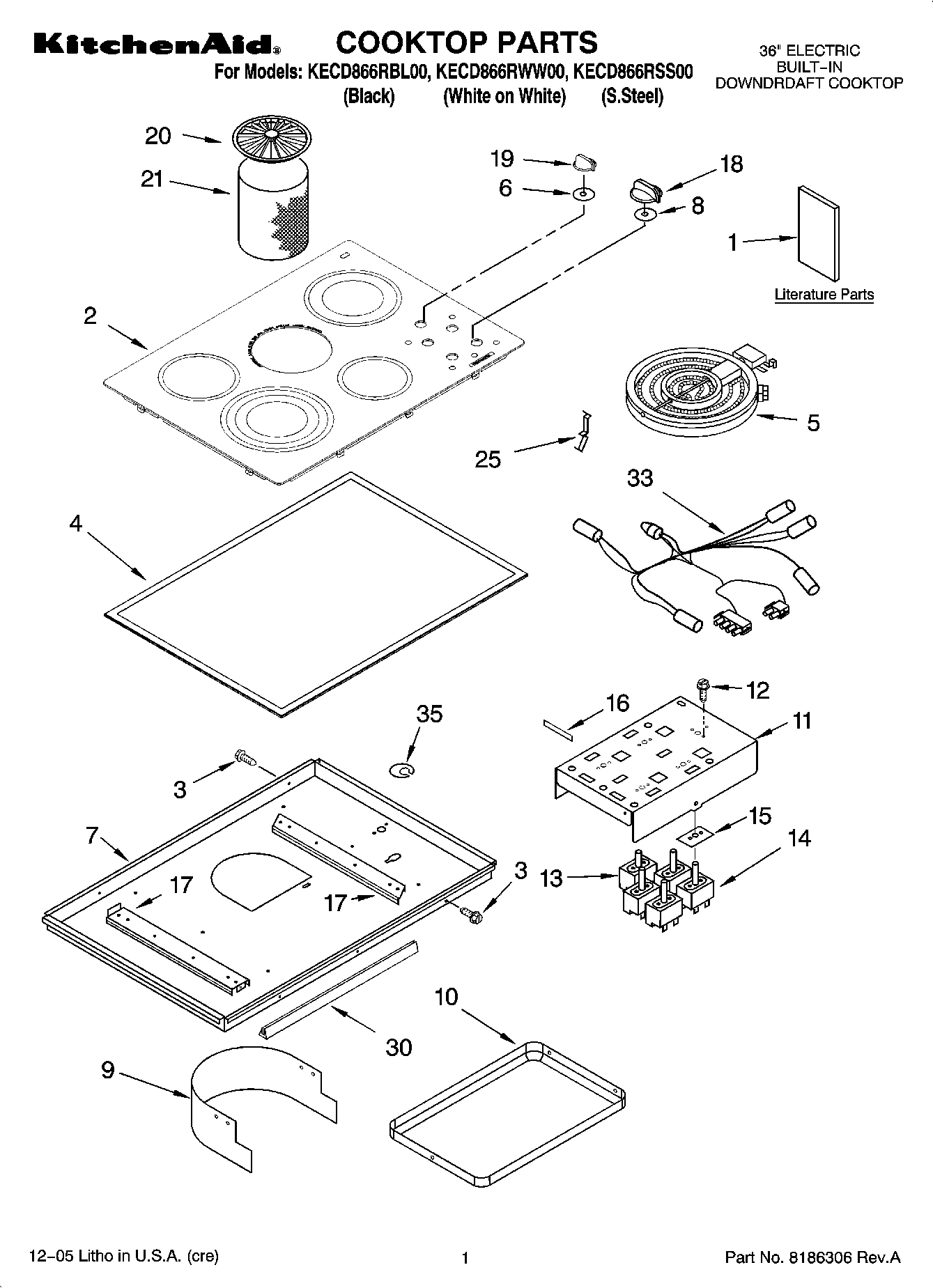

01 - COOKTOP PARTS

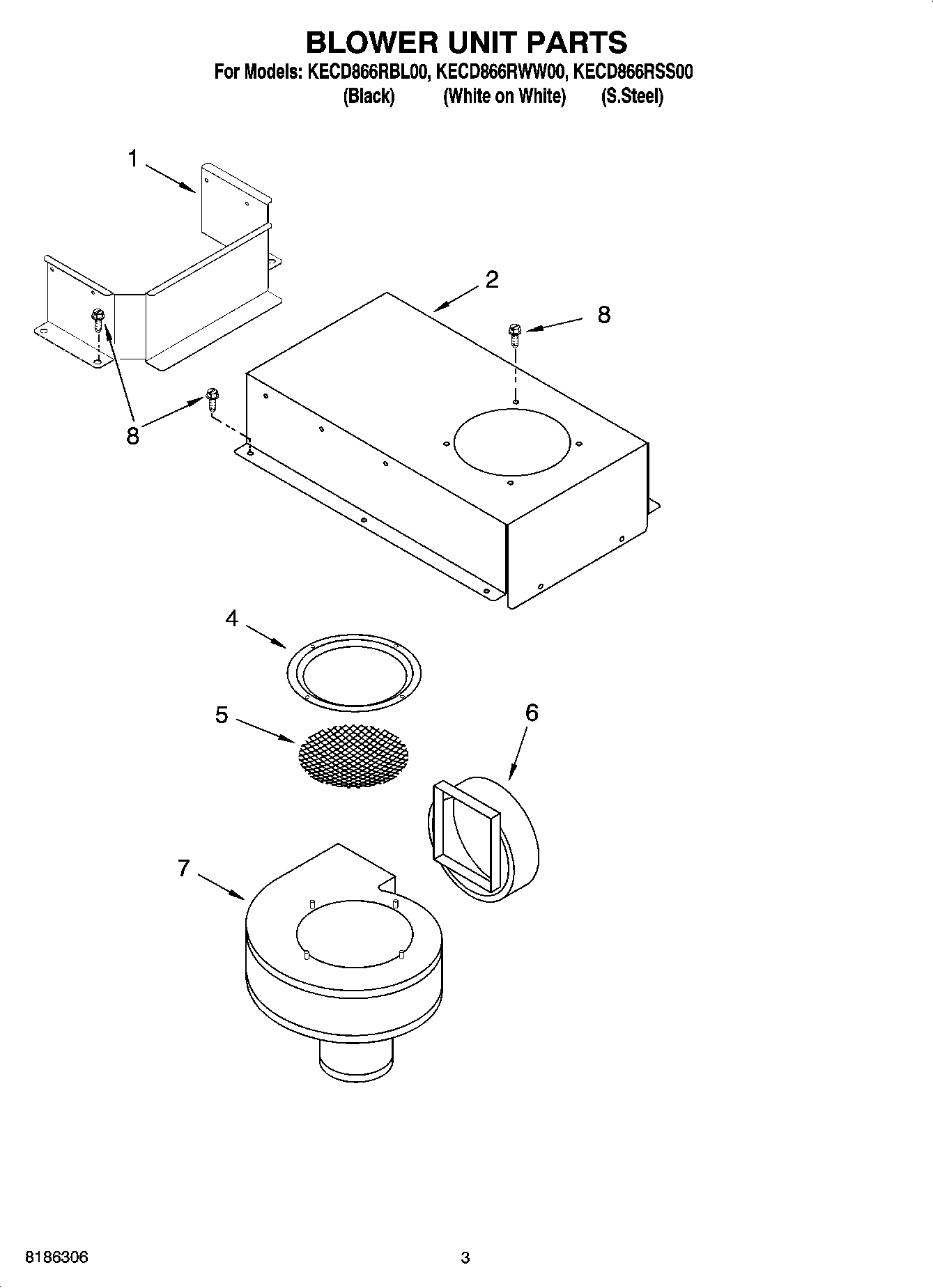

02 - BLOWER UNIT PARTS, OPTIONAL PARTS
Common parts from model Whirlpool KECD866RBL00 36`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Hardware, Mounting WPL 3172515 Contact Us For Availability
Jumper, Wire WPL 4456028 Contact Us For Availability
Harness, Wire (Ceran Downdraft) WPL 8286420 Contact Us For Availability
Conduit, Downdraft WPL 8286423 Contact Us For Availability
Strain Relief WPL 9760671 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI84658A5 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI84659A1 Contact Us For Availability
ACCESSORY PARTS WPL ARI84660A5 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI84661A9 Contact Us For Availability
1
Bracket, Shield WPL 8285958 Contact Us For Availability
2
Cooktop, Glass & Bracket Assembly (Seal, Foam WPL 4457298 Contact Us For Availability
2
Bracket, Blower Mounting WPL 3192403 Contact Us For Availability
4
Ring, Inlet WPL 9760484 Contact Us For Availability
5
Element, Surface (LF 900/1800/2500W) WPL 8285846 Contact Us For Availability
5
Screen, Inlet WPL 9760485 Contact Us For Availability
6
Adapter, Vent WPL 9760483 Contact Us For Availability
17
Rail, Element (Right Hand) WPL 8285933 Contact Us For Availability
17
Rail, Element (Left Hand) WPL 8286054 Contact Us For Availability
18
Knob, Control (Cashmere Metalic) WPL 8286096CM Contact Us For Availability
19
Knob, Blower Switch (Cashmere Metalic) WPL 8286097CM Contact Us For Availability
19
Knob, Blower Switch (White) WPL 8286097WH Contact Us For Availability
20
Grille, Air (White) WPL 8285826 Contact Us For Availability
20
Grille, Air (Cashmere Metalic) WPL 8285874 Contact Us For Availability
20
Grille, Air (Black) WPL 8285875 Contact Us For Availability
21
Filter, Grease WPL 3192530 Contact Us For Availability
30
Gask WPL 3193032 Contact Us For Availability
33
WPL 8286055 WPL 8286055 Contact Us For Availability
35
WPL 3193094 WPL 3193094 Contact Us For Availability
× ![]()
