  • Whirlpool KECD806RSS02

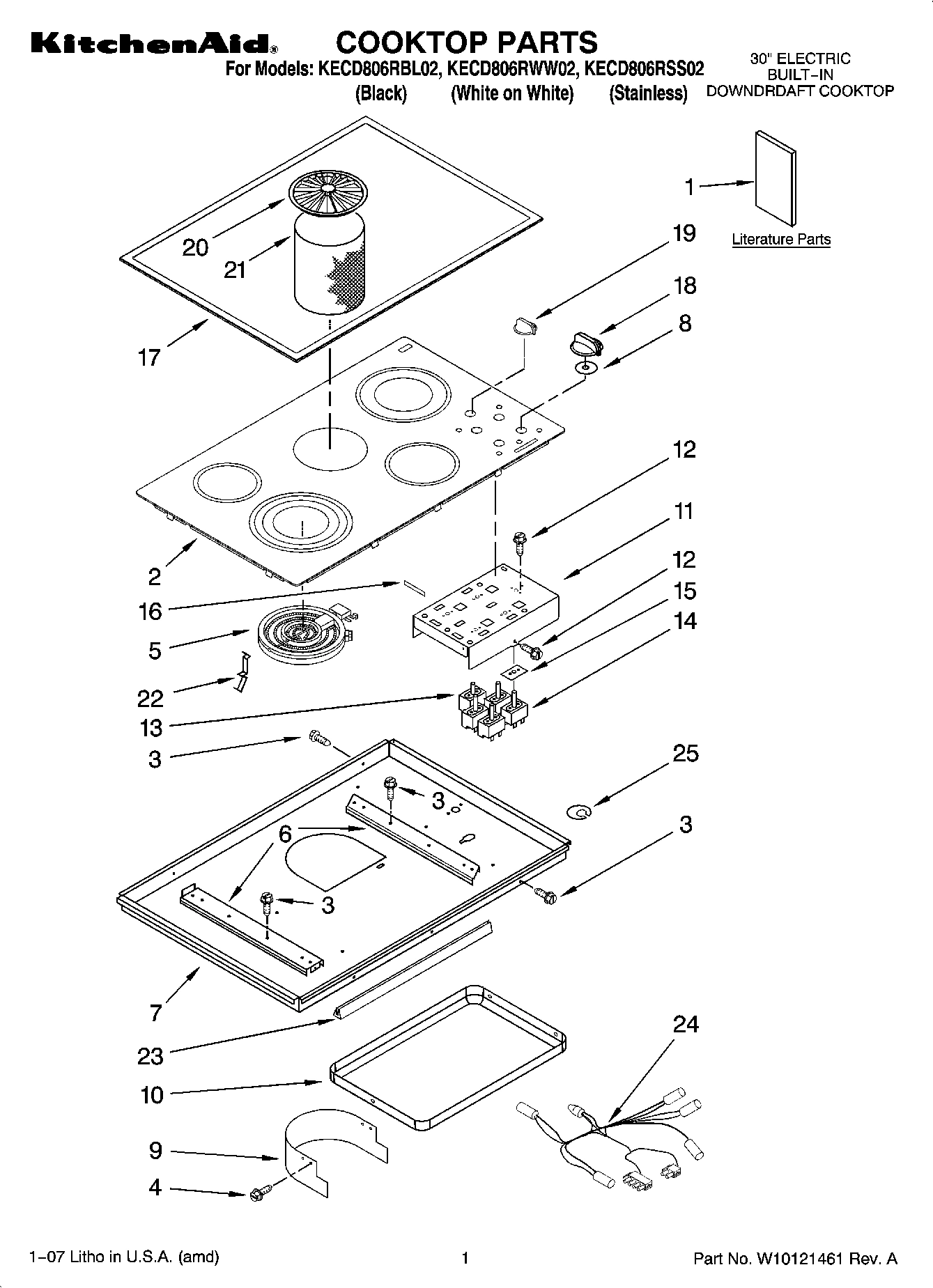

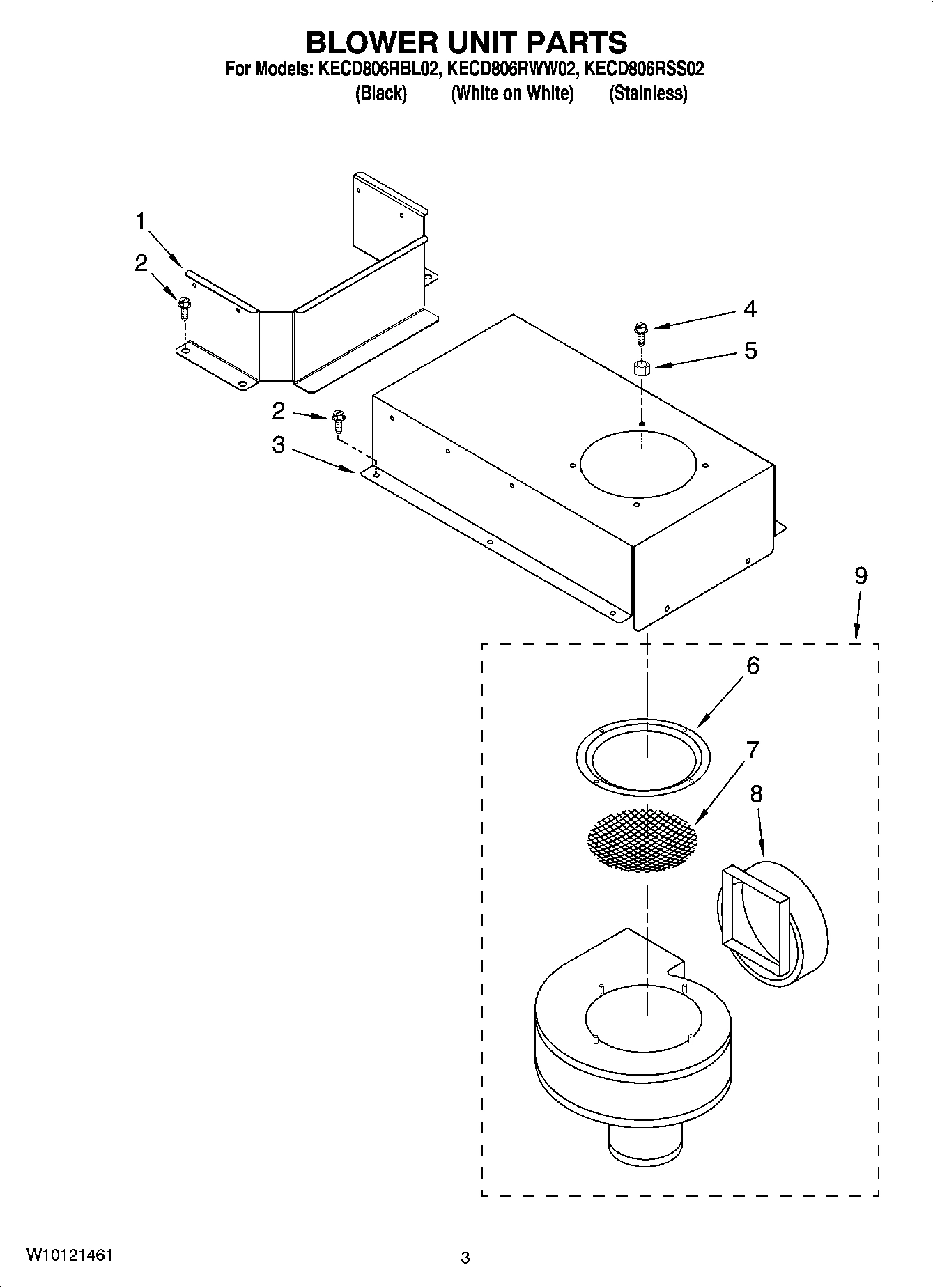

Model Whirlpool KECD806RSS02 30`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

Strain Relief
Strain Relief WPL 9760671 Contact Us For Availability
View on Model
Following Parts Not Illustrated
Following Parts Not Illustrated WPL ARI84555A4 Contact Us For Availability
View on Model
SPLICING WIRES--25FT. LENGTH
SPLICING WIRES--25FT. LENGTH WPL ARI84556A8 Contact Us For Availability
View on Model
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI84557A7 Contact Us For Availability
View on Model
WIRING HARNESS PARTS
WIRING HARNESS PARTS WPL ARI84558A4 Contact Us For Availability
View on Model
1
Bracket, Shield
Bracket, Shield WPL 8285958 Contact Us For Availability
View on Model
1
Safe Cooking Tips (English)
Safe Cooking Tips (English) WPL 3191638 Contact Us For Availability
View on Model
1
Installation Instructions
Installation Instructions WPL 8286240 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 8286427 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 8286609 Contact Us For Availability
View on Model
1
Safe Cooking Tips (French)
Safe Cooking Tips (French) WPL 9759133 Contact Us For Availability
View on Model
2
Cooktop, Glass (Black)
Cooktop, Glass (Black) WPL W10048810 Contact Us For Availability
View on Model
2
Cooktop, Glass (White)
Cooktop, Glass (White) WPL W10048820 Contact Us For Availability
View on Model
3
Bracket, Blower
Bracket, Blower WPL 3192403 Contact Us For Availability
View on Model
5
Element, Surface (LF 900/1800/2500W)
Element, Surface (LF 900/1800/2500W) WPL 8285846 Contact Us For Availability
View on Model
5
Element, Surface (RR 1000/2000W)
Element, Surface (RR 1000/2000W) WPL 8285937 Contact Us For Availability
View on Model
6
Ring, Inlet
Ring, Inlet WPL 9760484 Contact Us For Availability
View on Model
6
Rail, Element (Right)
Rail, Element (Right) WPL 8285933 Contact Us For Availability
View on Model
6
Rail, Element (Left)
Rail, Element (Left) WPL 8286054 Contact Us For Availability
View on Model
7
Screen, Inlet
Screen, Inlet WPL 9760485 Contact Us For Availability
View on Model
7
Box, Burner
Box, Burner WPL 8285809 Contact Us For Availability
View on Model
8
Adapter, Vent
Adapter, Vent WPL 9760483 Contact Us For Availability
View on Model
9
Hardware, Mounting
Hardware, Mounting WPL 3172515 Contact Us For Availability
View on Model
9
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI84554A2 Contact Us For Availability
View on Model
9
Shield, Vent
Shield, Vent WPL 8285934 Contact Us For Availability
View on Model
10
Drip Bowl
Drip Bowl WPL 3190656 Contact Us For Availability
View on Model
11
Plate, Switch Mounting
Plate, Switch Mounting WPL 4455354 Contact Us For Availability
View on Model
17
Frame, Cooktop (Stainless Only)
Frame, Cooktop (Stainless Only) WPL 8285710 Contact Us For Availability
View on Model
18
Knob, Control (Cashmere Metalic)
Knob, Control (Cashmere Metalic) WPL 8286096CM Contact Us For Availability
View on Model
19
Knob, Blower Switch (Cashmere Metalic)
Knob, Blower Switch (Cashmere Metalic) WPL 8286097CM Contact Us For Availability
View on Model
19
Knob, Blower Switch (White)
Knob, Blower Switch (White) WPL 8286097WH Contact Us For Availability
View on Model
20
Grille, Air (White)
Grille, Air (White) WPL 8285826 Contact Us For Availability
View on Model
20
Grille, Air (Cashmere Metalic)
Grille, Air (Cashmere Metalic) WPL 8285874 Contact Us For Availability
View on Model
20
Grille, Air (Black)
Grille, Air (Black) WPL 8285875 Contact Us For Availability
View on Model
21
Filter, Grease
Filter, Grease WPL 3192530 Contact Us For Availability
View on Model
23
Gasket, Vent Shield
Gasket, Vent Shield WPL 3193032 Contact Us For Availability
View on Model
24
Light, Hot Surface Indicator
Light, Hot Surface Indicator WPL 8286055 Contact Us For Availability
View on Model
25
Plate, Cover
Plate, Cover WPL 3193094 Contact Us For Availability
View on Model
