Model Whirlpool KECC506RWH00 30`` ELECTRIC CERAN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool KECC506RWH00 30`` ELECTRIC CERAN COOKTOP

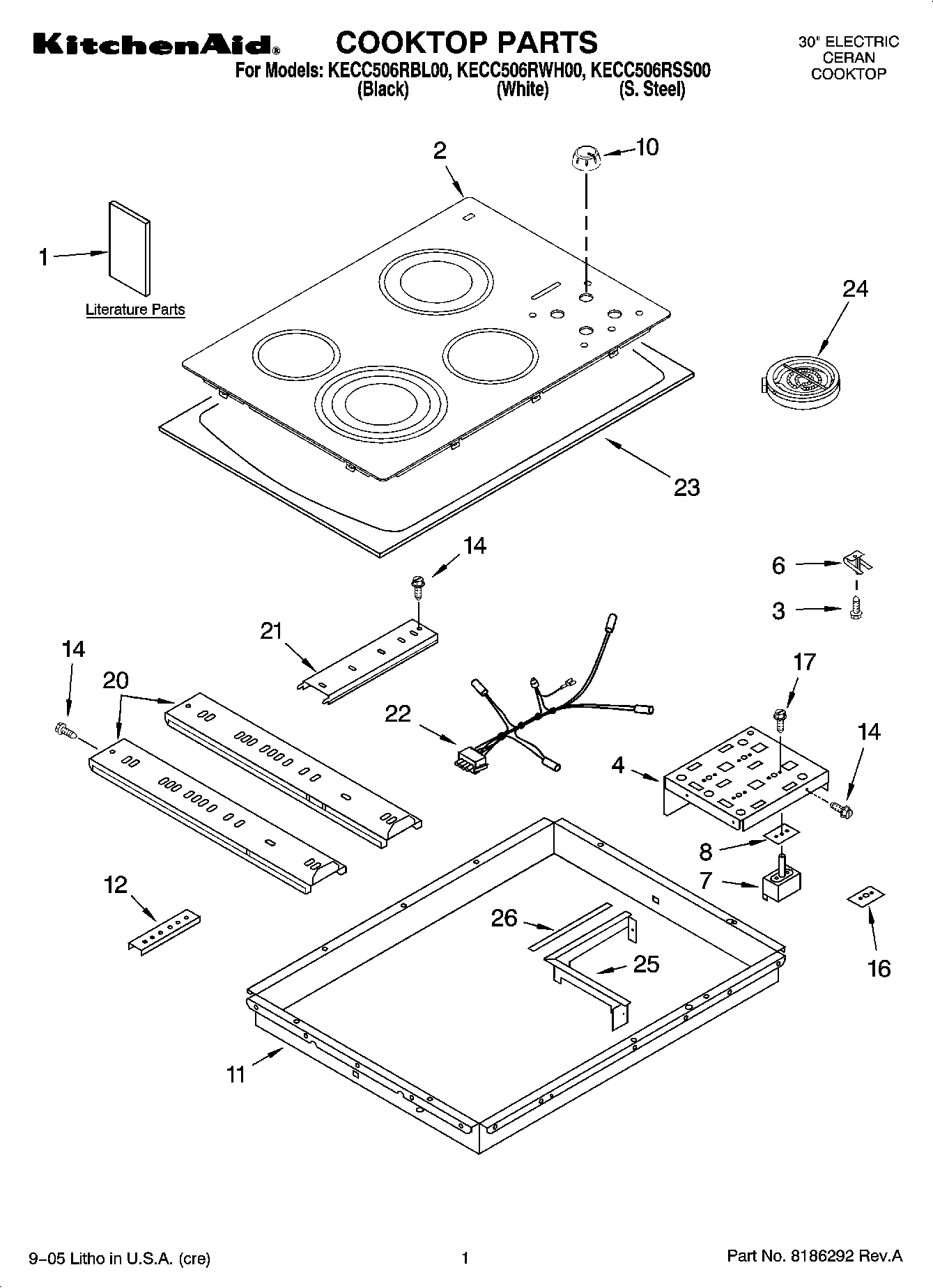

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

Wire, Yel WPL 242832 Contact Us For Availability

View on Model

WPL 3172515 WPL 3172515 Contact Us For Availability

View on Model

WPL 3192408 WPL 3192408 Contact Us For Availability

View on Model

WPL 4456028 WPL 4456028 Contact Us For Availability

View on Model

WPL 8285798 WPL 8285798 Contact Us For Availability

View on Model

WPL 8285985 WPL 8285985 Contact Us For Availability

View on Model

WPL ARI83863A4 WPL ARI83863A4 Contact Us For Availability

View on Model

WPL ARI83864A1 WPL ARI83864A1 Contact Us For Availability

View on Model

WPL ARI83865A1 WPL ARI83865A1 Contact Us For Availability

View on Model

WPL ARI83866A6 WPL ARI83866A6 Contact Us For Availability

View on Model

WPL ARI83867A9 WPL ARI83867A9 Contact Us For Availability

View on Model

1

Energuide Label WPL 8286061 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286067 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 8286073 Contact Us For Availability

View on Model

1

Tips-Safer Cooking WPL 9759133 Contact Us For Availability

View on Model

2

W10140987 Whirlpool Cooktop Backorder WPL W10140987 View Details $277.52

View on Model

2

W10322778 Whirlpool Cooktop Backorder WPL W10322778 View Details $259.25

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 8285935 Contact Us For Availability

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP4456027 Whirlpool Infinite Switch Right Rea In Stock WPL WP4456027 View Details $66.19

View on Model

7

WP8286070 Whirlpool Infinite Switch Left Fron In Stock WPL WP8286070 View Details $88.93

View on Model

8

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

10

8286096WH Whirlpool Knob Backorder WPL 8286096WH View Details $54.06

View on Model

10

WP8286096BL Whirlpool Knob Backorder WPL WP8286096BL View Details $10.61

View on Model

10

Knob, Control (4) (Cashmere Metal) WPL 8286096CM Contact Us For Availability

View on Model

11

Box, Burner WPL 8285862 Contact Us For Availability

View on Model

12

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

12

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

16

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

20

Rail, Element (2) WPL 9756813 Contact Us For Availability

View on Model

21

Rail, Element (1) WPL 8286176 Contact Us For Availability

View on Model

22

Lamp, Hot Surface Indicator WPL 8286055 Contact Us For Availability

View on Model

23

Frame, Cooktop (S.Steel Mdl Only) WPL 8285709 Contact Us For Availability

View on Model

24

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 View Details $85.49

View on Model

24

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

24

Element, Surface (2500/1800/900W LF) WPL 8285846 Contact Us For Availability

View on Model

24

ELEMENT, SURFACE 2000/1000W RR WPL 8285937 Contact Us For Availability

View on Model

25

Shield-Heat, Control WPL 4455468 Contact Us For Availability

View on Model

26

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

26

Seal, Heat Shield WPL 3191839 Contact Us For Availability

View on Model

×
