Model Whirlpool KECC056RBL03 15`` ELECTRIC CERAN 2 BURNER COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool KECC056RBL03 15`` ELECTRIC CERAN 2 BURNER COOKTOP

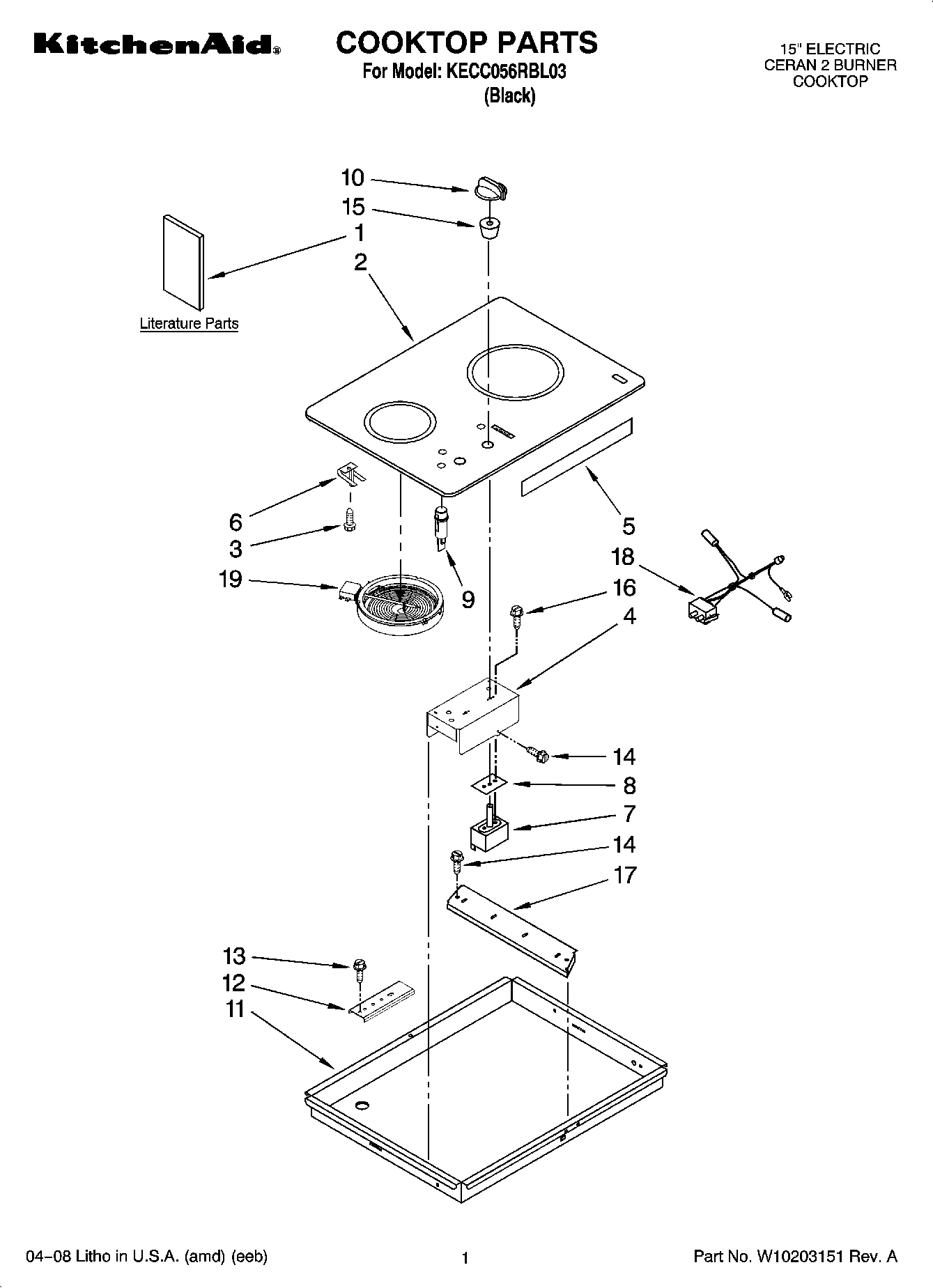

01 - COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Print

• This Diagram
• All Diagrams

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

Conduit WPL 4456511 Contact Us For Availability

View on Model

Harness, Main WPL 4457254 Contact Us For Availability

View on Model

Following Parts Not Illustrated WPL ARI83787A5 Contact Us For Availability

View on Model

Miscellaneous WPL ARI83788A1 Contact Us For Availability

View on Model

Following Parts Not Illustrated WPL ARI83789A4 Contact Us For Availability

View on Model

SPLICING WIRES--25FT. LENGTH WPL ARI83790A2 Contact Us For Availability

View on Model

WIRING HARNESS PAR WPL ARI83791A7 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 3192609 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability

View on Model

1

SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability

View on Model

1

Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability

View on Model

1

Use & Care Guide WPL W10162162 Contact Us For Availability

View on Model

2

W10665724 Whirlpool Cooktop In Stock WPL W10665724 View Details $290.40

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 3192702 Contact Us For Availability

View on Model

5

Foam, Seal WPL 4457298 Contact Us For Availability

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $68.87

View on Model

8

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

9

3193012 Whirlpool Oven Indicator Light Backorder WPL 3193012 View Details $36.64

View on Model

10

WP9750372FC Whirlpool Knob Backorder WPL WP9750372FC View Details $3.70

View on Model

10

WP9750372FF Whirlpool Knob In Stock WPL WP9750372FF View Details $11.02

View on Model

10

WP9750372FW Whirlpool Knob Assembly Backorder WPL WP9750372FW View Details $10.03

View on Model

11

Box, Burner WPL 8286988 Contact Us For Availability

View on Model

12

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

13

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

16

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

17

3192721 Whirlpool Support Backorder WPL 3192721 View Details $26.21

View on Model

18

Lamp, Hot Surface Indicator WPL 3192612 Contact Us For Availability

View on Model

19

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

19

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 View Details $117.46

View on Model

19

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

×

Search result for :
