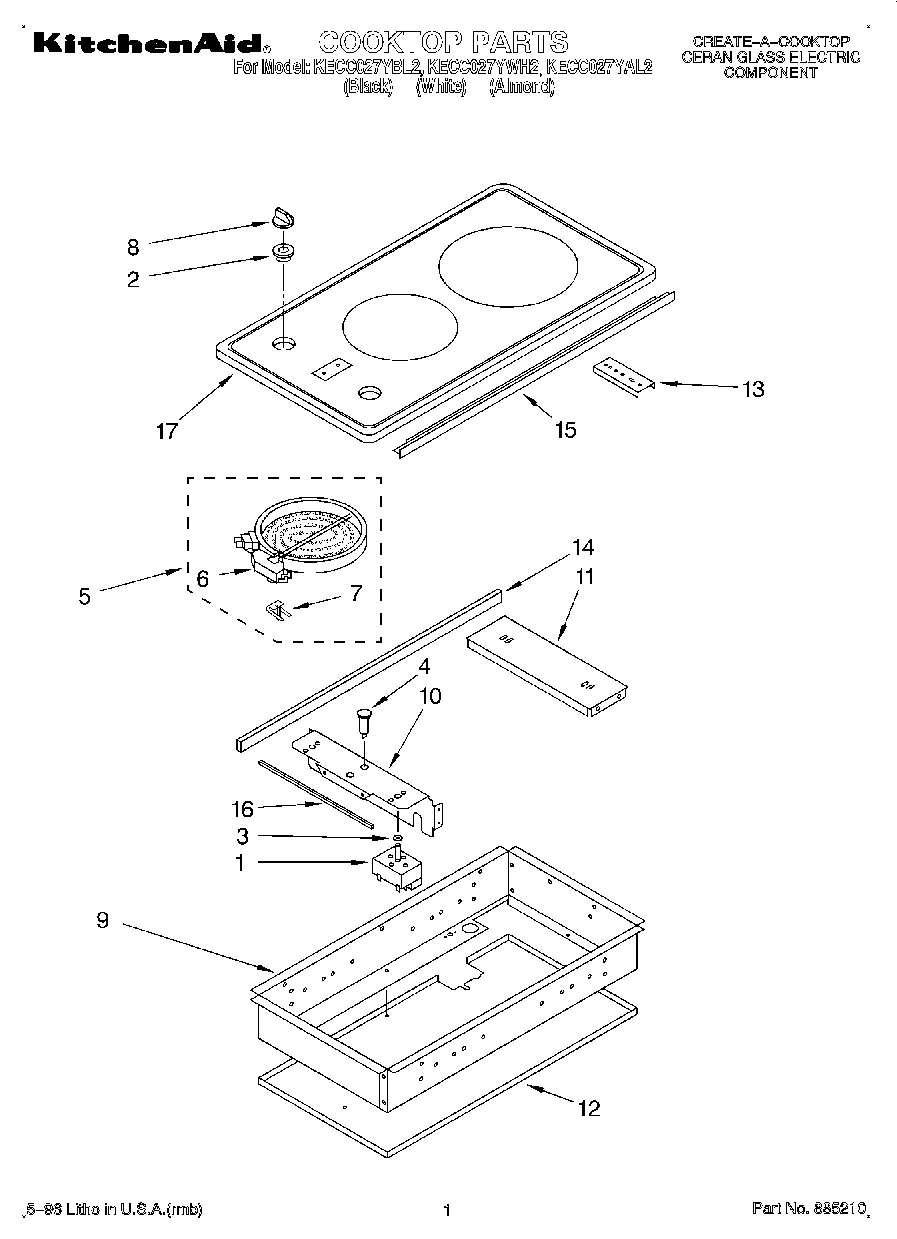

Model Whirlpool KECC027YAL2 – Common Parts & Diagrams

Hardware Assembly
Hardware Assembly WPL 3183440 Contact Us For Availability
View on Model
USE & CARE GUIDE
USE & CARE GUIDE WPL LIT3186516 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT3186523 Contact Us For Availability
View on Model
1
Switch, Infinite (Front Burner (Silver Shaft)
Switch, Infinite (Front Burner (Silver Shaft) WPL 4454535 Contact Us For Availability
View on Model
1
Switch, Infinite (Rear Burner (Green Shaft))
Switch, Infinite (Rear Burner (Green Shaft)) WPL 4454536 Contact Us For Availability
View on Model
2
Seal, Infinite Switch (2)
Seal, Infinite Switch (2) WPL 3182435 Contact Us For Availability
View on Model
3
Seal, Switch Shaft (2)
Seal, Switch Shaft (2) WPL 3184256 Contact Us For Availability
View on Model
4
Light, Indicator (2)
Light, Indicator (2) WPL 3182715 Contact Us For Availability
View on Model
5
Element, Surface (Rear Burner (1800 Watts))
Element, Surface (Rear Burner (1800 Watts)) WPL 3182862 Contact Us For Availability
View on Model
5
Element, Surface (Front Burner (1400 Watts))
Element, Surface (Front Burner (1400 Watts)) WPL 3183199 Contact Us For Availability
View on Model
6
Switch, Limiter (Use W/3183199 Element)
Switch, Limiter (Use W/3183199 Element) WPL 3169338 Contact Us For Availability
View on Model
6
Switch, Limiter (Use W/3182862 Element)
Switch, Limiter (Use W/3182862 Element) WPL 3169345 Contact Us For Availability
View on Model
7
Spring, Locator (2)
Spring, Locator (2) WPL 3149191 Contact Us For Availability
View on Model
8
Knob, Control (Black)
Knob, Control (Black) WPL 3182570 Contact Us For Availability
View on Model
8
Knob, Control (White)
Knob, Control (White) WPL 3182571 Contact Us For Availability
View on Model
8
Knob, Control (Almond)
Knob, Control (Almond) WPL 3182572 Contact Us For Availability
View on Model
9
Side, Burner Box (2)
Side, Burner Box (2) WPL 3182369 Contact Us For Availability
View on Model
10
Bracket, Control Panel
Bracket, Control Panel WPL 3182690 Contact Us For Availability
View on Model
11
Support, Burner (2)
Support, Burner (2) WPL 3182742 Contact Us For Availability
View on Model
12
Bottom, Burner Box
Bottom, Burner Box WPL 3186727 Contact Us For Availability
View on Model
13
Screw, 8-32 X 2 1/2
Screw, 8-32 X 2 1/2 WPL 3179557 Contact Us For Availability
View on Model
13
Screw, Type AB (2)
Screw, Type AB (2) WPL 4159445 Contact Us For Availability
View on Model
13
Nut, Tinnerman (2)
Nut, Tinnerman (2) WPL 4167077 Contact Us For Availability
View on Model
14
Seal, Foam (67``)
Seal, Foam (67``) WPL 3179167 Contact Us For Availability
View on Model
15
Extrusion, Trim (2) (Black)
Extrusion, Trim (2) (Black) WPL 3182437 Contact Us For Availability
View on Model
15
Extrusion, Trim (2) (Almond)
Extrusion, Trim (2) (Almond) WPL 3182438 Contact Us For Availability
View on Model
15
Extrusion, Trim (2) (White)
Extrusion, Trim (2) (White) WPL 3182439 Contact Us For Availability
View on Model
16
Seal, Foam (Ceran)
Seal, Foam (Ceran) WPL 3183144 Contact Us For Availability
View on Model
17
Top, Burner Box (Black)
Top, Burner Box (Black) WPL 3183169 Contact Us For Availability
View on Model
17
Top, Burner Box (White)
Top, Burner Box (White) WPL 3183170 Contact Us For Availability
View on Model
17
Top, Burner Box (Almond)
Top, Burner Box (Almond) WPL 3183171 Contact Us For Availability
View on Model
