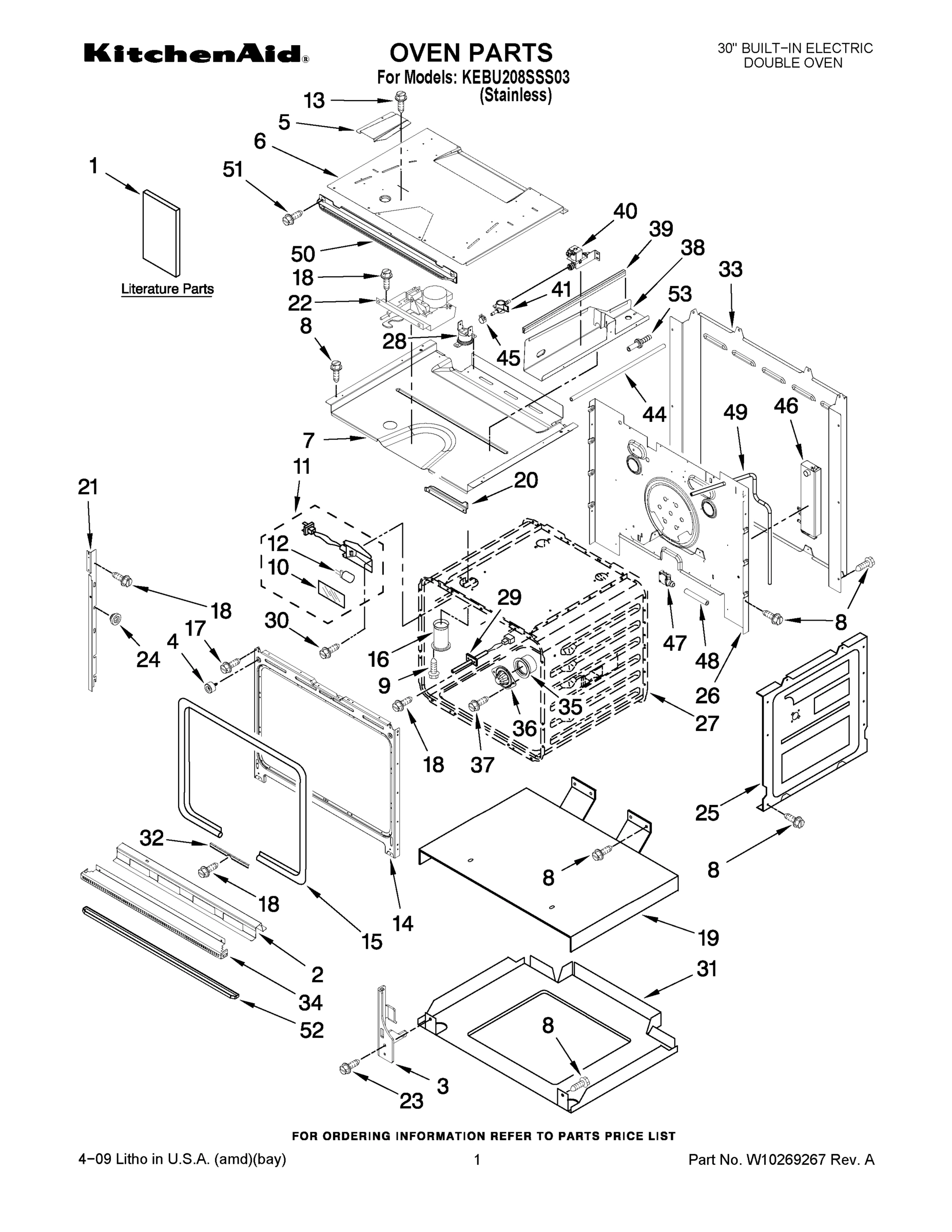

Model Whirlpool KEBU208SSS03 30`` BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Panel, Control WPL W10216219 Contact Us For Availability

2

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $56.40

2

Hinge, Door (2) WPL W10174285 Contact Us For Availability

2

Duct, Air Outlet WPL 8304643 Contact Us For Availability

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $84.06

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $149.43

4

WPW10016020 Whirlpool Dishwasher Membrane Swi Backorder WPL WPW10016020 $322.96

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Tray, Bake WPL 4455037 Contact Us For Availability

5

8304378 Whirlpool Oven Support Bracket Backorder WPL 8304378 $27.18

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

User Interface WPL W10143290 Contact Us For Availability

6

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

6

8303746 Whirlpool Bracket Support Backorder WPL 8303746 $27.18

7

Glass, Inner WPL 8303731 Contact Us For Availability

7

Transformer, Control WPL 9762885 Contact Us For Availability

8

W10794022 Whirlpool Oven Cooktop Fan Motor In Stock WPL W10794022 $144.46

8

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

9

W10758272 Whirlpool Convection Fan Backorder WPL W10758272 $4.25

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

Screw WPL 3400080 Contact Us For Availability

Appliance Manager WPL W10160958 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

Resistor, Drop WPL 8304441 Contact Us For Availability

11

Cover, Fan WPL W10141211 Contact Us For Availability

12

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

13

W10150011 Whirlpool Probe Jack Backorder WPL W10150011 $92.33

13

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

13

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

14

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

15

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $60.13

15

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

15

Badge WPL 8304603SS Contact Us For Availability

16

WP8304602 Whirlpool Heat Shield Assembly Backorder WPL WP8304602 $33.73

16

Bumper, Glass WPL 8304522 Contact Us For Availability

17

W10339476 Whirlpool Bracket Mounting Backorder WPL W10339476 $28.80

17

Screw WPL 4449040 Contact Us For Availability

18

W10116434 Whirlpool Element Backorder WPL W10116434 $128.37

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

20

W11186364 Whirlpool Oven Rack Backorder WPL W11186364 $142.36

21

Mounting Rail, Side (Right) WPL 8303677BL Contact Us For Availability

21

Mounting Rail, Side (Left) WPL 8303678BL Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $65.32

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

37

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

40

W10140897 Whirlpool Valve Solenoid Backorder WPL W10140897 $134.18

41

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $74.25

47

W10194453 Whirlpool Switch Backorder WPL W10194453 $107.83

50

Center, Vent WPL W10133473 Contact Us For Availability

51

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8212695 Whirlpool Filter Backorder WPL 8212695 $84.00

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

W10231531 Whirlpool Wire Harness Backorder WPL W10231531 $64.54

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $120.76

ADHESIVE (Adhesive Loctite (1/3 oz.)) WPL 591014 Contact Us For Availability

Nut WPL 7103P02760 Contact Us For Availability

Communication, Harness WPL 8304372 Contact Us For Availability

Conduit, Double WPL 8304612 Contact Us For Availability

Reducer, Stem WPL W10051680 Contact Us For Availability

Elbow, Plug In WPL W10076960 Contact Us For Availability

HARNESS, MAIN WPL W10157924 Contact Us For Availability
