Model Whirlpool KEBU208SSS02 30&quot; Built−In Electric Double Oven – Common Parts &amp; Diagrams

1

Panel, Control WPL W10216219 Contact Us For Availability

1

Cover, Top WPL 8304219 Contact Us For Availability

2

Hinge, Door (2) WPL W10174285 Contact Us For Availability

2

Duct, Air Outlet WPL 8304643 Contact Us For Availability

3

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $59.48

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $59.48

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WP8303972 Whirlpool Blower In Stock WPL WP8303972 $124.59

4

WPW10016020 Whirlpool Dishwasher Membrane Swi Backorder WPL WPW10016020 $331.80

4

Vent, Door Top WPL 8304581BL Contact Us For Availability

4

Tray, Bake WPL 4455037 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $102.28

5

User Interface WPL W10143290 Contact Us For Availability

5

Bracket, Door — Left WPL 8304378 Contact Us For Availability

6

COVR-WIRE Backorder WPL W11819303 $5.07

6

Door, Top Bracket WPL 8303746 Contact Us For Availability

7

Glass, Inner WPL 8303731 Contact Us For Availability

7

Transformer, Control WPL 9762885 Contact Us For Availability

8

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

9

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

Screw WPL 3400080 Contact Us For Availability

Appliance Manager WPL W10160958 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $53.99

11

Resistor, Drop WPL 8304441 Contact Us For Availability

11

Vent, Control Panel WPL 8303684 Contact Us For Availability

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $37.24

Side, Control Top — Right WPL 8303518 Contact Us For Availability

Side, Control Top — Left WPL 8304255 Contact Us For Availability

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Jack, Meat Probe WPL W10150011 Contact Us For Availability

Back, Control WPL 8303520 Contact Us For Availability

14

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

15

WP8304493 Whirlpool Door Gasket In Stock WPL WP8304493 $66.92

15

Badge WPL 8304603SS Contact Us For Availability

16

Bumper, Glass WPL 8304522 Contact Us For Availability

16

Shield, Broil WPL 8304602 Contact Us For Availability

17

W10339476 Whirlpool Bracket Mounting Backorder WPL W10339476 $32.06

17

Screw WPL 4449040 Contact Us For Availability

18

W10116434 Whirlpool Element Backorder WPL W10116434 $136.08

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $45.06

20

W11186364 Whirlpool Oven Rack Backorder WPL W11186364 $142.36

21

Mounting Rail,Side — Right WPL 8303677BL Contact Us For Availability

21

Mounting Rail,Side — Left WPL 8303678BL Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

28

WP8304452 Whirlpool Range Thermal Fuse In Stock WPL WP8304452 $72.69

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

37

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

40

W10140897 Whirlpool Valve Solenoid Backorder WPL W10140897 $142.22

41

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $82.63

47

Switch, Pressure (2) WPL W10194453 Contact Us For Availability

50

Center, Vent WPL W10133473 Contact Us For Availability

51

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

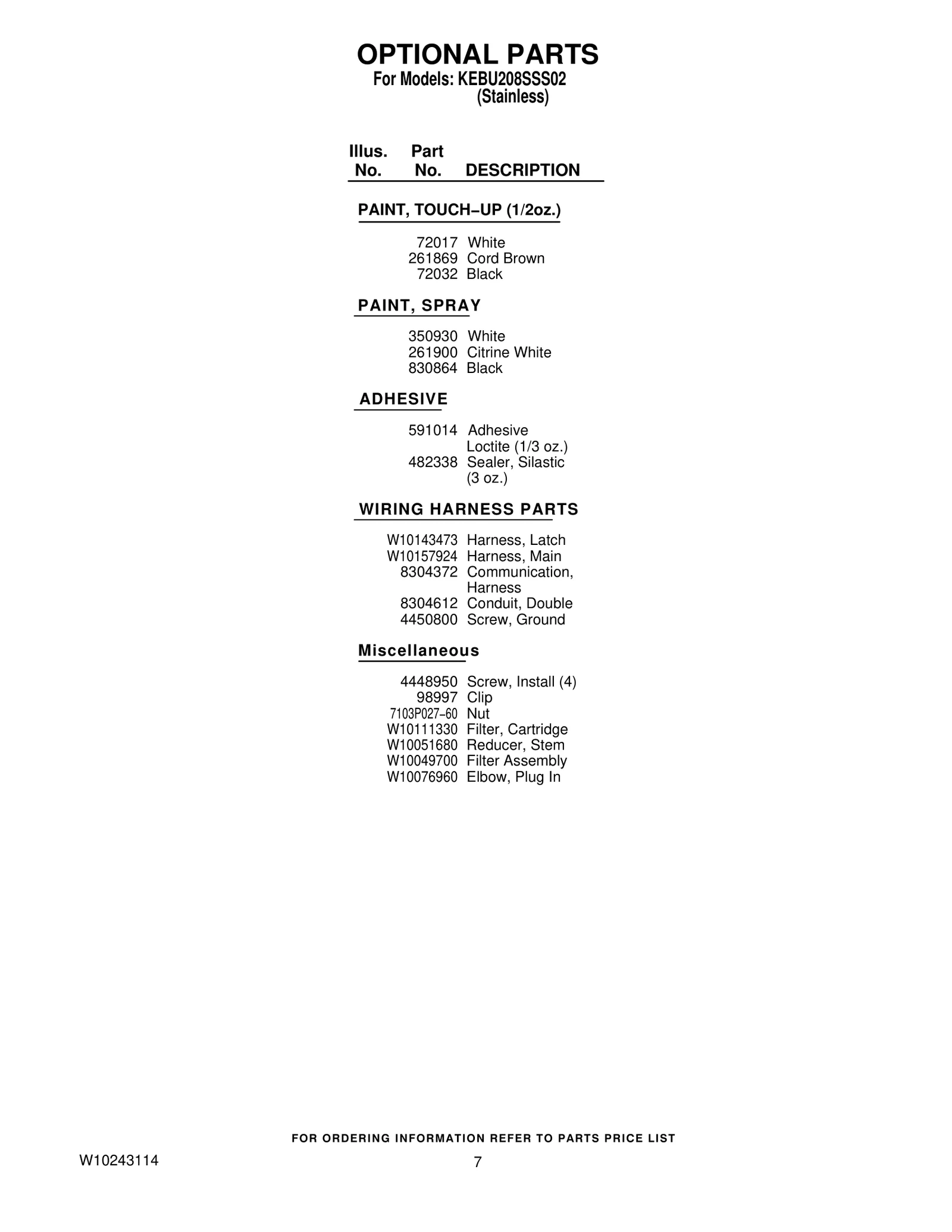

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

OPT-2

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

OPT-3

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-5

261900 Whirlpool Microwave Spray Backorder WPL 261900 $44.38

OPT-6

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-7

Adhesive WPL 591014 Contact Us For Availability

OPT-8

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $26.39

OPT-9

W10231531 Whirlpool Wire Harness Backorder WPL W10231531 $71.84

OPT-10

Harness, Main WPL W10157924 Contact Us For Availability

OPT-11

Communication, WPL 8304372 Contact Us For Availability

OPT-12

Conduit, Double WPL 8304612 Contact Us For Availability

OPT-13

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

OPT-14

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

OPT-15

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

OPT-16

8212695 Whirlpool Filter Backorder WPL 8212695 $84.00

OPT-17

Reducer, Stem WPL W10051680 Contact Us For Availability

OPT-18

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $128.00

OPT-19

Elbow, Plug In WPL W10076960 Contact Us For Availability
