Model Whirlpool KEBS278DWH8 – Common Parts & Diagrams

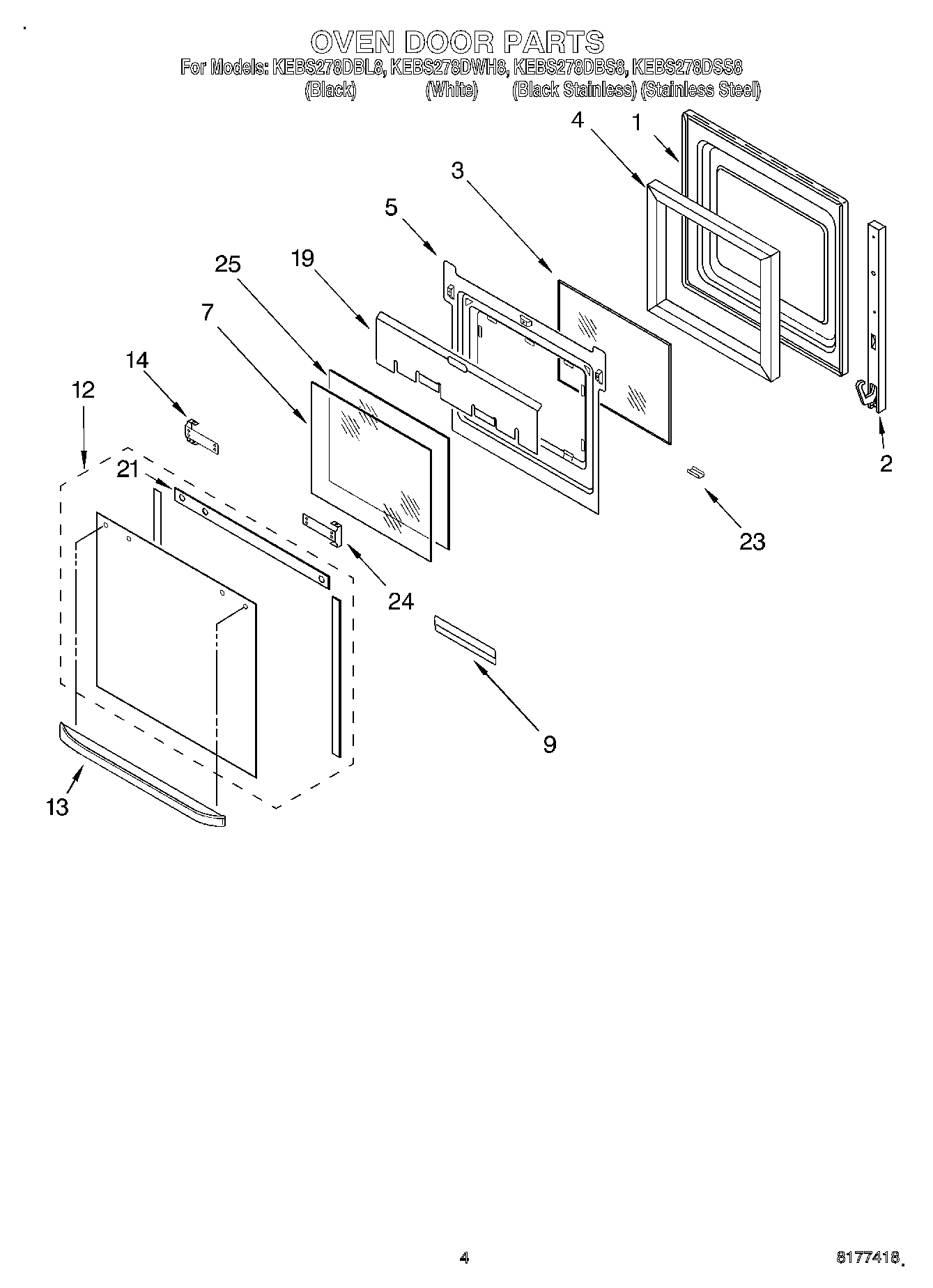

03 - OVEN DOOR

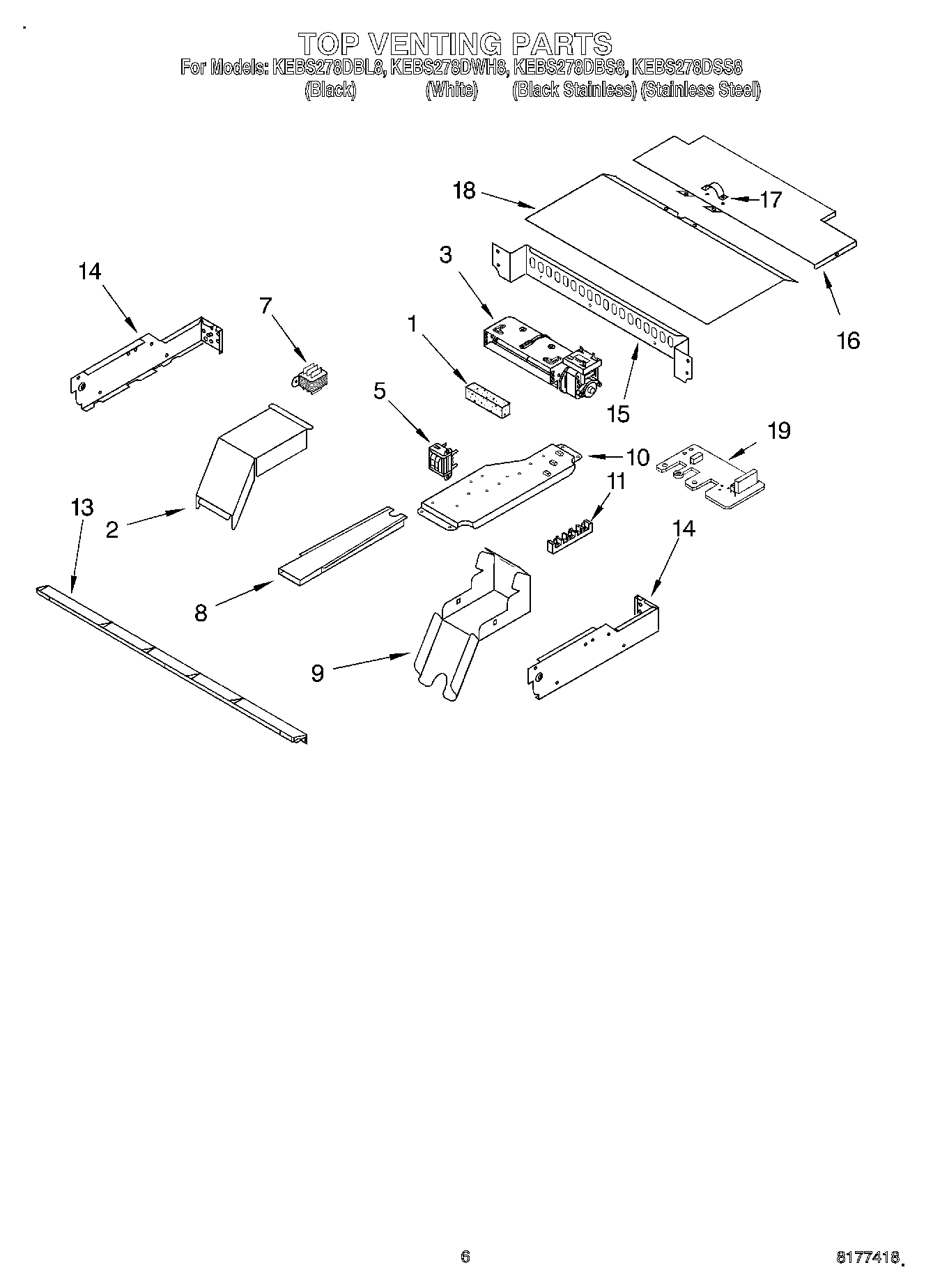

05 - TOP VENTING, OPTIONAL
02 - CONTROL PANEL
04 - INTERNAL OVEN
01 - OVEN, LITERATURE
Common parts from model Whirlpool KEBS278DWH8
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451942 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451943 Contact Us For Availability
1
Plug, Button WPL 4448982 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450410 Contact Us For Availability
1
Literature Parts (Tech Sheet (Oven)) WPL LIT4451879 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
2
Trim, Side (White Model) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black & BS Mdls) WPL 4450850 Contact Us For Availability
2
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
2
Trim, Side (LH Black & BS Mdls) WPL 4450853 Contact Us For Availability
2
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Trim, Side (RH Stainless Steel) WPL 4452081 Contact Us For Availability
2
Trim, Side (LH Stainless Steel Screw) WPL 4452082 Contact Us For Availability
3
Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability
3
Microcomputer WPL 4453165 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Membrane Switch Stainless Steel Model WPL 4452376 Contact Us For Availability
5
Panel, Control Stainless Steel Model WPL 4451790 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4452200 Contact Us For Availability
7
Top, Chassis WPL 4455189 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
14
Bracket, Handle Black, White & Black Stainles WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
15
Tray, Bake WPL 4455036 Contact Us For Availability
19
WPL 4450953 WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
WPL 4451864 WPL 4451864 Contact Us For Availability
19
WPL 4451926 WPL 4451926 Contact Us For Availability
19
WPL 4452222 WPL 4452222 Contact Us For Availability
19
WPL 591014 WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83629A1 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent (Black, White & Black Stainle WPL 4450280 Contact Us For Availability
34
WPL 4452266 WPL 4452266 Contact Us For Availability
43
WPL 4451397 WPL 4451397 Contact Us For Availability
51
WPL 4159465 WPL 4159465 Contact Us For Availability
51
WPL 4448475 WPL 4448475 Contact Us For Availability
51
WPL 4448476 WPL 4448476 Contact Us For Availability
51
WPL 4452480 WPL 4452480 Contact Us For Availability
53
WPL 4449315 WPL 4449315 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450364 WPL 4450364 Contact Us For Availability
53
WPL 4452336 WPL 4452336 Contact Us For Availability
× ![]()
