Model Whirlpool KEBS278DWH11 COOKTOP – Common Parts & Diagrams
03 - OVEN DOOR
04 - INTERNAL OVEN

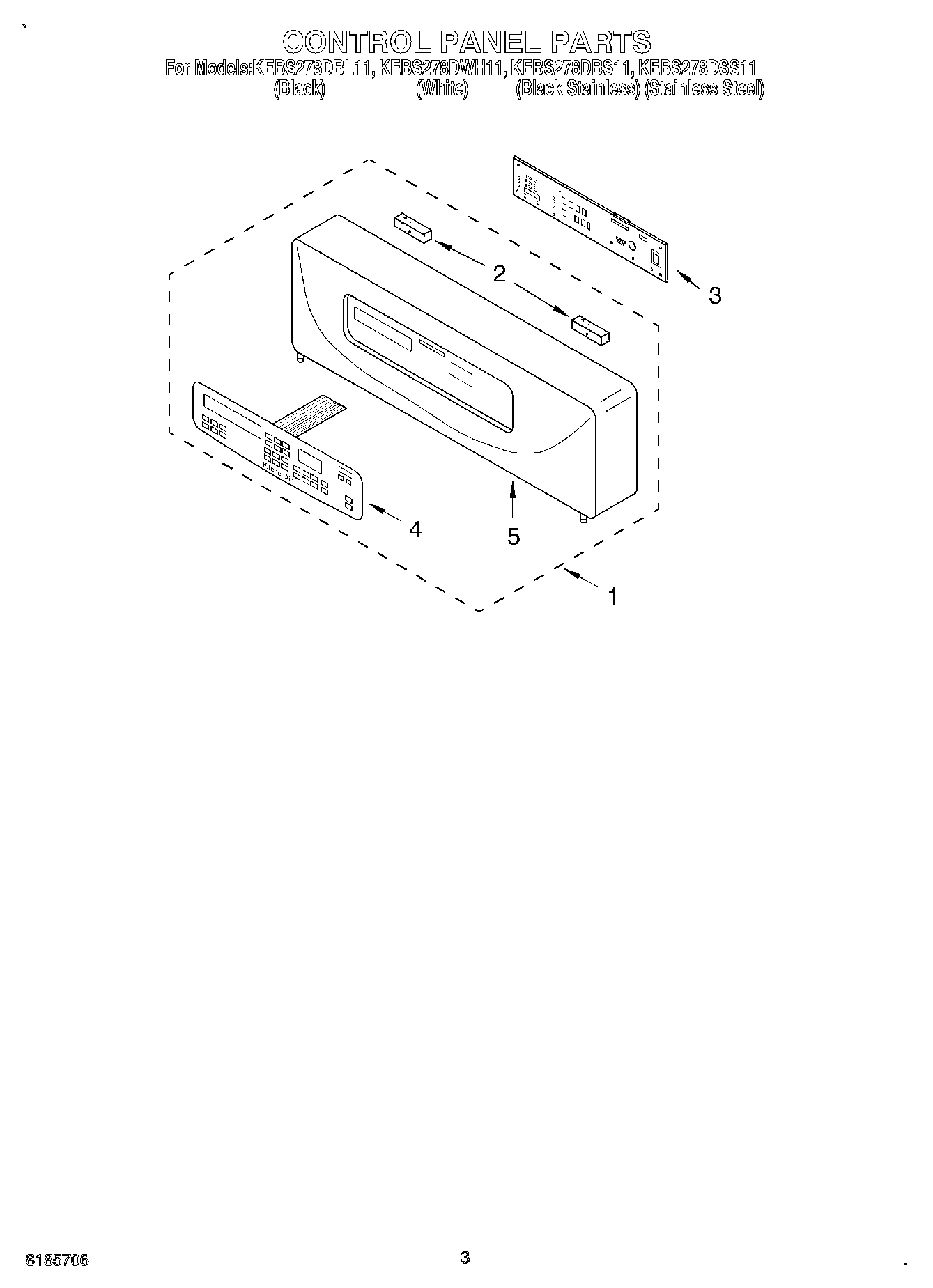

02 - CONTROL PANEL

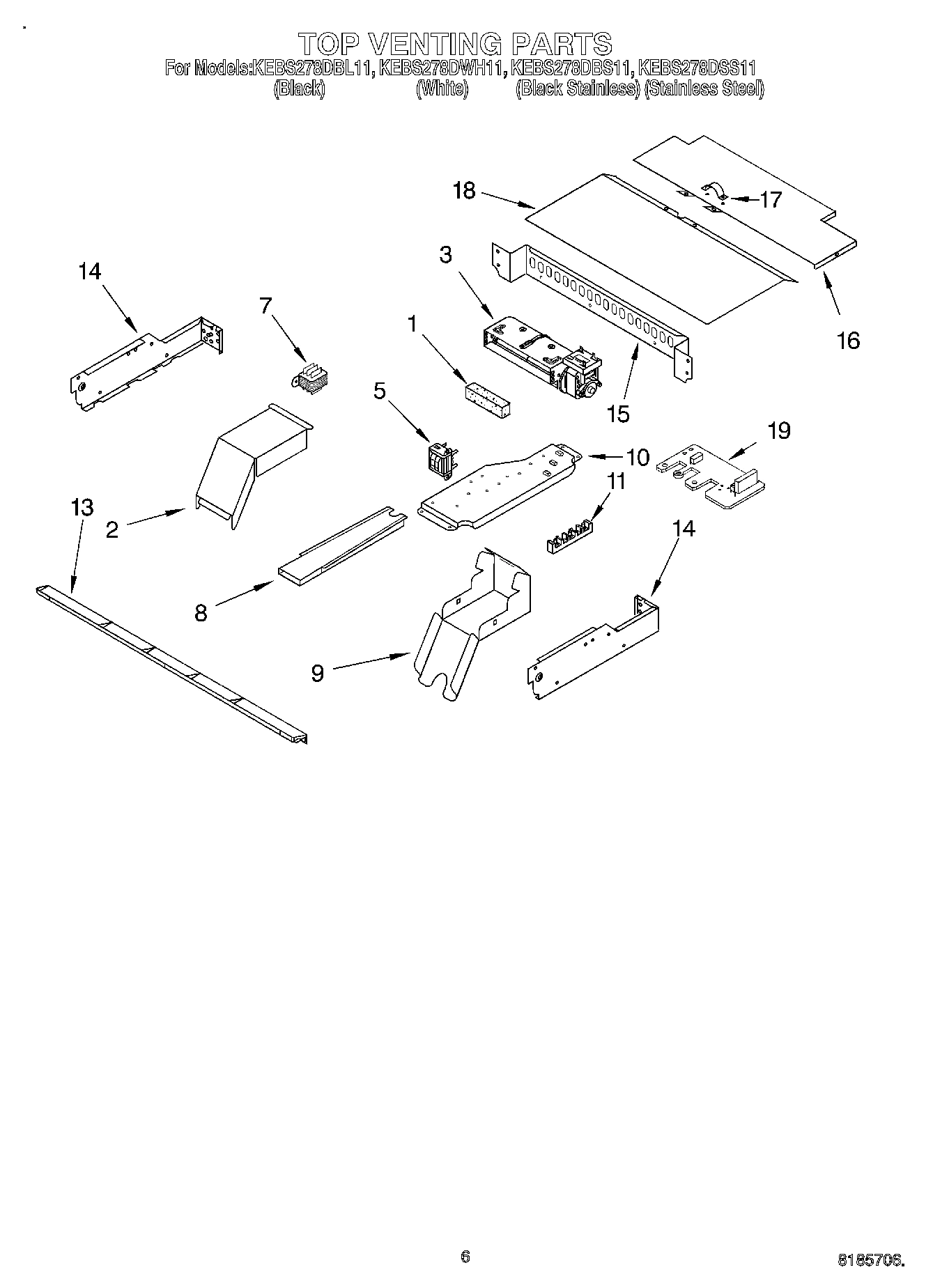

05 - TOP VENTING, OPTIONAL

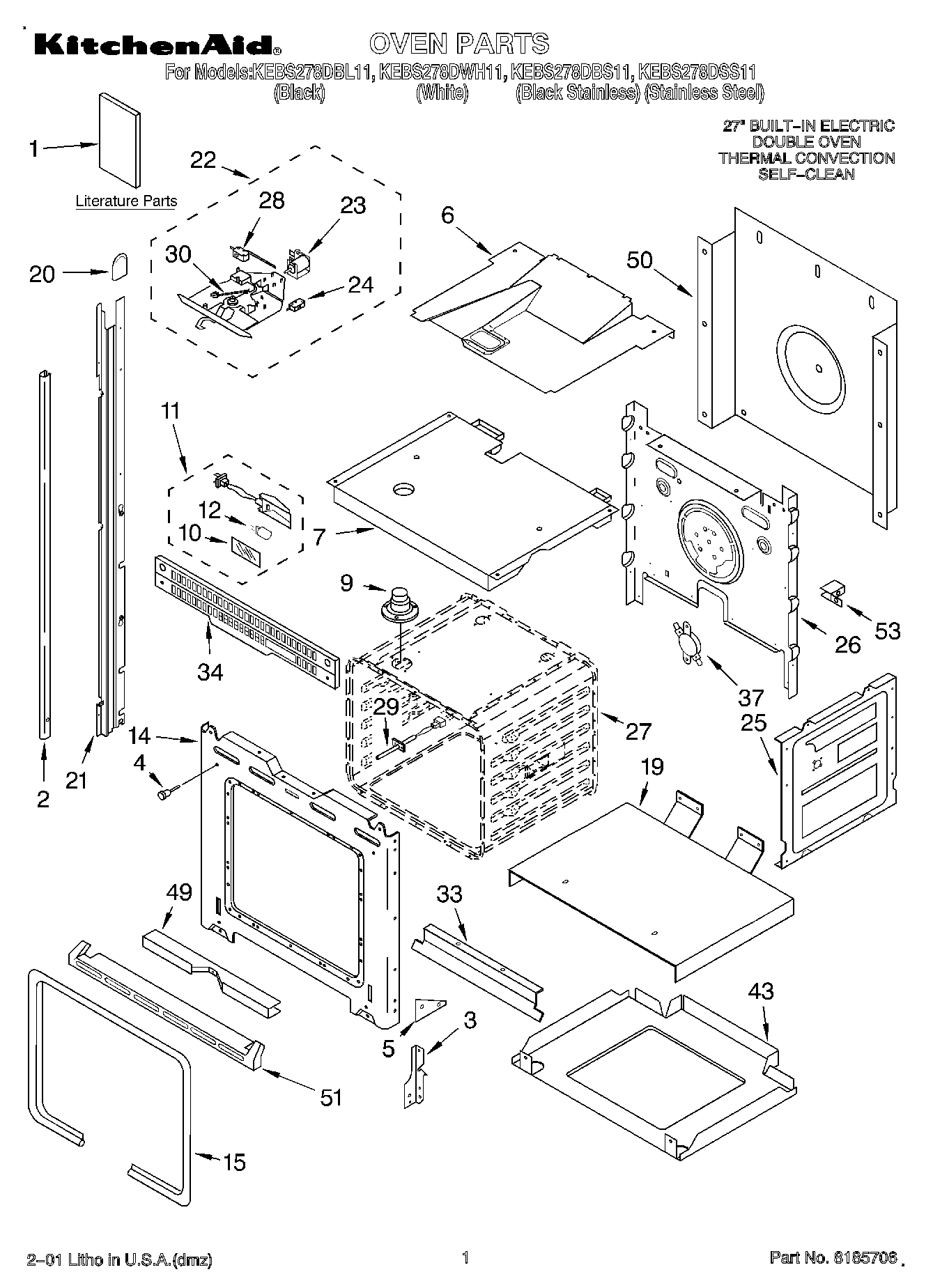

01 - OVEN, LITERATURE
Common parts from model Whirlpool KEBS278DWH11 COOKTOP
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450410 Contact Us For Availability
1
Literature Parts (Tech Sheet (Oven)) WPL LIT4451879 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability
2
Trim, Side (White Model) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black & BS Mdls) WPL 4450850 Contact Us For Availability
2
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
2
Trim, Side (LH Black & BS Mdls) WPL 4450853 Contact Us For Availability
2
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Trim, Side (RH Stainless Steel) WPL 4452081 Contact Us For Availability
2
Trim, Side (LH Stainless Steel) WPL 4452082 Contact Us For Availability
3
Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4452200 Contact Us For Availability
7
Top, Chassis WPL 4455285 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
12
Door Glass, Assy (Stainless Steel Model) WPL WP4452315 No Longer Available
14
Bracket, Handle Black, White & Black Stainles WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Spacer, Foam WPL 4452260 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
19
WPL 4450953 WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
WPL 4451926 WPL 4451926 Contact Us For Availability
19
WPL 4452222 WPL 4452222 Contact Us For Availability
19
WPL 4455727 WPL 4455727 Contact Us For Availability
19
WPL 591014 WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83624A1 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent (Black, White & Black S WPL 4450280 Contact Us For Availability
34
WPL 4452266 WPL 4452266 Contact Us For Availability
43
WPL 4455529 WPL 4455529 Contact Us For Availability
51
WPL 4159465 WPL 4159465 Contact Us For Availability
51
WPL 4448475 WPL 4448475 Contact Us For Availability
51
WPL 4448476 WPL 4448476 Contact Us For Availability
51
WPL 4452480 WPL 4452480 Contact Us For Availability
53
WPL 4449315 WPL 4449315 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450364 WPL 4450364 Contact Us For Availability
53
WPL 4452336 WPL 4452336 Contact Us For Availability
× ![]()
