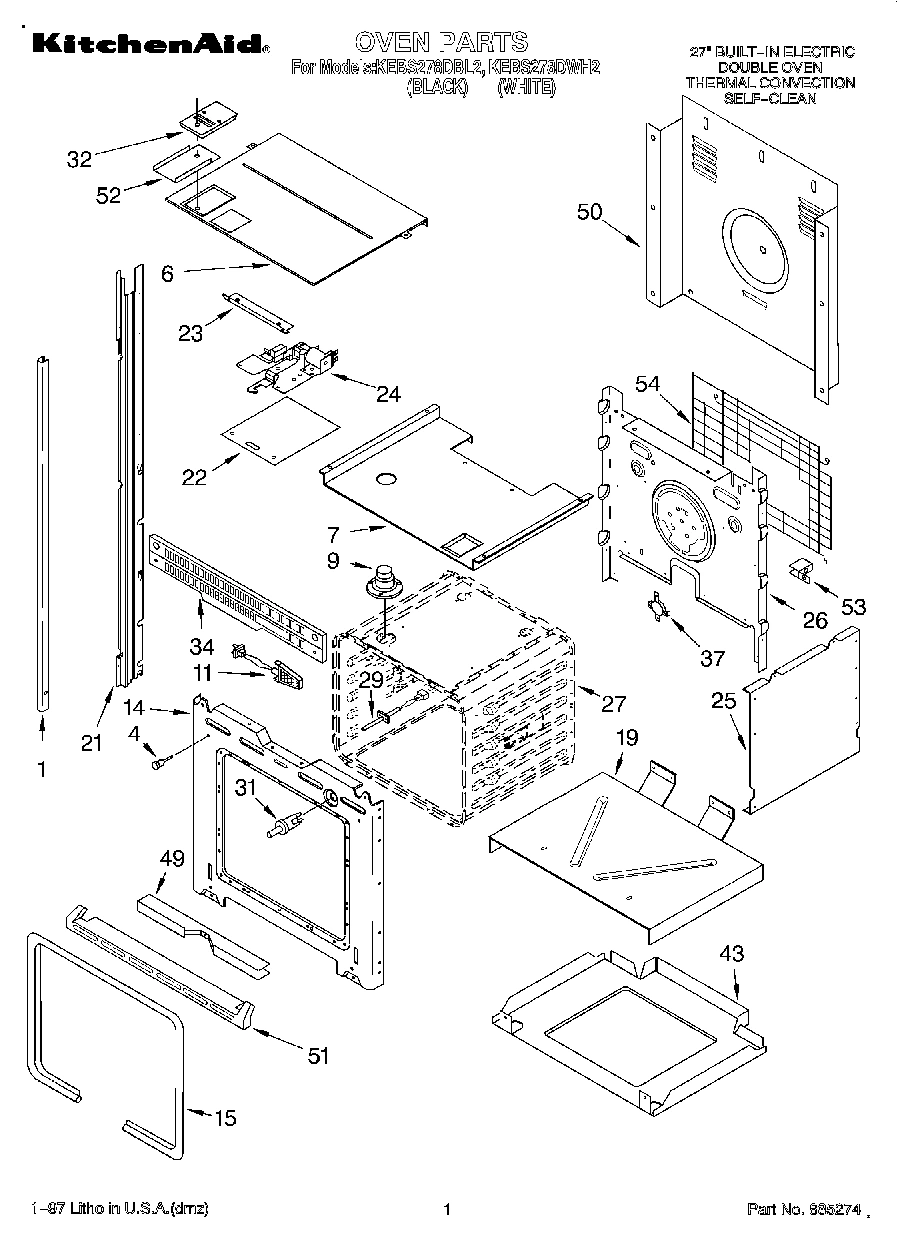

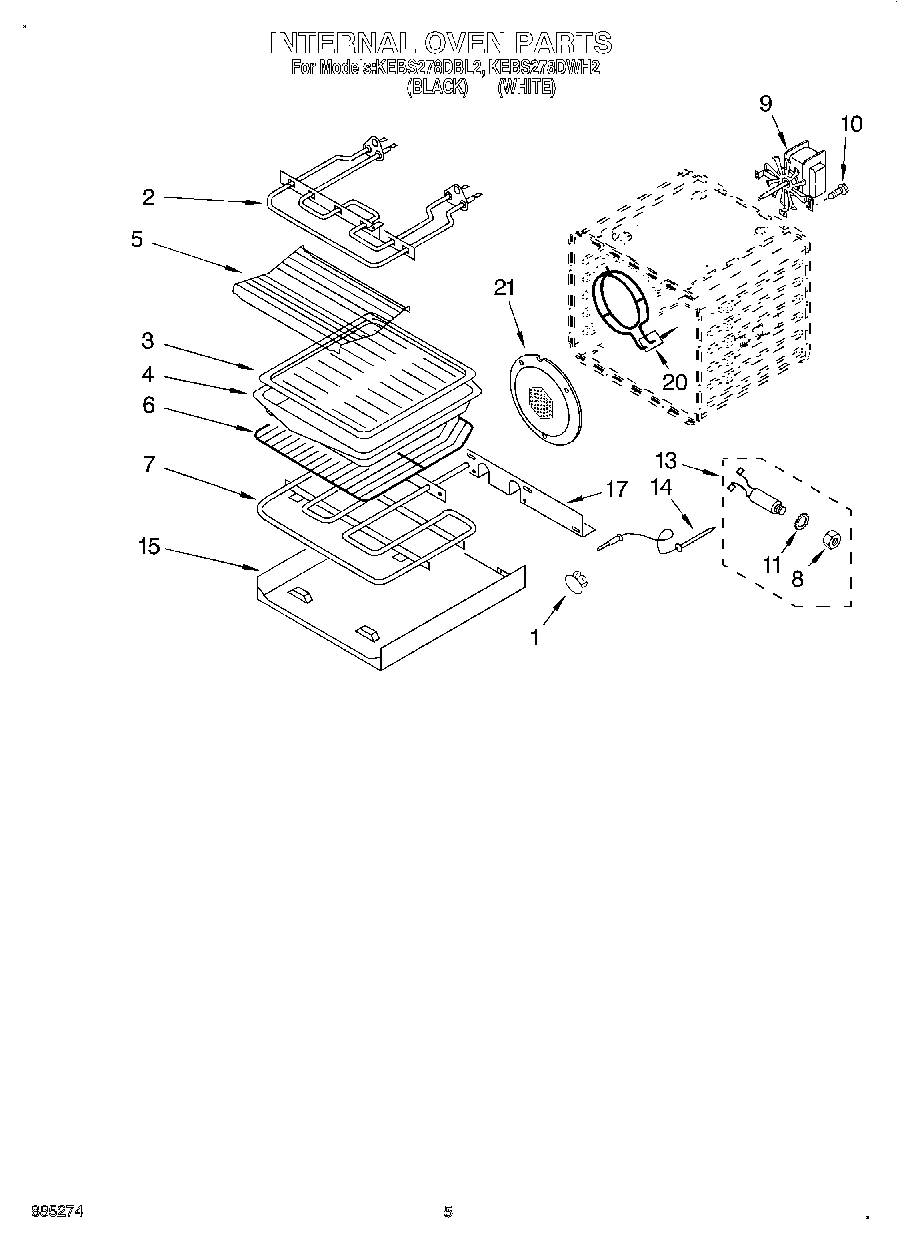

Model Whirlpool KEBS278DBL2 – Common Parts &amp; Diagrams

1

Door Liner WPL 4450428 Contact Us For Availability

1

Plug, Button WPL 4448982 Contact Us For Availability

1

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

1

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

1

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

1

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

1

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $37.19

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability

5

Retainer, Glass WPL 4450422 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4451038 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Partition WPL 4451165 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

9

Retainer, Glass WPL 4449031 Contact Us For Availability

9

Fan, Convection WPL 4448952 Contact Us For Availability

9

Tube, Vent WPL 4449009 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

12

Door Glass (Black Model) WPL 4450696 Contact Us For Availability

12

Door Glass (White Model) WPL 4450697 Contact Us For Availability

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448411 Contact Us For Availability

Door Handle (White Model) WPL 4448412 Contact Us For Availability

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

Frame, Front WPL 4450416 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Tray, Bake WPL 4448722 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

18

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Conduit, Double WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bracket, Blower WPL 4450545 Contact Us For Availability

Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability

Harness, Wire (Latch) WPL 4454709 Contact Us For Availability

Harness, Wire (Main) WPL 4454796 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 814387 WPL 814387 Contact Us For Availability

Shield, Heat WPL 4450361 Contact Us For Availability

Support, Insulation WPL 4450541 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Retainer, Glass WPL 4450470 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

Seal, Door Top WPL 4450836 Contact Us For Availability

22

Seal, Side WPL 4450838 Contact Us For Availability

22

Shield, Latch WPL 4451036 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

23

Deflector, Latch WPL 4450051 Contact Us For Availability

24

Latch Assy WPL 4454710 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability

26

Back, Chassis WPL 4454728 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83604A9 Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

31

Switch, Door WPL 4450819 Contact Us For Availability

32

Vent Box Assy WPL 4449369 Contact Us For Availability

34

Vent, Center WPL 4449049 Contact Us For Availability

37

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $77.29

37

WP4450934 Whirlpool Thermostat Assembly Backorder WPL WP4450934 $77.29

43

Base, Chassis WPL 4450526 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

Cover, Back WPL 4450544 Contact Us For Availability

51

Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability

51

Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability

51

Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability

52

Extension, Vent (Top Oven) WPL 4450795 Contact Us For Availability

52

Extension, Vent (Bottom Oven) WPL 4450797 Contact Us For Availability

53

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Insulation, Wrap WPL 4449315 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability

Spacer, Harness WPL 4451002 Contact Us For Availability
