Model Whirlpool KEBS277YAL0 – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum WPL 285368 Contact Us For Availability

Mounting Hardware WPL 3171507 Contact Us For Availability

18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability

Leveler (Primer) WPL 350941 Contact Us For Availability

ADHESI WPL 591014 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 832985 WPL 832985 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150693 WPL LIT3150693 Contact Us For Availability

WPL LIT3182131 WPL LIT3182131 Contact Us For Availability

WPL LIT3182135 WPL LIT3182135 Contact Us For Availability

WPL LIT3183659 WPL LIT3183659 Contact Us For Availability

WPL LIT3183790 WPL LIT3183790 Contact Us For Availability

WPL LIT3183987 WPL LIT3183987 Contact Us For Availability

WPL LIT4174212 WPL LIT4174212 Contact Us For Availability

1

Membrane, Switch (Black) WPL 3181783 Contact Us For Availability

1

Membrane, Switch (White) WPL 3181784 Contact Us For Availability

1

Membrane, Switch (Almond) WPL 3181785 Contact Us For Availability

1

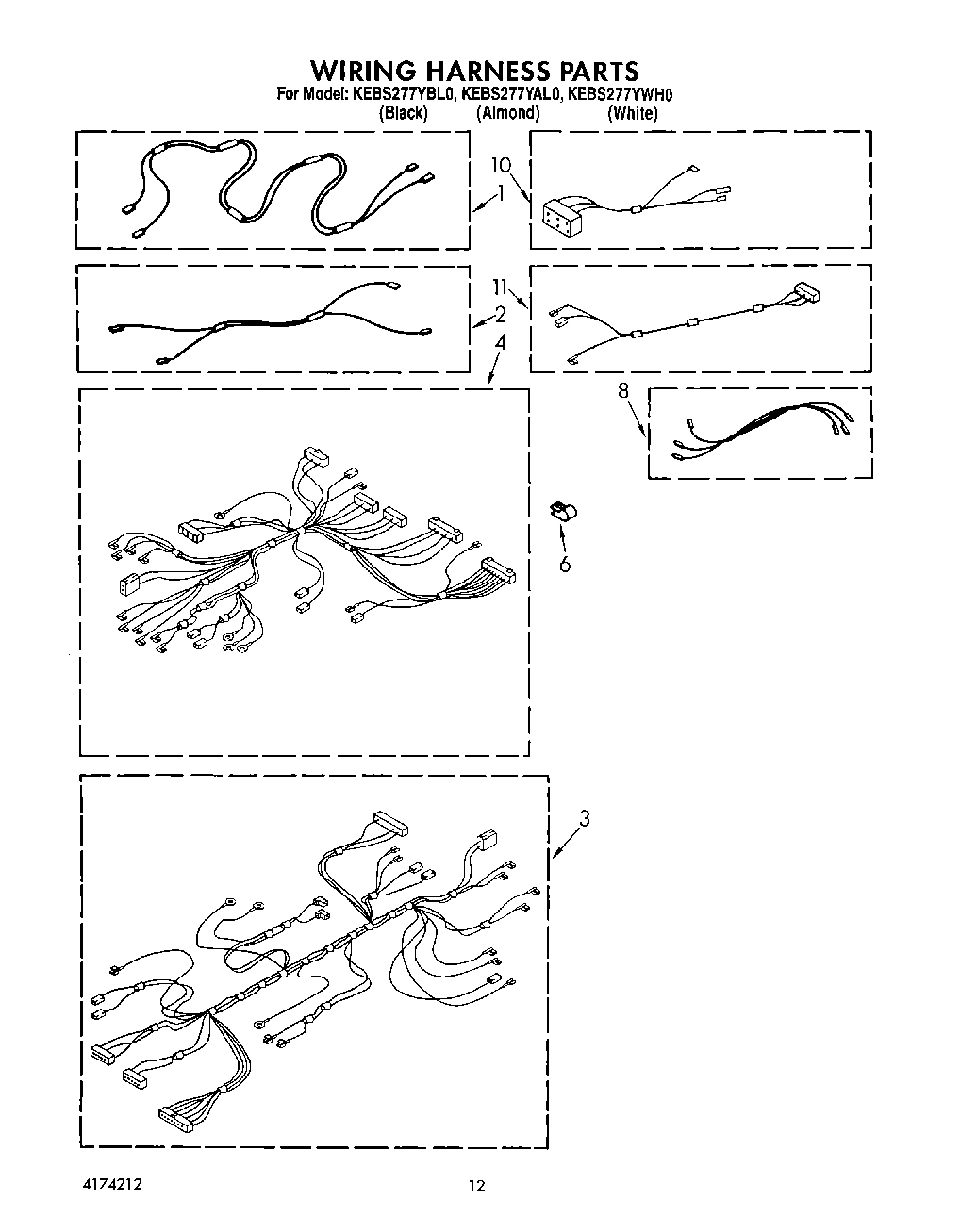

Harness Wire (Door Switch Upper Light) WPL 3183655 Contact Us For Availability

1

Plate, Mounting WPL 3178512 Contact Us For Availability

1

Liner, Door WPL 3177599 Contact Us For Availability

1

Screw, Black (2) WPL 3178001 Contact Us For Availability

1

Module, Top WPL 3183748 Contact Us For Availability

1

Liner, Oven (Convection) WPL 3177472 Contact Us For Availability

1

Liner, Oven (Self Clean) WPL 3177471 Contact Us For Availability

2

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

2

Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability

2

Harness Wire (Door Switch Lower Light) WPL 3183656 Contact Us For Availability

2

Screw (3) WPL 4173193 Contact Us For Availability

2

Gasket, Window WPL 3178584 Contact Us For Availability

2

Bracket, Conduit WPL 3177545 Contact Us For Availability

2

Element, Broil WPL 661415 Contact Us For Availability

2

Screw WPL 308043 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

Microcomputer WPL 3181705 Contact Us For Availability

3

Harness Wire (Lower Oven) WPL 3183359 Contact Us For Availability

3

Lockwasher (3) WPL 4173194 Contact Us For Availability

3

Spacer, Window WPL 3179693 Contact Us For Availability

3

Cabinet, Back WPL 3177739 Contact Us For Availability

4

Retainer, Bracket WPL 3183705 Contact Us For Availability

4

Harness Wire (Upper Oven) WPL 3184221 Contact Us For Availability

4

Latch, Strike WPL 3177831 Contact Us For Availability

4

Tube, Vent WPL 3181699 Contact Us For Availability

4

Switch, latch WPL 3183784 Contact Us For Availability

4

Screw WPL 98106 Contact Us For Availability

5

Clip, (3) Retainer WPL 3182985 Contact Us For Availability

5

Nut (Left Hand) WPL 4173237 Contact Us For Availability

5

Insulation, Retainer WPL 3177718 Contact Us For Availability

5

Rack, Offset WPL 3180865 Contact Us For Availability

5

Insulator, Switch WPL 3178185 Contact Us For Availability

6

Hinge, Vent Door WPL 3182162 Contact Us For Availability

6

Standoff, Wire WPL 3179668 Contact Us For Availability

6

Fan WPL 4173236 Contact Us For Availability

6

Bracket, Glass Mounting WPL 4163855 Contact Us For Availability

6

Cabinet, Top WPL 3178138 Contact Us For Availability

6

Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability

6

Rack, Oven WPL 3180864 Contact Us For Availability

6

Guard, Latch WPL 3177662 Contact Us For Availability

7

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

7

WP661416 Whirlpool Bake Element In Stock WPL WP661416 $69.30

7

Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability

7

Door, Latch Handle (Black) WPL 3182151 Contact Us For Availability

7

Door, Latch Handle (White) WPL 3182154 Contact Us For Availability

7

Door, Latch Handle (Almond) WPL 3182157 Contact Us For Availability

7

Motor WPL 3182088 Contact Us For Availability

7

Glass, Door (Black) WPL 3181548 Contact Us For Availability

7

Glass, Door (White) WPL 3181550 Contact Us For Availability

7

Glass, Door (Almond) WPL 3181552 Contact Us For Availability

7

Handle, Latch (Upper Oven) WPL 3177969 Contact Us For Availability

7

Handle, Latch (Lower Over) WPL 3181963 Contact Us For Availability

8

7111P002-60 Whirlpool Clamp Backorder WPL 7111P002-60 $4.61

8

Trim, Panel WPL 3183702 Contact Us For Availability

8

E-Ring WPL 4173238 Contact Us For Availability

8

Glass, Reflective WPL 4164243 Contact Us For Availability

8

Side, Cabinet (Left Hand) WPL 3177438 Contact Us For Availability

8

Side, Cabinet (Right Hand) WPL 3177440 Contact Us For Availability

8

Nut, Meat Probe WPL 4167277 Contact Us For Availability

8

Screw WPL 3183294 Contact Us For Availability

8

Knob, Handle WPL 3184039 Contact Us For Availability

9

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

9

Screw (2) WPL 3182939 Contact Us For Availability

9

Bracket (2) WPL 3184321 Contact Us For Availability

9

Bracket Guard WPL 4173185 Contact Us For Availability

9

Frame, Door WPL 3181402 Contact Us For Availability

9

Gasket, Meat Probe WPL 4163975 Contact Us For Availability

9

Screw WPL 3184037 Contact Us For Availability

9

Spacer, Latch Handle WPL 3184040 Contact Us For Availability

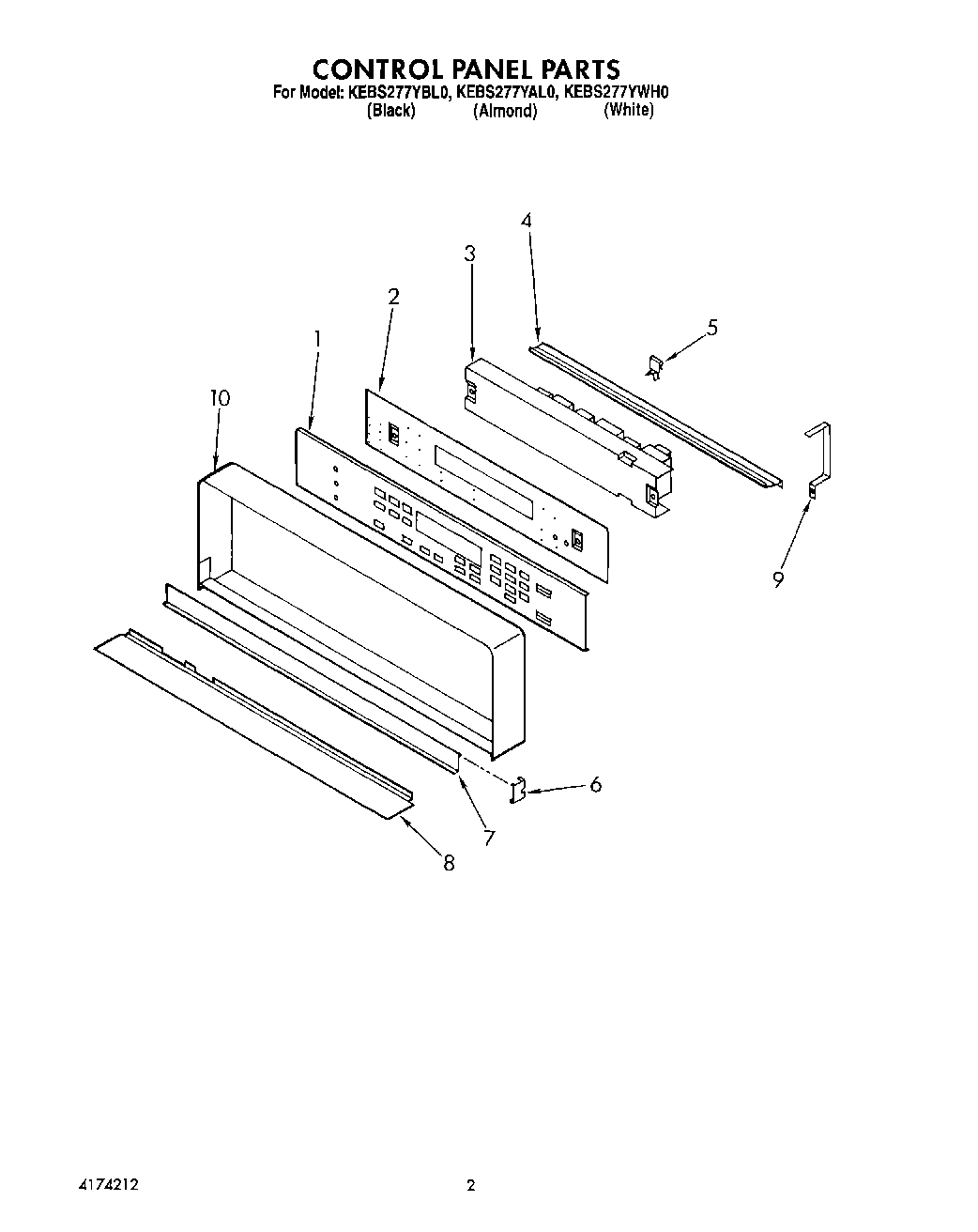

Frame, Control Panel WPL 3182148 Contact Us For Availability

Harness, Wire Latch Assy. (Upper Oven) WPL 3183976 Contact Us For Availability

Flat Washer WPL 4173230 Contact Us For Availability

Handle, Door (Black) WPL 3182165 Contact Us For Availability

Handle, Door (White) WPL 3182168 Contact Us For Availability

Handle, Door (Almond Model) WPL 3182171 Contact Us For Availability

Probe Cover WPL 4167266 Contact Us For Availability

Latch, Mechanism WPL 3178410 Contact Us For Availability

Harness, Wire Latch Assy. (Lower Oven) WPL 3183361 Contact Us For Availability

Gasket, Foam WPL 3179790 Contact Us For Availability

Screw (2) WPL 3181637 Contact Us For Availability

Spacer, Handle WPL 3182138 Contact Us For Availability

Washer WPL 4159557 Contact Us For Availability

Plate, Mounting WPL 3177496 Contact Us For Availability

12

Frame, Front WPL 3177684 Contact Us For Availability

12

Spacer - Tubing WPL 3179672 Contact Us For Availability

Window Package WPL 4164235 Contact Us For Availability

Seal, Door WPL 3179813 Contact Us For Availability

Screw (8) WPL 3179776 Contact Us For Availability

Meat Probe Jack WPL 4173575 Contact Us For Availability

Nozzle, Vent Bottom (2) WPL 3183954 Contact Us For Availability

Meat Probe WPL 3150144 Contact Us For Availability

Insulation, Door WPL 3180094 Contact Us For Availability

Frame, Front WPL 3177682 Contact Us For Availability

Bracket, Switch WPL 3177681 Contact Us For Availability

Nozzle, Vent Top (2) WPL 3183955 Contact Us For Availability

15

Bushing, Handle WPL 3181651 Contact Us For Availability

15

Insulator, Switch WPL 3177923 Contact Us For Availability

15

Box, Vent WPL 3183999 Contact Us For Availability

16

Bumper, Door Glass WPL 3181701 Contact Us For Availability

16

Bottom, Oven WPL 3177551 Contact Us For Availability

16

End, Vent Box WPL 3183964 Contact Us For Availability

17

Rail, Support (2) WPL 3179220 Contact Us For Availability

17

Bracket, Mounting Fan WPL 3183533 Contact Us For Availability

18

Bracket, Hinge (2) WPL 3177433 Contact Us For Availability

18

Blower, fan WPL 3183720 Contact Us For Availability

Bottom, Module WPL 3177621 Contact Us For Availability

Vent, Tube WPL 3183791 Contact Us For Availability

Screw WPL 4173231 Contact Us For Availability

Cover, Fan WPL 3180815 Contact Us For Availability

Shield, Radiation WPL 3178612 Contact Us For Availability

Screw (6) WPL 3179795 Contact Us For Availability

Element, Convection WPL 3178517 Contact Us For Availability

SPST Thermostat WPL 3149650 Contact Us For Availability

Insert, Middle Vent Trim WPL 3181733 Contact Us For Availability

Screw (2) WPL 4173601 Contact Us For Availability

Support, Oevn WPL 3177434 Contact Us For Availability

Shield, Heat WPL 3183785 Contact Us For Availability

22

Back, Module WPL 3177560 Contact Us For Availability

22

Clip, Tubing WPL 313570 Contact Us For Availability

22

Box, Vent WPL 3183953 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Screw (2) WPL 3179117 Contact Us For Availability

Bracket, Element WPL 3180694 Contact Us For Availability

End, Vent Box WPL 3183965 Contact Us For Availability

24

Clip, Seal (3) WPL 3179848 Contact Us For Availability

24

Rack, Roasting T/C WPL 3181534 Contact Us For Availability

24

Vent Tube, Lower Oven WPL 3183793 Contact Us For Availability

Screw (4) WPL 3178000 Contact Us For Availability

Hinge, Door (2) WPL 3178298 Contact Us For Availability

Sensor WPL 3148440 Contact Us For Availability

Clamp, Tube WPL 3183532 Contact Us For Availability

26

Button, Plug WPL 3185085 Contact Us For Availability

26

Back, Module WPL 3177561 Contact Us For Availability

27

Button, Plug WPL 3185109 Contact Us For Availability

28

Vent Tube, Lower WPL 3182159 Contact Us For Availability

29

Vent Tube, Upper WPL 3182160 Contact Us For Availability

30

Screw (2) WPL 313489 Contact Us For Availability

30

Nut (2) WPL 4159117 Contact Us For Availability

30

Switch, Door WPL 4173553 Contact Us For Availability

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

32

Retainer, Seal WPL 3179587 Contact Us For Availability

33

Screw WPL 4159445 Contact Us For Availability

33

Cover, Cap Tube WPL 4168203 Contact Us For Availability

Vent, Middle Trim (Screw (4)) WPL 3180022 Contact Us For Availability

Vent, Middle Trim (Black) WPL 3181965 Contact Us For Availability

Vent, Middle Trim (Brushed Chrome) WPL 3181968 Contact Us For Availability

Vent, Middle Trim (Screw (2)) WPL 4168863 Contact Us For Availability

Trim, Lower Vent (Black) WPL 3177787 Contact Us For Availability

Trim, Lower Vent (Brushed Chrome) WPL 3177789 Contact Us For Availability

35

Insulation, Wrap WPL 3177862 Contact Us For Availability

35

Insulation, Back WPL 3177872 Contact Us For Availability

35

Cover, Probe WPL 4163883 Contact Us For Availability

39

Screw WPL 4168874 Contact Us For Availability

41

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

41

Bracket, Control WPL 3183752 Contact Us For Availability

44

Retainer, Insulation WPL 4173179 Contact Us For Availability
