Model Whirlpool KEBS277SWH2 – Common Parts & Diagrams

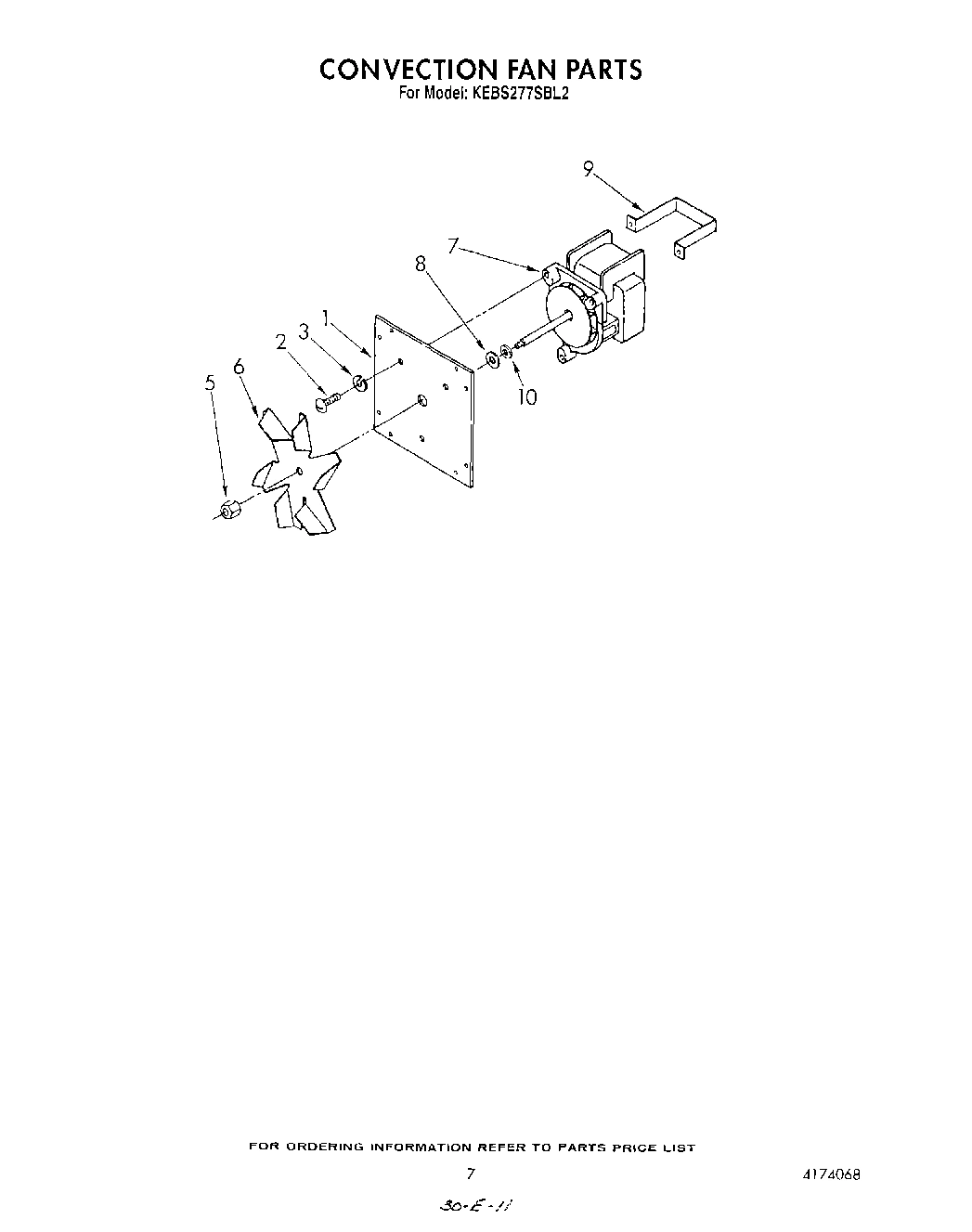

06 - CONVECTION FAN

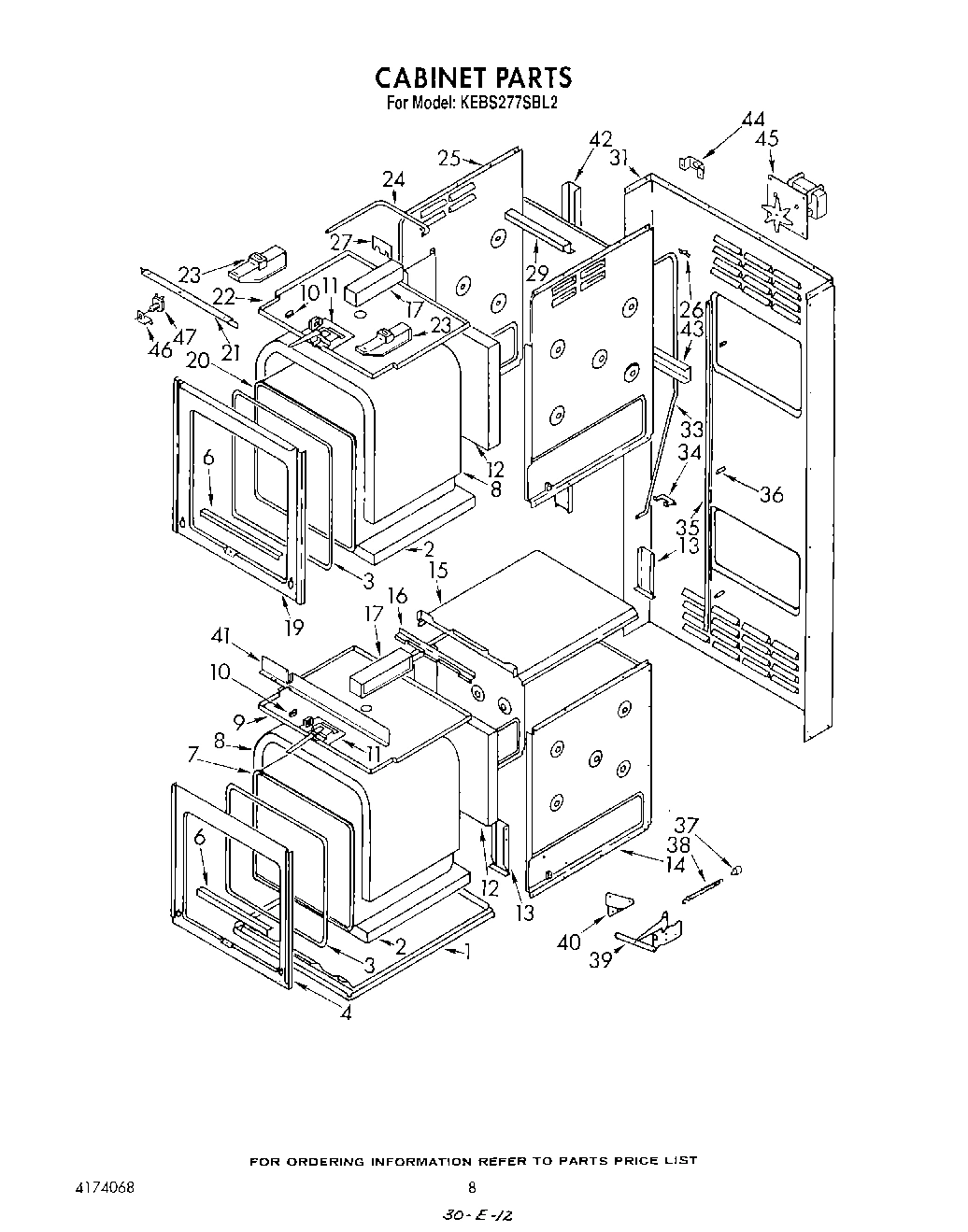

07 - CABINET
05 - LATCH
08 - LOWER OVEN LINER
09 - UPPER OVEN LINER
02 - CONTROL PANEL
04 - CONTROL COMPARTMENT AND CABINET
03 - CONTROL FRAME AND KNOB
10 - OVEN DOOR , LIT/OPTIONAL
Common parts from model Whirlpool KEBS277SWH2
Installation Instructions WPL LIT3177123 Contact Us For Availability
Installation Instructions, Trim Kit WPL LIT4174015 Contact Us For Availability
Use & Care Guide WPL LIT4174029 Contact Us For Availability
Repair Parts List WPL LIT4174068 Contact Us For Availability
1
Main Bottom WPL 4163966 Contact Us For Availability
1
Mounting Plate WPL 4168063 Contact Us For Availability
1
Oven Liner Lower Oven WPL 4163862 Contact Us For Availability
1
Oven Liner Upper Oven WPL 4173095 Contact Us For Availability
1
Sandwich Panel WPL 4173054 Contact Us For Availability
1
Retainer WPL 4167590 Contact Us For Availability
1
Door Frame (Black) WPL 4164391 Contact Us For Availability
1
Frame, Door (White) WPL 4173432 Contact Us For Availability
1
Frame, Door (Almond) WPL 4173433 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Selector Disc Lower Oven WPL 4173158 Contact Us For Availability
2
Bushing (2) Electrical WPL 4173043 Contact Us For Availability
2
Bezel, Oven Light WPL 4163831 Contact Us For Availability
2
Handle, Door (Black) WPL 4173018 Contact Us For Availability
2
Handle, Door (White) WPL 4173434 Contact Us For Availability
2
Handle, Door (Almond) WPL 4173435 Contact Us For Availability
3
Gasket, Door WPL 3178580 Contact Us For Availability
3
Support, Broiler Element (Right) WPL 4168217 Contact Us For Availability
3
Support, Broiler Element (Left) WPL 4168218 Contact Us For Availability
3
Thermostat Disc Upper Oven WPL 4173159 Contact Us For Availability
3
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
3
screw, No.8-32 x 3/8`` WPL 4159330 Contact Us For Availability
4
Front Frame, Lower Oven WPL 4173184 Contact Us For Availability
4
Latch Lever (Upper Oven) WPL 3177965 Contact Us For Availability
4
Latch Lever (Lower Oven) WPL 3177966 Contact Us For Availability
4
Element, Broil WPL 4164185 Contact Us For Availability
4
Broiler Element WPL 3178520 Contact Us For Availability
4
Selector Disc Upper Oven WPL 4173160 Contact Us For Availability
4
Hole Cover WPL 4168257 Contact Us For Availability
4
Glass, Door (Black) WPL 4164241 Contact Us For Availability
4
Glass, Door (White) WPL 4173430 Contact Us For Availability
4
Glass, Door (Almond) WPL 4173431 Contact Us For Availability
5
Nut (Left Hand) WPL 4173196 Contact Us For Availability
5
Solenoid Spacer WPL 4168292 Contact Us For Availability
5
Base, Lamp WPL 4173173 Contact Us For Availability
5
Clock Electronic WPL 4173071 Contact Us For Availability
5
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Cover, Seal End WPL 3177549 Contact Us For Availability
6
Solenoid WPL 4169323 Contact Us For Availability
6
Socket, Lamp WPL 4168755 Contact Us For Availability
6
Mounting Panel WPL 4173148 Contact Us For Availability
6
Transformer, Probe WPL 4166561 Contact Us For Availability
6
Baffle, Air WPL 4163857 Contact Us For Availability
7
Motor WPL 4173198 Contact Us For Availability
7
Oven Liner (See Parts Page For Breakdown) WPL ARI83597A5 Contact Us For Availability
7
Safety Switch (Lower Oven) WPL 3179691 Contact Us For Availability
7
Safety Switch (Upper Oven) WPL 4173007 Contact Us For Availability
7
Shield, Oven Light WPL 4167579 Contact Us For Availability
7
Lens, Lamp WPL 4173174 Contact Us For Availability
7
Relay, Meat Probe WPL 4163731 Contact Us For Availability
7
Retainer, Insulation WPL 4169357 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
8
Screw, (Rd. Hd.) 4-40 X 1 1/4 WPL 4173053 Contact Us For Availability
8
Light Lens WPL 4166866 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Indicator Light, Lower Oven WPL 4168597 Contact Us For Availability
8
Knob, Clock WPL 3177122 Contact Us For Availability
8
Bracket, Lock WPL 4163852 Contact Us For Availability
9
Bracket Guard WPL 4173185 Contact Us For Availability
9
Retainer, Lens WPL 4167938 Contact Us For Availability
9
Cover, Probe Jack WPL 4167266 Contact Us For Availability
9
Selector Switch Upper Oven WPL 3178514 Contact Us For Availability
9
Terminal Block, Power Supply WPL 4168295 Contact Us For Availability
9
Knob, Clock (2) WPL 3177121 Contact Us For Availability
9
Window Package WPL 4164235 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Knob, Latch Lever WPL 4163821 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Gasket, Light Lens WPL 4166868 Contact Us For Availability
10
Washer WPL 4173438 Contact Us For Availability
10
Thermostat, Upper Oven WPL 4164361 Contact Us For Availability
10
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
10
Vent Insert (Black) WPL 3178516 Contact Us For Availability
10
Vent Insert (Almond - White) WPL 3178980 Contact Us For Availability
10
Insulation WPL 4163987 Contact Us For Availability
11
Latch Assembly (See Page For Further Breakdow WPL ARI83598A6 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Nut, Hex Jam (2) WPL 4159113 Contact Us For Availability
11
Thermostat, Lower Oven WPL 4164362 Contact Us For Availability
11
Cabinet Top WPL 4173276 Contact Us For Availability
11
White WPL 3178571 Contact Us For Availability
11
Almond WPL 3178572 Contact Us For Availability
11
Control Frame (Black) WPL 4164363 Contact Us For Availability
11
Control Frame WPL 4168624 Contact Us For Availability
11
Door Liner WPL 4164237 Contact Us For Availability
12
Insulation, Rear WPL 4164192 Contact Us For Availability
12
Latch Switch With Roller WPL 4168514 Contact Us For Availability
12
Oven Rack (2) WPL 4168401 Contact Us For Availability
12
Meat Probe Jack WPL 4173189 Contact Us For Availability
12
Selector Switch, Lower Oven WPL 3178515 Contact Us For Availability
12
Insert, Top (Black) WPL 4173163 Contact Us For Availability
12
Insert, Top (White) WPL 4173436 Contact Us For Availability
12
Insert, Top (Almond) WPL 4173437 Contact Us For Availability
12
Bracket, Glass Mounting WPL 4164234 Contact Us For Availability
13
Rear Anchor WPL 4167526 Contact Us For Availability
13
Latch Switch WPL 4164366 Contact Us For Availability
13
Bulb Clip, (2) Thermostat WPL 4173275 Contact Us For Availability
13
Meat Probe Indicator Assy. WPL 4173153 Contact Us For Availability
13
Bushing, Flexible WPL 4173165 Contact Us For Availability
13
Glass, Control Panel (Almond) WPL 3179614 Contact Us For Availability
13
Glass, Control Panel (White) WPL 3179615 Contact Us For Availability
13
Glass, Control Panel (Black) WPL 4173162 Contact Us For Availability
13
Panel, Glass WPL 4164243 Contact Us For Availability
14
Cabinet Side (Lower Oven) WPL 4173080 Contact Us For Availability
14
Locknut (4) WPL 4159117 Contact Us For Availability
14
Oven Rack WPL 3178639 Contact Us For Availability
14
Panel, Blower Mounting WPL 4173166 Contact Us For Availability
14
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
15
Support, Upper Oven WPL 4164295 Contact Us For Availability
15
Vent Tube WPL 3178496 Contact Us For Availability
15
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
15
Blower Assembly WPL 4173004 Contact Us For Availability
15
Knob, (2) Retained Heat WPL 4168571 Contact Us For Availability
15
Screw No.8 x 3/8 WPL 4168863 Contact Us For Availability
16
Support, Front Frame WPL 4168266 Contact Us For Availability
17
Collector Box WPL 4168681 Contact Us For Availability
17
Latch Switch (2) WPL 4168517 Contact Us For Availability
17
Vent Tube WPL 4168126 Contact Us For Availability
17
Switch, Auxiliary Fan WPL 4173008 Contact Us For Availability
18
Insulator (2) WPL 4168522 Contact Us For Availability
18
Capillary Cover WPL 4168203 Contact Us For Availability
19
Front Frame (Upper Oven) WPL 4164204 Contact Us For Availability
19
Smoke Eliminator WPL 4168492 Contact Us For Availability
19
Clean Indicator Light, Upper Oven WPL 4163869 Contact Us For Availability
20
Oven Liners (See Parts Page for Further Break WPL ARI83599A3 Contact Us For Availability
20
Shoulder Screw, Latch Lever (2) WPL 4168579 Contact Us For Availability
20
Element, Convection WPL 3178517 Contact Us For Availability
21
Support Control Frame WPL 4169336 Contact Us For Availability
21
Cover, Fan WPL 3178519 Contact Us For Availability
21
Back Light Housing WPL 4173150 Contact Us For Availability
22
Compartment Top (Upper Oven) WPL 4169314 Contact Us For Availability
22
Oven Rack, Offset WPL 3178638 Contact Us For Availability
22
Gasket, Meat Probe Jack WPL 4163975 Contact Us For Availability
22
Meat Probe WPL 4167267 Contact Us For Availability
22
Switch, (2) Retained Heat WPL 4168533 Contact Us For Availability
22
Wiring Harness High Temp WPL 4173156 Contact Us For Availability
22
Wiring Harness Low Temp WPL 4173157 Contact Us For Availability
23
Vent Box WPL 4163941 Contact Us For Availability
23
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
24
Vent Tube WPL 4168494 Contact Us For Availability
24
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
25
Cabinet Side, Upper Oven WPL 4173176 Contact Us For Availability
25
Actuator Arm WPL 4168058 Contact Us For Availability
26
Clamp, Conduit WPL 4167593 Contact Us For Availability
26
Retaining Ring WPL 4159160 Contact Us For Availability
27
Mounting Bracket Vent Tube WPL 4168242 Contact Us For Availability
27
Washer, Flat WPL 4159603 Contact Us For Availability
28
Nut, Hex Kep 10-24 WPL 4159109 Contact Us For Availability
29
Channel, Air Baffle WPL 4173061 Contact Us For Availability
29
Screw, 10-24 X 3/8 WPL 4159287 Contact Us For Availability
30
Bracket, Harness WPL 4173168 Contact Us For Availability
31
Cabinet Back WPL 4173060 Contact Us For Availability
32
Harness, Lower Latch WPL 3178524 Contact Us For Availability
32
Harness, Upper Latch WPL 4173169 Contact Us For Availability
32
Mounting Bracket, Safety Switch WPL 4173170 Contact Us For Availability
32
Insulator Sleeve, Safety Switch WPL 4178555 Contact Us For Availability
34
Retainer, Vent Tube WPL 4168140 Contact Us For Availability
35
Cabinet Support WPL 4159122 Contact Us For Availability
35
Right Side WPL 4163763 Contact Us For Availability
35
Left Side WPL 4163764 Contact Us For Availability
36
Spacer WPL 4168590 Contact Us For Availability
37
Anchor, Spring WPL 4167599 Contact Us For Availability
38
Door Spring WPL 4173048 Contact Us For Availability
39
Hinge Assembly WPL 4167596 Contact Us For Availability
40
Cam Plate WPL 11 Contact Us For Availability
40
Right WPL 4167597 Contact Us For Availability
40
Left WPL 4167598 Contact Us For Availability
41
Air Baffle WPL 4173171 Contact Us For Availability
42
Support Bracket WPL 4173177 Contact Us For Availability
43
Bracket, Support WPL 4173178 Contact Us For Availability
44
Retainer, Insulation WPL 4173179 Contact Us For Availability
45
Convection Fan Assy. (See Page For Further Br WPL ARI83600A9 Contact Us For Availability
46
Bracket, Oven Light Switch WPL 4173182 Contact Us For Availability
47
Cover, Plate WPL 3179688 Contact Us For Availability
47
Screw, Latch Knob WPL 4159201 Contact Us For Availability
47
Air Duct, Left Upper Oven WPL 4163752 Contact Us For Availability
47
Air Duct, Right Upper Oven WPL 4163753 Contact Us For Availability
47
Air Duct, Left Lower Oven Air Duct Extension WPL 4163754 Contact Us For Availability
47
WPL 4163755 WPL 4163755 Contact Us For Availability
47
WPL 4163883 WPL 4163883 Contact Us For Availability
47
WPL 4167332 WPL 4167332 Contact Us For Availability
47
WPL 4173016 WPL 4173016 Contact Us For Availability
47
WPL 4173017 WPL 4173017 Contact Us For Availability
47
WPL 4173028 WPL 4173028 Contact Us For Availability
47
WPL 4173029 WPL 4173029 Contact Us For Availability
47
WPL 4173030 WPL 4173030 Contact Us For Availability
47
WPL 4173031 WPL 4173031 Contact Us For Availability
× ![]()
