Model Whirlpool KEBS276YWH0 – Common Parts & Diagrams

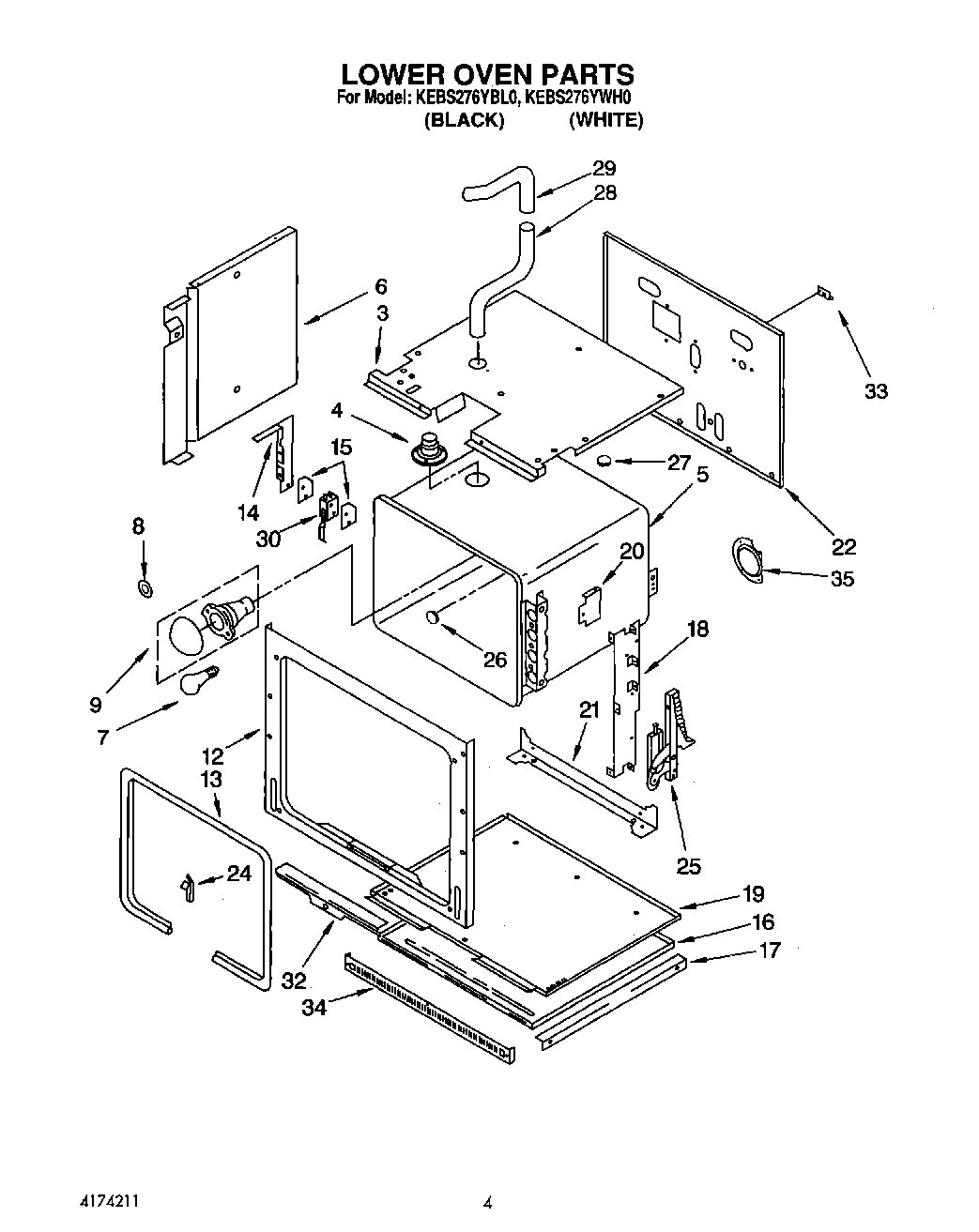

02 - LOWER OVEN

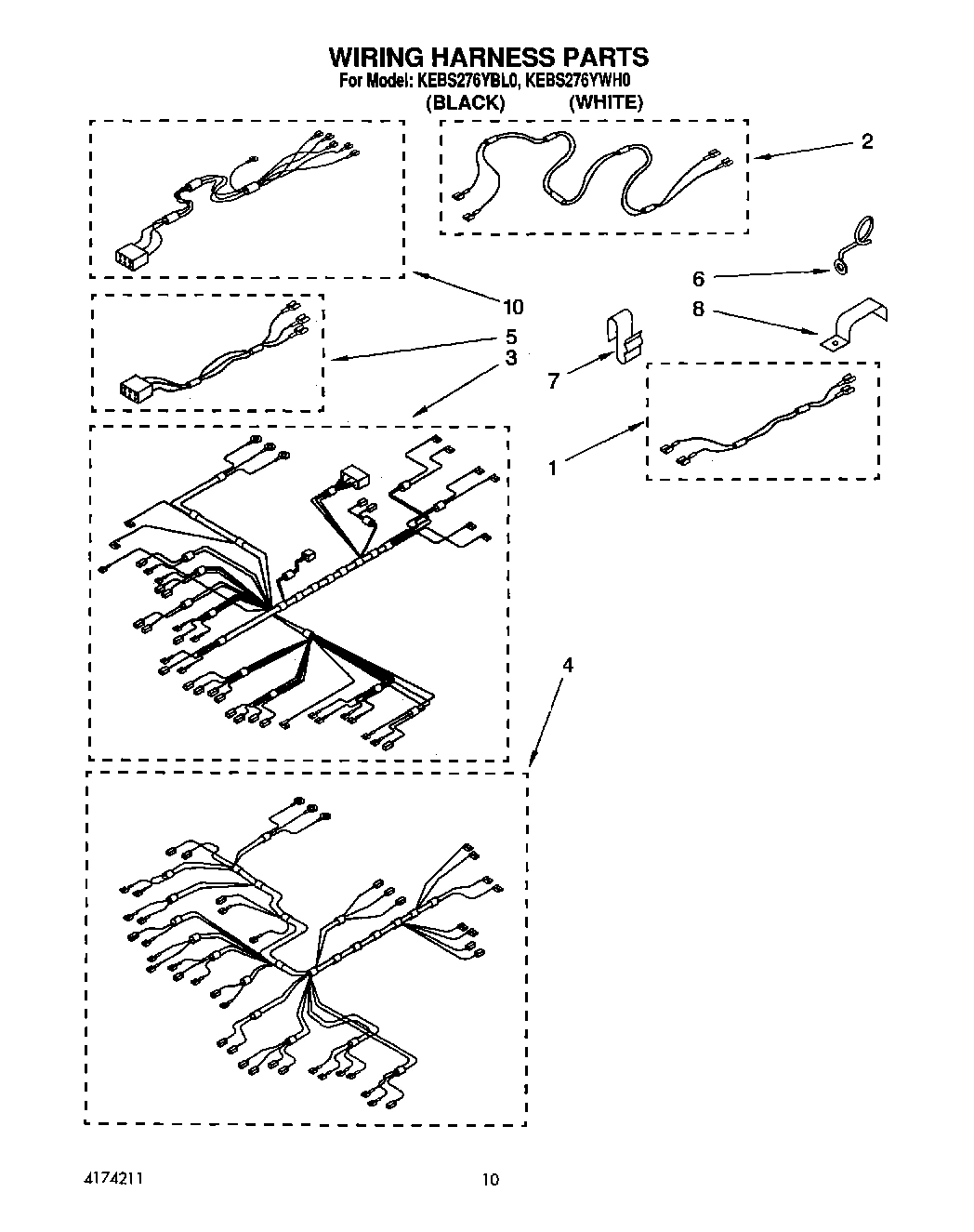

07 - WIRING HARNESS

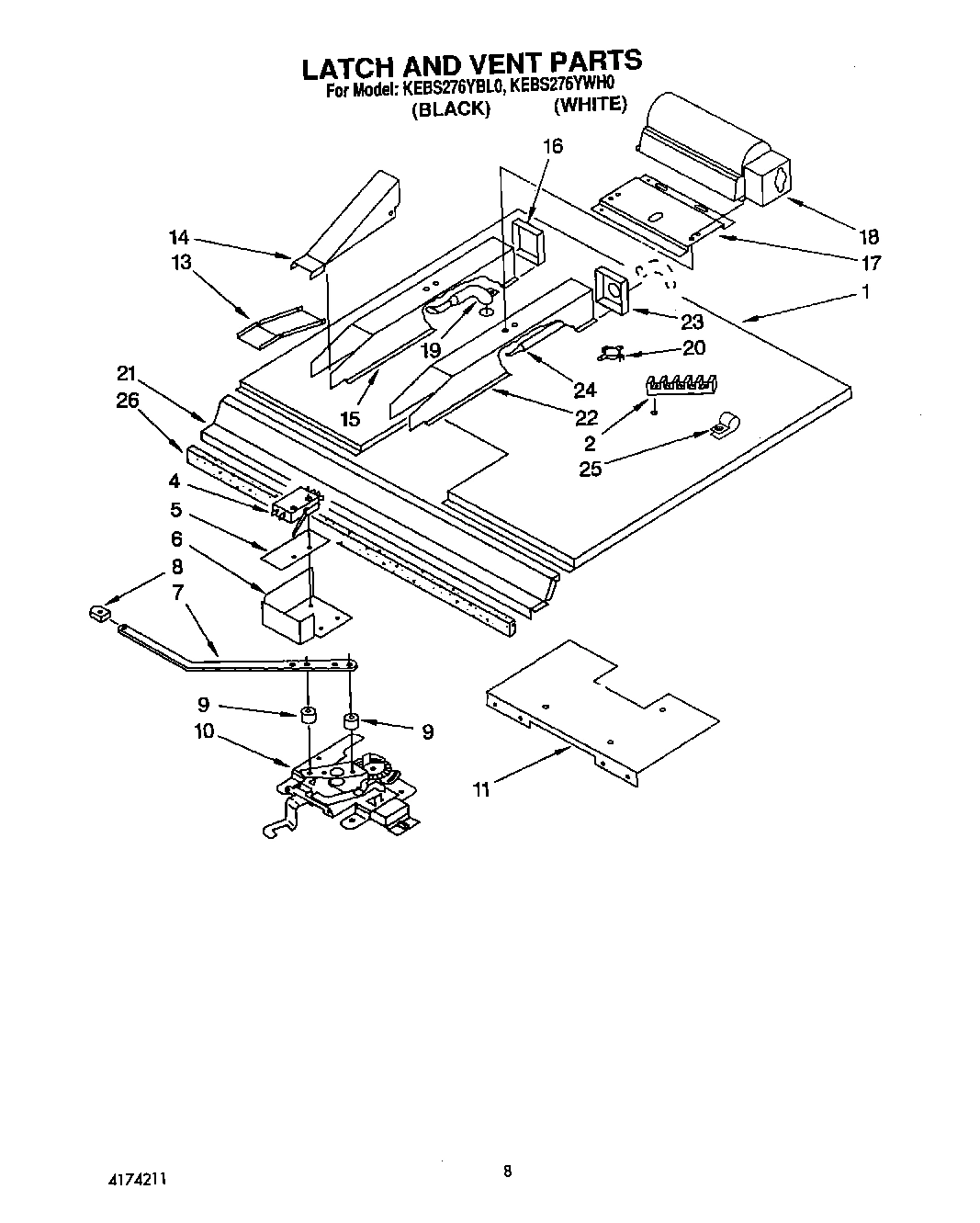

05 - LATCH AND VENT

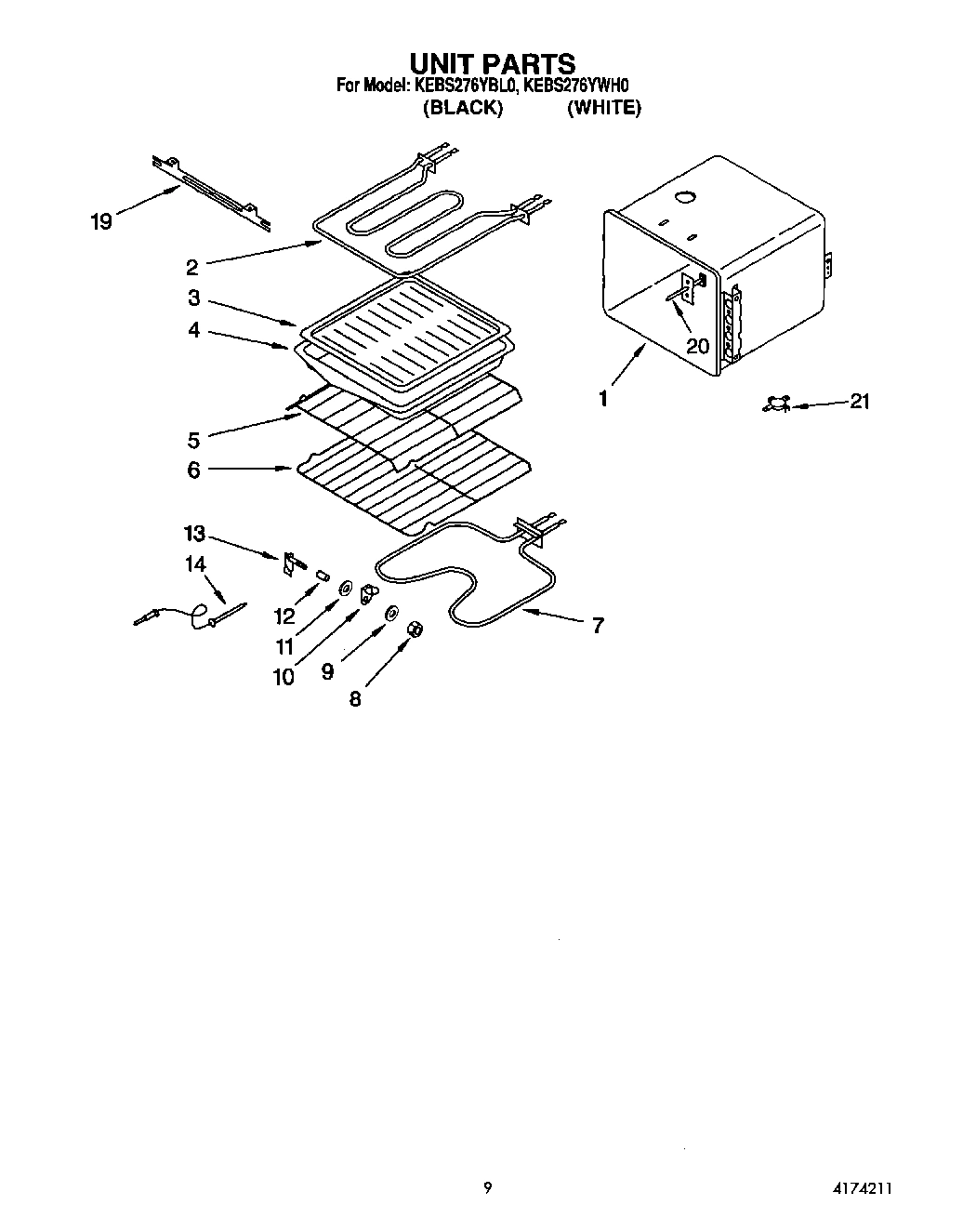

06 - UNIT

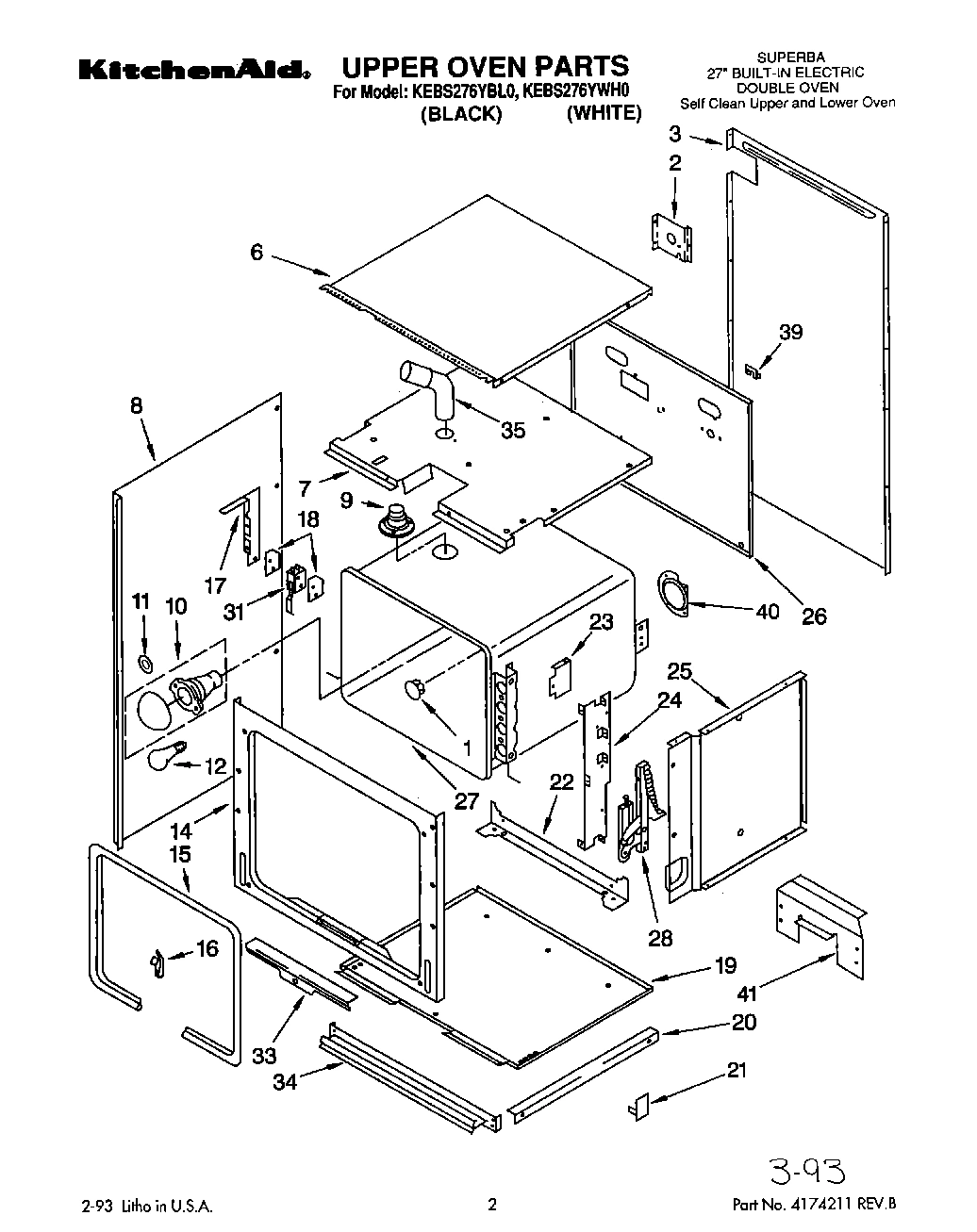

01 - UPPER OVEN, OPTIONAL

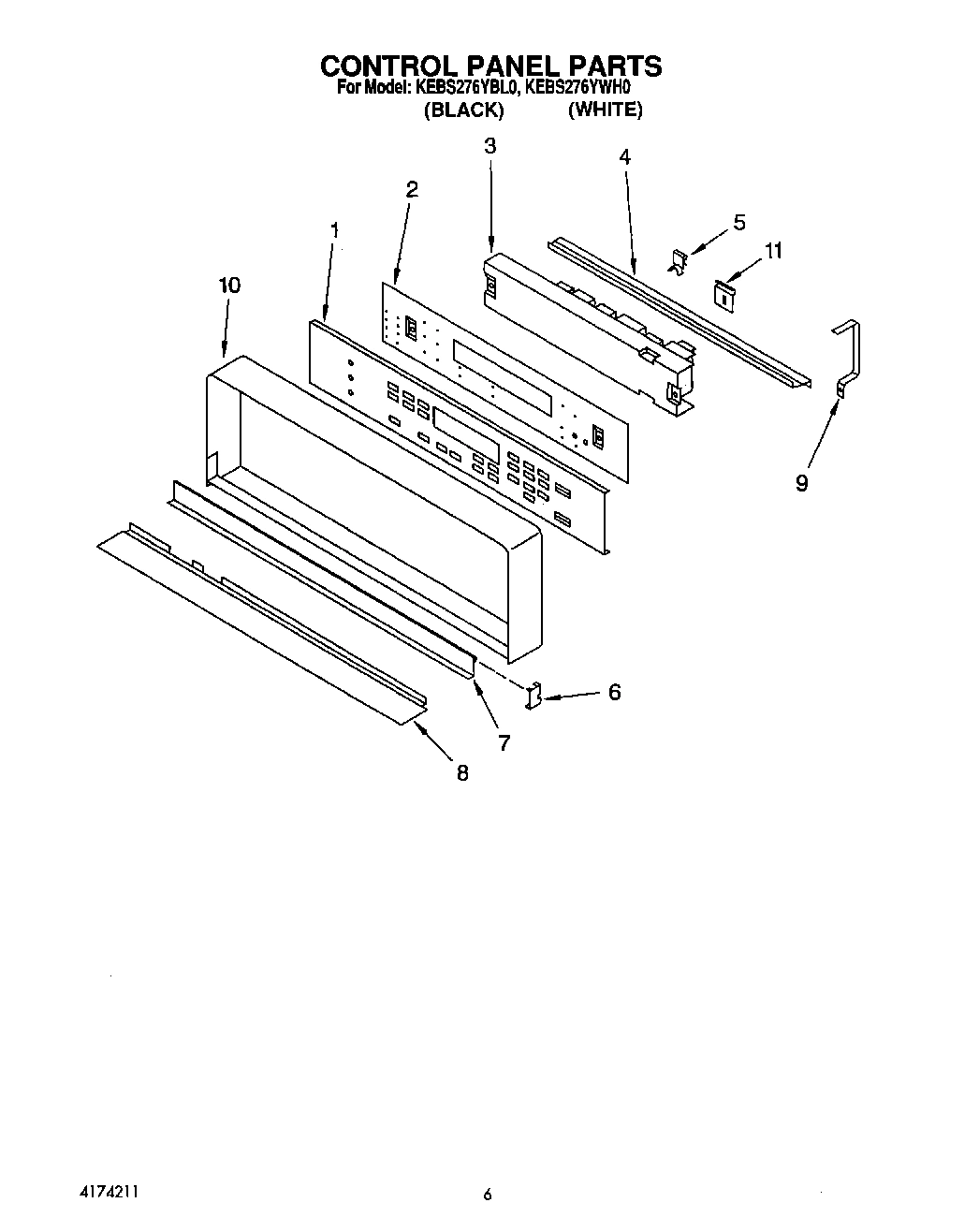

03 - CONTROL PANEL, LIT/OPTIONAL

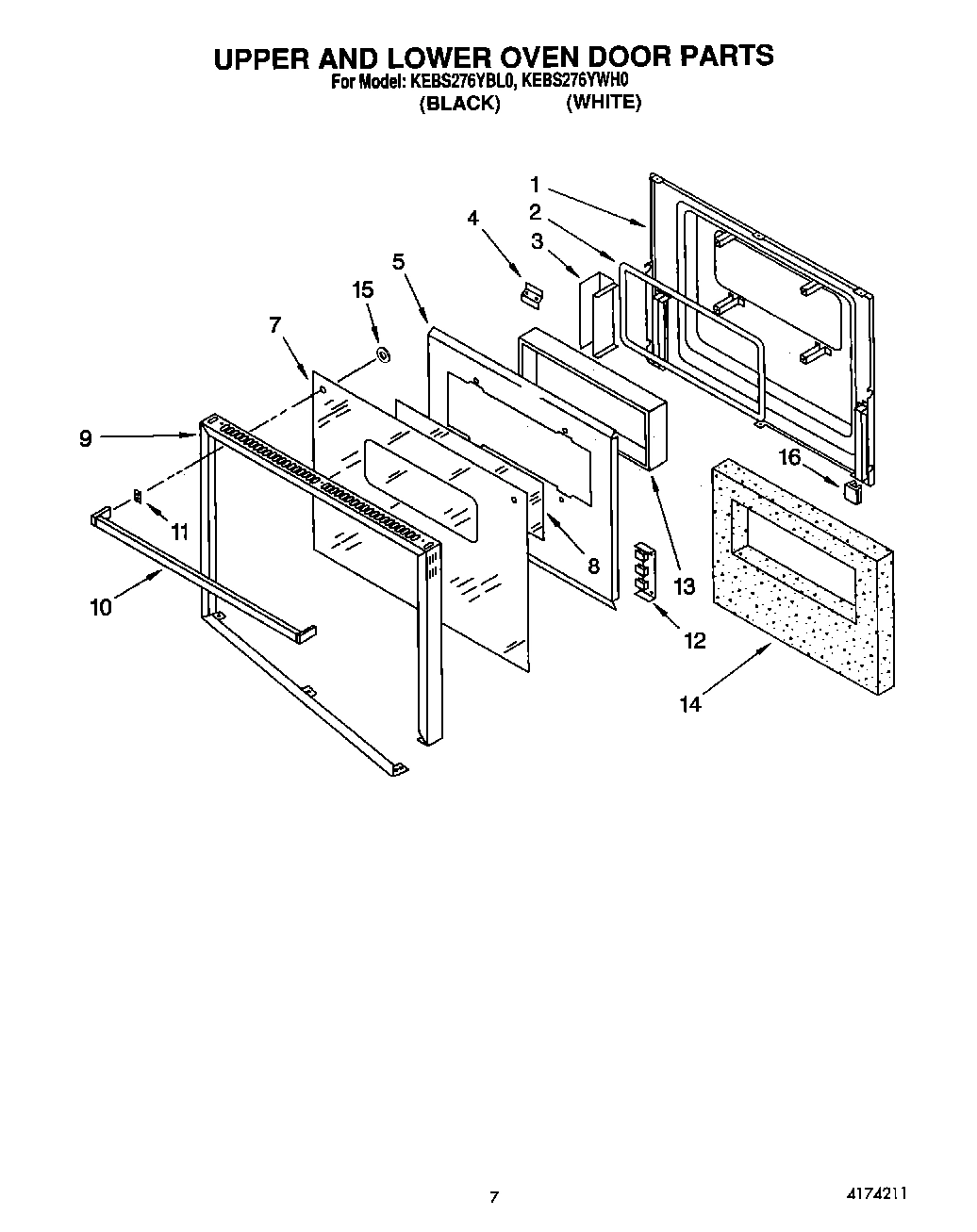

04 - UPPER AND LOWER OVEN DOOR
Common parts from model Whirlpool KEBS276YWH0
Tech Sheet Instructions WPL LIT3182133 Contact Us For Availability
Use & Care Guide WPL LIT3182136 Contact Us For Availability
Installation Instructions WPL LIT3183659 Contact Us For Availability
Repair Parts List WPL LIT4174211 Contact Us For Availability
1
Button, Plug WPL 3185085 Contact Us For Availability
1
Harness Wire (Door Switch Upper) WPL 3183655 Contact Us For Availability
1
Screw (6) WPL 4168863 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3181779 Contact Us For Availability
1
Membrane, Switch (White) WPL 3184778 Contact Us For Availability
1
Liner, Door WPL 3177599 Contact Us For Availability
1
Screw, Black (2) WPL 3178001 Contact Us For Availability
2
Harness Wire (Door Switch Lower) WPL 3183656 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
2
Element, Broil WPL 661415 Contact Us For Availability
2
Bracket, Mounting WPL 3177545 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3181889 Contact Us For Availability
2
Gasket, Window WPL 3178584 Contact Us For Availability
3
Harness Wire (Lower Oven) WPL 3183359 Contact Us For Availability
3
Screw WPL 3179117 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Microcomputer WPL 3181706 Contact Us For Availability
3
Spacer, Window WPL 3179693 Contact Us For Availability
4
Harness Wire (Upper Oven) WPL 3182193 Contact Us For Availability
4
Screw WPL 3179950 Contact Us For Availability
4
Switch, latch WPL 3183784 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Latch, Strike WPL 3177831 Contact Us For Availability
5
Screw WPL 3148443 Contact Us For Availability
5
Harness, Wire Latch Assy. (Upper) WPL 3183976 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Rack, Offset (Black Model) WPL 3180865 Contact Us For Availability
5
Rack, Offset (White Model) WPL 3185307 Contact Us For Availability
5
Clip, Retainer WPL 3182985 Contact Us For Availability
5
Insulation, Retainer WPL 3177718 Contact Us For Availability
6
Standoff, Wire WPL 3179668 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Rack, Oven (Black Model) WPL 3180864 Contact Us For Availability
6
Rack, Oven (White Model) WPL 3185308 Contact Us For Availability
6
Cabinet, Top WPL 3178138 Contact Us For Availability
6
Trim, Door (2) WPL 3182162 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Handle, Latch WPL 3181963 Contact Us For Availability
7
Door, Latch Handle (Screw) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182151 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182154 Contact Us For Availability
7
Glass, Door (Black) WPL 3181548 Contact Us For Availability
7
Glass, Door (White) WPL 3181550 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Nut, Meat Probe WPL 4167277 Contact Us For Availability
8
Side, Cabinet (Right Hand) WPL 3177438 Contact Us For Availability
8
Side, Cabinet (Left Hand) WPL 3177440 Contact Us For Availability
8
Trim, Panel WPL 3183702 Contact Us For Availability
8
Glass, Reflective WPL 4164243 Contact Us For Availability
9
Screw WPL 3184037 Contact Us For Availability
9
Spacer, Latch Handle WPL 3184040 Contact Us For Availability
9
Gasket, Meat Probe WPL 4163975 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Screw WPL 3182939 Contact Us For Availability
9
Bracket WPL 3184321 Contact Us For Availability
9
Frame, Door WPL 3181402 Contact Us For Availability
10
Harness, Wire Latch Assy. (Lower) WPL 3183361 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Probe Cover WPL 4167266 Contact Us For Availability
10
Frame, Control Panel WPL 3182148 Contact Us For Availability
10
Handle, Door (Screw (2)) WPL 3181637 Contact Us For Availability
10
Handle, Door (Black) WPL 3182165 Contact Us For Availability
10
Handle, Door (White) WPL 3182168 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Washer WPL 4159557 Contact Us For Availability
11
Clip, Control Frame WPL 3184567 Contact Us For Availability
11
Spacer (2) WPL 3182138 Contact Us For Availability
12
Spacer - Tubing WPL 3179672 Contact Us For Availability
12
Bracket, Glass Mounting WPL 4163855 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Meat Probe Jack WPL 4173575 Contact Us For Availability
13
Window Package WPL 4164235 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
14
Frame, Front WPL 3177682 Contact Us For Availability
14
Insulation, Door WPL 3180094 Contact Us For Availability
15
Box, Vent WPL 3183999 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Bushing, Door Handle WPL 3181651 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Bracket, Mounting WPL 3183533 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Bracket, Element WPL 3180694 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Sensor, Heat WPL 3148440 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Shield, Heat WPL 3183785 Contact Us For Availability
21
SPST Thermostat WPL 3149652 Contact Us For Availability
21
Insert, Middle Vent Trim WPL 3181733 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
22
Box, Vent WPL 3183953 Contact Us For Availability
23
End, Box Vent WPL 3183965 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Tube, Vent WPL 3183793 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
25
Clamp, Tube WPL 3183532 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
26
Button, Plug WPL 3185109 Contact Us For Availability
26
Seal, foam WPL 313755 Contact Us For Availability
27
Liner, Oven (Black Model) WPL 3177471 Contact Us For Availability
27
Liner, Oven (White Model) WPL 3177493 Contact Us For Availability
28
Screw (4) WPL 3178000 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tube, Vent Male WPL 3182159 Contact Us For Availability
29
Tube, Vent Female WPL 3182160 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
33
Screw (4) WPL 3179776 Contact Us For Availability
34
Trim, Lower Vent (Black) WPL 3177787 Contact Us For Availability
34
Trim, Lower Vent (White) WPL 3177789 Contact Us For Availability
34
Vent, Middle Trim (Screw (6)) WPL 3180022 Contact Us For Availability
34
Vent, Middle Trim (Black) WPL 3181965 Contact Us For Availability
34
Vent, Middle Trim (White) WPL 3181968 Contact Us For Availability
35
Vent, Tube WPL 3183791 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Plate, Cover WPL 4163883 Contact Us For Availability
40
Screw WPL 4168874 Contact Us For Availability
41
WPL 3177862 WPL 3177862 Contact Us For Availability
41
WPL 3177872 WPL 3177872 Contact Us For Availability
41
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
41
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
41
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
41
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
41
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
41
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
41
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
41
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
41
Wire WPL 242828 Contact Us For Availability
41
WPL 242829 WPL 242829 Contact Us For Availability
41
WPL 242830 WPL 242830 Contact Us For Availability
41
WPL 242832 WPL 242832 Contact Us For Availability
41
WPL 261890 WPL 261890 Contact Us For Availability
41
WPL 261891 WPL 261891 Contact Us For Availability
41
WPL 285365 WPL 285365 Contact Us For Availability
41
WPL 285366 WPL 285366 Contact Us For Availability
41
WPL 285367 WPL 285367 Contact Us For Availability
41
WPL 285368 WPL 285368 Contact Us For Availability
41
WPL 3183752 WPL 3183752 Contact Us For Availability
41
WPL 350806 WPL 350806 Contact Us For Availability
41
WPL 350941 WPL 350941 Contact Us For Availability
41
WPL 591014 WPL 591014 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799832 WPL 799832 Contact Us For Availability
41
WPL 832985 WPL 832985 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
